Model GE JTD915CK1CC – Common Parts & Diagrams

Common parts from model GE JTD915CK1CC

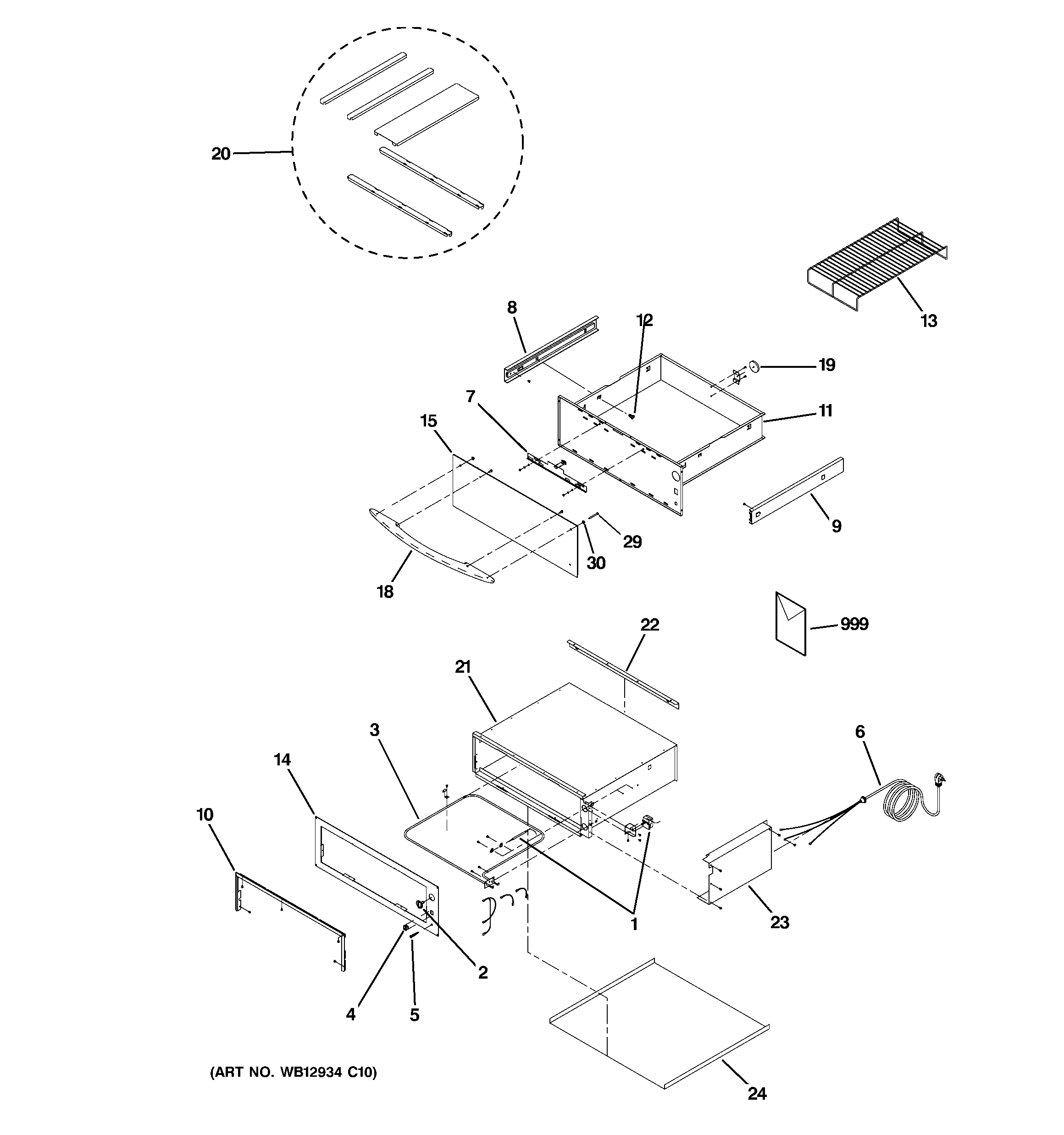

WARMING DRAWER

Print

• This Diagram
• All Diagrams

1

THERMOSTAT SERVICE ASS'Y GEN WB20X10011 Contact Us For Availability

View on Model

4

GEN WB24X10036 Contact Us For Availability

View on Model

7

VENT SLIDE KNOB ASS'Y GEN WB03X10061 Contact Us For Availability

View on Model

8

GEN WB39X10014 Contact Us For Availability

View on Model

9

GEN WB39X10015 Contact Us For Availability

View on Model

10

GASKET SEAL ASS'Y 30" GEN WB02X10946 Contact Us For Availability

View on Model

11

WB58X10018 GE Oven Unitized Pan Weldment 30" Backorder GEN WB58X10018 View Details $394.56

View on Model

12

WB01X10324 GE Oven Screw 10-24X3/16" Button Backorder GEN WB01X10324 View Details $8.42

View on Model

13

WIRE RACK GEN WB48X10010 Contact Us For Availability

View on Model

14

FACE PANEL 30" SERV ASS' GEN WB56X10119 Contact Us For Availability

View on Model

15

DRAWER FRONT BISQUE 30" GEN WB55X10651 Contact Us For Availability

View on Model

18

HANDLE PROFILE 30" (BQT) GEN WB15T10068 Contact Us For Availability

View on Model

19

WB02X10592 GE Magnet Closed Detent Backorder GEN WB02X10592 View Details $190.61

View on Model

20

WB64X10032 GE Oven 30" Rail Service Kit Assem Backorder GEN WB64X10032 View Details $236.54

View on Model

21

GEN WB63X10045 Contact Us For Availability

View on Model

22

GEN WB02X11006 Contact Us For Availability

View on Model

23

GEN WB02X11007 Contact Us For Availability

View on Model

24

GEN WB02X11008 Contact Us For Availability

View on Model

29

WB01X10288 GE Bolthex Head 1/4"28 3/4 Backorder GEN WB01X10288 View Details $4.76

View on Model

30

GEN WB01X10289 Contact Us For Availability

View on Model

999

GEN 49-80300 Contact Us For Availability

View on Model

×
