Model Maytag JSC24C8EAM01 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS
03 - REFRIGERATOR LINER PARTS

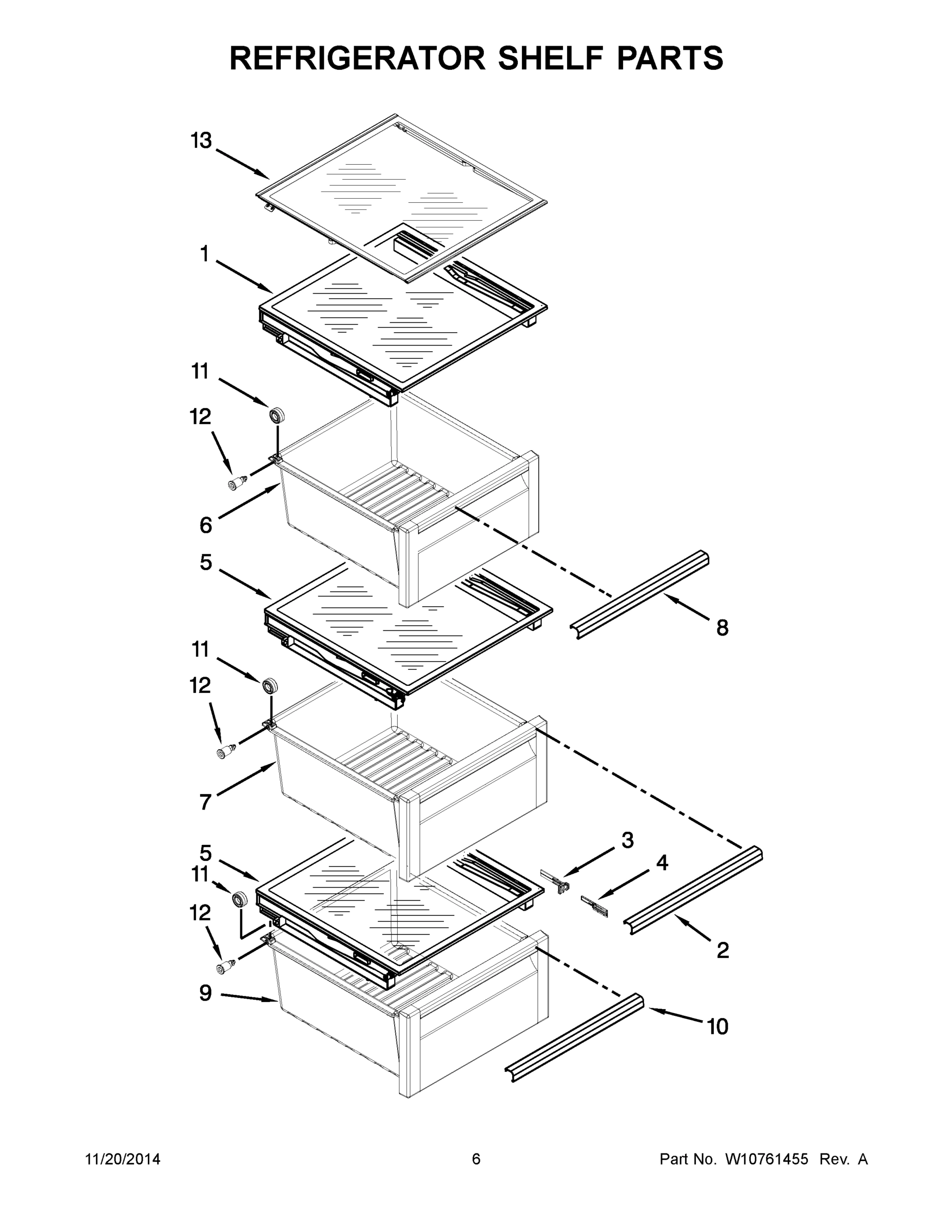

04 - REFRIGERATOR SHELF PARTS

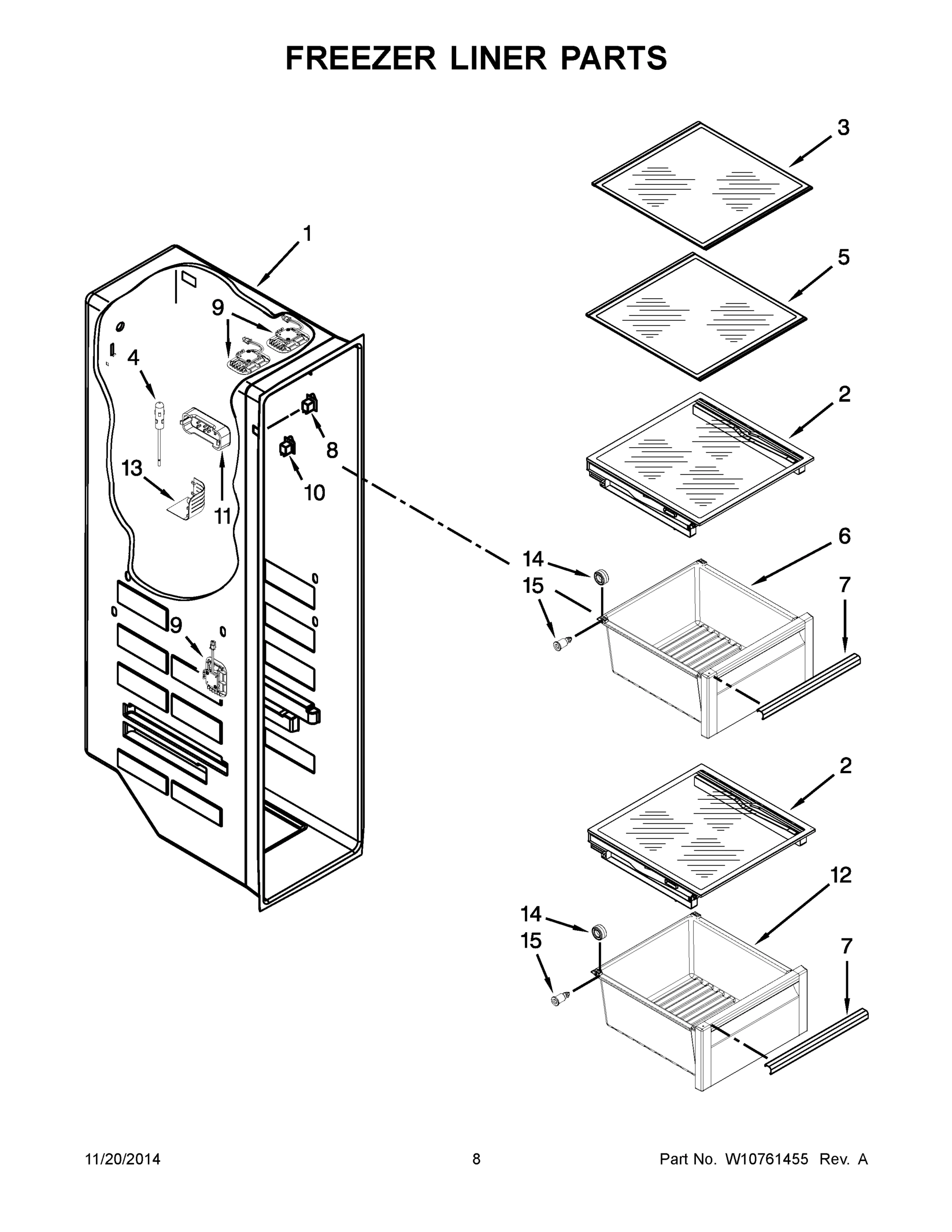

05 - FREEZER LINER PARTS

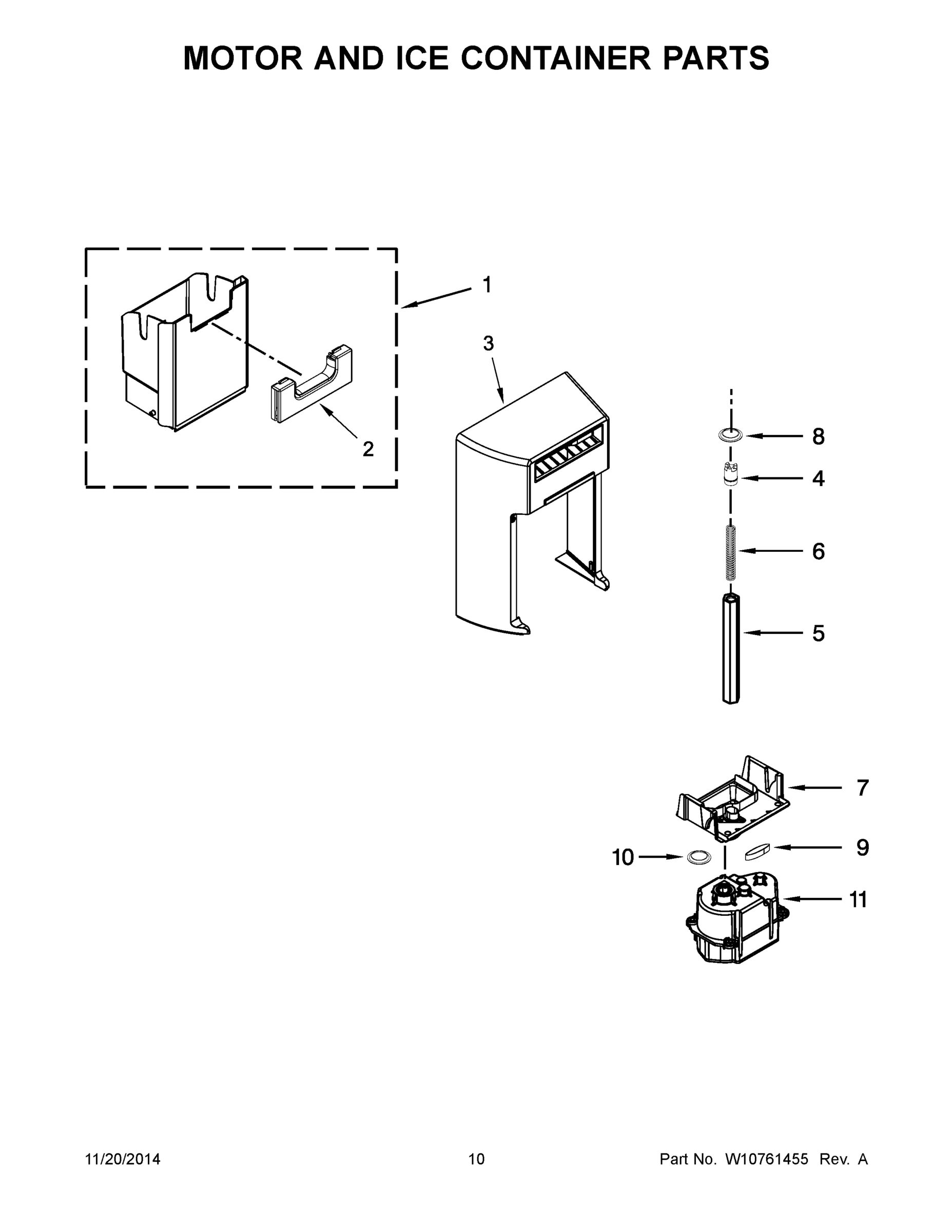

06 - MOTOR AND ICE CONTAINER PARTS

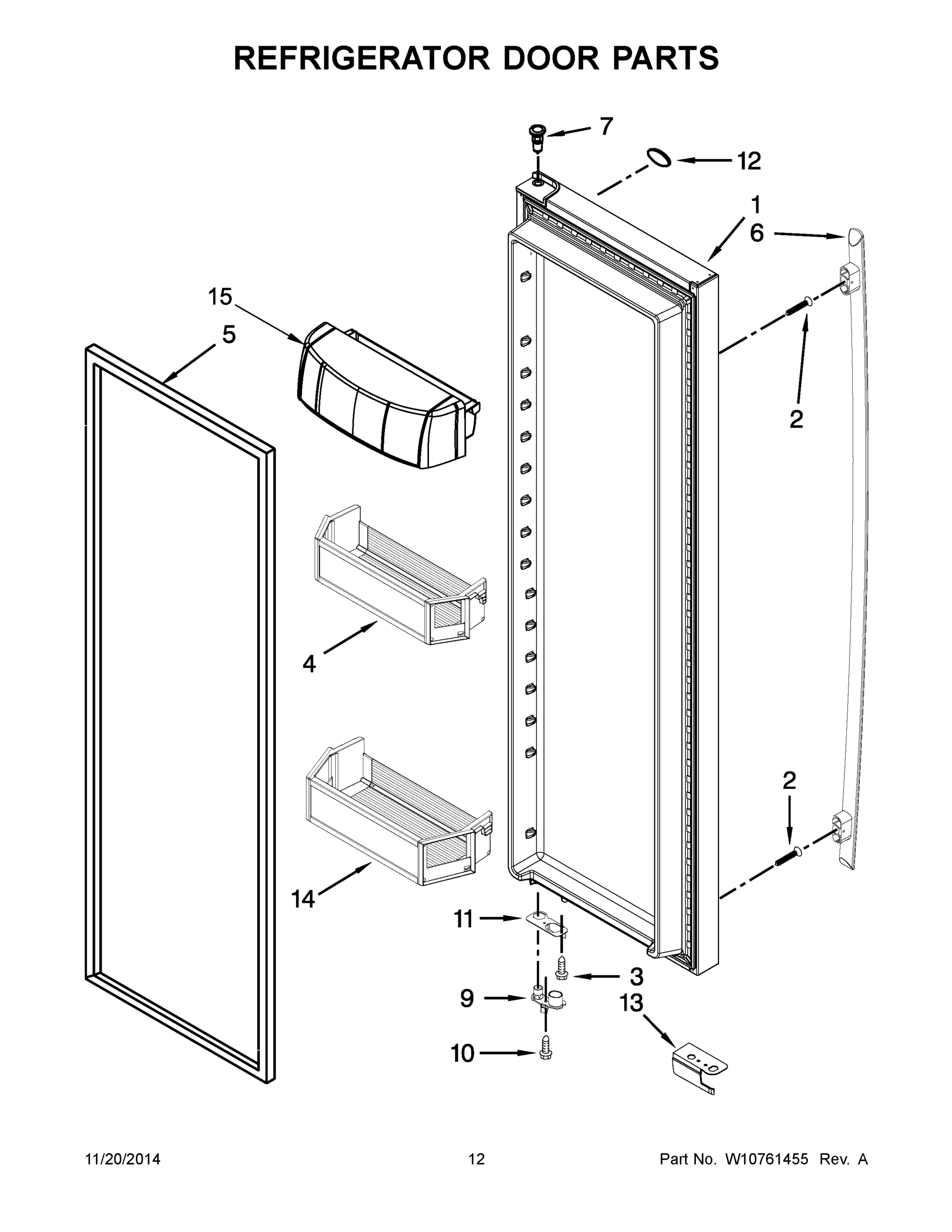

07 - REFRIGERATOR DOOR PARTS

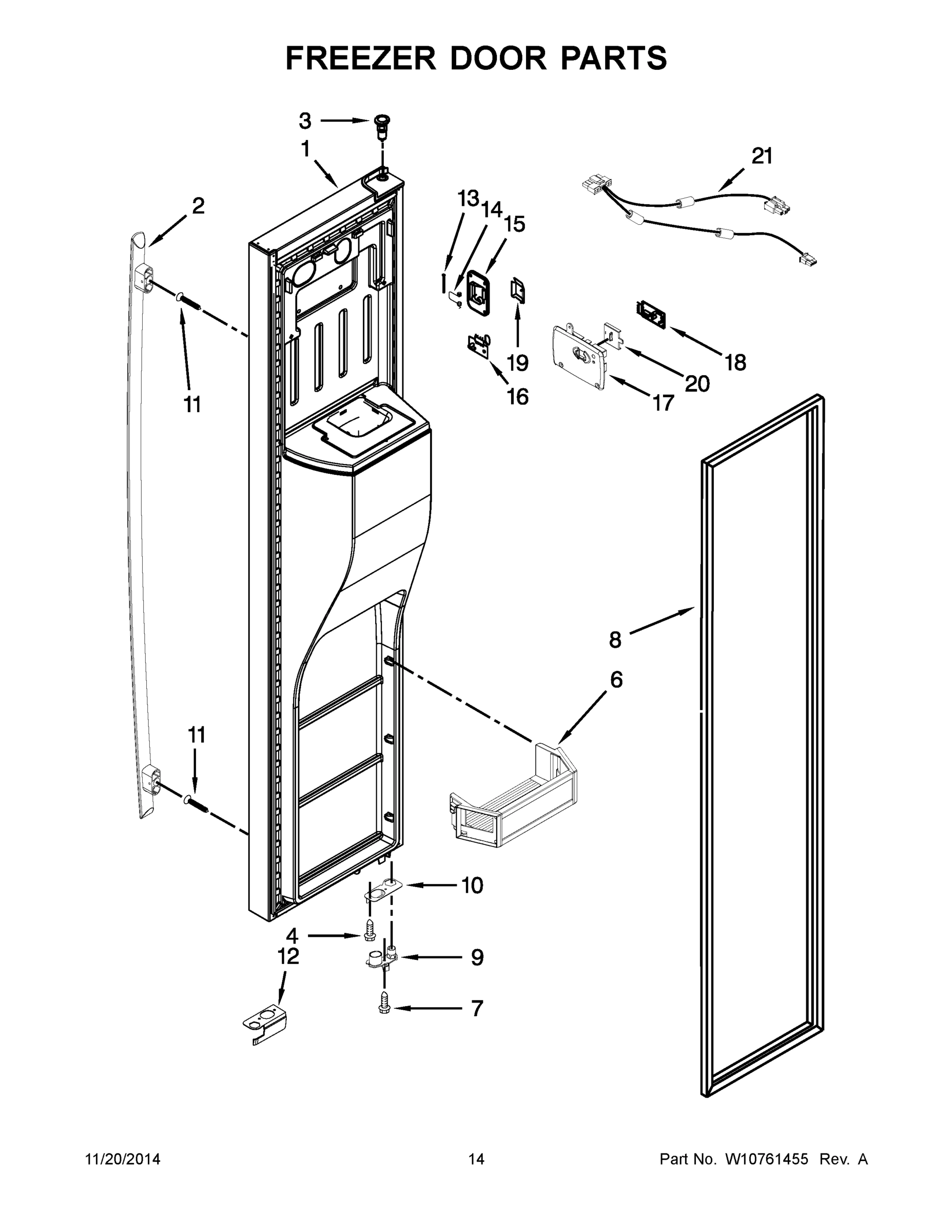

08 - FREEZER DOOR PARTS
09 - DISPENSER PARTS
10 - AIR FLOW PARTS

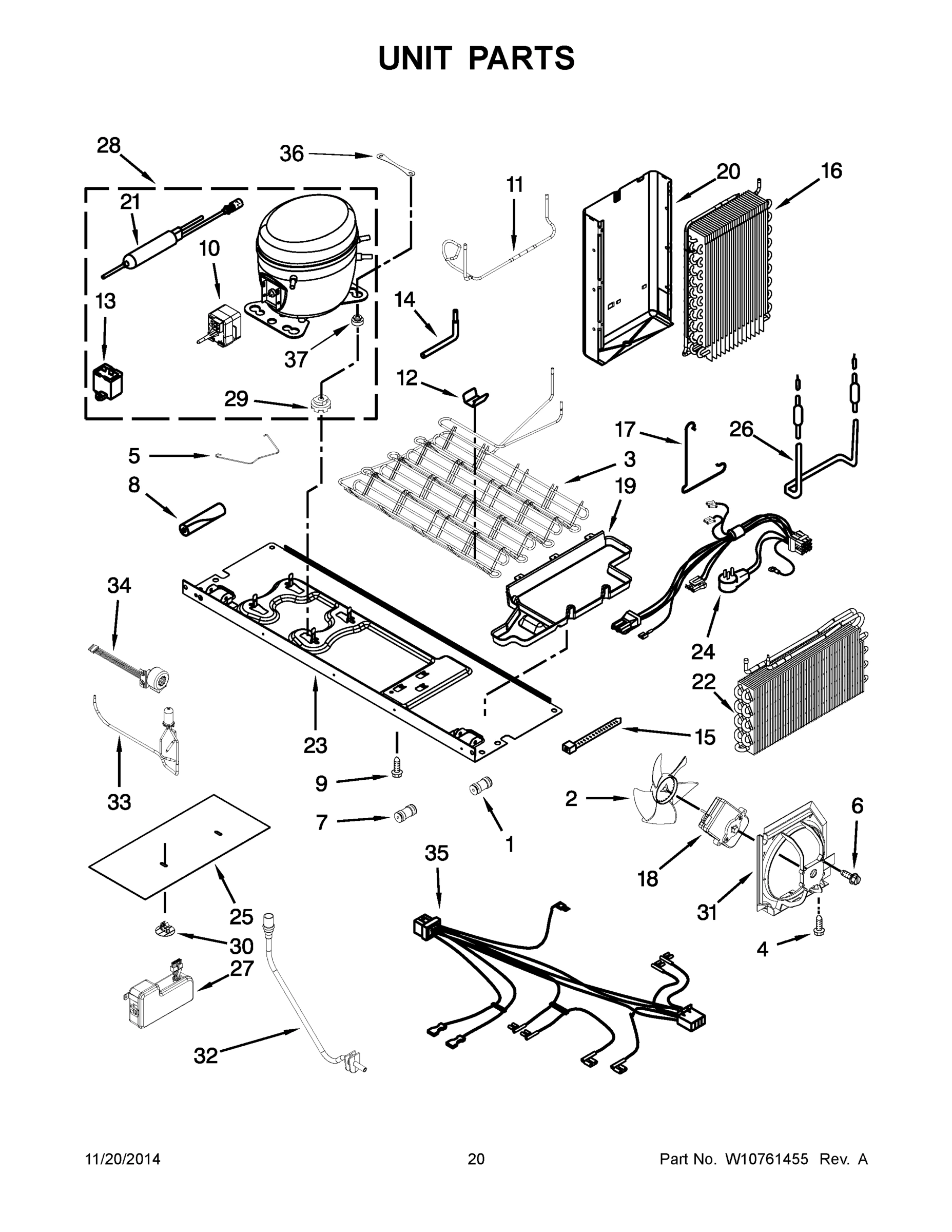

11 - UNIT PARTS

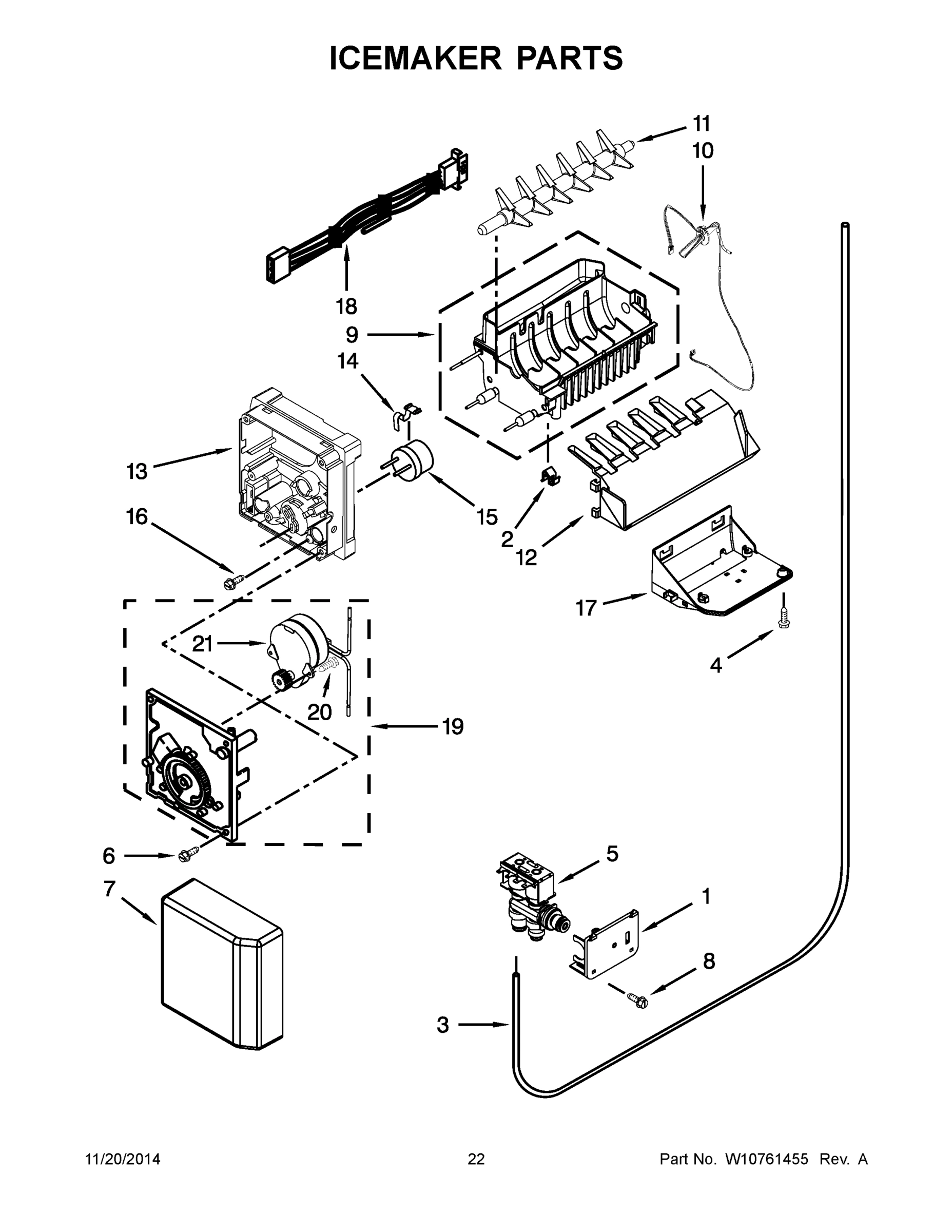

12 - ICEMAKER PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JSC24C8EAM01 REFRIGERATOR
1
MAY W10487490 MAY W10487490 Contact Us For Availability
1
SHELF, SNACK PAN MAY W10444456 Contact Us For Availability
1
MAY W10450624 MAY W10450624 Contact Us For Availability
1
MAY W10637806 MAY W10637806 Contact Us For Availability
1
MAY W10637850 MAY W10637850 Contact Us For Availability
1
MAY W10251462 MAY W10251462 Contact Us For Availability
1
CONNECTOR, WATER MAY W10277958 Contact Us For Availability
1
BRACKET, WATER VALVE MAY W10237915 Contact Us For Availability
1A
MAY W10465933 MAY W10465933 Contact Us For Availability
1B
MAY W10444506 MAY W10444506 Contact Us For Availability
2
ROLLER MAY 2150304 Contact Us For Availability
2
EVAPORATOR COVER MAY W10387382 Contact Us For Availability
2
MAY W10531025 MAY W10531025 Contact Us For Availability
2
COVER ASSEMBLY MAY W10290890 Contact Us For Availability
2
ASSEMBLY, LATCH MAY W10258552 Contact Us For Availability
2
HANDLE (STAINLESS) MAY W10183428 Contact Us For Availability
2
MAY W10276255 MAY W10276255 Contact Us For Availability
2
MAY W10260421 MAY W10260421 Contact Us For Availability
2
MAY 12825802 MAY 12825802 Contact Us For Availability
2
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
3
MAY W10297485 MAY W10297485 Contact Us For Availability
3
MAY W10569758 MAY W10569758 Contact Us For Availability
3
MAY W10257334 MAY W10257334 Contact Us For Availability
3
MAY W10327550 MAY W10327550 Contact Us For Availability
3
MAY W10287594 MAY W10287594 Contact Us For Availability
3
THIMBLE, TOP MAY 2200086 Contact Us For Availability
3
MAY W10174827 MAY W10174827 Contact Us For Availability
3
DUCT, UPPER AIR MAY W10260388 Contact Us For Availability
3
ASSEMBLY, CONDENSER MAY W10240365 Contact Us For Availability
3
MAY W10279831 MAY W10279831 Contact Us For Availability
4
ROLLER MAY 12477102 Contact Us For Availability
4
THERMISTOR, EVAPORATOR FAN MAY W10323459 Contact Us For Availability
4
MAY W10316452 MAY W10316452 Contact Us For Availability
4
MAY W10280386 MAY W10280386 Contact Us For Availability
4
COUPLING, BOTTOM MAY 2220458 Contact Us For Availability
4
MAY W10327565 MAY W10327565 Contact Us For Availability
4
MAY W10296804 MAY W10296804 Contact Us For Availability
4
MAY W10435760 MAY W10435760 Contact Us For Availability
4
MAY W10260437 MAY W10260437 Contact Us For Availability
4
MAY W10142231 MAY W10142231 Contact Us For Availability
5
MAY 12477202 MAY 12477202 Contact Us For Availability
5
MAY W10384770 MAY W10384770 Contact Us For Availability
5
COVER, ASSEMBLY MAY W10290879 Contact Us For Availability
5
MAY W10327551 MAY W10327551 Contact Us For Availability
5
SHAFT, DRIVE MAY W10258544 Contact Us For Availability
5
DOOR GASKET, MAGNETIC (GREY) MAY W10249918 Contact Us For Availability
5
MOTOR, DISPENSER MAY W10205978 Contact Us For Availability
5
FREEZER, AIR DUCT MAY W10382902 Contact Us For Availability
5
MAY W10204187 MAY W10204187 Contact Us For Availability
5
MAY W10341320 MAY W10341320 Contact Us For Availability
6
MAY 981125 MAY 981125 Contact Us For Availability
6
MAY W10656773 MAY W10656773 Contact Us For Availability
6
MAY W10542038 MAY W10542038 Contact Us For Availability
6
MAY W10542040 MAY W10542040 Contact Us For Availability
6
MAY 2198607 MAY 2198607 Contact Us For Availability
6
MAY W10327583 MAY W10327583 Contact Us For Availability
6
ICE DOOR ASSEMBLY MAY W10353570 Contact Us For Availability
6
MAY W10001260 MAY W10001260 Contact Us For Availability
6
MAY W10171469 MAY W10171469 Contact Us For Availability
6
MAY 489478 MAY 489478 Contact Us For Availability
7
TUBE, DRAIN MAY W10369091 Contact Us For Availability
7
MAY W10538994 MAY W10538994 Contact Us For Availability
7
MAY W10531083 MAY W10531083 Contact Us For Availability
7
MAY W10542019 MAY W10542019 Contact Us For Availability
7
ASSEMBLY, MOUNTING PLATE MAY W10293212 Contact Us For Availability
7
MAY W10296816 MAY W10296816 Contact Us For Availability
7
MAY W10346124 MAY W10346124 Contact Us For Availability
7
MOTOR, FAN MAY 2315549 Contact Us For Availability
7
CONNECTOR, WATER TUBE MAY W10271543 Contact Us For Availability
7
COVER, ICEMAKER MAY W10251088 Contact Us For Availability
8
MAY W10257186 MAY W10257186 Contact Us For Availability
8
CONNECTOR, UNION MAY W10271541 Contact Us For Availability
8
MAY W10542021 MAY W10542021 Contact Us For Availability
8
MAY W10656771 MAY W10656771 Contact Us For Availability
8
MAY 2198628 MAY 2198628 Contact Us For Availability
8
DOOR GASKET, MAGNETIC (GREY) MAY W10249919 Contact Us For Availability
8
MAY 4449745 MAY 4449745 Contact Us For Availability
8
MAY 2169142 MAY 2169142 Contact Us For Availability
8
MAY W10303521 MAY W10303521 Contact Us For Availability
8
MAY W10141625 MAY W10141625 Contact Us For Availability
9
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
9
MAY W10280385 MAY W10280385 Contact Us For Availability
9
MAY W10637153 MAY W10637153 Contact Us For Availability
9
MAY W10531084 MAY W10531084 Contact Us For Availability
9
MAY W10291905 MAY W10291905 Contact Us For Availability
9
DOOR CLOSER, UPPER CAM (GREY) MAY W10257203 Contact Us For Availability
9
DOOR CLOSER, UPPER CAM (GREY) MAY W10257206 Contact Us For Availability
9
TRAY, HOUSING MAY W10276254 Contact Us For Availability
9
MAY W10240370 MAY W10240370 Contact Us For Availability
9
MAY W10376166 MAY W10376166 Contact Us For Availability
9
ASSEMBLY, MOLD AND HEATER (ALSO ORDER #542638 MAY W10251081 Contact Us For Availability
10
SCREW (BLACK) MAY W10308751 Contact Us For Availability
10
MAY W10394423 MAY W10394423 Contact Us For Availability
10
MAY W10531024 MAY W10531024 Contact Us For Availability
10
MAY W10656772 MAY W10656772 Contact Us For Availability
10
MAY 2212370 MAY 2212370 Contact Us For Availability
10
BRACKET, DOOR STOP MAY W10247907 Contact Us For Availability
10
MAY W10341319 MAY W10341319 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
10
FILL TUBE ASSEMBLY MAY W10347036 Contact Us For Availability
11
MAY W10498992 MAY W10498992 Contact Us For Availability
11
FILTER, AIR MAY W10315189 Contact Us For Availability
11
MAY W10425252 MAY W10425252 Contact Us For Availability
11
MAY W10225313 MAY W10225313 Contact Us For Availability
11
MAY W10460893 MAY W10460893 Contact Us For Availability
11
MAY W10367462 MAY W10367462 Contact Us For Availability
11
MAY W10447159 MAY W10447159 Contact Us For Availability
11
MAY W10369602 MAY W10369602 Contact Us For Availability
11
TUBE, SUCTION MAY W10223328 Contact Us For Availability
11
MAY W10318644 MAY W10318644 Contact Us For Availability
12
HINGE, TOP (FC) (GREY) MAY W10249922 Contact Us For Availability
12
MAY W10357649 MAY W10357649 Contact Us For Availability
12
MAY W10542039 MAY W10542039 Contact Us For Availability
12
MAY W10214168 MAY W10214168 Contact Us For Availability
12
MAY W10632062 MAY W10632062 Contact Us For Availability
12
PAD, ICE & WATER (GREY) MAY W10346924 Contact Us For Availability
12
MAY W10242409 MAY W10242409 Contact Us For Availability
12
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
12
STRIPPER, ICE MAY W10251078 Contact Us For Availability
13
HINGE, TOP (RC) (GREY) MAY W10249925 Contact Us For Availability
13
MAY W10394053 MAY W10394053 Contact Us For Availability
13
MAY W10327549 MAY W10327549 Contact Us For Availability
13
MAY W10260382 MAY W10260382 Contact Us For Availability
13
COVER, DOOR STOP (GREY) MAY W10257218 Contact Us For Availability
13
MAY W10331749 MAY W10331749 Contact Us For Availability
13
MAY W10276248 MAY W10276248 Contact Us For Availability
13
SCREW MAY W10142292 Contact Us For Availability
13
MAY W10350564 MAY W10350564 Contact Us For Availability
13
MAY 2194712 MAY 2194712 Contact Us For Availability
14
SCREW (GREY) MAY W10308489 Contact Us For Availability
14
MAY W10278139 MAY W10278139 Contact Us For Availability
14
MAY W10327564 MAY W10327564 Contact Us For Availability
14
SPRING, DOOR MAY 2198635 Contact Us For Availability
14
COVER, EVAPORATOR MAY W10388269 Contact Us For Availability
14
TUBE, PROCESS MAY 2325479 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
BOTTOM HINGE (FC) (GREY) MAY W10249943 Contact Us For Availability
15
MAY W10257246 MAY W10257246 Contact Us For Availability
15
MAY W10324760 MAY W10324760 Contact Us For Availability
15
MAY W10258502 MAY W10258502 Contact Us For Availability
15
MAY W10331728 MAY W10331728 Contact Us For Availability
15
TIE, WIRE MAY 2205813 Contact Us For Availability
15
THERMOSTAT (ALSO ORDER #542369) MAY 2321258 Contact Us For Availability
16
HINGE, ASSEMBLY (GREY) MAY W10666895 Contact Us For Availability
16
MAY W10300482 MAY W10300482 Contact Us For Availability
16
MAY W10518659 MAY W10518659 Contact Us For Availability
16
MAY W10239732 MAY W10239732 Contact Us For Availability
16
MAY W10001240 MAY W10001240 Contact Us For Availability
17
DOOR CLOSER (RC) (GREY) MAY W10412764 Contact Us For Availability
17
MAY W10439624 MAY W10439624 Contact Us For Availability
17
MAY W10258510 MAY W10258510 Contact Us For Availability
17
MAY 2161324 MAY 2161324 Contact Us For Availability
17
MAY W10251080 MAY W10251080 Contact Us For Availability
18
MAY W10451893 MAY W10451893 Contact Us For Availability
18
MAY W10518658 MAY W10518658 Contact Us For Availability
18
MAY W10508362 MAY W10508362 Contact Us For Availability
18
MAY W10242365 MAY W10242365 Contact Us For Availability
19
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
19
SUPPORT, EVAPORATOR (LEFT HAND) MAY W10223366 Contact Us For Availability
19
DOOR, EMITTER MAY W10258520 Contact Us For Availability
19
MAY W10714793 MAY W10714793 Contact Us For Availability
19
ASSEMBLY, MODULE AND MOTOR MAY 626691 Contact Us For Availability
20
MAY W10333887 MAY W10333887 Contact Us For Availability
20
SUPPORT, EVAPORATOR (RIGHT HAND) MAY W10223364 Contact Us For Availability
20
MAY W10258540 MAY W10258540 Contact Us For Availability
20
SHIELD, HEAT MAY W10343824 Contact Us For Availability
20
SCREW MAY 489136 Contact Us For Availability
21
FILLER, WRAPPER (GREY) MAY 12587703AP Contact Us For Availability
21
MOTOR (NOT SERVICED, ORDER #19) MAY N/P Contact Us For Availability
21
MAY W10411699 MAY W10411699 Contact Us For Availability
21
DRIER MAY W10286069 Contact Us For Availability
22
MAY W10713153 MAY W10713153 Contact Us For Availability
22
MAY W10643261 MAY W10643261 Contact Us For Availability
23
MAY W10142234 MAY W10142234 Contact Us For Availability
23
BASEPAN MAY W10277704 Contact Us For Availability
24
DOOR CLOSER (FC) (GREY) MAY W10257200 Contact Us For Availability
24
CORD, POWER MAY W10261232 Contact Us For Availability
25
MAY W10001250 MAY W10001250 Contact Us For Availability
25
COVER, UNIT BOTTOM MAY W10284726 Contact Us For Availability
26
MAY W10279882 MAY W10279882 Contact Us For Availability
26
MAY W10495968 MAY W10495968 Contact Us For Availability
27
MAY W10279885 MAY W10279885 Contact Us For Availability
27
MAY W10356137 MAY W10356137 Contact Us For Availability
28
FITTING, DRAIN MAY W10370680 Contact Us For Availability
28
MAY W10253005 MAY W10253005 Contact Us For Availability
29
LID, HV BOX MAY 12957702 Contact Us For Availability
29
GROMMET MAY 10835903 Contact Us For Availability
30
MAY W10235503 MAY W10235503 Contact Us For Availability
30
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
31
BAFFLE, AIR MAY W10251467 Contact Us For Availability
32
CONTROL, ELECTRONIC (POWER SUPPLY) MAY W10226427 Contact Us For Availability
32
MAY W10223368 MAY W10223368 Contact Us For Availability
33
ASSEMBLY, VALVE BODY MAY W10331270 Contact Us For Availability
34
COIL, 3 WAY VALVE MAY W10364560 Contact Us For Availability
35
MAY W10670174 MAY W10670174 Contact Us For Availability
36
MAY W10236396 MAY W10236396 Contact Us For Availability
37
GROMMET, AIR RETURN MAY W10413009 Contact Us For Availability
100
MAY W10251076 MAY W10251076 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. GRAPHITE) MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, HANDLE INSTALLATION KIT MAY W10300794 Contact Us For Availability
× ![]()
