Model Maytag JS48PPDUDE00 REFRIGERATOR, SIDE-BY-SIDE, BUILT-IN – Common Parts & Diagrams

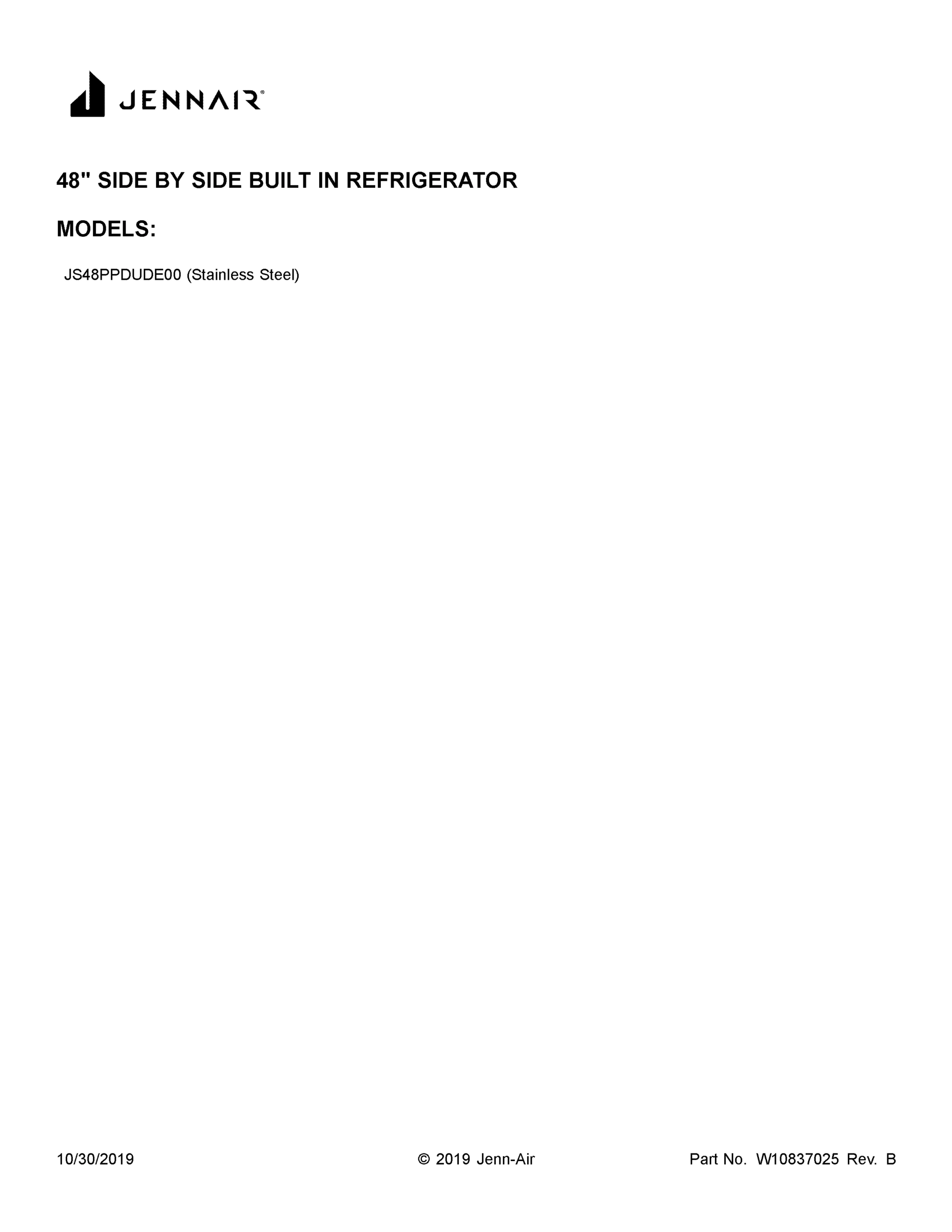

01 - COVER SHEET

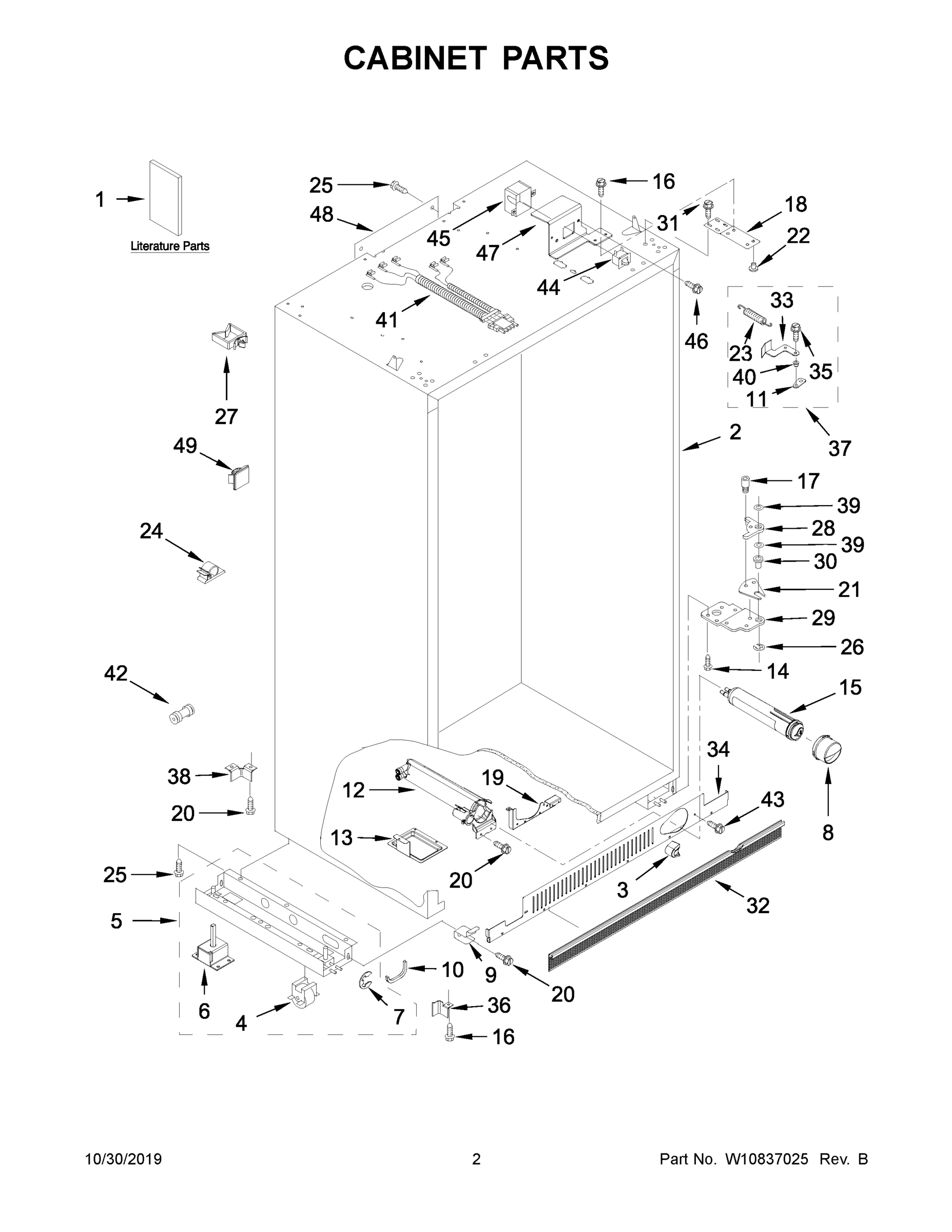

02 - CABINET PARTS
03 - CABINET TRIM PARTS
04 - REFRIGERATOR LINER PARTS
05 - FREEZER LINER AND AIR FLOW PARTS
06 - MOTOR AND ICE CONTAINER PARTS
07 - CONTROL PANEL PARTS
08 - REFRIGERATOR SHELF PARTS
09 - FREEZER SHELF PARTS
10 - REFRIGERATOR DOOR PARTS
11 - FREEZER DOOR PARTS
12 - DISPENSER PARTS
13 - TOP GRILLE AND UNIT COVER PARTS
14 - UPPER UNIT PARTS
15 - LOWER UNIT AND TUBE PARTS
16 - ICEMAKER PARTS
17 - OPTIONAL PARTS
Common parts from model Maytag JS48PPDUDE00 REFRIGERATOR, SIDE-BY-SIDE, BUILT-IN
1
TRIM, CABINET SIDE (ALUMINUM) MAY W10568005 Contact Us For Availability
1
MOTOR, FAN MAY W10436861 Contact Us For Availability
1
BIN, ICE MAY 2222970 Contact Us For Availability
1
ASSEMBLY, CONTROL BOX MAY W10785725 Contact Us For Availability
1
ASSEMBLY, SHELF MAY W10187538 Contact Us For Availability
1
SHELF, WIRE MAY W10759087 Contact Us For Availability
1
DOOR, REFRIGERATOR MAY W10783291 Contact Us For Availability
1
DOOR, FREEZER MAY W10783292 Contact Us For Availability
1
ASSEMBLY, TOP GRILLE MAY W10658667 Contact Us For Availability
1
ASSEMBLY, INVERTER BOX MAY W10645666 Contact Us For Availability
1
ASSEMBLY, AIR RETURN BRACKET MAY W10160981 Contact Us For Availability
1
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
1A
ENERGY GUIDE MAY W10826673 Contact Us For Availability
1B
TECH SHEET (ENGLISH) MAY W10794071 Contact Us For Availability
1C
TECH SHEET (FRENCH) MAY W10794072 Contact Us For Availability
1D
INSTALLATION INSTRUCTIONS MAY W10779524 Contact Us For Availability
2
SCREW MAY 486194 Contact Us For Availability
2
TUBE, CIRCUIT BOARD MAY 2198665 Contact Us For Availability
2
ASSEMBLY, ICE CONTAINER MAY W10784413 Contact Us For Availability
2
CLIP, CONTROL BOX MAY 2317000 Contact Us For Availability
2
ASSEMBLY, MEAT PAN COVER MAY W10785392 Contact Us For Availability
2
SCREW MAY 8533928 Contact Us For Availability
2
BIN, GALLON DOOR MAY W10594313 Contact Us For Availability
2
STUD, HANDLE MOUNTING MAY W10153450 Contact Us For Availability
2
COVER, UNIT MAY W10545068 Contact Us For Availability
2
SCREW MAY 489373 Contact Us For Availability
2
SCREW MAY 304392 Contact Us For Availability
2
SHIELD, WATER VALVE MAY 2320601 Contact Us For Availability
3
BUTTON, WATER FILTER (BLACK) MAY 2260503B Contact Us For Availability
3
DUCT, AIR MAY W10832844 Contact Us For Availability
3
BLADE, FAN MAY 2169142 Contact Us For Availability
3
BUTTON, BIN MAY W10749207 Contact Us For Availability
3
BOARD, INGREDIENT CARE CENTER DISPLAY MAY W10785730 Contact Us For Availability
3
ASSEMBLY, CRISPER COVER MAY W10785395 Contact Us For Availability
3
SHELF, FIXED MAY W10759067 Contact Us For Availability
3
ASSEMBLY, HINGE (BOTTOM) MAY 2302879 Contact Us For Availability
3
BRACKET, MOTOR MAY W10542660 Contact Us For Availability
3
COMPRESSOR MAY W10653005 Contact Us For Availability
3
BRACKET, HEATER MAY W10157752 Contact Us For Availability
3
ASSEMBLY, ICEMAKER WIRE MAY W10508659 Contact Us For Availability
4
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
4
TRIM, CABINET (TOP) (ALUMINUM) MAY 2314018 Contact Us For Availability
4
RETAINER, FAN MOTOR MAY W10260421 Contact Us For Availability
4
LATCH, BIN MAY W10134785 Contact Us For Availability
4
WIRE, JUMPER MAY W10458299 Contact Us For Availability
4
ASSEMBLY, CRISPER PAN MAY W10844015 Contact Us For Availability
4
BASKET, FREEZER MAY W10767698 Contact Us For Availability
4
SCREW MAY W10162602 Contact Us For Availability
4
CLIP, WIRING MAY 2305447 Contact Us For Availability
4
PANEL, UNIT BACK MAY 2256466 Contact Us For Availability
4
HOUSING, CONTROL BOARD MOUNTING MAY W10550831 Contact Us For Availability
4
TUBE, OIL TRAP SUCTION MAY W10648568 Contact Us For Availability
4
TUBE, FILTER INLET MAY W10296807 Contact Us For Availability
5
ASSEMBLY, SUPPORT BASE (LEFT HAND) MAY W10279275 Contact Us For Availability
5
TRIM, CABINET SIDE (ALUMINUM) MAY W10568007 Contact Us For Availability
5
LADDER, SHELF (SHORT) MAY W10794051 Contact Us For Availability
5
GASKET, SCROLL ASSEMBLY MAY 2302817 Contact Us For Availability
5
SPRING, LATCH MAY 2198608 Contact Us For Availability
5
BRACKET, CONTROL BOX MAY W10775707 Contact Us For Availability
5
SLIDE, MEAT PAN (LEFT HAND) MAY W10844011 Contact Us For Availability
5
ASSEMBLY, FREEZER BASKET FRONT MAY W10789204 Contact Us For Availability
5
ASSEMBLY, HINGE (TOP) MAY W10485980 Contact Us For Availability
5
MOTOR, ICE DOOR MAY W10205979 Contact Us For Availability
5
COVER, UNIT FRONT MAY W10694109 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY 2318054 Contact Us For Availability
5
TUBE, TRANSITION (DRIER/RESTRICTOR) MAY W10388653 Contact Us For Availability
5
TUBE, FILTER OUTLET MAY W10683737 Contact Us For Availability
5A
ASSEMBLY, SUPPORT BASE (RIGHT HAND) MAY W10138423 Contact Us For Availability
5A
LADDER, SHELF (LONG) MAY W10749139 Contact Us For Availability
5A
SLIDE, MEAT PAN (RIGHT HAND) MAY W10732727 Contact Us For Availability
6
LEVELER, ADJUSTABLE MAY 2005032 Contact Us For Availability
6
INSERT, BLIND THREADED MAY W10121451 Contact Us For Availability
6
GROMMET, MOTOR MAY W10321090 Contact Us For Availability
6
SCREW (BLACK) MAY W10308487 Contact Us For Availability
6
WASHER MAY W10254073 Contact Us For Availability
6
FRONT, CRISPER PAN MAY W10843806 Contact Us For Availability
6
SLIDE, BASKET (LEFT HAND) MAY 2259318 Contact Us For Availability
6
SPACER, DOOR HINGE BOTTOM MAY 2316804 Contact Us For Availability
6
ASSEMBLY, HINGE (BOTTOM) MAY 2302878 Contact Us For Availability
6
DOOR, ICE MAY W10504458 Contact Us For Availability
6
NAMEPLATE (STAINLESS) MAY W10159578 Contact Us For Availability
6
GROMMET MAY 1100826 Contact Us For Availability
6
ASSEMBLY, DRAIN PAN MAY W10281063 Contact Us For Availability
6
VALVE, INLET MAY W10820321 Contact Us For Availability
6A
SLIDE, BASKET (RIGHT HAND) MAY 2259317 Contact Us For Availability
7
RING, RETAINER MAY 2006841 Contact Us For Availability
7
SCREW (BLACK) MAY W10678210 Contact Us For Availability
7
PIN, DOOR MAY 2198634 Contact Us For Availability
7
CLAMP, TUBE MAY 2221070 Contact Us For Availability
7
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
7
SPACER, CRISPER MAY W10769876 Contact Us For Availability
7
BRACKET, ICEMAKER COVER MAY W10749631 Contact Us For Availability
7
MAT, DOOR BIN (SHALLOW) MAY W10746024 Contact Us For Availability
7
GASKET, DOOR (BLACK) MAY W10749269 Contact Us For Availability
7
ASSEMBLY, MOTOR AND BRACKET MAY W10546285 Contact Us For Availability
7
GROMMET, FLEXIBLE MAY 2215910 Contact Us For Availability
7
SUPPORT, CONDENSER (LEFT HAND) MAY W10525177 Contact Us For Availability
7
COVER, WIRING MAY W10309012 Contact Us For Availability
7A
MAT, DOOR BIN (GALLON) MAY W10746029 Contact Us For Availability
7A
SUPPORT, CONDENSER (RIGHT HAND) MAY W10525179 Contact Us For Availability
8
CAP, WATER FILTER (BLACK) MAY W10797527 Contact Us For Availability
8
WEDGE, AIR DUCT (LEFT HAND) MAY W10769280 Contact Us For Availability
8
CLIP, SHAFT MAY W10785288 Contact Us For Availability
8
SLIDE, CRISPER (LEFT HAND) MAY W10844010 Contact Us For Availability
8
COVER, ICEMAKER MAY W10749629 Contact Us For Availability
8
BIN, SHALLOW DOOR MAY W10529454 Contact Us For Availability
8
HANDLE, DOOR (STAINLESS) MAY W10777967 Contact Us For Availability
8
SCREW MAY 4449745 Contact Us For Availability
8
DIVIDER, UNIT AIR MAY W10645086 Contact Us For Availability
8
TUBE, HEAT LOOP TRANSITION MAY W10625009 Contact Us For Availability
8
COVER, WIRE BOX MAY W10321048 Contact Us For Availability
8
SUPPORT, VALVE MAY 2320559 Contact Us For Availability
8A
WEDGE, AIR DUCT (RIGHT HAND) MAY W10769279 Contact Us For Availability
8A
SLIDE, CRISPER (RIGHT HAND) MAY W10732303 Contact Us For Availability
9
BRACKET, GRILL MOUNTING MAY 2307640 Contact Us For Availability
9
THERMISTOR MAY 2302937 Contact Us For Availability
9
SEAL MAY 2198628 Contact Us For Availability
9
SPACER, MEAT PAN MAY W10783742 Contact Us For Availability
9
GASKET, DOOR (BLACK) MAY W10776012 Contact Us For Availability
9
SPACER, HANDLE SIDE DOOR MAY W10758377 Contact Us For Availability
9
ASSEMBLY, SPIGOT MAY 2305235 Contact Us For Availability
9
COVER, TERMINAL MAY 2215676 Contact Us For Availability
9
TUBE, DISCHARGE MAY W10499597 Contact Us For Availability
9
RETAINER, THERMOSTAT MAY 2315522 Contact Us For Availability
10
GROMMET, CROSSOVER TUBE MAY 2307584 Contact Us For Availability
10
LID, BAFFLE MAY W10785658 Contact Us For Availability
10
THERMISTOR MAY 2188820 Contact Us For Availability
10
SHAFT, DRIVE MAY 2318082 Contact Us For Availability
10
SKIN, DOOR (STAINLESS) MAY W10756459 Contact Us For Availability
10
SKIN, DOOR (STAINLESS) MAY W10756226 Contact Us For Availability
10
ASSEMBLY, SEPARATOR MAY 2318017 Contact Us For Availability
10
SUPPLY, POWER MAY W10624574 Contact Us For Availability
10
CLIP, WATER TUBE MAY 2208136 Contact Us For Availability
10A
SCREW (RIGHT HAND) MAY 8533929 Contact Us For Availability
11
STOP, DOOR MAY 2320509 Contact Us For Availability
11
ASSEMBLY, CONTROL BAFFLE MAY W10785656 Contact Us For Availability
11
ENCLOSURE, MOTOR MAY W10818351 Contact Us For Availability
11
ASSEMBLY, MEAT PAN MAY W10844013 Contact Us For Availability
11
SCREW (STAINLESS) MAY 8281250 Contact Us For Availability
11
CONTROL, ELECTRONIC MAY W10200659 Contact Us For Availability
11
EVAPORATOR MAY W10427993 Contact Us For Availability
11
FITTING, WATER MAY W10357286 Contact Us For Availability
12
HOUSING, WATER FILTER MAY W10121140 Contact Us For Availability
12
COVER, AIR DIFFUSER MAY W10782827 Contact Us For Availability
12
ASSEMBLY, LED MODULE MAY W10843339 Contact Us For Availability
12
MOTOR, DISPENSER MAY 2315547 Contact Us For Availability
12
FRONT, MEAT PAN MAY W10843804 Contact Us For Availability
12
SPACER, DOOR (TOP) MAY W10758114 Contact Us For Availability
12
ASSEMBLY, HOUSING MAY W10260622 Contact Us For Availability
12
SPACER MAY 2203075 Contact Us For Availability
12
HEATER, DEFROST MAY W10140162 Contact Us For Availability
12
COVER, ICEMAKER MAY W10801567 Contact Us For Availability
13
TRAY, FILTER DRIP MAY 2318189 Contact Us For Availability
13
ASSEMBLY, MEAT PAN WIRE MAY 2310205 Contact Us For Availability
13
SCREW MAY W10141604 Contact Us For Availability
13
SCREW MAY 489214 Contact Us For Availability
13
COVER, MOTOR MAY W10785082 Contact Us For Availability
13
RACK, WINE MAY W10701859 Contact Us For Availability
13
SCREW (STAINLESS) MAY 488568 Contact Us For Availability
13
PAD, WATER (UNIVERSAL SILVER) MAY 2305307GN Contact Us For Availability
13
BRACKET, INVERTER MOUNTING MAY 2256328 Contact Us For Availability
13
CLAMP, HEATER MAY 1113048 Contact Us For Availability
14
SCREW MAY 3400525 Contact Us For Availability
14
SCREW (BLACK) MAY W10784931 Contact Us For Availability
14
SCROLL, FAN MAY 2182120 Contact Us For Availability
14
SLEEVE, BEARING MAY 2315559 Contact Us For Availability
14
ASSEMBLY, PRODUCE PRESERVER MAY W10826105 Contact Us For Availability
14
SPACER, DOOR (BOTTOM) MAY W10766559 Contact Us For Availability
14
PAD, ICE (UNIVERSAL SILVER) MAY 2305306GN Contact Us For Availability
14
COVER, EVAPORATOR SEAL MAY W10139908 Contact Us For Availability
14
ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638) MAY 628228 Contact Us For Availability
15
FILTER, WATER MAY W10121146 Contact Us For Availability
15
BOARD, EMITTER CIRCUIT MAY W10193840 Contact Us For Availability
15
SIDEARM, SHELF MAY W10605575 Contact Us For Availability
15
SPACER, HINGE SIDE DOOR MAY W10758378 Contact Us For Availability
15
COVER, CONTROL MAY 2305219 Contact Us For Availability
15
SWITCH, POWER DISCONNECT MAY 2266802 Contact Us For Availability
15
GASKET, EVAPORATOR MAY W10432308 Contact Us For Availability
16
SCREW MAY 489399 Contact Us For Availability
16
GUARD, AIR RETURN MAY W10775705 Contact Us For Availability
16
BI-METAL, DEFROST MAY W10160570 Contact Us For Availability
16
GASKET, CRISPER COVER REAR MAY W10785382 Contact Us For Availability
16
SPACER, DOOR (TOP) MAY W10766560 Contact Us For Availability
16
SCREW MAY 308544 Contact Us For Availability
16
ASSEMBLY, USER INTERFACE CONTROL COVER MAY 2321746 Contact Us For Availability
16
CONDENSER MAY W10591457 Contact Us For Availability
16
TIE, WIRE MAY 2155774 Contact Us For Availability
16
CUP, FILL MAY W11130406 Contact Us For Availability
17
SCREW MAY 3400230 Contact Us For Availability
17
ASSEMBLY, AIR BAFFLE MAY 2221296 Contact Us For Availability
17
DUCT, AIR MAY W10769282 Contact Us For Availability
17
GASKET, MEAT COVER REAR MAY W10832828 Contact Us For Availability
17
PLATE, HANDLE DOOR MAY W10127710 Contact Us For Availability
17
ASSEMBLY, USER INTERFACE MAY W10819794 Contact Us For Availability
17
SUPPLY, LED POWER MAY W10790783 Contact Us For Availability
17
CLIP, HEAT EXCHANGER MAY W10169509 Contact Us For Availability
17
EJECTOR MAY 627843 Contact Us For Availability
18
HINGE, TOP MAY 2257644 Contact Us For Availability
18
RESERVOIR, WATER MAY W10645131 Contact Us For Availability
18
LENS, RECEIVER MAY 2198643 Contact Us For Availability
18
BIN, SHALLOW MAY W10529451 Contact Us For Availability
18
TRAY, DRIP (UNIVERSAL SILVER) MAY 2318062US Contact Us For Availability
18
ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER MAY 2310195 Contact Us For Availability
18
SUPPORT, DRAIN PAN MAY 2320554 Contact Us For Availability
18
STRIPPER, ICE MAY W10818367 Contact Us For Availability
19
BRACKET, FILTER MAY W10674648 Contact Us For Availability
19
SCREW MAY W10141518 Contact Us For Availability
19
BLOCK, FAN SCROLL (LEFT HAND) MAY 2209066 Contact Us For Availability
19
SPACER, DOOR (BOTTOM) MAY W10766561 Contact Us For Availability
19
ASSEMBLY, LED MAY 2305342 Contact Us For Availability
19
BOARD, POWER SUPPLY MAY 2259350 Contact Us For Availability
19
DAMPENER MAY 2215648 Contact Us For Availability
19
SUPPORT, HOUSING MAY W10790252 Contact Us For Availability
19A
BLOCK, FAN SCROLL (RIGHT HAND) MAY 2209482 Contact Us For Availability
20
SCREW MAY W10001250 Contact Us For Availability
20
SEAL, AIR DUCT MAY 2259398 Contact Us For Availability
20
COVER, EMITTER MAY W10782876 Contact Us For Availability
20
SUPPORT, ICE DOOR MAY W10542663 Contact Us For Availability
20
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
20
THERMOSTAT MAY 627985 Contact Us For Availability
21
LOCK, BUSHING MAY 2004994 Contact Us For Availability
21
ASSEMBLY, AIR DIFFUSER MAY W10797519 Contact Us For Availability
21
FILLER, FOAM BOARD MAY W10127980 Contact Us For Availability
21
DRIER MAY W10175593 Contact Us For Availability
21
GROMMET, AIR RETURN MAY W10413009 Contact Us For Availability
21
SCREW MAY W10001280 Contact Us For Availability
22
BUSHING, TOP HINGE MAY W10484913 Contact Us For Availability
22
ASSEMBLY, THERMISTOR MAY W10784036 Contact Us For Availability
22
BRACKET, FAN MOTOR MAY W10414681 Contact Us For Availability
22
SHELF, WIRING COVER MAY W10321050 Contact Us For Availability
22
ASSEMBLY, SMART VALVE WIRE MAY W10279391 Contact Us For Availability
23
SPRING, DOOR CLOSURE (GREEN) MAY 2221242 Contact Us For Availability
23
COVER, AIR OUTLET MAY W10785703 Contact Us For Availability
23
MOTOR, CONDENSER FAN MAY W10909387 Contact Us For Availability
23
BLOCK, EVAPORATOR SIDE MAY W10580754 Contact Us For Availability
23
SCREW MAY 489276 Contact Us For Availability
24
CLIP MAY W10663352 Contact Us For Availability
24
ASSEMBLY, SPACER MAY W10795347 Contact Us For Availability
24
BOARD, RECEIVER CIRCUIT MAY W10290817 Contact Us For Availability
24
BLADE, FAN MAY W10139483 Contact Us For Availability
24
SEAL, RETURN AIR MAY W10686115 Contact Us For Availability
24
BRACKET, ICEMAKER MOUNTING MAY W10788852 Contact Us For Availability
25
SEAL, AIR DUCT (ROUND HOLE) MAY W10795331 Contact Us For Availability
25
SLIDE, ICEMAKER SHUT OFF MAY W10789227 Contact Us For Availability
25
ORIFICE, FAN MAY W10415670 Contact Us For Availability
25
ASSEMBLY, MODULE AND MOTOR MAY W10223929 Contact Us For Availability
26
RING, BUSHING RETAINING MAY 2005008 Contact Us For Availability
26
SUPPORT, AIR DUCT MAY W10745665 Contact Us For Availability
26
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
26
SCREW MAY W10141645 Contact Us For Availability
27
SCREW MAY 1157158 Contact Us For Availability
27
CLIP, WIRE MAY W10129069 Contact Us For Availability
27
SCREW MAY W10146359 Contact Us For Availability
28
COVER, BOTTOM GAP MAY W10482554 Contact Us For Availability
28
SPRING, DOOR MAY 2198635 Contact Us For Availability
28
ASSEMBLY, UNIT WIRE MAY W10775849 Contact Us For Availability
28
SCREW MAY 489136 Contact Us For Availability
29
HINGE, BOTTOM (LEFT HAND) MAY 2006779 Contact Us For Availability
29
ASSEMBLY, EVAPORATOR COVER MAY W10748861 Contact Us For Availability
29
SCREW MAY 487294 Contact Us For Availability
29A
HINGE, BOTTOM (RIGHT HAND) MAY 2006780 Contact Us For Availability
30
BUSHING, ADJUSTABLE MAY 2302876 Contact Us For Availability
30
SUPPORT, EVAPORATOR MAY 1112260 Contact Us For Availability
30
TUBE, DRIER TRANSITION MAY W10624944 Contact Us For Availability
31
SCREW MAY 8533913 Contact Us For Availability
31
ASSEMBLY, SHELF STUD (INCLUDES SCREW) MAY W10789219 Contact Us For Availability
31
TUBE, PROCESS MAY W10528578 Contact Us For Availability
32
SKIRT, BOTTOM GRILLE MAY W10188551 Contact Us For Availability
32
SCREW (BLACK) MAY W10784949 Contact Us For Availability
32
GROMMET MAY W10587113 Contact Us For Availability
33
ARM, DOOR CLOSER EXTENSION (LEFT HAND) MAY W11229516 Contact Us For Availability
33
RAIL, EVAPORATOR COVER (LEFT HAND) MAY 2221107 Contact Us For Availability
33
COVER, CONDENSER SUPPORT MAY W10525175 Contact Us For Availability
33A
ARM, DOOR CLOSER EXTENSION (RIGHT HAND) MAY W10728112 Contact Us For Availability
33A
RAIL, EVAPORATOR COVER (RIGHT HAND) MAY 2259355 Contact Us For Availability
34
GRILLE, FRONT (BLACK) MAY W10182718 Contact Us For Availability
34
GASKET, EVAPORATOR COVER MAY W10782823 Contact Us For Availability
34
CORD, POWER MAY 2310196 Contact Us For Availability
35
SCREW MAY W10485630 Contact Us For Availability
35
GASKET, EVAPORATOR COVER MAY W10581989 Contact Us For Availability
35
BRACKET, CONTROL ASSEMBLY MAY W10321055 Contact Us For Availability
36
BRACKET, SUPPORT BASE (FRONT) (LEFT HAND) MAY 2006616 Contact Us For Availability
36
COVER, RECEIVER MAY W10782879 Contact Us For Availability
36
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
36A
BRACKET, SUPPORT BASE (FRONT) (RIGHT HAND) MAY 2006556 Contact Us For Availability
37
ASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND) MAY 2307857 Contact Us For Availability
37
HARNESS, BI-METAL WIRE MAY W10482187 Contact Us For Availability
37
PLATE, CIRCUIT BOARD MAY W10761479 Contact Us For Availability
37A
ASSEMBLY, LIGHT SWITCH CAM (LEFT HAND) MAY W10121046 Contact Us For Availability
38
BRACKET, BASE SUPPORT (REAR) MAY 2006617 Contact Us For Availability
38
FLIPPER, SHUT OFF MAY W10782877 Contact Us For Availability
38
PLATE, CIRCUIT BOARD (TOP) MAY W10770059 Contact Us For Availability
39
WASHER, EXTENSION ARM MAY 2006346 Contact Us For Availability
39
THERMISTOR MAY 2306010 Contact Us For Availability
40
BU MAY 2316859 Contact Us For Availability
40
COVER, THERMISTOR MAY W10783891 Contact Us For Availability
41
MAY W10780213 MAY W10780213 Contact Us For Availability
41
SCREW MAY W10832438 Contact Us For Availability
42
MAY W10271541 MAY W10271541 Contact Us For Availability
42
LADDER, SHELF MAY W10787153 Contact Us For Availability
43
MAY W10005050 MAY W10005050 Contact Us For Availability
43
SUPPORT, LADDER MAY 2259445 Contact Us For Availability
44
MAY 1118894 MAY 1118894 Contact Us For Availability
44A
MAY 1115373 MAY 1115373 Contact Us For Availability
45
MAY 2215938 MAY 2215938 Contact Us For Availability
46
MAY 487415 MAY 487415 Contact Us For Availability
47
MAY W10741112 MAY W10741112 Contact Us For Availability
47A
MAY W10741111 MAY W10741111 Contact Us For Availability
48
MAY 2215612 MAY 2215612 Contact Us For Availability
100
ASSEMBLY, COMPLETE ICEMAKER MAY W10790817 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
PAINT, TOUCH- MAY W10134625 Contact Us For Availability
NI
MAY W10917540 MAY W10917540 Contact Us For Availability
× ![]()
