Model Maytag JS48NXFXDE00 REFRIGERATOR – Common Parts & Diagrams

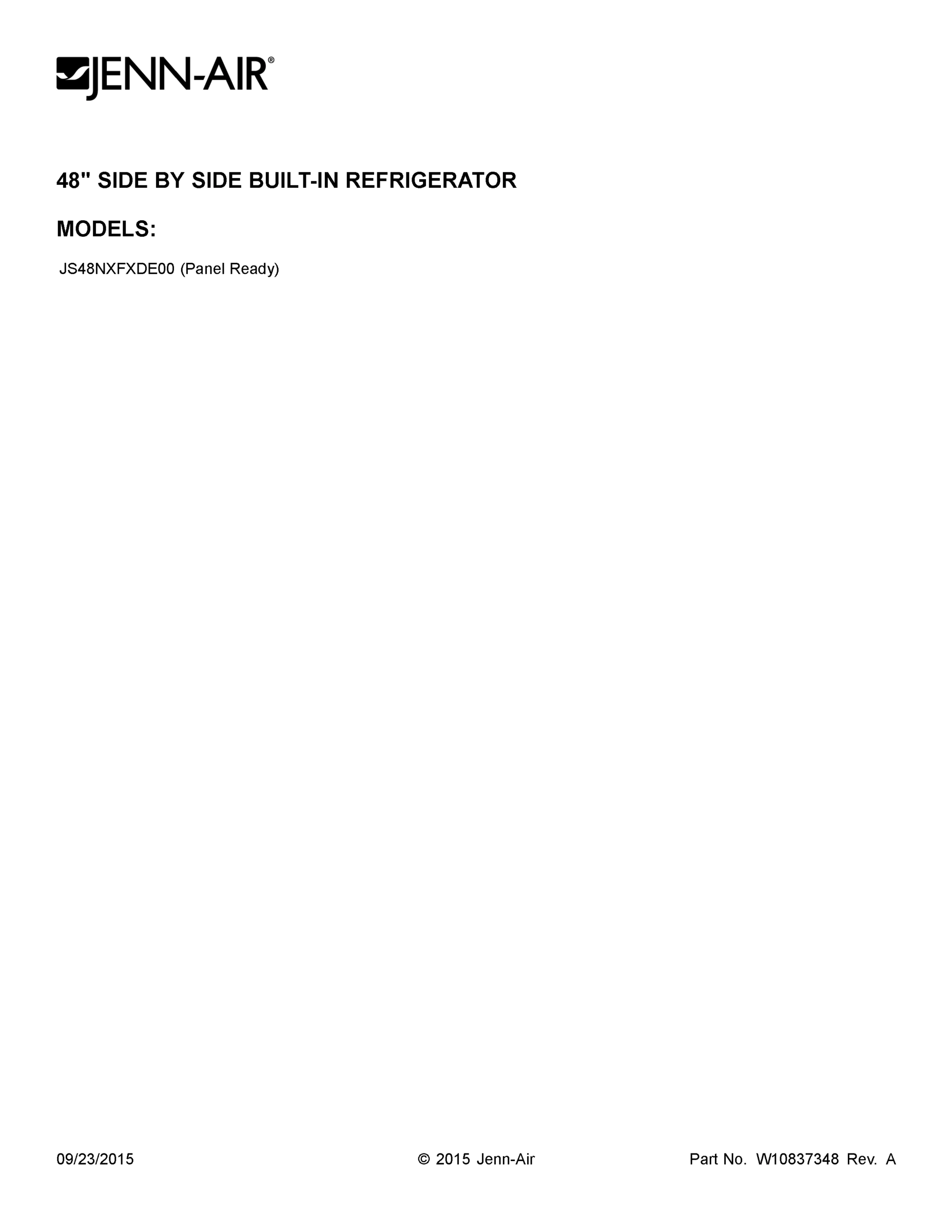

01 - COVER SHEET

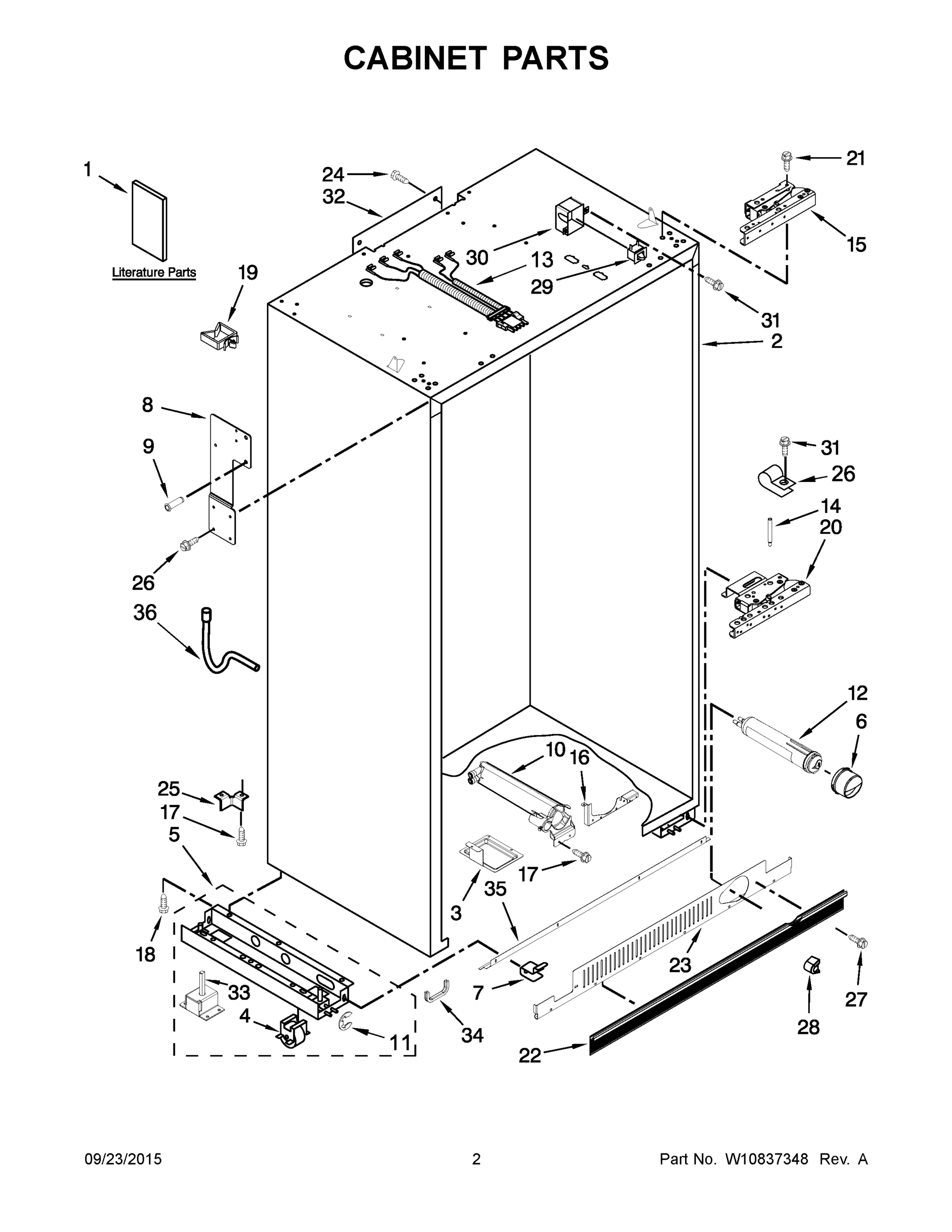

02 - CABINET PARTS

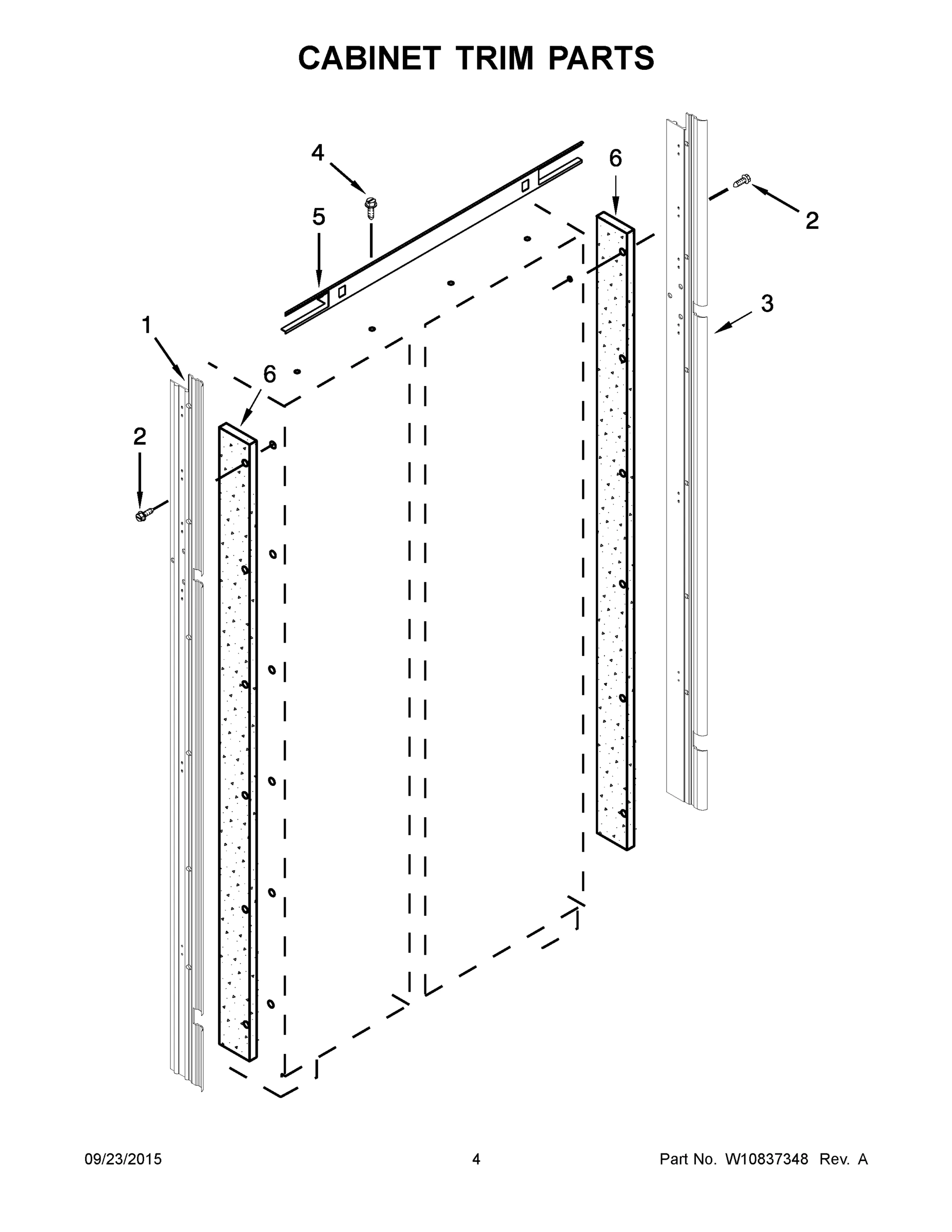

03 - CABINET TRIM PARTS

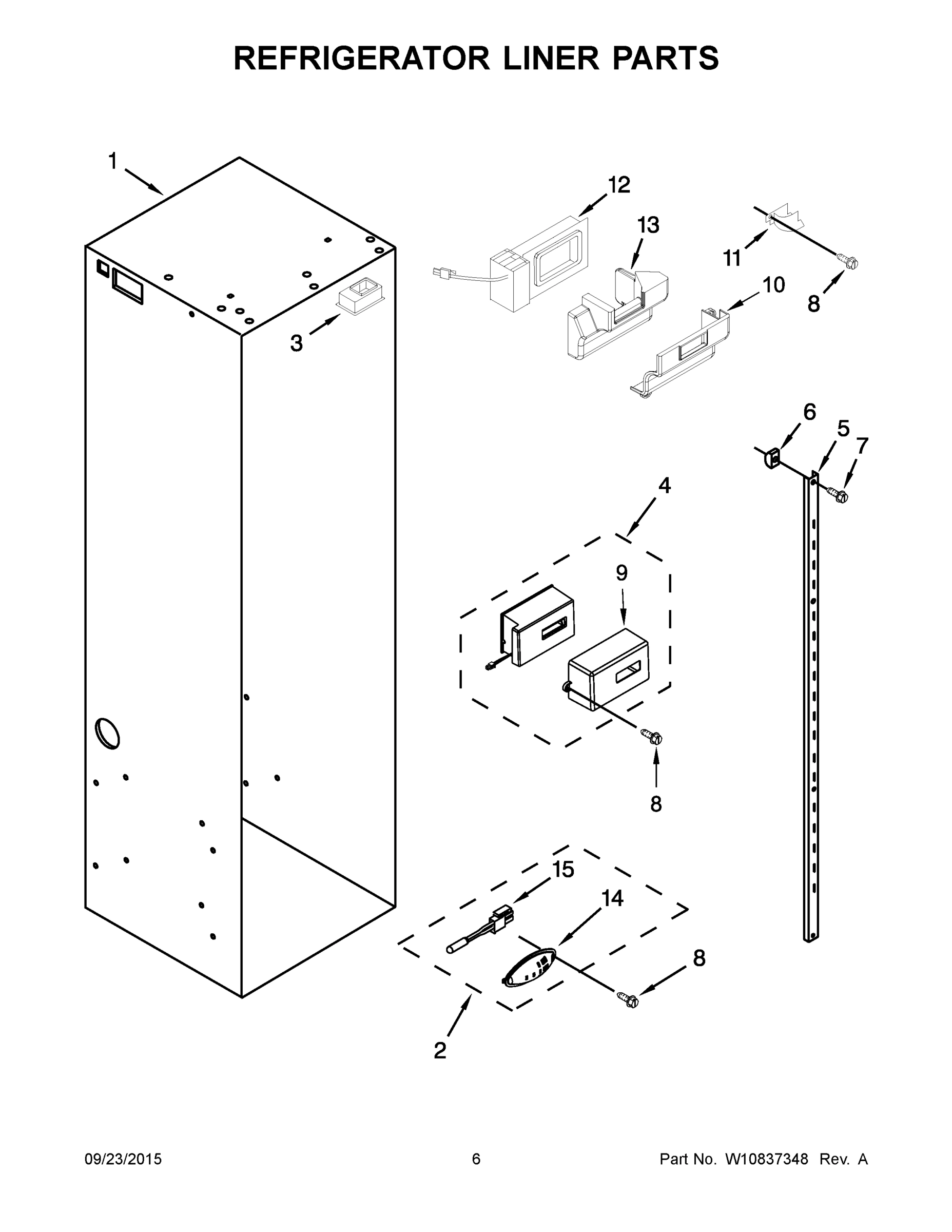

04 - REFRIGERATOR LINER PARTS

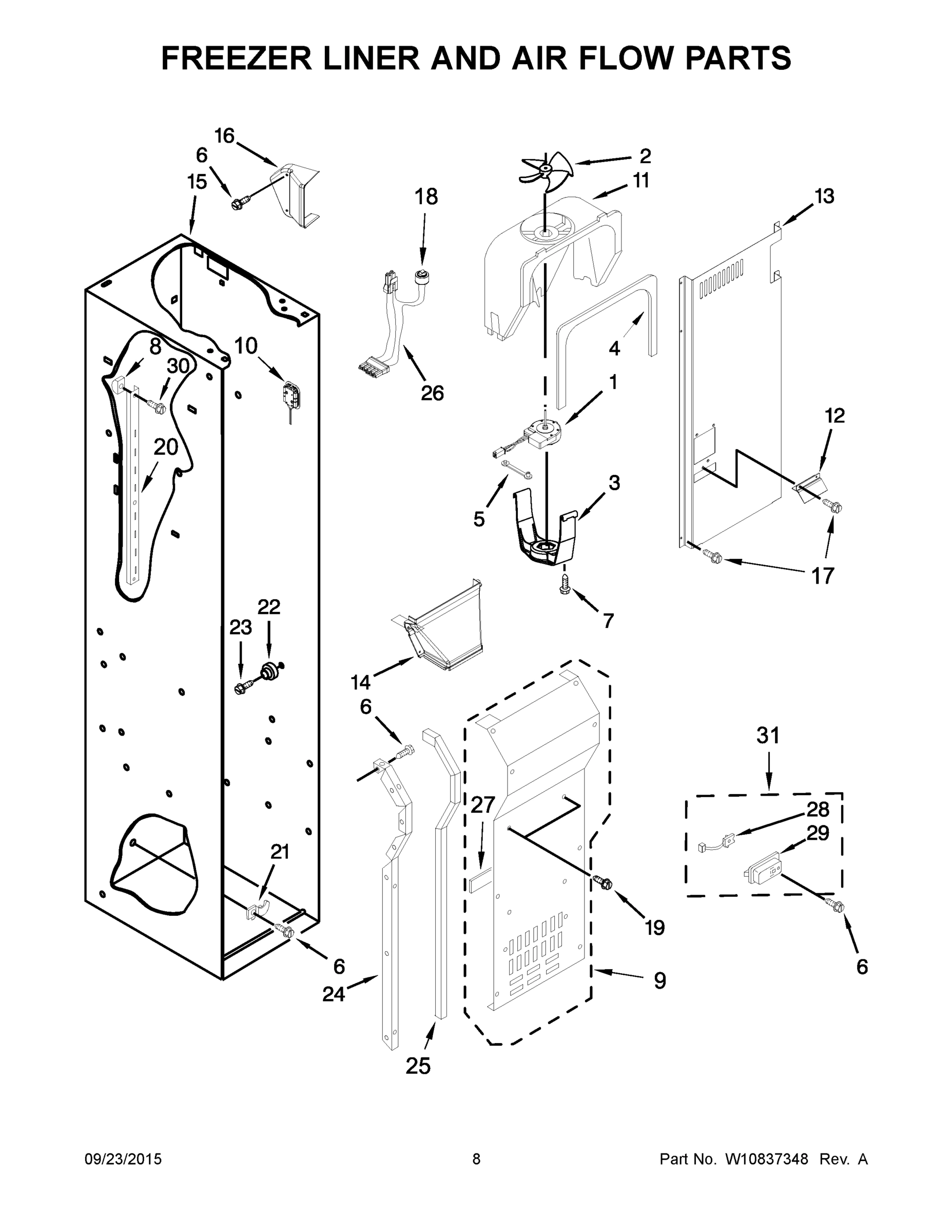

05 - FREEZER LINER AND AIR FLOW PARTS

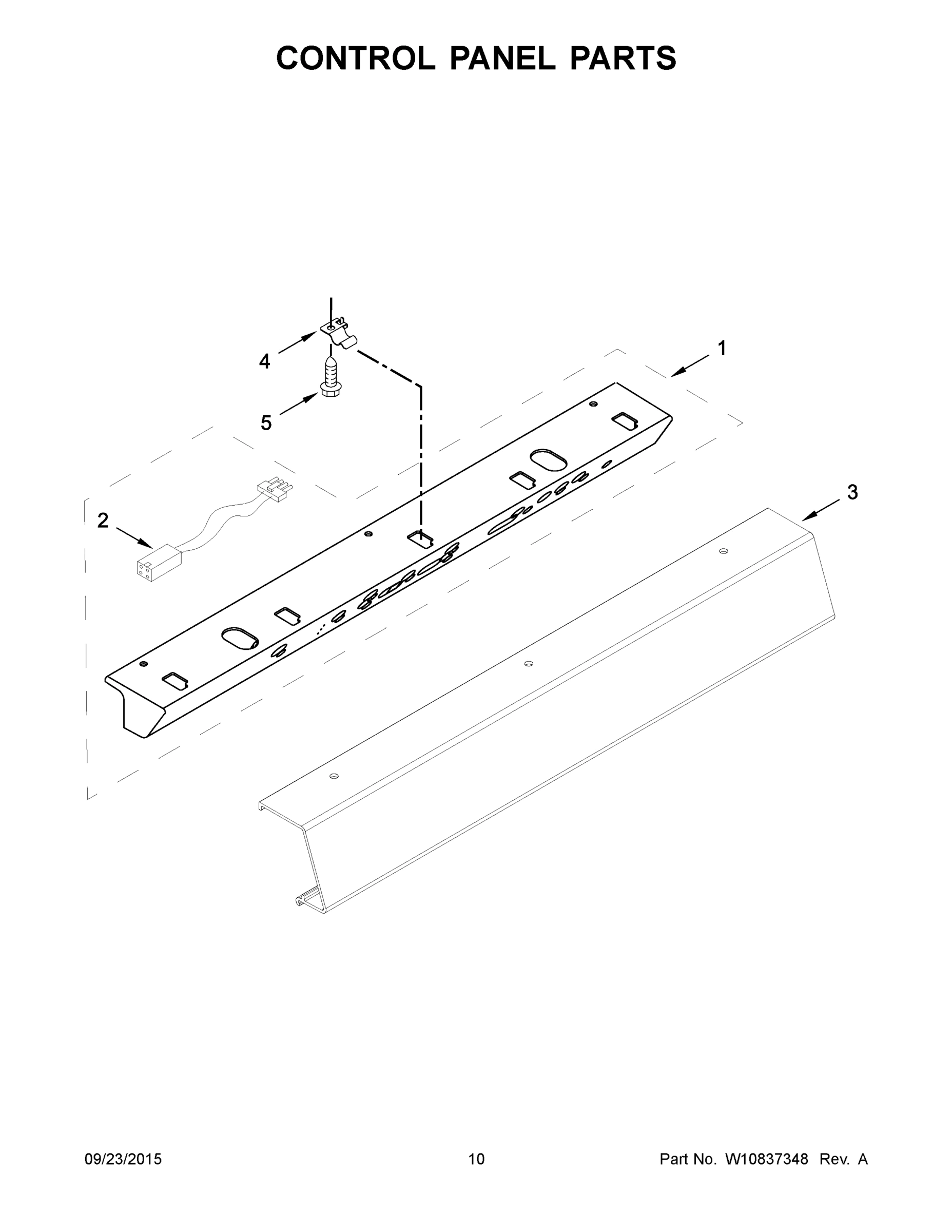

06 - CONTROL PANEL PARTS

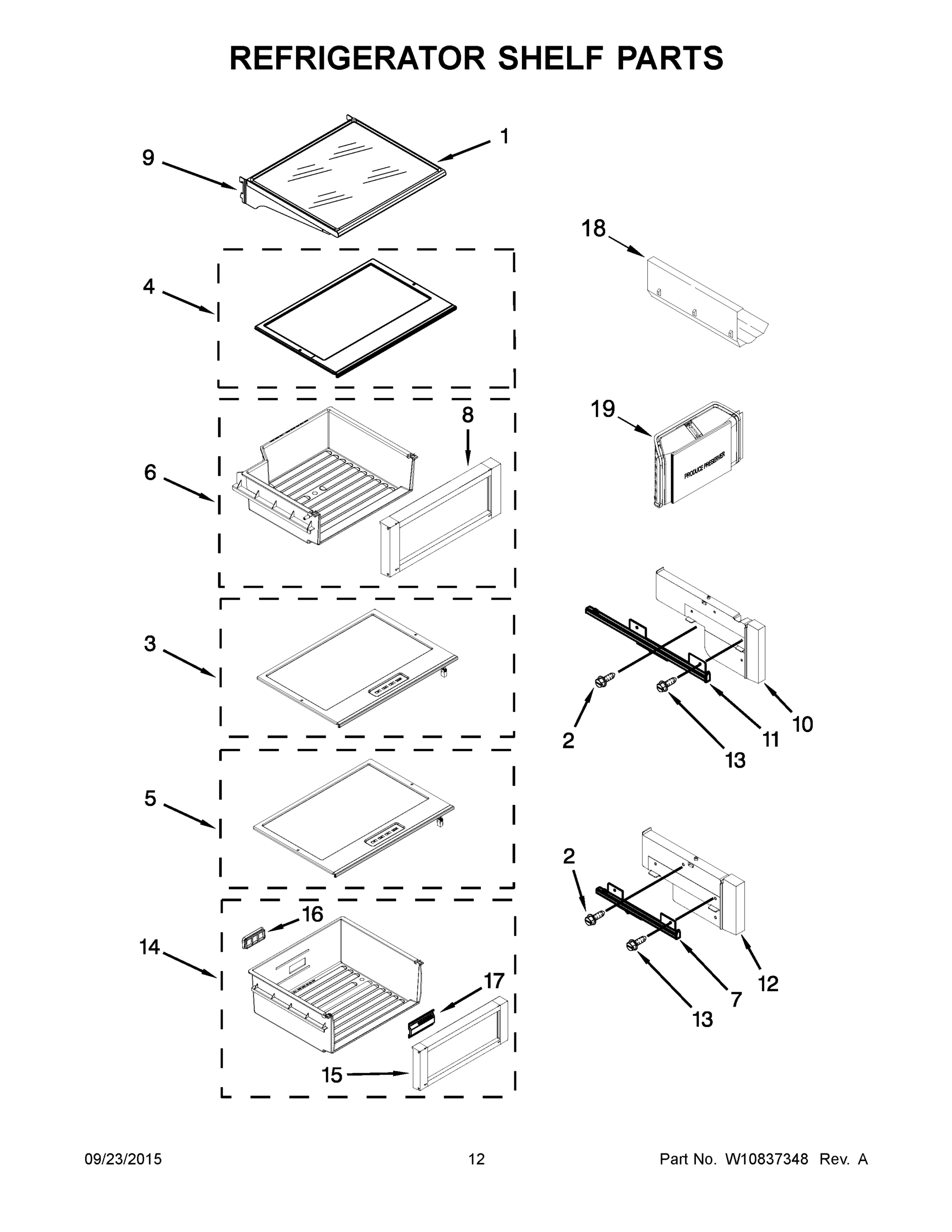

07 - REFRIGERATOR SHELF PARTS

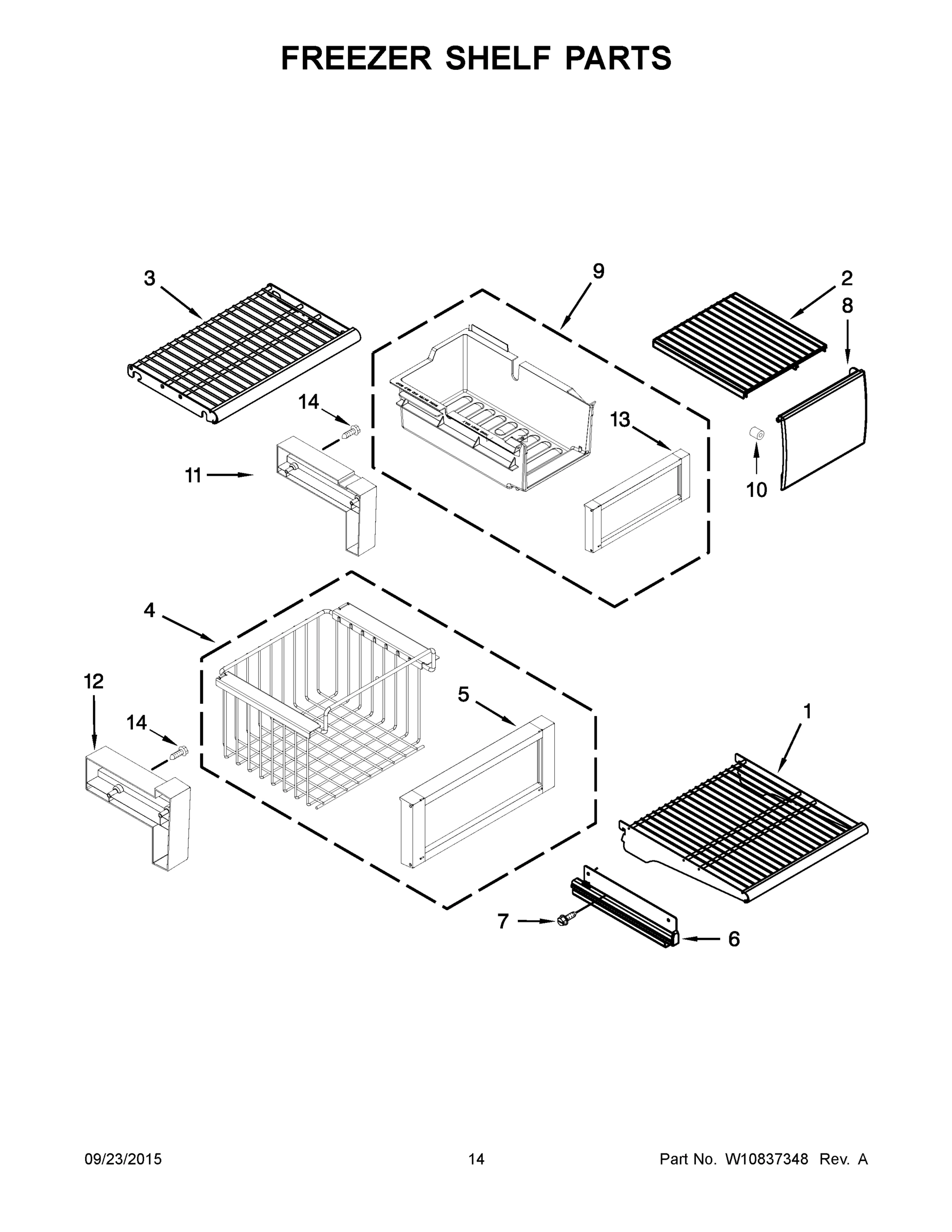

08 - FREEZER SHELF PARTS

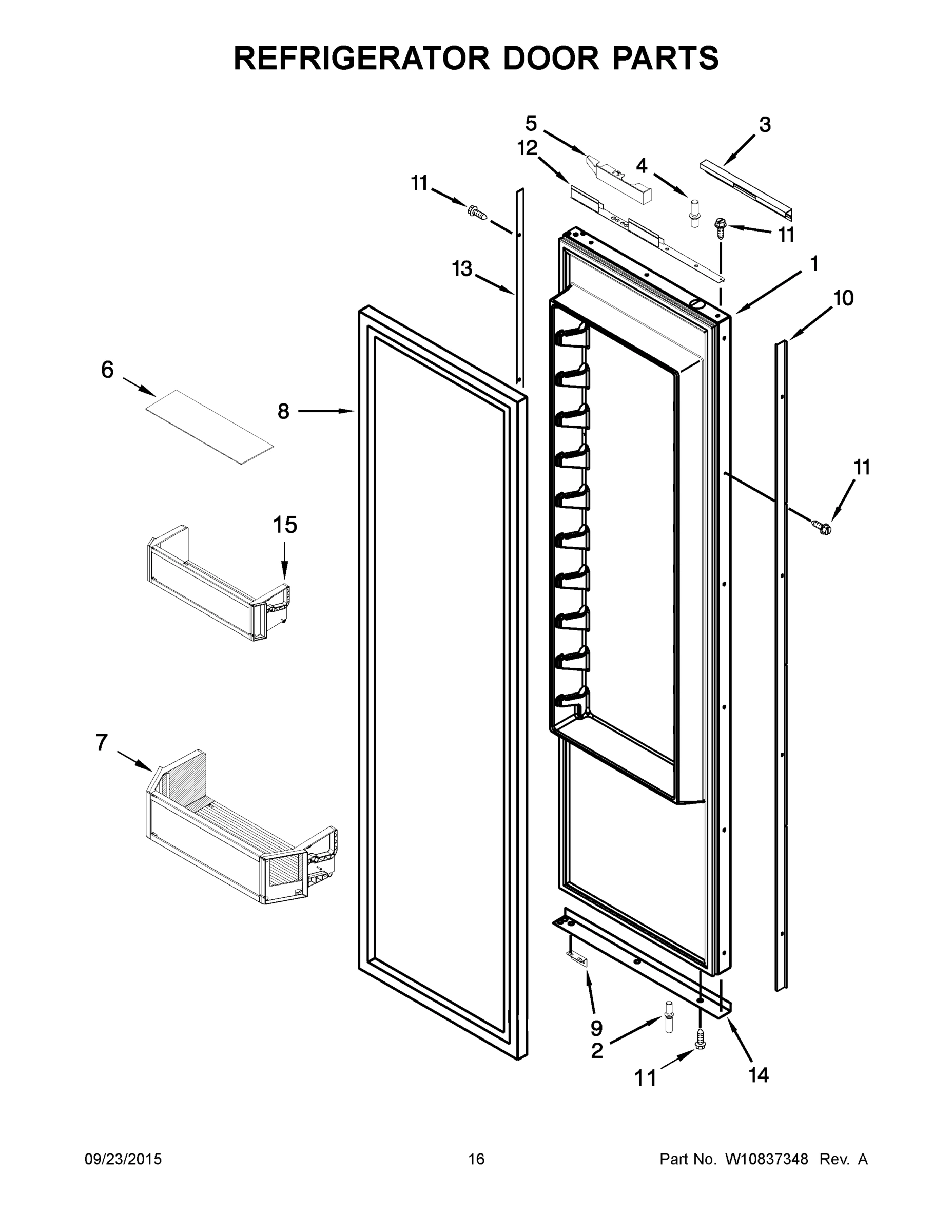

09 - REFRIGERATOR DOOR PARTS

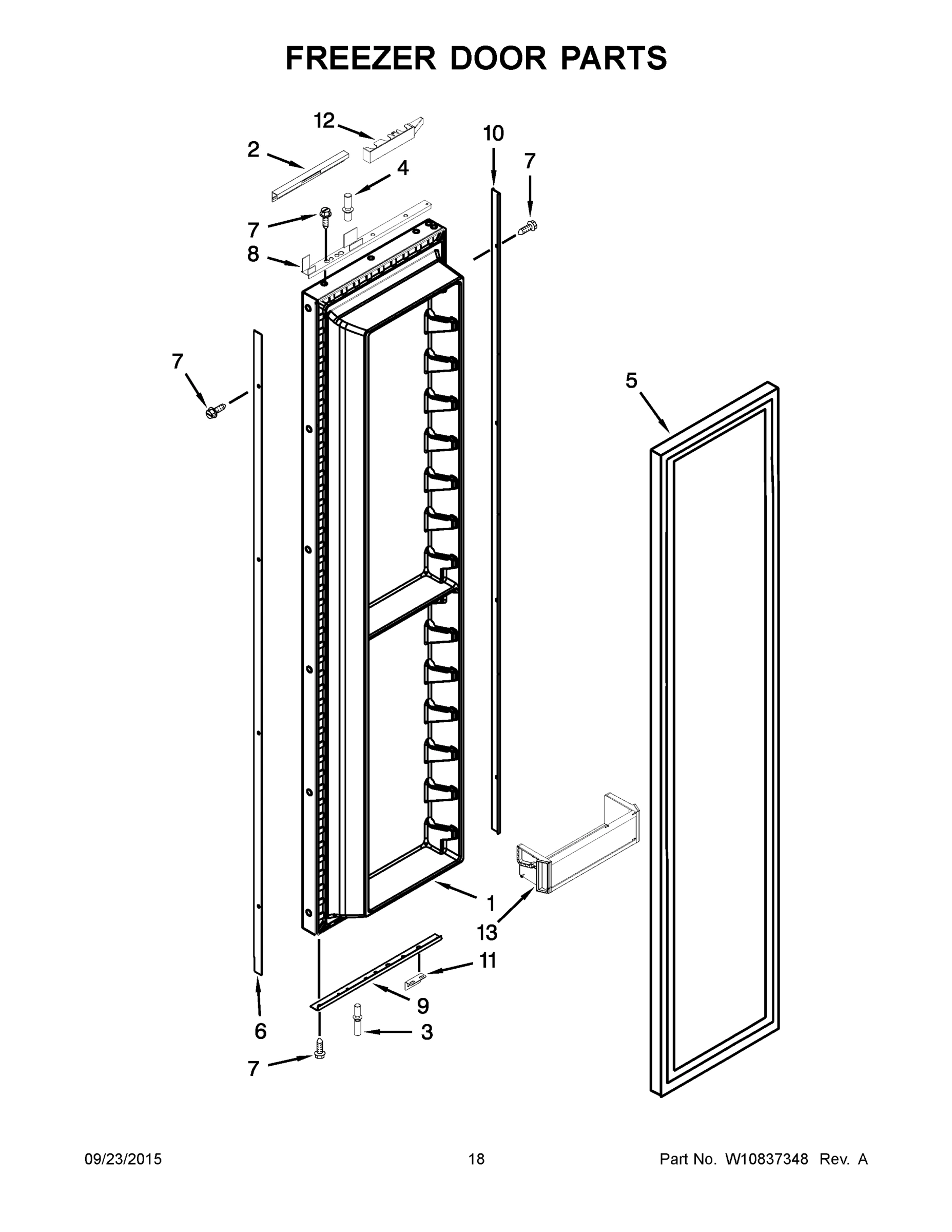

10 - FREEZER DOOR PARTS

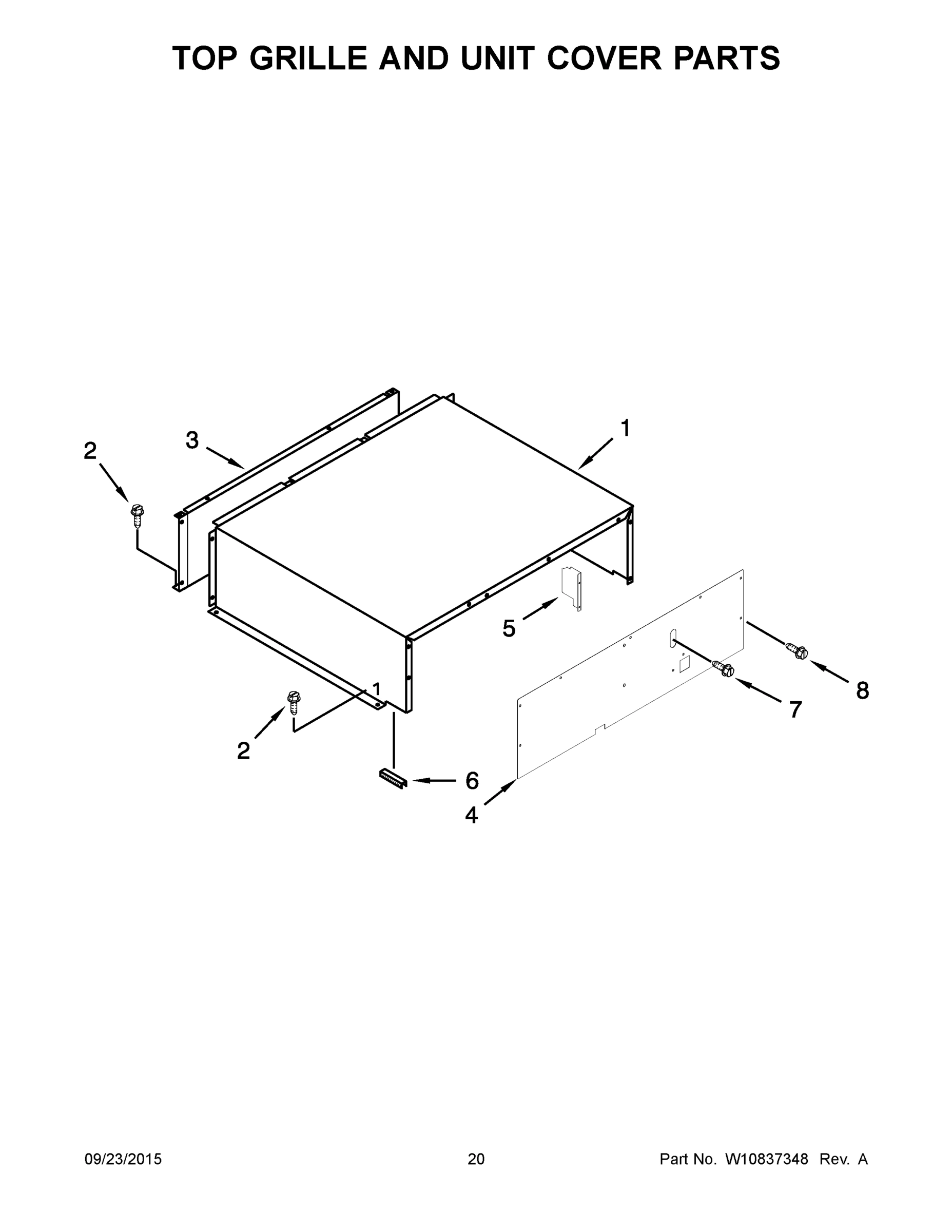

11 - TOP GRILLE AND UNIT COVER PARTS

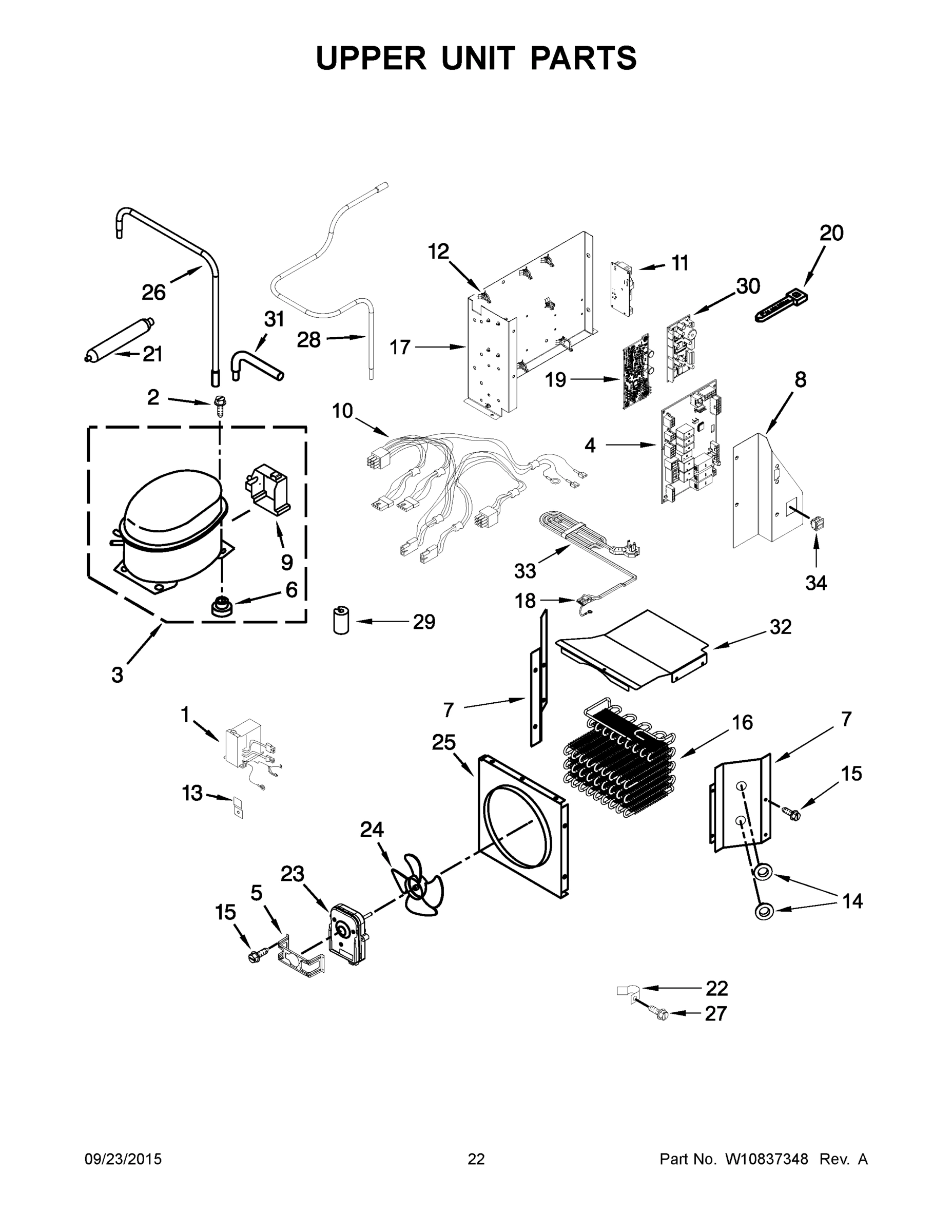

12 - UPPER UNIT PARTS

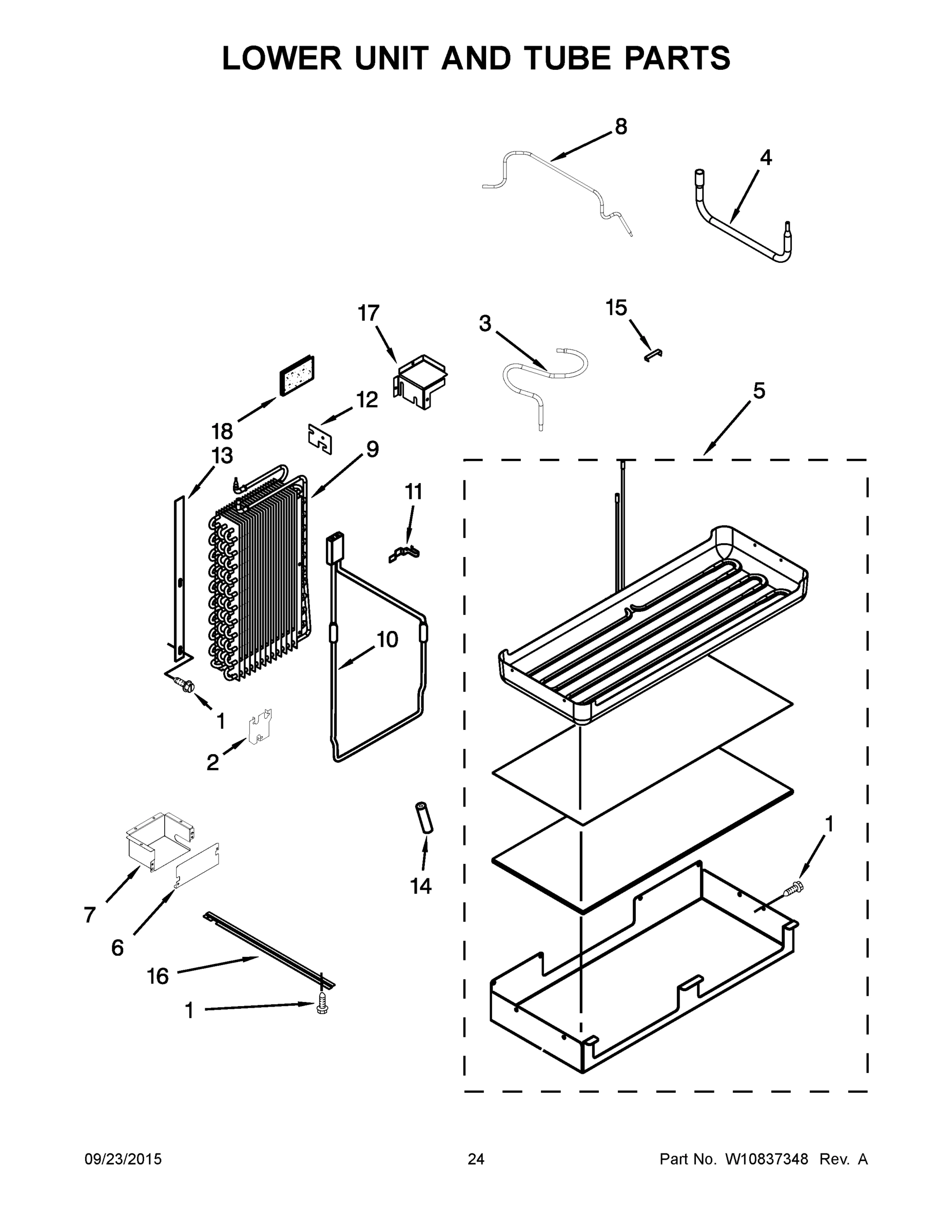

13 - LOWER UNIT AND TUBE PARTS

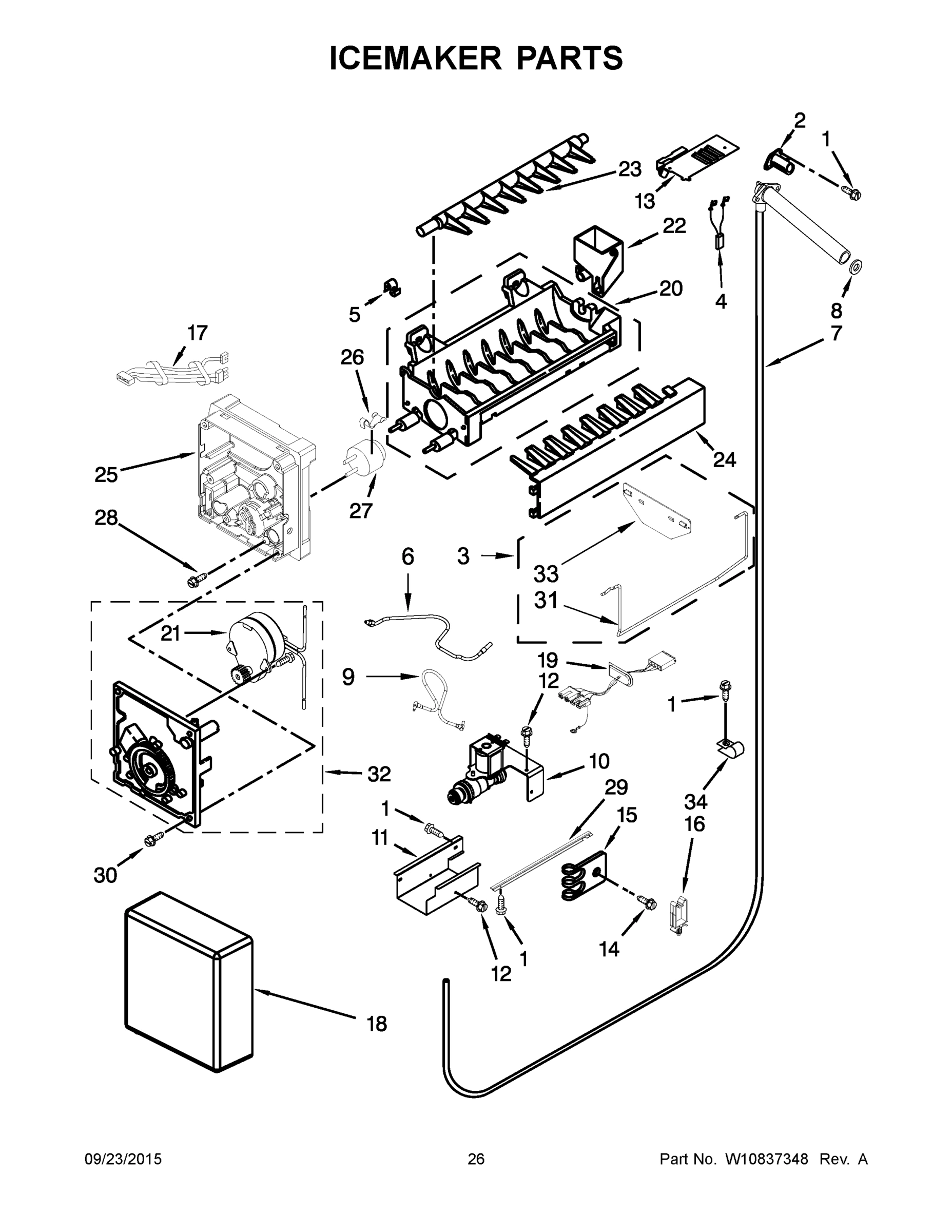

14 - ICEMAKER PARTS
15 - OPTIONAL PARTS
Common parts from model Maytag JS48NXFXDE00 REFRIGERATOR
1
MAY W10779525 MAY W10779525 Contact Us For Availability
1
SCREW MAY 486194 Contact Us For Availability
1
TRIM, CABINET SIDE LEFT HAND (BLACK) MAY W10775740 Contact Us For Availability
1
MAY W10436861 MAY W10436861 Contact Us For Availability
1
MAY W10785723 MAY W10785723 Contact Us For Availability
1
MAY W10187538 MAY W10187538 Contact Us For Availability
1
MAY W10759087 MAY W10759087 Contact Us For Availability
1
MAY W10783287 MAY W10783287 Contact Us For Availability
1
MAY W10783286 MAY W10783286 Contact Us For Availability
1
MAY W10545068 MAY W10545068 Contact Us For Availability
1
MAY W10645666 MAY W10645666 Contact Us For Availability
1
SCREW MAY 304392 Contact Us For Availability
1A
MAY W10785751 MAY W10785751 Contact Us For Availability
1B
MAY W10785744 MAY W10785744 Contact Us For Availability
1C
MAY W10785745 MAY W10785745 Contact Us For Availability
1D
MAY W10779523 MAY W10779523 Contact Us For Availability
2
SCREW MAY 1163283 Contact Us For Availability
2
MAY 2169142 MAY 2169142 Contact Us For Availability
2
MAY W10458299 MAY W10458299 Contact Us For Availability
2
MAY W10777655 MAY W10777655 Contact Us For Availability
2
MAY W10775728 MAY W10775728 Contact Us For Availability
2
MAY 489373 MAY 489373 Contact Us For Availability
2
MAY W10157752 MAY W10157752 Contact Us For Availability
2
MAY 2221240 MAY 2221240 Contact Us For Availability
3
MAY 2318189 MAY 2318189 Contact Us For Availability
3
TRIM, CABINET SIDE RIGHT HAND (BLACK) MAY W10775741 Contact Us For Availability
3
MAY 2208970 MAY 2208970 Contact Us For Availability
3
MAY W10260421 MAY W10260421 Contact Us For Availability
3
MAY W10775707 MAY W10775707 Contact Us For Availability
3
MAY W10789236 MAY W10789236 Contact Us For Availability
3
MAY W10759067 MAY W10759067 Contact Us For Availability
3
MAY W10234206 MAY W10234206 Contact Us For Availability
3
MAY W10775726 MAY W10775726 Contact Us For Availability
3
MAY 2256466 MAY 2256466 Contact Us For Availability
3
MAY W10653005 MAY W10653005 Contact Us For Availability
3
MAY W10648568 MAY W10648568 Contact Us For Availability
3
MAY W10802377 MAY W10802377 Contact Us For Availability
4
MAY W10138054 MAY W10138054 Contact Us For Availability
4
MAY W10775715 MAY W10775715 Contact Us For Availability
4
MAY W10203260 MAY W10203260 Contact Us For Availability
4
MAY 2317000 MAY 2317000 Contact Us For Availability
4
MAY W10785392 MAY W10785392 Contact Us For Availability
4
MAY W10794061 MAY W10794061 Contact Us For Availability
4
MAY W10234194 MAY W10234194 Contact Us For Availability
4
MAY W10694109 MAY W10694109 Contact Us For Availability
4
MAY W10200659 MAY W10200659 Contact Us For Availability
4
MAY W10388653 MAY W10388653 Contact Us For Availability
4
MAY W10482373 MAY W10482373 Contact Us For Availability
5
MAY W10279275 MAY W10279275 Contact Us For Availability
5
MAY W10738279 MAY W10738279 Contact Us For Availability
5
LADDER, SHELF (SHORT) MAY W10749140 Contact Us For Availability
5
MAY W10678210 MAY W10678210 Contact Us For Availability
5
MAY W10321090 MAY W10321090 Contact Us For Availability
5
MAY W10789235 MAY W10789235 Contact Us For Availability
5
MAY W10789203 MAY W10789203 Contact Us For Availability
5
MAY W10749269 MAY W10749269 Contact Us For Availability
5
DIVIDER, TOP GRILLE AIR MAY W10251186 Contact Us For Availability
5
MAY W10414681 MAY W10414681 Contact Us For Availability
5
ASSEMBLY, DRAIN PAN MAY W10281063 Contact Us For Availability
5
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
5A
MAY W10138423 MAY W10138423 Contact Us For Availability
5A
LADDER, SHELF (LONG) MAY W10749139 Contact Us For Availability
6
MAY W10797527 MAY W10797527 Contact Us For Availability
6
MAY 2005925 MAY 2005925 Contact Us For Availability
6
MAY W10789212 MAY W10789212 Contact Us For Availability
6
MAY 2259318 MAY 2259318 Contact Us For Availability
6
MAY W10746024 MAY W10746024 Contact Us For Availability
6
TRIM, HANDLE SIDE DOOR (CHARCOAL) MAY W10749306 Contact Us For Availability
6
GROMMET, FLEXIBLE MAY 2215910 Contact Us For Availability
6
GROMMET MAY 1100826 Contact Us For Availability
6
MAY W10321048 MAY W10321048 Contact Us For Availability
6
MAY W10296807 MAY W10296807 Contact Us For Availability
6A
MAY 2259317 MAY 2259317 Contact Us For Availability
6A
MAY W10746029 MAY W10746029 Contact Us For Availability
7
MAY 2307640 MAY 2307640 Contact Us For Availability
7
MAY 2001377 MAY 2001377 Contact Us For Availability
7
SCREW MAY W10141604 Contact Us For Availability
7
SCREW MAY 8533928 Contact Us For Availability
7
MAY W10794953 MAY W10794953 Contact Us For Availability
7
MAY W10594313 MAY W10594313 Contact Us For Availability
7
SCREW (BLACK) MAY 8281252 Contact Us For Availability
7
SUPPORT, CONDENSER (LEFT HASND) MAY W10525177 Contact Us For Availability
7
MAY W10309012 MAY W10309012 Contact Us For Availability
7
MAY 2314049 MAY 2314049 Contact Us For Availability
7A
MAY W10732727 MAY W10732727 Contact Us For Availability
7A
SUPPORT, CONDENSER (RIGHT HASND) MAY W10525179 Contact Us For Availability
8
SUPPORT, GRILLE LEFT HAND (GREY) MAY W10714143 Contact Us For Availability
8
SCREW MAY 487415 Contact Us For Availability
8
MAY 2259445 MAY 2259445 Contact Us For Availability
8
MAY W10789220 MAY W10789220 Contact Us For Availability
8
MAY W10786630 MAY W10786630 Contact Us For Availability
8
MAY W10776012 MAY W10776012 Contact Us For Availability
8
MAY W10749275 MAY W10749275 Contact Us For Availability
8
BRACKET, CONTROL ASSEMBLY MAY W10321055 Contact Us For Availability
8
MAY W10499597 MAY W10499597 Contact Us For Availability
8
GASKET, SEAL MAY 1106508 Contact Us For Availability
8A
SUPPORT, GRILLE RIGHT HAND (GREY) MAY W10714146 Contact Us For Availability
9
MAY W10121451 MAY W10121451 Contact Us For Availability
9
MAY W10775714 MAY W10775714 Contact Us For Availability
9
MAY W10748855 MAY W10748855 Contact Us For Availability
9
MAY W10605575 MAY W10605575 Contact Us For Availability
9
MAY W10789209 MAY W10789209 Contact Us For Availability
9
MAY W10749618 MAY W10749618 Contact Us For Availability
9
MAY 2215676 MAY 2215676 Contact Us For Availability
9
MAY W10427993 MAY W10427993 Contact Us For Availability
9
MAY W10683737 MAY W10683737 Contact Us For Availability
10
MAY W10121140 MAY W10121140 Contact Us For Availability
10
MAY W10775713 MAY W10775713 Contact Us For Availability
10
MAY W10607479 MAY W10607479 Contact Us For Availability
10
MAY W10769876 MAY W10769876 Contact Us For Availability
10
MAY W10785704 MAY W10785704 Contact Us For Availability
10
TRIM, HANDLE SIDE DOOR (CHARCOAL) MAY W10755284 Contact Us For Availability
10
TRIM, HINGE SIDE DOOR (CHARCOAL) MAY W10749614 Contact Us For Availability
10
ASSEMBLY, UNIT WIRE MAY W10785721 Contact Us For Availability
10
MAY W10140162 MAY W10140162 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
11
RING, RETAINER MAY 2006841 Contact Us For Availability
11
MAY W10775705 MAY W10775705 Contact Us For Availability
11
MAY W10170114 MAY W10170114 Contact Us For Availability
11
MAY W10794952 MAY W10794952 Contact Us For Availability
11
MAY W10769828 MAY W10769828 Contact Us For Availability
11
MAY W10606841 MAY W10606841 Contact Us For Availability
11
MAY W10624574 MAY W10624574 Contact Us For Availability
11
CLAMP, HEATER MAY 1113048 Contact Us For Availability
11
SHIELD, VALVE ELECTRICAL MAY W10129653 Contact Us For Availability
11A
MAY W10732303 MAY W10732303 Contact Us For Availability
12
FILTER, WATER MAY W10121146 Contact Us For Availability
12
ASSEMBLY, AIR BAFFLE MAY 2221296 Contact Us For Availability
12
MAY W10769273 MAY W10769273 Contact Us For Availability
12
MAY W10769855 MAY W10769855 Contact Us For Availability
12
MAY W10769705 MAY W10769705 Contact Us For Availability
12
INSERT, ARM DOOR TOP (GREY) MAY W10606813 Contact Us For Availability
12
MAY W10776481 MAY W10776481 Contact Us For Availability
12
MAY 2203075 MAY 2203075 Contact Us For Availability
12
SCREW MAY 487294 Contact Us For Availability
12
MAY W10139908 MAY W10139908 Contact Us For Availability
12A
INSERT, ARM DOOR BOTTOM (GREY) MAY W10606814 Contact Us For Availability
13
MAY W10780215 MAY W10780215 Contact Us For Availability
13
MAY W10203322 MAY W10203322 Contact Us For Availability
13
MAY W10769272 MAY W10769272 Contact Us For Availability
13
SCREW (RIGHT HAND) MAY W10215666 Contact Us For Availability
13
MAY W10789211 MAY W10789211 Contact Us For Availability
13
MAY W10529451 MAY W10529451 Contact Us For Availability
13
MAY 2256328 MAY 2256328 Contact Us For Availability
13
MAY W10432308 MAY W10432308 Contact Us For Availability
13
MAY 2221231 MAY 2221231 Contact Us For Availability
14
MAY W10234202 MAY W10234202 Contact Us For Availability
14
MAY W10001250 MAY W10001250 Contact Us For Availability
14
MAY W10170112 MAY W10170112 Contact Us For Availability
14
MAY W10732457 MAY W10732457 Contact Us For Availability
14
MAY W10784931 MAY W10784931 Contact Us For Availability
14
MAY W10755292 MAY W10755292 Contact Us For Availability
14
MAY W10587113 MAY W10587113 Contact Us For Availability
14
GROMMET, AIR RETURN MAY W10413009 Contact Us For Availability
15
HINGE (TOP) LEFT HAND (GREY) MAY W10691145 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
MAY W10789216 MAY W10789216 Contact Us For Availability
15
MAY W10529454 MAY W10529454 Contact Us For Availability
15
MAY W10169509 MAY W10169509 Contact Us For Availability
15
MAY 2208136 MAY 2208136 Contact Us For Availability
15A
HINGE (TOP) RIGHT HAND (GREY) MAY W10691136 Contact Us For Availability
16
MAY W10674648 MAY W10674648 Contact Us For Availability
16
CLIP, WIRE MAY W10129069 Contact Us For Availability
16
MAY W10769274 MAY W10769274 Contact Us For Availability
16
MAY W10787392 MAY W10787392 Contact Us For Availability
16
MAY W10591457 MAY W10591457 Contact Us For Availability
16
MAY 2320554 MAY 2320554 Contact Us For Availability
17
MAY W10308487 MAY W10308487 Contact Us For Availability
17
MAY W10787391 MAY W10787391 Contact Us For Availability
17
MAY W10550831 MAY W10550831 Contact Us For Availability
17
MAY W10160981 MAY W10160981 Contact Us For Availability
17
MAY W10508673 MAY W10508673 Contact Us For Availability
18
MAY W10160570 MAY W10160570 Contact Us For Availability
18
MAY W10701859 MAY W10701859 Contact Us For Availability
18
MAY 2310195 MAY 2310195 Contact Us For Availability
18
SEALER, INSULATION MAY 2169104 Contact Us For Availability
18
MAY W10801567 MAY W10801567 Contact Us For Availability
19
MAY W10593207 MAY W10593207 Contact Us For Availability
19
MAY W10790783 MAY W10790783 Contact Us For Availability
19
ASSEMBLY, WATER VALVE WIRE MAY W10279393 Contact Us For Availability
20
MAY W10691533 MAY W10691533 Contact Us For Availability
20
MAY W10775716 MAY W10775716 Contact Us For Availability
20
TIE, WIRE MAY 2155774 Contact Us For Availability
20
ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638) MAY 628228 Contact Us For Availability
20A
MAY W10691534 MAY W10691534 Contact Us For Availability
21
MAY 8533913 MAY 8533913 Contact Us For Availability
21
MAY 1112260 MAY 1112260 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
22
MAY W10188551 MAY W10188551 Contact Us For Availability
22
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
22
MAY W10789219 MAY W10789219 Contact Us For Availability
22
MAY W10788843 MAY W10788843 Contact Us For Availability
23
GRILLE, BOTTOM (BLACK) MAY W10182718 Contact Us For Availability
23
MAY W10784949 MAY W10784949 Contact Us For Availability
23
MAY 2188875 MAY 2188875 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
MAY W10135766 MAY W10135766 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
MAY W10788834 MAY W10788834 Contact Us For Availability
24A
MAY W10141474 MAY W10141474 Contact Us For Availability
25
MAY 2006617 MAY 2006617 Contact Us For Availability
25
MAY W10782823 MAY W10782823 Contact Us For Availability
25
MAY W10415670 MAY W10415670 Contact Us For Availability
25
MAY W10790252 MAY W10790252 Contact Us For Availability
26
MAY W10482187 MAY W10482187 Contact Us For Availability
26
MAY W10624944 MAY W10624944 Contact Us For Availability
26
MAY 2315522 MAY 2315522 Contact Us For Availability
27
MAY W10005050 MAY W10005050 Contact Us For Availability
27
MAY W10581989 MAY W10581989 Contact Us For Availability
27
THERMOSTAT MAY 627985 Contact Us For Availability
28
MAY 2260503B MAY 2260503B Contact Us For Availability
28
MAY 2188820 MAY 2188820 Contact Us For Availability
28
MAY W10648264 MAY W10648264 Contact Us For Availability
28
MAY W10001280 MAY W10001280 Contact Us For Availability
29
MAY W10606838 MAY W10606838 Contact Us For Availability
29
MAY W10783891 MAY W10783891 Contact Us For Availability
29
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
29
MAY 2320559 MAY 2320559 Contact Us For Availability
30
MAY W10167387 MAY W10167387 Contact Us For Availability
30
MAY W10745668 MAY W10745668 Contact Us For Availability
30
CONTROL, ELECTRONIC MAY W10184634 Contact Us For Availability
30
MAY 489276 MAY 489276 Contact Us For Availability
30A
MAY W10167341 MAY W10167341 Contact Us For Availability
31
MAY W10784036 MAY W10784036 Contact Us For Availability
31
MAY W10528578 MAY W10528578 Contact Us For Availability
31
ARM, SHUT OFF MAY 2304352 Contact Us For Availability
32
MAY 2215612 MAY 2215612 Contact Us For Availability
32
MAY W10525175 MAY W10525175 Contact Us For Availability
32
ASSEMBLY, MODULE AND MOTOR MAY 626691 Contact Us For Availability
33
LEVELER, ADJUSTABLE MAY 2005032 Contact Us For Availability
33
MAY 2310196 MAY 2310196 Contact Us For Availability
33
MAY W10802358 MAY W10802358 Contact Us For Availability
34
MAY 2307584 MAY 2307584 Contact Us For Availability
34
SWITCH, POWER DISCONNECT MAY 2266802 Contact Us For Availability
34
MAY 2221070 MAY 2221070 Contact Us For Availability
35
MAY W10740171 MAY W10740171 Contact Us For Availability
36
MAY 2314064 MAY 2314064 Contact Us For Availability
100
MAY W10790815 MAY W10790815 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
MAY 8003RP MAY 8003RP Contact Us For Availability
NI
MAY REFDEODOR MAY REFDEODOR Contact Us For Availability
NI
MAY W10234156 MAY W10234156 Contact Us For Availability
NI
CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
NI
MAY W10488113 MAY W10488113 Contact Us For Availability
NI
MAY W10613135 MAY W10613135 Contact Us For Availability
NI
MAY W10744761 MAY W10744761 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
