Model Maytag JS42PPDUDB01 REFRIGERATOR – Common Parts & Diagrams

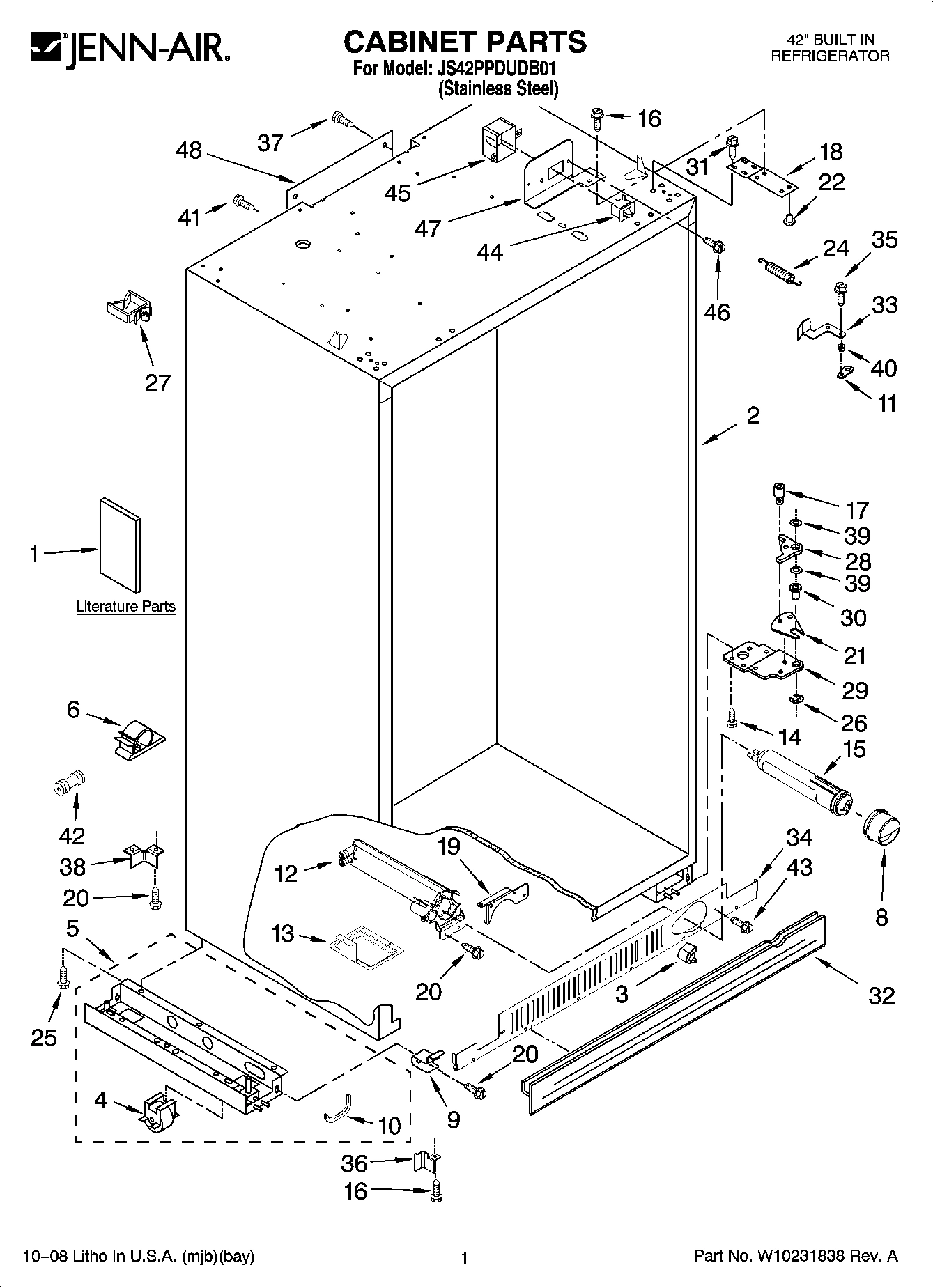

01 - CABINET PARTS

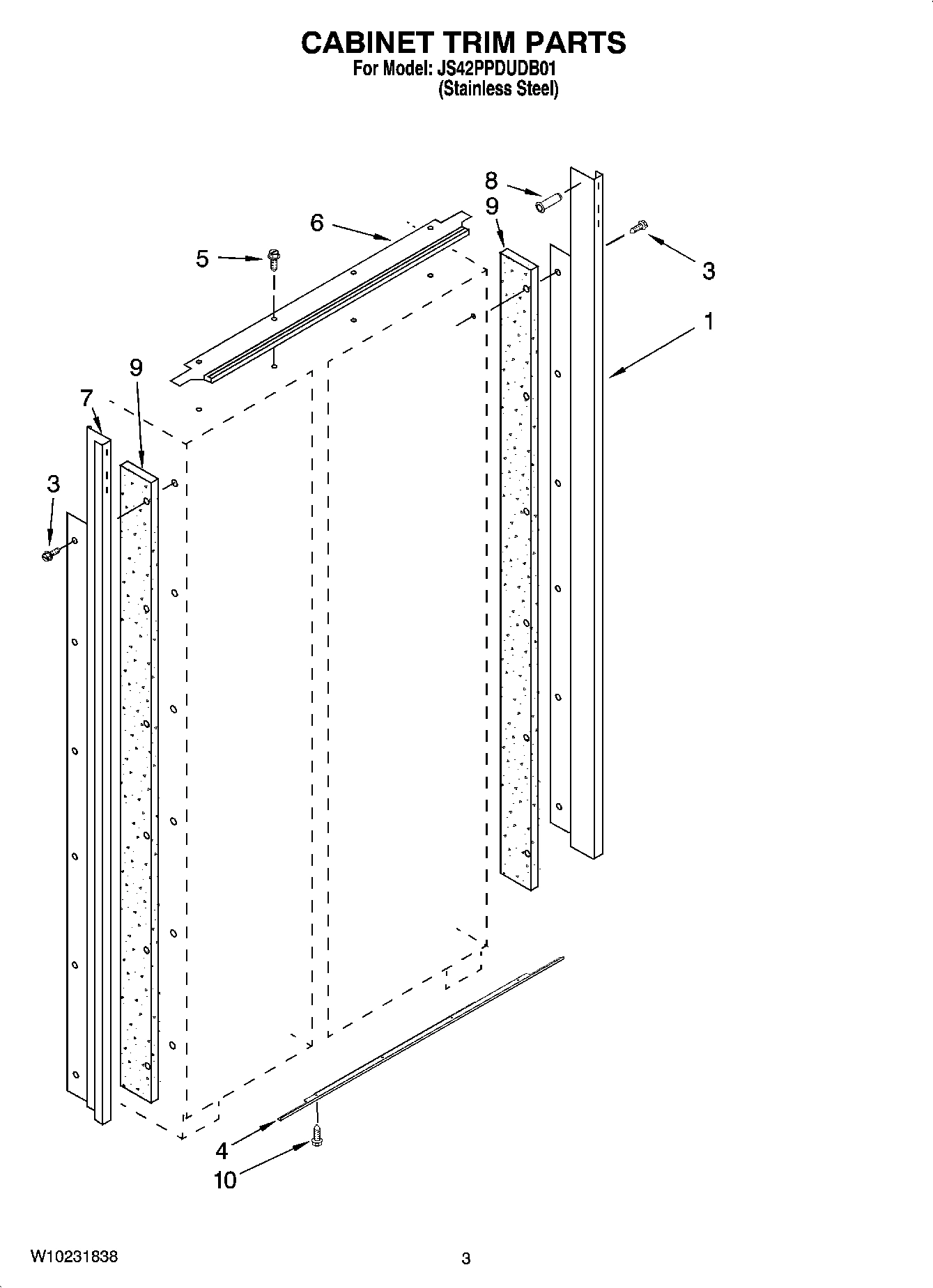

02 - CABINET TRIM PARTS
03 - FREEZER SHELF PARTS
04 - REFRIGERATOR LINER PARTS
05 - CONTROL PANEL PARTS
06 - TOP GRILLE AND UNIT COVER PARTS
07 - REFRIGERATOR SHELF PARTS
08 - FREEZER LINER AND AIR FLOW PARTS
09 - MOTOR AND ICE CONTAINER PARTS
10 - REFRIGERATOR DOOR PARTS
11 - FREEZER DOOR PARTS
12 - DISPENSER FRONT PARTS
13 - UPPER UNIT PARTS
14 - LOWER UNIT AND TUBE PARTS
15 - ICEMAKER PARTS
Common parts from model Maytag JS42PPDUDB01 REFRIGERATOR
1
MAY 2306424 MAY 2306424 Contact Us For Availability
1
MAY 2318069 MAY 2318069 Contact Us For Availability
1
MAY W10151249 MAY W10151249 Contact Us For Availability
1
MAY W10151251 MAY W10151251 Contact Us For Availability
1
MAY W10159832 MAY W10159832 Contact Us For Availability
1
MAY W10164077 MAY W10164077 Contact Us For Availability
1
Cabinet, Trim (Right Side) (Stainless Steel) MAY W10132472 Contact Us For Availability
1
Wire, Shelf MAY W10175905 Contact Us For Availability
1
MAY W10151196 MAY W10151196 Contact Us For Availability
1
Panel, Decorative Assembly (Stainless Steel) MAY W10150056 Contact Us For Availability
1
MAY W10141494 MAY W10141494 Contact Us For Availability
1
MAY 2259385 MAY 2259385 Contact Us For Availability
1
Ice Bin MAY 2222965 Contact Us For Availability
1
Door Assy, RC (Includes Item 9) MAY W10193490 Contact Us For Availability
1
Door Assy, FC (Includes 14) (Black) MAY W10193494 Contact Us For Availability
1
MAY W10133449 MAY W10133449 Contact Us For Availability
1
Bracket Assembly, Air Return MAY W10160981 Contact Us For Availability
1
Screw, 8-18 x 1/2 MAY 304392 Contact Us For Availability
2
Clip, Box MAY 2317000 Contact Us For Availability
2
MAY W10161693 MAY W10161693 Contact Us For Availability
2
MAY 2198665 MAY 2198665 Contact Us For Availability
2
MAY W10151247 MAY W10151247 Contact Us For Availability
2
Plate, Door-Handle MAY W10127710 Contact Us For Availability
2
Screw, Compressor Mounting (4) MAY 489373 Contact Us For Availability
2
Shield, Valve MAY 2320601 Contact Us For Availability
3
Button, Filter MAY 2260503B Contact Us For Availability
3
Screw (Stainless Steel) MAY 1163283 Contact Us For Availability
3
Shelf, Fixed (2) MAY 2302883 Contact Us For Availability
3
Air Duct MAY 2208970 Contact Us For Availability
3
MAY W10151215 MAY W10151215 Contact Us For Availability
3
Fan Blade MAY 2169142 Contact Us For Availability
3
MAY W10140642 MAY W10140642 Contact Us For Availability
3
Hinge, Bottom MAY 2302879 Contact Us For Availability
3
MAY W10132946 MAY W10132946 Contact Us For Availability
3
Compressor (Includes Items 6 & 9)(Also Order MAY 2223393 Contact Us For Availability
3
Bracket, Heater Mounting MAY W10157752 Contact Us For Availability
4
Roller, Front & Rear (4) MAY W10138054 Contact Us For Availability
4
Cabinet, Trim (Bottom) MAY 2316687 Contact Us For Availability
4
Basket MAY 2259082 Contact Us For Availability
4
MAY W10159487 MAY W10159487 Contact Us For Availability
4
MAY 2310390 MAY 2310390 Contact Us For Availability
4
Back Panel MAY 2256466 Contact Us For Availability
4
MAY W10151213 MAY W10151213 Contact Us For Availability
4
MAY 2223733 MAY 2223733 Contact Us For Availability
4
Washer, Auger MAY 2258220 Contact Us For Availability
4
MAY 489282 MAY 489282 Contact Us For Availability
4
MAY 2305242 MAY 2305242 Contact Us For Availability
4
MAY 2318087 MAY 2318087 Contact Us For Availability
4
Suction Tube MAY 2309076 Contact Us For Availability
5
Support, Leveler Assembly (Left Side) MAY W10163491 Contact Us For Availability
5
Support, Leveler Assembly (Right Side) MAY W10163493 Contact Us For Availability
5
MAY 2256270 MAY 2256270 Contact Us For Availability
5
Ladder, Shelf (2) MAY 2259077 Contact Us For Availability
5
MAY 2307592 MAY 2307592 Contact Us For Availability
5
Cover, Unit Front MAY W10185625 Contact Us For Availability
5
MAY 2257582 MAY 2257582 Contact Us For Availability
5
Gasket, Cover MAY 2302817 Contact Us For Availability
5
Spacer, Flat (6) MAY 1119007 Contact Us For Availability
5
Hinge, Top MAY 2266854 Contact Us For Availability
5
MAY 2318021 MAY 2318021 Contact Us For Availability
5
Control Board MAY 2318054 Contact Us For Availability
5
Tube, Connect (Drier/Restrictor) MAY 2309070 Contact Us For Availability
5
CLIP,FUSE MAY 628379 Contact Us For Availability
6
Clip, Conduit MAY 2004514 Contact Us For Availability
6
Screw MAY 487415 Contact Us For Availability
6
Cabinet, Trim Top MAY 2314017 Contact Us For Availability
6
Slide, Basket (Right Side) MAY 2259317 Contact Us For Availability
6
Slide, Basket (Left Side) MAY 2259318 Contact Us For Availability
6
Screw Support, Ladder (8) MAY 520965 Contact Us For Availability
6
Shield, Control Box MAY 2307595 Contact Us For Availability
6
MAY 2252412 MAY 2252412 Contact Us For Availability
6
Grommet MAY 2223986 Contact Us For Availability
6
MAY 2317248 MAY 2317248 Contact Us For Availability
6
Spacer-Door, Top & Bottom MAY 2316804 Contact Us For Availability
6
Hinge Assembly, Bottom MAY 2302878 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
Grommet, Mounting MAY 1100826 Contact Us For Availability
6
Drain Pan Assy. MAY W10196999 Contact Us For Availability
6
MAY W10174395 MAY W10174395 Contact Us For Availability
7
Cabinet Trim (Left Side) MAY W10132541 Contact Us For Availability
7
Wire Assembly RC/FC Light Switch MAY W10167456 Contact Us For Availability
7
Slide, Meat Pan (Left Side) MAY 2302954 Contact Us For Availability
7
Slide, Meat Pan (Right Side) MAY 2302955 Contact Us For Availability
7
MAY 2257024 MAY 2257024 Contact Us For Availability
7
MAY 2222796 MAY 2222796 Contact Us For Availability
7
MAY 2222814 MAY 2222814 Contact Us For Availability
7
MAY 2318020 MAY 2318020 Contact Us For Availability
7
Support, Condenser MAY 2309002 Contact Us For Availability
7
MAY W10151288 MAY W10151288 Contact Us For Availability
7
Water Tube MAY 2320658 Contact Us For Availability
8
MAY 2260518B MAY 2260518B Contact Us For Availability
8
Nutsert (4) MAY W10121451 Contact Us For Availability
8
MAY W10151210 MAY W10151210 Contact Us For Availability
8
Badge, Jenn-Air MAY W10159578 Contact Us For Availability
8
MAY 2302831 MAY 2302831 Contact Us For Availability
8
Wedge, Air Duct MAY 2259464 Contact Us For Availability
8
Spacer, Step (2) MAY 1119005 Contact Us For Availability
8
Gaasket, Utility Bin MAY 2222982 Contact Us For Availability
8
MAY 12859107 MAY 12859107 Contact Us For Availability
8
Screw (2) MAY 4449745 Contact Us For Availability
8
Tube, Tranisiton (Cond/Ht Loop) (Right) MAY 2307693 Contact Us For Availability
8
MAY W10153595 MAY W10153595 Contact Us For Availability
8
MAY 2302758 MAY 2302758 Contact Us For Availability
9
Mounting Stud, Grille MAY 2307640 Contact Us For Availability
9
SEAL-TRIM, SIDE MAY 2005925 Contact Us For Availability
9
MAY 2302937 MAY 2302937 Contact Us For Availability
9
MAY 489348 MAY 489348 Contact Us For Availability
9
MAY 2256254 MAY 2256254 Contact Us For Availability
9
Screw, Ground MAY 488500 Contact Us For Availability
9
MAY 2257020 MAY 2257020 Contact Us For Availability
9
MAY 2222811 MAY 2222811 Contact Us For Availability
9
Spacer, Door-Skin (Handle Side) (For Stainles MAY 2309060 Contact Us For Availability
9
SPIGOT MAY 2305235 Contact Us For Availability
9
Terminal Cover MAY 2215676 Contact Us For Availability
9
MAY W10121371 MAY W10121371 Contact Us For Availability
9
MAY 2317912 MAY 2317912 Contact Us For Availability
10
GROMMET, CROSSOVERTUBE MAY 2307584 Contact Us For Availability
10
Lid, Meat Pan Baffle MAY 2302986 Contact Us For Availability
10
MAY 2188820 MAY 2188820 Contact Us For Availability
10
Socket, Light (2) MAY 2223857 Contact Us For Availability
10
GROMMET MAY 2215910 Contact Us For Availability
10
MAY 2256248 MAY 2256248 Contact Us For Availability
10
MAY 2257023 MAY 2257023 Contact Us For Availability
10
MAY W10144969 MAY W10144969 Contact Us For Availability
10
MAY W10144963 MAY W10144963 Contact Us For Availability
10
Separator Assembly MAY 2318017 Contact Us For Availability
10
MAY 2309001 MAY 2309001 Contact Us For Availability
10
Valve, Solenoid MAY W10159842 Contact Us For Availability
11
MAY 2005783 MAY 2005783 Contact Us For Availability
11
Baffle, Control Assembly MAY W10169528 Contact Us For Availability
11
Trim, Glass Side Crisper Pan MAY 2252255 Contact Us For Availability
11
Clamp, Nylon MAY 488937 Contact Us For Availability
11
MAY 2317239 MAY 2317239 Contact Us For Availability
11
MAY 12859108 MAY 12859108 Contact Us For Availability
11
Screw (Stainless Steel) MAY 8281250 Contact Us For Availability
11
MAY W10121049 MAY W10121049 Contact Us For Availability
11
MAY W10205101 MAY W10205101 Contact Us For Availability
12
MAY W10121140 MAY W10121140 Contact Us For Availability
12
MAY 2171846 MAY 2171846 Contact Us For Availability
12
MAY 2326255 MAY 2326255 Contact Us For Availability
12
MAY 2256250 MAY 2256250 Contact Us For Availability
12
MAY 489229 MAY 489229 Contact Us For Availability
12
Spacer, Door-Skin (Top) MAY 2005433 Contact Us For Availability
12
Housing Assembly MAY 2307675US Contact Us For Availability
12
Spacer (5) MAY 2203075 Contact Us For Availability
12
MAY W10140161 MAY W10140161 Contact Us For Availability
12
MAY 2221070 MAY 2221070 Contact Us For Availability
13
Tray, Drip Filter MAY 2318189 Contact Us For Availability
13
Jumper, Air Baffle MAY 2310205 Contact Us For Availability
13
Spacer, Crisper (Right Side (2)) MAY 2256222 Contact Us For Availability
13
Spacer, Crisper (Left Side (2)) MAY 2256223 Contact Us For Availability
13
Screw MAY 489214 Contact Us For Availability
13
MAY 2257022 MAY 2257022 Contact Us For Availability
13
SCREW MAY 488568 Contact Us For Availability
13
Water, Paddle Asy MAY 2305307GN Contact Us For Availability
13
Bracket, Inverter Box MAY 2256328 Contact Us For Availability
13
MAY 1113048 MAY 1113048 Contact Us For Availability
13
MAY 2320559 MAY 2320559 Contact Us For Availability
14
MAY 3400525 MAY 3400525 Contact Us For Availability
14
SCREW MAY 488357 Contact Us For Availability
14
Slide, Crisper (Right Side) MAY 2302956 Contact Us For Availability
14
Slide, Crisper (Left Side) MAY 2302957 Contact Us For Availability
14
MAY 2182120 MAY 2182120 Contact Us For Availability
14
MAY 489235 MAY 489235 Contact Us For Availability
14
Spacer, Door-Skin (Bottom) MAY 2257385 Contact Us For Availability
14
Ice, Paddle Asy MAY 2305306GN Contact Us For Availability
14
Cover Seal, Evaporator Tubes MAY W10139908 Contact Us For Availability
15
Filter, Water MAY 4396841 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
Spacer, Meat Pan (Left Side) MAY 2256243 Contact Us For Availability
15
Spacer, Meat Pan (Right Side) MAY 2256244 Contact Us For Availability
15
Wedge, Air Duct MAY 2259465 Contact Us For Availability
15
MAY 2198661 MAY 2198661 Contact Us For Availability
15
Spacer Door Assy (Hinge Side) MAY W10142296 Contact Us For Availability
15
Cover, Control MAY 2305219 Contact Us For Availability
15
MAY 2220832 MAY 2220832 Contact Us For Availability
15
Clamp, Nylon Valve MAY 2208136 Contact Us For Availability
16
Screw (Left Side- (8-18 x .750)) MAY 8533928 Contact Us For Availability
16
MAY 2003577 MAY 2003577 Contact Us For Availability
16
Screw (Right Side- (8-18 x 1.375)) MAY 8533929 Contact Us For Availability
16
Coupling, Top MAY 2188918 Contact Us For Availability
16
Screw, Handle MAY 308544 Contact Us For Availability
16
Electronic Control (Includes 15) MAY 2321746 Contact Us For Availability
16
MAY 2307998 MAY 2307998 Contact Us For Availability
16
Wire Tie MAY 4389107 Contact Us For Availability
17
Screw, Door Stop MAY 3400230 Contact Us For Availability
17
Air Baffle Assembly MAY 2221296 Contact Us For Availability
17
Pan Assembly Meat MAY 2256369 Contact Us For Availability
17
Air Duct MAY 2307774 Contact Us For Availability
17
MAY 8281164 MAY 8281164 Contact Us For Availability
17
MAY W10159582 MAY W10159582 Contact Us For Availability
17
MAY W10159585 MAY W10159585 Contact Us For Availability
17
User Interface Asy MAY W10151236 Contact Us For Availability
17
MAY 2309431 MAY 2309431 Contact Us For Availability
17
MAY W10169509 MAY W10169509 Contact Us For Availability
17
MAY 2302756 MAY 2302756 Contact Us For Availability
18
Hinge (Top) MAY 2257644 Contact Us For Availability
18
MAY 2327509 MAY 2327509 Contact Us For Availability
18
MAY 2256366 MAY 2256366 Contact Us For Availability
18
MAY 2198643 MAY 2198643 Contact Us For Availability
18
MAY 3400065 MAY 3400065 Contact Us For Availability
18
Brace, Door Corner MAY 2258951 Contact Us For Availability
18
Tray, Housing MAY 2318062US Contact Us For Availability
18
MAY 2310207 MAY 2310207 Contact Us For Availability
18
MAY 2320554 MAY 2320554 Contact Us For Availability
18
MAY 2221232 MAY 2221232 Contact Us For Availability
19
MAY 489399 MAY 489399 Contact Us For Availability
19
Bracket, Mtg (Water Filter) MAY 2318190 Contact Us For Availability
19
Screw MAY 488280 Contact Us For Availability
19
Block, Fan Scroll (Left) MAY 2209066 Contact Us For Availability
19
Block, Fan Scroll (Right) MAY 2209480 Contact Us For Availability
19
MAY 2266800 MAY 2266800 Contact Us For Availability
19
Spacer, Door-Skin (Bottom) MAY 2004934 Contact Us For Availability
19
Bin, Door (3) MAY 2222776 Contact Us For Availability
19
LED Assembly MAY 2305342 Contact Us For Availability
19
MAY 9791833 MAY 9791833 Contact Us For Availability
20
MAY W10151205 MAY W10151205 Contact Us For Availability
20
MAY W10134783 MAY W10134783 Contact Us For Availability
20
MAY W10153450 MAY W10153450 Contact Us For Availability
20
MAY 2005326 MAY 2005326 Contact Us For Availability
20
Mold & Heater (Also Order 542638 Silicone Gre MAY W10122527 Contact Us For Availability
21
Lock, Adjustable Bushing MAY 2004994 Contact Us For Availability
21
Diffuser Assembly MAY 2309222 Contact Us For Availability
21
MAY 2198608 MAY 2198608 Contact Us For Availability
21
End Cap (Right Side) MAY 2222919 Contact Us For Availability
21
End Cap (Left Side) MAY 2222920 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
21
Insulation, Sound MAY 2220241 Contact Us For Availability
22
MAY 2300082 MAY 2300082 Contact Us For Availability
22
MAY 2198671 MAY 2198671 Contact Us For Availability
22
Bracket, Fan Motor (Condenser Fan) MAY W10136614 Contact Us For Availability
22
Dampener MAY 2215648 Contact Us For Availability
22
Cup-Water Fill MAY 628356 Contact Us For Availability
23
Screw MAY 8281163 Contact Us For Availability
23
MAY 2259025 MAY 2259025 Contact Us For Availability
23
MAY 2222922 MAY 2222922 Contact Us For Availability
23
Motor, Fan MAY 2188875 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
Spring, Door Closure (2) MAY 2221242 Contact Us For Availability
24
MAY 2302992 MAY 2302992 Contact Us For Availability
24
Light Shield MAY 2307751 Contact Us For Availability
24
MAY 2188919 MAY 2188919 Contact Us For Availability
24
MAY 2257616 MAY 2257616 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
Ice Striper MAY 2198598 Contact Us For Availability
25
Cover, Diffuser MAY 2309087 Contact Us For Availability
25
MAY W10158003 MAY W10158003 Contact Us For Availability
25
MAY 2198628 MAY 2198628 Contact Us For Availability
25
Bin, Door (3) MAY 2222773 Contact Us For Availability
25
MAY 2003169 MAY 2003169 Contact Us For Availability
25
Support MAY 2194712 Contact Us For Availability
26
Retaining Ring, Adjustable Bushing MAY 2005008 Contact Us For Availability
26
MAY 2302850 MAY 2302850 Contact Us For Availability
26
Drive Shaft MAY 2318030 Contact Us For Availability
26
Bin, Door MAY 2222770 Contact Us For Availability
26
Retainer Thermostat (2) MAY 2315522 Contact Us For Availability
27
Wire Clip (5) MAY W10129069 Contact Us For Availability
27
SCREW MAY 487539 Contact Us For Availability
27
MAY 2259412 MAY 2259412 Contact Us For Availability
27
MAY 2318011 MAY 2318011 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
Thermostat (Also Order 542639 Cement Alumilas MAY 628397 Contact Us For Availability
28
MAY 2006342 MAY 2006342 Contact Us For Availability
28
Seal, Air Duct (Square Hole) MAY 2259398 Contact Us For Availability
28
MAY 2198635 MAY 2198635 Contact Us For Availability
28
MAY 2315546 MAY 2315546 Contact Us For Availability
28
BRACKET, VIBRATION CONDENSER MAY 2317031 Contact Us For Availability
28
MAY 8533917 MAY 8533917 Contact Us For Availability
29
Hinge (Bottom) (Refrigerator Side) MAY 2006779 Contact Us For Availability
29
Hinge (Bottom) (Freezer Side) MAY 2006780 Contact Us For Availability
29
MAY 2309283 MAY 2309283 Contact Us For Availability
29
MAY 2318028 MAY 2318028 Contact Us For Availability
29
ARM, VIBRATION CONDENSER MAY 2317030 Contact Us For Availability
29
MAY W10139199 MAY W10139199 Contact Us For Availability
30
MAY 2302876 MAY 2302876 Contact Us For Availability
30
MAY 1112260 MAY 1112260 Contact Us For Availability
30
SLEEVE, COUPLING MAY 2315559 Contact Us For Availability
30
MAY 2307566 MAY 2307566 Contact Us For Availability
30
MAY 489276 MAY 489276 Contact Us For Availability
31
Screw 1/4-20 x 5/8 MAY 8533913 Contact Us For Availability
31
Shelf, Stud (20) MAY 2196483 Contact Us For Availability
31
Divider Chamber MAY 2317250 Contact Us For Availability
31
MAY 2194319 MAY 2194319 Contact Us For Availability
31
MAY W10151255 MAY W10151255 Contact Us For Availability
32
Skirt-Grille, Bottom (Black) MAY 2209025B Contact Us For Availability
32
MAY W10191952 MAY W10191952 Contact Us For Availability
32
MAY 2317243 MAY 2317243 Contact Us For Availability
32
Module Assembly (Includes Items 21 & 33) MAY W10223929 Contact Us For Availability
33
Extension Arm, Door Closer (Left) MAY 2266881 Contact Us For Availability
33
Extension Arm, Door Closer (Right) MAY 2266882 Contact Us For Availability
33
Evaporator, Cover Rail (Left Side) MAY 2221107 Contact Us For Availability
33
Evaporator, Cover Rail (Right Side) MAY 2259355 Contact Us For Availability
33
MAY 2309000 MAY 2309000 Contact Us For Availability
33
Screw (2) MAY 489136 Contact Us For Availability
34
MAY 489464 MAY 489464 Contact Us For Availability
34
MAY 2325185B MAY 2325185B Contact Us For Availability
34
Gasket (2) Evaporator Cover MAY 2220904 Contact Us For Availability
34
MAY 2310251 MAY 2310251 Contact Us For Availability
35
SCREW MAY 486194 Contact Us For Availability
35
MAY 2005921 MAY 2005921 Contact Us For Availability
35
MAY W10185556 MAY W10185556 Contact Us For Availability
36
Bracket, Support Base (Front) (Right) MAY 2006556 Contact Us For Availability
36
Bracket, Support Base (Front) (Left) MAY 2006616 Contact Us For Availability
36
MAY W10151208 MAY W10151208 Contact Us For Availability
36
MAY 549193 MAY 549193 Contact Us For Availability
36
MAY 2252228 MAY 2252228 Contact Us For Availability
37
MAY W10139189 MAY W10139189 Contact Us For Availability
37
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
38
Bracket, Support Base (Rear) (2) MAY 2006617 Contact Us For Availability
38
Screw, Ground MAY 487294 Contact Us For Availability
39
WASHER MAY 2006346 Contact Us For Availability
39
MAY 2306010 MAY 2306010 Contact Us For Availability
39
Wiring Harness, Unit Compartment MAY W10129829 Contact Us For Availability
40
Bushing, Extension Arm MAY 2266880 Contact Us For Availability
40
MAY 2309432 MAY 2309432 Contact Us For Availability
41
MAY 2317844 MAY 2317844 Contact Us For Availability
41
Power Supply, Ingredient Care Center MAY 2259350 Contact Us For Availability
42
Connector, Water Tube (5/16-1/4``) MAY 2209709 Contact Us For Availability
42
Connector, Water Tube (1/4``) MAY 2300868 Contact Us For Availability
42
SCREW MAY 2006475 Contact Us For Availability
44
Switch, Rocker Arm (Freezer Door Side) MAY 1115373 Contact Us For Availability
44
Switch, Rocker Arm (Refrigerator Door Side) MAY 1118894 Contact Us For Availability
45
Cover, Switch (2) MAY 2215938 Contact Us For Availability
46
MAY 2259032 MAY 2259032 Contact Us For Availability
47
MAY 2221096 MAY 2221096 Contact Us For Availability
47
MAY 2221097 MAY 2221097 Contact Us For Availability
47
Support, Screw MAY 2259445 Contact Us For Availability
48
Cover, Rear MAY 2215612 Contact Us For Availability
50
MAY 2198634 MAY 2198634 Contact Us For Availability
51
MAY W10193840 MAY W10193840 Contact Us For Availability
52
MAY 2198633 MAY 2198633 Contact Us For Availability
53
MAY 2315398 MAY 2315398 Contact Us For Availability
54
MAY W10193666 MAY W10193666 Contact Us For Availability
55
Defrost, Bi-Metal MAY W10160570 Contact Us For Availability
56
MAY 8281185 MAY 8281185 Contact Us For Availability
100
Complete Icemaker Assembly MAY W10190968 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 8537055 MAY 8537055 Contact Us For Availability
NI
MAY W10151245 MAY W10151245 Contact Us For Availability
× ![]()
