Model Maytag JS42NXFXDW05 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

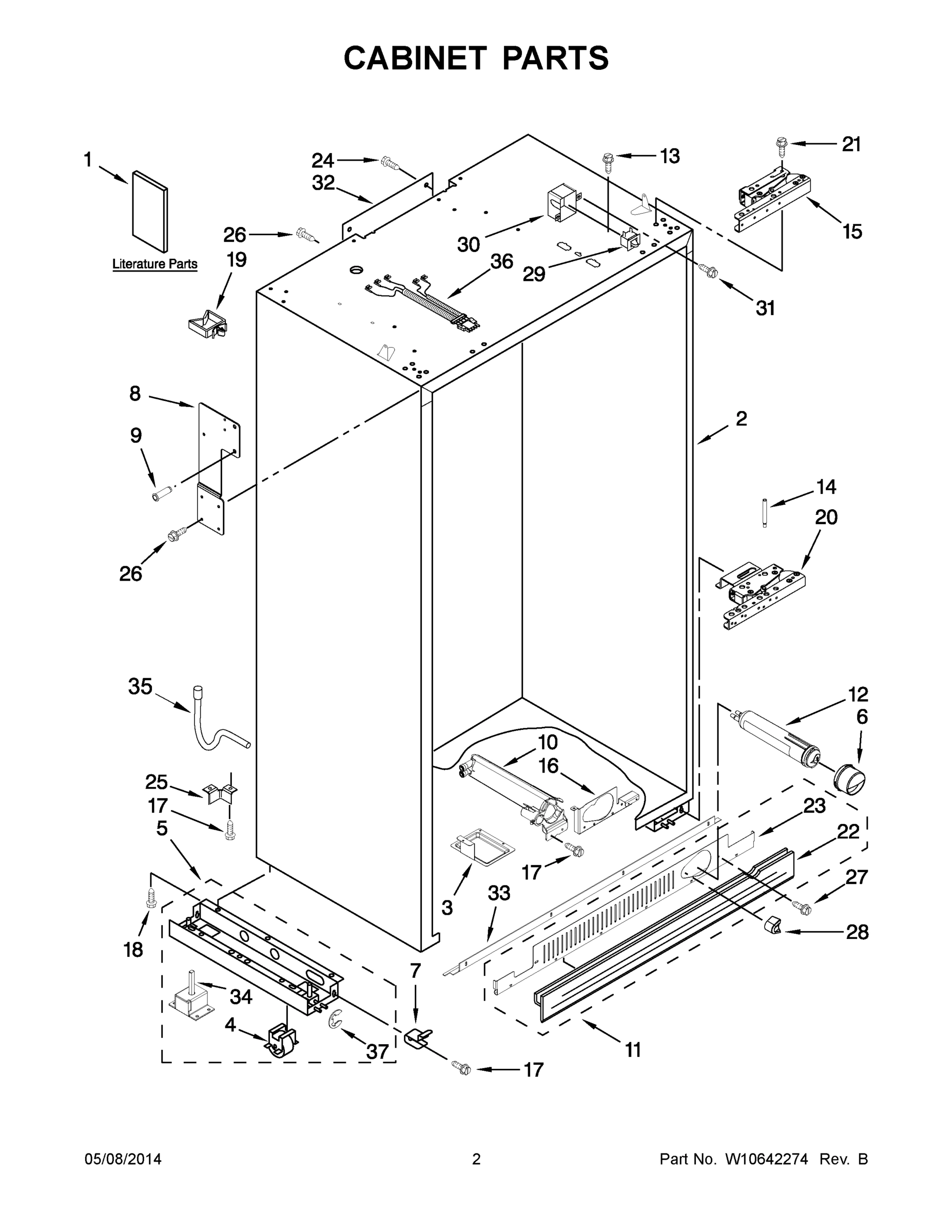

02 - CABINET PARTS

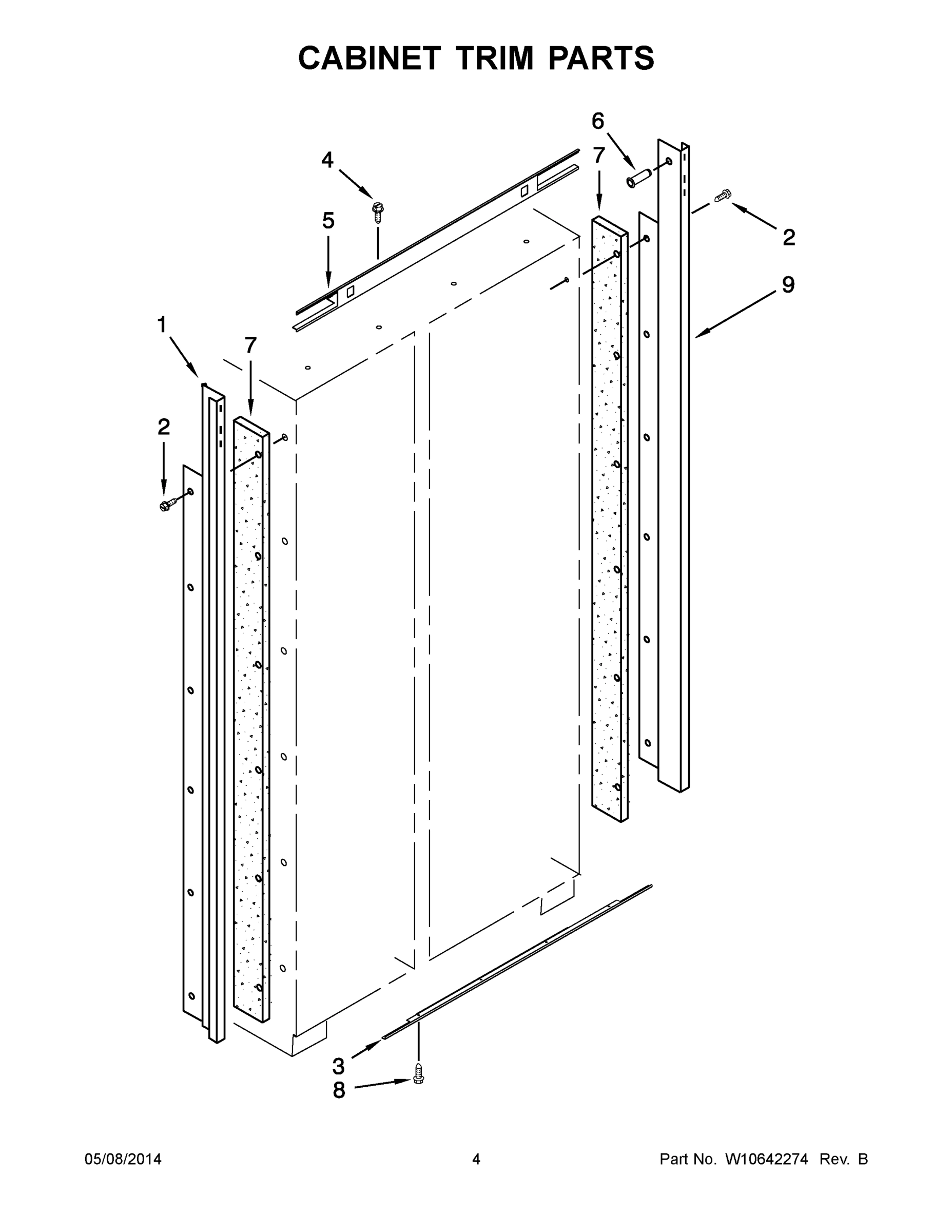

03 - CABINET TRIM PARTS

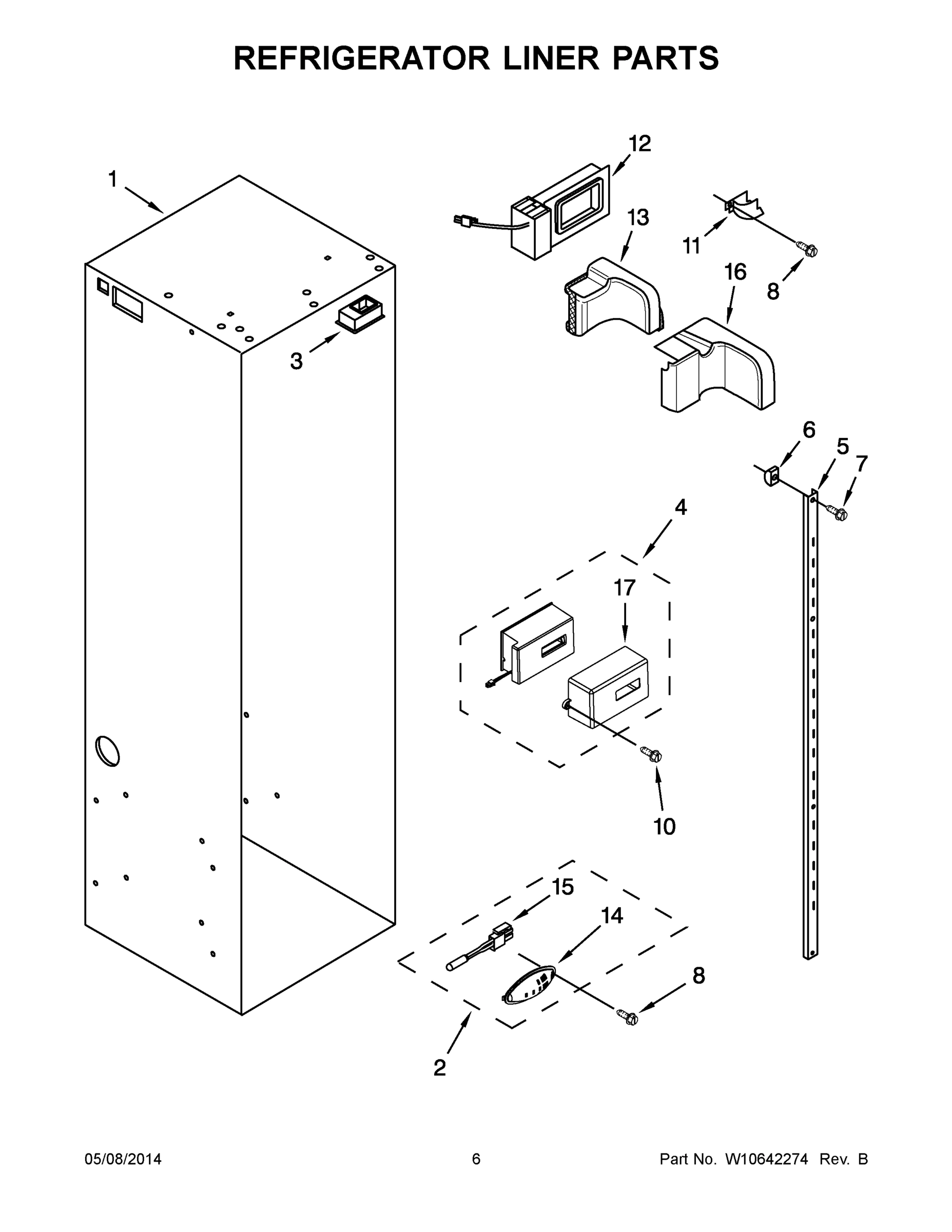

04 - REFRIGERATOR LINER PARTS

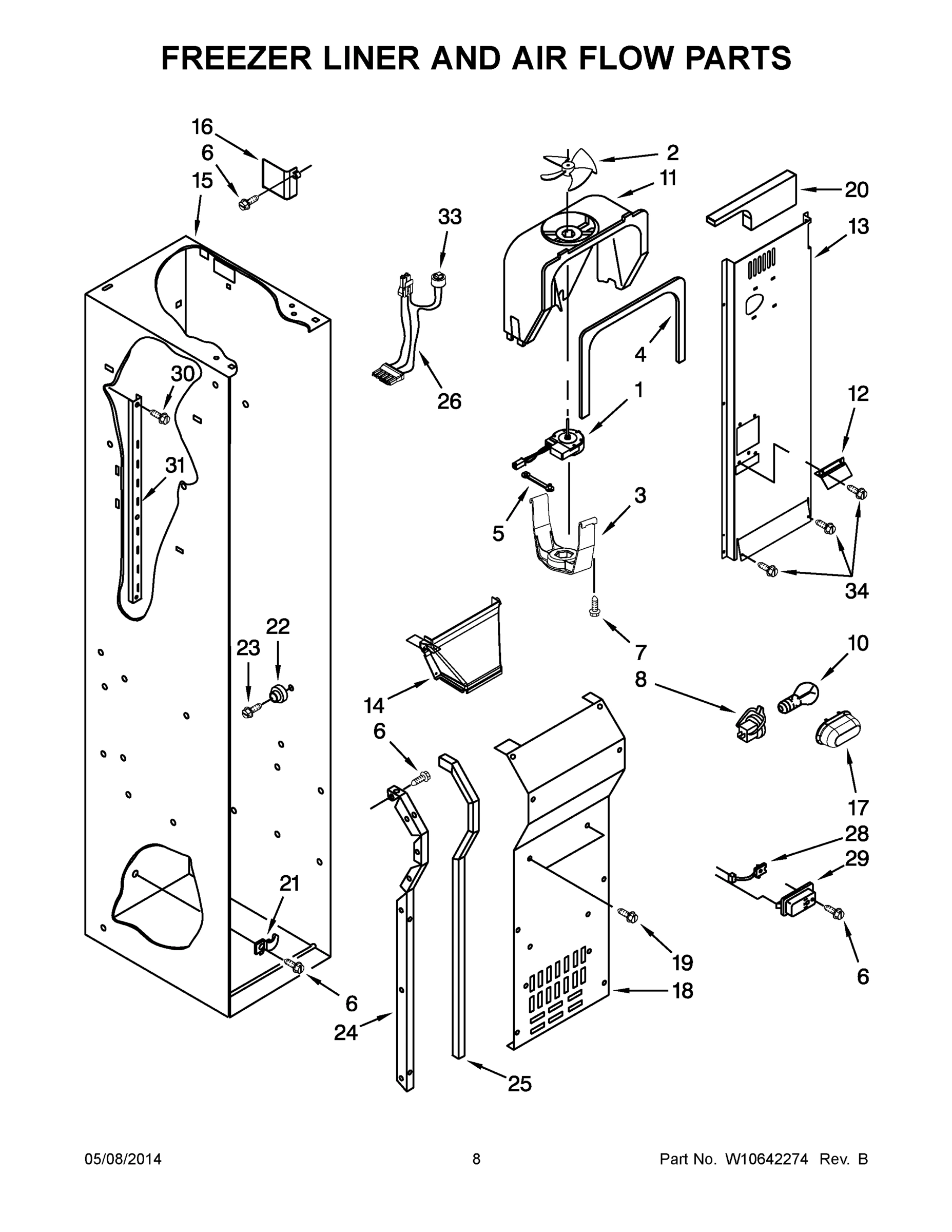

05 - FREEZER LINER AND AIR FLOW PARTS

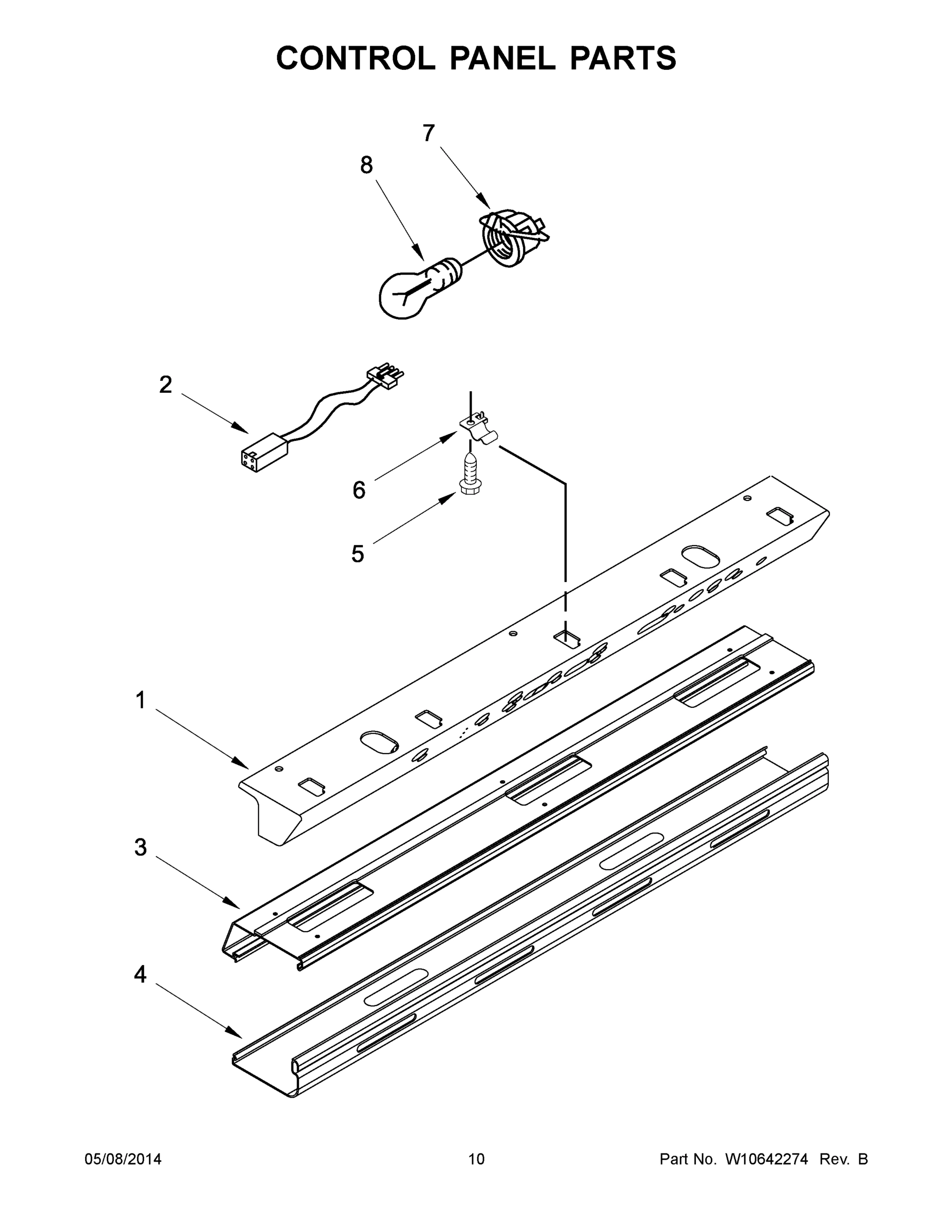

06 - CONTROL PANEL PARTS

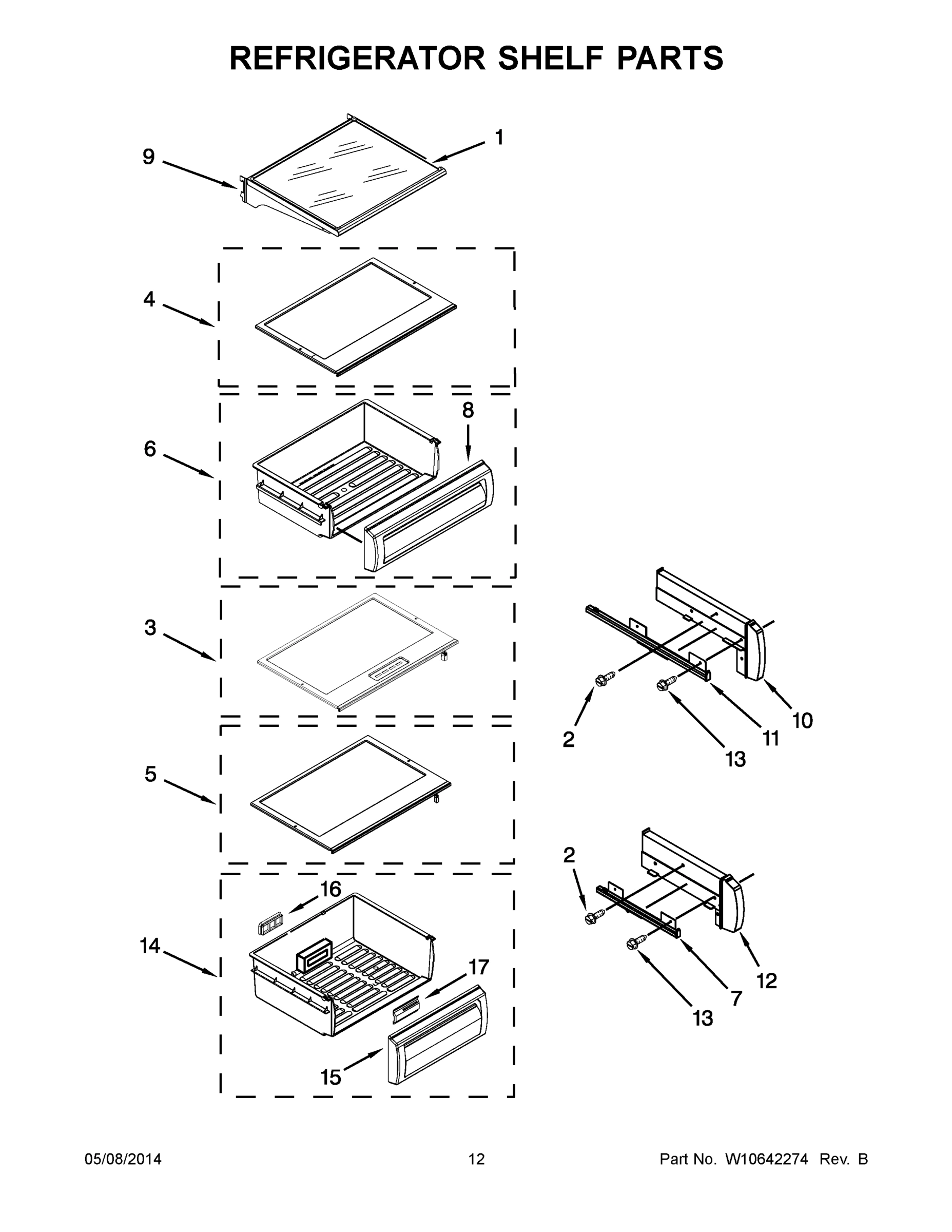

07 - REFRIGERATOR SHELF PARTS

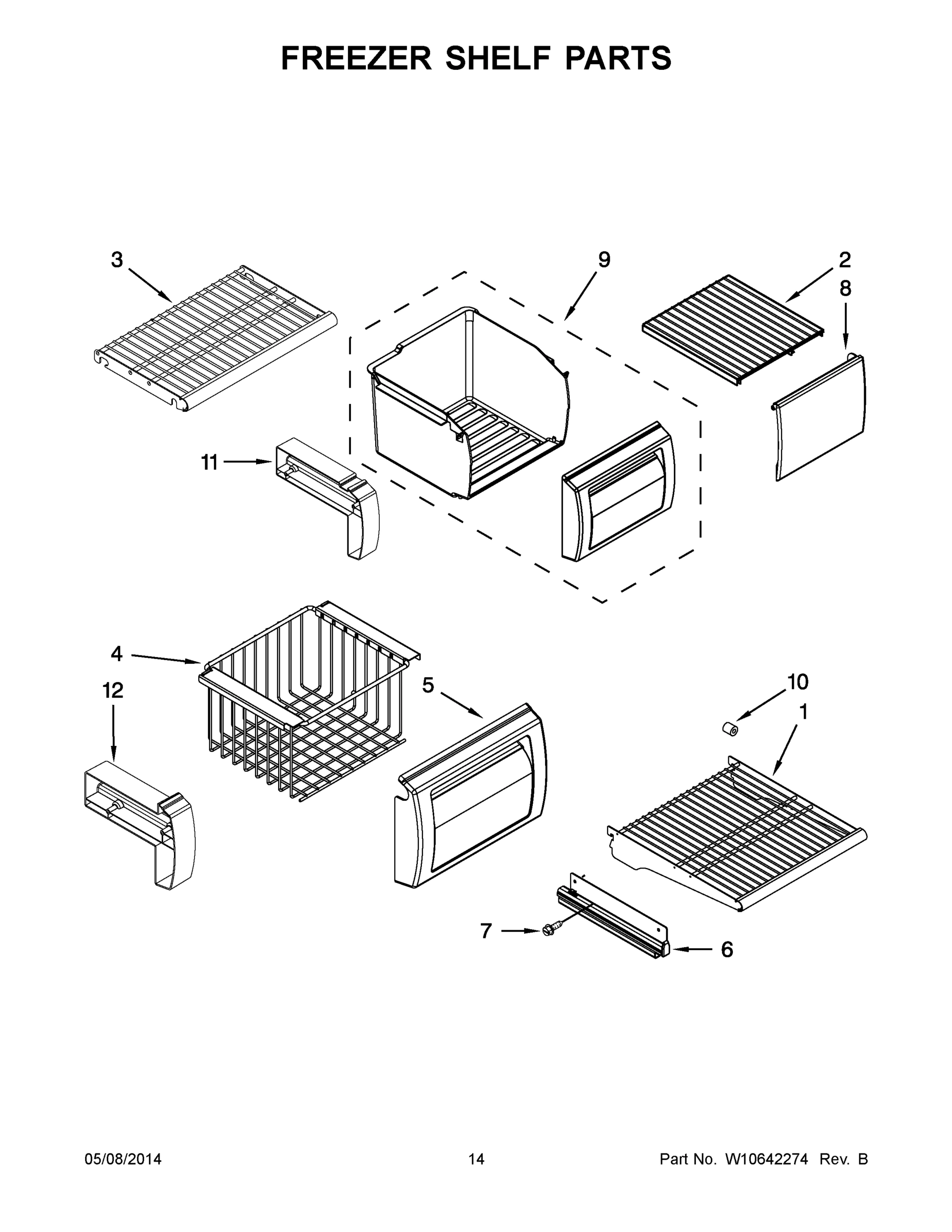

08 - FREEZER SHELF PARTS

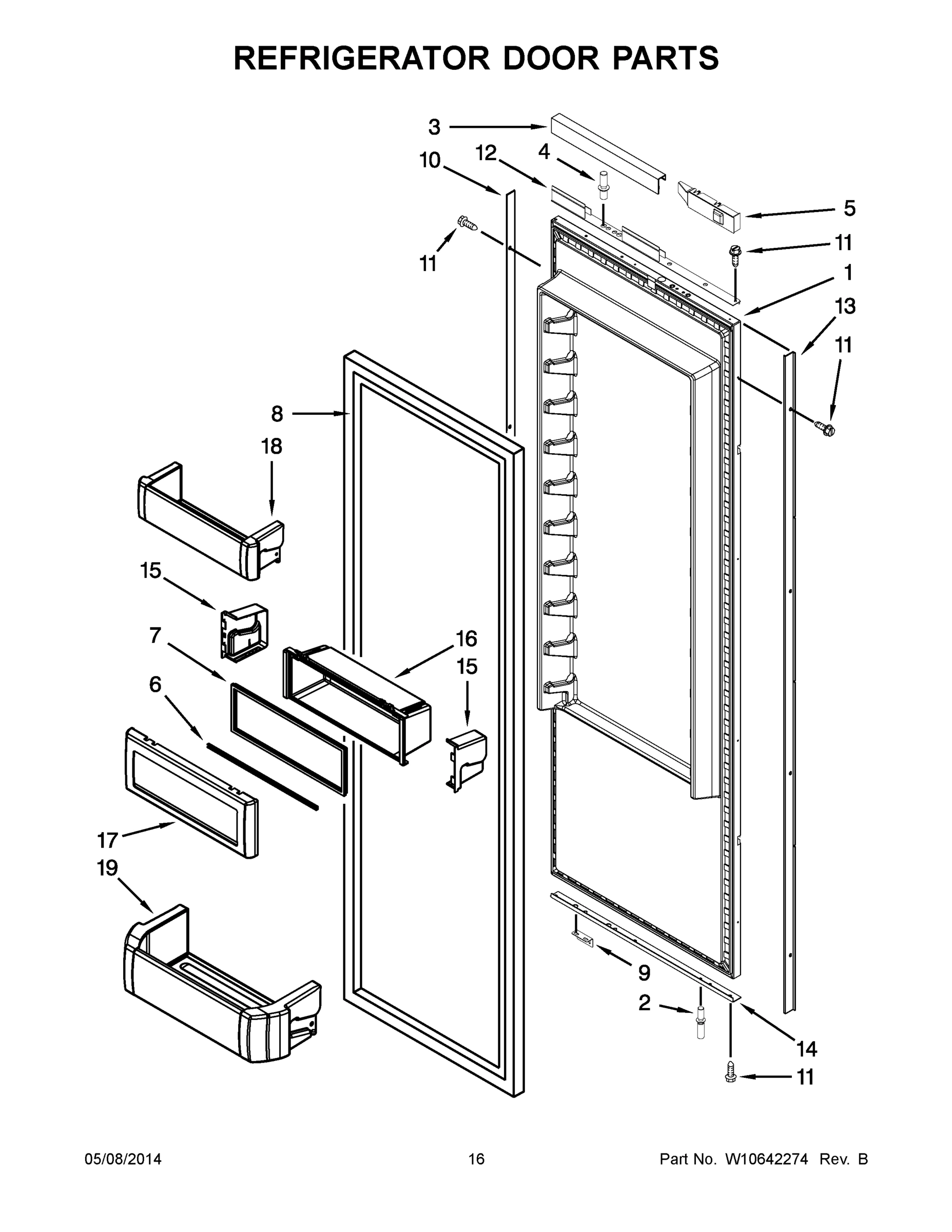

09 - REFRIGERATOR DOOR PARTS

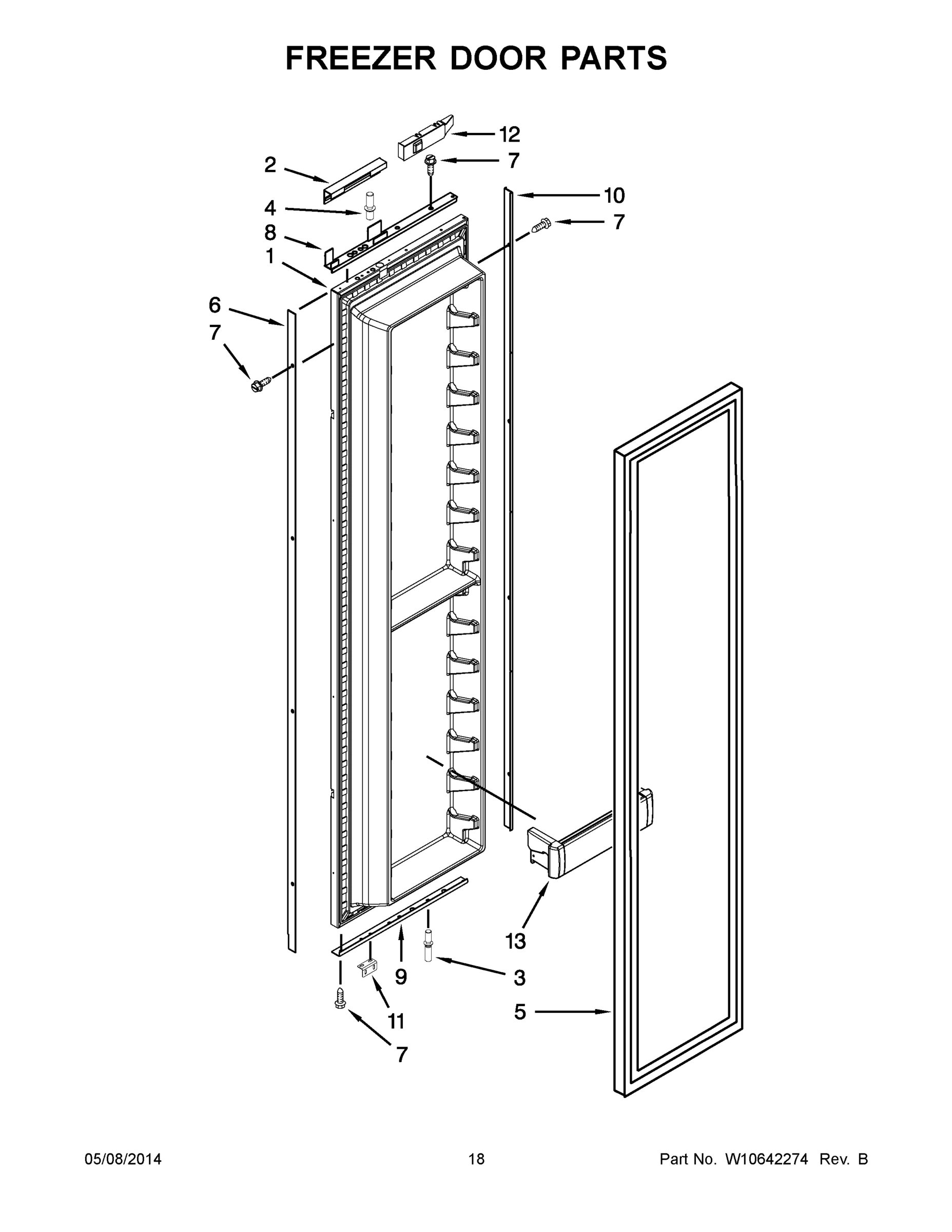

10 - FREEZER DOOR PARTS

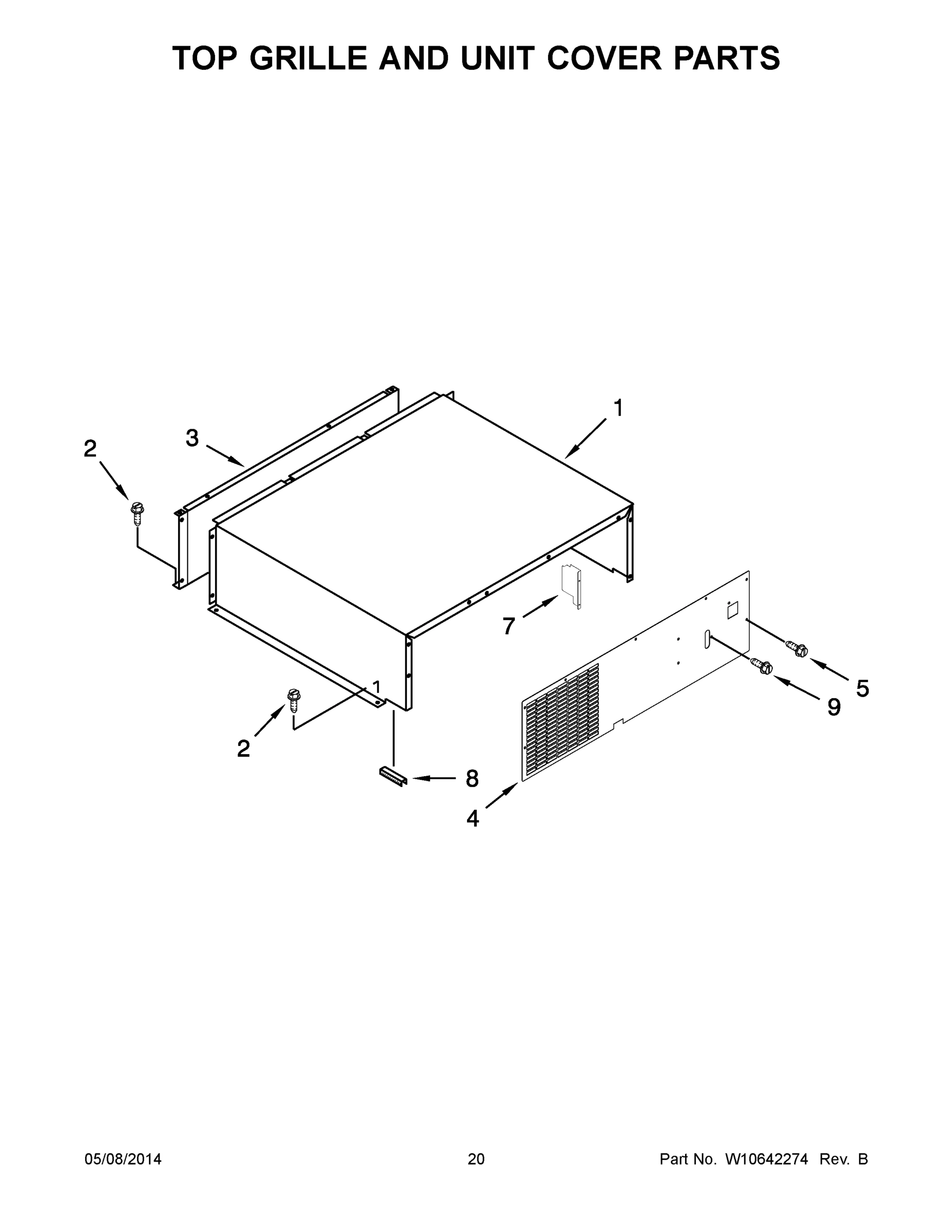

11 - TOP GRILLE AND UNIT COVER PARTS

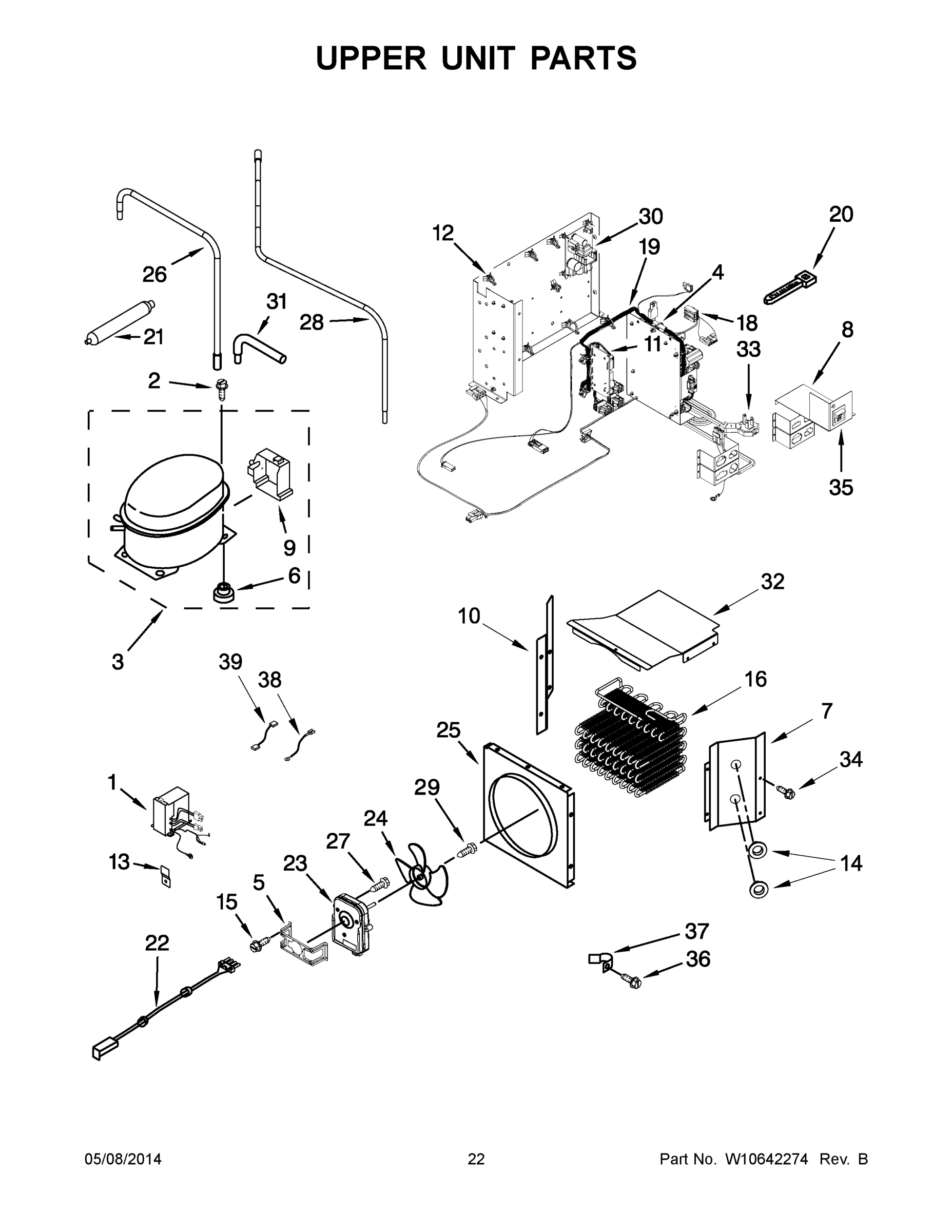

12 - UPPER UNIT PARTS

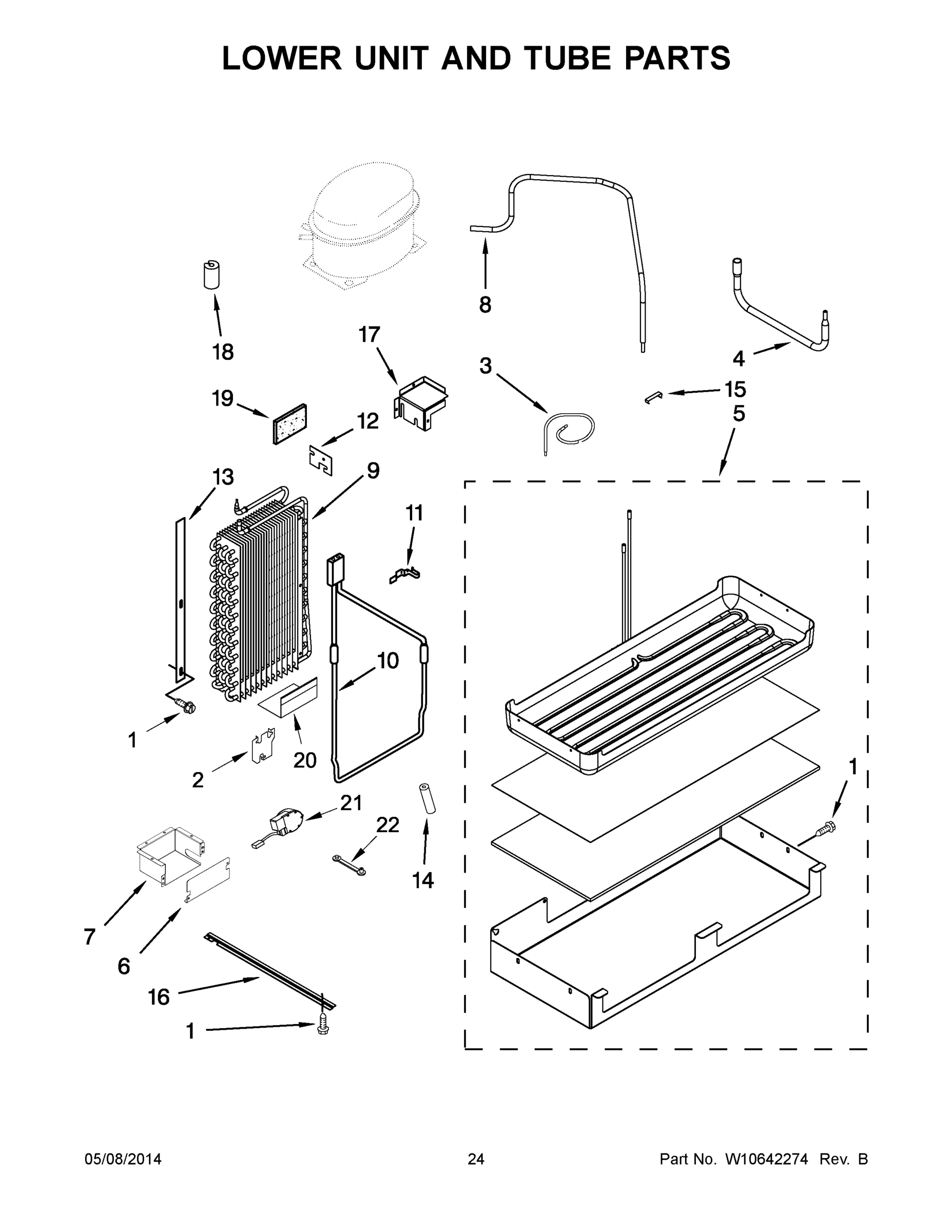

13 - LOWER UNIT AND TUBE PARTS

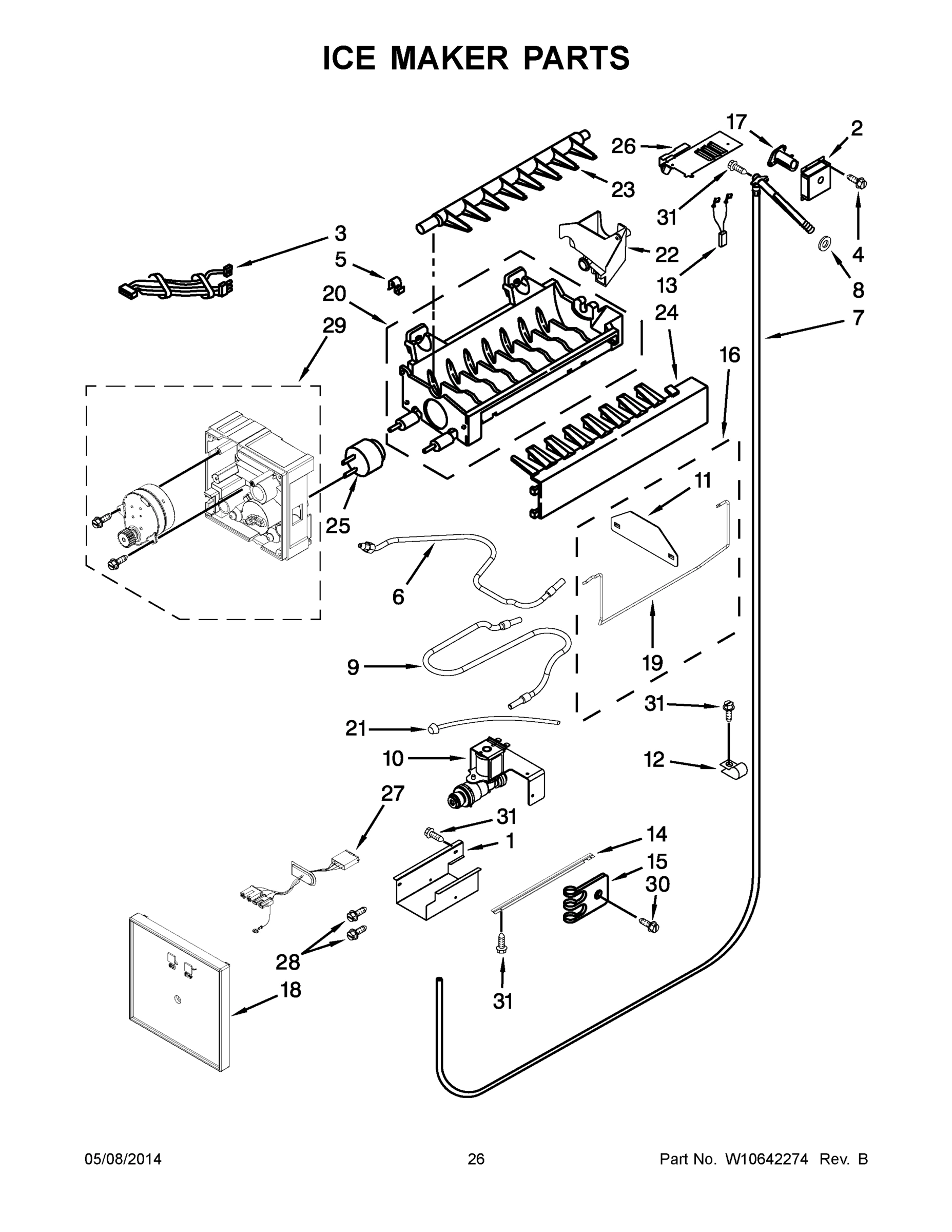

14 - ICE MAKER PARTS
Common parts from model Maytag JS42NXFXDW05 REFRIGERATOR
1
MAY W10234149 MAY W10234149 Contact Us For Availability
1
MAY W10234151 MAY W10234151 Contact Us For Availability
1
MAY W10246792 MAY W10246792 Contact Us For Availability
1
MAY W10303992 MAY W10303992 Contact Us For Availability
1
MAY W10379136 MAY W10379136 Contact Us For Availability
1
TRIM, CABINET SIDE (LEFT) (BLACK) MAY W10344547 Contact Us For Availability
1
CONTROL BOX ASSEMBLY MAY W10269710 Contact Us For Availability
1
SHELF ASSEMBLY MAY W10187535 Contact Us For Availability
1
MAY W10175905 MAY W10175905 Contact Us For Availability
1
REFRIGERATOR DOOR MAY W10167382 Contact Us For Availability
1
FREEZER DOOR MAY W10167378 Contact Us For Availability
1
MAY W10624563 MAY W10624563 Contact Us For Availability
1
ASSEMBLY, INVERTER BOX MAY W10449006 Contact Us For Availability
1
SHIELD, VALVE ELECTRICAL MAY W10129653 Contact Us For Availability
2
SCREW MAY 1163283 Contact Us For Availability
2
ASSEMBLY, THERMISTOR MAY 2317844 Contact Us For Availability
2
MAY 2169142 MAY 2169142 Contact Us For Availability
2
MAY W10209498 MAY W10209498 Contact Us For Availability
2
MAY W10215666 MAY W10215666 Contact Us For Availability
2
MAY W10213534 MAY W10213534 Contact Us For Availability
2
MAY W10199886 MAY W10199886 Contact Us For Availability
2
MAY 489373 MAY 489373 Contact Us For Availability
2
MAY W10157752 MAY W10157752 Contact Us For Availability
2
MAY W10176577 MAY W10176577 Contact Us For Availability
3
MAY 2318189 MAY 2318189 Contact Us For Availability
3
TRIM, BOTTOM CABINET (BLACK) MAY W10188505 Contact Us For Availability
3
MAY 2208970 MAY 2208970 Contact Us For Availability
3
MAY W10260421 MAY W10260421 Contact Us For Availability
3
MAY 2307592 MAY 2307592 Contact Us For Availability
3
COVER ASSEMBLY, CRISPER (UPPER) MAY W10137286 Contact Us For Availability
3
MAY 2302883 MAY 2302883 Contact Us For Availability
3
MAY W10234206 MAY W10234206 Contact Us For Availability
3
MAY W10199873 MAY W10199873 Contact Us For Availability
3
MAY 2256466 MAY 2256466 Contact Us For Availability
3
MAY W10173296 MAY W10173296 Contact Us For Availability
3
TUBE, OIL TRAP SUCTION MAY W10306442 Contact Us For Availability
3
WIRE ASSEMBLY, ICE MAKER MAY W10508673 Contact Us For Availability
4
MAY W10138054 MAY W10138054 Contact Us For Availability
4
DIFFUSER, ASSEMBLY CRISPER (UPPER) MAY W10171433 Contact Us For Availability
4
SCREW (STAINLESS) MAY 487539 Contact Us For Availability
4
Gasket, Cover MAY W10203260 Contact Us For Availability
4
Shield, Control Box MAY 2307595 Contact Us For Availability
4
COVER ASSEMBLY, MEAT PAN MAY W10217204 Contact Us For Availability
4
MAY 2259081 MAY 2259081 Contact Us For Availability
4
MAY W10234194 MAY W10234194 Contact Us For Availability
4
UNIT COVER, FRONT MAY W10272180 Contact Us For Availability
4
MAY W10200659 MAY W10200659 Contact Us For Availability
4
MAY W10388653 MAY W10388653 Contact Us For Availability
5
SUPPORT, LEVELER ASSEMBLY (RIGHT HAND) MAY W10138423 Contact Us For Availability
5
SUPPORT, LEVELER ASSEMBLY (LEFT HAND) MAY W10279275 Contact Us For Availability
5
Screw MAY 487415 Contact Us For Availability
5
TRIM, TOP CABINET (BLACK) MAY W10138451 Contact Us For Availability
5
MAY W10175171 MAY W10175171 Contact Us For Availability
5
COVER ASSEMBLY, CRISPER (LOWER) MAY W10189066 Contact Us For Availability
5
MAY 2256269 MAY 2256269 Contact Us For Availability
5
GASKET, DOOR MAY 2222814 Contact Us For Availability
5
MAY W10414681 MAY W10414681 Contact Us For Availability
5
ASSEMBLY, DRAIN PAN MAY W10281063 Contact Us For Availability
5
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
6
MAY 2260518B MAY 2260518B Contact Us For Availability
6
MAY W10121451 MAY W10121451 Contact Us For Availability
6
MAY 2259445 MAY 2259445 Contact Us For Availability
6
MAY 2317000 MAY 2317000 Contact Us For Availability
6
MEAT PAN ASSEMBLY MAY W10407640 Contact Us For Availability
6
MAY 2259317 MAY 2259317 Contact Us For Availability
6
MAY 2259318 MAY 2259318 Contact Us For Availability
6
MAY 2222796 MAY 2222796 Contact Us For Availability
6
MAY W10182700 MAY W10182700 Contact Us For Availability
6
GROMMET MAY 1100826 Contact Us For Availability
6
MAY W10321048 MAY W10321048 Contact Us For Availability
6
MAY W10296807 MAY W10296807 Contact Us For Availability
7
MAY 2307640 MAY 2307640 Contact Us For Availability
7
MAY 2005925 MAY 2005925 Contact Us For Availability
7
MAY 2006475 MAY 2006475 Contact Us For Availability
7
MAY W10191429 MAY W10191429 Contact Us For Availability
7
MAY 2302954 MAY 2302954 Contact Us For Availability
7
MAY 2302955 MAY 2302955 Contact Us For Availability
7
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
7
MAY 2222982 MAY 2222982 Contact Us For Availability
7
SCREW (WHITE) MAY 8281251 Contact Us For Availability
7
MAY W10251186 MAY W10251186 Contact Us For Availability
7
MAY W10525179 MAY W10525179 Contact Us For Availability
7
MAY W10309012 MAY W10309012 Contact Us For Availability
7
MAY 2314049 MAY 2314049 Contact Us For Availability
8
SUPPORT-GRILLE (LEFT HAND) MAY W10188499 Contact Us For Availability
8
SUPPORT-GRILLE (RIGHT HAND) MAY W10188500 Contact Us For Availability
8
Bulb, Light MAY 2326255 Contact Us For Availability
8
MAY 2256366 MAY 2256366 Contact Us For Availability
8
MAY 2266934 MAY 2266934 Contact Us For Availability
8
GASKET, DOOR MAY 2222811 Contact Us For Availability
8
DOOR TRIM, TOP MAY W10182705 Contact Us For Availability
8
GROMMET, FLEXIBLE MAY 2215910 Contact Us For Availability
8
SUPPORT, CONDENSER (BRACKET, MOUNTING (POWER MAY W10209446 Contact Us For Availability
8
MAY W10412488 MAY W10412488 Contact Us For Availability
8
GASKET, SEAL MAY 1106508 Contact Us For Availability
9
TRIM, CABINET SIDE (RIGHT) (BLACK) MAY W10344544 Contact Us For Availability
9
MAY W10187549 MAY W10187549 Contact Us For Availability
9
MAY 2266930 MAY 2266930 Contact Us For Availability
9
DOOR TRIM, BOTTOM MAY W10182709 Contact Us For Availability
9
MAY 2215676 MAY 2215676 Contact Us For Availability
9
MAY W10427992 MAY W10427992 Contact Us For Availability
9
MAY 2317912 MAY 2317912 Contact Us For Availability
10
MAY W10121140 MAY W10121140 Contact Us For Availability
10
MAY W10137277 MAY W10137277 Contact Us For Availability
10
MAY 2266955 MAY 2266955 Contact Us For Availability
10
MAY W10167367 MAY W10167367 Contact Us For Availability
10
MAY W10182685 MAY W10182685 Contact Us For Availability
10
MAY W10525177 MAY W10525177 Contact Us For Availability
10
MAY W10140161 MAY W10140161 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
11
GRILLE KIT ASSEMBLY MAY W10182713 Contact Us For Availability
11
MAY 2003577 MAY 2003577 Contact Us For Availability
11
MAY W10170114 MAY W10170114 Contact Us For Availability
11
SLIDE, CRISPER (LEFT HAND) MAY 2302956 Contact Us For Availability
11
SLIDE, CRISPER (RIGHT HAND) MAY 2302957 Contact Us For Availability
11
MAY W10188511 MAY W10188511 Contact Us For Availability
11
MAY W10199955 MAY W10199955 Contact Us For Availability
11
CONTROL, ELECTRONIC MAY W10356040 Contact Us For Availability
11
CLAMP, HEATER MAY 1113048 Contact Us For Availability
11
EXTENSION-SHUT OFF ARM MAY 2304353 Contact Us For Availability
12
Filter, Water MAY W10121146 Contact Us For Availability
12
ASSEMBLY, AIR BAFFLE MAY 2221296 Contact Us For Availability
12
MAY W10217428 MAY W10217428 Contact Us For Availability
12
MAY W10188539 MAY W10188539 Contact Us For Availability
12
INSERT-DOOR, ARM (TOP) MAY W10197748 Contact Us For Availability
12
INSERT-DOOR, ARM (BOTTOM) MAY W10197766 Contact Us For Availability
12
MAY W10182683 MAY W10182683 Contact Us For Availability
12
MAY 2203075 MAY 2203075 Contact Us For Availability
12
MAY W10139908 MAY W10139908 Contact Us For Availability
12
MAY 2221070 MAY 2221070 Contact Us For Availability
13
MAY 489399 MAY 489399 Contact Us For Availability
13
Diffuser Assembly MAY W10203322 Contact Us For Availability
13
MAY W10170084 MAY W10170084 Contact Us For Availability
13
MAY 8533929 MAY 8533929 Contact Us For Availability
13
MAY W10323602 MAY W10323602 Contact Us For Availability
13
MAY 2256328 MAY 2256328 Contact Us For Availability
13
MAY W10432308 MAY W10432308 Contact Us For Availability
13
WIRE ASSEMBLY, FILL TUBE HEATER MAY W10482373 Contact Us For Availability
14
MAY W10234202 MAY W10234202 Contact Us For Availability
14
MAY W10170112 MAY W10170112 Contact Us For Availability
14
MAY W10407638 MAY W10407638 Contact Us For Availability
14
TRIM, DOOR (BOTTOM) MAY W10182690 Contact Us For Availability
14
MAY W10587113 MAY W10587113 Contact Us For Availability
14
Dampener MAY 2215648 Contact Us For Availability
14
MAY 2320559 MAY 2320559 Contact Us For Availability
15
HINGE (TOP) (RIGHT HAND) MAY W10167397 Contact Us For Availability
15
HINGE (TOP) (LEFT HAND) MAY W10167398 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
MAY 2256248 MAY 2256248 Contact Us For Availability
15
END CAP (RIGHT HAND) MAY W10323172 Contact Us For Availability
15
END CAP (LEFT HAND) MAY W10323173 Contact Us For Availability
15
MAY W10169509 MAY W10169509 Contact Us For Availability
15
MAY 2208136 MAY 2208136 Contact Us For Availability
16
BRACKET, FILTER MAY W10348782 Contact Us For Availability
16
MAY W10170104 MAY W10170104 Contact Us For Availability
16
MAY W10170101 MAY W10170101 Contact Us For Availability
16
MAY 2307810 MAY 2307810 Contact Us For Availability
16
BIN, UTILITY CENTER MAY W10323036 Contact Us For Availability
16
MAY W10591457 MAY W10591457 Contact Us For Availability
16
MAY 2320554 MAY 2320554 Contact Us For Availability
16
ARM, SHUT OFF MAY 2304354 Contact Us For Availability
17
MAY W10171428 MAY W10171428 Contact Us For Availability
17
MAY 2307751 MAY 2307751 Contact Us For Availability
17
DEFLECTOR, AIR MAY 2317939 Contact Us For Availability
17
MAY 2257616 MAY 2257616 Contact Us For Availability
17
MAY W10160981 MAY W10160981 Contact Us For Availability
17
MAY 2221240 MAY 2221240 Contact Us For Availability
18
MAY W10428007 MAY W10428007 Contact Us For Availability
18
MAY W10323599 MAY W10323599 Contact Us For Availability
18
HARNESS, DC UNIT MAY W10209460 Contact Us For Availability
18
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
18
MAY W10289690 MAY W10289690 Contact Us For Availability
19
MAY W10129069 MAY W10129069 Contact Us For Availability
19
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
19
MAY W10323747 MAY W10323747 Contact Us For Availability
19
HARNESS, AC UNIT MAY W10209462 Contact Us For Availability
19
SEALER, INSULATION MAY 2169104 Contact Us For Availability
19
MAY 2304352 MAY 2304352 Contact Us For Availability
20
HINGE (BOTTOM) (RIGHT HAND) MAY W10182692 Contact Us For Availability
20
HINGE (BOTTOM) (LEFT HAND) MAY W10182693 Contact Us For Availability
20
AIR DEFLECTOR MAY 2266801 Contact Us For Availability
20
TIE, WIRE MAY 2155774 Contact Us For Availability
20
MAY W10321050 MAY W10321050 Contact Us For Availability
20
MAY 489276 MAY 489276 Contact Us For Availability
21
MAY 8533913 MAY 8533913 Contact Us For Availability
21
MAY W10436861 MAY W10436861 Contact Us For Availability
21
MAY 1112260 MAY 1112260 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
21
MAY W10437853 MAY W10437853 Contact Us For Availability
22
Skirt-Grille, Bottom MAY W10188549 Contact Us For Availability
22
ASSEMBLY, SHELF STUD MAY W10173127 Contact Us For Availability
22
ASSEMBLY, CONDENSER FAN WIRE MAY 2310207 Contact Us For Availability
22
MAY W10321090 MAY W10321090 Contact Us For Availability
22
MAY W10435665 MAY W10435665 Contact Us For Availability
23
Grille Bottom, Front MAY W10182717 Contact Us For Availability
23
MAY W10191952 MAY W10191952 Contact Us For Availability
23
MAY 2188875 MAY 2188875 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
EVAPORATOR, COVER RAIL (LEDT HAND) MAY W10135766 Contact Us For Availability
24
EVAPORATOR, COVER RAIL (RIGHT HAND) MAY W10141474 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
STRIPPER, ICE MAY W10122563 Contact Us For Availability
25
BRACKET, BASE SUPPORT MAY 2006617 Contact Us For Availability
25
GASKET EVAPORATOR COVER MAY 2220904 Contact Us For Availability
25
MAY W10415670 MAY W10415670 Contact Us For Availability
25
THERMOSTAT MAY 627985 Contact Us For Availability
26
MAY W10482187 MAY W10482187 Contact Us For Availability
26
MAY W10624944 MAY W10624944 Contact Us For Availability
26
MAY 2221231 MAY 2221231 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
MAY W10279393 MAY W10279393 Contact Us For Availability
28
MAY 2260503B MAY 2260503B Contact Us For Availability
28
MAY 2188820 MAY 2188820 Contact Us For Availability
28
SCREW MAY W10141604 Contact Us For Availability
28
MAY W10625009 MAY W10625009 Contact Us For Availability
29
SWITCH, LIGHT MAY C3680314 Contact Us For Availability
29
MAY 2317105 MAY 2317105 Contact Us For Availability
29
MAY W10141645 MAY W10141645 Contact Us For Availability
29
ASSEMBLY, MODULE AND MOTOR MAY 626691 Contact Us For Availability
30
MAY W10001250 MAY W10001250 Contact Us For Availability
30
MAY W10167341 MAY W10167341 Contact Us For Availability
30
MAY W10167387 MAY W10167387 Contact Us For Availability
30
MAY 2001377 MAY 2001377 Contact Us For Availability
30
CONTROL, ELECTRONIC MAY W10184634 Contact Us For Availability
31
SCREW MAY 486194 Contact Us For Availability
31
MAY W10213473 MAY W10213473 Contact Us For Availability
31
MAY W10528578 MAY W10528578 Contact Us For Availability
32
MAY 2215612 MAY 2215612 Contact Us For Availability
32
TOP COVER, CONDENSER MAY W10525175 Contact Us For Availability
33
MAY W10250962 MAY W10250962 Contact Us For Availability
33
MAY W10160570 MAY W10160570 Contact Us For Availability
33
Service Cord MAY 2310196 Contact Us For Availability
34
LEVELER, ADJUSTABLE MAY 2005032 Contact Us For Availability
34
MAY W10142283 MAY W10142283 Contact Us For Availability
35
MAY 2314064 MAY 2314064 Contact Us For Availability
35
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
36
MAY W10209510 MAY W10209510 Contact Us For Availability
36
SCREW MAY 487294 Contact Us For Availability
37
Ring, Retainer MAY 2006841 Contact Us For Availability
37
Clamp, Power Cord MAY 549193 Contact Us For Availability
38
MAY W10495645 MAY W10495645 Contact Us For Availability
39
MAY W10483905 MAY W10483905 Contact Us For Availability
100
MAY W10277450 MAY W10277450 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
MAY REFDEODOR MAY REFDEODOR Contact Us For Availability
NI
MAY W10234156 MAY W10234156 Contact Us For Availability
NI
KITCHEN AND APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
SS CLEANER MAY W10355016 Contact Us For Availability
NI
SS CLEANING WIPES MAY W10355049 Contact Us For Availability
NI
MAY W10488101 MAY W10488101 Contact Us For Availability
NI
MAY W10489178 MAY W10489178 Contact Us For Availability
NI
MAY W10553982 MAY W10553982 Contact Us For Availability
× ![]()
