Model Maytag JS42NXFXDW02 REFRIGERATOR – Common Parts & Diagrams

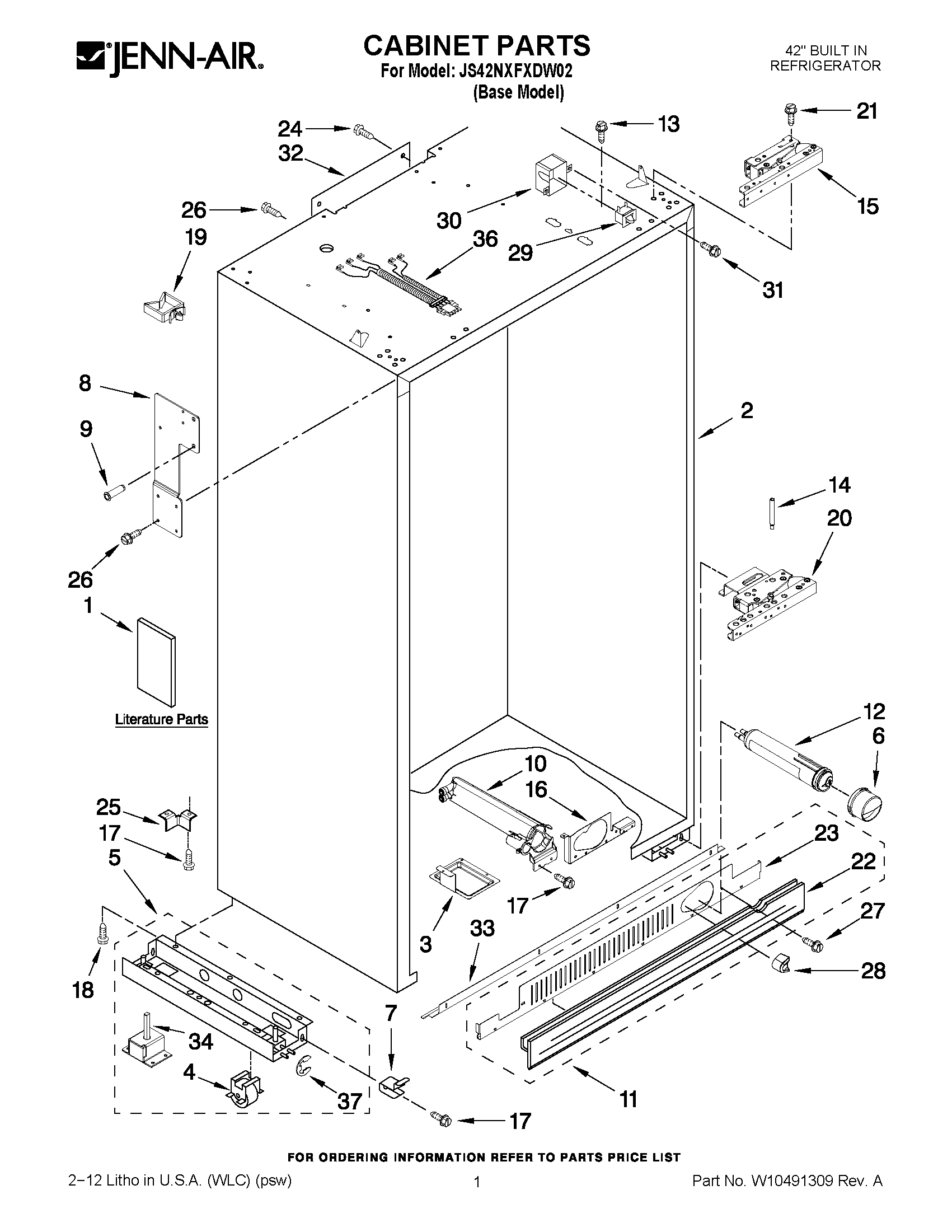

01 - CABINET PARTS

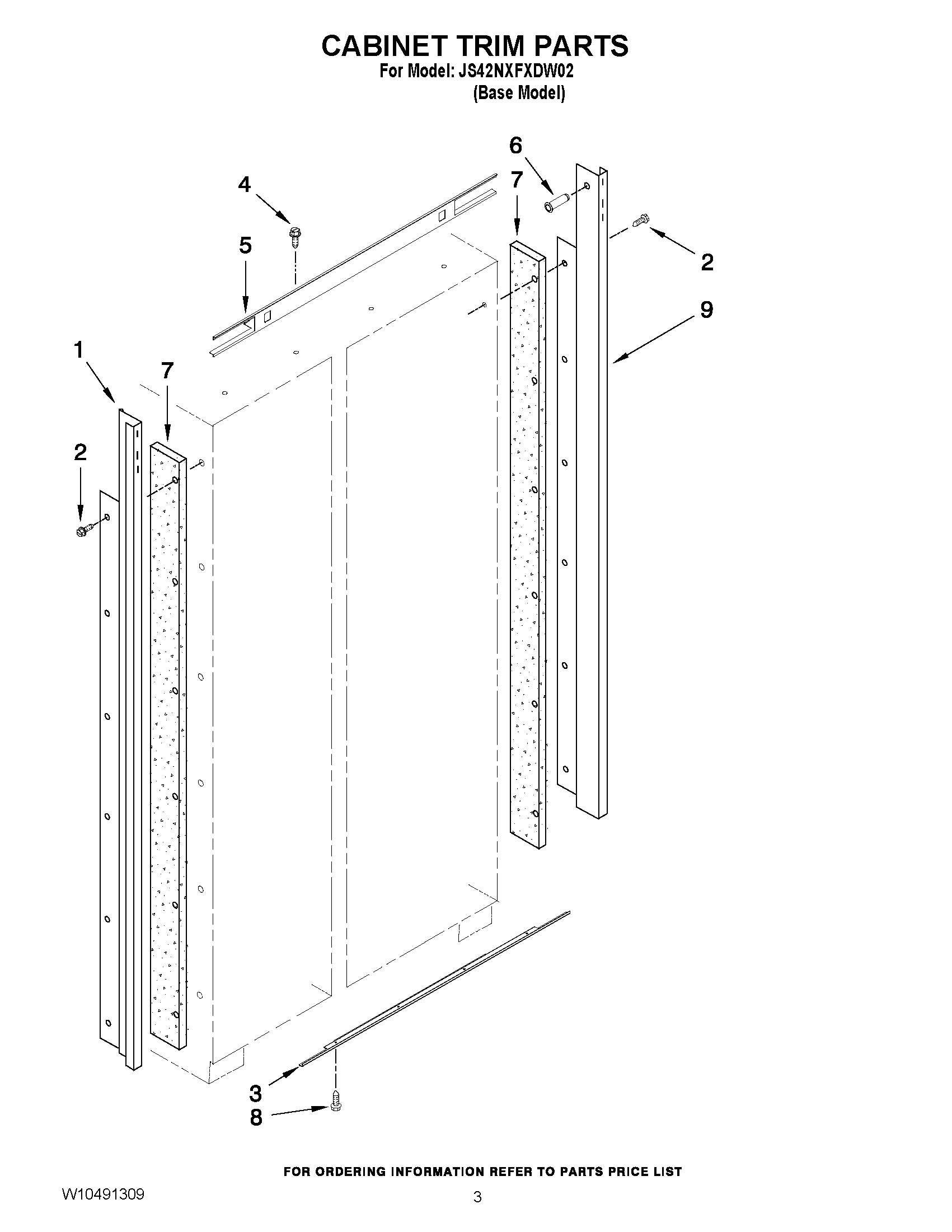

02 - CABINET TRIM PARTS
03 - FREEZER SHELF PARTS
04 - REFRIGERATOR LINER PARTS
05 - CONTROL PANEL PARTS
06 - TOP GRILLE AND UNIT COVER PARTS
07 - REFRIGERATOR SHELF PARTS
08 - FREEZER LINER AND AIR FLOW PARTS
09 - REFRIGERATOR DOOR PARTS
10 - FREEZER DOOR PARTS
11 - UPPER UNIT PARTS
12 - LOWER UNIT AND TUBE PARTS
13 - ICEMAKER PARTS
Common parts from model Maytag JS42NXFXDW02 REFRIGERATOR
1
MAY W10234135 MAY W10234135 Contact Us For Availability
1
MAY W10234149 MAY W10234149 Contact Us For Availability
1
MAY W10234151 MAY W10234151 Contact Us For Availability
1
MAY W10246792 MAY W10246792 Contact Us For Availability
1
MAY W10303992 MAY W10303992 Contact Us For Availability
1
MAY W10379136 MAY W10379136 Contact Us For Availability
1
MAY W10344547 MAY W10344547 Contact Us For Availability
1
Wire, Shelf MAY W10175905 Contact Us For Availability
1
MAY W10269710 MAY W10269710 Contact Us For Availability
1
COVER, UNIT ASSEMBLY MAY W10188580 Contact Us For Availability
1
SHELF ASSY MAY W10187535 Contact Us For Availability
1
MAY 2259385 MAY 2259385 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) MAY W10167382 Contact Us For Availability
1
FREEZER DOOR (INCLUDES No.5) MAY W10167378 Contact Us For Availability
1
MAY W10133449 MAY W10133449 Contact Us For Availability
1
MAY W10129653 MAY W10129653 Contact Us For Availability
2
SCREW MAY 1163283 Contact Us For Availability
2
MAY W10213534 MAY W10213534 Contact Us For Availability
2
MAY 2317844 MAY 2317844 Contact Us For Availability
2
MAY W10209498 MAY W10209498 Contact Us For Availability
2
MAY 8281160 MAY 8281160 Contact Us For Availability
2
Fan Blade MAY 2169142 Contact Us For Availability
2
MAY W10199886 MAY W10199886 Contact Us For Availability
2
SCREW, COMPRESSOR MOUNTING MAY 489373 Contact Us For Availability
2
MAY W10157752 MAY W10157752 Contact Us For Availability
2
MAY W10176577 MAY W10176577 Contact Us For Availability
3
Tray, Drip Filter MAY 2318189 Contact Us For Availability
3
MAY W10188505 MAY W10188505 Contact Us For Availability
3
MAY 2302883 MAY 2302883 Contact Us For Availability
3
Air Duct MAY 2208970 Contact Us For Availability
3
MAY 2307592 MAY 2307592 Contact Us For Availability
3
Back Panel MAY 2256466 Contact Us For Availability
3
MAY W10137286 MAY W10137286 Contact Us For Availability
3
MAY 2223733 MAY 2223733 Contact Us For Availability
3
Pin-Door, Bottom MAY W10234206 Contact Us For Availability
3
MAY W10199873 MAY W10199873 Contact Us For Availability
3
Compressor (Includes Items 6 & 9)(Also Order MAY W10173296 Contact Us For Availability
3
SUCTION TUBE OIL TRAP MAY W10431124 Contact Us For Availability
3
Wire Assembly, Icemaker MAY 2310136 Contact Us For Availability
4
ROLLER, FRONT & REAR MAY W10138054 Contact Us For Availability
4
BASKET MAY 2259081 Contact Us For Availability
4
MAY W10171433 MAY W10171433 Contact Us For Availability
4
SCREW MAY 487539 Contact Us For Availability
4
MAY 2307595 MAY 2307595 Contact Us For Availability
4
COVER, UNIT FRONT MAY W10272180 Contact Us For Availability
4
MAY W10217204 MAY W10217204 Contact Us For Availability
4
Gasket, Cover MAY W10203260 Contact Us For Availability
4
Pin-Door, Top MAY W10234194 Contact Us For Availability
4
Control-Elek, I/O MAY W10200659 Contact Us For Availability
4
TUBE, CONNECT (DRIER/RESTRICTOR) MAY W10388653 Contact Us For Availability
5
Support, Leveler Assembly (Refrigerator Side) MAY W10138423 Contact Us For Availability
5
Support, Leveler Assembly (Freezer Side) MAY W10138425 Contact Us For Availability
5
Screw MAY 487415 Contact Us For Availability
5
MAY W10138451 MAY W10138451 Contact Us For Availability
5
FRONT, BASKET MAY 2256269 Contact Us For Availability
5
MAY W10175171 MAY W10175171 Contact Us For Availability
5
MAY W10189066 MAY W10189066 Contact Us For Availability
5
GROMMET MAY W10449920 Contact Us For Availability
5
MAY 2222814 MAY 2222814 Contact Us For Availability
5
MAY W10414681 MAY W10414681 Contact Us For Availability
5
MAY W10281063 MAY W10281063 Contact Us For Availability
5
CLIP,FUSE MAY 628379 Contact Us For Availability
6
MAY 2260518B MAY 2260518B Contact Us For Availability
6
NUTSERT MAY W10121451 Contact Us For Availability
6
SLIDE, BASKET (RH) MAY 2259317 Contact Us For Availability
6
SLIDE, BASKET (LH) MAY 2259318 Contact Us For Availability
6
SCREW SUPPORT, LADDER MAY 2259445 Contact Us For Availability
6
MAY 2317000 MAY 2317000 Contact Us For Availability
6
MAY W10407640 MAY W10407640 Contact Us For Availability
6
MAY 2222796 MAY 2222796 Contact Us For Availability
6
MAY W10182700 MAY W10182700 Contact Us For Availability
6
Grommet, Mounting MAY 1100826 Contact Us For Availability
6
COVER, BOX MAY W10321048 Contact Us For Availability
6
MAY W10296807 MAY W10296807 Contact Us For Availability
7
Mounting Stud, Grille MAY 2307640 Contact Us For Availability
7
SEAL-TRIM, SIDE MAY 2005925 Contact Us For Availability
7
Screw MAY 8533928 Contact Us For Availability
7
SCREW MAY 2006475 Contact Us For Availability
7
MAY W10251186 MAY W10251186 Contact Us For Availability
7
SLIDE, MEAT PAN (LH) MAY 2302954 Contact Us For Availability
7
SLIDE, MEAT PAN (RH) MAY 2302955 Contact Us For Availability
7
MAY 2222982 MAY 2222982 Contact Us For Availability
7
Screw (Stainless Steel) MAY 8281251 Contact Us For Availability
7
SUPPORT, CONDENSER (RIGHT) MAY W10415668 Contact Us For Availability
7
COVER, WIRING MAY W10316077 Contact Us For Availability
7
Water Inlet Tube Assembly MAY 2314049 Contact Us For Availability
8
SUPPORT, GRILLE (LH) MAY W10188499 Contact Us For Availability
8
SUPPORT, GRILLE (RH) MAY W10188500 Contact Us For Availability
8
MAY 2266934 MAY 2266934 Contact Us For Availability
8
MAY W10191429 MAY W10191429 Contact Us For Availability
8
GROMMET MAY 2215910 Contact Us For Availability
8
MAY 2256366 MAY 2256366 Contact Us For Availability
8
MAY 2222811 MAY 2222811 Contact Us For Availability
8
MAY W10182705 MAY W10182705 Contact Us For Availability
8
Bracket, Switch MAY W10209446 Contact Us For Availability
8
MAY W10412488 MAY W10412488 Contact Us For Availability
8
MAY 1106508 MAY 1106508 Contact Us For Availability
9
CABINET TRIM, RIGHT SIDE MAY W10344544 Contact Us For Availability
9
MAY 2266930 MAY 2266930 Contact Us For Availability
9
MAY W10187549 MAY W10187549 Contact Us For Availability
9
MAY W10182709 MAY W10182709 Contact Us For Availability
9
Terminal Cover MAY 2215676 Contact Us For Availability
9
MAY W10427992 MAY W10427992 Contact Us For Availability
9
MAY 2317912 MAY 2317912 Contact Us For Availability
10
MAY W10121140 MAY W10121140 Contact Us For Availability
10
SPACER MAY 2266955 Contact Us For Availability
10
MAY 2326255 MAY 2326255 Contact Us For Availability
10
MAY W10137277 MAY W10137277 Contact Us For Availability
10
MAY W10167367 MAY W10167367 Contact Us For Availability
10
MAY W10182685 MAY W10182685 Contact Us For Availability
10
SUPPORT, CONDENSER (LEFT) MAY W10415666 Contact Us For Availability
10
MAY W10140161 MAY W10140161 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
10
MAY W10277450 MAY W10277450 Contact Us For Availability
11
GRILLE KIT ASSY (INCLUDES 22 & 23) MAY W10182713 Contact Us For Availability
11
MAY W10188511 MAY W10188511 Contact Us For Availability
11
Guard, Return Air MAY 2003577 Contact Us For Availability
11
SLIDE, CRISPER (LH) MAY 2302956 Contact Us For Availability
11
SLIDE, CRISPER (RH) MAY 2302957 Contact Us For Availability
11
MAY W10170114 MAY W10170114 Contact Us For Availability
11
MAY W10199955 MAY W10199955 Contact Us For Availability
11
CONTROL-ELEK, POWER SUPPLY MAY W10356040 Contact Us For Availability
11
CLAMP, HEATER MAY 1113048 Contact Us For Availability
11
EXTENSION-SHUT OFF ARM MAY 2304353 Contact Us For Availability
12
Filter, Water MAY 4396841 Contact Us For Availability
12
MAY W10188539 MAY W10188539 Contact Us For Availability
12
Air Baffle Assembly MAY 2221296 Contact Us For Availability
12
MAY W10217428 MAY W10217428 Contact Us For Availability
12
INSERT-DOOR, ARM (TOP) MAY W10197748 Contact Us For Availability
12
INSERT-DOOR, ARM (BOTTOM) MAY W10197766 Contact Us For Availability
12
MAY W10182683 MAY W10182683 Contact Us For Availability
12
MAY 2203075 MAY 2203075 Contact Us For Availability
12
Cover Seal, Evaporator Tubes MAY W10139908 Contact Us For Availability
12
MAY 2221070 MAY 2221070 Contact Us For Availability
13
MAY 489399 MAY 489399 Contact Us For Availability
13
Diffuser Assembly MAY W10203322 Contact Us For Availability
13
SCREW MAY 8533929 Contact Us For Availability
13
MAY W10170084 MAY W10170084 Contact Us For Availability
13
BIN, DOOR MAY W10323602 Contact Us For Availability
13
Bracket, Inverter Box MAY 2256328 Contact Us For Availability
13
MAY W10432308 MAY W10432308 Contact Us For Availability
13
Jumper, Fill Tube Heater MAY 2310108 Contact Us For Availability
14
Pin-Stop, Door MAY W10234202 Contact Us For Availability
14
MAY W10407638 MAY W10407638 Contact Us For Availability
14
MAY W10170112 MAY W10170112 Contact Us For Availability
14
MAY W10182690 MAY W10182690 Contact Us For Availability
14
BRACKET, VIBRATION CONDENSER MAY 2317031 Contact Us For Availability
14
Dampener MAY 2215648 Contact Us For Availability
14
MAY 2320559 MAY 2320559 Contact Us For Availability
15
Hinge (Top) (RC) MAY W10167397 Contact Us For Availability
15
Hinge (Top) (FC) MAY W10167398 Contact Us For Availability
15
MAY 2256248 MAY 2256248 Contact Us For Availability
15
END CAP (RH) MAY W10323172 Contact Us For Availability
15
END CAP (LH) MAY W10323173 Contact Us For Availability
15
MAY W10169509 MAY W10169509 Contact Us For Availability
15
Clamp, Nylon Valve MAY 2208136 Contact Us For Availability
16
BRACKET, MOUNT (WATER FILTER) MAY W10348782 Contact Us For Availability
16
MAY W10170104 MAY W10170104 Contact Us For Availability
16
DUCT, PAN MAY 2307810 Contact Us For Availability
16
MAY W10170101 MAY W10170101 Contact Us For Availability
16
BIN, UTILITY CENTER MAY W10323036 Contact Us For Availability
16
MAY 2307998 MAY 2307998 Contact Us For Availability
16
MAY 2320554 MAY 2320554 Contact Us For Availability
16
SHUT OFF ARM ASSY MAY 2304354 Contact Us For Availability
17
MAY W10171428 MAY W10171428 Contact Us For Availability
17
DEFLECTOR MAY 2317939 Contact Us For Availability
17
Light Shield MAY 2307751 Contact Us For Availability
17
MAY 2257616 MAY 2257616 Contact Us For Availability
17
Bracket Assembly, Air Return MAY W10160981 Contact Us For Availability
17
MAY 2221240 MAY 2221240 Contact Us For Availability
18
MAY W10428007 MAY W10428007 Contact Us For Availability
18
BIN, DOOR MAY W10323599 Contact Us For Availability
18
ARM, VIBRATION CONDENSER MAY 2317030 Contact Us For Availability
18
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
18
COVER MAY W10289690 Contact Us For Availability
19
WIRE CLIP MAY W10129069 Contact Us For Availability
19
MAY 1157158 MAY 1157158 Contact Us For Availability
19
Screw MAY 8281163 Contact Us For Availability
19
BIN, DOOR MAY W10323747 Contact Us For Availability
19
INSULATION, SOUND MAY 2169104 Contact Us For Availability
19
MAY 2304352 MAY 2304352 Contact Us For Availability
20
MAY W10182692 MAY W10182692 Contact Us For Availability
20
MAY W10182693 MAY W10182693 Contact Us For Availability
20
Deflector, Air Duct MAY 2266801 Contact Us For Availability
20
Wire Tie MAY 2155774 Contact Us For Availability
20
Mold & Heater (Also Order 542638 Silicone Gre MAY W10122527 Contact Us For Availability
21
Screw 1/4-20 x 5/8 MAY 8533913 Contact Us For Availability
21
MAY 1112260 MAY 1112260 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
21
MAY 626683 MAY 626683 Contact Us For Availability
22
Skirt-Grille, Bottom MAY W10188549 Contact Us For Availability
22
SHELF, STUD MAY W10173127 Contact Us For Availability
22
Wire Assembly (Condenser Fan) MAY 2310207 Contact Us For Availability
22
MAY W10435665 MAY W10435665 Contact Us For Availability
23
Grille Bottom, Front MAY W10182717 Contact Us For Availability
23
MAY W10191952 MAY W10191952 Contact Us For Availability
23
Motor, Fan MAY 2188875 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
EVAPORATOR, COVER RAIL (LH) MAY W10135766 Contact Us For Availability
24
EVAPORATOR, COVER RAIL (RH) MAY W10141474 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
ICE STRIPPER MAY W10122563 Contact Us For Availability
25
BRACKET, SUPPORT BASE (REAR) MAY 2006617 Contact Us For Availability
25
GASKET EVAPORATOR COVER MAY 2220904 Contact Us For Availability
25
MAY W10415670 MAY W10415670 Contact Us For Availability
25
Support MAY 2194712 Contact Us For Availability
26
HARNESS, EVAP FAN (INCLUDES ITEM 33) MAY W10139189 Contact Us For Availability
26
Tube, Drier Transition MAY 2307566 Contact Us For Availability
26
MAY 2315522 MAY 2315522 Contact Us For Availability
27
INSULATION MAY W10267707 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
Thermostat (Also Order 542639 Cement Alumilas MAY 627985 Contact Us For Availability
28
Button, Filter MAY 2260503B Contact Us For Availability
28
MAY 2188820 MAY 2188820 Contact Us For Availability
28
MAY W10234131 MAY W10234131 Contact Us For Availability
28
MAY 8533917 MAY 8533917 Contact Us For Availability
29
SWITCH, ROCKER ARM MAY C3680314 Contact Us For Availability
29
MAY 2317105 MAY 2317105 Contact Us For Availability
29
MAY 2309432 MAY 2309432 Contact Us For Availability
29
MAY 2221231 MAY 2221231 Contact Us For Availability
30
COVER, SWITCH (RH) MAY W10167341 Contact Us For Availability
30
COVER, SWITCH (LH) MAY W10167387 Contact Us For Availability
30
MAY 2001377 MAY 2001377 Contact Us For Availability
30
Control-Elek, Controls MAY W10184634 Contact Us For Availability
30
MAY 489276 MAY 489276 Contact Us For Availability
31
MAY W10213473 MAY W10213473 Contact Us For Availability
31
Process, Tube MAY 2194319 Contact Us For Availability
31
MAY W10279393 MAY W10279393 Contact Us For Availability
32
Cover, Rear MAY 2215612 Contact Us For Availability
32
SCREW MAY W10141604 Contact Us For Availability
32
MAY 2309000 MAY 2309000 Contact Us For Availability
33
MAY W10250962 MAY W10250962 Contact Us For Availability
33
Defrost, Bi-Metal MAY W10160570 Contact Us For Availability
33
Service Cord MAY 2310196 Contact Us For Availability
33
Module Assembly (Includes Items 21 & 34) MAY 626691 Contact Us For Availability
34
LEVELER ASSY MAY 2005032 Contact Us For Availability
34
SCREW MAY W10142283 Contact Us For Availability
34
Screw MAY 489136 Contact Us For Availability
35
MAY W10001250 MAY W10001250 Contact Us For Availability
35
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
36
SCREW MAY 486194 Contact Us For Availability
36
MAY W10209510 MAY W10209510 Contact Us For Availability
36
Screw, Ground MAY 487294 Contact Us For Availability
37
Ring, Retainer MAY 2006841 Contact Us For Availability
37
MAY 549193 MAY 549193 Contact Us For Availability
38
Wiring Harness, DC MAY W10209460 Contact Us For Availability
39
Wiring Harness, AC MAY W10209462 Contact Us For Availability
40
MAY W10141645 MAY W10141645 Contact Us For Availability
NI
REFRIGERANT CHARGE 7.50 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY REFDEODOR MAY REFDEODOR Contact Us For Availability
NI
MAY W10222281 MAY W10222281 Contact Us For Availability
NI
MAY W10222283 MAY W10222283 Contact Us For Availability
NI
BLOCK, INSTALL TEMPLATE, WOOD PANELS MAY W10234156 Contact Us For Availability
NI
MAY W10249830 MAY W10249830 Contact Us For Availability
NI
AFFRESH KITCHEN APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
MAY W10355016 MAY W10355016 Contact Us For Availability
NI
MAY W10355049 MAY W10355049 Contact Us For Availability
× ![]()
