Model Maytag JS42NXFXDE01 REFRIGERATOR, SIDE-BY-SIDE, BUILT-IN, 42 INCH – Common Parts & Diagrams

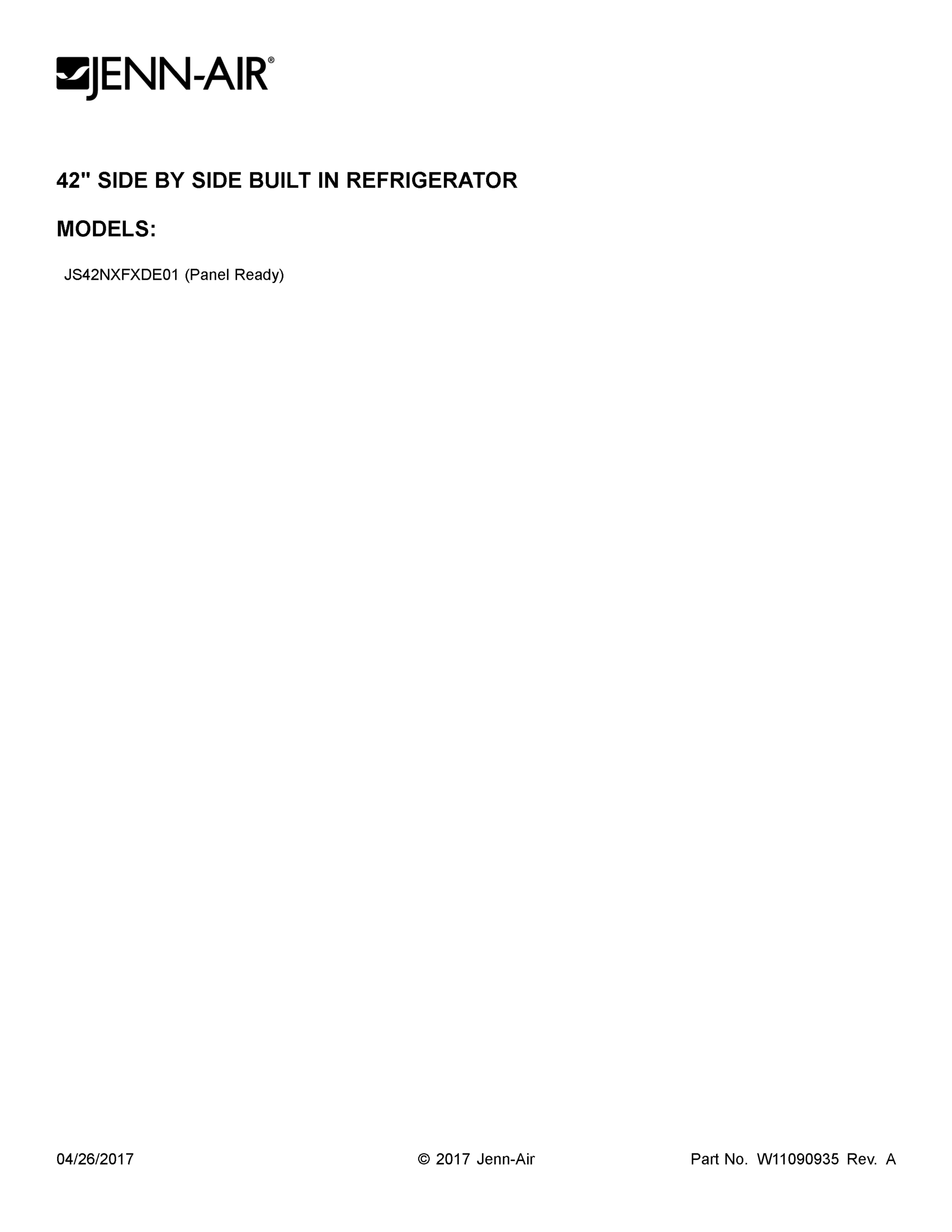

01 - COVER SHEET

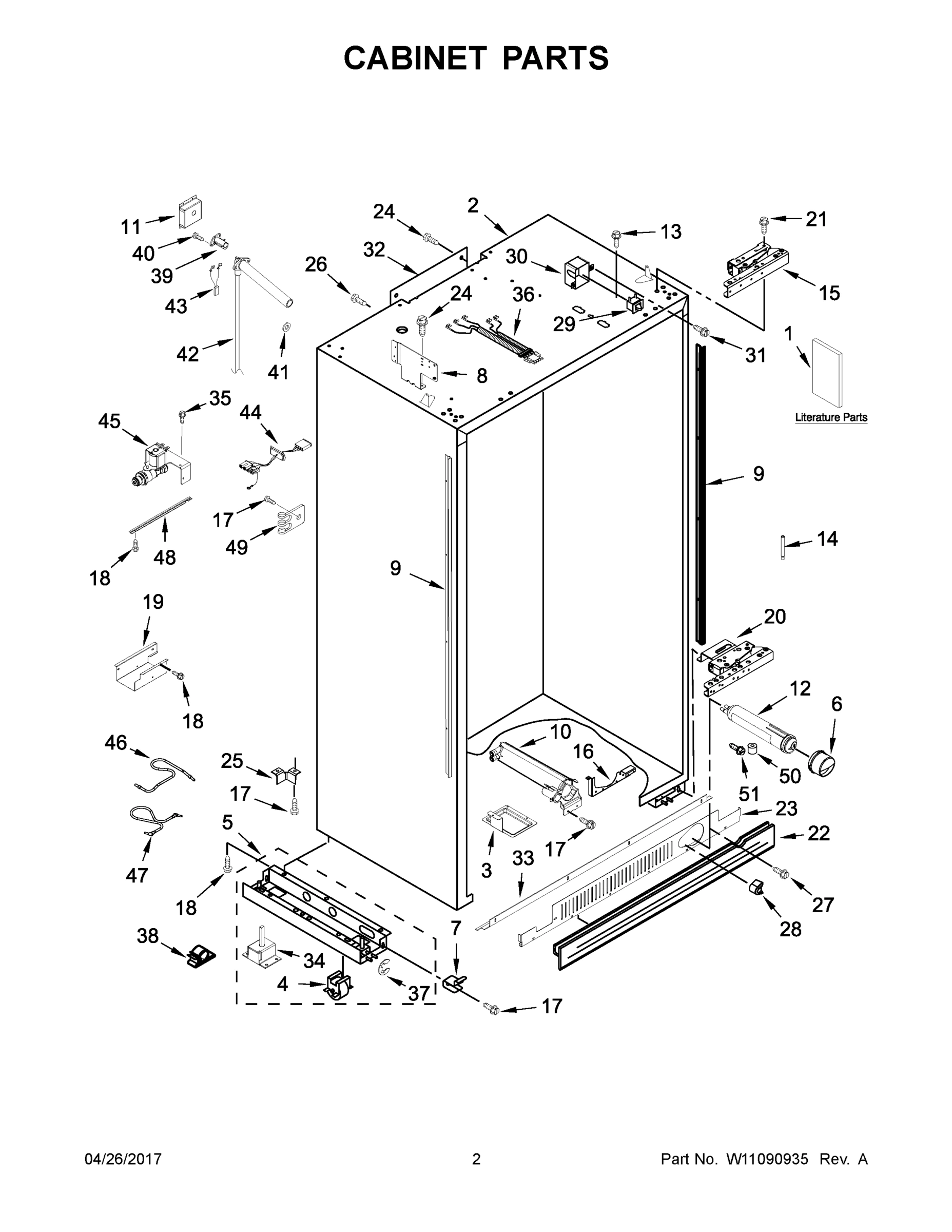

02 - CABINET PARTS
03 - CABINET TRIM PARTS
04 - REFRIGERATOR LINER PARTS
05 - FREEZER LINER AND ICEMAKER PARTS
06 - CONTROL PANEL PARTS
07 - REFRIGERATOR SHELF PARTS
08 - FREEZER SHELF PARTS
09 - REFRIGERATOR DOOR PARTS
10 - FREEZER DOOR PARTS
11 - TOP GRILLE AND UNIT COVER PARTS
12 - UPPER UNIT PARTS
13 - LOWER UNIT AND TUBE PARTS
Common parts from model Maytag JS42NXFXDE01 REFRIGERATOR, SIDE-BY-SIDE, BUILT-IN, 42 INCH
1
USE AND CARE GUIDE MAY W10779525 Contact Us For Availability
1
SCREW MAY 486194 Contact Us For Availability
1
TRIM, CABINET SIDE (LEFT) (BLACK) MAY W10775740 Contact Us For Availability
1
ASSEMBLY, CONTROL BOX MAY W10785722 Contact Us For Availability
1
ASSEMBLY, SHELF MAY W10187535 Contact Us For Availability
1
SHELF, WIRE MAY W10759084 Contact Us For Availability
1
DOOR, REFRIGERATOR MAY W10775712 Contact Us For Availability
1
DOOR, FREEZER MAY W10783288 Contact Us For Availability
1
COVER, UNIT MAY W10545068 Contact Us For Availability
1
ASSEMBLY, INVERTER BOX MAY W10645666 Contact Us For Availability
1A
ENERGY GUIDE MAY W10785750 Contact Us For Availability
1B
MAY W10910735 MAY W10910735 Contact Us For Availability
1C
MAY W10910738 MAY W10910738 Contact Us For Availability
1D
INSTALLATION INSTRUCTIONS MAY W10779523 Contact Us For Availability
2
SCREW MAY 1163283 Contact Us For Availability
2
ASSEMBLY, THERMISTOR MAY W10784036 Contact Us For Availability
2
BLADE, FAN MAY 2169142 Contact Us For Availability
2
WIRE, JUMPER MAY W10458299 Contact Us For Availability
2
SCREW MAY W10215666 Contact Us For Availability
2
COVER, SHELF MAY W10777656 Contact Us For Availability
2
COVER, DOOR (TOP) (CHARCOAL) MAY W10775727 Contact Us For Availability
2
SCREW MAY 489373 Contact Us For Availability
2
BRACKET, HEATER MAY W10157752 Contact Us For Availability
3
TRAY, FILTER DRIP MAY 2318189 Contact Us For Availability
3
MAY W10832844 MAY W10832844 Contact Us For Availability
3
RETAINER, FAN MOTOR MAY W10260421 Contact Us For Availability
3
BRACKET, CONTROL BOX MAY W10775706 Contact Us For Availability
3
ASSEMBLY, CRISPER COVER MAY W10789234 Contact Us For Availability
3
SHELF, FIXED MAY W10759069 Contact Us For Availability
3
PIN, BOTTOM DOOR MAY W10234206 Contact Us For Availability
3
COVER, DOOR (TOP) (CHARCOAL) MAY W10775725 Contact Us For Availability
3
PANEL, UNIT BACK MAY 2256466 Contact Us For Availability
3
MAY W10913755 MAY W10913755 Contact Us For Availability
3
TUBE, OIL TRAP SUCTION MAY W10648568 Contact Us For Availability
4
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
4
SCREW (BLACK) MAY W10678210 Contact Us For Availability
4
TRIM, TOP CABINET (CHARCOAL) MAY W10738278 Contact Us For Availability
4
ASSEMBLY, DIFFUSER MAY W10775715 Contact Us For Availability
4
GASKET, FAN SCROLL MAY W10203260 Contact Us For Availability
4
ASSEMBLY, MEAT PAN COVER MAY W10785391 Contact Us For Availability
4
BASKET, FREEZER MAY W10767693 Contact Us For Availability
4
PIN, TOP DOOR MAY W10234194 Contact Us For Availability
4
COVER, UNIT FRONT MAY W10694109 Contact Us For Availability
4
CONTROL, ELECTRONIC MAY W10200659 Contact Us For Availability
4
TUBE, TRANSITION (DRIER/RESTRICTOR) MAY W10388653 Contact Us For Availability
5
ASSEMBLY, SUPPORT BASE (LEFT HAND) MAY W10279275 Contact Us For Availability
5
SCREW MAY 487415 Contact Us For Availability
5
INSERT, BLIND THREADED MAY W10121451 Contact Us For Availability
5
LADDER (LONG) MAY W10749139 Contact Us For Availability
5
CLIP, CONTROL BOX MAY 2317000 Contact Us For Availability
5
ASSEMBLY, CRISPER COVER MAY W10789233 Contact Us For Availability
5
ASSEMBLY, BASKET FRONT MAY W10789202 Contact Us For Availability
5
GASKET, DOOR (GREY) MAY W10764833 Contact Us For Availability
5
BRACKET, FAN MOTOR MAY W10414681 Contact Us For Availability
5
ASSEMBLY, DRAIN PAN MAY W10281063 Contact Us For Availability
5A
ASSEMBLY, SUPPORT BASE (RIGHT HAND) MAY W10138423 Contact Us For Availability
5A
LADDER (SHORT) MAY W10749140 Contact Us For Availability
6
CAP, WATER FILTER (BLACK) MAY W10797527 Contact Us For Availability
6
SEAL, SIDE TRIM MAY 2005925 Contact Us For Availability
6
SUPPORT, LADDER MAY 2259445 Contact Us For Availability
6
MAY W10844020 MAY W10844020 Contact Us For Availability
6
SLIDE, BASKET (LEFT HAND) MAY 2259318 Contact Us For Availability
6
BIN, SHALLOW DOOR MAY W10529453 Contact Us For Availability
6
TRIM, DOOR (HANDLE SIDE) (CHARCOAL) MAY W10749306 Contact Us For Availability
6
GROMMET MAY 1100826 Contact Us For Availability
6
COVER, WIRE BOX MAY W10321048 Contact Us For Availability
6A
SLIDE, BASKET (RIGHT HAND) MAY 2259317 Contact Us For Availability
7
BRACKET, GRILL MOUNTING MAY 2307640 Contact Us For Availability
7
TRIM, CABINET SIDE (RIGHT) (BLACK) MAY W10775741 Contact Us For Availability
7
SCREW MAY W10141604 Contact Us For Availability
7
MAY W10844011 MAY W10844011 Contact Us For Availability
7
SCREW MAY 8533928 Contact Us For Availability
7
BIN, GALLON DOOR MAY W10594311 Contact Us For Availability
7
SCREW (BLACK) MAY 8281252 Contact Us For Availability
7
GROMMET, FLEXIBLE MAY 2215910 Contact Us For Availability
7
SUPPORT, CONDENSER (RIGHT HAND) MAY W10525179 Contact Us For Availability
7
COVER, WIRING MAY W10309012 Contact Us For Availability
7A
SLIDE, MEAT PAN (RIGHT HAND) MAY W10732727 Contact Us For Availability
8
BRACKET, GRILLE LEFT HAND (GREY) MAY W11042558 Contact Us For Availability
8
ASSEMBLY, LED MODULE MAY W10843339 Contact Us For Availability
8
MAY W10843805 MAY W10843805 Contact Us For Availability
8
DOOR, ICE MAY W10786629 Contact Us For Availability
8
GASKET, DOOR (GREY) MAY W10776011 Contact Us For Availability
8
TRIM, TOP DOOR (CHARCOAL) MAY W10749289 Contact Us For Availability
8
ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER MAY 2310195 Contact Us For Availability
8
TUBE, DISCHARGE MAY W10499596 Contact Us For Availability
8A
BRACKET, GRILLE RIGHT HAND (GREY) MAY W11042559 Contact Us For Availability
9
TRIM, CABINET SIDE LEFT HAND (GREY) MAY W10611999 Contact Us For Availability
9
COVER, AIR DIFFUSER MAY W10775714 Contact Us For Availability
9
GASKET, EVAPORATOR COVER MAY W10581988 Contact Us For Availability
9
SIDEARM, SHELF MAY W10605575 Contact Us For Availability
9
BUCKET, ICE MAY W10787830 Contact Us For Availability
9
TRIM, BOTTOM DOOR (CHARCOAL) MAY W10749616 Contact Us For Availability
9
COVER, TERMINAL MAY 2215676 Contact Us For Availability
9
EVAPORATOR MAY W10427992 Contact Us For Availability
9A
TRIM, CABINET SIDE (RIGHT HAND) (GREY) MAY W10612000 Contact Us For Availability
10
HOUSING, WATER FILTER MAY W10121140 Contact Us For Availability
10
BI-METAL, DEFROST MAY W10160570 Contact Us For Availability
10
SPACER, CRISPER MAY W10769876 Contact Us For Availability
10
SPACER, ICE DOOR MAY W10785704 Contact Us For Availability
10
TRIM, DOOR (HINGE SIDE) (CHARCOAL) MAY W10749614 Contact Us For Availability
10
SUPPORT, CONDENSER (LEFT HAND) MAY W10525177 Contact Us For Availability
10
HEATER, DEFROST MAY W10140161 Contact Us For Availability
11
MAY W10831026 MAY W10831026 Contact Us For Availability
11
GUARD, AIR RETURN MAY W10775705 Contact Us For Availability
11
SCROLL, FAN MAY W10170114 Contact Us For Availability
11
MAY W10844010 MAY W10844010 Contact Us For Availability
11
BRACKET, PANEL MOUNTING (GREY) MAY W10606841 Contact Us For Availability
11
SUPPLY, LED POWER MAY W10790783 Contact Us For Availability
11
CLAMP, HEATER MAY 1113048 Contact Us For Availability
11A
SLIDE, CRISPER (RIGHT HAND) MAY W10732303 Contact Us For Availability
12
FILTER, WATER MAY W10121146 Contact Us For Availability
12
ASSEMBLY, AIR BAFFLE MAY 2221296 Contact Us For Availability
12
DEFLECTOR, AIR MAY W10769273 Contact Us For Availability
12
SPACER, MEAT MAY W10769855 Contact Us For Availability
12
INSERT, DOOR ARM TOP (GREY) MAY W10606813 Contact Us For Availability
12
TRIM, DOOR (TOP) (CHARCOAL) MAY W10755238 Contact Us For Availability
12
SPACER MAY 2203075 Contact Us For Availability
12
COVER, EVAPORATOR SEAL MAY W10139908 Contact Us For Availability
13
SCREW MAY 489399 Contact Us For Availability
13
ASSEMBLY, DIFFUSER MAY W10203322 Contact Us For Availability
13
DUCT, AIR MAY W10769276 Contact Us For Availability
13
TRIM, DOOR (HANDLE SIDE) (CHARCOAL) MAY W10755284 Contact Us For Availability
13
BIN, SHALLOW MAY W10594374 Contact Us For Availability
13
BRACKET, INVERTER MOUNTING MAY 2256328 Contact Us For Availability
13
GASKET, EVAPORATOR MAY W10432308 Contact Us For Availability
14
PIN, DOOR STOP MAY W10234202 Contact Us For Availability
14
COVER, FAN SCROLL MAY W10170112 Contact Us For Availability
14
MAY W10844018 MAY W10844018 Contact Us For Availability
14
TRIM, DOOR (BOTTOM) (CHARCOAL) MAY W10755288 Contact Us For Availability
14
GROMMET MAY W10587113 Contact Us For Availability
14
DAMPENER MAY 2215648 Contact Us For Availability
15
HINGE (TOP) LEFT HAND (GREY) MAY W10691145 Contact Us For Availability
15
SCREW MAY 1157158 Contact Us For Availability
15
MAY W10843807 MAY W10843807 Contact Us For Availability
15
MAT, DOOR BIN (SHALLOW) MAY W10746023 Contact Us For Availability
15
CLIP, HEAT EXCHANGER MAY W10169509 Contact Us For Availability
15A
HINGE (TOP) RIGHT HAND (GREY) MAY W10691136 Contact Us For Availability
15A
MAT, DOOR BIN (GALLON) MAY W10746027 Contact Us For Availability
16
BRACKET, FILTER MAY W10674648 Contact Us For Availability
16
COVER, DIFFUSER MAY W10775713 Contact Us For Availability
16
COVER, AIR OUTLET MAY W10769274 Contact Us For Availability
16
DUCT, DELI PAN MAY 2307810 Contact Us For Availability
16
CONDENSER MAY W10591457 Contact Us For Availability
16
SUPPORT, DRAIN PAN MAY 2320554 Contact Us For Availability
17
SCREW MAY W10001250 Contact Us For Availability
17
LADDER, SHELF MAY W10775716 Contact Us For Availability
17
DEFLECTOR, AIR MAY W10787391 Contact Us For Availability
17
ASSEMBLY, UNIT WIRE MAY W10785721 Contact Us For Availability
17
ASSEMBLY, AIR RETURN BRACKET MAY W10160981 Contact Us For Availability
18
ASSEMBLY, EVAPORATOR COVER MAY W10748713 Contact Us For Availability
18
ASSEMBLY, PRODUCE PRESERVER MAY W10826105 Contact Us For Availability
18
BRACKET, CONTROL ASSEMBLY MAY W10321055 Contact Us For Availability
18
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
19
SHIELD, VALVE ELECTRICAL MAY W10129653 Contact Us For Availability
19
RACK, WINE MAY W10701859 Contact Us For Availability
19
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
19
SEALER, INSULATION MAY 2169104 Contact Us For Availability
20
HINGE (BOTTOM) LEFT HAND (GREY) MAY W10691533 Contact Us For Availability
20
MAY W10832438 MAY W10832438 Contact Us For Availability
20
TIE, WIRE MAY 2155774 Contact Us For Availability
20
SHELF, WIRING COVER MAY W10321050 Contact Us For Availability
20A
HINGE (BOTTOM) RIGHT HAND (GREY) MAY W10691534 Contact Us For Availability
21
SCREW MAY 8533913 Contact Us For Availability
21
MOTOR, FAN MAY W10436861 Contact Us For Availability
21
SUPPORT, EVAPORATOR MAY 1112260 Contact Us For Availability
21
DRIER MAY W10175593 Contact Us For Availability
22
SKIRT, GRILLE (BLACK) MAY W10188549 Contact Us For Availability
22
GROMMET, MOTOR MAY W10321090 Contact Us For Availability
22
ASSEMBLY, SHELF STUD (INCLUDES SCREW) MAY W10789219 Contact Us For Availability
22
SCREW MAY 487294 Contact Us For Availability
23
GRILLE (BLACK) MAY W10182717 Contact Us For Availability
23
SCREW (BLACK) MAY W10784949 Contact Us For Availability
23
MOTOR, CONDENSER FAN MAY W10527155 Contact Us For Availability
23
BLOCK, EVAPORATOR SIDE MAY W10580754 Contact Us For Availability
24
RAIL, EVAPORATOR COVER (LEFT HAND) MAY W10135766 Contact Us For Availability
24
BLADE, FAN MAY W10139483 Contact Us For Availability
24
SEAL, RETURN AIR MAY W10686115 Contact Us For Availability
24A
RAIL, EVAPORATOR COVER (RIGHT HAND) MAY W10141474 Contact Us For Availability
25
BRACKET, BASE SUPPORT (REAR) MAY 2006617 Contact Us For Availability
25
GASKET, EVAPORATOR COVER MAY W10782823 Contact Us For Availability
25
ORIFICE, FAN MAY W10415670 Contact Us For Availability
26
HARNESS, BI-METAL WIRE MAY W10482187 Contact Us For Availability
26
TUBE, DRIER TRANSITION MAY W10624944 Contact Us For Availability
27
SCREW MAY W10005050 Contact Us For Availability
27
COVER, THERMISTOR MAY W10783891 Contact Us For Availability
27
SCREW MAY W10146359 Contact Us For Availability
28
BUTTON, WATER FILTER (BLACK) MAY 2260503B Contact Us For Availability
28
THERMISTOR MAY 2188820 Contact Us For Availability
28
TUBE, HEAT LOOP TRANSITION MAY W10648264 Contact Us For Availability
29
SWITCH, LIGHT MAY W10606838 Contact Us For Availability
29
COMPLETE ICEMAKER ASSEMBLY MAY W10790812 Contact Us For Availability
29
SCREW MAY W10141645 Contact Us For Availability
30
COVER, SWITCH (LEFT HAND) MAY W10167387 Contact Us For Availability
30
ARM, SHUT OFF MAY W10889530 Contact Us For Availability
30
CONTROL, ELECTRONIC MAY W10184634 Contact Us For Availability
30A
COVER, SWITCH (RIGHT HAND) MAY W10167341 Contact Us For Availability
31
EXTENSION, SHUT OFF ARM MAY W10802358 Contact Us For Availability
31
TUBE, PROCESS MAY W10528578 Contact Us For Availability
32
COVER, AIR DUCT MAY 2215612 Contact Us For Availability
32
ASSEMBLY, ICE MAKER WIRE MAY W10508673 Contact Us For Availability
32
COVER, CONDENSER SUPPORT MAY W10525175 Contact Us For Availability
33
GRILLE TRIM (GREY) MAY W10606812 Contact Us For Availability
33
COVER, ICEMAKER MAY W10801567 Contact Us For Availability
33
CORD, POWER MAY 2310196 Contact Us For Availability
34
LEVELER, ADJUSTABLE MAY 2005032 Contact Us For Availability
34
SHIELD, HEAT MAY 2221231 Contact Us For Availability
35
SCREW MAY 304392 Contact Us For Availability
35
DEFLECTOR, AIR DUCT MAY 2309283 Contact Us For Availability
35
SWITCH, POWER DISCONNECT MAY 2266802 Contact Us For Availability
36
ASSEMBLY, LIGHT SWITCH WIRE MAY W10780215 Contact Us For Availability
36
HOUSING, CONTROL BOARD MOUNTING MAY W10550831 Contact Us For Availability
37
RING, RETAINER MAY 2006841 Contact Us For Availability
37
PLATE, CIRCUIT BOARD MAY W10761479 Contact Us For Availability
38
CLIP MAY W10663352 Contact Us For Availability
38
SUPPLY, POWER MAY W10624574 Contact Us For Availability
39
HEATER, FILL TUBE MAY 2221240 Contact Us For Availability
39
PLATE, CIRCUIT BOARD (TOP) MAY W10770059 Contact Us For Availability
41
GASKET, SEAL MAY 1106508 Contact Us For Availability
42
ASSEMBLY, WATER INLET TUBE MAY 2314049 Contact Us For Availability
43
ASSEMBLY, FILL TUBE HEATE MAY W10482373 Contact Us For Availability
44
MAY W10279393 MAY W10279393 Contact Us For Availability
45
MAY 2307650 MAY 2307650 Contact Us For Availability
46
MAY W10296807 MAY W10296807 Contact Us For Availability
47
MAY W10683737 MAY W10683737 Contact Us For Availability
48
MAY 2320559 MAY 2320559 Contact Us For Availability
49
MAY 2208136 MAY 2208136 Contact Us For Availability
50
MAY 2005433 MAY 2005433 Contact Us For Availability
51
MAY 9741232 MAY 9741232 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10234156 MAY W10234156 Contact Us For Availability
NI
MAY W10488101 MAY W10488101 Contact Us For Availability
NI
MAY W10613135 MAY W10613135 Contact Us For Availability
NI
MAY W10744761 MAY W10744761 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
× ![]()
