Model Maytag JS42CXFXDB00 REFRIGERATOR – Common Parts & Diagrams

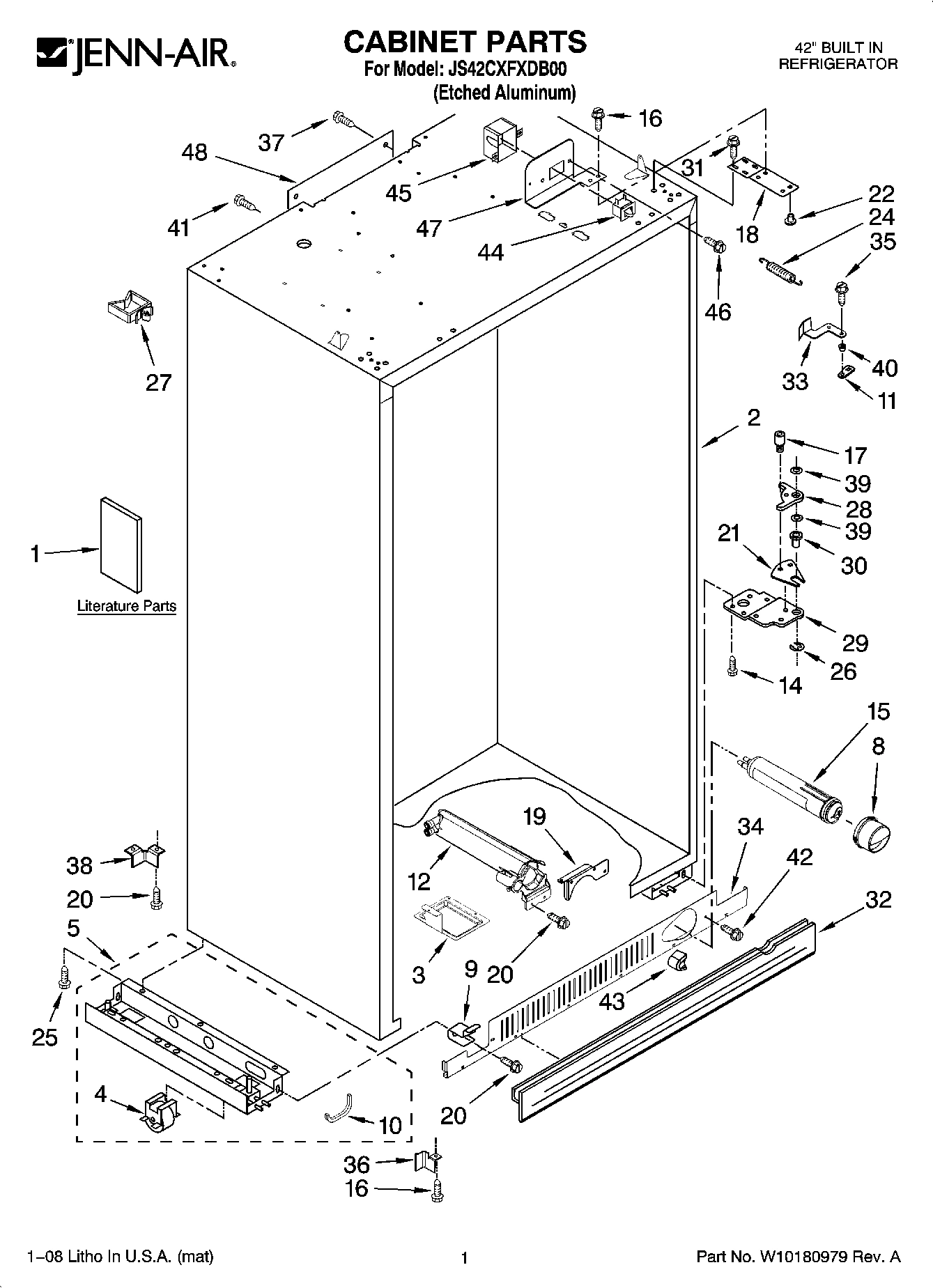

01 - CABINET PARTS
02 - CABINET TRIM PARTS
03 - FREEZER SHELF PARTS
04 - REFRIGERATOR LINER PARTS
05 - CONTROL PANEL PARTS
06 - TOP GRILLE AND UNIT COVER PARTS
07 - REFRIGERATOR SHELF PARTS
08 - FREEZER LINER AND AIR FLOW PARTS
09 - REFRIGERATOR DOOR PARTS
10 - FREEZER DOOR PARTS
11 - UPPER UNIT PARTS
12 - LOWER UNIT AND TUBE PARTS
13 - ICEMAKER PARTS
Common parts from model Maytag JS42CXFXDB00 REFRIGERATOR
1
MAY 2306337 MAY 2306337 Contact Us For Availability
1
MAY 2318069 MAY 2318069 Contact Us For Availability
1
MAY W10151249 MAY W10151249 Contact Us For Availability
1
MAY W10151251 MAY W10151251 Contact Us For Availability
1
MAY W10159831 MAY W10159831 Contact Us For Availability
1
MAY W10164079 MAY W10164079 Contact Us For Availability
1
Cabinet, Trim (Right Side) MAY W10132411 Contact Us For Availability
1
Wire, Shelf (2) MAY 2302868 Contact Us For Availability
1
MAY W10151198 MAY W10151198 Contact Us For Availability
1
MAY 2313978S MAY 2313978S Contact Us For Availability
1
Shelf Assy (4) MAY W10141494 Contact Us For Availability
1
MAY 2259385 MAY 2259385 Contact Us For Availability
1
Refrigerator Door (Includes 9) MAY 2252330 Contact Us For Availability
1
MAY 2252327 MAY 2252327 Contact Us For Availability
1
MAY W10133449 MAY W10133449 Contact Us For Availability
1
MAY W10129653 MAY W10129653 Contact Us For Availability
2
MAY 2302871 MAY 2302871 Contact Us For Availability
2
MAY 2306010 MAY 2306010 Contact Us For Availability
2
MAY 2310164 MAY 2310164 Contact Us For Availability
2
MAY W10161693 MAY W10161693 Contact Us For Availability
2
MAY 2256250 MAY 2256250 Contact Us For Availability
2
Screw, Compressor Mounting (4) MAY 489373 Contact Us For Availability
2
MAY W10157752 MAY W10157752 Contact Us For Availability
2
MAY 2259064 MAY 2259064 Contact Us For Availability
3
Tray, Drip Filter MAY 2318189 Contact Us For Availability
3
SCREW MAY 1163283 Contact Us For Availability
3
Shelf, Fixed (2) MAY 2302883 Contact Us For Availability
3
Air Duct MAY 2208970 Contact Us For Availability
3
MAY 2307592 MAY 2307592 Contact Us For Availability
3
Rack, Wine MAY 2179404 Contact Us For Availability
3
Fan Blade MAY 2169142 Contact Us For Availability
3
Hinge, Bottom MAY 2252294 Contact Us For Availability
3
Compressor (Includes Items 6 & 9)(Also Order MAY 2223393 Contact Us For Availability
3
MAY 2309076 MAY 2309076 Contact Us For Availability
3
Wire Assembly, Icemaker MAY 2310136 Contact Us For Availability
4
Roller, Front & Rear (4) MAY W10138054 Contact Us For Availability
4
Cabinet, Trim (Bottom) MAY 2316687 Contact Us For Availability
4
Basket MAY 2259082 Contact Us For Availability
4
MAY W10159487 MAY W10159487 Contact Us For Availability
4
SCREW MAY 487539 Contact Us For Availability
4
MAY 2307595 MAY 2307595 Contact Us For Availability
4
Back Panel MAY 2256466 Contact Us For Availability
4
Meat Pan Cover Assembly MAY W10151215 Contact Us For Availability
4
MAY 2223733 MAY 2223733 Contact Us For Availability
4
MAY 489282 MAY 489282 Contact Us For Availability
4
MAY 2318087 MAY 2318087 Contact Us For Availability
4
Tube, Connect (Drier/Restrictor) MAY 2309070 Contact Us For Availability
5
MAY 2318193 MAY 2318193 Contact Us For Availability
5
MAY 2318194 MAY 2318194 Contact Us For Availability
5
MAY 2256270 MAY 2256270 Contact Us For Availability
5
Ladder, Shelf (2) MAY 2259077 Contact Us For Availability
5
MAY W10121229 MAY W10121229 Contact Us For Availability
5
Crisper Cover Assembly MAY W10151213 Contact Us For Availability
5
Gasket, Cover MAY 2302817 Contact Us For Availability
5
Hinge, Top MAY 2252295 Contact Us For Availability
5
MAY W10136614 MAY W10136614 Contact Us For Availability
5
MAY 2320615 MAY 2320615 Contact Us For Availability
5
CLIP,FUSE MAY 628379 Contact Us For Availability
6
Screw MAY 487415 Contact Us For Availability
6
Cabinet, Trim Top MAY 2313961S Contact Us For Availability
6
Slide, Basket (Right Side) MAY 2259317 Contact Us For Availability
6
Slide, Basket (Left Side) MAY 2259318 Contact Us For Availability
6
Screw Support, Ladder (8) MAY 520965 Contact Us For Availability
6
MAY 2317000 MAY 2317000 Contact Us For Availability
6
MAY 2257582 MAY 2257582 Contact Us For Availability
6
Grommet MAY 2223986 Contact Us For Availability
6
Spacer-Door, Top & Bottom MAY 2316804 Contact Us For Availability
6
Hinge Assembly, Bottom MAY 2252293 Contact Us For Availability
6
Grommet, Mounting MAY 1100826 Contact Us For Availability
6
MAY W10151288 MAY W10151288 Contact Us For Availability
6
MAY 2320654 MAY 2320654 Contact Us For Availability
7
Cabinet Trim (Left Side) MAY W10132416 Contact Us For Availability
7
Screw MAY 8533928 Contact Us For Availability
7
Display Board, Ingredient Care Center MAY W10151210 Contact Us For Availability
7
MAY 2310194 MAY 2310194 Contact Us For Availability
7
MAY 2252412 MAY 2252412 Contact Us For Availability
7
MAY 2222796 MAY 2222796 Contact Us For Availability
7
MAY 2222814 MAY 2222814 Contact Us For Availability
7
MAY 2309002 MAY 2309002 Contact Us For Availability
7
MAY 2316684 MAY 2316684 Contact Us For Availability
7
Water Inlet Tube Assembly MAY 2314049 Contact Us For Availability
8
MAY 2260518B MAY 2260518B Contact Us For Availability
8
Nutsert (4) MAY W10121451 Contact Us For Availability
8
MAY 2266934 MAY 2266934 Contact Us For Availability
8
Slide, Meat Pan (Left Side) MAY 2302954 Contact Us For Availability
8
Slide, Meat Pan (Right Side) MAY 2302955 Contact Us For Availability
8
Wedge, Air Duct MAY 2259464 Contact Us For Availability
8
MAY 2222982 MAY 2222982 Contact Us For Availability
8
Bracket, Switch MAY 2307684 Contact Us For Availability
8
MAY W10121371 MAY W10121371 Contact Us For Availability
8
MAY 1106508 MAY 1106508 Contact Us For Availability
9
Mounting Stud, Grille MAY 2307640 Contact Us For Availability
9
SEAL-TRIM, SIDE MAY 2005925 Contact Us For Availability
9
MAY 2266931 MAY 2266931 Contact Us For Availability
9
MAY 2302937 MAY 2302937 Contact Us For Availability
9
MAY 489348 MAY 489348 Contact Us For Availability
9
MAY 2302831 MAY 2302831 Contact Us For Availability
9
MAY 2222811 MAY 2222811 Contact Us For Availability
9
Trim-Door (Handle Side) MAY 2309497S Contact Us For Availability
9
MAY 2215676 MAY 2215676 Contact Us For Availability
9
MAY 2306093 MAY 2306093 Contact Us For Availability
9
MAY 2317912 MAY 2317912 Contact Us For Availability
10
GROMMET, CROSSOVERTUBE MAY 2307584 Contact Us For Availability
10
SPACER MAY 2266955 Contact Us For Availability
10
Lid, Air Baffle MAY 2302986 Contact Us For Availability
10
Socket, Light (2) MAY 2223857 Contact Us For Availability
10
Tee Bolt MAY 2003347 Contact Us For Availability
10
MAY 2256254 MAY 2256254 Contact Us For Availability
10
MAY 2207457 MAY 2207457 Contact Us For Availability
10
MAY 2309001 MAY 2309001 Contact Us For Availability
10
MAY W10140161 MAY W10140161 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
11
MAY 2005783 MAY 2005783 Contact Us For Availability
11
Baffle, Control Assembly MAY W10169528 Contact Us For Availability
11
NUT MAY 1161548 Contact Us For Availability
11
MAY 2256248 MAY 2256248 Contact Us For Availability
11
Screw (Stainless Steel) MAY 8281250 Contact Us For Availability
11
MAY W10121049 MAY W10121049 Contact Us For Availability
11
MAY 1113048 MAY 1113048 Contact Us For Availability
11
Fastener, Snap-In MAY 489115 Contact Us For Availability
12
MAY 2260526 MAY 2260526 Contact Us For Availability
12
MAY 2171846 MAY 2171846 Contact Us For Availability
12
MAY 2326255 MAY 2326255 Contact Us For Availability
12
MAY 2252255 MAY 2252255 Contact Us For Availability
12
Trim-Door, Top MAY 2309489S Contact Us For Availability
12
Spacer (5) MAY 2203075 Contact Us For Availability
12
Cover Seal, Evaporator Tubes MAY W10139908 Contact Us For Availability
12
MAY 2221070 MAY 2221070 Contact Us For Availability
13
Jumper, Air Baffle MAY 2310205 Contact Us For Availability
13
Spacer, Crisper (Right Side (2)) MAY 2256222 Contact Us For Availability
13
Spacer, Crisper (Left Side (2)) MAY 2256223 Contact Us For Availability
13
Bracket, Inverter Box MAY 2256328 Contact Us For Availability
13
MAY 2220832 MAY 2220832 Contact Us For Availability
13
Jumper, Fill Tube Heater MAY 2310108 Contact Us For Availability
14
MAY 3400525 MAY 3400525 Contact Us For Availability
14
SCREW MAY 488357 Contact Us For Availability
14
Slide, Crisper (Left Side (2)) MAY 2302956 Contact Us For Availability
14
Slide, Crisper (Right Side (2)) MAY 2302957 Contact Us For Availability
14
MAY 2182120 MAY 2182120 Contact Us For Availability
14
Trim-Door, Btm MAY 2309495S Contact Us For Availability
14
BRACKET, VIBRATION CONDENSER MAY 2317031 Contact Us For Availability
14
Wire Tie MAY 4389107 Contact Us For Availability
14
MAY 2320559 MAY 2320559 Contact Us For Availability
15
Filter, Water MAY 4396841 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
Spacer, Meat Pan (Left Side) MAY 2256243 Contact Us For Availability
15
Spacer, Meat Pan (Right Side) MAY 2256244 Contact Us For Availability
15
Wedge, Air Duct MAY 2259465 Contact Us For Availability
15
Trim-Door (Hinge Side) MAY 2309498S Contact Us For Availability
15
MAY W10169509 MAY W10169509 Contact Us For Availability
15
Clamp, Nylon Valve MAY 2305274 Contact Us For Availability
16
MAY 489399 MAY 489399 Contact Us For Availability
16
Guard, Return Air MAY 2003577 Contact Us For Availability
16
SCREW MAY 8533929 Contact Us For Availability
16
Clamp, Tube MAY 488937 Contact Us For Availability
16
MAY 2266801 MAY 2266801 Contact Us For Availability
16
Cover, Trim (Hinge Side) MAY 2259448S Contact Us For Availability
16
Trim-Door, Top MAY 2309486S Contact Us For Availability
16
MAY 2307998 MAY 2307998 Contact Us For Availability
16
MAY 2320554 MAY 2320554 Contact Us For Availability
17
Screw, Door Stop MAY 3400230 Contact Us For Availability
17
Air Baffle Assembly MAY 2221296 Contact Us For Availability
17
Pan Assembly Meat MAY 2256369 Contact Us For Availability
17
Air Duct MAY 2307777 Contact Us For Availability
17
Cover, Trim (Handle Side) MAY 2314003S Contact Us For Availability
17
Grommet (4) MAY 2309431 Contact Us For Availability
17
Bracket Assembly, Air Return MAY W10160981 Contact Us For Availability
17
MAY 2221240 MAY 2221240 Contact Us For Availability
18
Hinge (Top) (FC) MAY 2252291 Contact Us For Availability
18
Hinge (Top) (RC) MAY 2252292 Contact Us For Availability
18
MAY 2256366 MAY 2256366 Contact Us For Availability
18
Bin, Door (6) MAY 2222776 Contact Us For Availability
18
ARM, VIBRATION CONDENSER MAY 2317030 Contact Us For Availability
18
MAY 9791833 MAY 9791833 Contact Us For Availability
18
MAY 2257538 MAY 2257538 Contact Us For Availability
19
Bracket, Mount (Water Filter) MAY 2318190 Contact Us For Availability
19
Block, Fan Scroll (Left) MAY 2209066 Contact Us For Availability
19
Block, Fan Scroll (Right) MAY 2209480 Contact Us For Availability
19
Trim-Door, Btm End Cap MAY 2309492S Contact Us For Availability
19
MAY 488649 MAY 488649 Contact Us For Availability
19
MAY 2313990 MAY 2313990 Contact Us For Availability
20
End Cap (Right Side) MAY 2222919 Contact Us For Availability
20
Wire Tie MAY 2155774 Contact Us For Availability
20
Mold & Heater (Also Order 542638 Silicone Gre MAY W10122527 Contact Us For Availability
20A
End Cap (Left Side) MAY 2222920 Contact Us For Availability
21
Lock, Adjustable Bushing MAY 2004994 Contact Us For Availability
21
Diffuser Assembly MAY 2309222 Contact Us For Availability
21
MAY 2222922 MAY 2222922 Contact Us For Availability
21
MAY 2317982 MAY 2317982 Contact Us For Availability
21
MAY 626683 MAY 626683 Contact Us For Availability
22
MAY 2300082 MAY 2300082 Contact Us For Availability
22
MAY 2257616 MAY 2257616 Contact Us For Availability
22
Wire Assembly (Condenser Fan) MAY 2310207 Contact Us For Availability
22
Cup-Water Fill MAY 628356 Contact Us For Availability
23
MAY 2259025 MAY 2259025 Contact Us For Availability
23
Bin, Door (3) MAY 2222773 Contact Us For Availability
23
Motor, Fan MAY 2188875 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
Spring, Door Closure (Left Side) MAY 2004517 Contact Us For Availability
24
Spring, Door Closure (Right Side) MAY 2221242 Contact Us For Availability
24
MAY 2302992 MAY 2302992 Contact Us For Availability
24
Light Shield MAY 2307751 Contact Us For Availability
24
Bin, Door MAY 2222770 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
Ice Striper MAY 2182124 Contact Us For Availability
25
Cover, Diffuser MAY 2309087 Contact Us For Availability
25
MAY W10158003 MAY W10158003 Contact Us For Availability
25
MAY 2003169 MAY 2003169 Contact Us For Availability
25
MAY 2195914 MAY 2195914 Contact Us For Availability
26
Retaining Ring, Adjustable Bushing MAY 2005008 Contact Us For Availability
26
Tube, Drier Transition MAY 2307566 Contact Us For Availability
26
Retainer Thermostat (2) MAY 2315522 Contact Us For Availability
27
Wire Clip (5) MAY W10129069 Contact Us For Availability
27
Screw MAY 8281163 Contact Us For Availability
27
MAY 2259412 MAY 2259412 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
Thermostat (Also Order 542639 Cement Alumilas MAY 627985 Contact Us For Availability
28
MAY 2006342 MAY 2006342 Contact Us For Availability
28
Seal, Air Duct (Square Hole) MAY 2259398 Contact Us For Availability
28
MAY 2302850 MAY 2302850 Contact Us For Availability
28
MAY 2307693 MAY 2307693 Contact Us For Availability
28
MAY 8533917 MAY 8533917 Contact Us For Availability
29
Hinge (Bottom) (Refrigerator Side) MAY 2309471 Contact Us For Availability
29
Hinge (Bottom) (Freezer Side) MAY 2309472 Contact Us For Availability
29
MAY 2309283 MAY 2309283 Contact Us For Availability
29
MAY 2221231 MAY 2221231 Contact Us For Availability
30
MAY 2302876 MAY 2302876 Contact Us For Availability
30
MAY 1112260 MAY 1112260 Contact Us For Availability
30
MAY 2309432 MAY 2309432 Contact Us For Availability
30
MAY 489276 MAY 489276 Contact Us For Availability
31
Screw 1/4-20 x 5/8 MAY 8533913 Contact Us For Availability
31
Shelf, Stud (20) MAY 2196483 Contact Us For Availability
31
Power Supply, Ingredient Care Center MAY 2259350 Contact Us For Availability
31
MAY W10139195 MAY W10139195 Contact Us For Availability
32
Skirt-Grille, Bottom (Black) MAY 2209025B Contact Us For Availability
32
MAY 488500 MAY 488500 Contact Us For Availability
32
MAY 8281158 MAY 8281158 Contact Us For Availability
32
Process, Tube MAY 2194319 Contact Us For Availability
33
Extension Arm, Door Closer (Right) MAY 2267192 Contact Us For Availability
33
Extension Arm, Door Closer (Left) MAY 2267193 Contact Us For Availability
33
Evaporator, Cover Rail (Left Side) MAY 2221107 Contact Us For Availability
33
Evaporator, Cover Rail (Right Side) MAY 2259355 Contact Us For Availability
33
MAY 2309000 MAY 2309000 Contact Us For Availability
33
Module Assembly (Includes Items 21 & 34) MAY 626691 Contact Us For Availability
34
MAY 2325185B MAY 2325185B Contact Us For Availability
34
Gasket (2) Evaporator Cover MAY 2220904 Contact Us For Availability
34
MAY 2310251 MAY 2310251 Contact Us For Availability
34
Screw (2) MAY 489136 Contact Us For Availability
35
MAY 489464 MAY 489464 Contact Us For Availability
35
MAY 2005921 MAY 2005921 Contact Us For Availability
35
Harness, Evap Fan (Includes Item 42) MAY W10139189 Contact Us For Availability
36
SCREW MAY 486194 Contact Us For Availability
36
Bracket, Support Base (Front) (Right) MAY 2006556 Contact Us For Availability
36
Bracket, Support Base (Front) (Left) MAY 2006616 Contact Us For Availability
36
MAY 2220241 MAY 2220241 Contact Us For Availability
36
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
37
MAY 2188820 MAY 2188820 Contact Us For Availability
37
Screw, Ground MAY 487294 Contact Us For Availability
38
Bracket, Support Base (Rear) (2) MAY 2006617 Contact Us For Availability
38
MAY 2317105 MAY 2317105 Contact Us For Availability
38
MAY 549193 MAY 549193 Contact Us For Availability
39
WASHER MAY 2006346 Contact Us For Availability
39
SCREW MAY 2006475 Contact Us For Availability
39
MAY 2310294 MAY 2310294 Contact Us For Availability
40
Bushing, Extension Arm MAY 2266880 Contact Us For Availability
40
MAY 2259032 MAY 2259032 Contact Us For Availability
41
Support, Screw MAY 2259445 Contact Us For Availability
42
Defrost, Bi-Metal MAY W10160570 Contact Us For Availability
43
Button, Filter MAY 2260503B Contact Us For Availability
43
MAY 8281185 MAY 8281185 Contact Us For Availability
44
Switch, Rocker Arm (Freezer Door Side) MAY 1115373 Contact Us For Availability
44
Switch, Rocker Arm (Refrigerator Door Side) MAY 1118894 Contact Us For Availability
45
Cover, Switch (2) MAY 2215938 Contact Us For Availability
47
MAY 2221096 MAY 2221096 Contact Us For Availability
47
MAY 2221097 MAY 2221097 Contact Us For Availability
48
Cover, Rear MAY 2215612 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 2320638 MAY 2320638 Contact Us For Availability
NI
MAY 8537055 MAY 8537055 Contact Us For Availability
× ![]()
