Model Whirlpool JRTI235 REFRIGERATOR – Common Parts & Diagrams

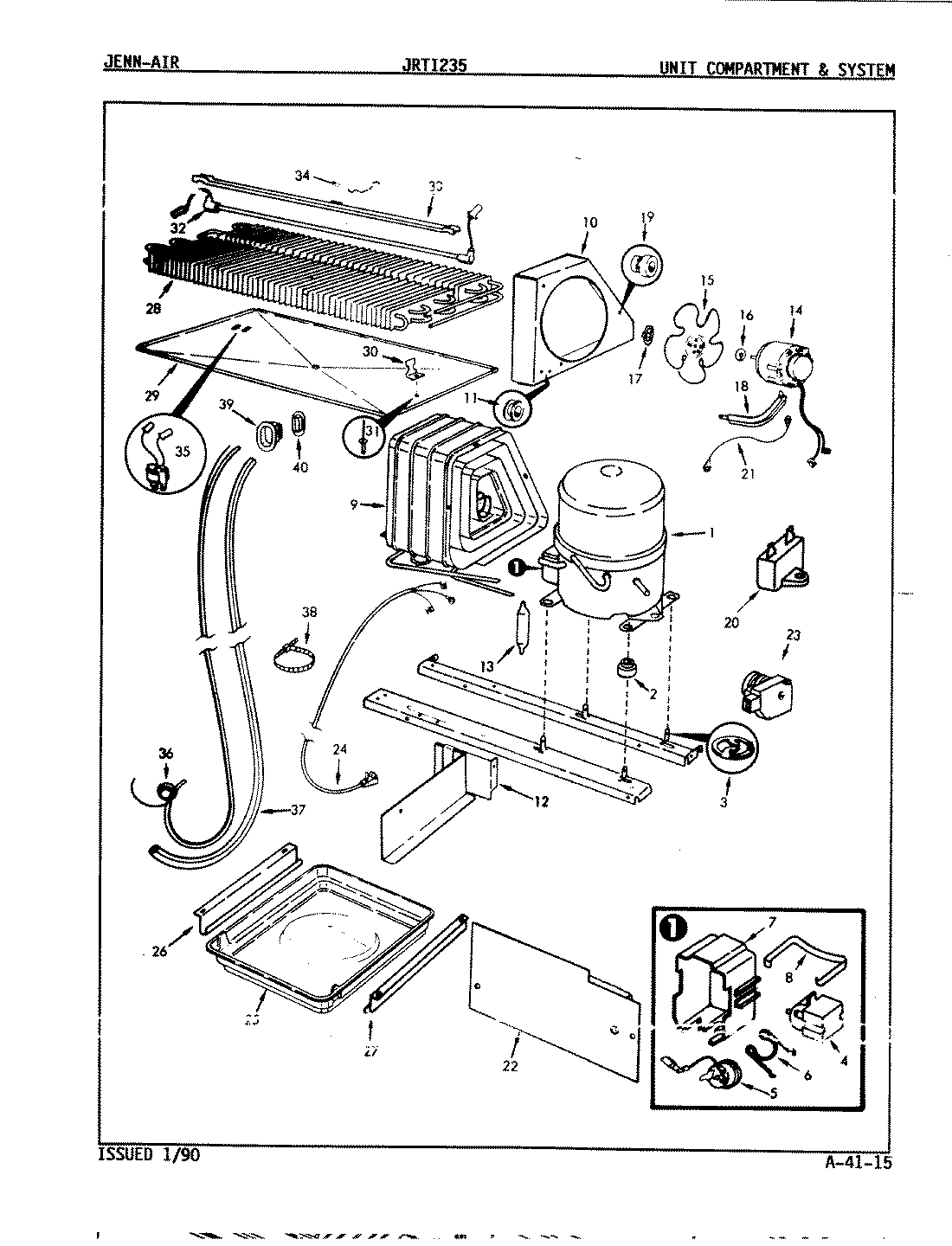

05 - UNIT COMPARTMENT & SYSTEM

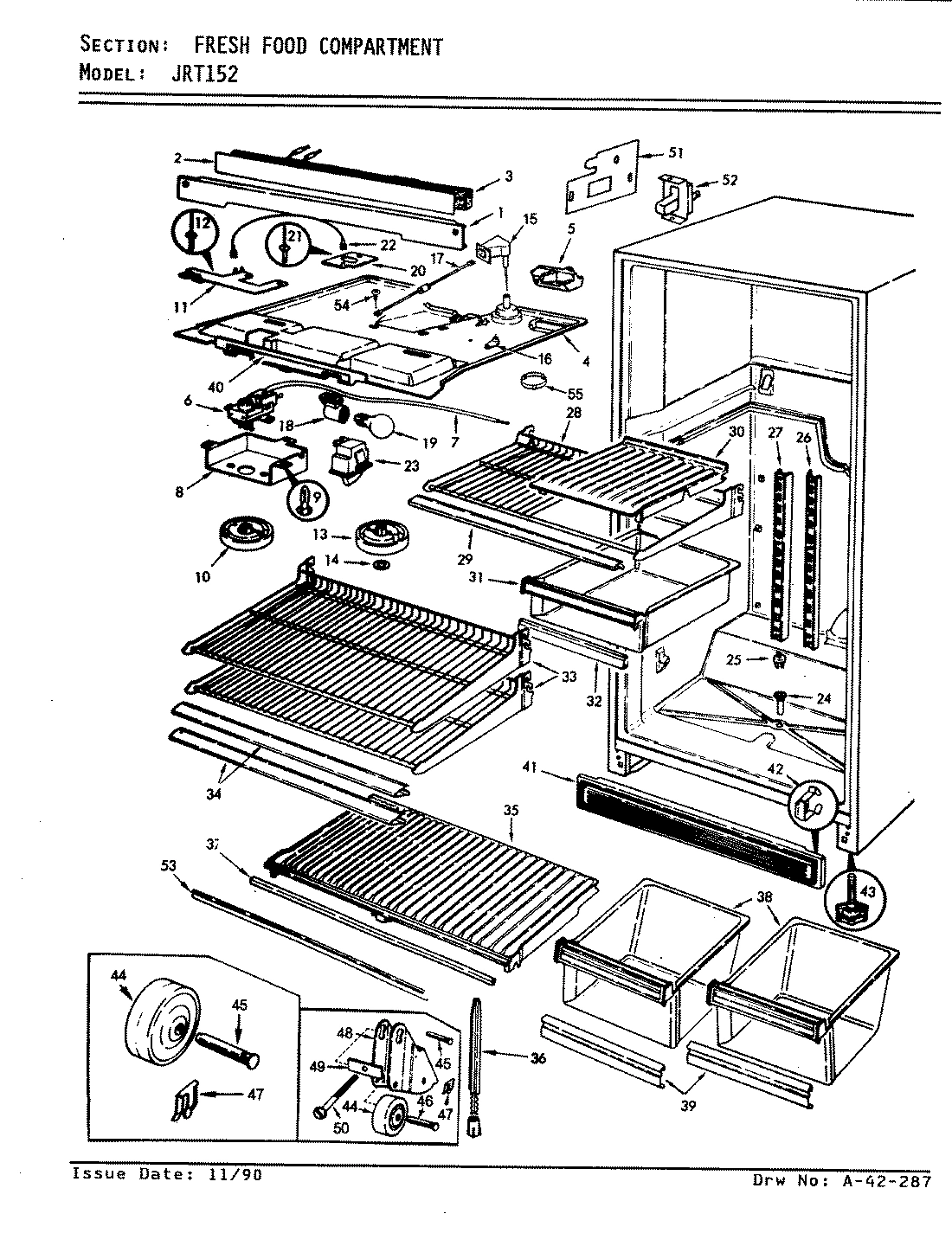

04 - ICE MAKER SECTION
01 - DOORS

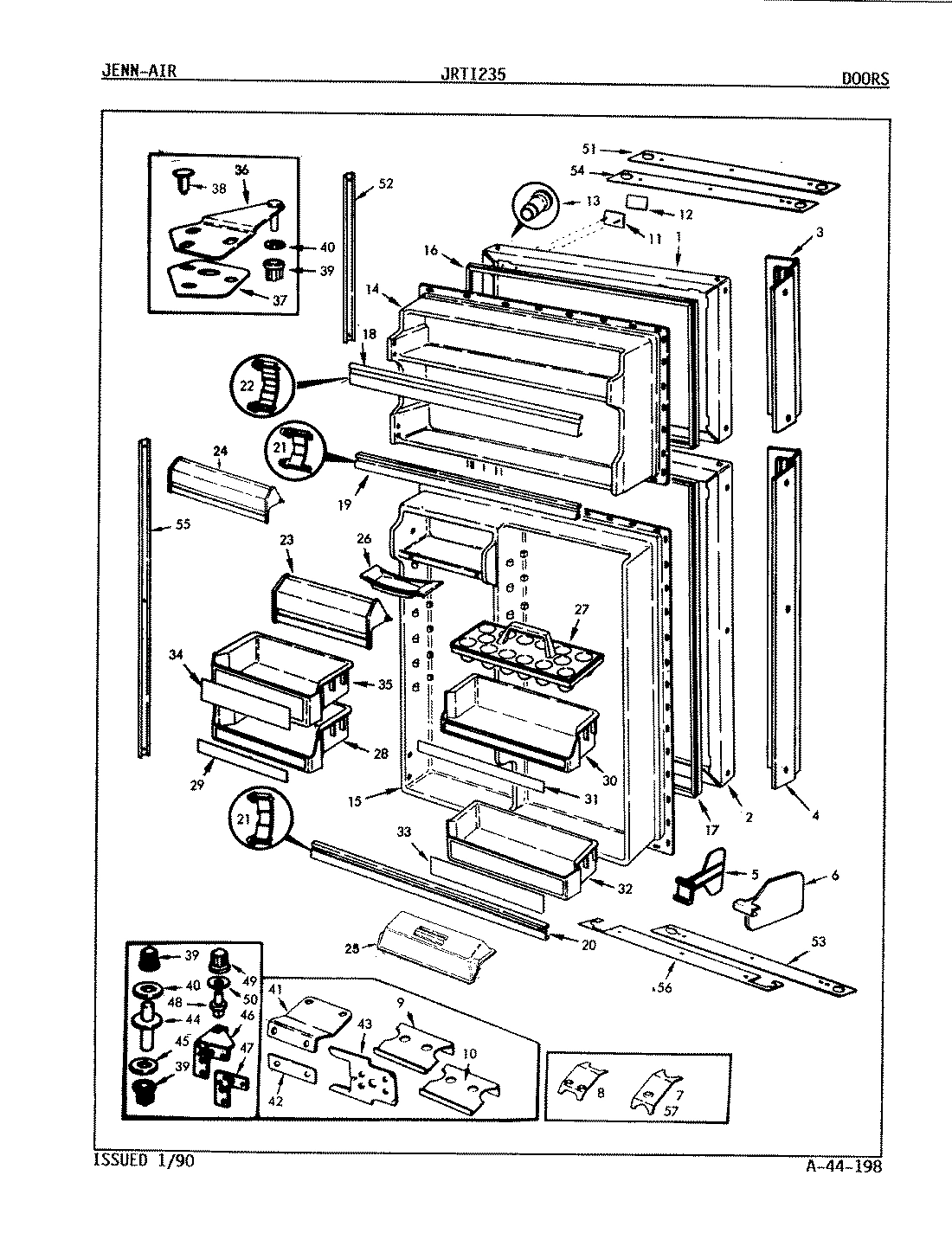

03 - FRESH FOOD COMPARTMENT

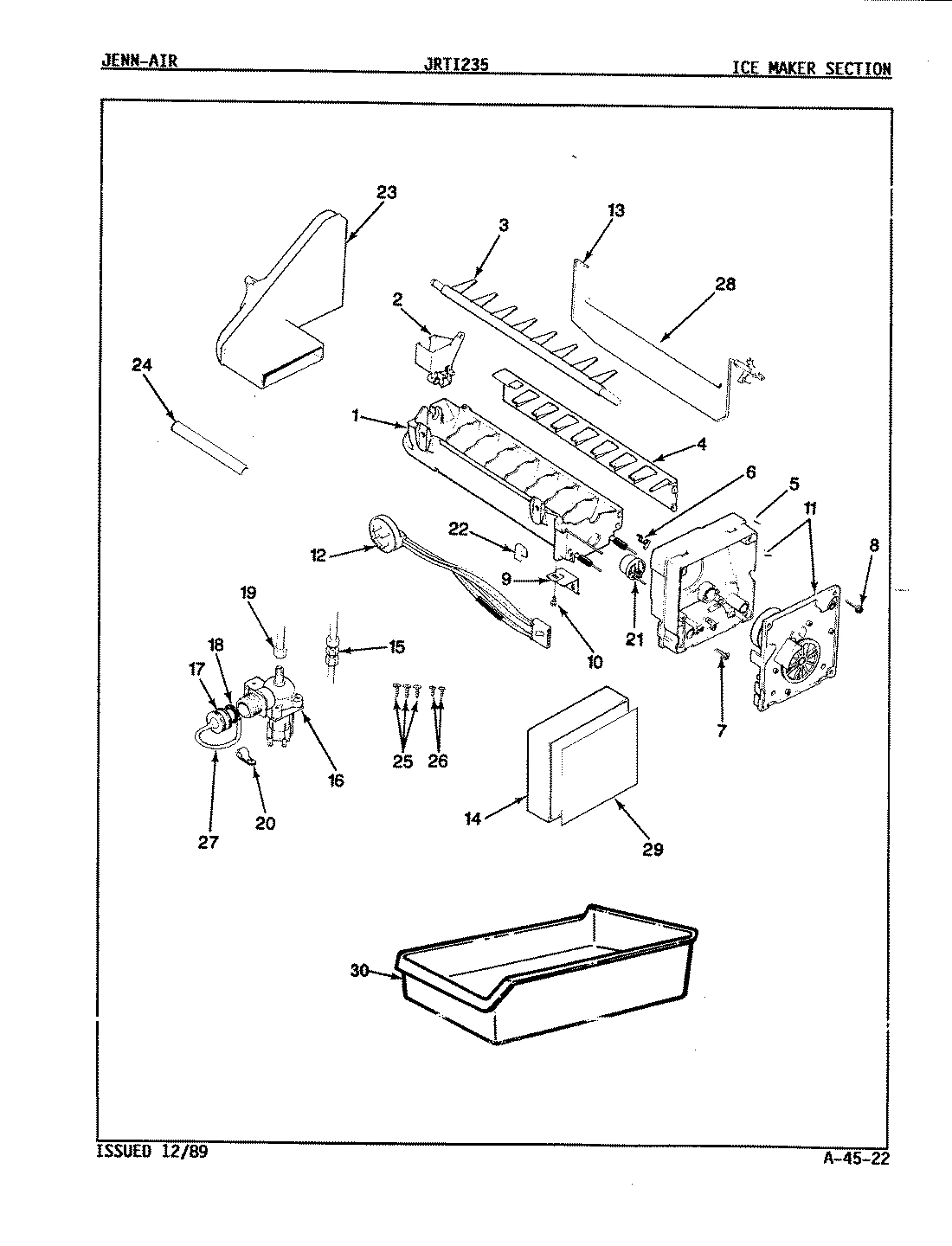

02 - FREEZER COMPARTMENT
Common parts from model Whirlpool JRTI235 REFRIGERATOR
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 666662AM Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 666662WW Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 657973AM Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 657973WW Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 666081 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
PLUG BUTTON WPL 495036900 Contact Us For Availability
2
OUTER PANEL WPL 666721AM Contact Us For Availability
2
PANEL, F.F. DOOR (WHT) WPL 666721WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
HEATER WIRE WPL 601059 Contact Us For Availability
2
SEAL WPL 663258 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
HANDLE, FRZ. DOOR WPL 682001 Contact Us For Availability
3
INSULATION WPL 601403 Contact Us For Availability
3
WIRE HARNESS WPL 605602 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
HANDLE, F.F. DOOR WPL 681991 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008556 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
OVERLOAD WPL 6329411 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
ORGANIZER, SHELF WPL 6409710 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
SCREW WPL 652754 Contact Us For Availability
6
SHELF, PICK-OFF WPL 666455 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
WIRE HARNESS WPL 665861 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
TUNNEL, AIR WPL 660444 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
DOOR STOP, FRZR DOOR WPL 600306 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
10
BAFFLE-DRM WPL 685207 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
DOOR STOP, F.F. DOOR WPL 600305 Contact Us For Availability
10
SCREW WPL 9986108 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664033 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
BEZEL, NAMEPLATE WPL 666411 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664771 Contact Us For Availability
12
BAFFLE WPL 664933 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
12
SHELF, FRZ WPL 6043821 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
13
BURNER-GAS WPL 685208 Contact Us For Availability
13
TRIM, FRONT-FULL WPL 6041443 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
LINER, DOOR WPL 659364 Contact Us For Availability
14
CUP, SHELF WPL 603131 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
INNER PANEL WPL 687211 Contact Us For Availability
15
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
15
DAMPER WPL 666091 Contact Us For Availability
15
COVER, PLENUM WPL 664803 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
16
GASKET, DOOR WPL 661997 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
SCREW WPL 4000191 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
GASKET, DOOR WPL 661998 Contact Us For Availability
17
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
TRIM, SHELF WPL 6841013 Contact Us For Availability
19
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
PAN, ICE WPL 683271 Contact Us For Availability
20
TRIM, SHELF WPL 6841015 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
SCREW WPL 652751 Contact Us For Availability
20
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROUND WIRE WPL 2967522 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 661282 Contact Us For Availability
23
SCREW WPL 400018103 Contact Us For Availability
23
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
23
DOOR, DAIRY WPL 66184356 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 669871 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
24
DAIRY DOOR WPL Y06100015 Contact Us For Availability
24
TUBE, DRAIN WPL 545317 Contact Us For Availability
25
PAN, DRAIN WPL 298394 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
COVER, P.O. WPL 6663741 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
SCREW WPL 4010181 Contact Us For Availability
26
TRAY, BUTTER WPL 299362 Contact Us For Availability
26
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
27
TRAY, EGG WPL 6006613 Contact Us For Availability
27
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
28
EVAPORATOR WPL RA4362012 Contact Us For Availability
28
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
28
SHELF, PICK-OFF WPL 6003737 Contact Us For Availability
28
SCREW WPL 40003728 Contact Us For Availability
28
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
29
INSERT,ICE MAKER COVER WPL 674282 Contact Us For Availability
29
TRIM, PICK-OFF WPL 6813048 Contact Us For Availability
29
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
DOOR SHELF WPL 6003740 Contact Us For Availability
30
FRAME, SHELF WPL 6057032 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
TRIM WPL 6813050 Contact Us For Availability
31
FRAME, SHELF WPL 6057020 Contact Us For Availability
32
HEATER, DEFROST WPL 6010636 Contact Us For Availability
32
DOOR SHELF WPL 6003739 Contact Us For Availability
32
GLASS, SPLIT WPL 684057 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
33
TRIM WPL 6813051 Contact Us For Availability
33
GLASS, SHELF WPL 684056 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
TRIM WPL 6813047 Contact Us For Availability
34
TRIM, FRONT-1/2 SHELF WPL 6041464 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
DOOR SHELF WPL 6003735 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
36
COVER, UPPER HINGE (CHROME) WPL 668751 Contact Us For Availability
36
TRIM, REAR-FULL WPL 6527627 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
37
TRIM, REAR-1/2 SHELF WPL 6527636 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
38
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
38
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
39
SLIDE RAIL,MEAT & DELI PAN WPL 668132 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
PAINT KIT WPL RA438721 Contact Us For Availability
40
SCREW WPL 998687 Contact Us For Availability
40
RAIL, MEAT PAN (RT) WPL 668142 Contact Us For Availability
41
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
41
PAN, DELI WPL 6663742 Contact Us For Availability
42
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
42
INSERT,ESCUTCHEON WPL 6057145 Contact Us For Availability
43
TAPPING PLATE WPL 606221 Contact Us For Availability
43
SCREW, CENTER HINGE MTG WPL 9987107 Contact Us For Availability
43
PAN, MEAT KEEPER WPL 6663737 Contact Us For Availability
44
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
44
HANDLE, MEAT PAN WPL 6013296 Contact Us For Availability
45
WASHER WPL 521851 Contact Us For Availability
45
TUNNEL, AIR (MEAT) WPL 6009422 Contact Us For Availability
46
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
46
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
47
SCREW WPL 403100801 Contact Us For Availability
47
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
47
TAPPING PLATE WPL 657903 Contact Us For Availability
47
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
48
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
49
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
49
SHELF, CRISPER WPL 667334 Contact Us For Availability
50
WASHER WPL 542332 Contact Us For Availability
50
PLUG BUTTON, (WHITE) WPL 5618610 Contact Us For Availability
50
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
50
TRIM, CRISPER SHELF WPL 6045415 Contact Us For Availability
51
SEAL WPL 601486 Contact Us For Availability
52
WPL 681961 WPL 681961 Contact Us For Availability
52
SUPPORT, CRISPER SHELF WPL 661054 Contact Us For Availability
53
PAN, CRISPER WPL 68223410 Contact Us For Availability
54
WPL 686691 WPL 686691 Contact Us For Availability
54
TRIM HANDLE WPL 6013298 Contact Us For Availability
55
WPL 681951 WPL 681951 Contact Us For Availability
55
KICKPLATE WPL 6023739 Contact Us For Availability
56
WPL 686701 WPL 686701 Contact Us For Availability
56
WPL 6527515 WPL 6527515 Contact Us For Availability
56
WPL 6527526 WPL 6527526 Contact Us For Availability
56
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
57
WPL 562092 WPL 562092 Contact Us For Availability
57
LEG, LEVELIN WPL 60128 Contact Us For Availability
58
WPL 298342 WPL 298342 Contact Us For Availability
59
WPL 298352 WPL 298352 Contact Us For Availability
59
WPL 625811 WPL 625811 Contact Us For Availability
59
WPL 675291 WPL 675291 Contact Us For Availability
60
WPL 649651 WPL 649651 Contact Us For Availability
61
WPL 602161 WPL 602161 Contact Us For Availability
62
WPL 591001 WPL 591001 Contact Us For Availability
63
WPL 591011 WPL 591011 Contact Us For Availability
64
WPL 4060871 WPL 4060871 Contact Us For Availability
65
WPL 605831 WPL 605831 Contact Us For Availability
66
WPL 4020131 WPL 4020131 Contact Us For Availability
66
WPL 605851 WPL 605851 Contact Us For Availability
67
WPL 6057170 WPL 6057170 Contact Us For Availability
68
WPL 565194 WPL 565194 Contact Us For Availability
69
WPL 580571 WPL 580571 Contact Us For Availability
70
WPL 656891 WPL 656891 Contact Us For Availability
71
WPL 6575319 WPL 6575319 Contact Us For Availability
72
WPL 4000171 WPL 4000171 Contact Us For Availability
72
WPL 06100008 WPL 06100008 Contact Us For Availability
× ![]()
Login and Registration Form
