Model Whirlpool JRTE197B REFRIGERATOR – Common Parts & Diagrams

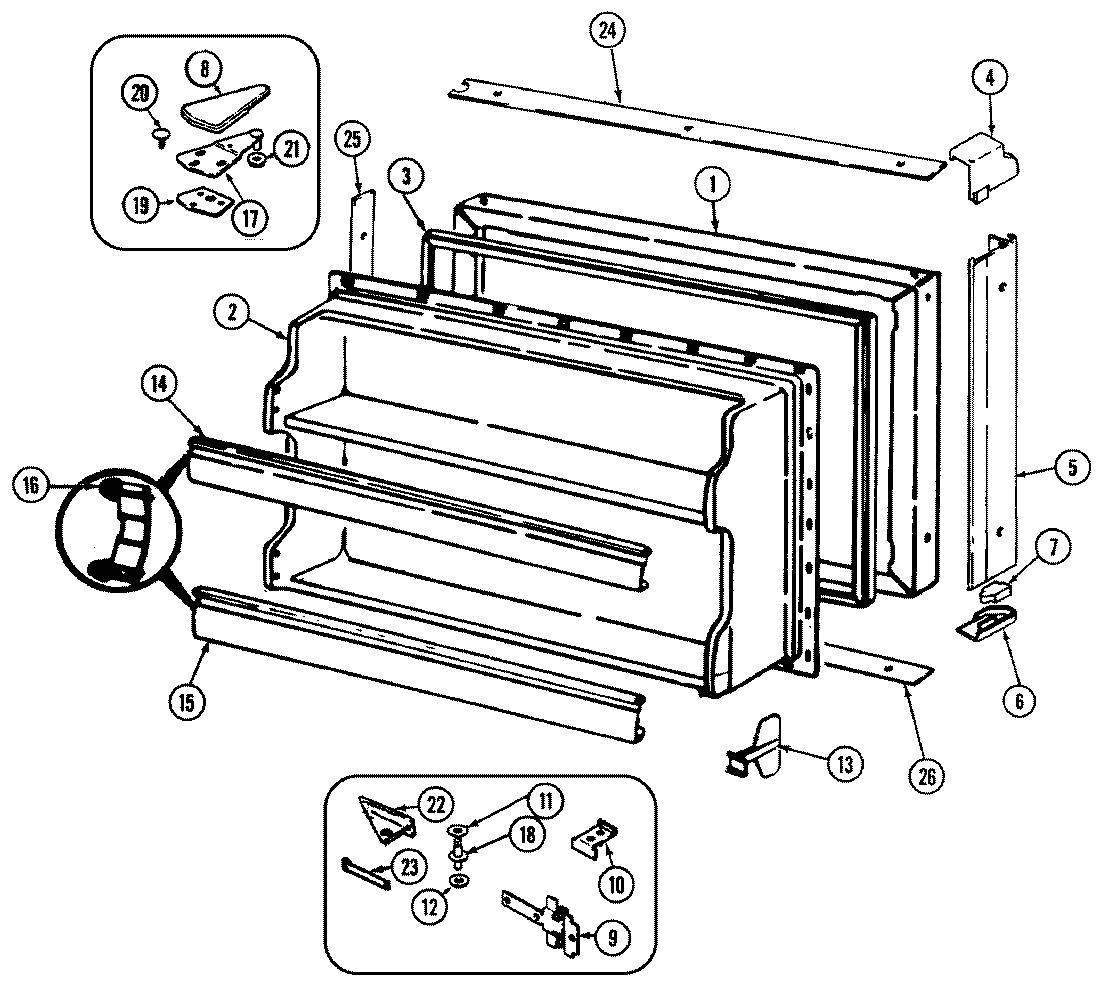

02 - FREEZER DOOR (B/M DJ57A)
01 - FREEZER COMPARTMENT (B/M DJ57A)

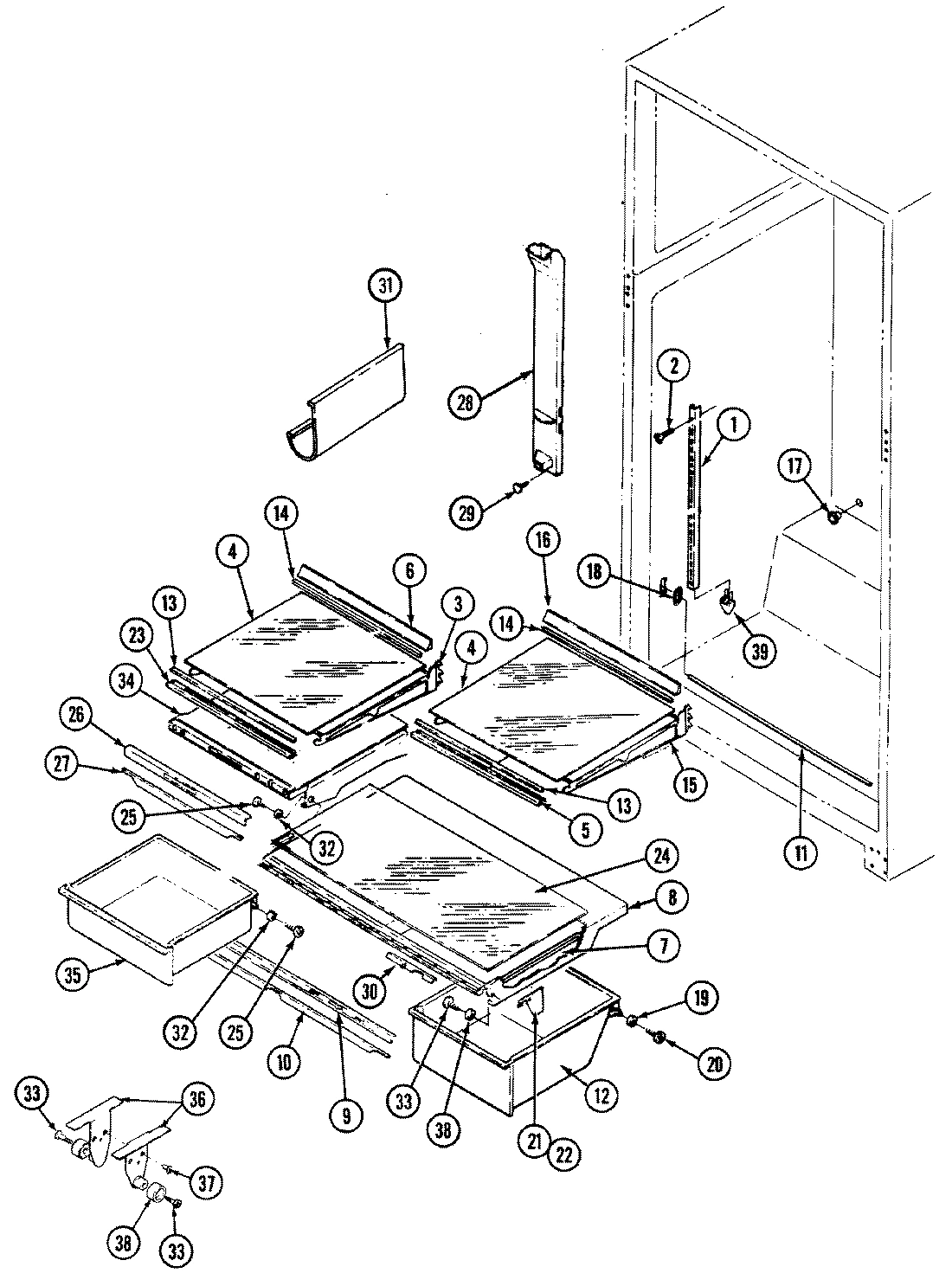

06 - SHELVES & ACCESSORIES (B/M DJ57A)

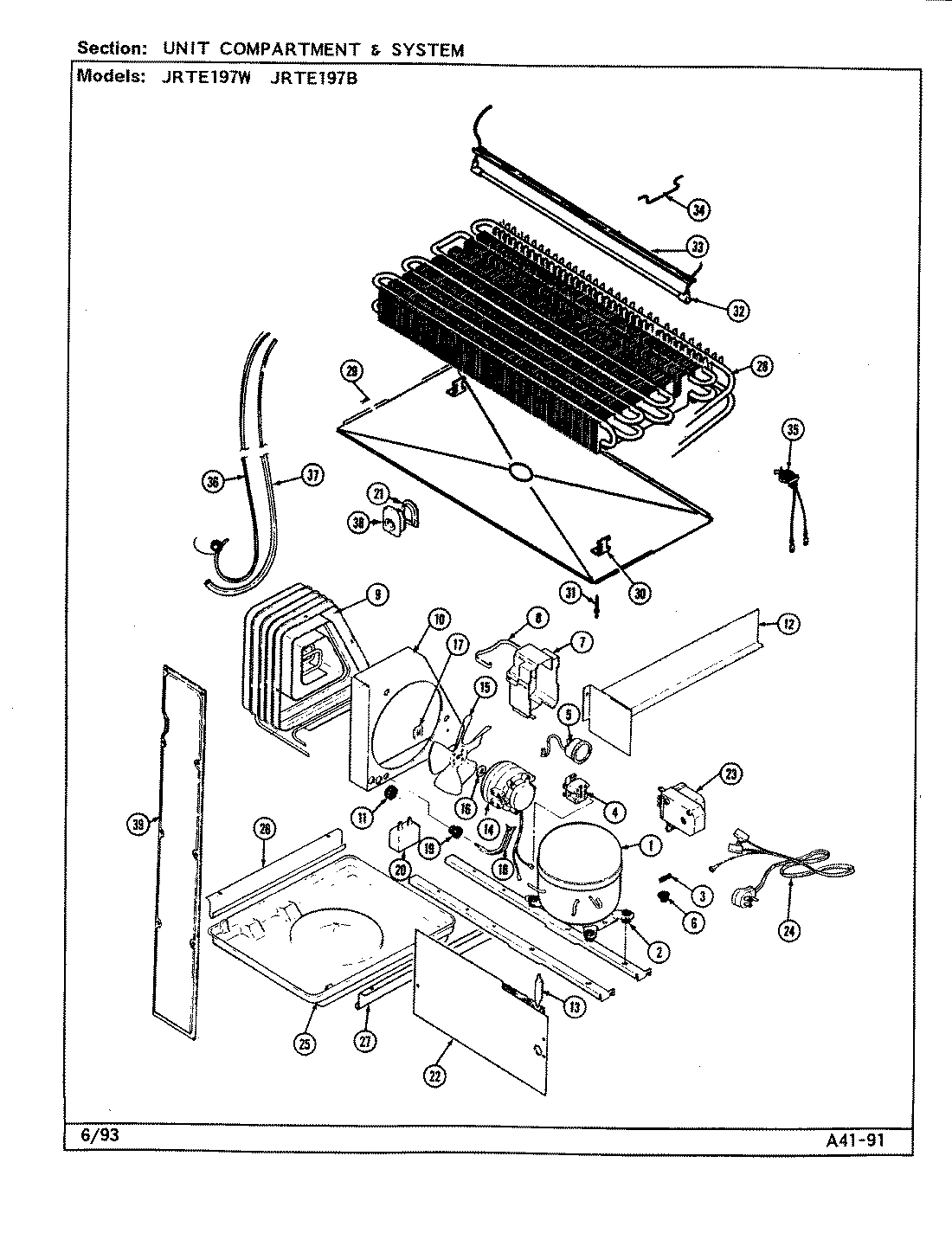

07 - UNIT COMPARTMENT & SYSTEM (B/M DJ57A)

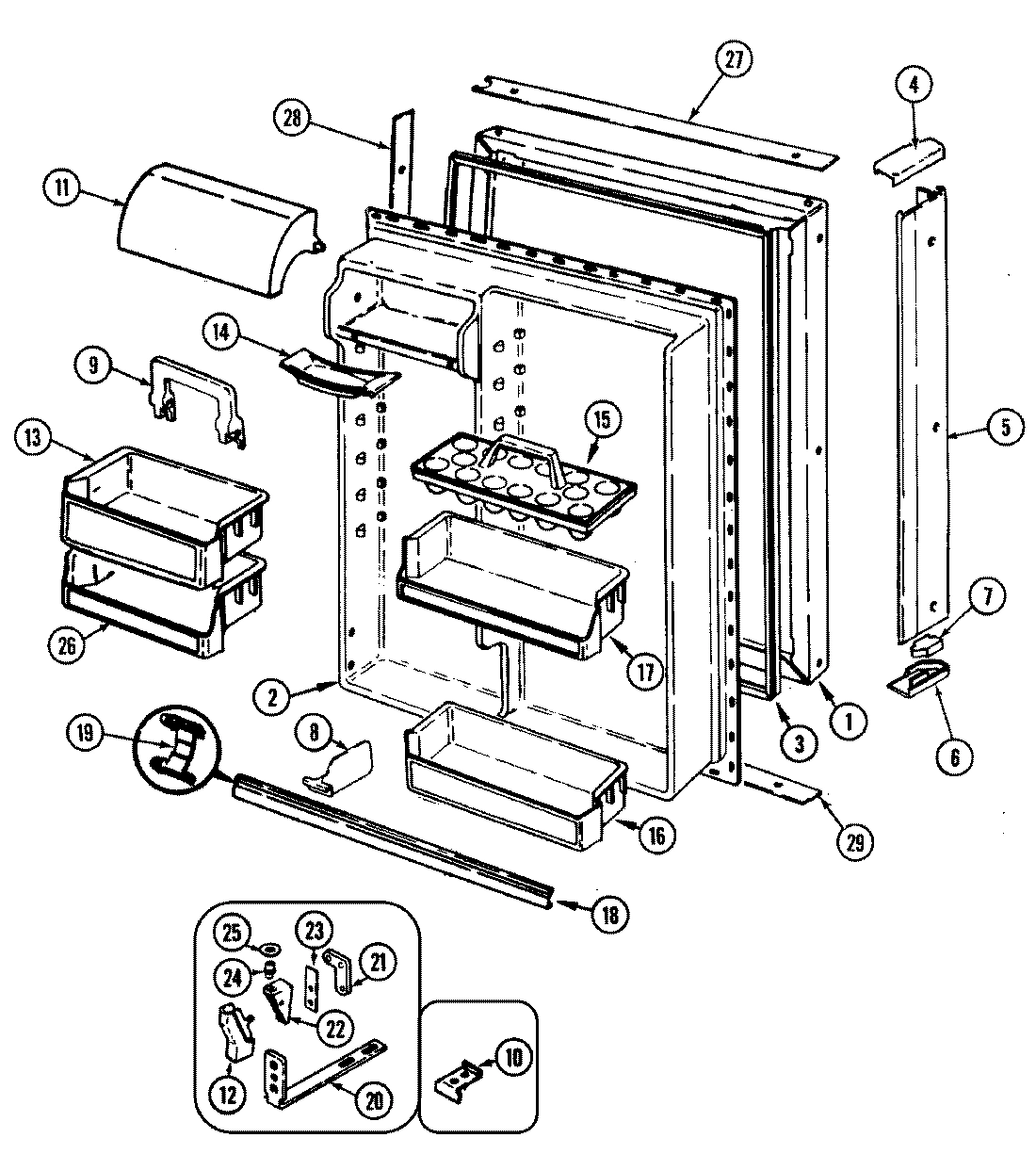

04 - FRESH FOOD DOOR (B/M DJ57A)

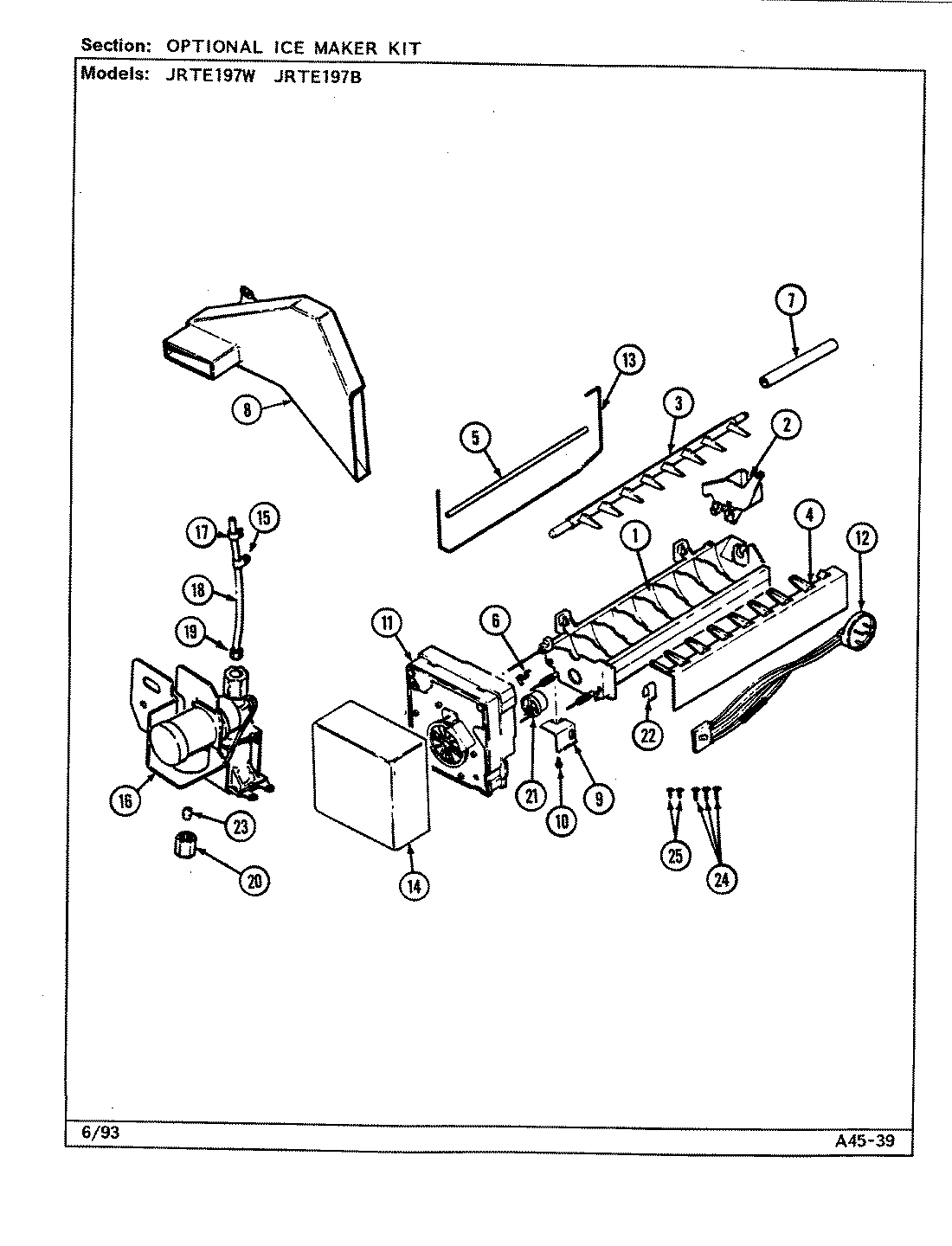

05 - OPTIONAL ICE MAKER KIT (B/M DJ57A)

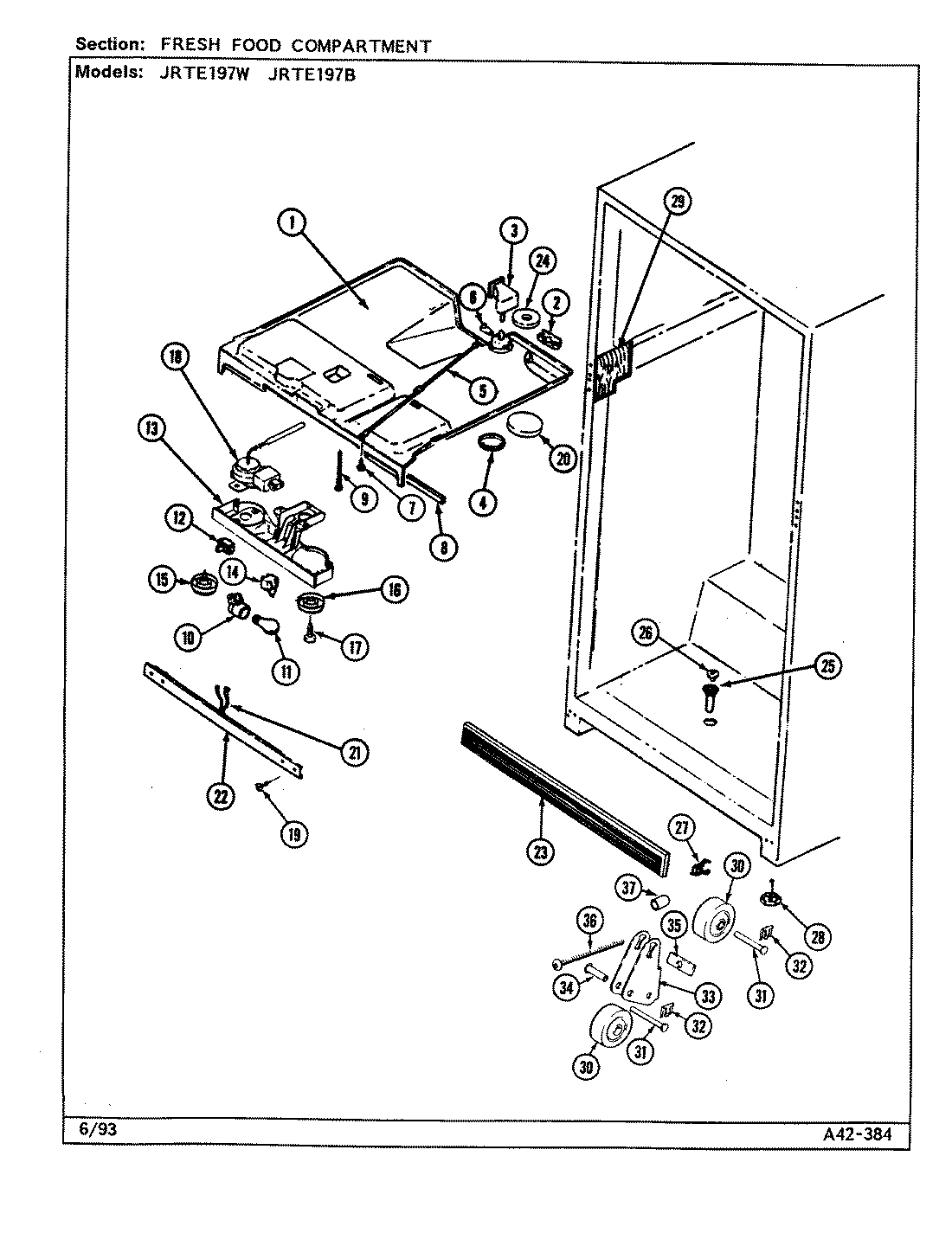

03 - FRESH FOOD COMPARTMENT (B/M DJ57A)
Common parts from model Whirlpool JRTE197B REFRIGERATOR
1
TRAY, STYROFOAM MULLION WPL 694031 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
PANEL (BLACK) WPL 7234913BK Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, FRZ. DOOR WPL 694701 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694142 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
LINER WPL 694561 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
FRAME, SHELF WPL 672692 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698114 Contact Us For Availability
4
COVER WPL 696381 Contact Us For Availability
4
END CAP, HANDLE WPL 699121 Contact Us For Availability
4
UPPER ENDCAP ASSEMBLY WPL 699122 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
GLASS, SHELF WPL 6840528 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
END CAP, HANDLE WPL 699101 Contact Us For Availability
4
END CAP (LOWER-LEFT) WPL 699102 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
5
SCREW, HANDLE WPL 6527537 Contact Us For Availability
5
TRIM, HANDLE WPL 696363 Contact Us For Availability
5
HANDLE WPL 699144 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
TRIM, HANDLE WPL 696362 Contact Us For Availability
5
HANDLE WPL 699143 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
6
END CAP ASSY., HANDLE (LOWER) WPL 699103 Contact Us For Availability
6
LOWER END CAP ASSEBMLY WPL 699104 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
TRIM, SHELF (REAR) WPL 6730950 Contact Us For Availability
6
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
7
FILLER, END CAP WPL 698151 Contact Us For Availability
7
FILLER, LOWER ENDCAP WPL 698152 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
SEAL, CRISPER SHELF (SIDE) WPL 697793 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
8
COVER, UPPER HINGE (BLK) WPL 701216 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
MAGNET WPL 694132 Contact Us For Availability
8
SHELF, CRISPER WPL 700422 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
ORGANIZER WPL 697592 Contact Us For Availability
8
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
8
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
8
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
9
SCREW WPL 6527561 Contact Us For Availability
9
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
9
TUNNEL, AIR WPL 685923 Contact Us For Availability
9
TRIM, CRISPER SHELF WPL 6720428 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
RETAINER, BOTTLE WPL 697941 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
10
SCREW WPL 6527548 Contact Us For Availability
10
STOP, DOOR WPL 692563 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SEAL, CRISPER SHELF (FRONT) WPL 697989 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
STOP, DOOR WPL 692562 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
11
WASHER WPL 674836 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
DOOR, DAIRY WPL 699188 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
12
WASHER WPL 542337 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693971 Contact Us For Availability
12
PAN, CRISPER WPL 6992818 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
13
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
13
SHELF WPL 6043828 Contact Us For Availability
13
SEAL, SHELF (FRONT) WPL 672652 Contact Us For Availability
13
SHELF, PICK-OFF WPL 6987215 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, CONTROL WPL 694211 Contact Us For Availability
13
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
14
TRIM, SHELF WPL 6883288 Contact Us For Availability
14
TRIM, SHELF WPL 6717646 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
SEAL, SHELF (REAR) WPL 672662 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
14
TRAY, BUTTER WPL 299362 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
15
TRIM, SHELF WPL 6883287 Contact Us For Availability
15
CUP, SHELF WPL 603131 Contact Us For Availability
15
FRAME, SPLIT SHELF WPL 672702 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
TRAY, EGG WPL 600661 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694179 Contact Us For Availability
16
TRIM, SHELF (REAR) WPL 6730949 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
SHELF, PICK-OFF----NA WPL 6987229 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
KNOB, FREEZER CONTROL WPL 6941710 Contact Us For Availability
17
HINGE, UPPER WPL 5370920 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
17
COVER, PLENUM WPL 664805 Contact Us For Availability
17
GROMMET, CRISPER SHELF WPL 671631 Contact Us For Availability
17
SHELF, PICK-OFF WPL 6987227 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
PIN, CENTER HINGE WPL 695171 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
TRIM, SHELF WPL 6883289 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686017 Contact Us For Availability
19
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
19
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
19
TRAY, ICE WPL 592812 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
20
PLUG, BUTTON (BLACK) WPL 5614419 Contact Us For Availability
20
PAN, ICE WPL 683271 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
SCREW WPL 4140121 Contact Us For Availability
20
SCREW (No.10 X 1/2``) WPL 6527566 Contact Us For Availability
20
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
21
WASHER WPL 542332 Contact Us For Availability
21
SCREW WPL 6527552 Contact Us For Availability
21
SCREW WPL 4000191 Contact Us For Availability
21
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
21
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
SCREW WPL 6527559 Contact Us For Availability
21
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
22
SCREW WPL 6527563 Contact Us For Availability
22
HINGE, CENTER WPL 695142 Contact Us For Availability
22
SCREW WPL 6527528 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (BLK) WPL 694202BK Contact Us For Availability
23
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
23
PLUG BUTTON WPL 701462 Contact Us For Availability
23
TRIM, SPLIT SHELF (FRONT) WPL 6778323 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682332 Contact Us For Availability
23
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
23
SLEEVE, BRASS WPL 694311 Contact Us For Availability
23
KICKPLATE (BLACK) WPL 698762 Contact Us For Availability
24
CAP, CONNECTOR WPL 681871 Contact Us For Availability
24
SCREW WPL 4000211 Contact Us For Availability
24
GLASS, CRISPER SHELF WPL 6748915 Contact Us For Availability
24
CORD, POWER WPL 528903 Contact Us For Availability
24
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
25
TRIM, PERIMETER (SIDE) WPL 696319 Contact Us For Availability
25
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
25
SCREW WPL 652756 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
25
SCREW WPL 4010171 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
26
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
26
TRIM, MEAT PAN SUPPORT WPL 670713 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
SHELF, PICK-OFF WPL 6987228 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
TRIM, PERIMETER (TOP) WPL 6963114 Contact Us For Availability
27
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
27
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
SHELF, ICE TRAY WPL 671144 Contact Us For Availability
28
TUNNEL, AIR (MEAT) WPL 695751 Contact Us For Availability
28
EVAPORATOR WPL 698227 Contact Us For Availability
28
TRIM, PERIMETER (SIDE) WPL 696318 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
29
SCREW WPL 6527539 Contact Us For Availability
29
TRIM, PERIMETER (BOTTOM) WPL 6963117 Contact Us For Availability
29
SCREW WPL 40001531 Contact Us For Availability
29
SUPPORT, ICE SHELF WPL 700411 Contact Us For Availability
29
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
30
DIVIDER, ICE SHELF WPL 671482 Contact Us For Availability
30
SLIDE, CONTROL WPL 674912 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
FASTENER, DIVIDER WPL 671501 Contact Us For Availability
31
HOLDER, WINE BOTTLE WPL 673085 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
32
SCREW WPL 652754 Contact Us For Availability
32
SUPPORT, DIVIDER WPL 671491 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
33
SCREW WPL 6527534 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
BRACKET, WHEEL WPL 675301 Contact Us For Availability
34
DEFLECTOR, LIGHT WPL 673611 Contact Us For Availability
34
SUPPORT, MEAT PAN WPL 6764913 Contact Us For Availability
34
CLIP WPL 689351 Contact Us For Availability
34
PIN, WHEEL WPL 649651 Contact Us For Availability
35
SHIELD, LIGHT WPL 672401 Contact Us For Availability
35
PAN, MEAT WPL 6992827 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
35
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
36
BULB, LIGHT WPL 319561 Contact Us For Availability
36
BRACKET, CENTER ROLLER WPL 674642 Contact Us For Availability
36
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
36
SCREW WPL 6527564 Contact Us For Availability
37
SCREW WPL 400017103 Contact Us For Availability
37
BASE, LIGHT WPL 672412 Contact Us For Availability
37
RIVET WPL 263976 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 681861 Contact Us For Availability
37
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
38
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
WIRE HARNESS, MAIN WPL 699561 Contact Us For Availability
39
CAP, GROMMET WPL 683871 Contact Us For Availability
39
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
39
MANUAL, USE & CARE WPL 1084352 Contact Us For Availability
39
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
39
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
SCREW WPL 6527550 Contact Us For Availability
× ![]()
Login and Registration Form
