Model Maytag JRTDE229A REFRIGERATOR – Common Parts & Diagrams

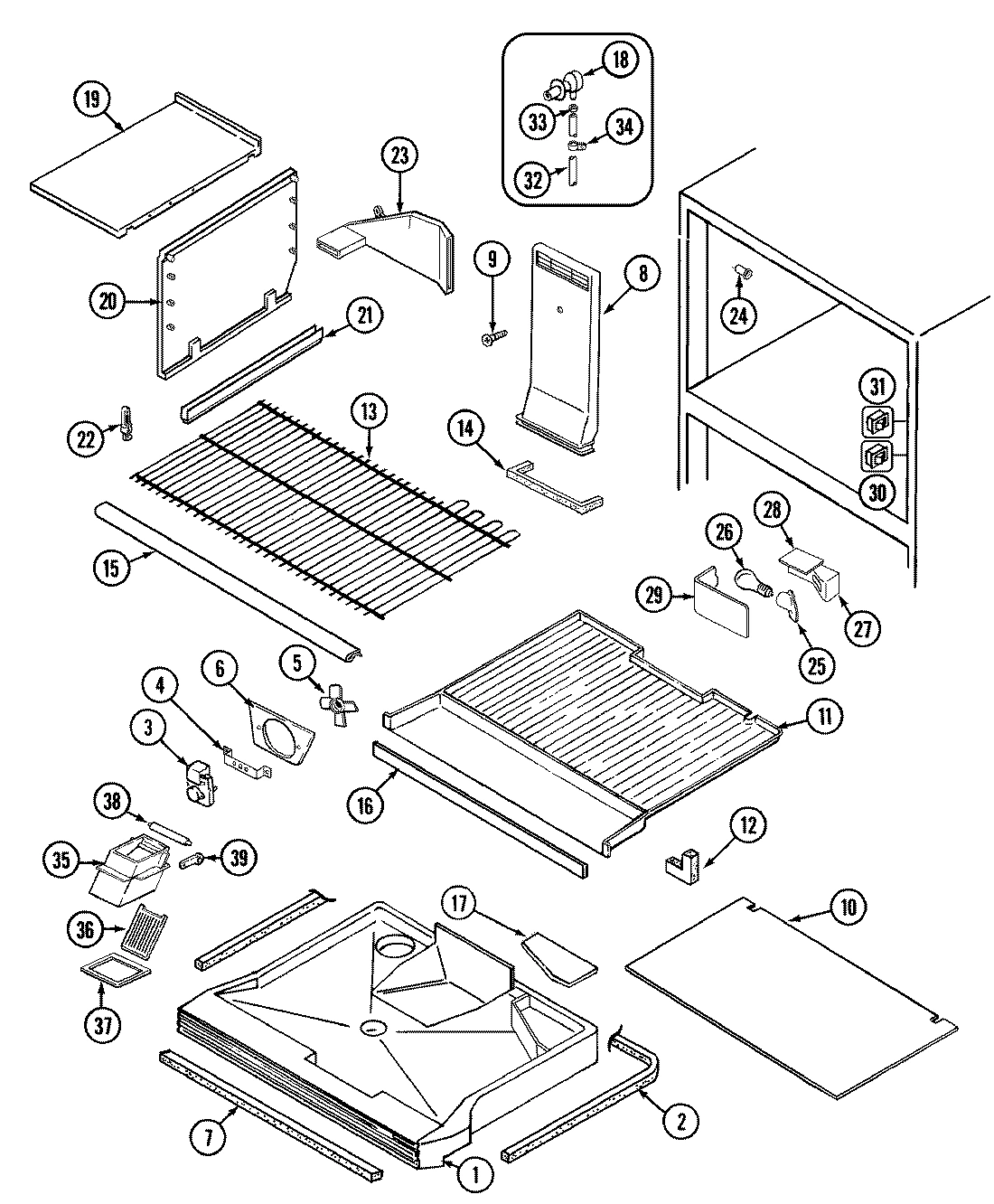

01 - FREEZER COMPARTMENT

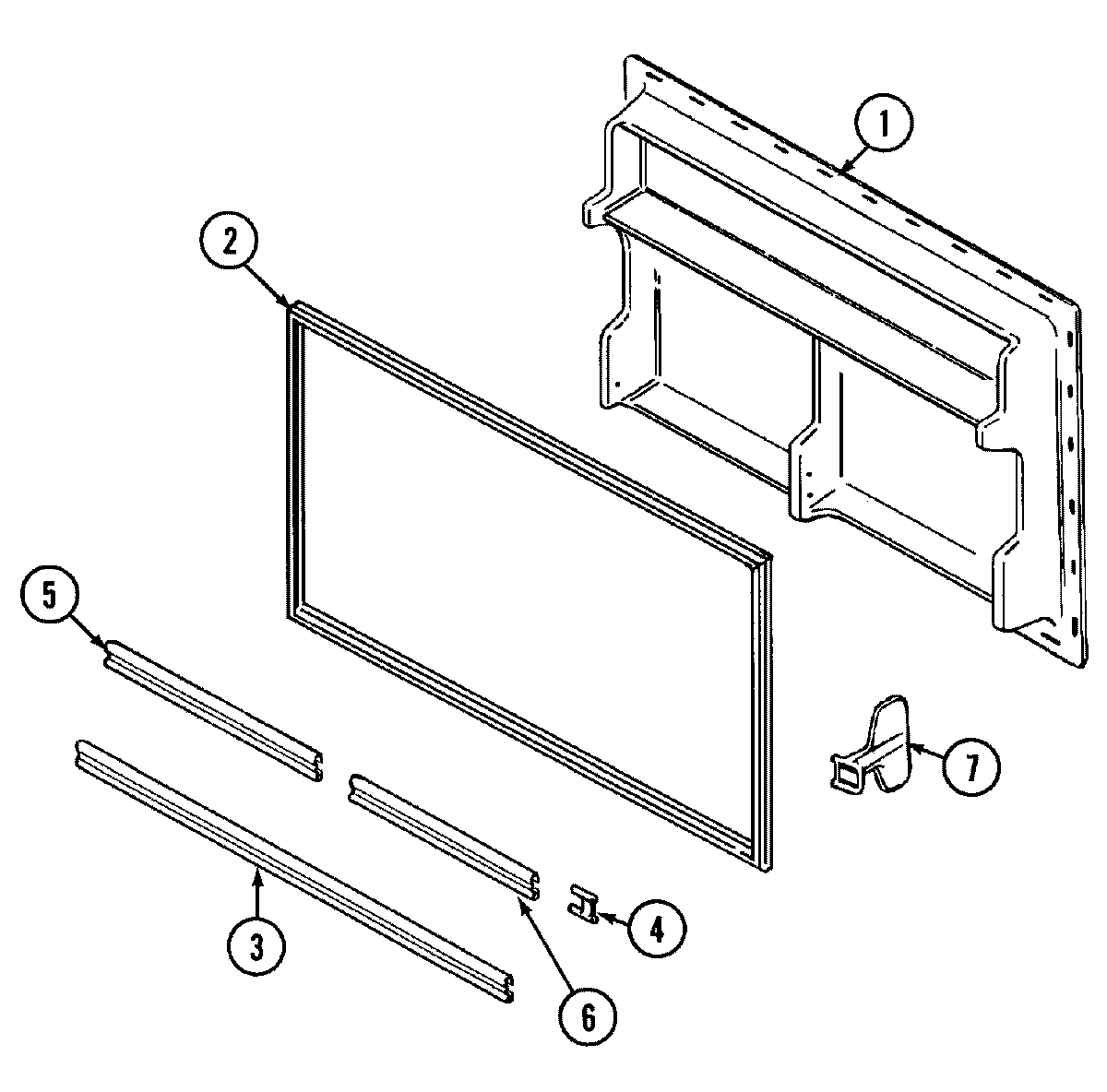

02 - FREEZER INNER DOOR

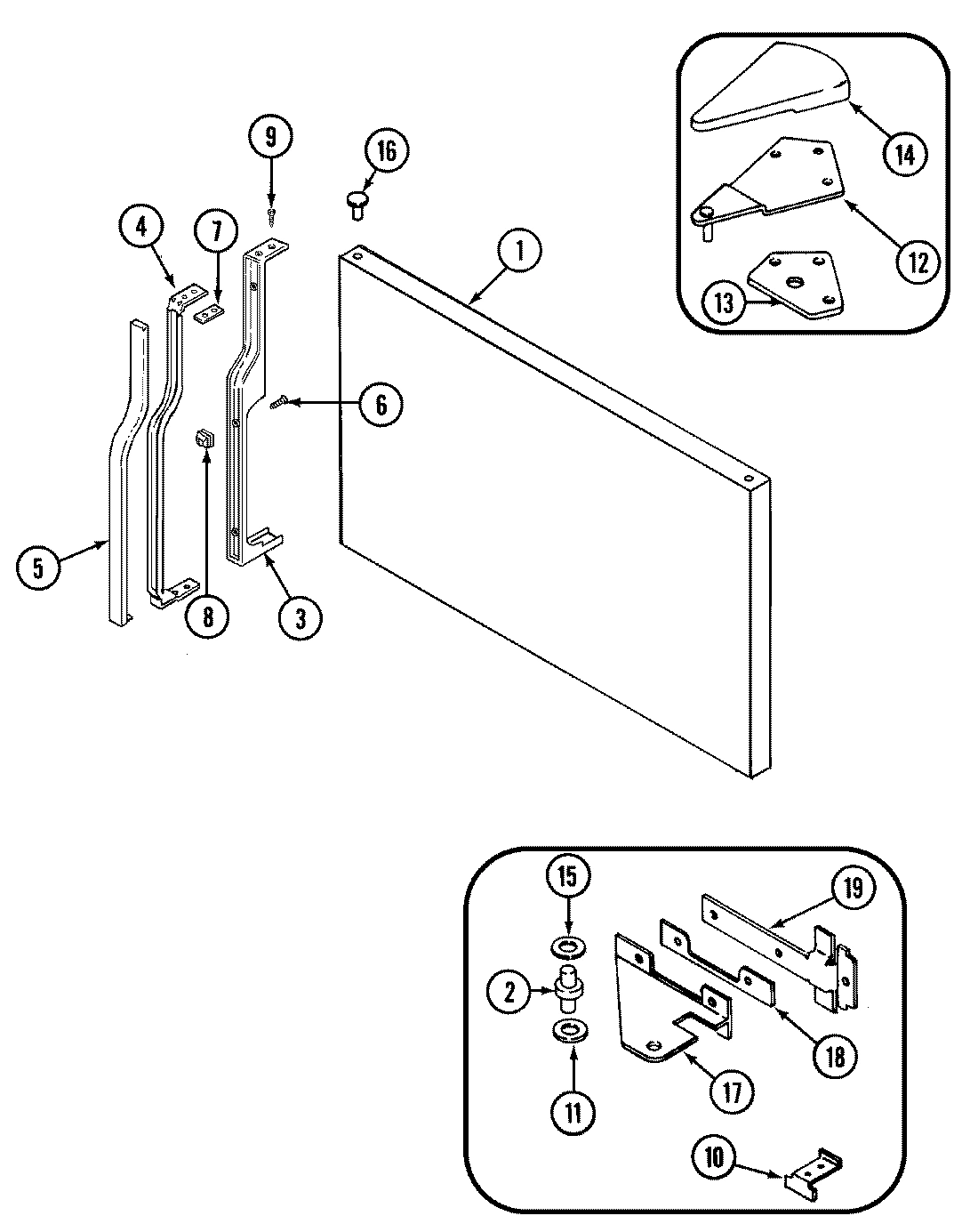

03 - FREEZER OUTER DOOR

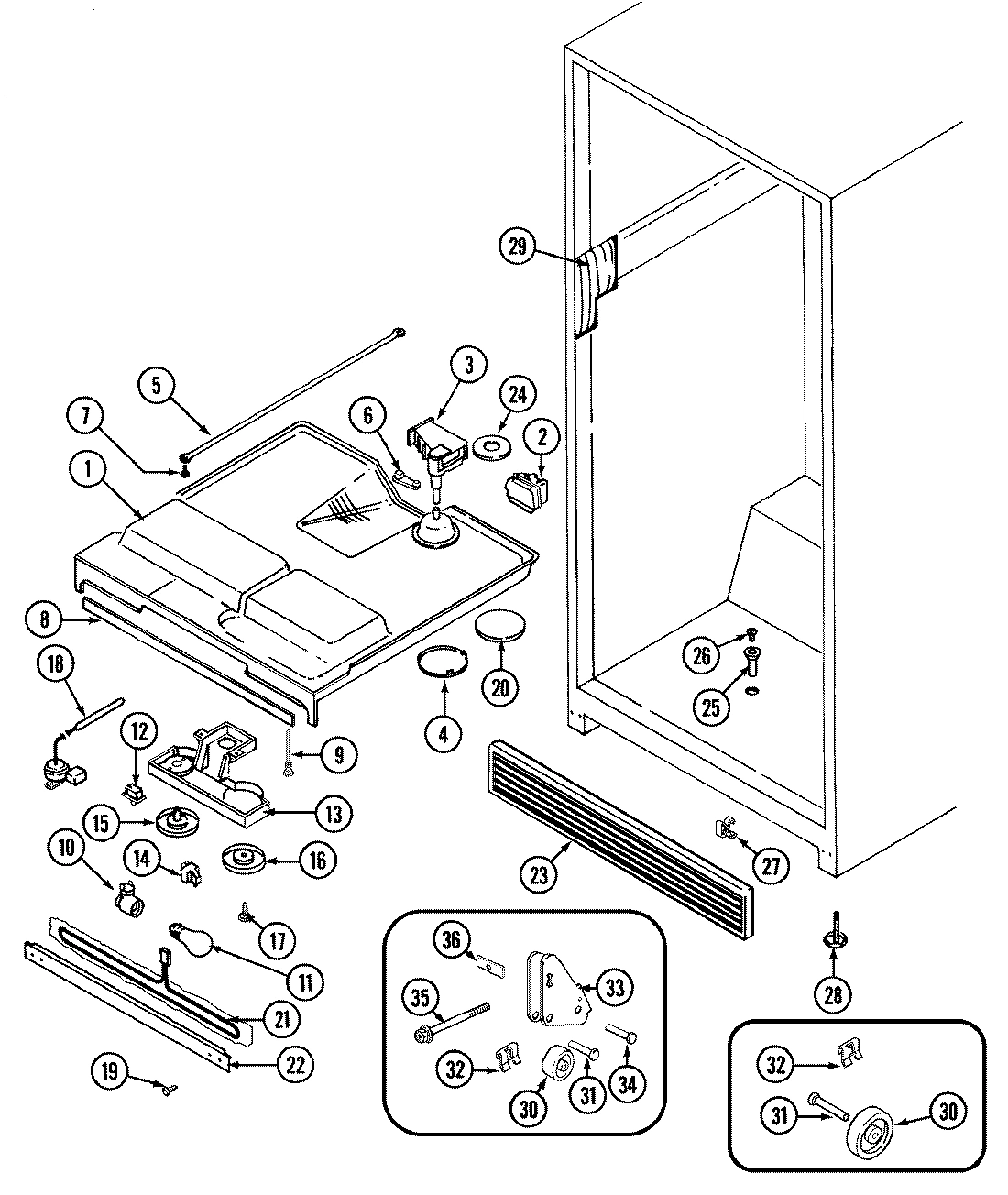

04 - FRESH FOOD COMPARTMENT

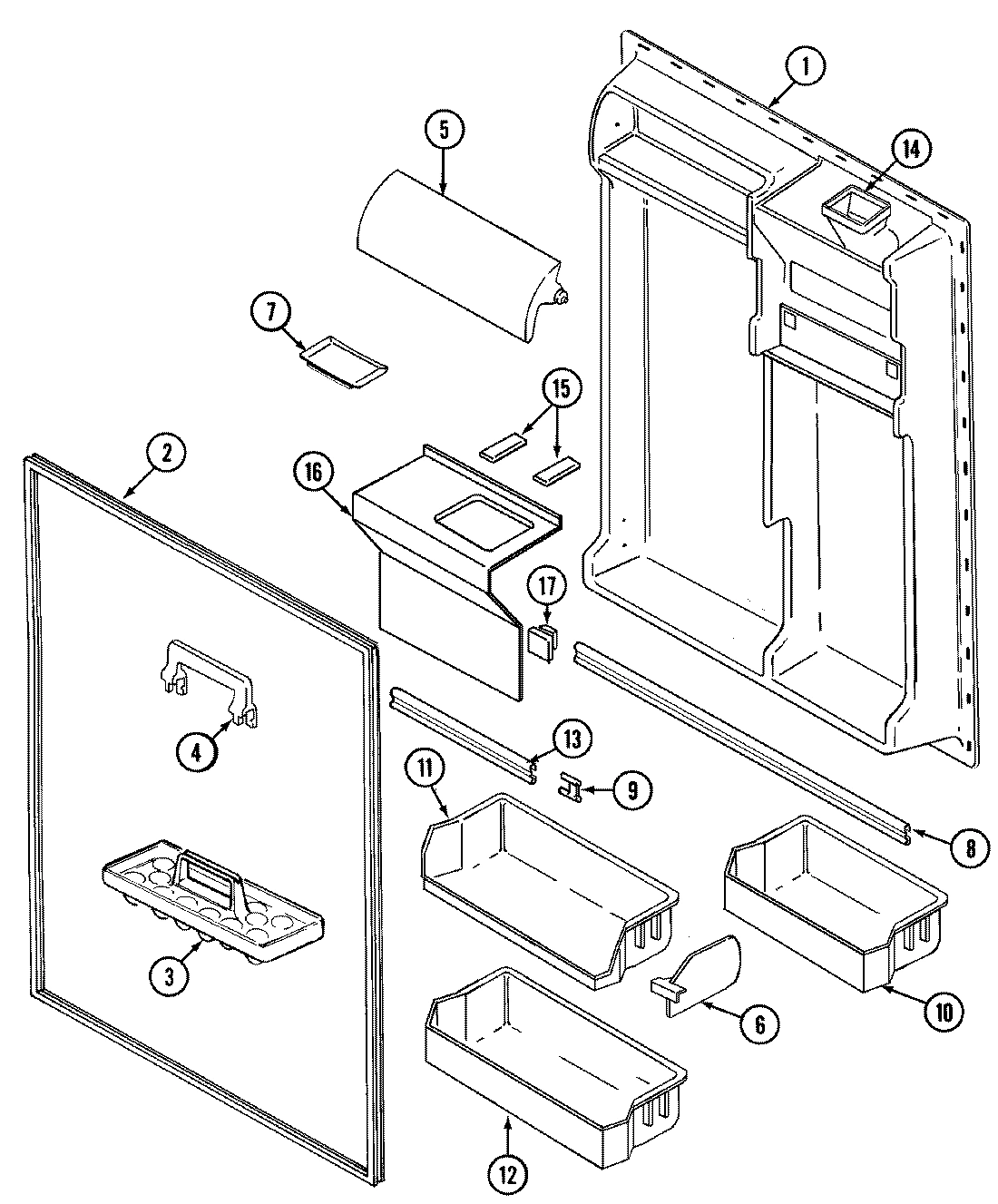

05 - FRESH FOOD INNER DOOR

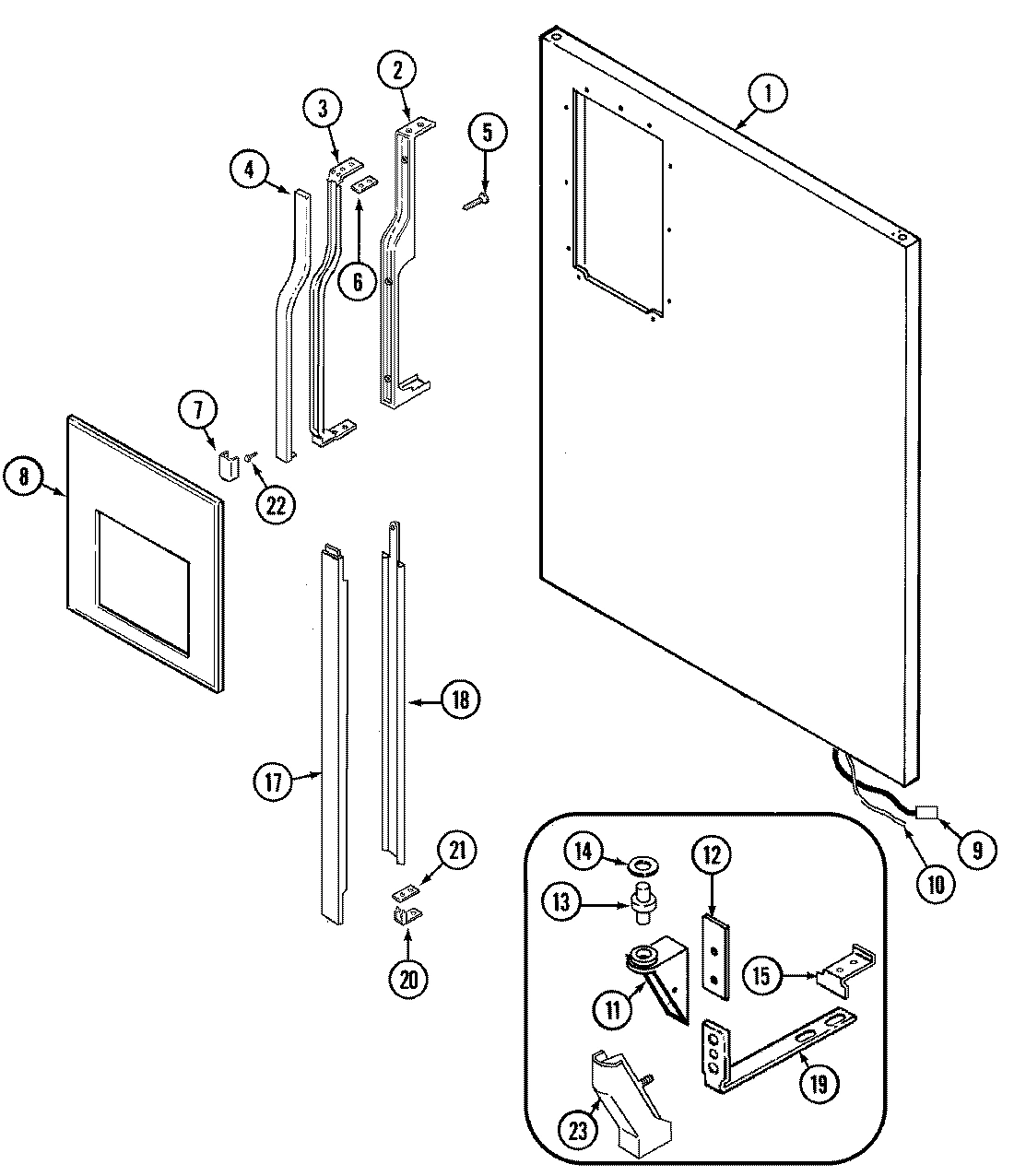

06 - FRESH FOOD OUTER DOOR

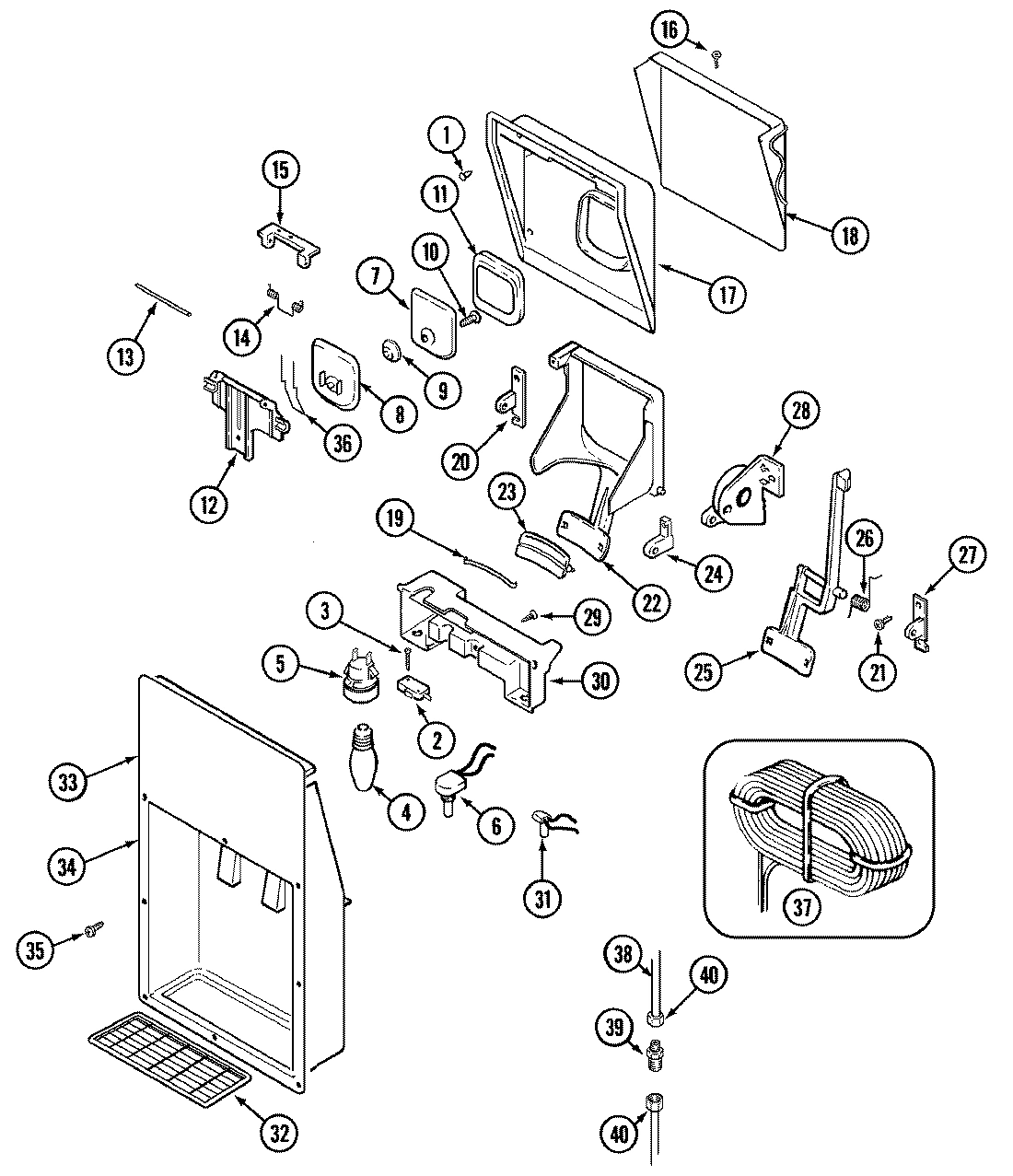

07 - ICE & WATER DISPENSER

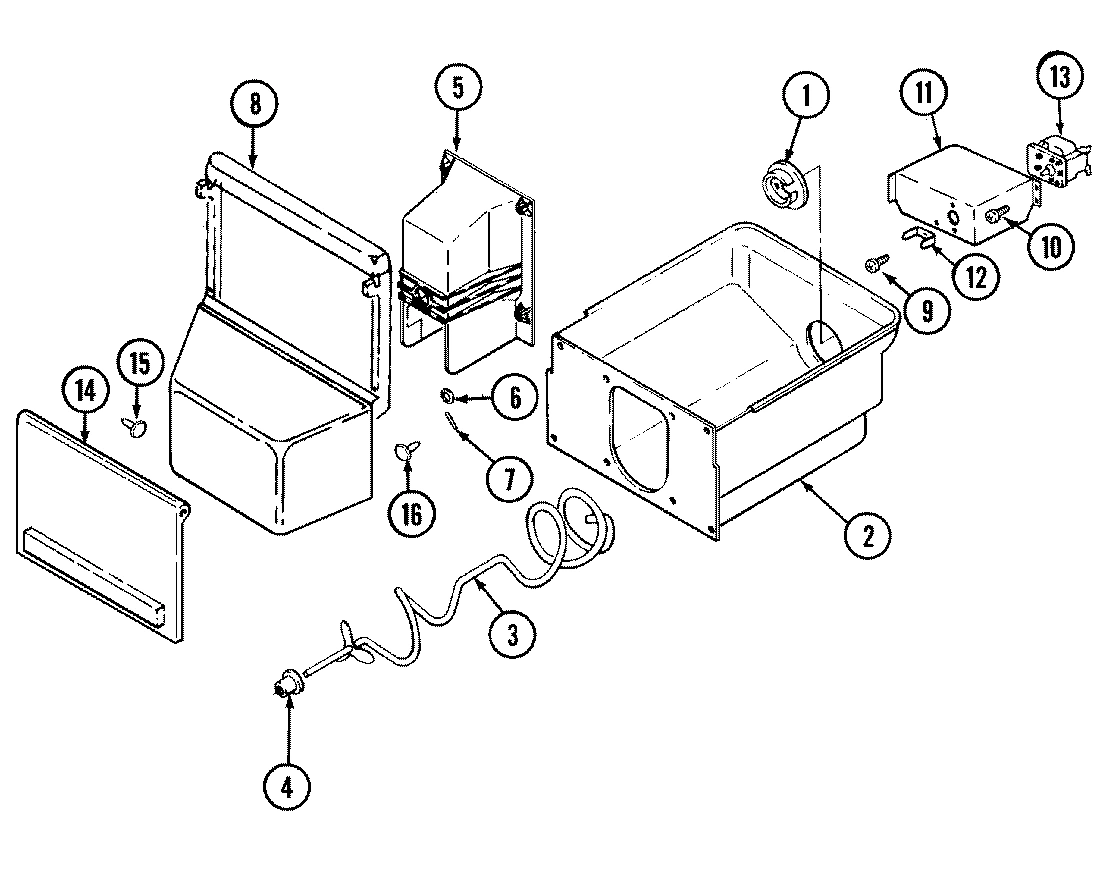

08 - ICE BIN
09 - ICE MAKER

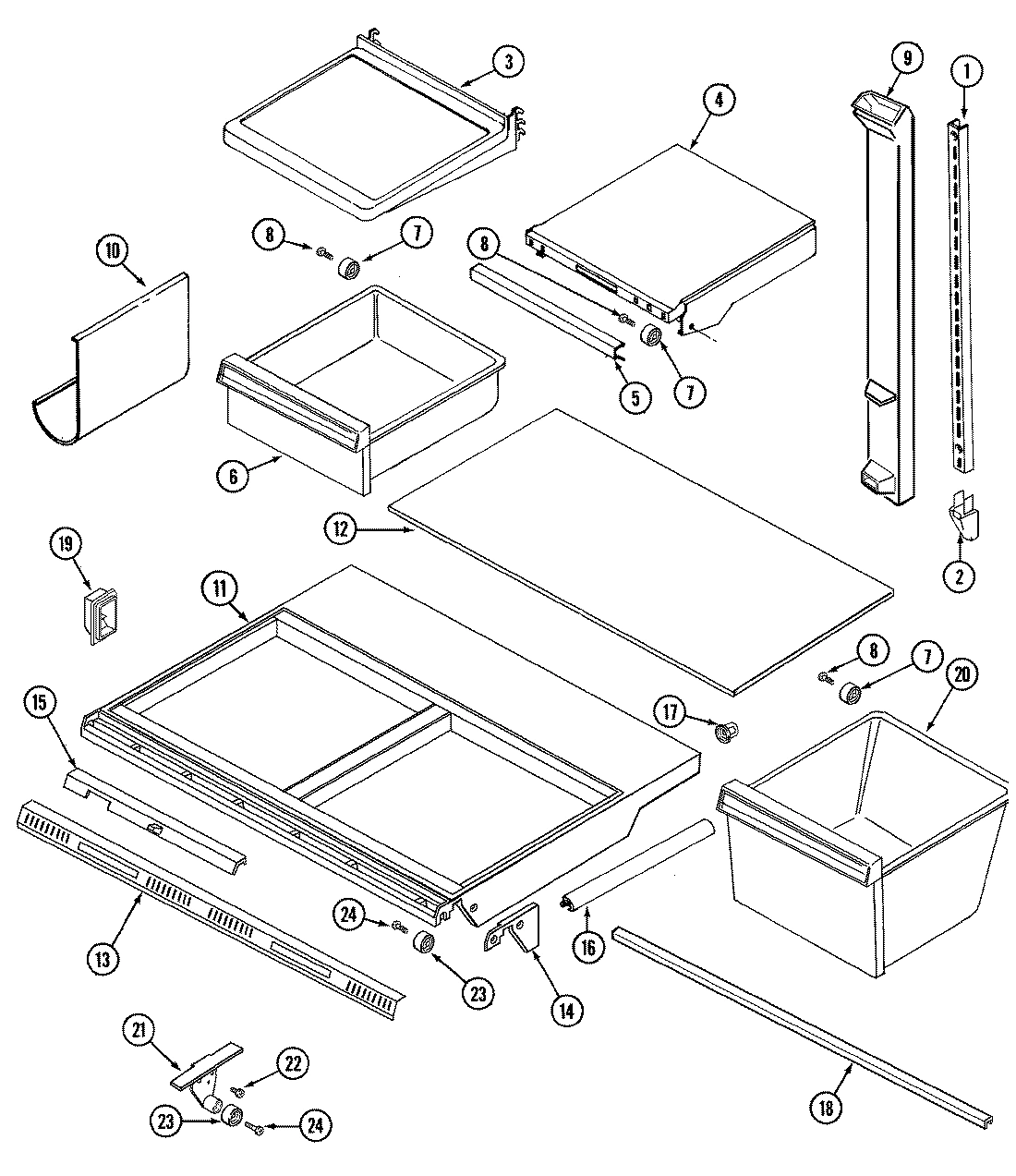

10 - SHELVES & ACCESSORIES

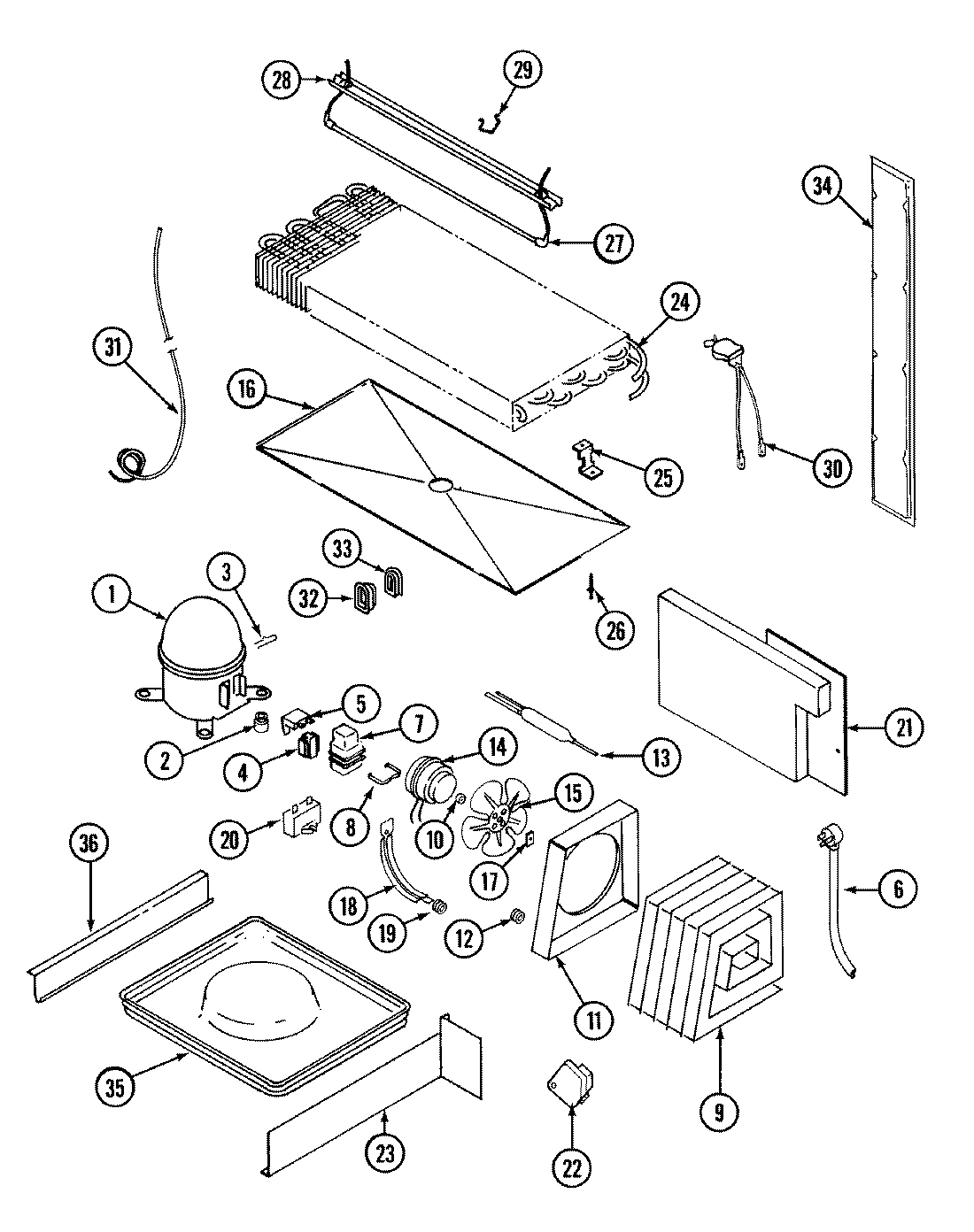

11 - UNIT COMPARTMENT & SYSTEM

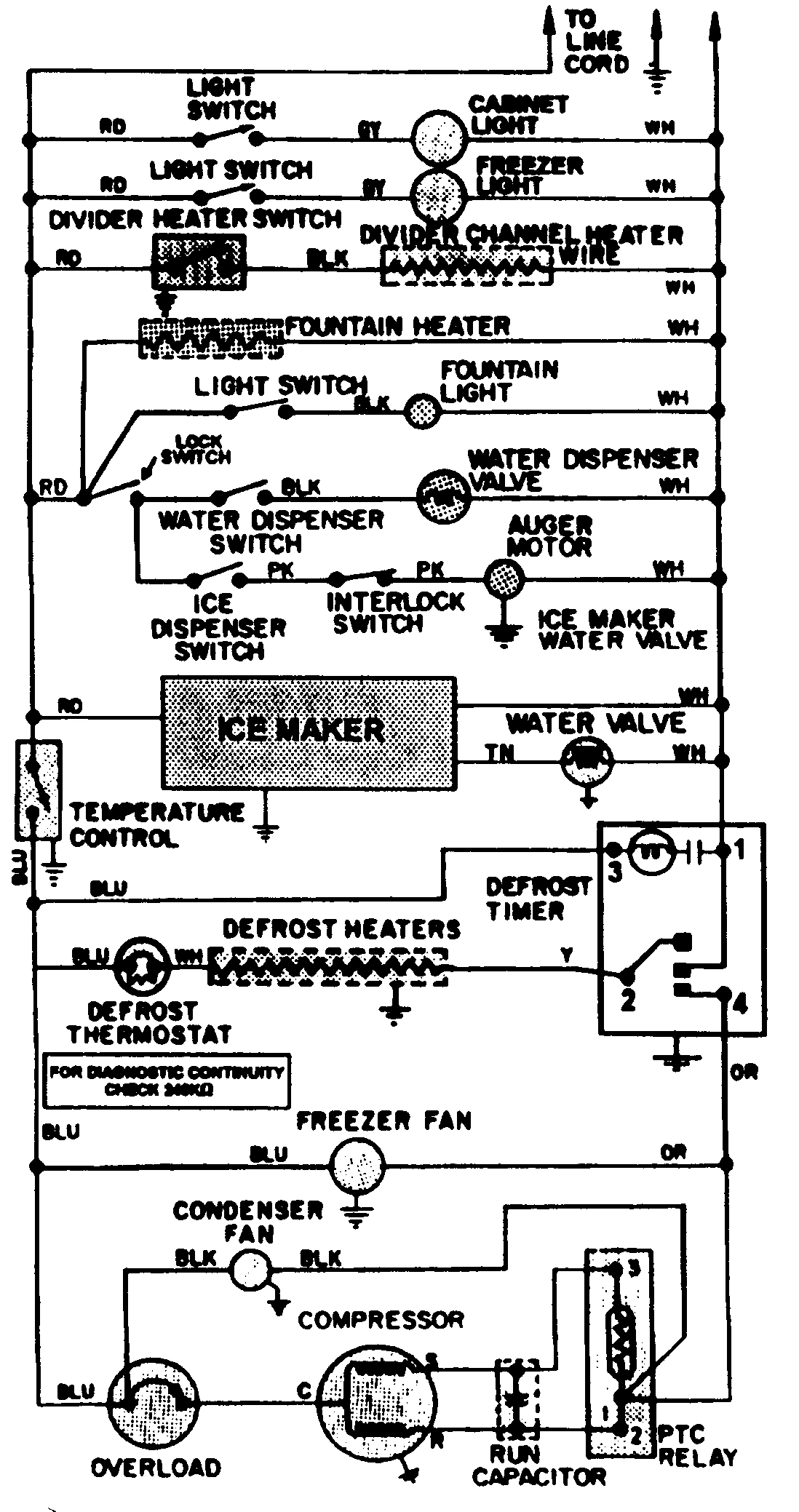

12 - WIRING INFORMATION
Common parts from model Maytag JRTDE229A REFRIGERATOR
1
MAY 400021-1 MAY 400021-1 Contact Us For Availability
1
MAY 65275-5 MAY 65275-5 Contact Us For Availability
1
MAY 69472-1 MAY 69472-1 Contact Us For Availability
1
MAY 72342-104-AM MAY 72342-104-AM Contact Us For Availability
1
MAY 69411-1 MAY 69411-1 Contact Us For Availability
1
MAY 69458-1 MAY 69458-1 Contact Us For Availability
1
MAY 72449-1-AM MAY 72449-1-AM Contact Us For Availability
1
MAY 95109-1 MAY 95109-1 Contact Us For Availability
1
MAY 400037-28 MAY 400037-28 Contact Us For Availability
1
MAY 60096-7 MAY 60096-7 Contact Us For Availability
1
MAY 60096-8 MAY 60096-8 Contact Us For Availability
1
MAY 60096-9 MAY 60096-9 Contact Us For Availability
1
MAY 12000054 MAY 12000054 Contact Us For Availability
1
MAY 52656-2 MAY 52656-2 Contact Us For Availability
2
MAY 55440-2 MAY 55440-2 Contact Us For Availability
2
MAY 70025-7 MAY 70025-7 Contact Us For Availability
2
MAY 69517-2 MAY 69517-2 Contact Us For Availability
2
MAY 69623-1 MAY 69623-1 Contact Us For Availability
2
MAY 70025-8 MAY 70025-8 Contact Us For Availability
2
MAY 70051-2 MAY 70051-2 Contact Us For Availability
2
MAY 67831-1 MAY 67831-1 Contact Us For Availability
2
MAY 68328-2 MAY 68328-2 Contact Us For Availability
2
MAY 60340-1 MAY 60340-1 Contact Us For Availability
2
MAY 17245-4 MAY 17245-4 Contact Us For Availability
3
MAY 69106-2 MAY 69106-2 Contact Us For Availability
3
MAY 70111-105 MAY 70111-105 Contact Us For Availability
3
MAY 69480-4 MAY 69480-4 Contact Us For Availability
3
MAY 70050-1 MAY 70050-1 Contact Us For Availability
3
MAY 69811-8 MAY 69811-8 Contact Us For Availability
3
MAY 70052-1 MAY 70052-1 Contact Us For Availability
3
MAY 405071-1 MAY 405071-1 Contact Us For Availability
3
MAY 67833-1 MAY 67833-1 Contact Us For Availability
3
SCREW MAY 95106-1 Contact Us For Availability
3
MAY 61001243 MAY 61001243 Contact Us For Availability
3
MAY 61001244 MAY 61001244 Contact Us For Availability
3
MAY 52778-2 MAY 52778-2 Contact Us For Availability
4
MAY 70052-4 MAY 70052-4 Contact Us For Availability
4
MAY 67493-1 MAY 67493-1 Contact Us For Availability
4
MAY 70112-1 MAY 70112-1 Contact Us For Availability
4
MAY 70053-17 MAY 70053-17 Contact Us For Availability
4
MAY 63179-1 MAY 63179-1 Contact Us For Availability
4
MAY 67172-2 MAY 67172-2 Contact Us For Availability
4
MAY 401018-1 MAY 401018-1 Contact Us For Availability
4
MAY 61001021 MAY 61001021 Contact Us For Availability
4
MAY 67649-14 MAY 67649-14 Contact Us For Availability
5
MAY 70111-91 MAY 70111-91 Contact Us For Availability
5
MAY 70053-9 MAY 70053-9 Contact Us For Availability
5
MAY 415033-1 MAY 415033-1 Contact Us For Availability
5
MAY 69418-4 MAY 69418-4 Contact Us For Availability
5
MAY 69918-3 MAY 69918-3 Contact Us For Availability
5
MAY 70119-1 MAY 70119-1 Contact Us For Availability
5
MAY 67832-1 MAY 67832-1 Contact Us For Availability
5
MAY 67666-2 MAY 67666-2 Contact Us For Availability
5
MAY 67877-1 MAY 67877-1 Contact Us For Availability
5
MAY 70281-1 MAY 70281-1 Contact Us For Availability
5
MAY 69105-7 MAY 69105-7 Contact Us For Availability
6
MAY 70111-87 MAY 70111-87 Contact Us For Availability
6
MAY 67636-2 MAY 67636-2 Contact Us For Availability
6
MAY 69759-2 MAY 69759-2 Contact Us For Availability
6
MAY 27116-5 MAY 27116-5 Contact Us For Availability
6
MAY 68491-1 MAY 68491-1 Contact Us For Availability
6
MAY 69832-1 MAY 69832-1 Contact Us For Availability
6
MAY 69832-5 MAY 69832-5 Contact Us For Availability
6
MAY 69583-2 MAY 69583-2 Contact Us For Availability
6
MAY 67834-2 MAY 67834-2 Contact Us For Availability
6
MAY 69928-21 MAY 69928-21 Contact Us For Availability
6
MAY 52890-3 MAY 52890-3 Contact Us For Availability
7
MAY 70114-1 MAY 70114-1 Contact Us For Availability
7
MAY 420005-1 MAY 420005-1 Contact Us For Availability
7
MAY 65275-13 MAY 65275-13 Contact Us For Availability
7
MAY 29936-2 MAY 29936-2 Contact Us For Availability
7
MAY 61001128 MAY 61001128 Contact Us For Availability
7
MAY 68557-1 MAY 68557-1 Contact Us For Availability
7
MAY 492007-703 MAY 492007-703 Contact Us For Availability
7
MAY 66589-2 MAY 66589-2 Contact Us For Availability
8
MAY 65275-6 MAY 65275-6 Contact Us For Availability
8
MAY 68957-2 MAY 68957-2 Contact Us For Availability
8
MAY 69413-3 MAY 69413-3 Contact Us For Availability
8
MAY 61001246 MAY 61001246 Contact Us For Availability
8
MAY 95121-1 MAY 95121-1 Contact Us For Availability
8
MAY 405023-35 MAY 405023-35 Contact Us For Availability
8
MAY 69875-5 MAY 69875-5 Contact Us For Availability
8
MAY 67187-13 MAY 67187-13 Contact Us For Availability
8
MAY 65886-1 MAY 65886-1 Contact Us For Availability
9
MAY 67579-7 MAY 67579-7 Contact Us For Availability
9
MAY 65275-78 MAY 65275-78 Contact Us For Availability
9
MAY 69862-1 MAY 69862-1 Contact Us For Availability
9
MAY 69865-7 MAY 69865-7 Contact Us For Availability
9
MAY 68566-1 MAY 68566-1 Contact Us For Availability
9
MAY 406026-103 MAY 406026-103 Contact Us For Availability
9
MAY 400015-31 MAY 400015-31 Contact Us For Availability
9
MAY 69575-2 MAY 69575-2 Contact Us For Availability
9
MAY 414001-1 MAY 414001-1 Contact Us For Availability
9
MAY 60408-2 MAY 60408-2 Contact Us For Availability
9
MAY 60434-3 MAY 60434-3 Contact Us For Availability
10
MAY 68974-3 MAY 68974-3 Contact Us For Availability
10
MAY 65275-48 MAY 65275-48 Contact Us For Availability
10
MAY 69872-15 MAY 69872-15 Contact Us For Availability
10
MAY 405116-35 MAY 405116-35 Contact Us For Availability
10
MAY 400026-36 MAY 400026-36 Contact Us For Availability
10
MAY 67308-7 MAY 67308-7 Contact Us For Availability
10
MAY 61001686 MAY 61001686 Contact Us For Availability
10
MAY 69063-1 MAY 69063-1 Contact Us For Availability
11
MAY 69867-1 MAY 69867-1 Contact Us For Availability
11
MAY 54233-1 MAY 54233-1 Contact Us For Availability
11
MAY 68123-1 MAY 68123-1 Contact Us For Availability
11
MAY 69752-1 MAY 69752-1 Contact Us For Availability
11
MAY 69872-17 MAY 69872-17 Contact Us For Availability
11
MAY 65275-51 MAY 65275-51 Contact Us For Availability
11
MAY 69516-3 MAY 69516-3 Contact Us For Availability
11
MAY 67347-1 MAY 67347-1 Contact Us For Availability
11
MAY 70043-2 MAY 70043-2 Contact Us For Availability
11
MAY 61001205 MAY 61001205 Contact Us For Availability
12
MAY 53709-24 MAY 53709-24 Contact Us For Availability
12
MAY 65275-86 MAY 65275-86 Contact Us For Availability
12
MAY 69283-1 MAY 69283-1 Contact Us For Availability
12
MAY 69872-16 MAY 69872-16 Contact Us For Availability
12
MAY 69510-1 MAY 69510-1 Contact Us For Availability
12
MAY 68563-2 MAY 68563-2 Contact Us For Availability
12
MAY 67489-7 MAY 67489-7 Contact Us For Availability
12
MAY 53351-1 MAY 53351-1 Contact Us For Availability
13
MAY 65031-1 MAY 65031-1 Contact Us For Availability
13
MAY 405016-35 MAY 405016-35 Contact Us For Availability
13
MAY 61001213 MAY 61001213 Contact Us For Availability
13
MAY 70111-83 MAY 70111-83 Contact Us For Availability
13
MAY 70060-1 MAY 70060-1 Contact Us For Availability
13
MAY 68564-1 MAY 68564-1 Contact Us For Availability
13
MAY 67701-1 MAY 67701-1 Contact Us For Availability
13
MAY 95093-1 MAY 95093-1 Contact Us For Availability
13
MAY 70336-8 MAY 70336-8 Contact Us For Availability
14
MAY 70121-3 MAY 70121-3 Contact Us For Availability
14
MAY 69541-1 MAY 69541-1 Contact Us For Availability
14
MAY 68765-1 MAY 68765-1 Contact Us For Availability
14
MAY 69920-5 MAY 69920-5 Contact Us For Availability
14
MAY 65275-28 MAY 65275-28 Contact Us For Availability
14
MAY 67895-1 MAY 67895-1 Contact Us For Availability
14
MAY 67895-2 MAY 67895-2 Contact Us For Availability
14
MAY 61001562 MAY 61001562 Contact Us For Availability
14
MAY 65275-33 MAY 65275-33 Contact Us For Availability
14
MAY 68445-3 MAY 68445-3 Contact Us For Availability
15
MAY 69256-2 MAY 69256-2 Contact Us For Availability
15
MAY 67483-6 MAY 67483-6 Contact Us For Availability
15
MAY 61001114 MAY 61001114 Contact Us For Availability
15
MAY 52077-26 MAY 52077-26 Contact Us For Availability
15
MAY 68958-1 MAY 68958-1 Contact Us For Availability
15
MAY 67491-2 MAY 67491-2 Contact Us For Availability
16
MAY 69743-1 MAY 69743-1 Contact Us For Availability
16
MAY 67634-3 MAY 67634-3 Contact Us For Availability
16
MAY 61001115 MAY 61001115 Contact Us For Availability
16
MAY 69534-1 MAY 69534-1 Contact Us For Availability
16
MAY 69535-1 MAY 69535-1 Contact Us For Availability
16
MAY 69626-2 MAY 69626-2 Contact Us For Availability
16
MAY 28272-6 MAY 28272-6 Contact Us For Availability
16
MAY 69779-4 MAY 69779-4 Contact Us For Availability
16
MAY 69118-3 MAY 69118-3 Contact Us For Availability
17
MAY 65275-62 MAY 65275-62 Contact Us For Availability
17
MAY 69514-3 MAY 69514-3 Contact Us For Availability
17
MAY 65275-83 MAY 65275-83 Contact Us For Availability
17
MAY 65184-3 MAY 65184-3 Contact Us For Availability
17
MAY 70054-5 MAY 70054-5 Contact Us For Availability
17
MAY 68567-3 MAY 68567-3 Contact Us For Availability
17
MAY 67163-1 MAY 67163-1 Contact Us For Availability
18
MAY 68307-1 MAY 68307-1 Contact Us For Availability
18
MAY 69515-1 MAY 69515-1 Contact Us For Availability
18
MAY 406013-1 MAY 406013-1 Contact Us For Availability
18
MAY 68601-4 MAY 68601-4 Contact Us For Availability
18
MAY 70055-2 MAY 70055-2 Contact Us For Availability
18
MAY 53808-37 MAY 53808-37 Contact Us For Availability
18
MAY 68937-3 MAY 68937-3 Contact Us For Availability
18
MAY 68756-4 MAY 68756-4 Contact Us For Availability
18
MAY 69181-1 MAY 69181-1 Contact Us For Availability
19
MAY 67142-4 MAY 67142-4 Contact Us For Availability
19
MAY 65275-61 MAY 65275-61 Contact Us For Availability
19
MAY 69419-1 MAY 69419-1 Contact Us For Availability
19
MAY 65275-67 MAY 65275-67 Contact Us For Availability
19
MAY 414012-1 MAY 414012-1 Contact Us For Availability
19
MAY 65275-69 MAY 65275-69 Contact Us For Availability
19
MAY 69511-1 MAY 69511-1 Contact Us For Availability
19
MAY 68763-1 MAY 68763-1 Contact Us For Availability
19
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
19
MAY 95108-1 MAY 95108-1 Contact Us For Availability
19
MAY 68757-1 MAY 68757-1 Contact Us For Availability
19
MAY 56933-1 MAY 56933-1 Contact Us For Availability
20
MAY 67419-3 MAY 67419-3 Contact Us For Availability
20
MAY 65275-22 MAY 65275-22 Contact Us For Availability
20
MAY 69037-1 MAY 69037-1 Contact Us For Availability
20
MAY 70056-1 MAY 70056-1 Contact Us For Availability
20
MAY 68627-1 MAY 68627-1 Contact Us For Availability
20
MAY 70076-1 MAY 70076-1 Contact Us For Availability
20
MAY 69928-22 MAY 69928-22 Contact Us For Availability
21
MAY 67648-1 MAY 67648-1 Contact Us For Availability
21
MAY 67934-1 MAY 67934-1 Contact Us For Availability
21
MAY 69617-3 MAY 69617-3 Contact Us For Availability
21
MAY 67464-2 MAY 67464-2 Contact Us For Availability
21
MAY 66338-4 MAY 66338-4 Contact Us For Availability
22
MAY 406008-1 MAY 406008-1 Contact Us For Availability
22
MAY 67657-3 MAY 67657-3 Contact Us For Availability
22
MAY 69420-3-WW MAY 69420-3-WW Contact Us For Availability
22
MAY 70117-3 MAY 70117-3 Contact Us For Availability
22
MAY 65275-80 MAY 65275-80 Contact Us For Availability
22
MAY 69112-3 MAY 69112-3 Contact Us For Availability
22
MAY 26397-6 MAY 26397-6 Contact Us For Availability
22
MAY 405007-1 MAY 405007-1 Contact Us For Availability
23
MAY 67423-2 MAY 67423-2 Contact Us For Availability
23
MAY 67061-3 MAY 67061-3 Contact Us For Availability
23
MAY 68980-6 MAY 68980-6 Contact Us For Availability
23
MAY 65275-56 MAY 65275-56 Contact Us For Availability
23
MAY 68978-3 MAY 68978-3 Contact Us For Availability
23
MAY 69174-3 MAY 69174-3 Contact Us For Availability
23
MAY 66493-1 MAY 66493-1 Contact Us For Availability
24
MAY 60313-1 MAY 60313-1 Contact Us For Availability
24
MAY 67466-1 MAY 67466-1 Contact Us For Availability
24
MAY 68989-1 MAY 68989-1 Contact Us For Availability
24
MAY 68764-1 MAY 68764-1 Contact Us For Availability
24
MAY 65275-34 MAY 65275-34 Contact Us For Availability
24
MAY 69822-8 MAY 69822-8 Contact Us For Availability
25
MAY 54531-7 MAY 54531-7 Contact Us For Availability
25
MAY 68558-3 MAY 68558-3 Contact Us For Availability
25
MAY 60108-2 MAY 60108-2 Contact Us For Availability
26
MAY 68767-1 MAY 68767-1 Contact Us For Availability
26
MAY 31956-1 MAY 31956-1 Contact Us For Availability
26
MAY 65039-1 MAY 65039-1 Contact Us For Availability
26
MAY 26397-9 MAY 26397-9 Contact Us For Availability
27
MAY 60100-1 MAY 60100-1 Contact Us For Availability
27
MAY 60106-36 MAY 60106-36 Contact Us For Availability
27
MAY 400017-35 MAY 400017-35 Contact Us For Availability
27
MAY 67241-2 MAY 67241-2 Contact Us For Availability
27
MAY 68628-1 MAY 68628-1 Contact Us For Availability
28
MAY 67361-1 MAY 67361-1 Contact Us For Availability
28
MAY 69275-1 MAY 69275-1 Contact Us For Availability
28
MAY 60109-6 MAY 60109-6 Contact Us For Availability
29
MAY 67240-1 MAY 67240-1 Contact Us For Availability
29
MAY 69416-1 MAY 69416-1 Contact Us For Availability
29
MAY 69416-2 MAY 69416-2 Contact Us For Availability
29
MAY 68935-1 MAY 68935-1 Contact Us For Availability
30
MAY 69812-1 MAY 69812-1 Contact Us For Availability
30
MAY 68626-2 MAY 68626-2 Contact Us For Availability
30
MAY 70176-1 MAY 70176-1 Contact Us For Availability
30
MAY 52085-33 MAY 52085-33 Contact Us For Availability
31
MAY 68058-1 MAY 68058-1 Contact Us For Availability
31
MAY 29835-2 MAY 29835-2 Contact Us For Availability
31
MAY 68568-2 MAY 68568-2 Contact Us For Availability
31
MAY 61001042 MAY 61001042 Contact Us For Availability
31
MAY 65013-26 MAY 65013-26 Contact Us For Availability
32
MAY 60216-1 MAY 60216-1 Contact Us For Availability
32
MAY 68631-1 MAY 68631-1 Contact Us For Availability
32
MAY 60068-1 MAY 60068-1 Contact Us For Availability
33
MAY 67530-1 MAY 67530-1 Contact Us For Availability
33
MAY 68955-1 MAY 68955-1 Contact Us For Availability
33
MAY 60069-1 MAY 60069-1 Contact Us For Availability
34
MAY 64965-1 MAY 64965-1 Contact Us For Availability
34
MAY 68954-3 MAY 68954-3 Contact Us For Availability
34
MAY 60110-2 MAY 60110-2 Contact Us For Availability
34
MAY 60177-4 MAY 60177-4 Contact Us For Availability
34
MAY 61001565 MAY 61001565 Contact Us For Availability
34
MAY 65275-50 MAY 65275-50 Contact Us For Availability
34
MAY 70165-1 MAY 70165-1 Contact Us For Availability
35
MAY 68236-1 MAY 68236-1 Contact Us For Availability
35
MAY 69625-1 MAY 69625-1 Contact Us For Availability
35
MAY 24580-4 MAY 24580-4 Contact Us For Availability
36
MAY 67647-3 MAY 67647-3 Contact Us For Availability
36
MAY 59101-1 MAY 59101-1 Contact Us For Availability
36
MAY 69868-1 MAY 69868-1 Contact Us For Availability
36
MAY 60555-1 MAY 60555-1 Contact Us For Availability
36
MAY 60555-2 MAY 60555-2 Contact Us For Availability
37
MAY 66325-34 MAY 66325-34 Contact Us For Availability
37
MAY 66325-35 MAY 66325-35 Contact Us For Availability
37
MAY 72319-2 MAY 72319-2 Contact Us For Availability
37
MAY 67615-1 MAY 67615-1 Contact Us For Availability
37
MAY 61001212 MAY 61001212 Contact Us For Availability
38
MAY 70184-1 MAY 70184-1 Contact Us For Availability
38
MAY 67187-27 MAY 67187-27 Contact Us For Availability
38
MAY 16000326 MAY 16000326 Contact Us For Availability
39
MAY 70183-1 MAY 70183-1 Contact Us For Availability
39
MAY 69316-1 MAY 69316-1 Contact Us For Availability
40
MAY 67610-1 MAY 67610-1 Contact Us For Availability
NI
MAY 15001435 MAY 15001435 Contact Us For Availability
× ![]()
