Model Whirlpool JRT236 REFRIGERATOR – Common Parts & Diagrams
01 - DOORS

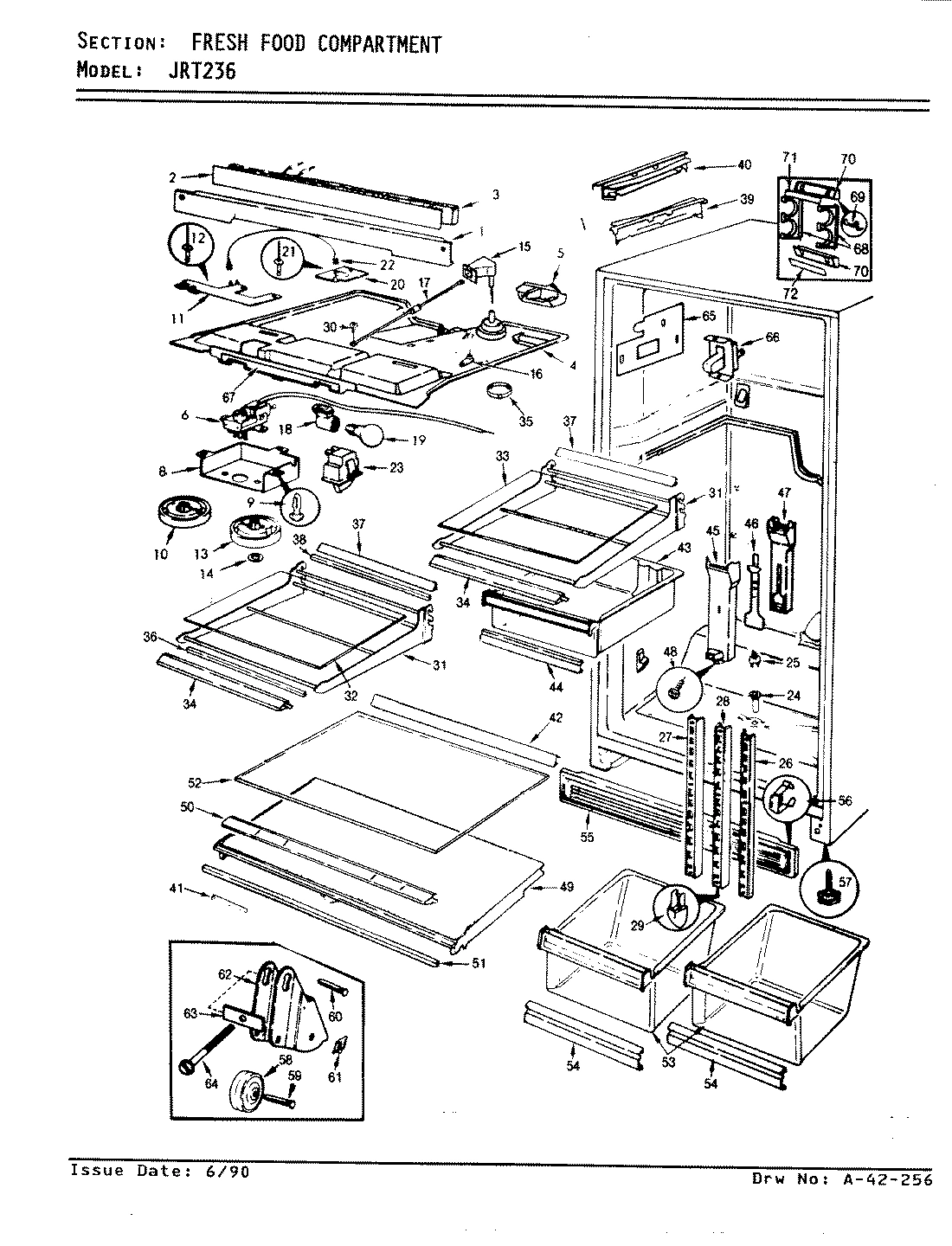

03 - FRESH FOOD COMPARTMENT

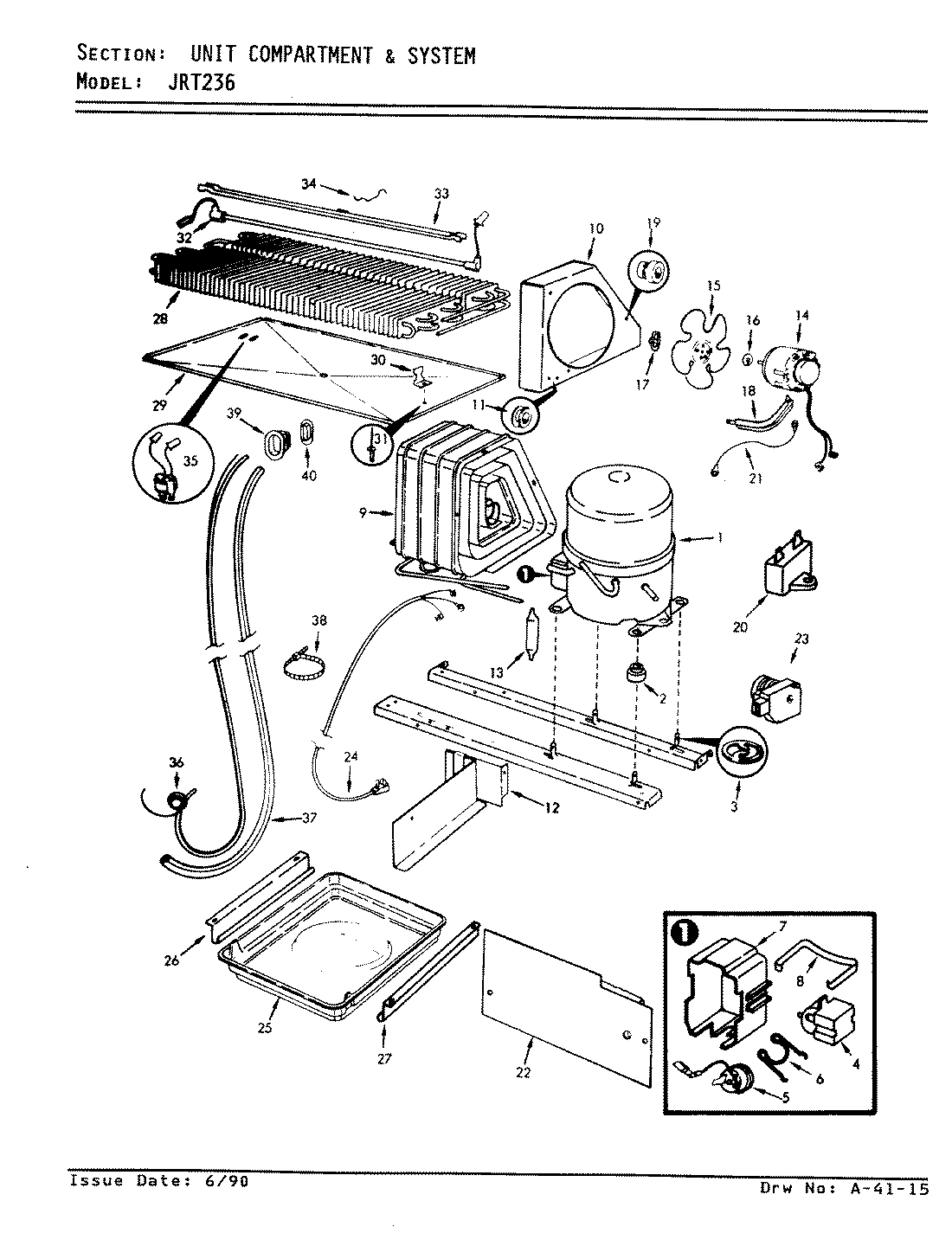

04 - UNIT COMPARTMENT & SYSTEM

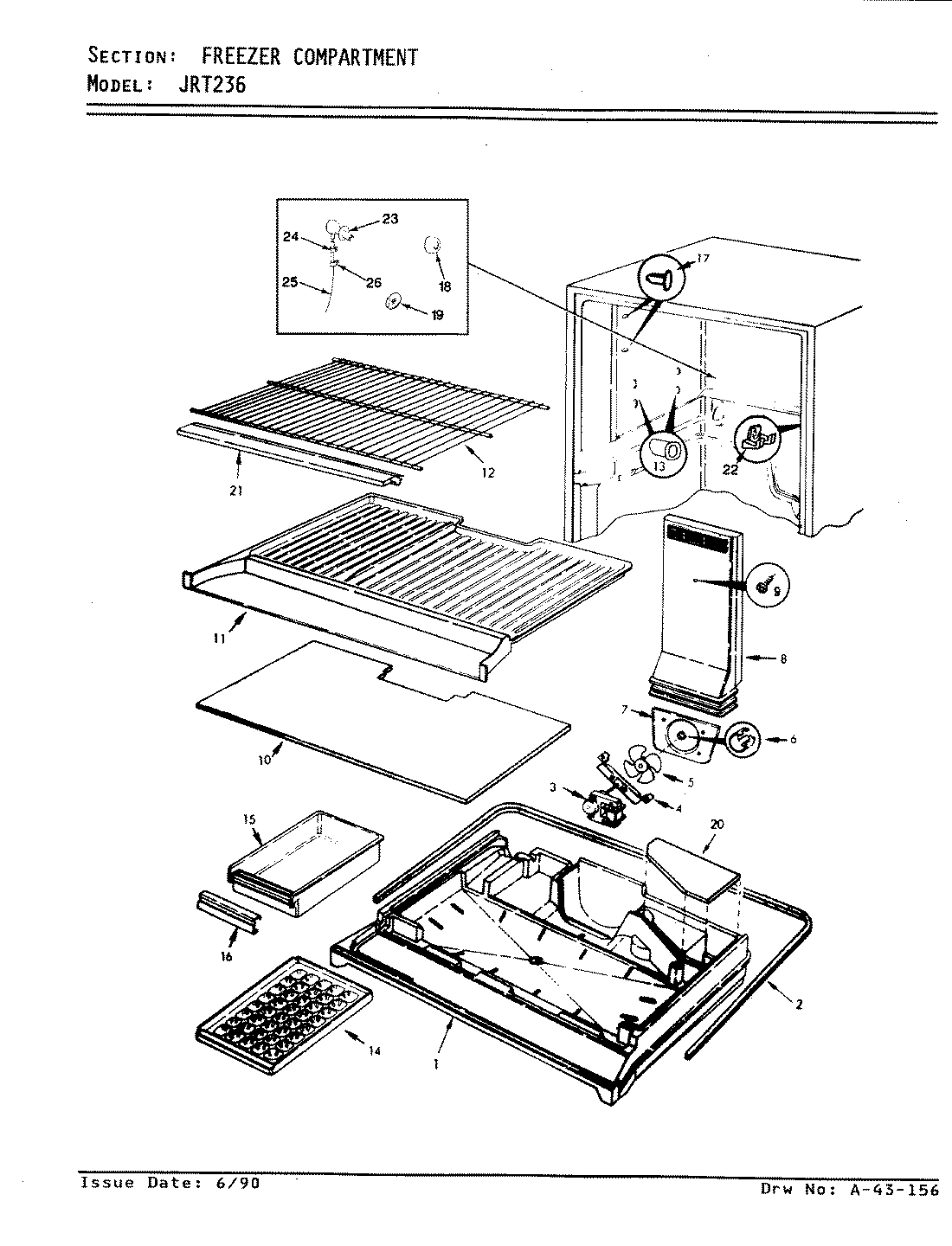

02 - FREEZER COMPARTMENT
Common parts from model Whirlpool JRT236 REFRIGERATOR
1
PANEL, FRZ. DOOR (ALM) WPL 684769AM Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 684769WW Contact Us For Availability
1
SCREW WPL 6527523 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 684343AM Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 684343WW Contact Us For Availability
1
TRAY, FOAM MULL WPL 675213 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684753AM Contact Us For Availability
2
PANEL, F.F. DOOR (WHT) WPL 684753WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
HEATER WPL 688293 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
FOAM SEAL 84`` WPL 688664 Contact Us For Availability
3
HANDLE WPL 686671 Contact Us For Availability
3
INSULATION WPL 601403 Contact Us For Availability
3
WIRE HARNESS WPL 686852 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW, FAN MOTOR MOUNTING WPL 4040621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
HANDLE, F.F. DOOR WPL 686661 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685332 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
ORGANIZER, SHELF WPL 6409710 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
SCREW, HANDLE WPL 6527537 Contact Us For Availability
6
SHELF, PICK-OFF WPL 666455 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
ACHOR, SCREW WPL 667991 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SEAL, FOAM TRAY WPL 663259 Contact Us For Availability
8
AIR TUNNEL WPL 685924 Contact Us For Availability
9
DOOR STOP, FRZR DOOR WPL 600306 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
DOOR STOP, F.F. DOOR WPL 600305 Contact Us For Availability
10
SCREW, FREEZER STOP WPL 6527518 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686008 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664033 Contact Us For Availability
11
BEZEL, NAMEPLATE WPL 666411 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
SEAL, FOAM TRAY WPL 6632511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664771 Contact Us For Availability
12
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
12
BAFFLE WPL 664933 Contact Us For Availability
12
SHELF, FRZ WPL 6043821 Contact Us For Availability
13
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
13
KNOB, CONTROL WPL 686007 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
14
LINER, DOOR WPL 659364 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
INNER PANEL WPL 687211 Contact Us For Availability
15
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
15
ORIFICE DAMPER ASSEMBLY WPL 675584 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
16
GASKET, DOOR WPL 661997 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
HANDLE INSERT WPL 60132113 Contact Us For Availability
17
GASKET, DOOR WPL 661998 Contact Us For Availability
17
ROD WPL 674994 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
CAP, GROMMET WPL 683871 Contact Us For Availability
19
TRIM, SHELF WPL 6841032 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
CAP, CONNECTOR WPL 681871 Contact Us For Availability
20
TRIM, SHELF WPL 6841034 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
COVER, PLENUM WPL 664806 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROUND WIRE WPL 2967522 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRIM WPL 6717610 Contact Us For Availability
22
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
23
DOOR, DAIRY WPL 66184456 Contact Us For Availability
23
SWITCH, LIGHT WPL 669871 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 661282 Contact Us For Availability
23
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
24
DOOR, DAIRY WPL 66184461 Contact Us For Availability
24
TUBE, DRAIN WPL 545317 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
CLAMP, SPRING WPL 603334 Contact Us For Availability
25
COVER, P.O. WPL 6663741 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
26
TRAY, BUTTER WPL 299362 Contact Us For Availability
26
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
CLAMP, TUBING WPL 535168 Contact Us For Availability
26
SCREW WPL 652751 Contact Us For Availability
27
TRAY, EGG WPL 6006613 Contact Us For Availability
27
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
SHELF, PICK-OFF WPL 6003737 Contact Us For Availability
28
SCREW WPL 40003728 Contact Us For Availability
28
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
28
EVAPORATOR WPL RA4362012 Contact Us For Availability
29
TRIM, PICK-OFF WPL 6813048 Contact Us For Availability
29
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
30
DOOR SHELF WPL 6003740 Contact Us For Availability
30
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
30
SCREW WPL 6527513 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
31
TRIM WPL 6813050 Contact Us For Availability
31
FRAME, SPLIT SHELF WPL 672704 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
DOOR SHELF WPL 6003739 Contact Us For Availability
32
GLASS WPL 6840519 Contact Us For Availability
32
HEATER, DEFROST WPL 6010636 Contact Us For Availability
33
TRIM WPL 6813051 Contact Us For Availability
33
GLASS WPL 6840522 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
34
TRIM WPL 6813047 Contact Us For Availability
34
TRIM WPL 687312 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
DOOR SHELF WPL 6003735 Contact Us For Availability
35
COVER, CRANK WPL 674931 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
HINGE, UPPER WPL 5370920 Contact Us For Availability
36
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
36
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
36
GASKET, TRIM FRONT WPL 672653 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
37
TRIM WPL 687322 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
38
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
38
GASKET TRIM MOUNTING REAR WPL 672663 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
TRIM, PERIMETER (SIDE) WPL 681952 Contact Us For Availability
39
RAIL WPL 686952 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
WASHER WPL 542331 Contact Us For Availability
40
WASHER WPL 542332 Contact Us For Availability
40
SCREW WPL 998687 Contact Us For Availability
40
RAIL WPL 686954 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
WIRE HARNESS WPL 687112 Contact Us For Availability
41
HINGE, CENTER WPL 688112 Contact Us For Availability
41
SLIDE, CONTROL WPL 687422 Contact Us For Availability
42
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
42
TRIM, CRISPER SHELF (REAR) WPL 687984 Contact Us For Availability
43
SCREW WPL 6527524 Contact Us For Availability
43
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
43
PAN, MEAT KEEPER WPL 6663737 Contact Us For Availability
44
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
44
HANDLE WPL 60132112 Contact Us For Availability
45
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
45
TUNNEL, AIR (MEAT) WPL 6009422 Contact Us For Availability
46
HINGE, LOWER WPL 677146 Contact Us For Availability
46
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
47
SCREW WPL 403100801 Contact Us For Availability
47
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
47
TAPPING PLATE WPL 657903 Contact Us For Availability
47
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
48
HINGE PIN WPL 687881 Contact Us For Availability
49
SHELF, CRISPER WPL 687353 Contact Us For Availability
50
PLUG BUTTON, (WHIT WPL 5618610 Contact Us For Availability
50
WPL 561866 WPL 561866 Contact Us For Availability
50
WPL 674832 WPL 674832 Contact Us For Availability
50
TRIM WPL 687449 Contact Us For Availability
50
END CAP (LEFT) WPL 687461 Contact Us For Availability
50
END CAP (RIGHT) WPL 687462 Contact Us For Availability
51
SEAL WPL 687972 Contact Us For Availability
52
WPL 681962 WPL 681962 Contact Us For Availability
52
GLASS WPL 6874324 Contact Us For Availability
53
WPL 686702 WPL 686702 Contact Us For Availability
53
PAN, CRISPER WPL 68223410 Contact Us For Availability
54
WPL 686694 WPL 686694 Contact Us For Availability
54
WPL 6527538 WPL 6527538 Contact Us For Availability
54
WPL 6527539 WPL 6527539 Contact Us For Availability
54
HANDLE WPL 60132111 Contact Us For Availability
55
KICKPLATE WPL 601388 Contact Us For Availability
56
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
57
LEG, LEVELING WPL 686641 Contact Us For Availability
58
WHEEL WPL 298342 Contact Us For Availability
59
PIN, WHEEL WPL 649651 Contact Us For Availability
60
PIN, WHEEL WPL 298352 Contact Us For Availability
61
CLIP WPL 602161 Contact Us For Availability
62
BRACKET, ADJUSTING WHEEL WPL 591001 Contact Us For Availability
63
TAPPING PLAT WPL 591011 Contact Us For Availability
64
WPL 4060871 WPL 4060871 Contact Us For Availability
65
WPL 605831 WPL 605831 Contact Us For Availability
66
WPL 605851 WPL 605851 Contact Us For Availability
66
WPL 9986112 WPL 9986112 Contact Us For Availability
67
WPL 6057170 WPL 6057170 Contact Us For Availability
68
WPL 565194 WPL 565194 Contact Us For Availability
69
WPL 580571 WPL 580571 Contact Us For Availability
70
WPL 656891 WPL 656891 Contact Us For Availability
71
WPL 688214 WPL 688214 Contact Us For Availability
72
WPL 688217 WPL 688217 Contact Us For Availability
× ![]()
Login and Registration Form
