Model Whirlpool JRT153RG REFRIGERATOR – Common Parts & Diagrams

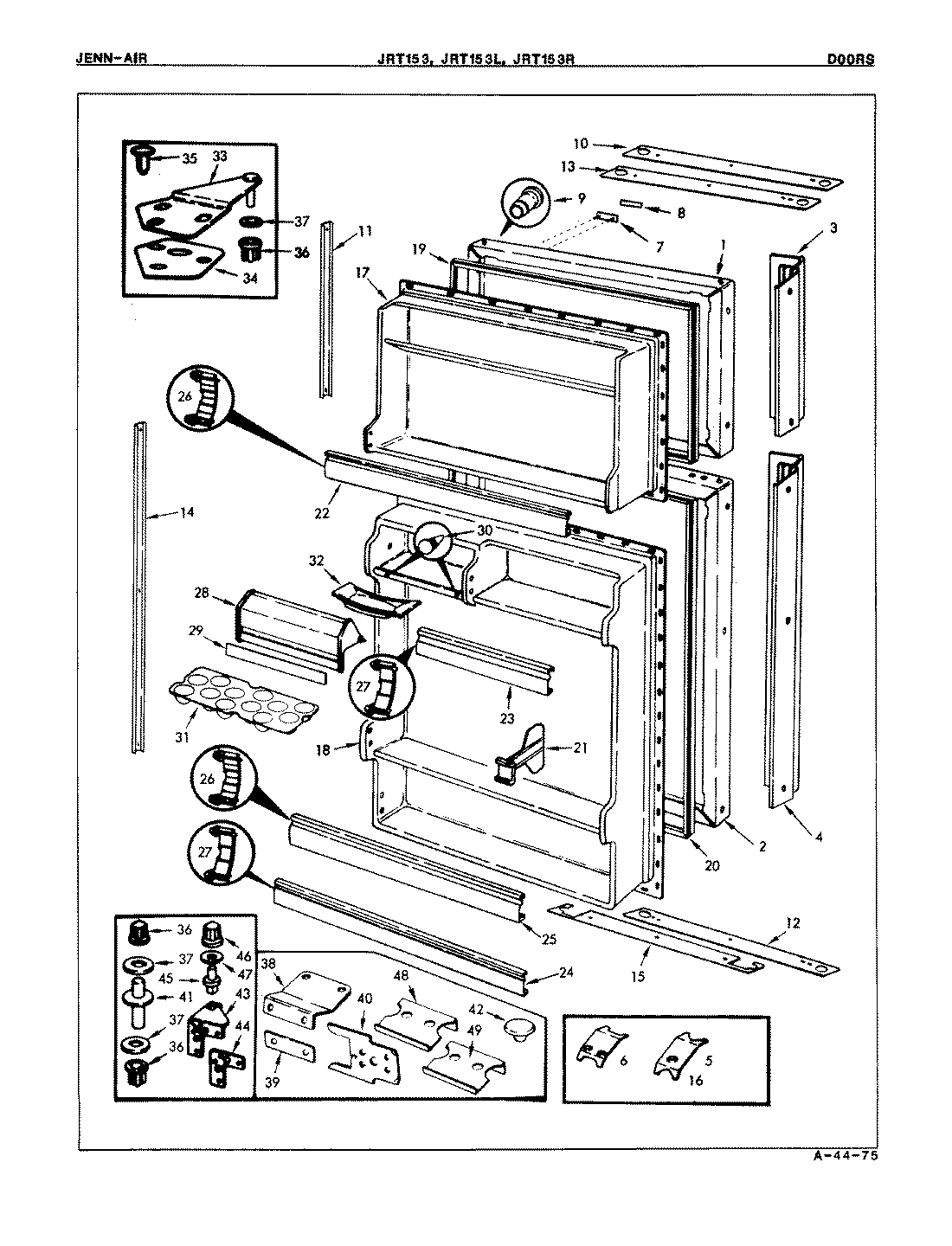

01 - DOORS
Common parts from model Whirlpool JRT153RG REFRIGERATOR
2
OUTER PANEL WPL 666671AM Contact Us For Availability
2
OUTER PANEL WPL 666671HW Contact Us For Availability
2
OUTER PANEL WPL 666671WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
3
DOOR HANDLE WPL 667081 Contact Us For Availability
4
SCREW WPL 652754 Contact Us For Availability
4
DOOR HANDLE WPL 667051 Contact Us For Availability
6
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
RETAINER, ESCUTCHEON WPL 652112 Contact Us For Availability
11
TRIM WPL 666941 Contact Us For Availability
12
TRIM WPL 667002 Contact Us For Availability
13
TRIM WPL 666971 Contact Us For Availability
14
TRIM WPL 666911 Contact Us For Availability
15
SCREW WPL 40001512 Contact Us For Availability
15
TRIM WPL 667001 Contact Us For Availability
16
CLIP WPL 562092 Contact Us For Availability
17
INNER PANEL WPL 6004416 Contact Us For Availability
18
INNER PANEL WPL 6005111 Contact Us For Availability
18
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
19
GASKET, DOOR WPL 661991 Contact Us For Availability
20
GASKET, DOOR WPL 661992 Contact Us For Availability
21
ORGANIZER, SHELF WPL 665224 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 65151234 Contact Us For Availability
24
TRIM, DOOR SHELF WPL 65151240 Contact Us For Availability
25
SHELF TRIM WPL 666371 Contact Us For Availability
26
RETAINER WPL 652461 Contact Us For Availability
27
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
28
DOOR, DAIRY WPL 6040637 Contact Us For Availability
29
TRIM, DAIRY DOOR WPL 6057340 Contact Us For Availability
30
BUMPER, DOOR WPL 282726 Contact Us For Availability
31
TRAY, EGG WPL 606215 Contact Us For Availability
32
TRAY, BUTTER WPL 299362 Contact Us For Availability
33
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
33
COVER, UPPER HINGE (HW) WPL 6500312 Contact Us For Availability
33
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
33
COVER, UPPER HINGE WPL 650039 Contact Us For Availability
33
SCREW WPL 998687 Contact Us For Availability
34
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
35
PLUG BUTTON WPL 5614412 Contact Us For Availability
35
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
35
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
36
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
37
WASHER WPL 521851 Contact Us For Availability
38
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
39
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
40
TAPPING PLATE WPL 606221 Contact Us For Availability
40
SCREW WPL 9986107 Contact Us For Availability
41
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
42
PLUG BUTTON, (WHITE) WPL 5618610 Contact Us For Availability
42
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
42
PLUG BUTTON WPL 561869 Contact Us For Availability
43
SCREW WPL 4030625 Contact Us For Availability
43
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
44
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
45
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
46
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
47
WASHER WPL 542332 Contact Us For Availability
48
DOOR STOP WPL 600301 Contact Us For Availability
49
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
49
DOOR STOP WPL 600302 Contact Us For Availability
49
SCREW WPL 9986108 Contact Us For Availability
× ![]()
