Model Whirlpool JRT152 REFRIGERATOR – Common Parts & Diagrams

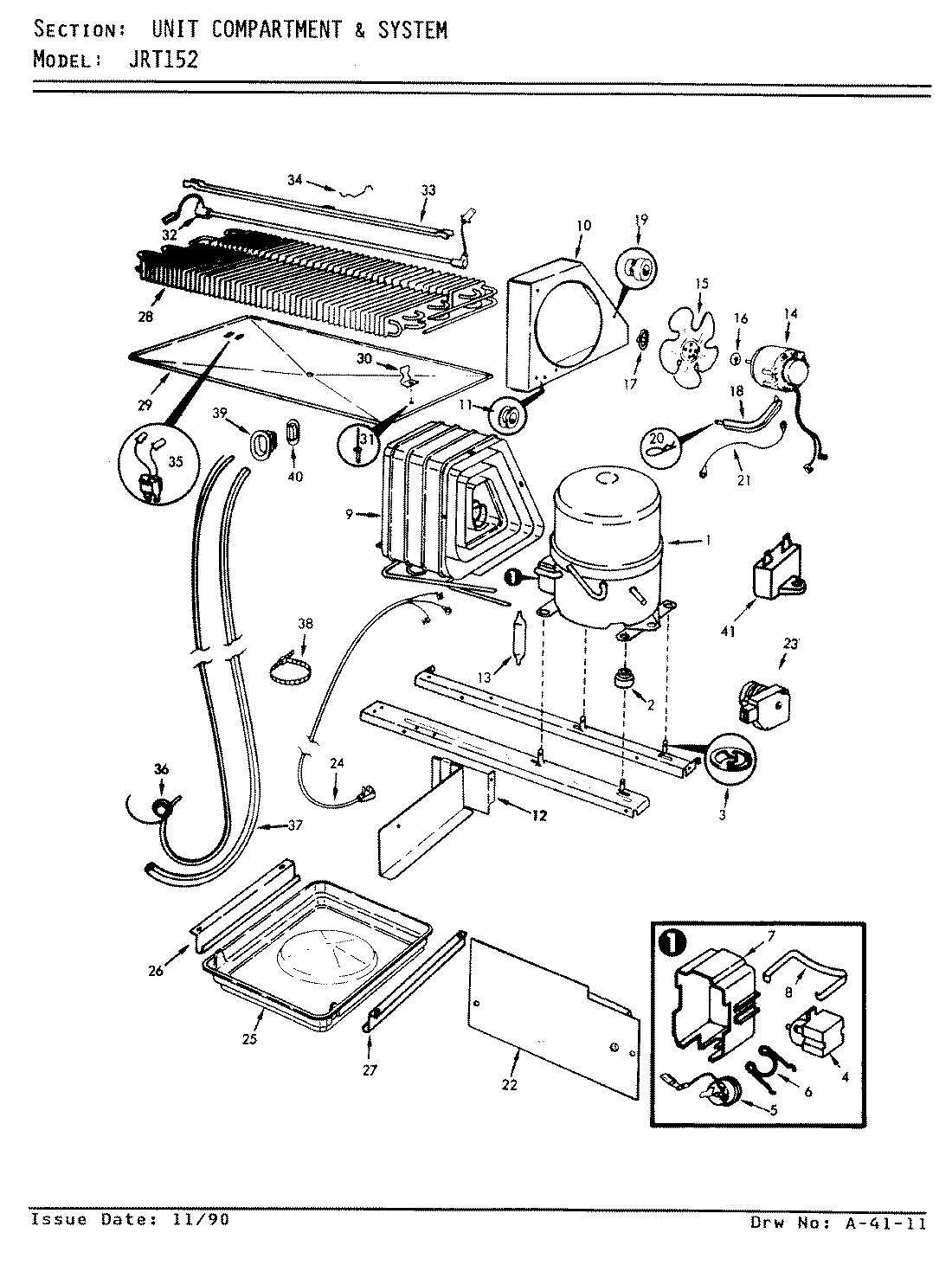

04 - UNIT COMPARTMENT & SYSTEM

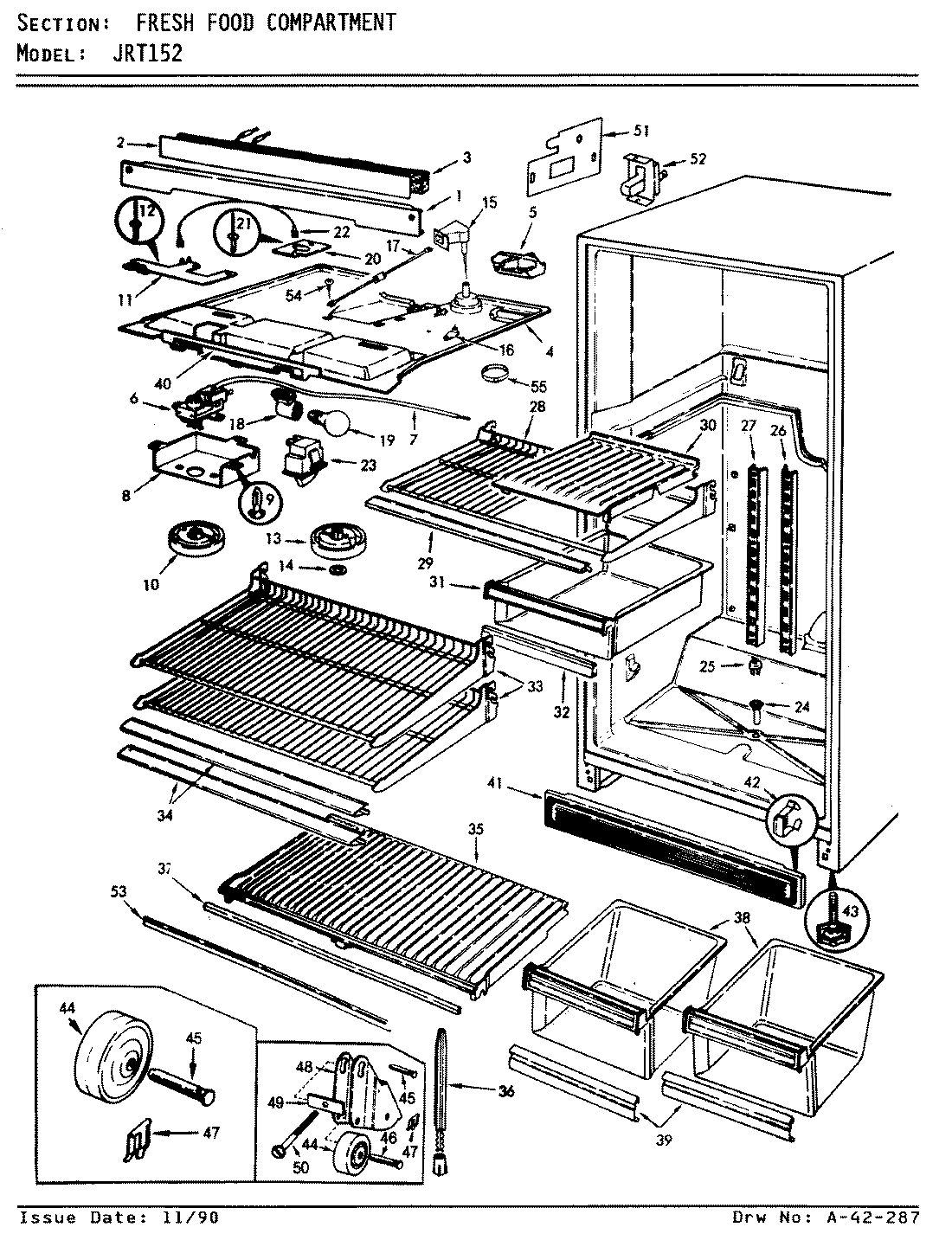

03 - FRESH FOOD COMPARTMENT
01 - DOORS
02 - FREEZER COMPARTMENT
Common parts from model Whirlpool JRT152 REFRIGERATOR
1
SCREW WPL 6527523 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 684341AM Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 684341WW Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 684705AM Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 684705WW Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 675181 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HEATER WIRE WPL 688301 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684695AM Contact Us For Availability
2
PANEL, F.F. DOOR (WHT) WPL 684695WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
SEAL, CORNER WPL 676281 Contact Us For Availability
2
SEAL WPL 688661 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
INSULATION WPL 601401 Contact Us For Availability
3
WIRE HARNESS WPL 689031 Contact Us For Availability
3
HANDLE, FRZ WPL 686603 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability
4
SCREW, HANDLE WPL 6527537 Contact Us For Availability
4
HANDLE, F.F. WPL 686592 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
ACHOR, SCREW WPL 667991 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
BEZEL WPL 680601 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
TUNNEL, AIR WPL 685921 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
RETAINER, NAMEPLATE BEZEL WPL 683811 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686008 Contact Us For Availability
10
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
10
TAPPING PLATE WPL 657903 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
HINGE PIN WPL 687881 Contact Us For Availability
11
SEAL, FOAM TRAY WPL 663259 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
WASHER WPL 542331 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
13
KNOB, CONTROL WPL 686007 Contact Us For Availability
13
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
13
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
DOOR STOP WPL 600304 Contact Us For Availability
14
CAP, CONNECTOR WPL 681871 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
ORIFICE, DAMPER WPL 675581 Contact Us For Availability
15
DOOR STOP WPL 6041910 Contact Us For Availability
15
SCREW WPL 9986108 Contact Us For Availability
15
SCREW WPL 9986122 Contact Us For Availability
15
PLUG BUTTON WPL 675571 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
16
COVER, PLENUM WPL 664804 Contact Us For Availability
17
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
17
LINER, DOOR WPL 6593015 Contact Us For Availability
17
TIP WPL 245803 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
SCREW WPL 652755 Contact Us For Availability
18
LINER, DOOR WPL 659352 Contact Us For Availability
18
TRIVET WPL 682591 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
BULB, LIGHT WPL 681231 Contact Us For Availability
19
GASKET, DOOR WPL 661991 Contact Us For Availability
19
CLAMP, TUBING WPL 535168 Contact Us For Availability
19
SCREW WPL 652751 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
GASKET, DOOR WPL 661992 Contact Us For Availability
20
CLAMP, SPRING WPL 603334 Contact Us For Availability
21
TUBING WPL 675798 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
ORGANIZER, SHELF WPL 6409710 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
CAP, GROMMET WPL 683871 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665564 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 669871 Contact Us For Availability
23
TRIM, SHELF WPL 684101 Contact Us For Availability
23
PAN, ICE WPL 606531 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
TUBE, DRAIN WPL 545317 Contact Us For Availability
24
TRIM, SHELF WPL 684104 Contact Us For Availability
24
TRIM, ICE PAN WPL 6013295 Contact Us For Availability
24
CLIP WPL 655171 Contact Us For Availability
24
PLUG BUTTON WPL 669202 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
TRIM, SHELF WPL 684102 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
26
CLIP WPL 524474 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
SCREW WPL 40003728 Contact Us For Availability
27
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
27
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
28
SHELF WPL 6041610 Contact Us For Availability
28
DOOR, DAIRY WPL 6040644 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
29
TRIM, DAIRY DOOR WPL 6812820 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
COVER, MEAT PAN WPL 600757 Contact Us For Availability
30
BUMPER, DOOR WPL 282726 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
PAN WPL 6663732 Contact Us For Availability
31
TRAY, EGG WPL 606218 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
32
HANDLE, MEAT PAN WPL 6013296 Contact Us For Availability
32
TRAY, BUTTER WPL 299362 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
33
SHELF WPL 6041714 Contact Us For Availability
33
HINGE, UPPER WPL 5370920 Contact Us For Availability
33
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
33
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
TRIM WPL 6041461 Contact Us For Availability
34
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
SHELF, CRISPER WPL 600191 Contact Us For Availability
35
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
35
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
35
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
35
PLUG, ALMOND WPL 675573 Contact Us For Availability
35
SCREW WPL 998687 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
36
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
36
WASHER WPL 542332 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
37
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
PAN, CRISPER WPL 68221417 Contact Us For Availability
38
HINGE, CENTER WPL 688112 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
TRIM, CRISPER PAN WPL 6013294 Contact Us For Availability
39
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
INSERT, CONTROL ESCUTCHEON WPL 6057170 Contact Us For Availability
40
SCREW WPL 6527524 Contact Us For Availability
40
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
41
CAPACITOR, RUN WPL 658891 Contact Us For Availability
41
WIRE HARNESS WPL 687111 Contact Us For Availability
41
KICKPLATE WPL 6023737 Contact Us For Availability
41
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
42
SCREW WPL 4000171 Contact Us For Availability
42
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
42
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
42
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
43
LEG, LEVELING WPL 60128 Contact Us For Availability
43
SCREW WPL 403100801 Contact Us For Availability
43
HINGE, LOWER WPL 677146 Contact Us For Availability
44
WHEEL WPL 298342 Contact Us For Availability
45
PIN, WHEEL WPL 298352 Contact Us For Availability
46
PIN, WHEEL WPL 649651 Contact Us For Availability
47
CLIP WPL 602161 Contact Us For Availability
48
BRACKET, WHEEL WPL 675301 Contact Us For Availability
49
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
50
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
50
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
51
BRACKET, SWITCH WPL 605831 Contact Us For Availability
51
SCREW WPL 9986112 Contact Us For Availability
52
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
53
SEAL, CRISPER SHELF WPL 601484 Contact Us For Availability
54
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
54
SCREW WPL 6527513 Contact Us For Availability
55
COVER, CRANK WPL 674931 Contact Us For Availability
× ![]()
Login and Registration Form
