Model Maytag JRSDE228A REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT
02 - FREEZER DOOR

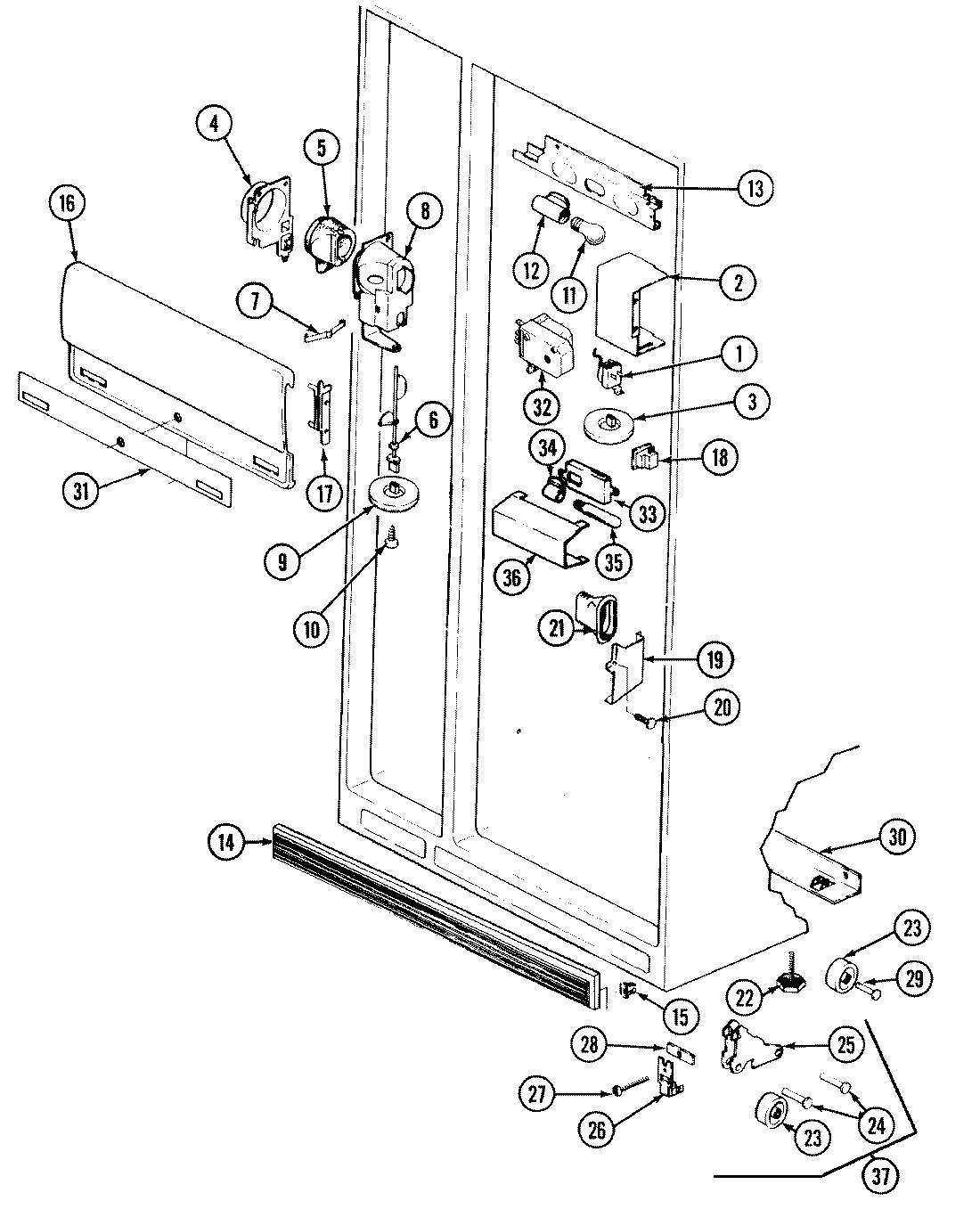

03 - FRESH FOOD COMPARTMENT

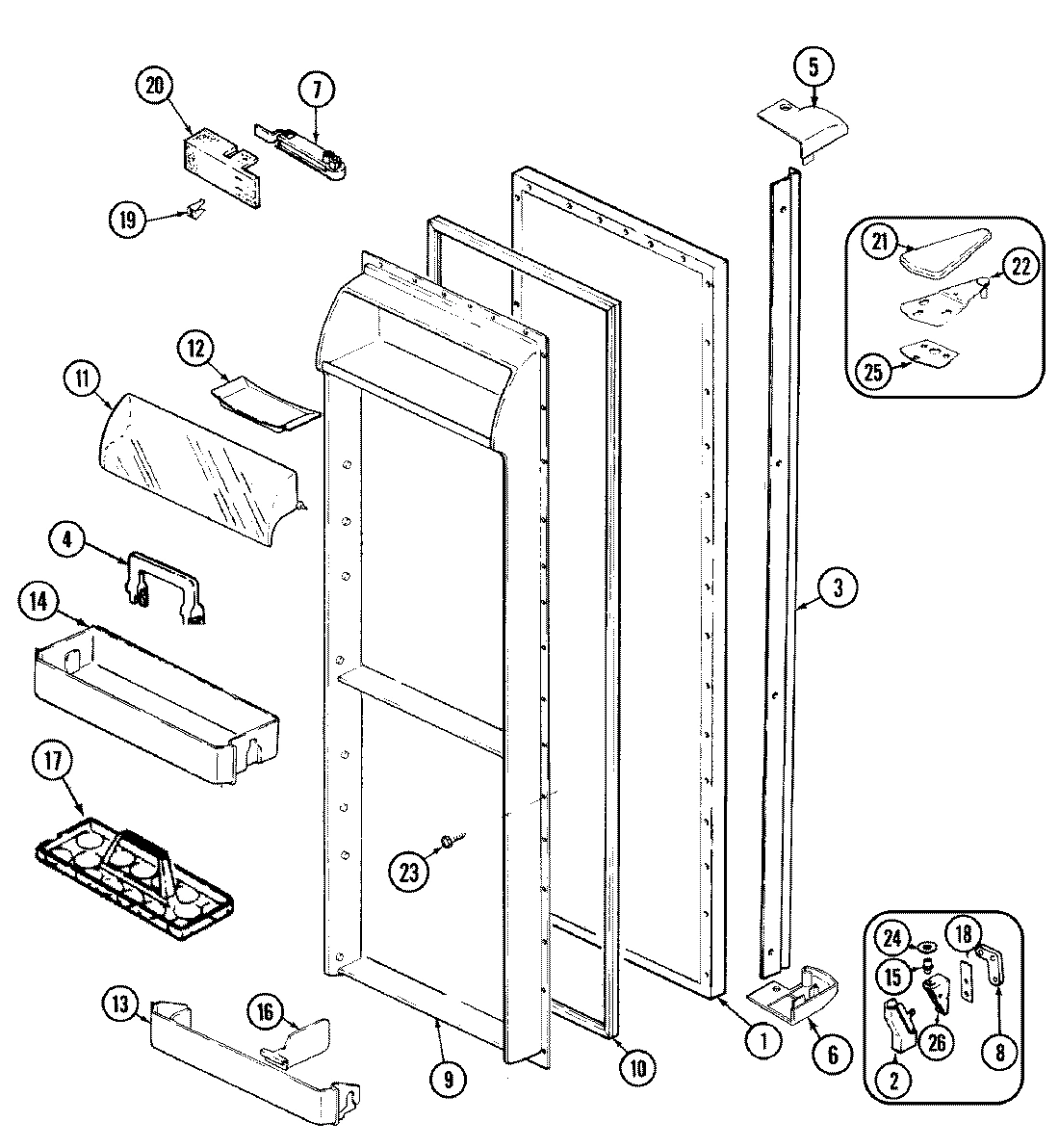

04 - FRESH FOOD DOOR

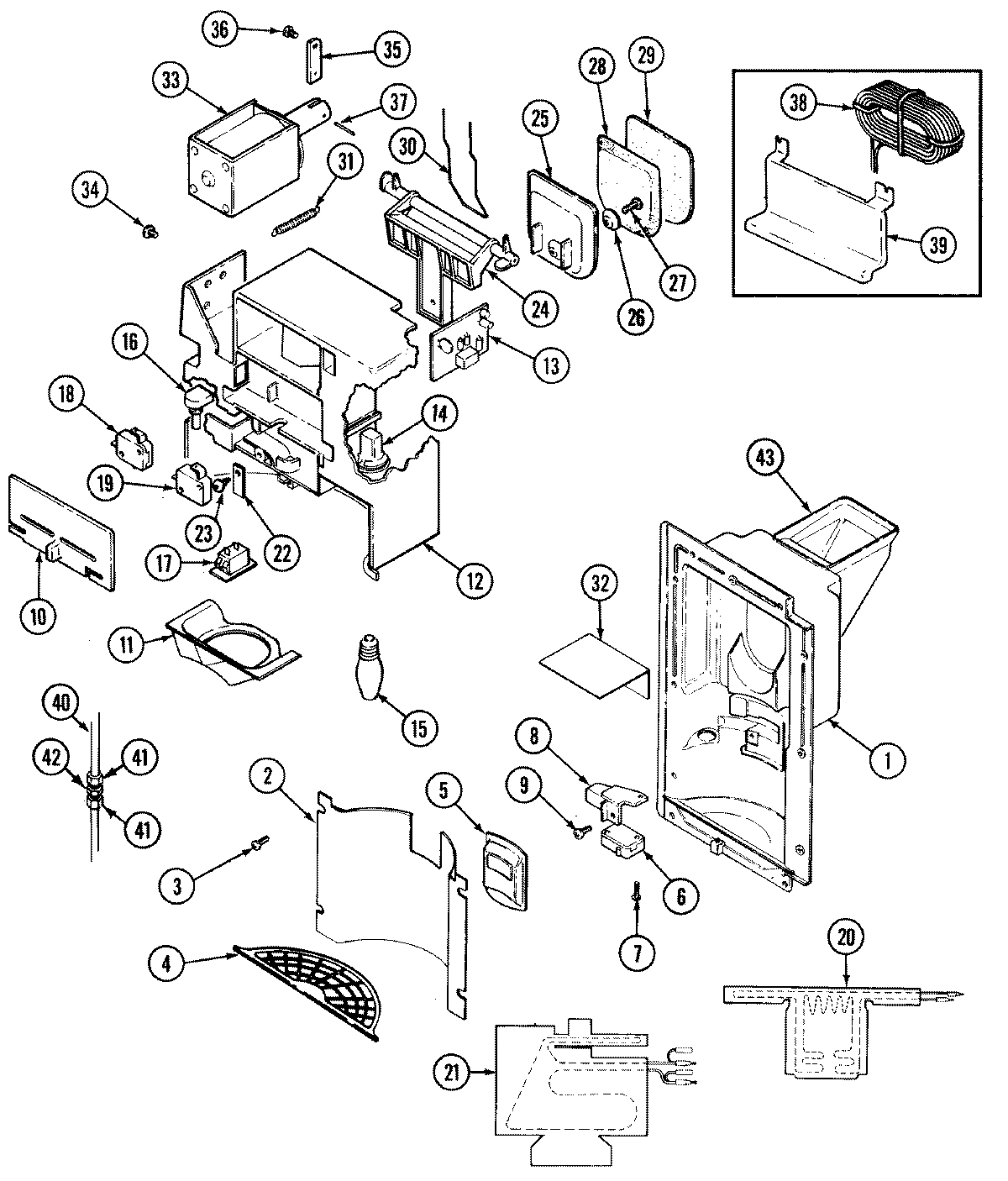

05 - ICE & WATER DISPENSER

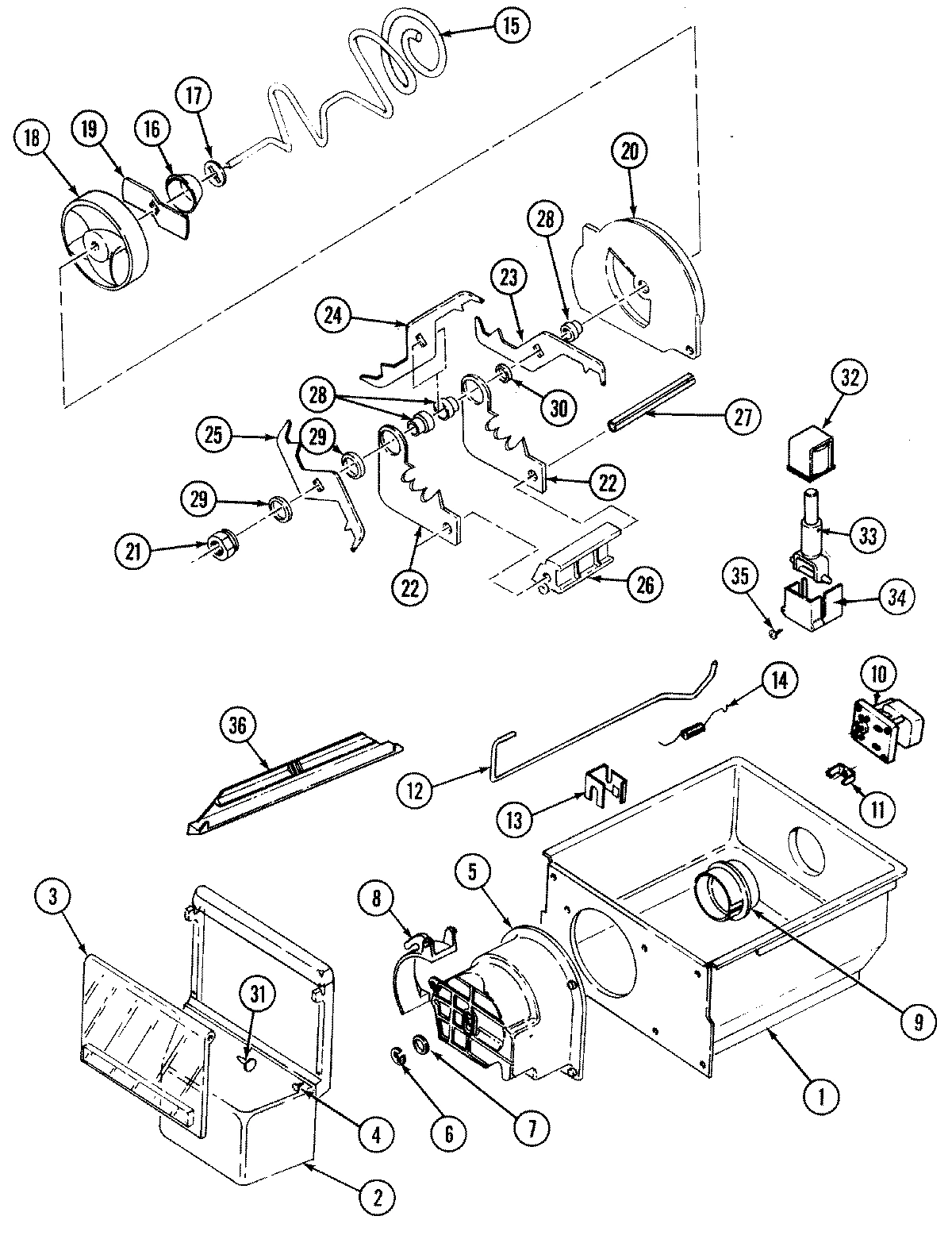

06 - ICE CRUSHER & BIN
07 - ICE MAKER

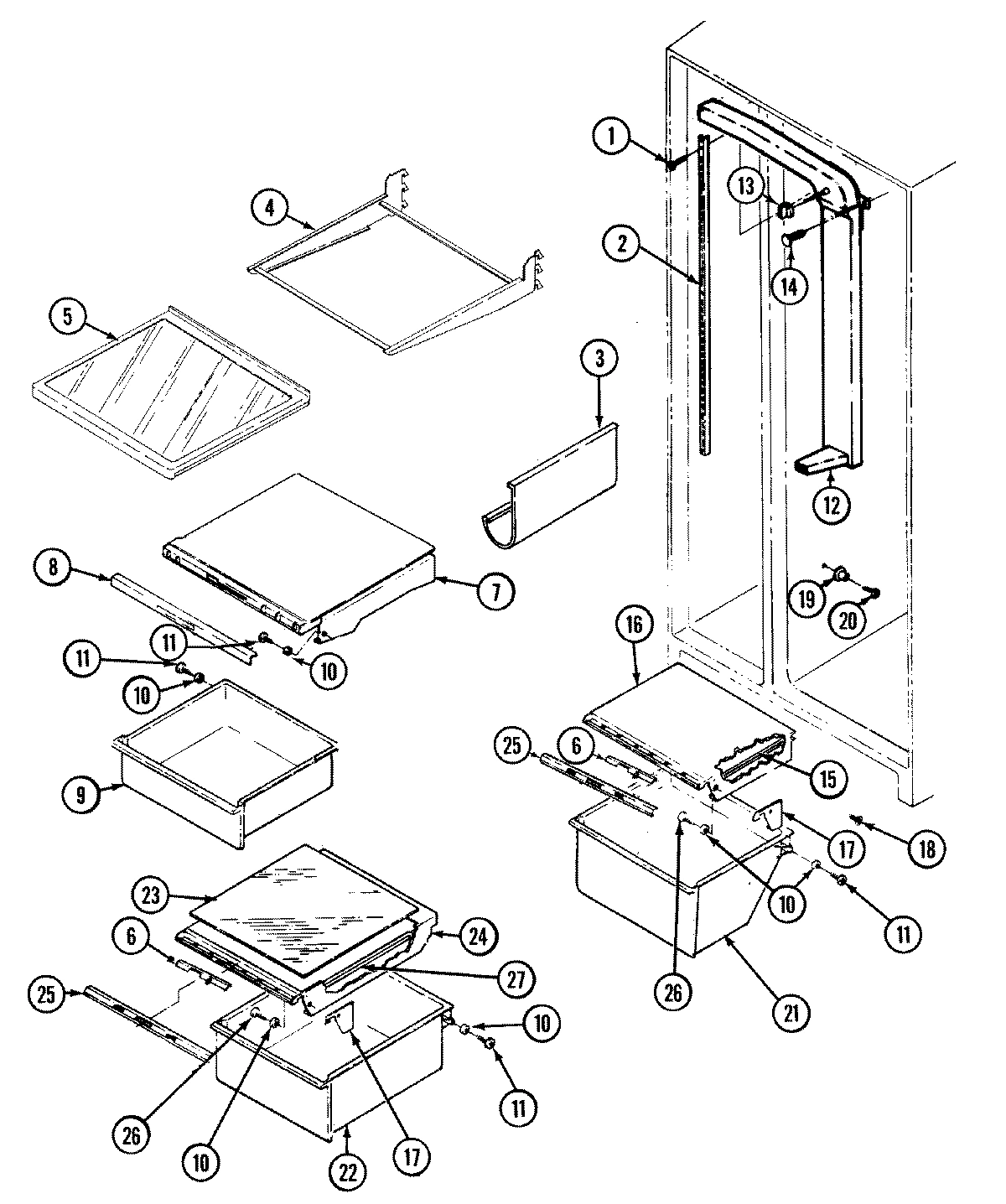

08 - SHELVES & ACCESSORIES

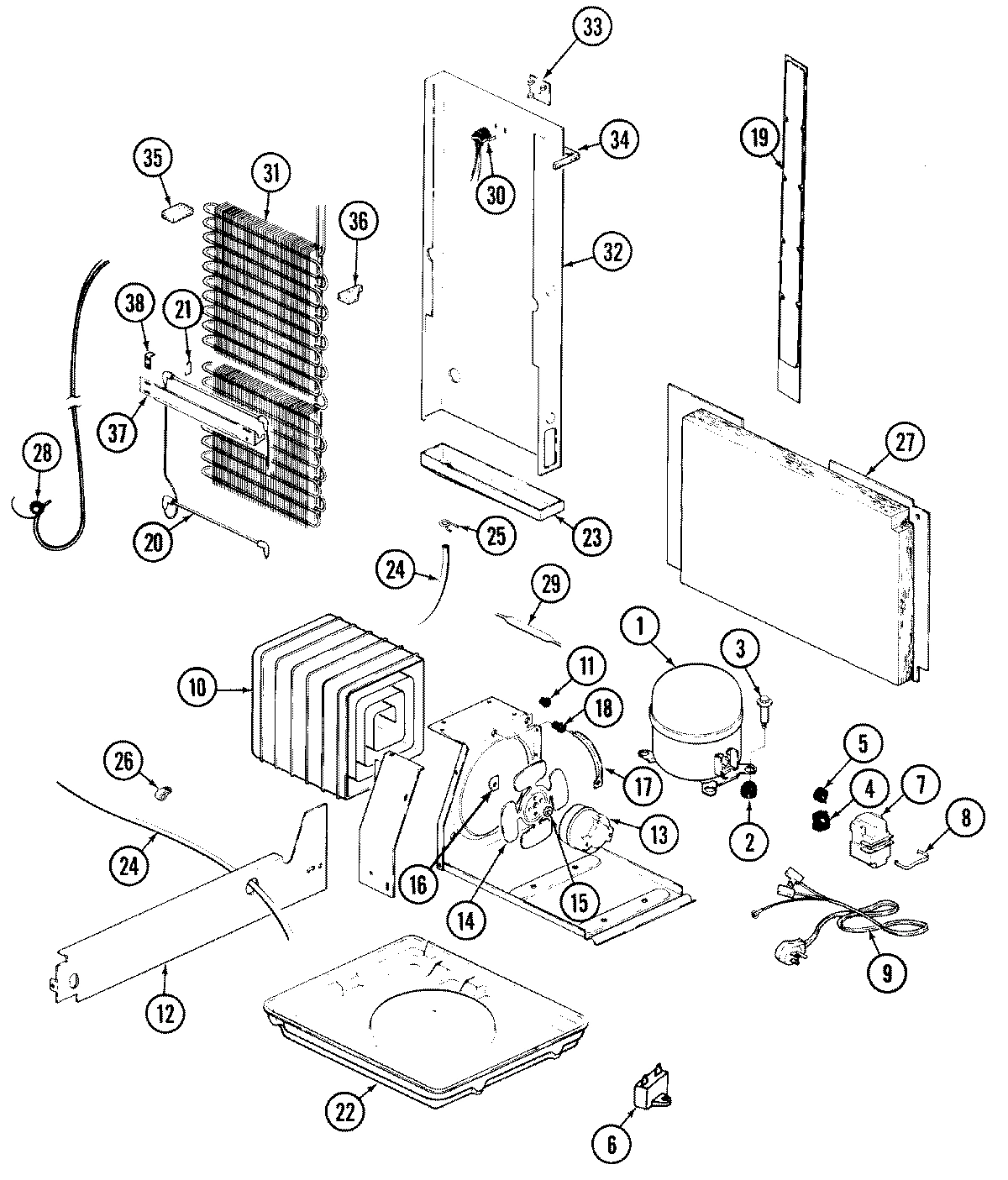

09 - UNIT COMPARTMENT & SYSTEM

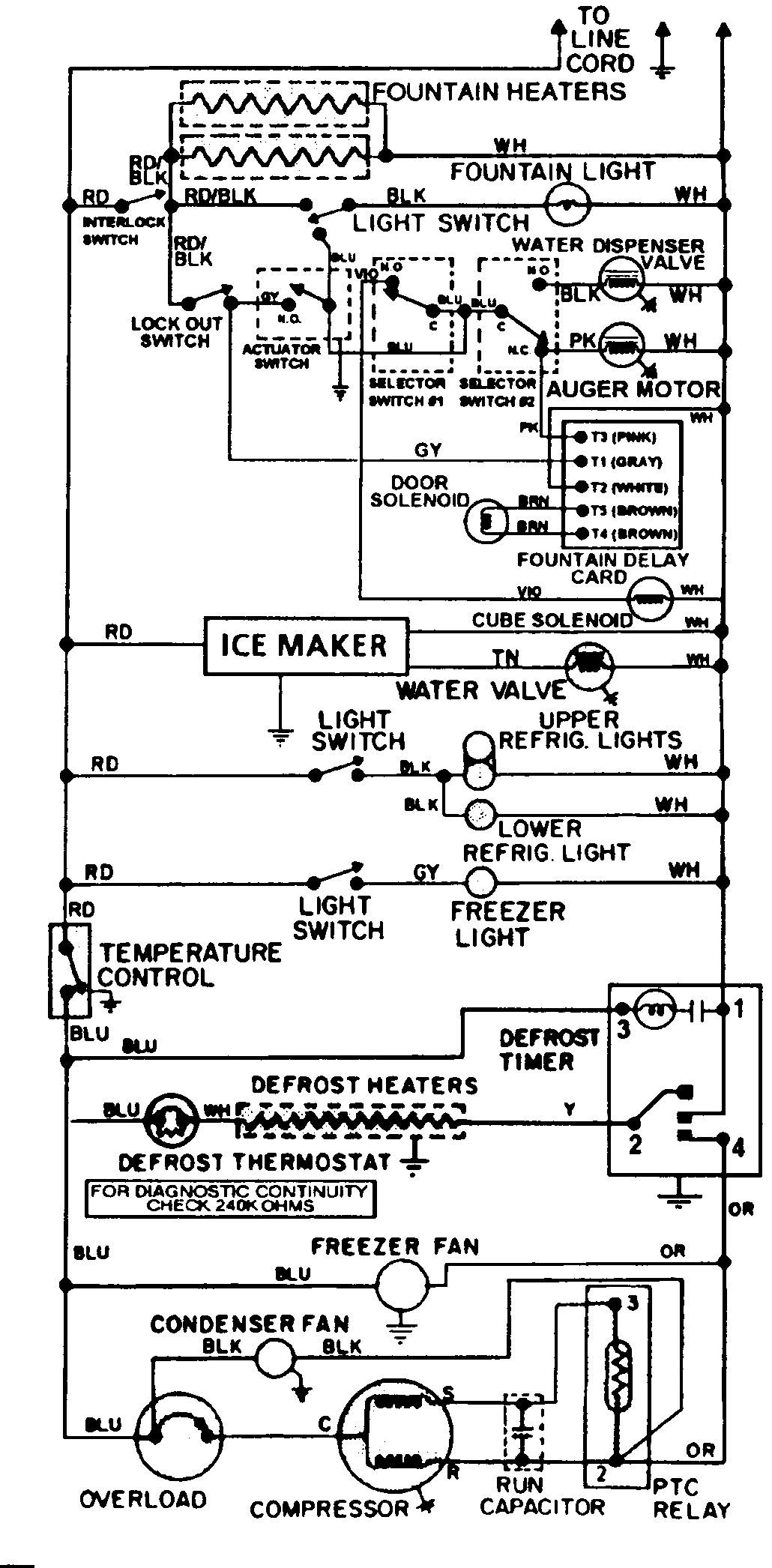

10 - WIRING INFORMATION
Common parts from model Maytag JRSDE228A REFRIGERATOR
1
MAY 495034-900 MAY 495034-900 Contact Us For Availability
1
MAY 72446-705-AM MAY 72446-705-AM Contact Us For Availability
1
MAY 401024-1 MAY 401024-1 Contact Us For Availability
1
MAY 69694-3 MAY 69694-3 Contact Us For Availability
1
MAY 72448-705-AM MAY 72448-705-AM Contact Us For Availability
1
MAY 12000057 MAY 12000057 Contact Us For Availability
1
MAY 69683-1 MAY 69683-1 Contact Us For Availability
1
MAY 69840-1 MAY 69840-1 Contact Us For Availability
1
MAY 69841-1 MAY 69841-1 Contact Us For Availability
1
MAY 69719-1 MAY 69719-1 Contact Us For Availability
1
MAY 400031-1 MAY 400031-1 Contact Us For Availability
1
MAY 95109-1 MAY 95109-1 Contact Us For Availability
1
MAY 400037-28 MAY 400037-28 Contact Us For Availability
1
MAY 12000058 MAY 12000058 Contact Us For Availability
1
MAY 69062-1 MAY 69062-1 Contact Us For Availability
2
MAY 69804-1 MAY 69804-1 Contact Us For Availability
2
MAY 68978-3 MAY 68978-3 Contact Us For Availability
2
MAY 70178-1 MAY 70178-1 Contact Us For Availability
2
MAY 69686-4 MAY 69686-4 Contact Us For Availability
2
MAY 69875-23 MAY 69875-23 Contact Us For Availability
2
MAY 68328-2 MAY 68328-2 Contact Us For Availability
2
MAY 67311-1 MAY 67311-1 Contact Us For Availability
2
MAY 17245-4 MAY 17245-4 Contact Us For Availability
3
MAY 69252-1 MAY 69252-1 Contact Us For Availability
3
MAY 65275-37 MAY 65275-37 Contact Us For Availability
3
MAY 70305-18 MAY 70305-18 Contact Us For Availability
3
MAY 67145-3 MAY 67145-3 Contact Us For Availability
3
MAY 69920-2 MAY 69920-2 Contact Us For Availability
3
SCREW MAY 95106-1 Contact Us For Availability
3
MAY 67308-7 MAY 67308-7 Contact Us For Availability
3
MAY 65275-9 MAY 65275-9 Contact Us For Availability
4
MAY 67351-1 MAY 67351-1 Contact Us For Availability
4
MAY 69795-1 MAY 69795-1 Contact Us For Availability
4
MAY 67223-1 MAY 67223-1 Contact Us For Availability
4
MAY 28272-6 MAY 28272-6 Contact Us For Availability
4
MAY 401018-1 MAY 401018-1 Contact Us For Availability
4
MAY 61001021 MAY 61001021 Contact Us For Availability
4
MAY 70310-2 MAY 70310-2 Contact Us For Availability
4
MAY 70310-4 MAY 70310-4 Contact Us For Availability
4
MAY 66588-5 MAY 66588-5 Contact Us For Availability
5
MAY 70024-1 MAY 70024-1 Contact Us For Availability
5
MAY 65275-85 MAY 65275-85 Contact Us For Availability
5
MAY 70306-2 MAY 70306-2 Contact Us For Availability
5
MAY 58767-1 MAY 58767-1 Contact Us For Availability
5
MAY 69682-3 MAY 69682-3 Contact Us For Availability
5
MAY 69756-1 MAY 69756-1 Contact Us For Availability
5
MAY 67676-1 MAY 67676-1 Contact Us For Availability
5
MAY 70307-4 MAY 70307-4 Contact Us For Availability
5
MAY 69105-8 MAY 69105-8 Contact Us For Availability
6
MAY 70306-1 MAY 70306-1 Contact Us For Availability
6
MAY 67355-1 MAY 67355-1 Contact Us For Availability
6
MAY 69583-2 MAY 69583-2 Contact Us For Availability
6
MAY 69704-1 MAY 69704-1 Contact Us For Availability
6
MAY 67491-2 MAY 67491-2 Contact Us For Availability
7
MAY 414004-1 MAY 414004-1 Contact Us For Availability
7
MAY 69258-1 MAY 69258-1 Contact Us For Availability
7
MAY 52648-1 MAY 52648-1 Contact Us For Availability
7
MAY 67649-13 MAY 67649-13 Contact Us For Availability
7
MAY 66589-2 MAY 66589-2 Contact Us For Availability
8
MAY 65275-59 MAY 65275-59 Contact Us For Availability
8
MAY 67874-1 MAY 67874-1 Contact Us For Availability
8
MAY 400053-1 MAY 400053-1 Contact Us For Availability
8
MAY 67354-1 MAY 67354-1 Contact Us For Availability
8
MAY 70044-1 MAY 70044-1 Contact Us For Availability
8
MAY 67187-10 MAY 67187-10 Contact Us For Availability
8
MAY 69718-1 MAY 69718-1 Contact Us For Availability
8
MAY 70281-1 MAY 70281-1 Contact Us For Availability
8
MAY 65886-1 MAY 65886-1 Contact Us For Availability
9
MAY 67579-2 MAY 67579-2 Contact Us For Availability
9
MAY 65660-2 MAY 65660-2 Contact Us For Availability
9
MAY 67145-4 MAY 67145-4 Contact Us For Availability
9
MAY 69243-1 MAY 69243-1 Contact Us For Availability
9
MAY 69928-6 MAY 69928-6 Contact Us For Availability
9
MAY 52890-3 MAY 52890-3 Contact Us For Availability
10
MAY 67423-2 MAY 67423-2 Contact Us For Availability
10
MAY 70024-4 MAY 70024-4 Contact Us For Availability
10
MAY 400014-1 MAY 400014-1 Contact Us For Availability
10
MAY 400001-1 MAY 400001-1 Contact Us For Availability
10
MAY 65275-74 MAY 65275-74 Contact Us For Availability
10
MAY 69681-6 MAY 69681-6 Contact Us For Availability
10
MAY 69733-1 MAY 69733-1 Contact Us For Availability
10
MAY 70122-1 MAY 70122-1 Contact Us For Availability
10
MAY 414001-1 MAY 414001-1 Contact Us For Availability
10
MAY 60408-2 MAY 60408-2 Contact Us For Availability
10
MAY 64998-1 MAY 64998-1 Contact Us For Availability
11
MAY 65275-6 MAY 65275-6 Contact Us For Availability
11
MAY 420028-1 MAY 420028-1 Contact Us For Availability
11
MAY 31956-1 MAY 31956-1 Contact Us For Availability
11
MAY 69918-3 MAY 69918-3 Contact Us For Availability
11
MAY 70023-2 MAY 70023-2 Contact Us For Availability
11
MAY 53351-1 MAY 53351-1 Contact Us For Availability
12
MAY 405004-35 MAY 405004-35 Contact Us For Availability
12
MAY 69907-20 MAY 69907-20 Contact Us For Availability
12
MAY 29813-1 MAY 29813-1 Contact Us For Availability
12
MAY 29936-2 MAY 29936-2 Contact Us For Availability
12
MAY 70022-9 MAY 70022-9 Contact Us For Availability
12
MAY 70324-9 MAY 70324-9 Contact Us For Availability
12
MAY 69714-1 MAY 69714-1 Contact Us For Availability
12
MAY 68690-2 MAY 68690-2 Contact Us For Availability
12
MAY 70362-1 MAY 70362-1 Contact Us For Availability
13
MAY 69870-30 MAY 69870-30 Contact Us For Availability
13
MAY 67751-2 MAY 67751-2 Contact Us For Availability
13
MAY 69871-3 MAY 69871-3 Contact Us For Availability
13
MAY 69751-4 MAY 69751-4 Contact Us For Availability
13
MAY 69716-1 MAY 69716-1 Contact Us For Availability
13
MAY 95093-1 MAY 95093-1 Contact Us For Availability
13
MAY 68755-2 MAY 68755-2 Contact Us For Availability
13
MAY 65275-33 MAY 65275-33 Contact Us For Availability
14
MAY 69870-29 MAY 69870-29 Contact Us For Availability
14
MAY 68981-5 MAY 68981-5 Contact Us For Availability
14
MAY 28013-2 MAY 28013-2 Contact Us For Availability
14
MAY 69872-3 MAY 69872-3 Contact Us For Availability
14
MAY 67293-1 MAY 67293-1 Contact Us For Availability
14
MAY 70119-1 MAY 70119-1 Contact Us For Availability
14
MAY 69717-1 MAY 69717-1 Contact Us For Availability
15
MAY 60100-1 MAY 60100-1 Contact Us For Availability
15
MAY 69845-1 MAY 69845-1 Contact Us For Availability
15
MAY 69873-21 MAY 69873-21 Contact Us For Availability
15
MAY 63179-1 MAY 63179-1 Contact Us For Availability
15
MAY 69707-1 MAY 69707-1 Contact Us For Availability
15
MAY 69779-1 MAY 69779-1 Contact Us For Availability
15
MAY 69063-1 MAY 69063-1 Contact Us For Availability
16
MAY 67113-5 MAY 67113-5 Contact Us For Availability
16
MAY 69759-2 MAY 69759-2 Contact Us For Availability
16
MAY 69832-4 MAY 69832-4 Contact Us For Availability
16
MAY 69832-6 MAY 69832-6 Contact Us For Availability
16
MAY 69699-1 MAY 69699-1 Contact Us For Availability
16
MAY 67892-6 MAY 67892-6 Contact Us For Availability
17
MAY 420092-900 MAY 420092-900 Contact Us For Availability
17
MAY 52120-4 MAY 52120-4 Contact Us For Availability
17
MAY 67125-1 MAY 67125-1 Contact Us For Availability
17
MAY 69904-1 MAY 69904-1 Contact Us For Availability
17
MAY 69698-1 MAY 69698-1 Contact Us For Availability
17
MAY 67895-1 MAY 67895-1 Contact Us For Availability
17
MAY 67895-2 MAY 67895-2 Contact Us For Availability
17
MAY 69181-1 MAY 69181-1 Contact Us For Availability
18
MAY 64856-1 MAY 64856-1 Contact Us For Availability
18
MAY 69510-1 MAY 69510-1 Contact Us For Availability
18
MAY 55440-1 MAY 55440-1 Contact Us For Availability
18
MAY 70036-1 MAY 70036-1 Contact Us For Availability
18
MAY 65275-28 MAY 65275-28 Contact Us For Availability
18
MAY 56933-1 MAY 56933-1 Contact Us For Availability
19
MAY 67764-1 MAY 67764-1 Contact Us For Availability
19
MAY 69732-1 MAY 69732-1 Contact Us For Availability
19
MAY 69261-1 MAY 69261-1 Contact Us For Availability
19
MAY 69982-1 MAY 69982-1 Contact Us For Availability
19
MAY 415041-35 MAY 415041-35 Contact Us For Availability
19
MAY 55440-3 MAY 55440-3 Contact Us For Availability
19
MAY 69755-1 MAY 69755-1 Contact Us For Availability
19
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
19
MAY 66381-1 MAY 66381-1 Contact Us For Availability
19
MAY 70263-1 MAY 70263-1 Contact Us For Availability
20
MAY 69725-2 MAY 69725-2 Contact Us For Availability
20
MAY 52613-1 MAY 52613-1 Contact Us For Availability
20
MAY 70049-1 MAY 70049-1 Contact Us For Availability
20
MAY 69796-1 MAY 69796-1 Contact Us For Availability
20
MAY 69701-1 MAY 69701-1 Contact Us For Availability
20
MAY 95108-1 MAY 95108-1 Contact Us For Availability
20
MAY 69848-1 MAY 69848-1 Contact Us For Availability
21
MAY 69314-1 MAY 69314-1 Contact Us For Availability
21
MAY 70121-3 MAY 70121-3 Contact Us For Availability
21
MAY 67684-1 MAY 67684-1 Contact Us For Availability
21
MAY 68942-1 MAY 68942-1 Contact Us For Availability
21
MAY 69797-1 MAY 69797-1 Contact Us For Availability
21
MAY 69709-1 MAY 69709-1 Contact Us For Availability
21
MAY 70076-1 MAY 70076-1 Contact Us For Availability
21
MAY 69928-2 MAY 69928-2 Contact Us For Availability
21
MAY 52067-1 MAY 52067-1 Contact Us For Availability
22
MAY 68236-1 MAY 68236-1 Contact Us For Availability
22
MAY 53709-22 MAY 53709-22 Contact Us For Availability
22
MAY 65275-52 MAY 65275-52 Contact Us For Availability
22
MAY 69516-3 MAY 69516-3 Contact Us For Availability
22
MAY 69941-2 MAY 69941-2 Contact Us For Availability
22
MAY 69706-1 MAY 69706-1 Contact Us For Availability
22
MAY 69928-7 MAY 69928-7 Contact Us For Availability
23
MAY 65275-5 MAY 65275-5 Contact Us For Availability
23
MAY 69812-1 MAY 69812-1 Contact Us For Availability
23
MAY 69702-1 MAY 69702-1 Contact Us For Availability
23
MAY 67489-8 MAY 67489-8 Contact Us For Availability
23
MAY 53523-1 MAY 53523-1 Contact Us For Availability
24
MAY 23197-8 MAY 23197-8 Contact Us For Availability
24
MAY 64965-1 MAY 64965-1 Contact Us For Availability
24
MAY 69675-6 MAY 69675-6 Contact Us For Availability
24
MAY 69702-2 MAY 69702-2 Contact Us For Availability
24
MAY 67891-4 MAY 67891-4 Contact Us For Availability
24
MAY 26911-18 MAY 26911-18 Contact Us For Availability
25
MAY 68957-2 MAY 68957-2 Contact Us For Availability
25
MAY 67178-7 MAY 67178-7 Contact Us For Availability
25
MAY 65031-1 MAY 65031-1 Contact Us For Availability
25
MAY 70060-1 MAY 70060-1 Contact Us For Availability
25
MAY 62794-1 MAY 62794-1 Contact Us For Availability
25
MAY 65275-1 MAY 65275-1 Contact Us For Availability
25
MAY 69702-3 MAY 69702-3 Contact Us For Availability
25
MAY 70337-2 MAY 70337-2 Contact Us For Availability
26
MAY 69219-1 MAY 69219-1 Contact Us For Availability
26
MAY 65275-51 MAY 65275-51 Contact Us For Availability
26
MAY 67280-1 MAY 67280-1 Contact Us For Availability
26
MAY 69516-4 MAY 69516-4 Contact Us For Availability
26
MAY 68566-1 MAY 68566-1 Contact Us For Availability
26
MAY 69708-1 MAY 69708-1 Contact Us For Availability
26
MAY 65275-34 MAY 65275-34 Contact Us For Availability
26
MAY 53516-5 MAY 53516-5 Contact Us For Availability
27
MAY 26527-11 MAY 26527-11 Contact Us For Availability
27
MAY 56487-5 MAY 56487-5 Contact Us For Availability
27
MAY 405116-35 MAY 405116-35 Contact Us For Availability
27
MAY 69705-1 MAY 69705-1 Contact Us For Availability
27
MAY 69779-2 MAY 69779-2 Contact Us For Availability
27
MAY 66339-3 MAY 66339-3 Contact Us For Availability
28
MAY 52526-1 MAY 52526-1 Contact Us For Availability
28
MAY 65275-56 MAY 65275-56 Contact Us For Availability
28
MAY 59101-1 MAY 59101-1 Contact Us For Availability
28
MAY 68557-1 MAY 68557-1 Contact Us For Availability
28
MAY 69697-1 MAY 69697-1 Contact Us For Availability
28
MAY 26088-22 MAY 26088-22 Contact Us For Availability
28
MAY 65013-16 MAY 65013-16 Contact Us For Availability
28
MAY 66223-1 MAY 66223-1 Contact Us For Availability
29
MAY 69867-1 MAY 69867-1 Contact Us For Availability
29
MAY 70135-18 MAY 70135-18 Contact Us For Availability
29
MAY 64965-3 MAY 64965-3 Contact Us For Availability
29
MAY 69696-1 MAY 69696-1 Contact Us For Availability
29
MAY 13900 MAY 13900 Contact Us For Availability
30
MAY 52085-29 MAY 52085-29 Contact Us For Availability
30
MAY 67488-2 MAY 67488-2 Contact Us For Availability
30
MAY 69353-1 MAY 69353-1 Contact Us For Availability
30
MAY 61001031 MAY 61001031 Contact Us For Availability
30
MAY 65275-42 MAY 65275-42 Contact Us For Availability
30
MAY 69868-1 MAY 69868-1 Contact Us For Availability
30
MAY 69696-2 MAY 69696-2 Contact Us For Availability
31
MAY 70135-17 MAY 70135-17 Contact Us For Availability
31
MAY 67476-7 MAY 67476-7 Contact Us For Availability
31
MAY 67339-1 MAY 67339-1 Contact Us For Availability
31
MAY 52551-21 MAY 52551-21 Contact Us For Availability
32
MAY 67123-2 MAY 67123-2 Contact Us For Availability
32
MAY 405007-1 MAY 405007-1 Contact Us For Availability
32
MAY 53808-38 MAY 53808-38 Contact Us For Availability
32
MAY 406026-103 MAY 406026-103 Contact Us For Availability
32
MAY 69730-1 MAY 69730-1 Contact Us For Availability
32
MAY 68834-1 MAY 68834-1 Contact Us For Availability
33
MAY 67883-3 MAY 67883-3 Contact Us For Availability
33
MAY 67124-1 MAY 67124-1 Contact Us For Availability
33
MAY 67243-1 MAY 67243-1 Contact Us For Availability
33
MAY 72353-50 MAY 72353-50 Contact Us For Availability
33
MAY 55878-1 MAY 55878-1 Contact Us For Availability
34
MAY 69715-1 MAY 69715-1 Contact Us For Availability
34
MAY 65275-19 MAY 65275-19 Contact Us For Availability
34
MAY 68974-3 MAY 68974-3 Contact Us For Availability
34
MAY 406033-1 MAY 406033-1 Contact Us For Availability
34
MAY 66325-17 MAY 66325-17 Contact Us For Availability
35
MAY 400015-36 MAY 400015-36 Contact Us For Availability
35
MAY 70136-2 MAY 70136-2 Contact Us For Availability
35
MAY 20174-6 MAY 20174-6 Contact Us For Availability
35
MAY 69688-1 MAY 69688-1 Contact Us For Availability
35
MAY 65063-1 MAY 65063-1 Contact Us For Availability
36
MAY 69710-2 MAY 69710-2 Contact Us For Availability
36
MAY 67466-1 MAY 67466-1 Contact Us For Availability
36
MAY 67242-1 MAY 67242-1 Contact Us For Availability
36
MAY 400026-36 MAY 400026-36 Contact Us For Availability
36
MAY 65064-1 MAY 65064-1 Contact Us For Availability
37
MAY 62830-7 MAY 62830-7 Contact Us For Availability
37
MAY 67291-3 MAY 67291-3 Contact Us For Availability
37
MAY 29915-12 MAY 29915-12 Contact Us For Availability
38
MAY 67616-1 MAY 67616-1 Contact Us For Availability
38
MAY 52561-1 MAY 52561-1 Contact Us For Availability
39
MAY 68837-1 MAY 68837-1 Contact Us For Availability
39
MAY 109362-1 MAY 109362-1 Contact Us For Availability
39
MAY 16000326 MAY 16000326 Contact Us For Availability
40
MAY 67187-29 MAY 67187-29 Contact Us For Availability
41
MAY 67610-1 MAY 67610-1 Contact Us For Availability
42
MAY 69316-1 MAY 69316-1 Contact Us For Availability
43
MAY 52077-27 MAY 52077-27 Contact Us For Availability
44
MAY 27116-5 MAY 27116-5 Contact Us For Availability
45
MAY 69591-2 MAY 69591-2 Contact Us For Availability
45
MAY 69801-2 MAY 69801-2 Contact Us For Availability
45
MAY 69902-1 MAY 69902-1 Contact Us For Availability
45
MAY 69903-1 MAY 69903-1 Contact Us For Availability
NI
MAY 15001152 MAY 15001152 Contact Us For Availability
× ![]()
