Model Whirlpool JRSD278B REFRIGERATOR – Common Parts & Diagrams

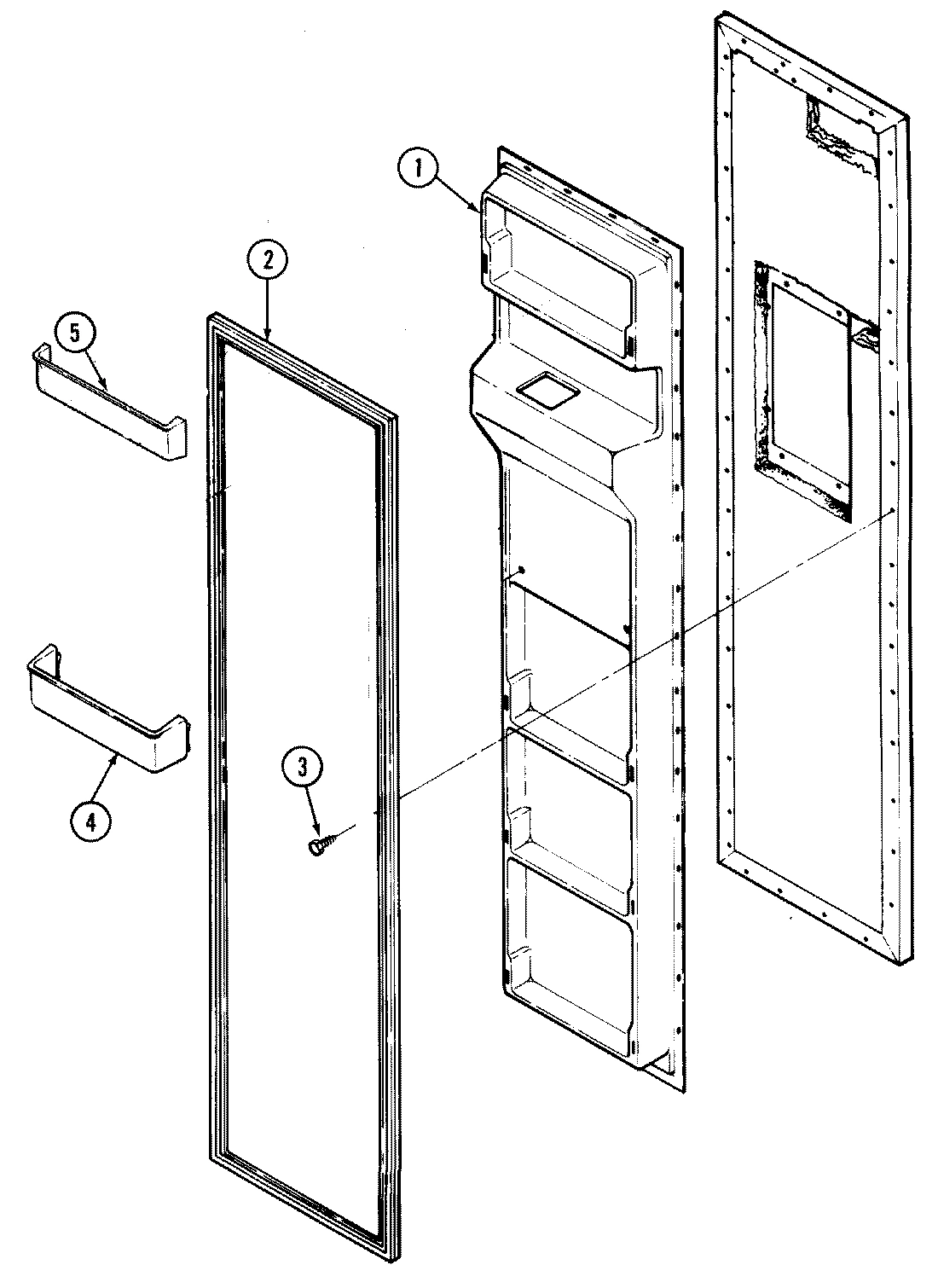

02 - FREEZER INNER DOOR

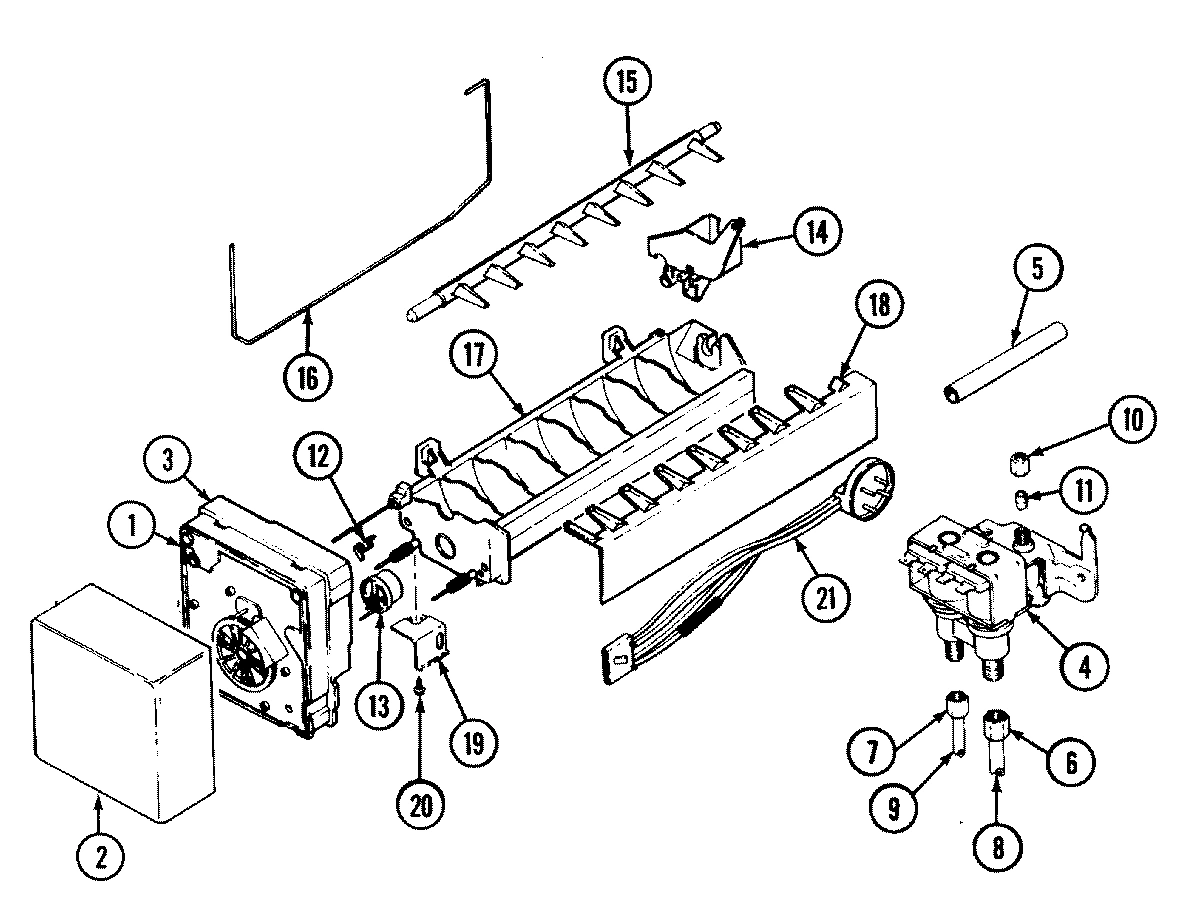

07 - ICE MAKER

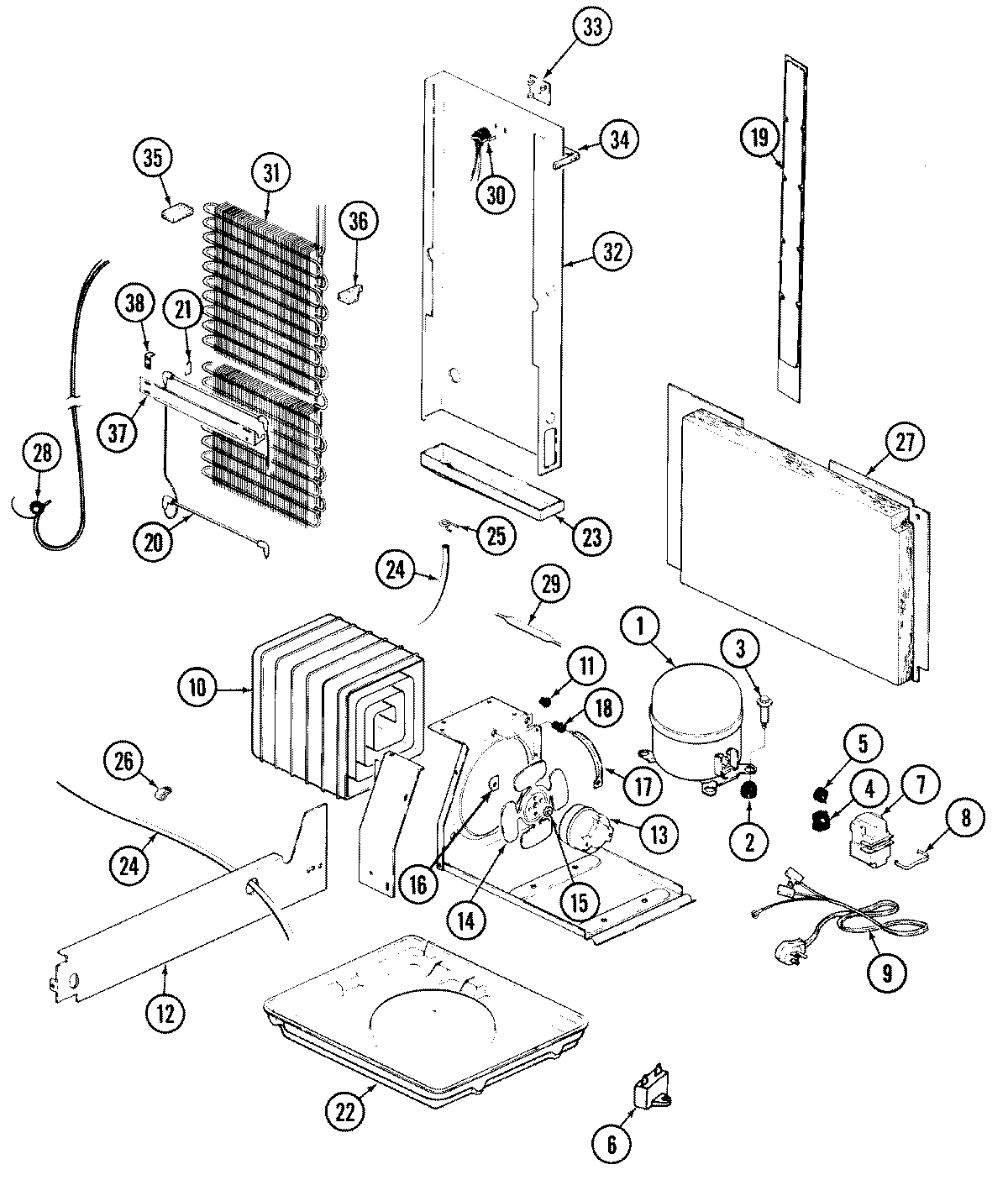

09 - UNIT COMPARTMENT & SYSTEM

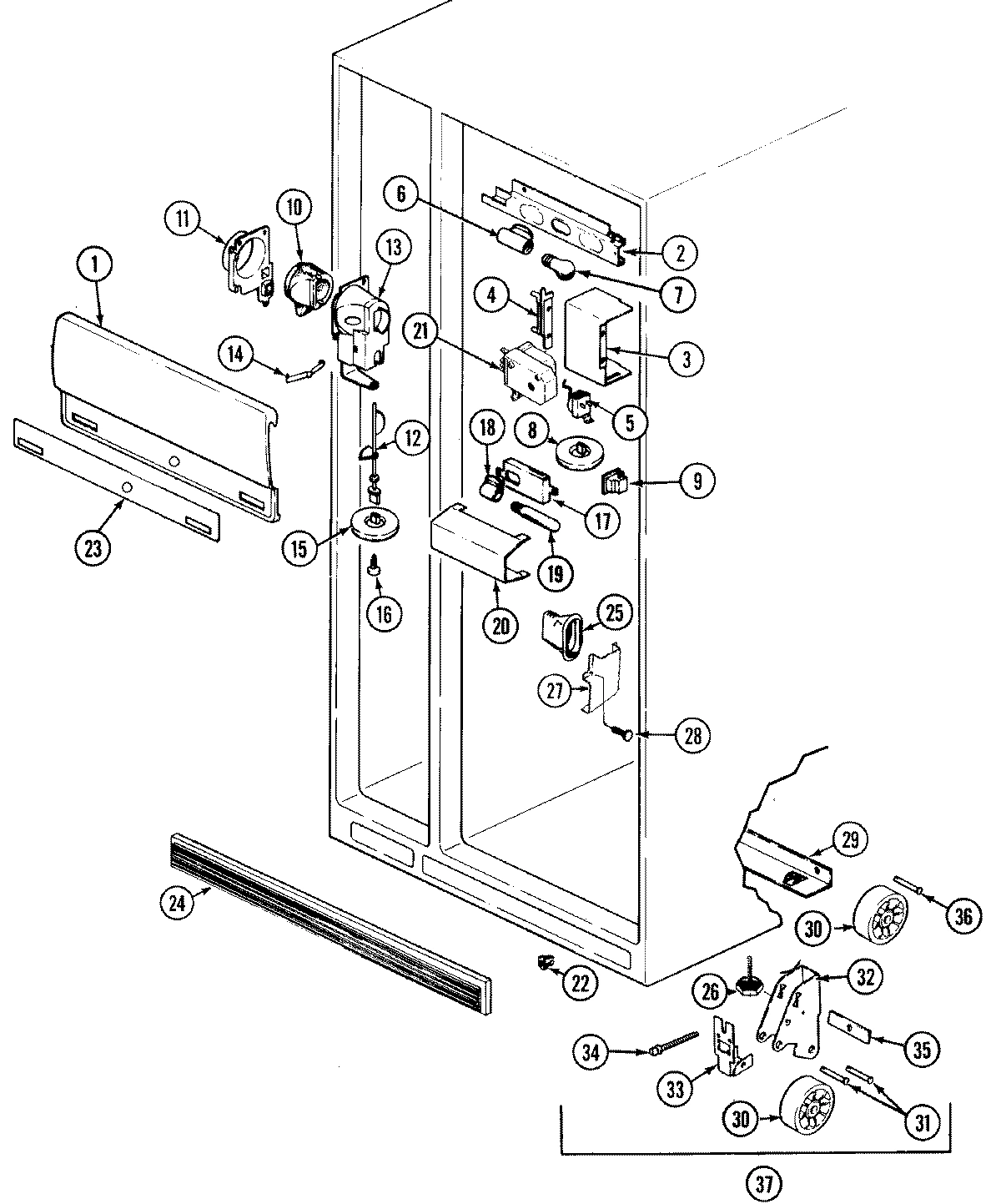

03 - FRESH FOOD COMPARTMENT

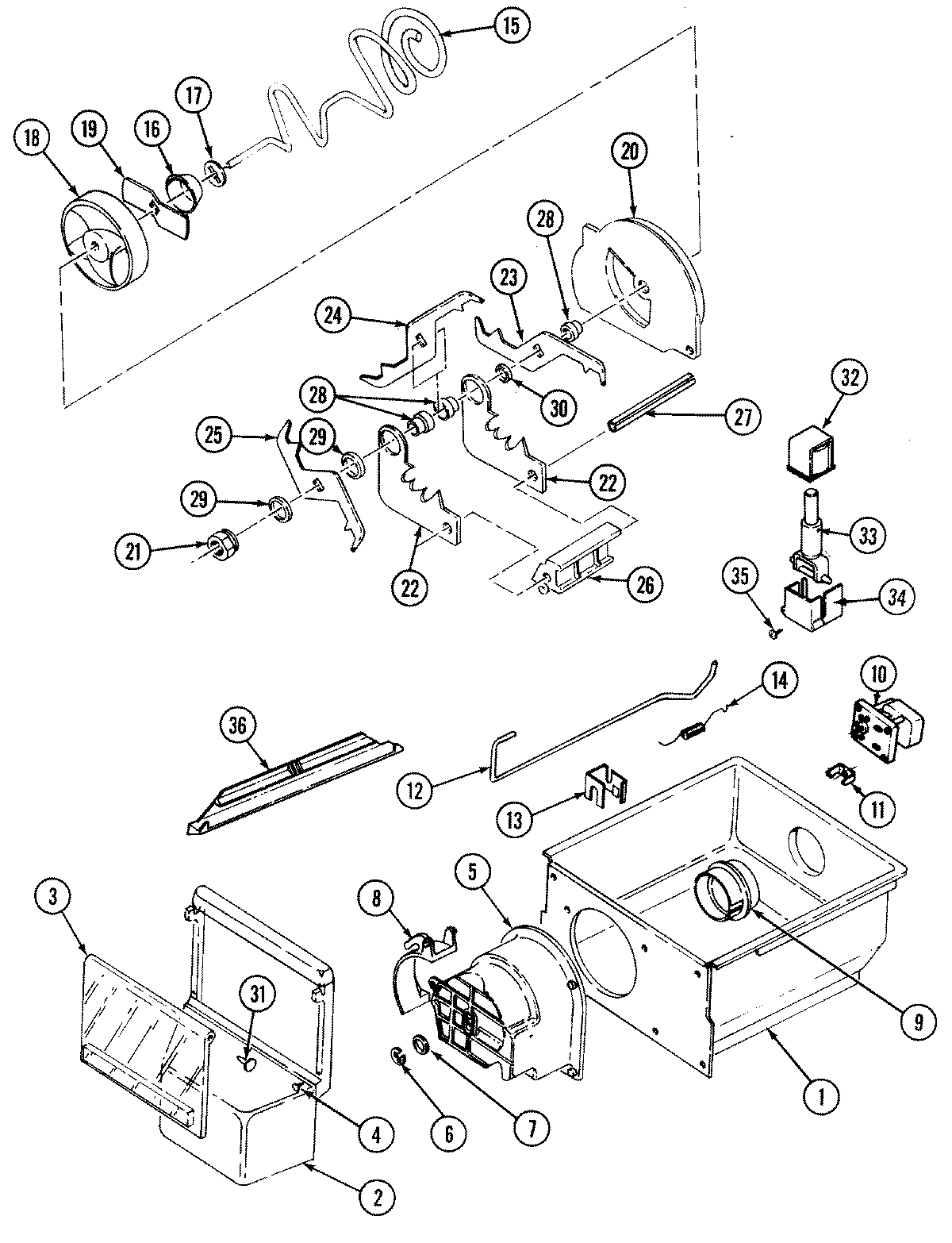

06 - ICE CRUSHER & BIN

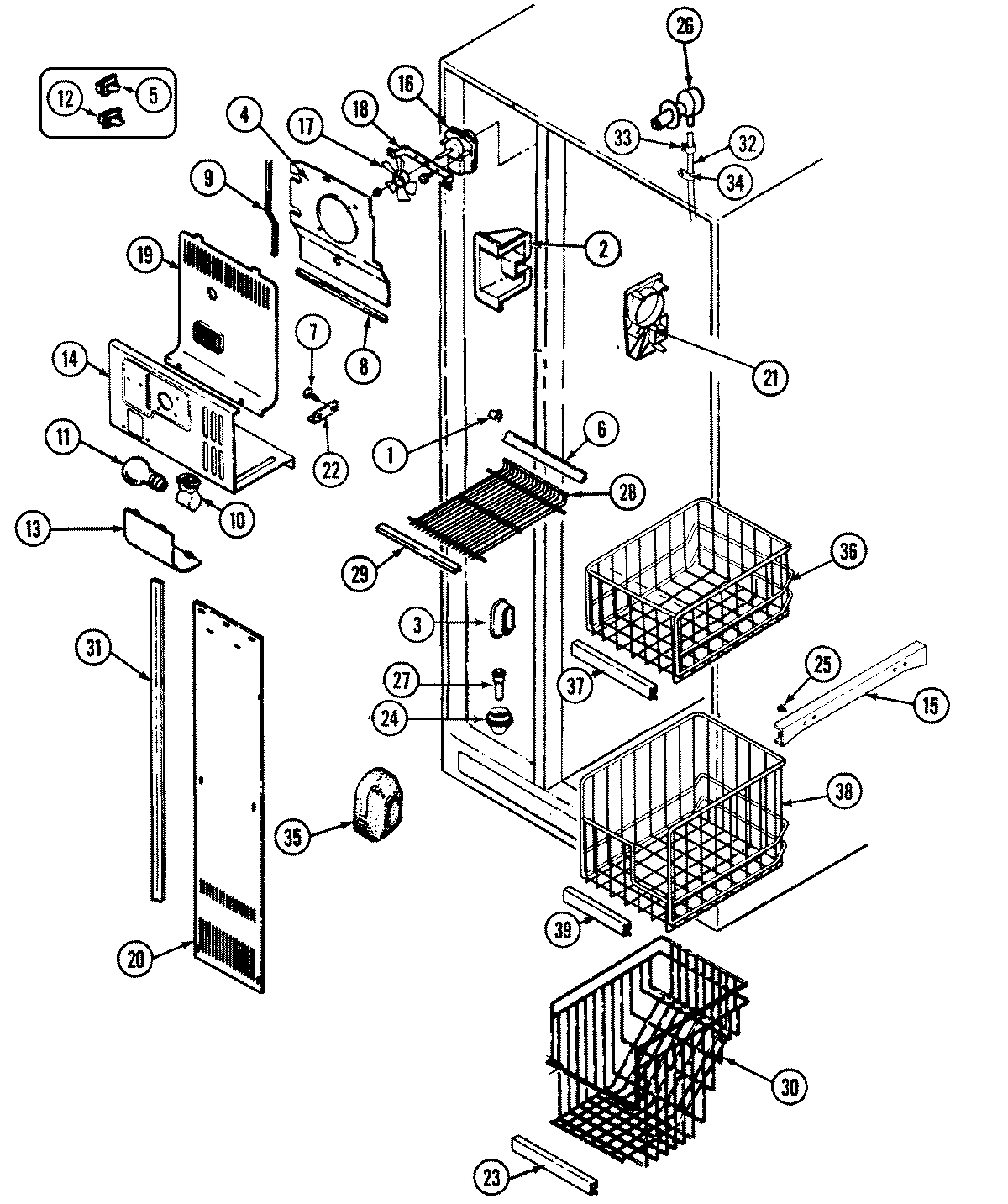

01 - FREEZER COMPARTMENT

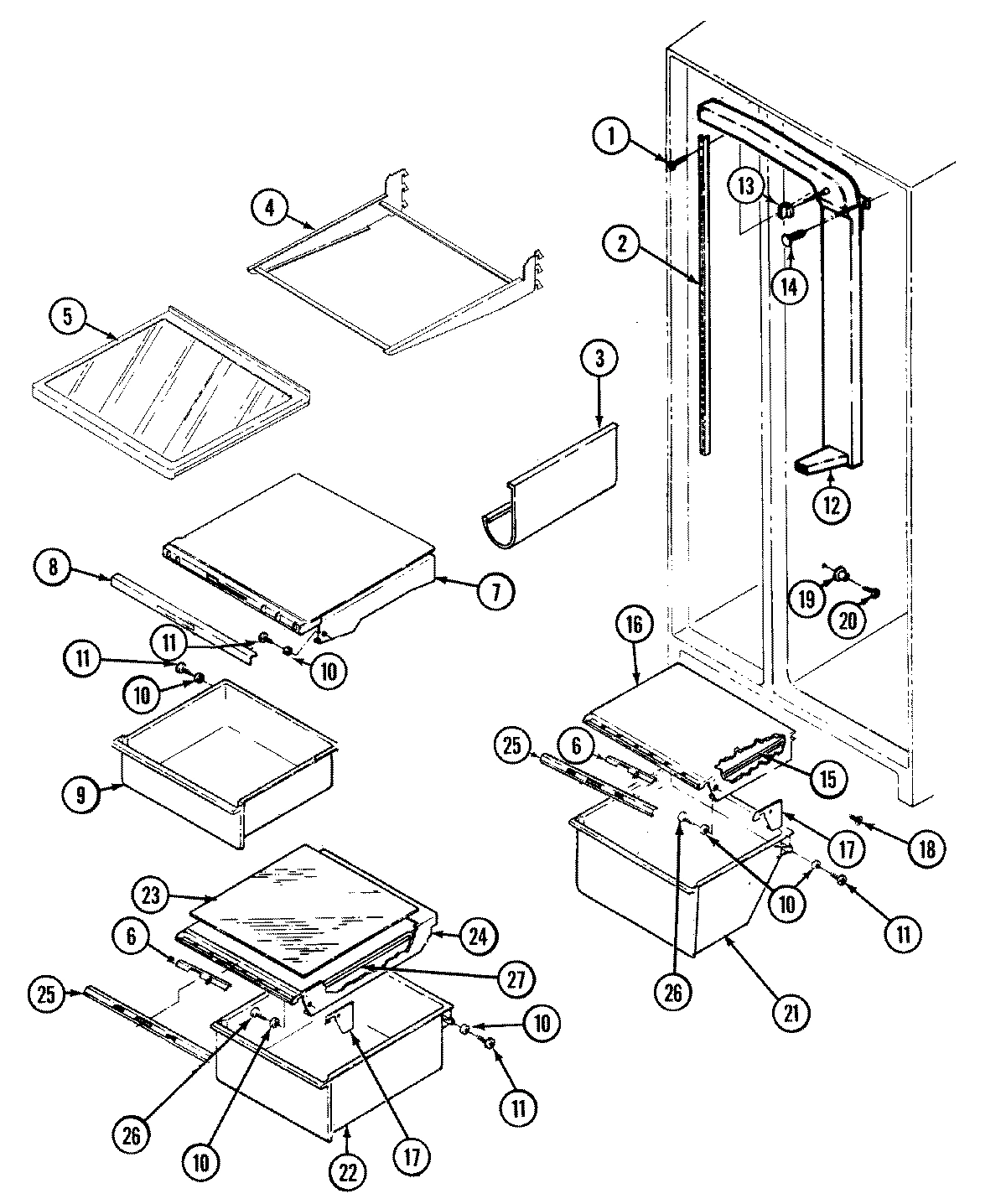

08 - SHELVES & ACCESSORIES

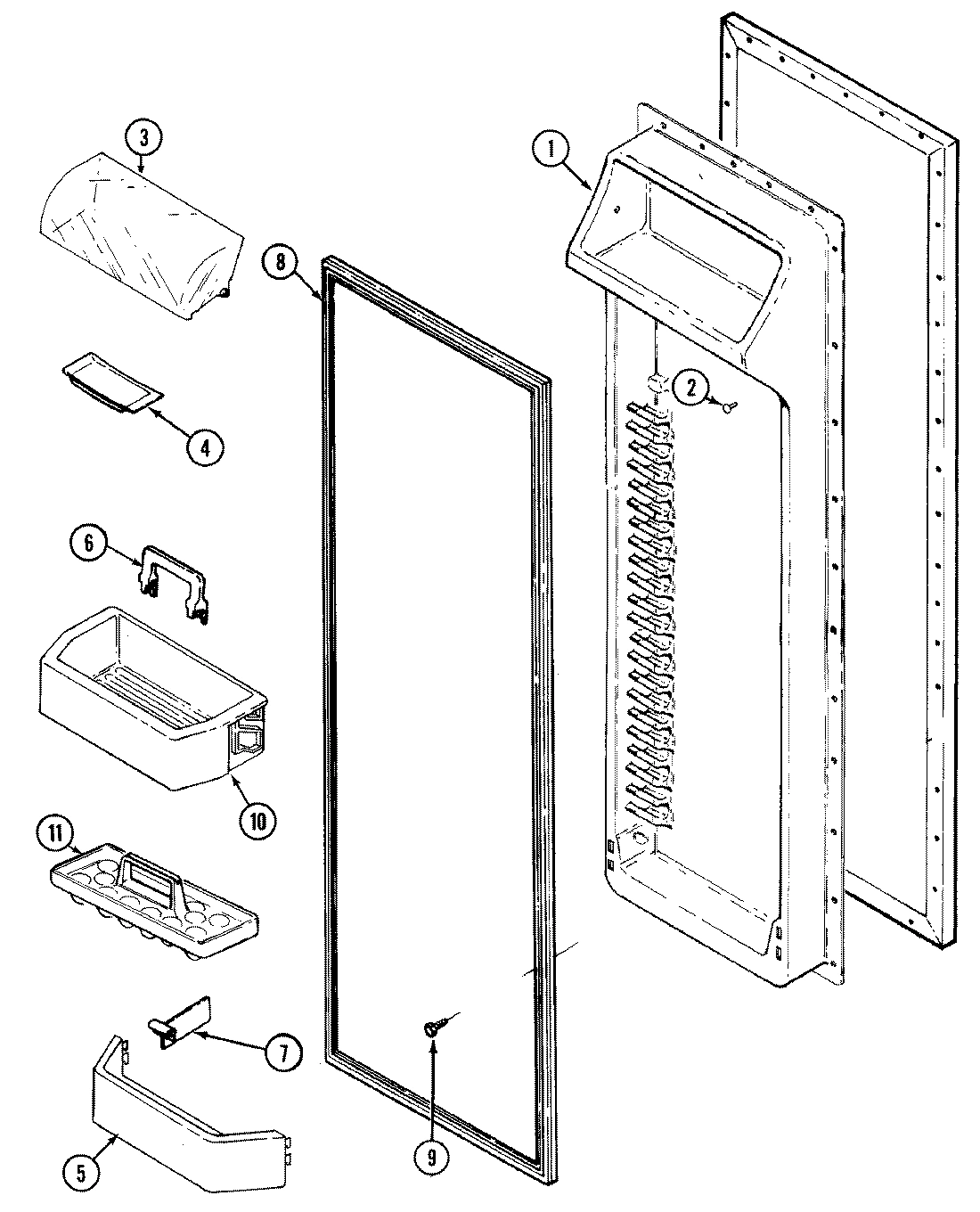

04 - FRESH FOOD INNER DOOR

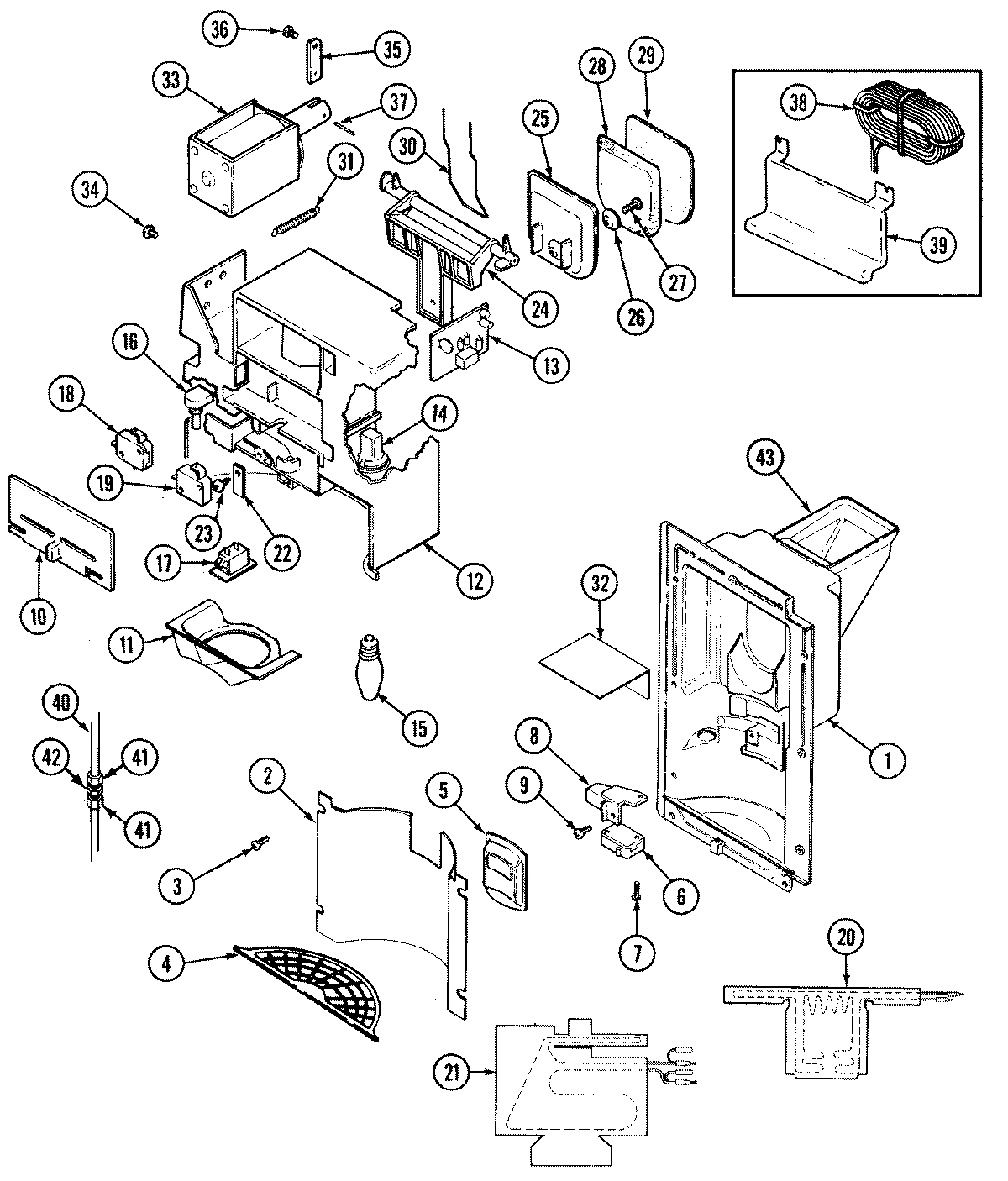

05 - ICE & WATER DISPENSER

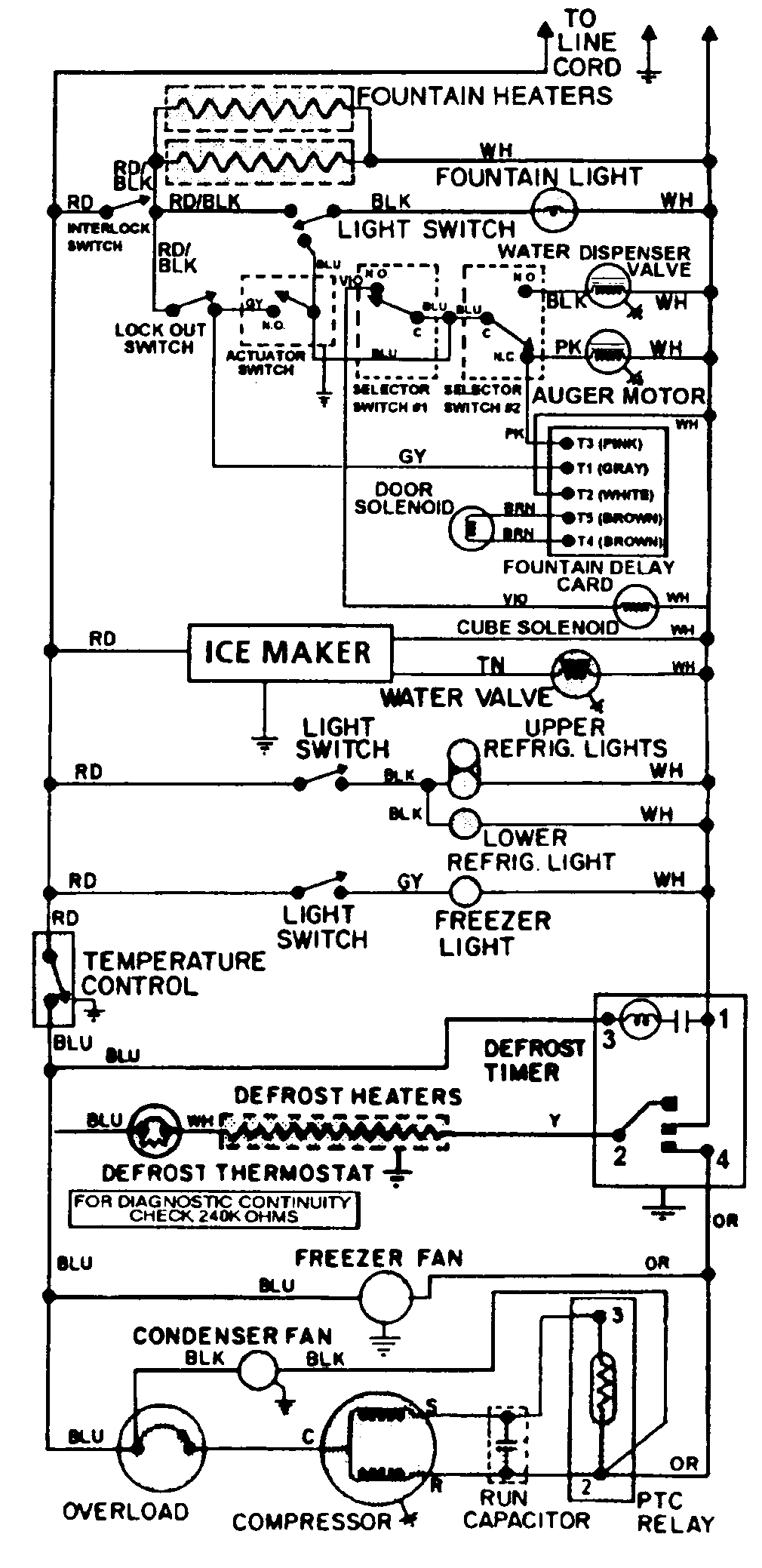

10 - WIRING INFORMATION
Common parts from model Whirlpool JRSD278B REFRIGERATOR
1
SCREW WPL 4000311 Contact Us For Availability
1
ICEMAKER WPL 951091 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000058 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
SHIELD, LIGHT WPL 671135 Contact Us For Availability
1
BIN, ICE WPL 702201 Contact Us For Availability
1
CUP, SHELF WPL 674661 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
LINER, F.F. DOOR WPL 702231 Contact Us For Availability
1
KIT, FOUNTAIN ASSY. WPL 12000057 Contact Us For Availability
1
INSULATION FOUNTAIN WPL 698401 Contact Us For Availability
1
INSULATION, BONNET TOP WPL 698412 Contact Us For Availability
1
INSULATION, FTN. BACK WPL 702351 Contact Us For Availability
2
COVER, ICE MAKER WPL 683282 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HOUSING, LIGHT SOCKET & WIRES WPL 677512 Contact Us For Availability
2
FRONT, ICE BIN WPL 6987524 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
LINER, FOUNTAIN (BLK) WPL 696869 Contact Us For Availability
3
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
3
SCREW WPL 951061 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
3
DOOR, DISP BIN ASSY. WPL 699201 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
HOLDER, WINE BOTTLE WPL 673087 Contact Us For Availability
3
DOOR, DAIRY WPL 702154 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
4
FRONT, PICK OFF WPL 7020915 Contact Us For Availability
4
SCREW WPL 4010181 Contact Us For Availability
4
VALVE, WATER (120V) WPL 61001021 Contact Us For Availability
4
RELAY, START WPL 665885 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
COVER, COIL UPPER WPL 672976 Contact Us For Availability
4
FRAME, SHELF WPL 703102 Contact Us For Availability
4
FRAME, MEAT SHELF WPL 703104 Contact Us For Availability
4
TRAY, BUTTER WPL 299362 Contact Us For Availability
4
GRILL,FOUNTAIN WPL 672231 Contact Us For Availability
5
FRONT, PICK OFF WPL 7020914 Contact Us For Availability
5
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
5
OVERLOAD WPL 691058 Contact Us For Availability
5
SCREW WPL 4010241 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
5
HOUSING, CRUSHER WPL 697561 Contact Us For Availability
5
SWITCH, INTERLOCK WPL 680582 Contact Us For Availability
5
SHELF, SLIDE WPL 703074 Contact Us For Availability
5
FRONT, PICK OFF WPL 7020913 Contact Us For Availability
5
PAD, ACTUATOR WPL 696822 Contact Us For Availability
6
CAPACITOR, RUN WPL 658896 Contact Us For Availability
6
SOCKET, LIGHT WPL 298131 Contact Us For Availability
6
RING, SNAP WPL 697041 Contact Us For Availability
6
TRIM, SHELF (REAR) WPL 701361 Contact Us For Availability
6
SLIDE, CONTROL WPL 674912 Contact Us For Availability
6
RETAINER, BOTTLE WPL 702191 Contact Us For Availability
7
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
WASHER, RETAINER WPL 697031 Contact Us For Availability
7
SUPPORT, MEAT PAN WPL 6764913 Contact Us For Availability
7
ORGANIZER, SHELF WPL 702181 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
KNOB, TEMPERATURE CONTROL WPL 671453 Contact Us For Availability
8
DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability
8
SEAL WPL 689466 Contact Us For Availability
8
TRIM, MEAT PAN SUPPORT WPL 702811 Contact Us For Availability
8
GASKET WPL 7002412 Contact Us For Availability
8
BRACKET, ACTUATOR SWITCH WPL 700441 Contact Us For Availability
9
FUNNEL-KIT WPL 675792 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
RING, DRIVE WPL 700272 Contact Us For Availability
9
SEAL WPL 6632520 Contact Us For Availability
9
PAN, MEAT WPL 699286 Contact Us For Availability
9
SCREW WPL 652755 Contact Us For Availability
10
THRMST-FIX WPL 696818 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
MOTOR, AUGER WPL 697331 Contact Us For Availability
10
WIRE HARNESS, AUGER MOTOR WPL 701221 Contact Us For Availability
10
ROLLER WPL 674232 Contact Us For Availability
10
SHELF, PICK OFF WPL 7020912 Contact Us For Availability
10
SCREW WPL 6527574 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
11
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
11
SCREW WPL 652756 Contact Us For Availability
11
TRAY, EGG WPL 600661 Contact Us For Availability
11
GUARD, CHIP WPL 700232 Contact Us For Availability
12
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 703621 Contact Us For Availability
12
SWITCH, LIGHT WPL 669871 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 673551 Contact Us For Availability
12
ROD, CRUSHER CONTROL WPL 697142 Contact Us For Availability
12
TUNNEL, AIR (MEAT) WPL 686901 Contact Us For Availability
12
BRACKET, FOUNTAIN (BLK) WPL 700221 Contact Us For Availability
12
BRACKET, FOUNTAIN WPL 703241 Contact Us For Availability
13
THERMOSTAT WPL 950921 Contact Us For Availability
13
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684456 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
BRACKET, CONTROL ROD WPL 697161 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
KNOB, AIR TUNNEL WPL 687552 Contact Us For Availability
13
BOARD, PC (115V) WPL 697513 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
SPRING, CONTROL ROD WPL 697171 Contact Us For Availability
14
BOX, AUGER MOTOR WPL 697241 Contact Us For Availability
14
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
14
RECEPTACLE, BULB WPL 701191 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
15
KNOB, FREEZER CONTROL WPL 671454 Contact Us For Availability
15
AUGER WPL 697072 Contact Us For Availability
15
GLIDE, BASKET WPL 695191 Contact Us For Availability
15
SEAL WPL 697791 Contact Us For Availability
15
BULB, LIGHT WPL 631791 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
16
CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
16
WIRE HARNESS, FREEZER WPL 701801 Contact Us For Availability
16
SHELF, CRISPER (LOWER) WPL 678926 Contact Us For Availability
16
SWITCH, LIGHT WPL 698324 Contact Us For Availability
16
SWITCH, LIGHT (W/NUT) WPL 698326 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
17
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
17
WASHER, CONE STOP WPL 696981 Contact Us For Availability
17
WASHER, SPRING WPL 420092900 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
17
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
17
SWITCH, SAFETY WPL 699041 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
SCREW WPL 998645 Contact Us For Availability
18
IMPELLER WPL 700361 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
SCREW WPL 6527528 Contact Us For Availability
18
SWITCH, CRUSHER WPL 554401 Contact Us For Availability
19
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
19
COVER WPL 663811 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 702631 Contact Us For Availability
19
BULB, LIGHT WPL 201746 Contact Us For Availability
19
PLATE, DRIVE WPL 697551 Contact Us For Availability
19
SHIELD, FAN WPL 697322 Contact Us For Availability
19
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
19
SCREW WPL 41504135 Contact Us For Availability
19
SWITCH WPL 554403 Contact Us For Availability
20
SCREW WPL 4000171 Contact Us For Availability
20
SCREW, BRACKET WPL 951081 Contact Us For Availability
20
HEATER, DEFROST WPL 698482 Contact Us For Availability
20
SHIELD, LIGHT WPL 672421 Contact Us For Availability
20
PLATE, IMPELLER WPL 697011 Contact Us For Availability
20
COVER, COIL LOWER WPL 697251 Contact Us For Availability
20
HEATER, FOUNTAIN WPL 697961 Contact Us For Availability
21
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
21
SCREW WPL 4050071 Contact Us For Availability
21
TIMER, DEFROST WPL 682333 Contact Us For Availability
21
NUT, AUGER WPL 697091 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
PAN, CRISPER (LOWER) WPL 699282 Contact Us For Availability
21
INSULATION WPL 689421 Contact Us For Availability
21
HEATER, FOUNTAIN WPL 697971 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
22
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
22
BLADE, CRUSHER WPL 697061 Contact Us For Availability
22
PAN, CRISPER (UPPER) WPL 699287 Contact Us For Availability
22
RETAINER, TUBE WPL 699412 Contact Us For Availability
23
TROUGH, DRAIN WPL 535232 Contact Us For Availability
23
INSERT, LIGHT SHIELD WPL 674767 Contact Us For Availability
23
BLADE, CRUSHER WPL 697021 Contact Us For Availability
23
TRIM, LOWER BASKET WPL 7013527 Contact Us For Availability
23
GLASS, CRISPER SHELF WPL 674898 Contact Us For Availability
24
HOSE, DRAIN WPL 2691125 Contact Us For Availability
24
KICKPLATE (BLK) WPL 689813 Contact Us For Availability
24
BLADE, CRUSHER WPL 697022 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
SHELF, CRISPER (UPPER) WPL 678914 Contact Us For Availability
24
STRIKE, ICE DOOR WPL 696756 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
25
BLADE, CRUSHER WPL 697023 Contact Us For Availability
25
TRIM, CRISPER SHELF WPL 703372 Contact Us For Availability
25
DOOR, ICE WPL 689572 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
LEG, LEVELING WPL 686643 Contact Us For Availability
26
LOCK, FIXED BLADE WPL 697081 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
26
SCREW WPL 6527534 Contact Us For Availability
26
RETAINER WPL 685661 Contact Us For Availability
27
COVER WPL 663393 Contact Us For Availability
27
COVER, AIR RETURN WPL 699821 Contact Us For Availability
27
PIN, BLADE LOCK WPL 697051 Contact Us For Availability
27
TUBE, DRAIN WPL 2652711 Contact Us For Availability
27
SEAL, CRISPER WPL 697792 Contact Us For Availability
27
SCREW WPL 40511635 Contact Us For Availability
28
SLEEVE WPL 2608823 Contact Us For Availability
28
HEAT EXCHANGER WPL 6501324 Contact Us For Availability
28
WIRE TIE WPL 662231 Contact Us For Availability
28
BEARING, SPACER WPL 696971 Contact Us For Availability
28
SHELF, WIRE WPL 671788 Contact Us For Availability
28
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
29
SCREW WPL 6527542 Contact Us For Availability
29
RAIL, HORIZONTAL SUPPORT WPL 672553 Contact Us For Availability
29
SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability
29
TRIM, SHELF WPL 7013519 Contact Us For Availability
29
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
30
SPACER, BLADE WPL 696962 Contact Us For Availability
30
BASKET, FRZ WIRE WPL 693502 Contact Us For Availability
30
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
31
EVAPORATOR WPL 5255122 Contact Us For Availability
31
PIN, WHEEL WPL 649651 Contact Us For Availability
31
PIN, ICE DOOR WPL 679061 Contact Us For Availability
31
CLIP WPL 693141 Contact Us For Availability
31
SPRING, EXTENSION WPL 673391 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688342 Contact Us For Availability
32
SCREW WPL 652751 Contact Us For Availability
32
BRACKET, WHEEL WPL 678062 Contact Us For Availability
32
SCREW WPL 406026103 Contact Us For Availability
32
SOLENOID WPL 697301 Contact Us For Availability
32
FOIL, FOUNTAIN FRONT WPL 5380838 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
FACEPLATE, BRACKET WPL 702301 Contact Us For Availability
33
YOKE ASSY. WPL 7235350 Contact Us For Availability
33
CLAMP, SPRING WPL 603334 Contact Us For Availability
33
SOLENOID (115V) WPL 678833 Contact Us For Availability
34
SEAL WPL 6632518 Contact Us For Availability
34
SCREW, WHEEL ADJUSTMENT WPL 564876 Contact Us For Availability
34
GUIDE, YOKE WPL 697151 Contact Us For Availability
34
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
34
SCREW WPL 4060331 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
35
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
35
LINK, SOLENOID WPL 696881 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
36
SCREW WPL 40002636 Contact Us For Availability
36
RAIL, ICE BIN WPL 697102 Contact Us For Availability
36
BASKET, FRZ WIRE WPL 693482 Contact Us For Availability
36
SCREW WPL 41501335 Contact Us For Availability
37
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
37
WHEEL ASSY. WPL 628309 Contact Us For Availability
37
TRIM, UPPER BASKET WPL 7013526 Contact Us For Availability
37
PIN, SPRING WPL 672913 Contact Us For Availability
38
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
38
SCREW WPL 4000221 Contact Us For Availability
38
BASKET, PIZZA WPL 693492 Contact Us For Availability
38
COIL, WATER WPL 676161 Contact Us For Availability
39
MANUAL, USE & CARE WPL 1083243 Contact Us For Availability
39
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
39
SCREW WPL 40001536 Contact Us For Availability
39
TRIM, PIZZA BASKET WPL 7013523 Contact Us For Availability
39
COVER, WATER COIL WPL 688371 Contact Us For Availability
40
TUBING, VALVE TO COIL WPL 671875 Contact Us For Availability
40
TUBING, COIL TO FOUNTAIN WPL 6718729 Contact Us For Availability
41
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
41
NUT, COMPRESSION (3/8``) WPL 676101 Contact Us For Availability
42
UNION, REDUCING (3/8``- 5/16``) WPL 693161 Contact Us For Availability
43
SEAL, ICE CHUTE WPL 5207727 Contact Us For Availability
44
NUT, WIRE WPL 271165 Contact Us For Availability
45
WIRE HARNESS, FOUNTAIN WPL 695912 Contact Us For Availability
45
WIRE HARNESS, SWITCH WPL 698012 Contact Us For Availability
45
WIRE HARNESS, FOUNTAIN WPL 699021 Contact Us For Availability
45
WIRE HARNESS, FOUNTAIN WPL 699031 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001095 Contact Us For Availability
× ![]()
Login and Registration Form
