Model Maytag JRSD2490A REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT
02 - FREEZER INNER DOOR

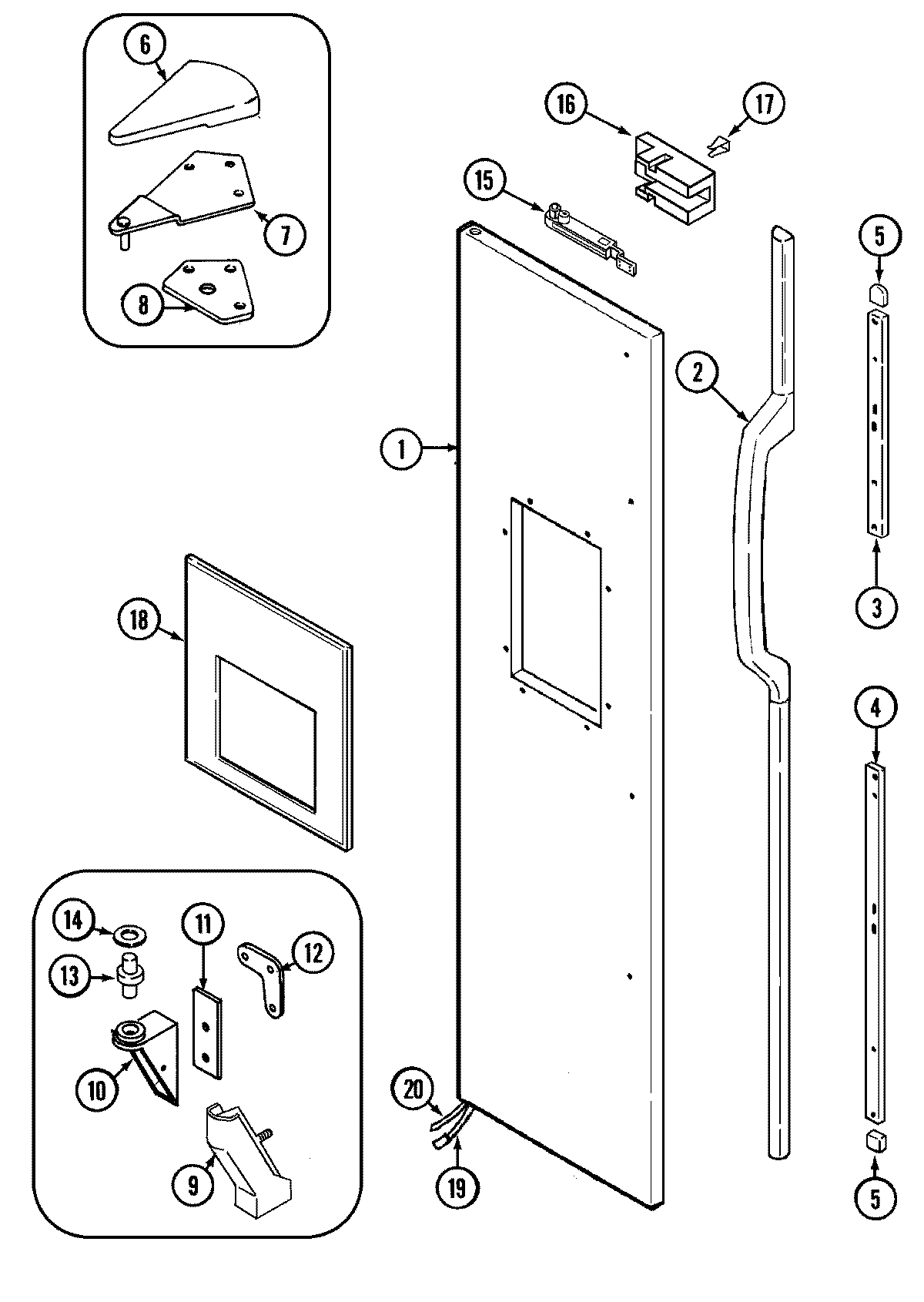

03 - FREEZER OUTER DOOR

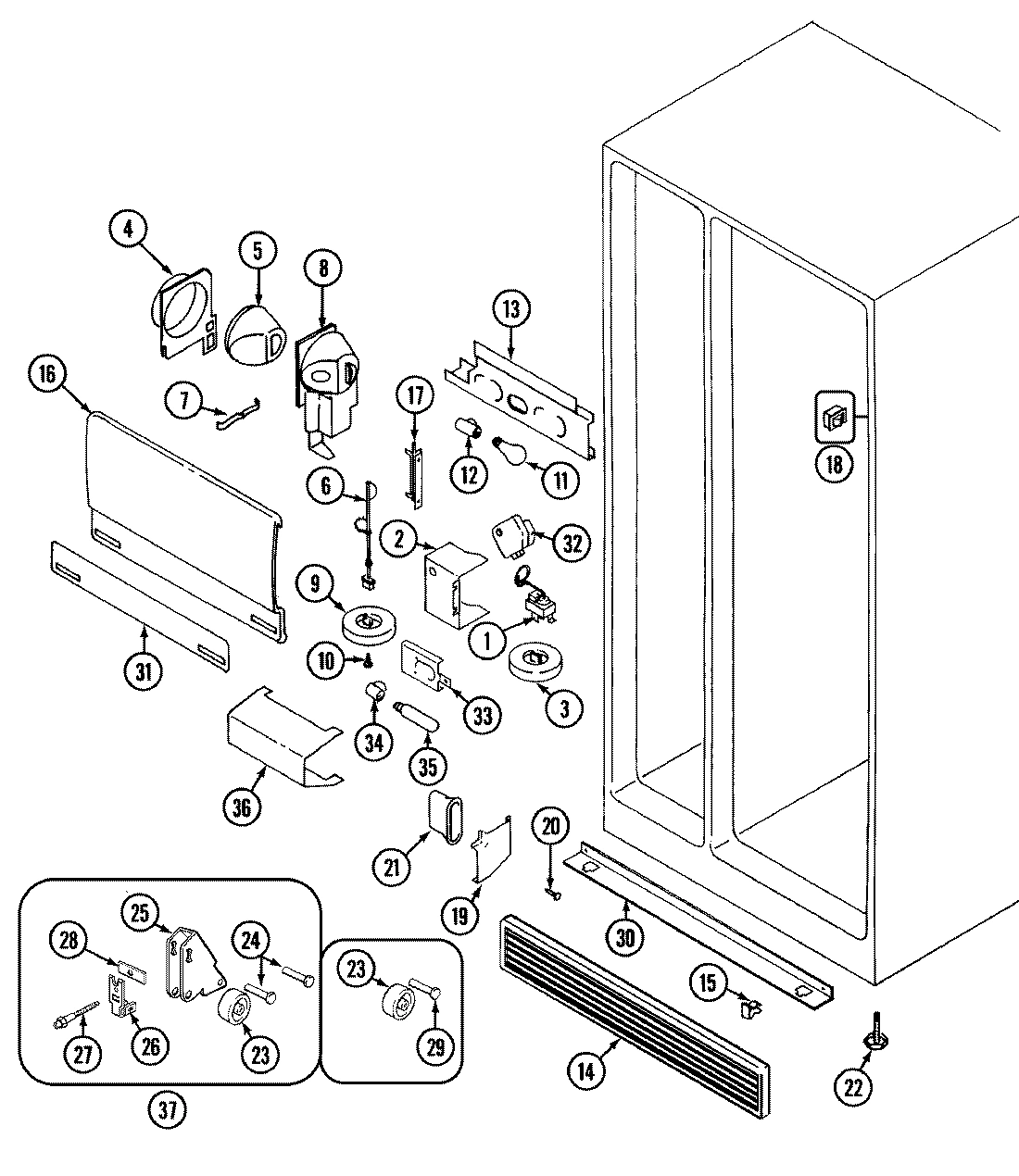

04 - FRESH FOOD COMPARTMENT

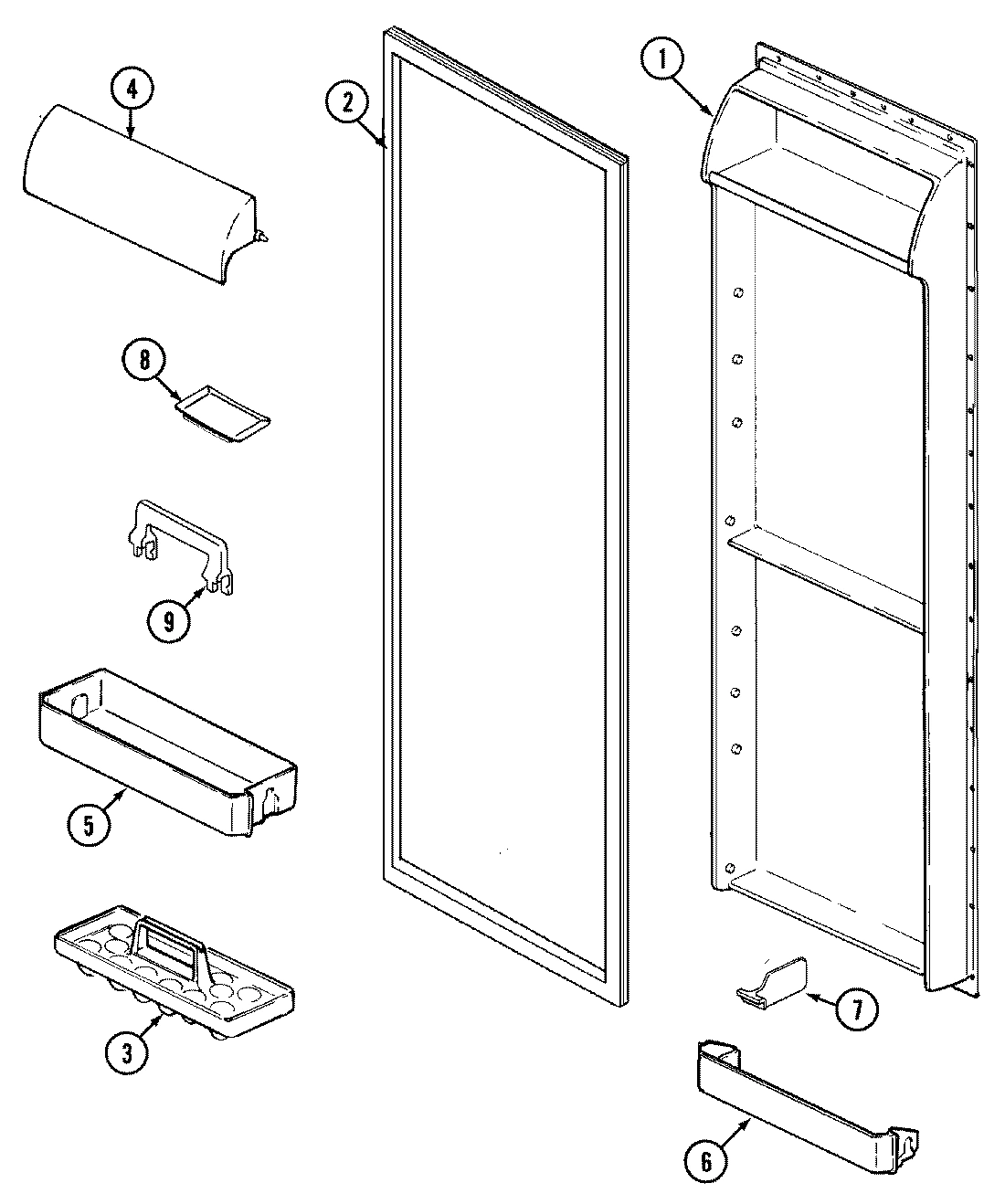

05 - FRESH FOOD INNER DOOR

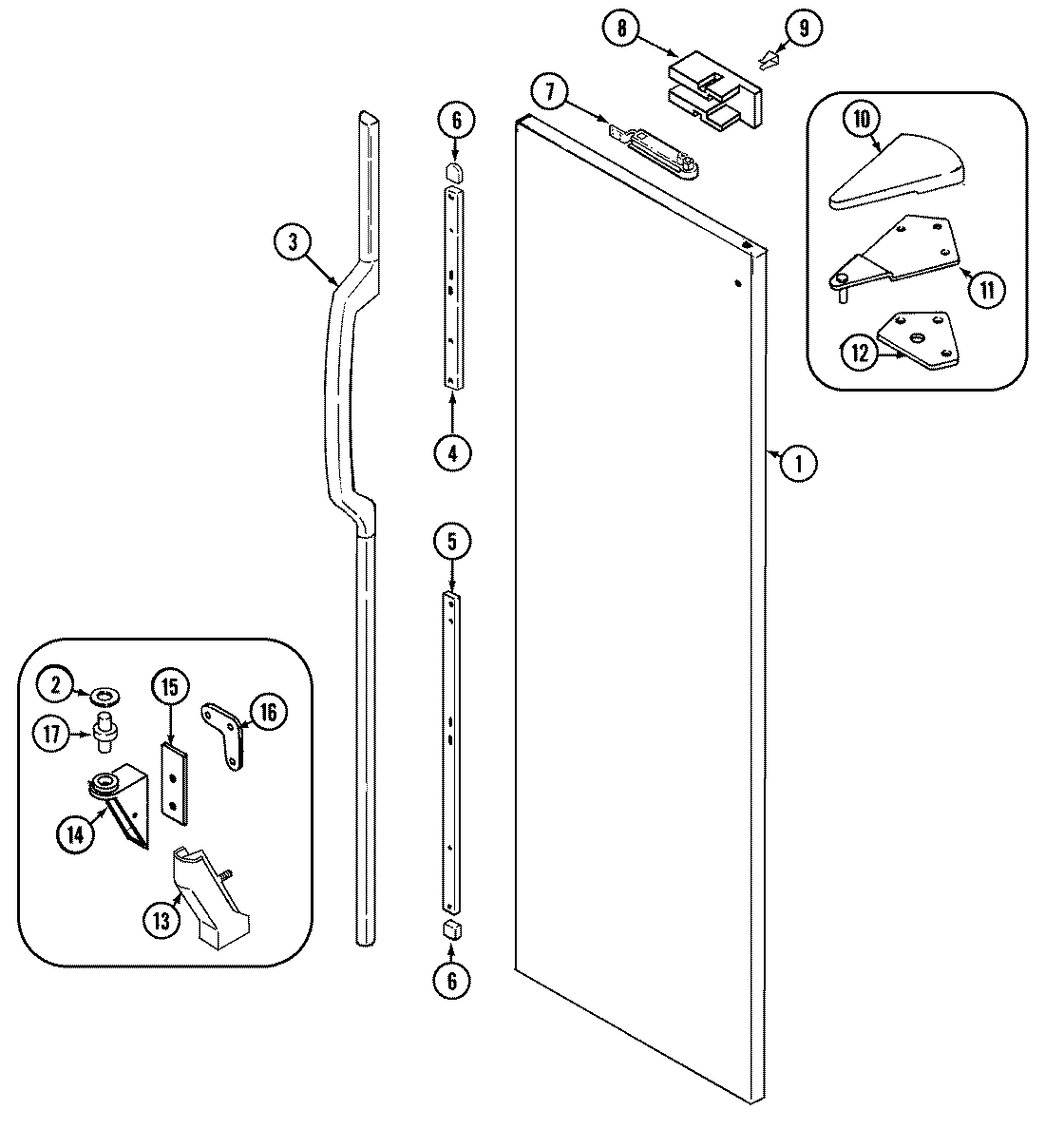

06 - FRESH FOOD OUTER DOOR

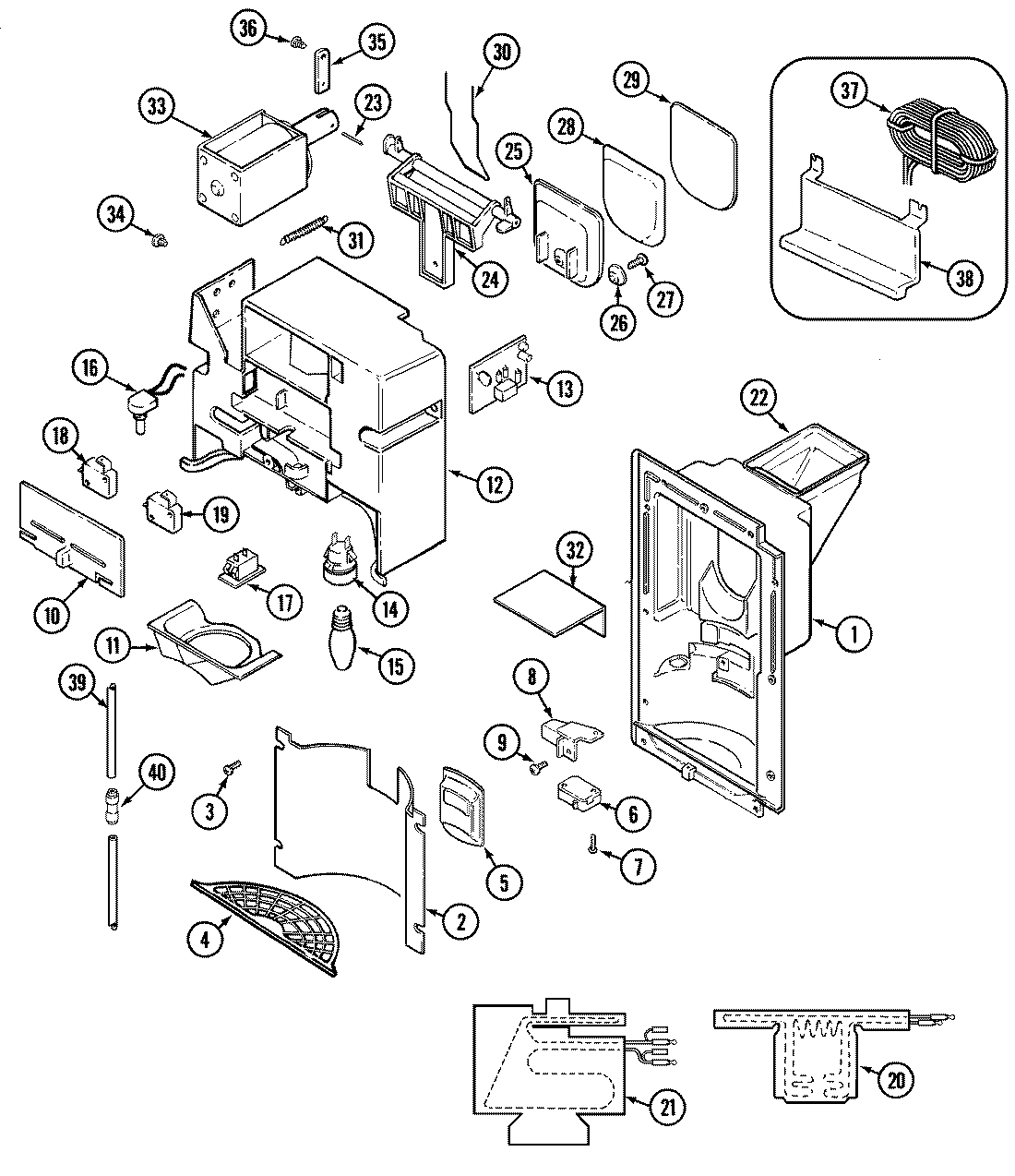

07 - ICE & WATER DISPENSER
08 - ICE CRUSHER & BIN
09 - ICE MAKER

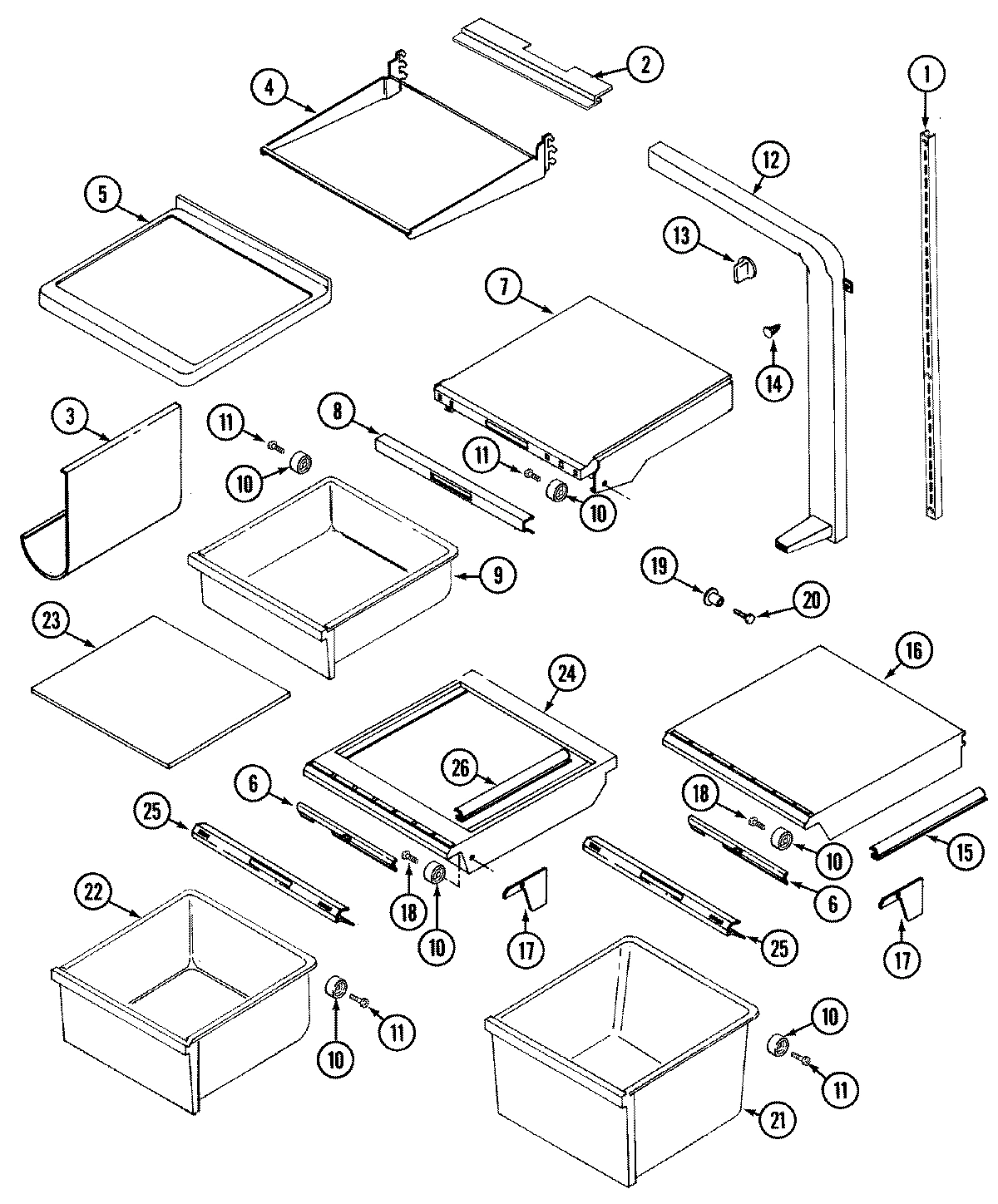

10 - SHELVES & ACCESSORIES
11 - UNIT COMPARTMENT & SYSTEM

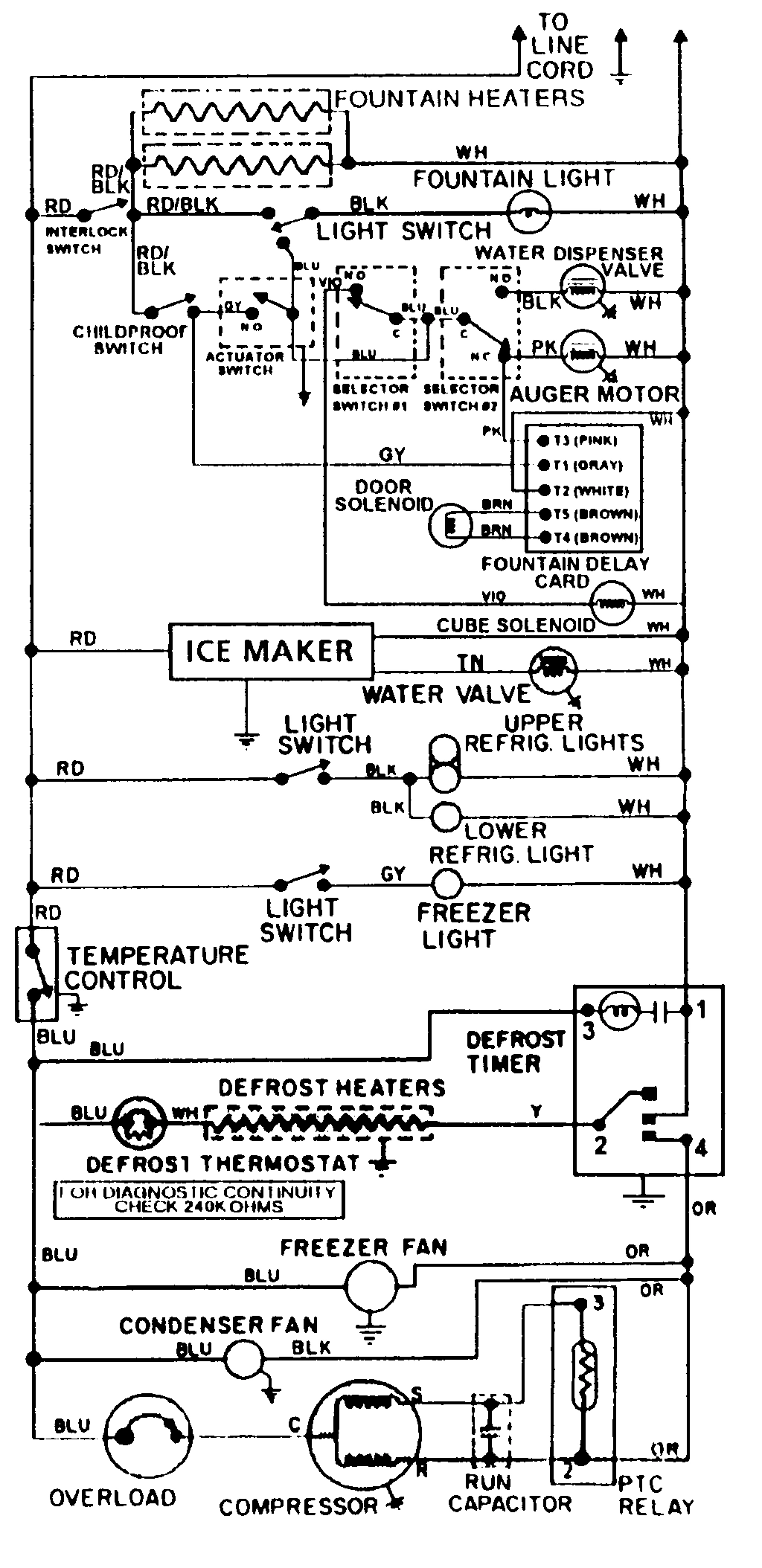

12 - WIRING INFORMATION
Common parts from model Maytag JRSD2490A REFRIGERATOR
1
MAY 61001674 MAY 61001674 Contact Us For Availability
1
MAY 495034-900 MAY 495034-900 Contact Us For Availability
1
MAY 72341-105-AM MAY 72341-105-AM Contact Us For Availability
1
MAY 401024-1 MAY 401024-1 Contact Us For Availability
1
MAY 69694-3 MAY 69694-3 Contact Us For Availability
1
MAY 69243-1 MAY 69243-1 Contact Us For Availability
1
MAY 69264-1 MAY 69264-1 Contact Us For Availability
1
MAY 69264-2 MAY 69264-2 Contact Us For Availability
1
MAY 72341-2-AM MAY 72341-2-AM Contact Us For Availability
1
MAY 12000057 MAY 12000057 Contact Us For Availability
1
MAY 69683-1 MAY 69683-1 Contact Us For Availability
1
MAY 69840-1 MAY 69840-1 Contact Us For Availability
1
MAY 69841-1 MAY 69841-1 Contact Us For Availability
1
MAY 69720-1 MAY 69720-1 Contact Us For Availability
1
MAY 400031-1 MAY 400031-1 Contact Us For Availability
1
MAY 95109-1 MAY 95109-1 Contact Us For Availability
1
MAY 400037-28 MAY 400037-28 Contact Us For Availability
1
MAY 67311-1 MAY 67311-1 Contact Us For Availability
1
MAY 61001017 MAY 61001017 Contact Us For Availability
2
MAY 70024-4 MAY 70024-4 Contact Us For Availability
2
MAY 70024-2 MAY 70024-2 Contact Us For Availability
2
MAY 70178-1 MAY 70178-1 Contact Us For Availability
2
MAY 69686-4 MAY 69686-4 Contact Us For Availability
2
MAY 69875-24 MAY 69875-24 Contact Us For Availability
2
MAY 61001239 MAY 61001239 Contact Us For Availability
2
MAY 70333-2 MAY 70333-2 Contact Us For Availability
2
MAY 17245-4 MAY 17245-4 Contact Us For Availability
3
MAY 69870-32 MAY 69870-32 Contact Us For Availability
3
MAY 12000043 MAY 12000043 Contact Us For Availability
3
MAY 67145-3 MAY 67145-3 Contact Us For Availability
3
MAY 60066-1 MAY 60066-1 Contact Us For Availability
3
MAY 61001678 MAY 61001678 Contact Us For Availability
3
SCREW MAY 95106-1 Contact Us For Availability
3
MAY 61001622 MAY 61001622 Contact Us For Availability
3
MAY 65275-9 MAY 65275-9 Contact Us For Availability
4
MAY 69873-22 MAY 69873-22 Contact Us For Availability
4
MAY 69586-3 MAY 69586-3 Contact Us For Availability
4
MAY 61001230 MAY 61001230 Contact Us For Availability
4
MAY 69918-3 MAY 69918-3 Contact Us For Availability
4
MAY 67223-1 MAY 67223-1 Contact Us For Availability
4
MAY 28272-6 MAY 28272-6 Contact Us For Availability
4
MAY 401018-1 MAY 401018-1 Contact Us For Availability
4
MAY 61001021 MAY 61001021 Contact Us For Availability
4
MAY 70310-2 MAY 70310-2 Contact Us For Availability
4
MAY 70310-4 MAY 70310-4 Contact Us For Availability
5
MAY 69870-31 MAY 69870-31 Contact Us For Availability
5
MAY 61001287 MAY 61001287 Contact Us For Availability
5
MAY 69586-4 MAY 69586-4 Contact Us For Availability
5
MAY 58767-1 MAY 58767-1 Contact Us For Availability
5
MAY 69872-3 MAY 69872-3 Contact Us For Availability
5
MAY 69682-3 MAY 69682-3 Contact Us For Availability
5
MAY 69756-1 MAY 69756-1 Contact Us For Availability
5
MAY 61001162 MAY 61001162 Contact Us For Availability
5
MAY 67666-1 MAY 67666-1 Contact Us For Availability
5
MAY 70307-4 MAY 70307-4 Contact Us For Availability
5
MAY 61001627 MAY 61001627 Contact Us For Availability
6
MAY 65660-2 MAY 65660-2 Contact Us For Availability
6
MAY 69590-1 MAY 69590-1 Contact Us For Availability
6
MAY 67609-1 MAY 67609-1 Contact Us For Availability
6
MAY 69871-3 MAY 69871-3 Contact Us For Availability
6
MAY 69704-1 MAY 69704-1 Contact Us For Availability
6
MAY 69583-2 MAY 69583-2 Contact Us For Availability
6
MAY 67491-2 MAY 67491-2 Contact Us For Availability
7
MAY 69258-1 MAY 69258-1 Contact Us For Availability
7
MAY 52648-1 MAY 52648-1 Contact Us For Availability
7
MAY 69759-2 MAY 69759-2 Contact Us For Availability
7
MAY 67649-13 MAY 67649-13 Contact Us For Availability
7
MAY 66589-2 MAY 66589-2 Contact Us For Availability
8
MAY 61001675 MAY 61001675 Contact Us For Availability
8
MAY 52613-1 MAY 52613-1 Contact Us For Availability
8
MAY 70049-1 MAY 70049-1 Contact Us For Availability
8
MAY 415017-1 MAY 415017-1 Contact Us For Availability
8
MAY 67354-1 MAY 67354-1 Contact Us For Availability
8
MAY 29936-2 MAY 29936-2 Contact Us For Availability
8
MAY 70044-1 MAY 70044-1 Contact Us For Availability
8
MAY 67187-5 MAY 67187-5 Contact Us For Availability
8
MAY 69718-1 MAY 69718-1 Contact Us For Availability
8
MAY 70281-1 MAY 70281-1 Contact Us For Availability
8
MAY 65886-1 MAY 65886-1 Contact Us For Availability
9
MAY 67579-2 MAY 67579-2 Contact Us For Availability
9
MAY 61001676 MAY 61001676 Contact Us For Availability
9
MAY 61001677 MAY 61001677 Contact Us For Availability
9
MAY 65275-56 MAY 65275-56 Contact Us For Availability
9
MAY 69261-1 MAY 69261-1 Contact Us For Availability
9
MAY 67145-4 MAY 67145-4 Contact Us For Availability
9
MAY 69795-1 MAY 69795-1 Contact Us For Availability
9
MAY 70027-2 MAY 70027-2 Contact Us For Availability
9
MAY 69928-6 MAY 69928-6 Contact Us For Availability
9
MAY 52890-3 MAY 52890-3 Contact Us For Availability
10
MAY 67423-2 MAY 67423-2 Contact Us For Availability
10
MAY 70121-3 MAY 70121-3 Contact Us For Availability
10
MAY 61001629 MAY 61001629 Contact Us For Availability
10
MAY 400001-1 MAY 400001-1 Contact Us For Availability
10
MAY 65275-74 MAY 65275-74 Contact Us For Availability
10
MAY 69681-6 MAY 69681-6 Contact Us For Availability
10
MAY 69733-1 MAY 69733-1 Contact Us For Availability
10
MAY 70122-1 MAY 70122-1 Contact Us For Availability
10
MAY 414001-1 MAY 414001-1 Contact Us For Availability
10
MAY 60408-2 MAY 60408-2 Contact Us For Availability
10
MAY 64998-1 MAY 64998-1 Contact Us For Availability
11
MAY 65275-6 MAY 65275-6 Contact Us For Availability
11
MAY 53709-26 MAY 53709-26 Contact Us For Availability
11
MAY 65275-86 MAY 65275-86 Contact Us For Availability
11
MAY 31956-1 MAY 31956-1 Contact Us For Availability
11
MAY 70023-2 MAY 70023-2 Contact Us For Availability
11
MAY 53351-1 MAY 53351-1 Contact Us For Availability
12
MAY 65031-1 MAY 65031-1 Contact Us For Availability
12
MAY 29813-1 MAY 29813-1 Contact Us For Availability
12
MAY 70324-9 MAY 70324-9 Contact Us For Availability
12
MAY 69714-1 MAY 69714-1 Contact Us For Availability
12
MAY 68690-2 MAY 68690-2 Contact Us For Availability
12
MAY 61001533 MAY 61001533 Contact Us For Availability
13
MAY 61001610 MAY 61001610 Contact Us For Availability
13
MAY 70060-1 MAY 70060-1 Contact Us For Availability
13
MAY 67751-2 MAY 67751-2 Contact Us For Availability
13
MAY 69751-4 MAY 69751-4 Contact Us For Availability
13
MAY 69716-1 MAY 69716-1 Contact Us For Availability
13
MAY 95093-1 MAY 95093-1 Contact Us For Availability
13
MAY 68755-2 MAY 68755-2 Contact Us For Availability
13
MAY 61001018 MAY 61001018 Contact Us For Availability
13
MAY 65275-33 MAY 65275-33 Contact Us For Availability
14
MAY 65275-51 MAY 65275-51 Contact Us For Availability
14
MAY 68981-6 MAY 68981-6 Contact Us For Availability
14
MAY 61001587 MAY 61001587 Contact Us For Availability
14
MAY 70119-1 MAY 70119-1 Contact Us For Availability
14
MAY 69717-1 MAY 69717-1 Contact Us For Availability
14
MAY 400015-31 MAY 400015-31 Contact Us For Availability
15
MAY 60100-1 MAY 60100-1 Contact Us For Availability
15
MAY 69510-1 MAY 69510-1 Contact Us For Availability
15
MAY 63179-1 MAY 63179-1 Contact Us For Availability
15
MAY 69707-1 MAY 69707-1 Contact Us For Availability
15
MAY 69779-1 MAY 69779-1 Contact Us For Availability
15
MAY 61001686 MAY 61001686 Contact Us For Availability
16
MAY 65275-59 MAY 65275-59 Contact Us For Availability
16
MAY 67874-1 MAY 67874-1 Contact Us For Availability
16
MAY 67113-5 MAY 67113-5 Contact Us For Availability
16
MAY 69832-6 MAY 69832-6 Contact Us For Availability
16
MAY 69699-1 MAY 69699-1 Contact Us For Availability
16
MAY 67892-6 MAY 67892-6 Contact Us For Availability
17
MAY 69845-1 MAY 69845-1 Contact Us For Availability
17
MAY 67125-1 MAY 67125-1 Contact Us For Availability
17
MAY 69904-1 MAY 69904-1 Contact Us For Availability
17
MAY 69698-1 MAY 69698-1 Contact Us For Availability
17
MAY 65275-28 MAY 65275-28 Contact Us For Availability
17
MAY 67895-1 MAY 67895-1 Contact Us For Availability
17
MAY 67895-2 MAY 67895-2 Contact Us For Availability
17
MAY 69181-1 MAY 69181-1 Contact Us For Availability
18
MAY 414004-35 MAY 414004-35 Contact Us For Availability
18
MAY 61001457 MAY 61001457 Contact Us For Availability
18
MAY 55440-1 MAY 55440-1 Contact Us For Availability
18
MAY 70036-1 MAY 70036-1 Contact Us For Availability
18
MAY 65275-34 MAY 65275-34 Contact Us For Availability
18
MAY 56933-1 MAY 56933-1 Contact Us For Availability
19
MAY 67764-1 MAY 67764-1 Contact Us For Availability
19
MAY 61001025 MAY 61001025 Contact Us For Availability
19
MAY 69804-1 MAY 69804-1 Contact Us For Availability
19
MAY 69982-1 MAY 69982-1 Contact Us For Availability
19
MAY 415041-35 MAY 415041-35 Contact Us For Availability
19
MAY 55440-3 MAY 55440-3 Contact Us For Availability
19
MAY 69755-1 MAY 69755-1 Contact Us For Availability
19
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
19
MAY 95108-1 MAY 95108-1 Contact Us For Availability
19
MAY 66381-1 MAY 66381-1 Contact Us For Availability
19
MAY 70263-1 MAY 70263-1 Contact Us For Availability
20
MAY 69725-1 MAY 69725-1 Contact Us For Availability
20
MAY 28013-2 MAY 28013-2 Contact Us For Availability
20
MAY 69796-1 MAY 69796-1 Contact Us For Availability
20
MAY 69701-1 MAY 69701-1 Contact Us For Availability
20
MAY 70076-1 MAY 70076-1 Contact Us For Availability
20
MAY 61001140 MAY 61001140 Contact Us For Availability
21
MAY 69314-1 MAY 69314-1 Contact Us For Availability
21
MAY 67684-1 MAY 67684-1 Contact Us For Availability
21
MAY 69797-1 MAY 69797-1 Contact Us For Availability
21
MAY 69709-1 MAY 69709-1 Contact Us For Availability
21
MAY 69928-2 MAY 69928-2 Contact Us For Availability
21
MAY 52067-1 MAY 52067-1 Contact Us For Availability
22
MAY 68236-1 MAY 68236-1 Contact Us For Availability
22
MAY 52077-27 MAY 52077-27 Contact Us For Availability
22
MAY 69706-1 MAY 69706-1 Contact Us For Availability
22
MAY 69928-7 MAY 69928-7 Contact Us For Availability
23
MAY 69812-1 MAY 69812-1 Contact Us For Availability
23
MAY 67291-3 MAY 67291-3 Contact Us For Availability
23
MAY 69702-1 MAY 69702-1 Contact Us For Availability
23
MAY 67489-8 MAY 67489-8 Contact Us For Availability
23
MAY 53523-2 MAY 53523-2 Contact Us For Availability
24
MAY 69675-7 MAY 69675-7 Contact Us For Availability
24
MAY 23197-8 MAY 23197-8 Contact Us For Availability
24
MAY 64965-1 MAY 64965-1 Contact Us For Availability
24
MAY 69702-2 MAY 69702-2 Contact Us For Availability
24
MAY 67891-4 MAY 67891-4 Contact Us For Availability
24
MAY 26911-25 MAY 26911-25 Contact Us For Availability
25
MAY 68957-2 MAY 68957-2 Contact Us For Availability
25
MAY 67178-8 MAY 67178-8 Contact Us For Availability
25
MAY 62794-1 MAY 62794-1 Contact Us For Availability
25
MAY 65275-1 MAY 65275-1 Contact Us For Availability
25
MAY 69702-3 MAY 69702-3 Contact Us For Availability
25
MAY 70337-2 MAY 70337-2 Contact Us For Availability
26
MAY 69219-1 MAY 69219-1 Contact Us For Availability
26
MAY 67280-1 MAY 67280-1 Contact Us For Availability
26
MAY 68566-1 MAY 68566-1 Contact Us For Availability
26
MAY 69708-1 MAY 69708-1 Contact Us For Availability
26
MAY 69779-2 MAY 69779-2 Contact Us For Availability
26
MAY 53516-5 MAY 53516-5 Contact Us For Availability
27
MAY 26527-11 MAY 26527-11 Contact Us For Availability
27
MAY 65275-5 MAY 65275-5 Contact Us For Availability
27
MAY 56487-5 MAY 56487-5 Contact Us For Availability
27
MAY 405116-35 MAY 405116-35 Contact Us For Availability
27
MAY 69705-1 MAY 69705-1 Contact Us For Availability
27
MAY 61001228 MAY 61001228 Contact Us For Availability
28
MAY 52526-1 MAY 52526-1 Contact Us For Availability
28
MAY 59101-1 MAY 59101-1 Contact Us For Availability
28
MAY 68557-1 MAY 68557-1 Contact Us For Availability
28
MAY 69697-1 MAY 69697-1 Contact Us For Availability
28
MAY 26088-23 MAY 26088-23 Contact Us For Availability
28
MAY 61001039 MAY 61001039 Contact Us For Availability
28
MAY 66223-1 MAY 66223-1 Contact Us For Availability
29
MAY 69867-1 MAY 69867-1 Contact Us For Availability
29
MAY 70135-19 MAY 70135-19 Contact Us For Availability
29
MAY 64965-3 MAY 64965-3 Contact Us For Availability
29
MAY 69696-1 MAY 69696-1 Contact Us For Availability
30
MAY 52085-29 MAY 52085-29 Contact Us For Availability
30
MAY 69353-2 MAY 69353-2 Contact Us For Availability
30
MAY 61001032 MAY 61001032 Contact Us For Availability
30
MAY 65275-42 MAY 65275-42 Contact Us For Availability
30
MAY 69868-1 MAY 69868-1 Contact Us For Availability
30
MAY 69696-2 MAY 69696-2 Contact Us For Availability
31
MAY 70135-27 MAY 70135-27 Contact Us For Availability
31
MAY 67476-7 MAY 67476-7 Contact Us For Availability
31
MAY 67339-1 MAY 67339-1 Contact Us For Availability
31
MAY 52551-22 MAY 52551-22 Contact Us For Availability
32
MAY 65275-19 MAY 65275-19 Contact Us For Availability
32
MAY 67123-2 MAY 67123-2 Contact Us For Availability
32
MAY 67124-1 MAY 67124-1 Contact Us For Availability
32
MAY 405007-1 MAY 405007-1 Contact Us For Availability
32
MAY 53808-38 MAY 53808-38 Contact Us For Availability
32
MAY 406026-103 MAY 406026-103 Contact Us For Availability
32
MAY 69730-1 MAY 69730-1 Contact Us For Availability
32
MAY 68834-2 MAY 68834-2 Contact Us For Availability
33
MAY 67883-3 MAY 67883-3 Contact Us For Availability
33
MAY 67488-2 MAY 67488-2 Contact Us For Availability
33
MAY 67243-1 MAY 67243-1 Contact Us For Availability
33
MAY 72353-50 MAY 72353-50 Contact Us For Availability
33
MAY 55878-1 MAY 55878-1 Contact Us For Availability
34
MAY 69715-1 MAY 69715-1 Contact Us For Availability
34
MAY 70136-1 MAY 70136-1 Contact Us For Availability
34
MAY 68974-3 MAY 68974-3 Contact Us For Availability
34
MAY 406033-1 MAY 406033-1 Contact Us For Availability
34
MAY 66325-18 MAY 66325-18 Contact Us For Availability
35
MAY 400015-36 MAY 400015-36 Contact Us For Availability
35
MAY 20174-6 MAY 20174-6 Contact Us For Availability
35
MAY 69688-1 MAY 69688-1 Contact Us For Availability
35
MAY 65063-1 MAY 65063-1 Contact Us For Availability
36
MAY 69710-2 MAY 69710-2 Contact Us For Availability
36
MAY 67242-1 MAY 67242-1 Contact Us For Availability
36
MAY 400026-36 MAY 400026-36 Contact Us For Availability
36
MAY 65064-1 MAY 65064-1 Contact Us For Availability
37
MAY 62830-7 MAY 62830-7 Contact Us For Availability
37
MAY 67616-1 MAY 67616-1 Contact Us For Availability
37
MAY 29915-13 MAY 29915-13 Contact Us For Availability
38
MAY 68837-1 MAY 68837-1 Contact Us For Availability
38
MAY 52561-1 MAY 52561-1 Contact Us For Availability
39
MAY 67187-29 MAY 67187-29 Contact Us For Availability
39
MAY 61001628 MAY 61001628 Contact Us For Availability
40
MAY 61001266 MAY 61001266 Contact Us For Availability
40
MAY 16000326 MAY 16000326 Contact Us For Availability
41
MAY 27116-5 MAY 27116-5 Contact Us For Availability
42
MAY 69591-2 MAY 69591-2 Contact Us For Availability
42
MAY 69801-2 MAY 69801-2 Contact Us For Availability
42
MAY 69902-1 MAY 69902-1 Contact Us For Availability
42
MAY 69903-1 MAY 69903-1 Contact Us For Availability
NI
MAY 15001768 MAY 15001768 Contact Us For Availability
× ![]()
