Model Whirlpool JRSD246 REFRIGERATOR – Common Parts & Diagrams

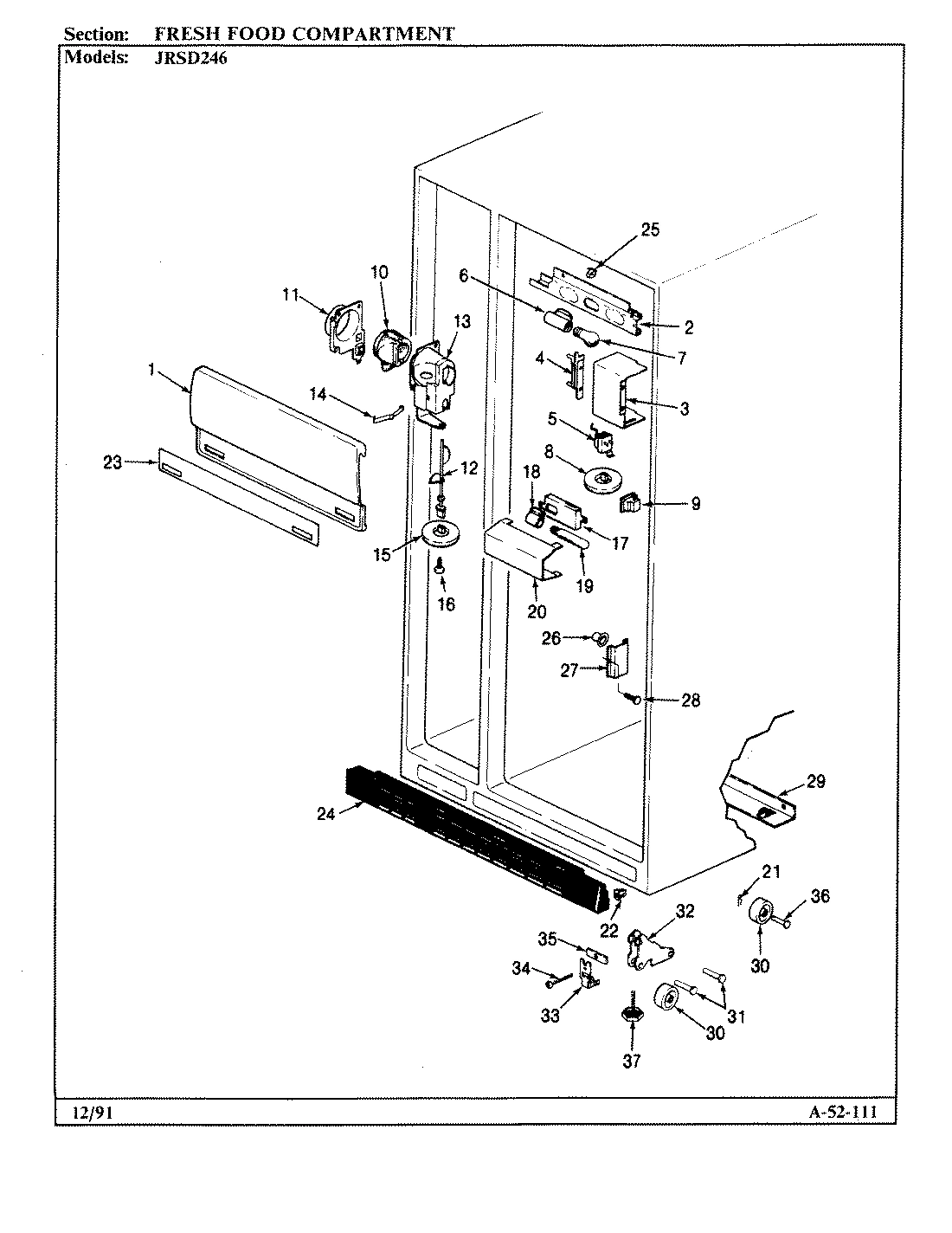

03 - FRESH FOOD COMPARTMENT

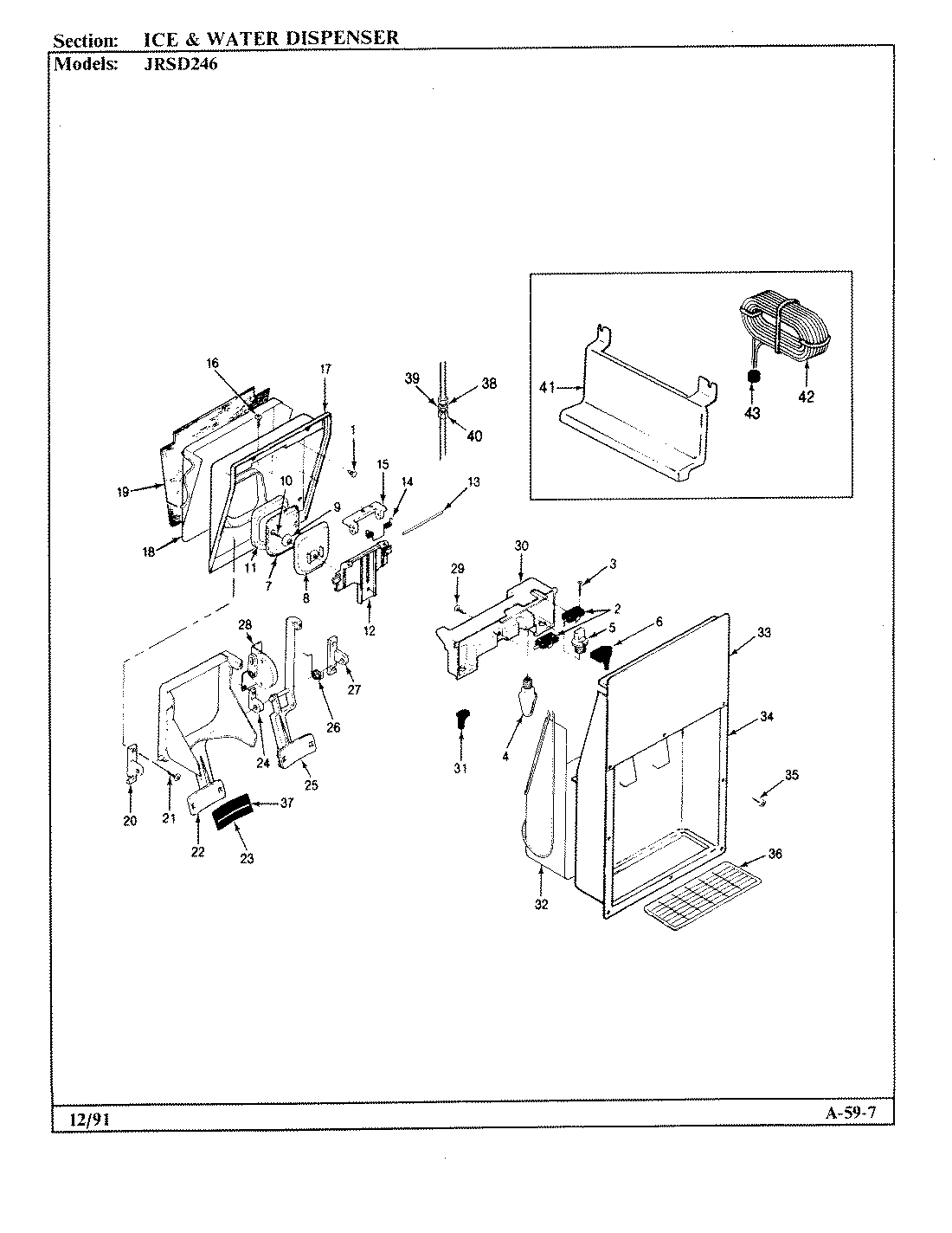

05 - ICE & WATER DISPENSER

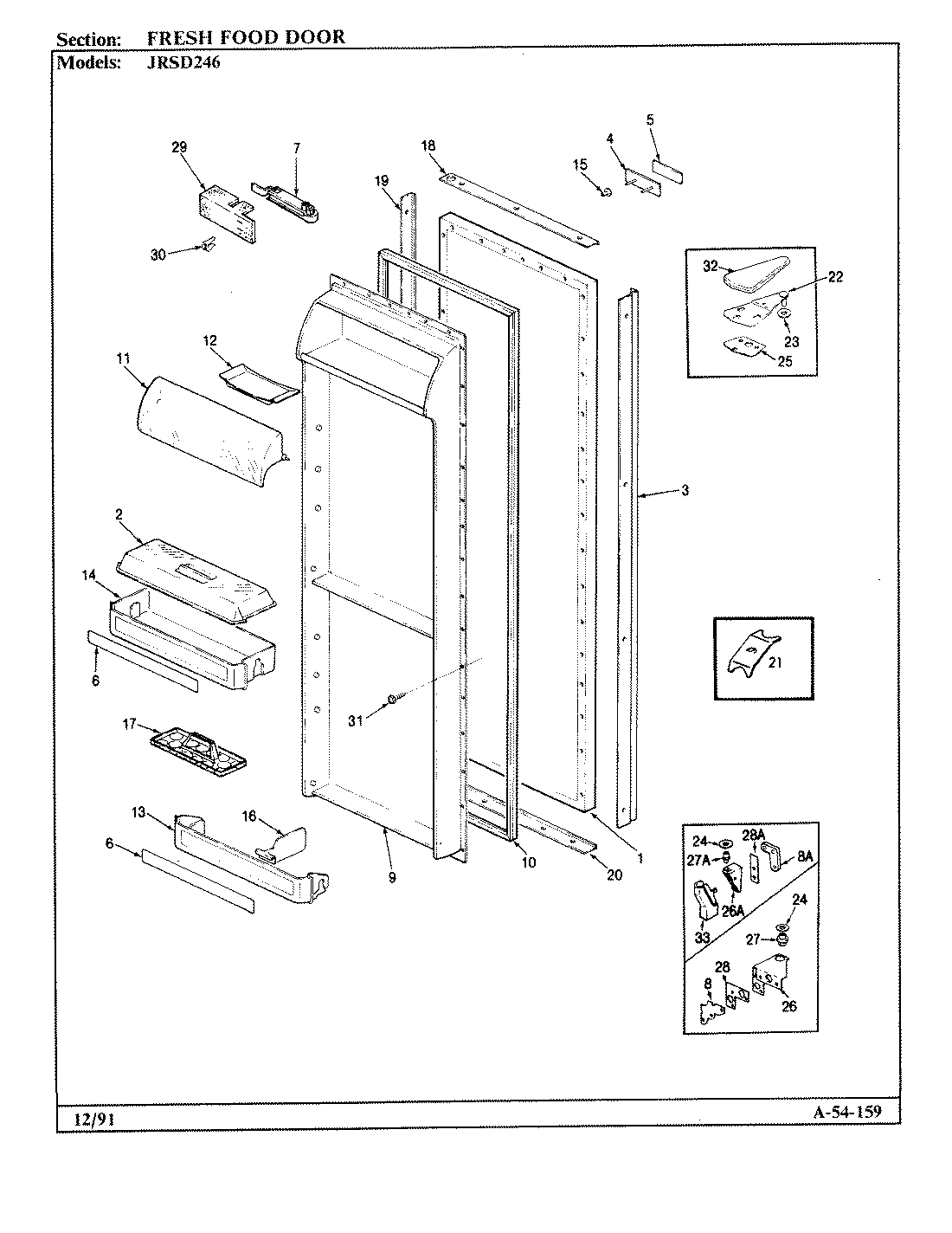

04 - FRESH FOOD DOOR

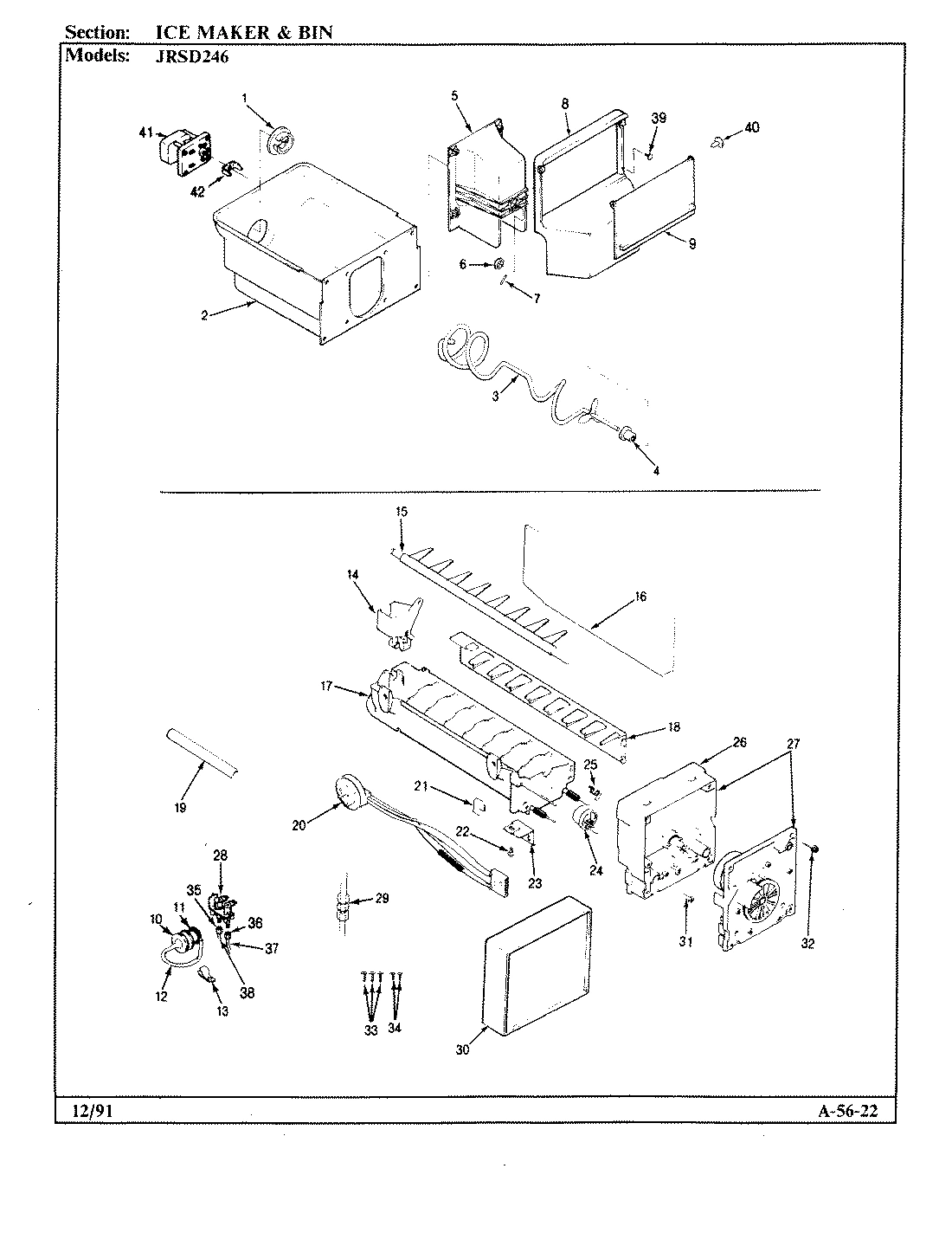

06 - ICE MAKER & BIN

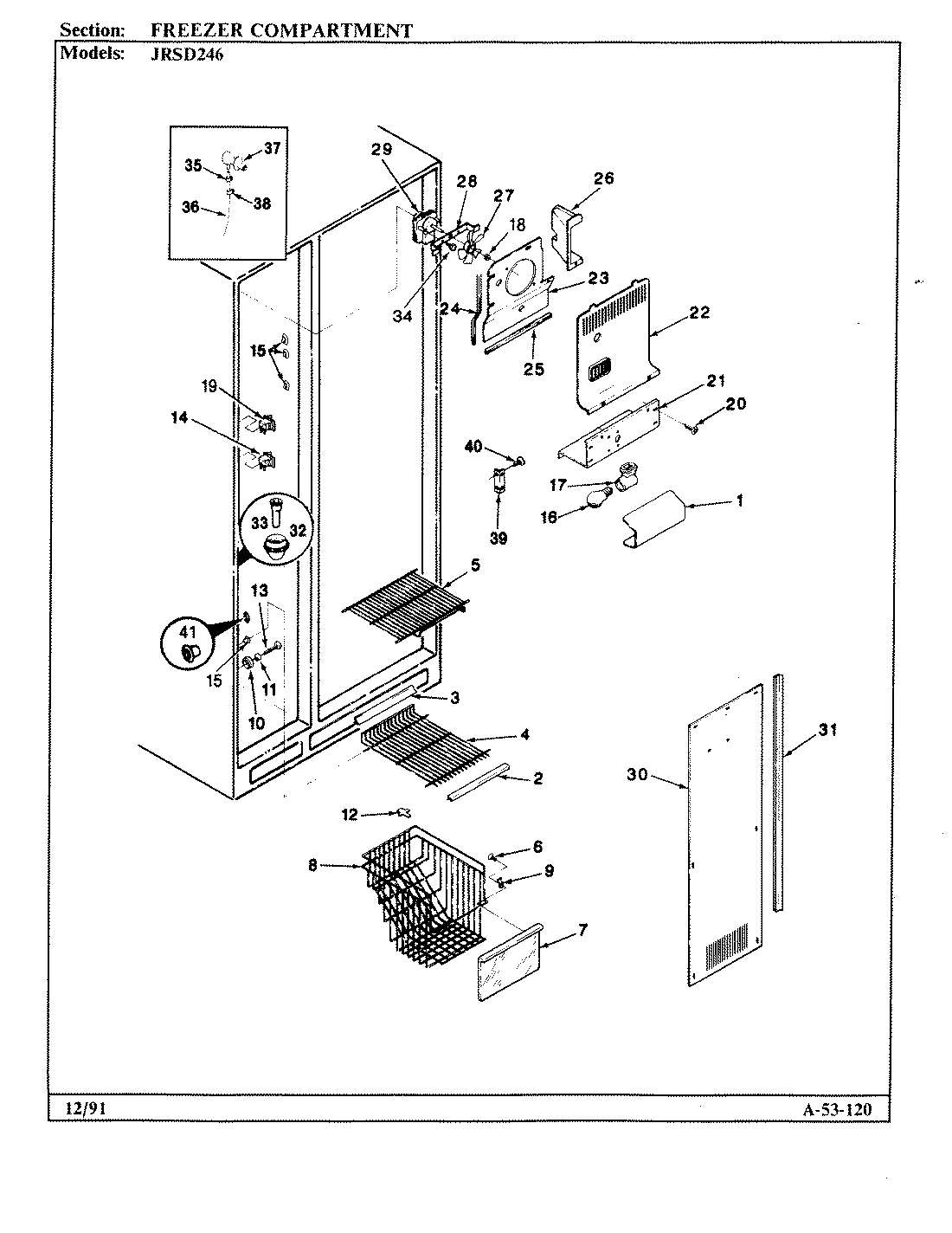

01 - FREEZER COMPARTMENT

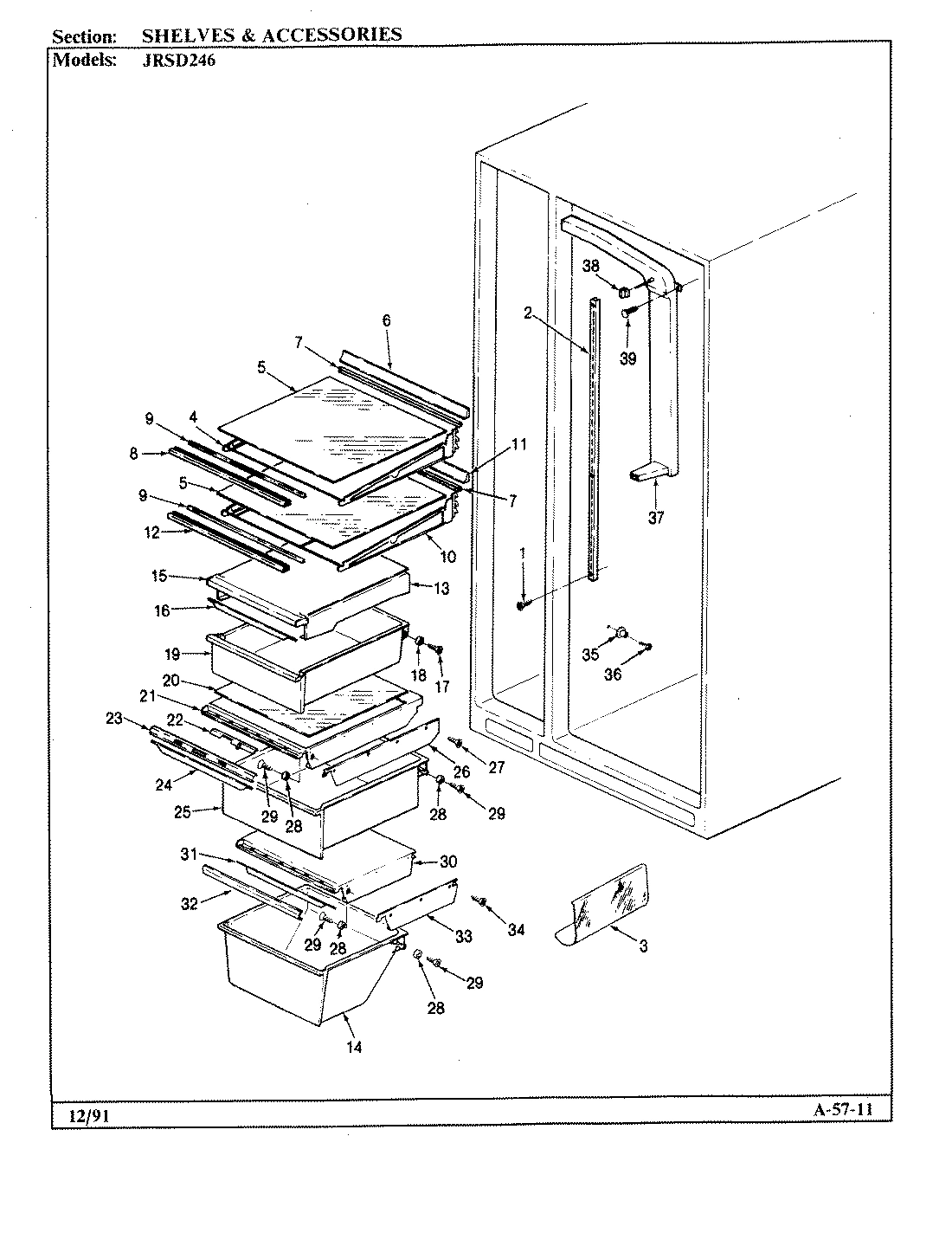

07 - SHELVES & ACCESSORIES

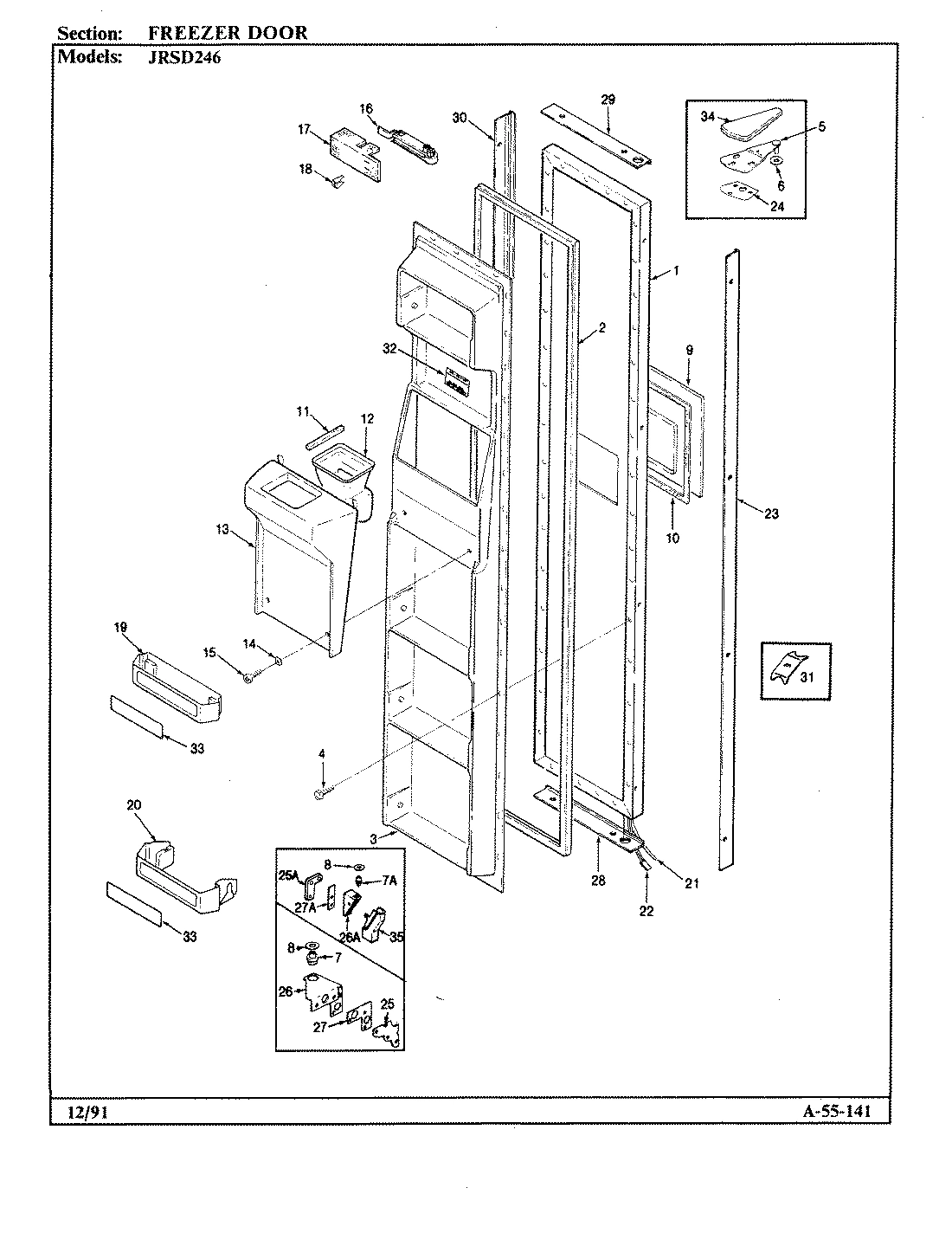

02 - FREEZER DOOR
Common parts from model Whirlpool JRSD246 REFRIGERATOR
1
PANEL, F.F. DOOR (ALM) WPL 684591AM Contact Us For Availability
1
INSULATION KIT WPL RA950601 Contact Us For Availability
1
RING, DRIVE WPL 630171 Contact Us For Availability
1
SHIELD, LIGHT WPL 672921 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
PANEL, OUTER DOOR WPL 684571AM Contact Us For Availability
1
PANEL, OUTER DOOR WPL 684571WW Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
2
COVER, PO BUCKET WPL 65637306 Contact Us For Availability
2
BIN, ICE WPL 678301 Contact Us For Availability
2
TRIM, FRONT WPL 671769 Contact Us For Availability
2
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
GASKET, FREEZER DOOR WPL 669291 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
3
HANDLE WPL 686583 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
TRIM, REAR WPL 671773 Contact Us For Availability
3
HOLDER, WINE BOTTLE WPL 673082 Contact Us For Availability
3
LINER WPL 685542 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
4
BEZEL WPL 680601 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
SHELF, FRZ. WPL 671782 Contact Us For Availability
4
FRAME, SHELF WPL 672732 Contact Us For Availability
4
SCREW WPL 652755 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 5288411 Contact Us For Availability
5
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
5
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
5
SCREW WPL 998687 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
5
SHELF, FRZ. WPL 671794 Contact Us For Availability
5
GLASS, SHELF WPL 6840526 Contact Us For Availability
5
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
6
SOCKET, LIGHT WPL 298131 Contact Us For Availability
6
WIRE NUT WPL 271162 Contact Us For Availability
6
SWITCH, PUSH WPL 673401 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
6
INSERT WPL 6812159 Contact Us For Availability
6
WASHER WPL 521851 Contact Us For Availability
6
THRUST WASHER WPL 678341 Contact Us For Availability
6
SCREW WPL 4060081 Contact Us For Availability
6
TRIM, REAR WPL 6873211 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
FRONT, BASKET WPL 676553 Contact Us For Availability
7
SHELF SEAL WPL 672665 Contact Us For Availability
7
HINGE PIN WPL 687891 Contact Us For Availability
8
KNOB, TEMPERATURE CONTROL WPL 671453 Contact Us For Availability
8
DOOR, ICE WPL 685651 Contact Us For Availability
8
FRONT, ICE DISPENSER WPL 677362 Contact Us For Availability
8
BASKET, FRZ. WPL 671212 Contact Us For Availability
8
TRIM, FRONT WPL 6873110 Contact Us For Availability
8
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
9
LINER, DOOR WPL 659437 Contact Us For Availability
9
SCREW WPL 405022103 Contact Us For Availability
9
DOOR, DISPENSER WPL 677345 Contact Us For Availability
9
CLIP,FRZ BASKET WPL 671221 Contact Us For Availability
9
GASKET, SHELF FRONT WPL 672655 Contact Us For Availability
9
ESCUTCHEON (BLK) WPL 6859411 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
SCREW WPL 405116103 Contact Us For Availability
10
GASKET WPL 669292 Contact Us For Availability
10
NUT, INLET TUBING WPL 246851 Contact Us For Availability
10
SPACE ROLLER WPL 671241 Contact Us For Availability
10
FRAME, MEAT SHELF WPL 672742 Contact Us For Availability
10
TAPE, ESCUTCHEON WPL 951211 Contact Us For Availability
11
PLUG BUTTON WPL 676881 Contact Us For Availability
11
SEAL WPL 685602 Contact Us For Availability
11
DOOR, DAIRY WPL 66184383 Contact Us For Availability
11
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
11
ROLLER,WHEEL BASKET WPL 671231 Contact Us For Availability
11
TRIM, REAR WPL 6873213 Contact Us For Availability
11
SEAL WPL 5207726 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 673551 Contact Us For Availability
12
STRIKE, DOOR WPL 685631 Contact Us For Availability
12
TRAY, BUTTER WPL 299362 Contact Us For Availability
12
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
12
CLIP, BASKET STOP WPL 674881 Contact Us For Availability
12
TRIM, FRONT WPL 6873112 Contact Us For Availability
12
CHUTE, ICE WPL 685691 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
13
SHELF FRONT WPL 657816 Contact Us For Availability
13
CLAMP, TUBING WPL 535168 Contact Us For Availability
13
SCREW WPL 6527519 Contact Us For Availability
13
RAIL, MEAT KEEPER WPL 676496 Contact Us For Availability
13
ACCESS PANEL WPL 686342 Contact Us For Availability
13
INSULATION WPL 687682 Contact Us For Availability
13
INSULATION WPL 687701 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
14
SHELF, PICK-OFF WPL 657826 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
PAN, LOWER WPL 6765020 Contact Us For Availability
14
STUD WPL 687862 Contact Us For Availability
15
KNOB, FREEZER CONTROL WPL 671454 Contact Us For Availability
15
BRACKET WPL 685621 Contact Us For Availability
15
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
CUP, SHELF WPL 674661 Contact Us For Availability
15
TRIM, MEAT PAN SUPPORT WPL 670713 Contact Us For Availability
15
SCREW WPL 400021103 Contact Us For Availability
15
ANCHOR WPL 661704 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
16
SCREW WPL 4000171 Contact Us For Availability
16
CLOSER, DOOR WPL 544851 Contact Us For Availability
16
ORGANIZER PACKAGE WPL 666456 Contact Us For Availability
16
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
16
ARM, SENSOR WPL 681121 Contact Us For Availability
16
BULB, LIGHT WPL 319561 Contact Us For Availability
16
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
17
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
17
BACK, FOUNTAIN (BLK) WPL 685671 Contact Us For Availability
17
TRAY, EGG WPL 6006615 Contact Us For Availability
17
INSULATION, CLOSER WPL 526131 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
SOCKET, LIGHT WPL 605771 Contact Us For Availability
17
SCREW WPL 652756 Contact Us For Availability
18
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
18
HEATER, FOUNTAIN BACK WPL 689381 Contact Us For Availability
18
TRIM, PERIMETER (TOP) WPL 682032 Contact Us For Availability
18
BRACKET, CLOSER WPL 526141 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
WIRE HARNESS, FRZ WPL 688711 Contact Us For Availability
19
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
19
BULB, LIGHT WPL 201746 Contact Us For Availability
19
INSULATION, FOIL WPL 687141 Contact Us For Availability
19
TRIM, PERIMETER (SIDE) WPL 682054 Contact Us For Availability
19
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
19
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
19
PAN, MEAT WPL 6765015 Contact Us For Availability
19
PICK-OFF SHELF WPL 687274 Contact Us For Availability
20
SHIELD, LIGHT WPL 672421 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
20
TRIM, PERIMETER (BOTTOM) WPL 682042 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
20
GLASS, CRISPER SHELF WPL 674898 Contact Us For Availability
20
FRONT, PICK-OFF WPL 6570110 Contact Us For Availability
21
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
21
SCREW WPL 405024103 Contact Us For Availability
21
SCREW WPL 6527545 Contact Us For Availability
21
CLIP WPL 667231 Contact Us For Availability
21
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
21
BRACKET, MOTOR WPL 672951 Contact Us For Availability
21
SHELF, CRISPER WPL 672012 Contact Us For Availability
21
TUBING PLASTIC-DOOR PANEL WPL 671871 Contact Us For Availability
22
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
22
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
22
PADDLE, ICE WPL 685591 Contact Us For Availability
22
HINGE, UPPER WPL 5370922 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
22
SEAL WPL 6632523 Contact Us For Availability
22
SHIELD, FAN WPL 672252 Contact Us For Availability
22
SLIDE, CONTROL WPL 674912 Contact Us For Availability
22
WIRE HARNESS WPL 689081 Contact Us For Availability
23
INSERT, LIGHT SHIELD WPL 674767 Contact Us For Availability
23
PAD, PADDLE WPL 687011 Contact Us For Availability
23
SCREW, HANDLE WPL 6527537 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
23
RIVET WPL 227156 Contact Us For Availability
23
COVER, COIL WPL 672974 Contact Us For Availability
23
TRIM, CRISPER SHELF WPL 6720410 Contact Us For Availability
23
HANDLE WPL 686584 Contact Us For Availability
24
KICKPLATE WPL 5647827 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
24
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
24
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
24
SEAL, FOAM WPL 6632515 Contact Us For Availability
25
CLIP WPL 550422 Contact Us For Availability
25
TAPPING PLATE WPL 659642 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
25
SEAL WPL 6632520 Contact Us For Availability
25
PAN, UPPER WPL 6765019 Contact Us For Availability
26
AIR TUNNEL WPL 537261 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
26
SCREW WPL 4031001 Contact Us For Availability
26
HINGE, LOWER WPL 6771410 Contact Us For Availability
26
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
26
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
26
BRACKET SIDE CRISPER WPL 6746513 Contact Us For Availability
26
BRACKET SIDE CRISPER WPL 6746514 Contact Us For Availability
26
HINGE WPL 677144 Contact Us For Availability
27
AIR DEFLECTOR WPL 621281 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
27
HINGE PIN WPL 687881 Contact Us For Availability
27
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
27
ICEMAKER WPL 951091 Contact Us For Availability
27
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
28
MOTOR, INERTIA WPL 688271 Contact Us For Availability
28
VALVE WPL 675591 Contact Us For Availability
28
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
28
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
28
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
28
PERIMETER TRIM, LOWER WPL 682182 Contact Us For Availability
29
SCREW WPL 6527542 Contact Us For Availability
29
RAIL, HORIZONTAL SUPPORT WPL 672553 Contact Us For Availability
29
UNION, COMPRESSION WPL 542671 Contact Us For Availability
29
U-NUT GROUNDING WPL 537322 Contact Us For Availability
29
MOTOR,EVAPORATOR FAN WPL 557358 Contact Us For Availability
29
SCREW WPL 6527534 Contact Us For Availability
29
PERIMETER TRIM, TOP WPL 682172 Contact Us For Availability
30
WHEEL WPL 298342 Contact Us For Availability
30
BRACKET WPL 686261 Contact Us For Availability
30
COVER ICE MAKER WPL 681131 Contact Us For Availability
30
SCREW WPL 40001512 Contact Us For Availability
30
SCREW WPL 4000211 Contact Us For Availability
30
COVER, COIL LOWER WPL 673353 Contact Us For Availability
30
SHELF, LOWER WPL 672025 Contact Us For Availability
30
SCREW WPL 6527538 Contact Us For Availability
30
TRIM, PERIMETER WPL 682053 Contact Us For Availability
31
PIN, WHEEL WPL 649651 Contact Us For Availability
31
PLUNGER WPL 685681 Contact Us For Availability
31
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
31
SCREW WPL 951051 Contact Us For Availability
31
COIL COVER, GASKET WPL 675621 Contact Us For Availability
31
SEAL WPL 677315 Contact Us For Availability
31
SCREW, ANCHOR WPL 603194 Contact Us For Availability
31
ACHOR, SCREW WPL 667991 Contact Us For Availability
32
BRACKET, WHEEL WPL 627941 Contact Us For Availability
32
HEATER FOUNTAIN WPL 688201 Contact Us For Availability
32
SCREW WPL 951061 Contact Us For Availability
32
GROMMET WPL 525261 Contact Us For Availability
32
TRIM, CRISPER SHELF WPL 6720411 Contact Us For Availability
32
INSERT, FOOD STORAGE WPL 687846 Contact Us For Availability
33
BRACKET WPL 627952 Contact Us For Availability
33
FOUNTAIN FRONT WPL 686251 Contact Us For Availability
33
SCREW WPL 4000221 Contact Us For Availability
33
DRAIN TUBE WPL 265279 Contact Us For Availability
33
BRACKET (LT) WPL 6746515 Contact Us For Availability
33
BRACKET (RT) WPL 6746516 Contact Us For Availability
33
INSERT WPL 6812158 Contact Us For Availability
34
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
34
FOUNTAIN WPL 686241 Contact Us For Availability
34
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
34
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
34
SCREW WPL 4010181 Contact Us For Availability
34
SCREW WPL 998645 Contact Us For Availability
34
SCREW WPL 6527528 Contact Us For Availability
35
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
35
SCREW WPL 405025103 Contact Us For Availability
35
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
35
CLAMP, SPRING WPL 603334 Contact Us For Availability
35
SUPPORT, CRISPER WPL 671621 Contact Us For Availability
36
FUNNEL-KIT WPL 675792 Contact Us For Availability
36
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
36
GRILL WPL 686311 Contact Us For Availability
36
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
36
SCREW WPL 40002612 Contact Us For Availability
37
LEG, LEVELING WPL 686641 Contact Us For Availability
37
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
37
TUBING, VALVE TO COIL WPL 671875 Contact Us For Availability
37
GROMMET, WATER ENTRY WPL 683072 Contact Us For Availability
37
TUNNEL, AIR (MEAT) WPL 686901 Contact Us For Availability
38
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
38
KNOB, AIR CONTROL WPL 687551 Contact Us For Availability
39
BUMPER, DOOR WPL 282726 Contact Us For Availability
39
UNION REDUCING WPL 675661 Contact Us For Availability
39
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
40
NUT, COMPRESSION (3/8``) WPL 676101 Contact Us For Availability
40
CLIP WPL 566864 Contact Us For Availability
40
SCREW WPL 4000261 Contact Us For Availability
41
COVER, WATER COIL WPL 688371 Contact Us For Availability
41
WIRE HARNESS WPL 674101 Contact Us For Availability
41
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
42
SCREW WPL 4000256 Contact Us For Availability
42
TUBING ASSY WPL 72028102 Contact Us For Availability
42
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
43
GROMMET, COIL ENTRY WPL 675631 Contact Us For Availability
× ![]()
Login and Registration Form
