Model Maytag JRSD245 REFRIGERATOR – Common Parts & Diagrams

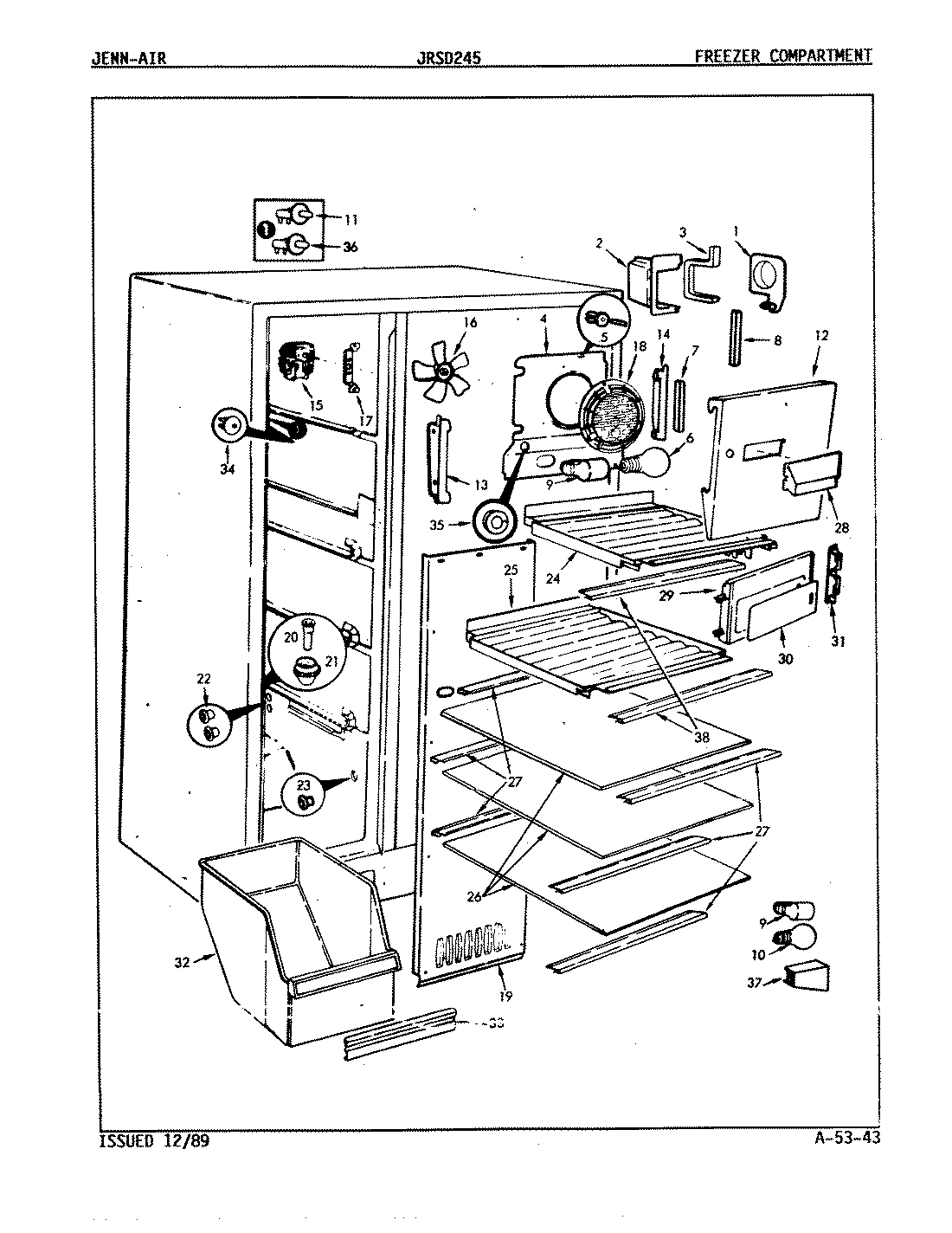

01 - FREEZER COMPARTMENT

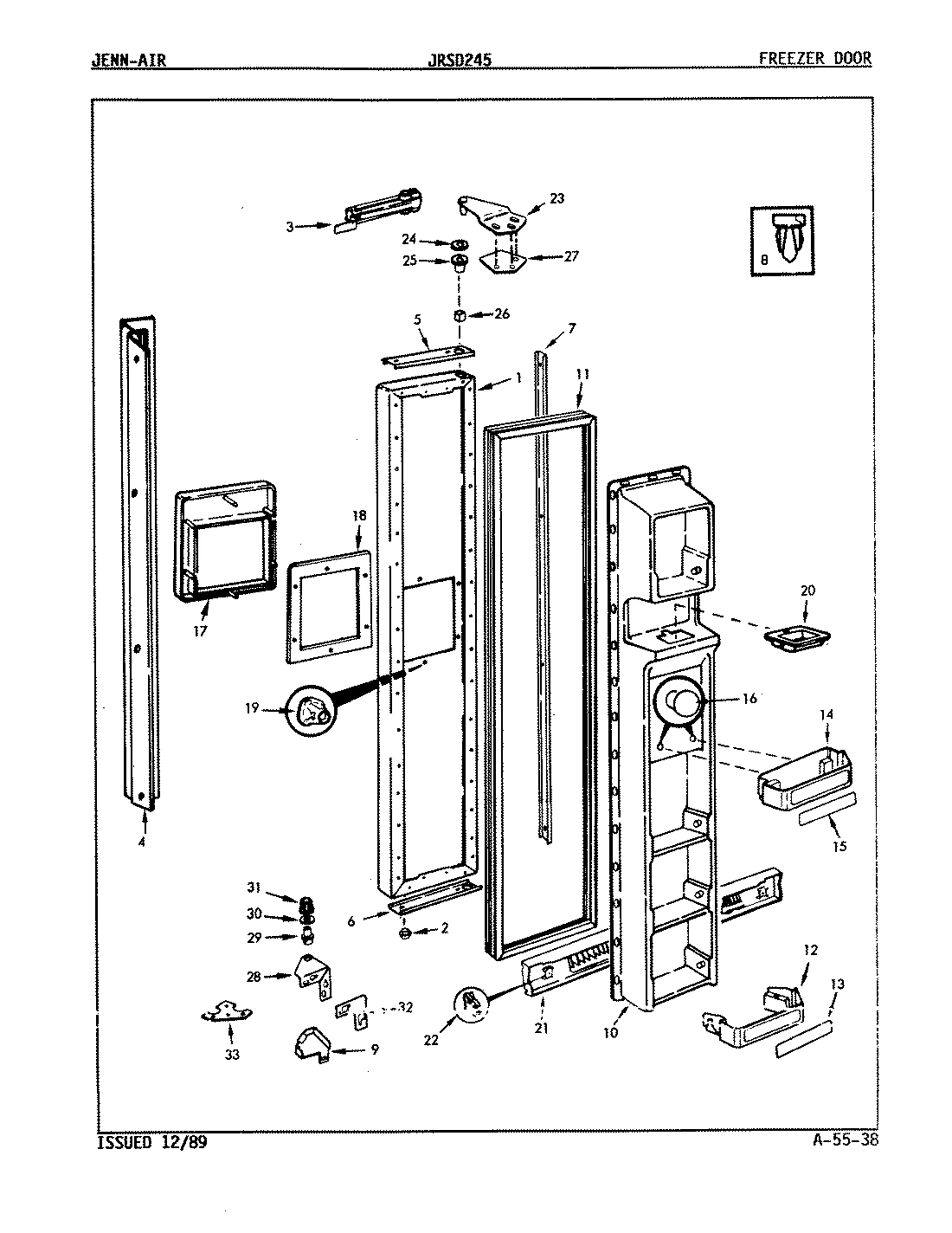

02 - FREEZER DOOR

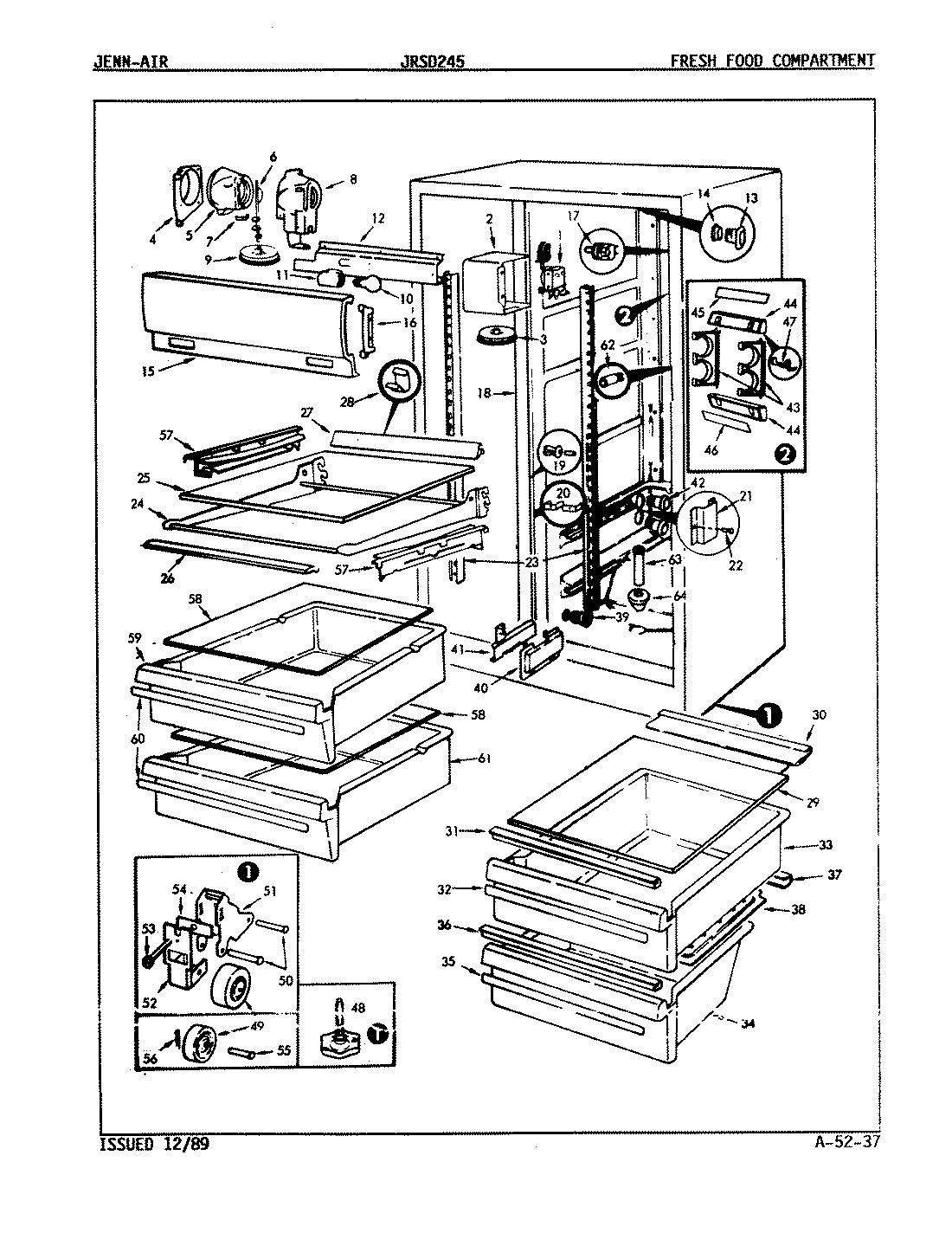

03 - FRESH FOOD COMPARTMENT

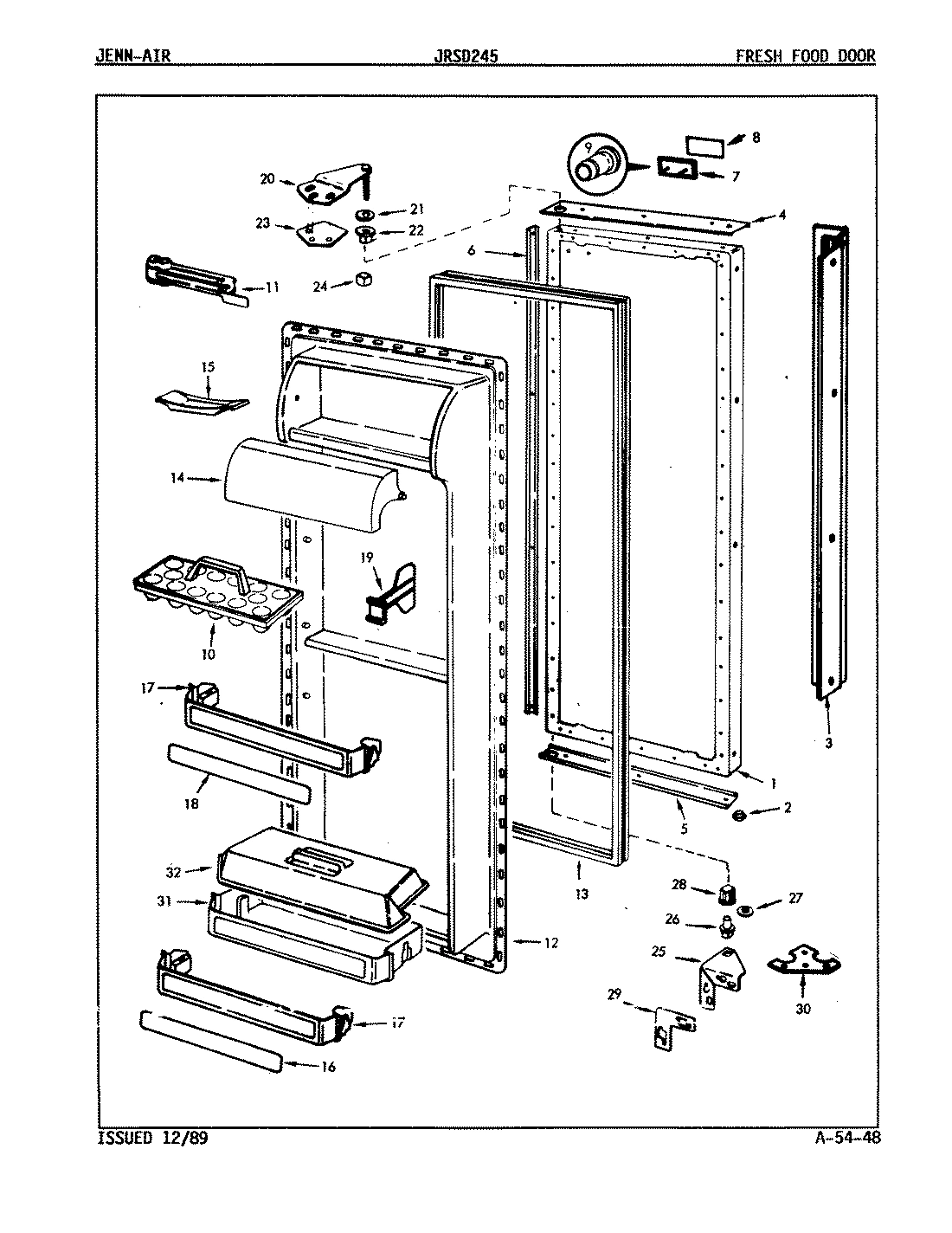

04 - FRESH FOOD DOOR

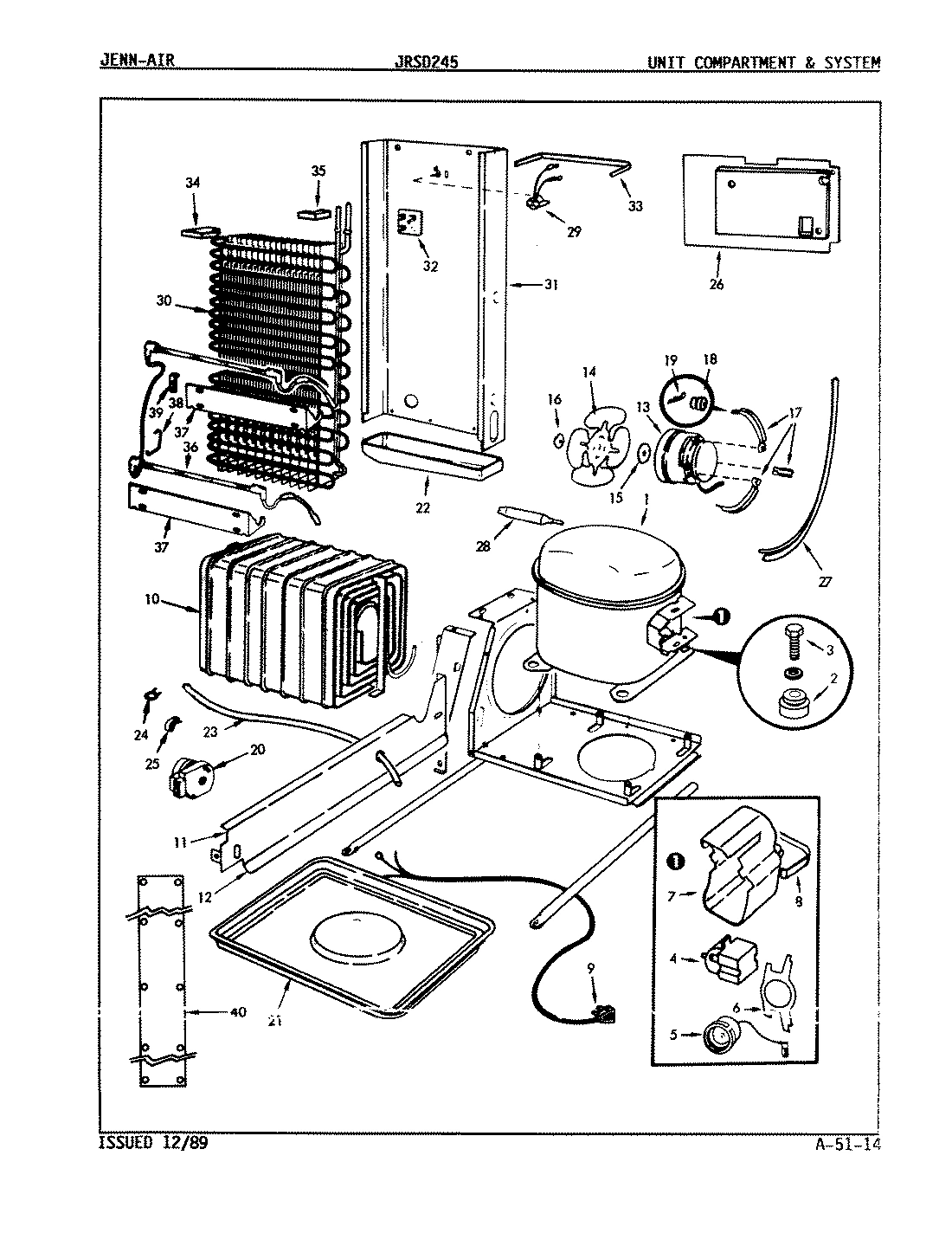

05 - UNIT COMPARTMENT & SYSTEM

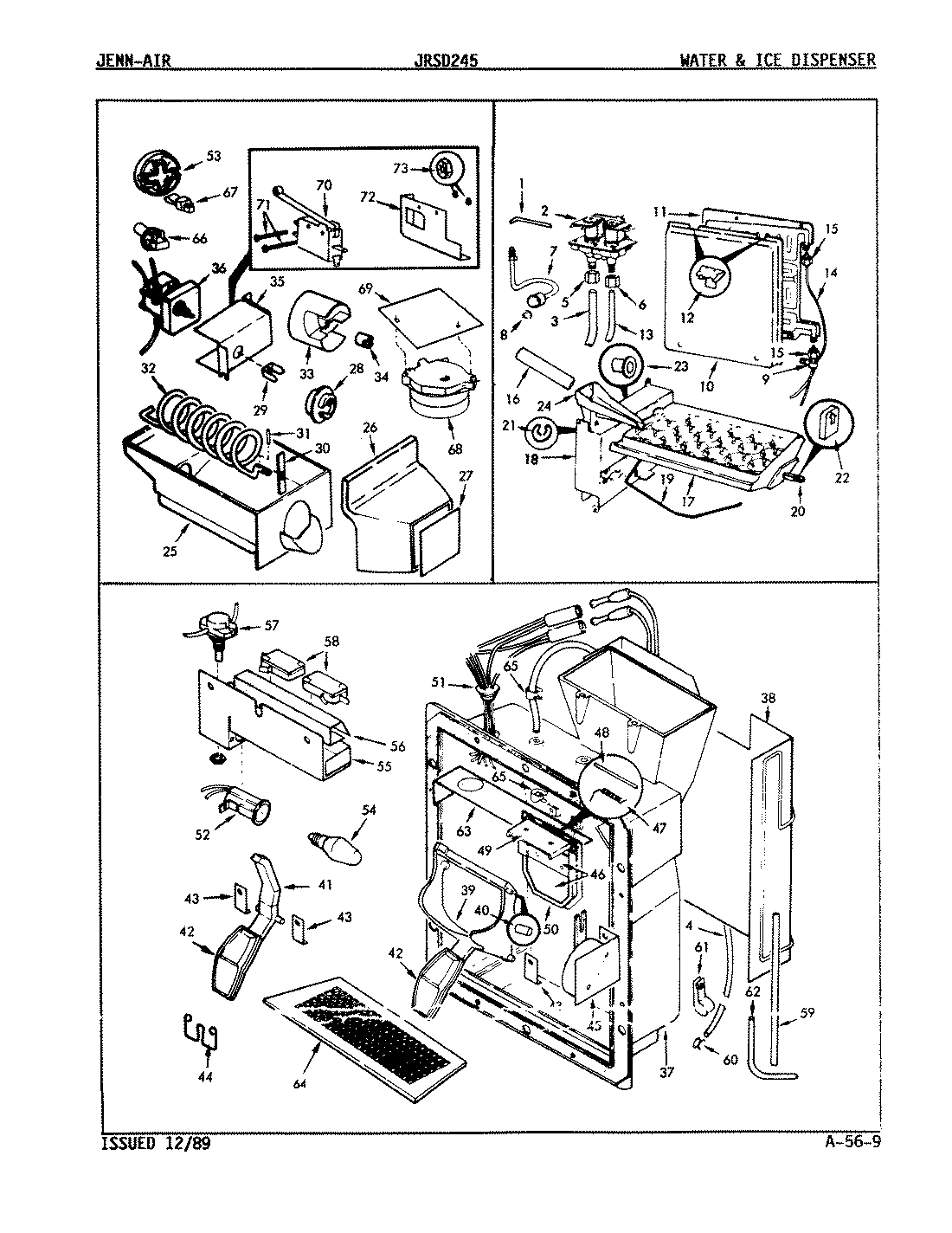

06 - WATER & ICE DISPENSER
Common parts from model Maytag JRSD245 REFRIGERATOR
1
MAY 66685-2-AM MAY 66685-2-AM Contact Us For Availability
1
MAY 66685-2-WW MAY 66685-2-WW Contact Us For Availability
1
MAY RA95060-1 MAY RA95060-1 Contact Us For Availability
1
MAY 52898-1 MAY 52898-1 Contact Us For Availability
1
MAY 65268-2 MAY 65268-2 Contact Us For Availability
1
MAY 66689-1-WW MAY 66689-1-WW Contact Us For Availability
1
MAY RA1018 MAY RA1018 Contact Us For Availability
1
MAY 56125-1 MAY 56125-1 Contact Us For Availability
2
MAY 495034-900 MAY 495034-900 Contact Us For Availability
2
MAY 400053-1 MAY 400053-1 Contact Us For Availability
2
MAY 53682-10 MAY 53682-10 Contact Us For Availability
2
MAY 17245-4 MAY 17245-4 Contact Us For Availability
2
MAY 56595-3 MAY 56595-3 Contact Us For Availability
3
MAY 65275-4 MAY 65275-4 Contact Us For Availability
3
MAY 29893-7 MAY 29893-7 Contact Us For Availability
3
MAY 68206-2 MAY 68206-2 Contact Us For Availability
3
MAY 65275-9 MAY 65275-9 Contact Us For Availability
3
MAY 55603-6 MAY 55603-6 Contact Us For Availability
4
MAY 68366-6 MAY 68366-6 Contact Us For Availability
4
MAY 68206-1 MAY 68206-1 Contact Us For Availability
4
MAY 53835-2 MAY 53835-2 Contact Us For Availability
4
MAY 68203-1 MAY 68203-1 Contact Us For Availability
4
MAY 400062-1 MAY 400062-1 Contact Us For Availability
4
MAY 66858-1 MAY 66858-1 Contact Us For Availability
4
MAY 55602-7 MAY 55602-7 Contact Us For Availability
5
MAY 59920-1 MAY 59920-1 Contact Us For Availability
5
MAY 68217-1 MAY 68217-1 Contact Us For Availability
5
MAY 58767-1 MAY 58767-1 Contact Us For Availability
5
MAY 68204-1 MAY 68204-1 Contact Us For Availability
5
MAY 63294-19 MAY 63294-19 Contact Us For Availability
5
MAY 55604-1 MAY 55604-1 Contact Us For Availability
6
MAY 31956-1 MAY 31956-1 Contact Us For Availability
6
MAY 66799-1 MAY 66799-1 Contact Us For Availability
6
MAY 68218-1 MAY 68218-1 Contact Us For Availability
6
MAY 65275-15 MAY 65275-15 Contact Us For Availability
6
MAY 52587-2 MAY 52587-2 Contact Us For Availability
6
MAY 68205-2 MAY 68205-2 Contact Us For Availability
6
MAY 65887-1 MAY 65887-1 Contact Us For Availability
7
MAY 52077-19 MAY 52077-19 Contact Us For Availability
7
MAY 68205-1 MAY 68205-1 Contact Us For Availability
7
MAY 52648-1 MAY 52648-1 Contact Us For Availability
7
MAY 68060-1 MAY 68060-1 Contact Us For Availability
7
MAY 66589-2 MAY 66589-2 Contact Us For Availability
7
MAY 53760-2 MAY 53760-2 Contact Us For Availability
8
MAY 52824-4 MAY 52824-4 Contact Us For Availability
8
MAY 66723-1 MAY 66723-1 Contact Us For Availability
8
MAY 400027-1 MAY 400027-1 Contact Us For Availability
8
MAY 58760-2 MAY 58760-2 Contact Us For Availability
8
MAY 68061-4 MAY 68061-4 Contact Us For Availability
8
MAY 65886-1 MAY 65886-1 Contact Us For Availability
8
MAY 24685-1 MAY 24685-1 Contact Us For Availability
8
MAY 24685-5 MAY 24685-5 Contact Us For Availability
9
MAY 65131-1 MAY 65131-1 Contact Us For Availability
9
MAY 29893-8 MAY 29893-8 Contact Us For Availability
9
MAY 400001-1 MAY 400001-1 Contact Us For Availability
9
MAY 68381-1 MAY 68381-1 Contact Us For Availability
9
MAY 52890-2 MAY 52890-2 Contact Us For Availability
10
MAY 2386 MAY 2386 Contact Us For Availability
10
MAY 65951-7 MAY 65951-7 Contact Us For Availability
10
MAY 55771 MAY 55771 Contact Us For Availability
10
MAY 60066-13 MAY 60066-13 Contact Us For Availability
10
MAY 60408-2 MAY 60408-2 Contact Us For Availability
10
MAY RA43644-1 MAY RA43644-1 Contact Us For Availability
10
MAY 59843-1 MAY 59843-1 Contact Us For Availability
11
MAY 29814-2 MAY 29814-2 Contact Us For Availability
11
MAY 52613-1 MAY 52613-1 Contact Us For Availability
11
MAY 52614-1 MAY 52614-1 Contact Us For Availability
11
MAY 54485-1 MAY 54485-1 Contact Us For Availability
11
MAY 66929-1 MAY 66929-1 Contact Us For Availability
11
MAY 29838-4 MAY 29838-4 Contact Us For Availability
11
MAY 62920-1 MAY 62920-1 Contact Us For Availability
12
MAY 65654-2 MAY 65654-2 Contact Us For Availability
12
MAY 9986-12 MAY 9986-12 Contact Us For Availability
12
MAY 65701-10 MAY 65701-10 Contact Us For Availability
12
MAY 59740-2 MAY 59740-2 Contact Us For Availability
12
MAY 65641-6 MAY 65641-6 Contact Us For Availability
12
MAY 65493-1 MAY 65493-1 Contact Us For Availability
12
MAY 62082-1 MAY 62082-1 Contact Us For Availability
13
MAY 53687-2 MAY 53687-2 Contact Us For Availability
13
MAY 57410-1 MAY 57410-1 Contact Us For Availability
13
MAY 53712-2 MAY 53712-2 Contact Us For Availability
13
MAY 29675-2 MAY 29675-2 Contact Us For Availability
13
MAY 65275-33 MAY 65275-33 Contact Us For Availability
13
MAY 67560-3 MAY 67560-3 Contact Us For Availability
13
MAY 67579-19 MAY 67579-19 Contact Us For Availability
14
MAY 54424-2 MAY 54424-2 Contact Us For Availability
14
MAY 65709-10 MAY 65709-10 Contact Us For Availability
14
MAY 57411-1 MAY 57411-1 Contact Us For Availability
14
MAY 66184-361 MAY 66184-361 Contact Us For Availability
14
MAY 60683-2 MAY 60683-2 Contact Us For Availability
14
MAY 67579-18 MAY 67579-18 Contact Us For Availability
15
MAY 56488-4 MAY 56488-4 Contact Us For Availability
15
MAY 68121-45 MAY 68121-45 Contact Us For Availability
15
MAY 06100006 MAY 06100006 Contact Us For Availability
15
MAY 29936-2 MAY 29936-2 Contact Us For Availability
15
MAY 19913-2 MAY 19913-2 Contact Us For Availability
15
MAY 55419-1 MAY 55419-1 Contact Us For Availability
16
MAY 52120-1 MAY 52120-1 Contact Us For Availability
16
MAY 400014-1 MAY 400014-1 Contact Us For Availability
16
MAY 420028-1 MAY 420028-1 Contact Us For Availability
16
MAY 65660-2 MAY 65660-2 Contact Us For Availability
16
MAY 53686-2 MAY 53686-2 Contact Us For Availability
16
MAY 58461-4 MAY 58461-4 Contact Us For Availability
17
MAY 56432-2 MAY 56432-2 Contact Us For Availability
17
MAY 64856-2 MAY 64856-2 Contact Us For Availability
17
MAY 65512-1 MAY 65512-1 Contact Us For Availability
17
MAY 60482-59 MAY 60482-59 Contact Us For Availability
17
MAY 65781-6 MAY 65781-6 Contact Us For Availability
17
MAY 56936-1 MAY 56936-1 Contact Us For Availability
18
MAY 62689-1 MAY 62689-1 Contact Us For Availability
18
MAY 63057-1 MAY 63057-1 Contact Us For Availability
18
MAY 59026-1-AM MAY 59026-1-AM Contact Us For Availability
18
MAY 59026-1-WW MAY 59026-1-WW Contact Us For Availability
18
MAY 68121-43 MAY 68121-43 Contact Us For Availability
18
MAY 56933-1 MAY 56933-1 Contact Us For Availability
18
MAY 400021-1 MAY 400021-1 Contact Us For Availability
18
MAY 62059-1 MAY 62059-1 Contact Us For Availability
18
MAY RA43714-8 MAY RA43714-8 Contact Us For Availability
19
MAY 65224-10 MAY 65224-10 Contact Us For Availability
19
MAY 65211-2 MAY 65211-2 Contact Us For Availability
19
MAY 59920-3 MAY 59920-3 Contact Us For Availability
19
MAY 59920-9 MAY 59920-9 Contact Us For Availability
19
MAY 66645-5 MAY 66645-5 Contact Us For Availability
19
MAY 57051-1 MAY 57051-1 Contact Us For Availability
19
MAY 52307-2 MAY 52307-2 Contact Us For Availability
20
MAY 26527-9 MAY 26527-9 Contact Us For Availability
20
MAY 402017-7 MAY 402017-7 Contact Us For Availability
20
MAY 63020-6 MAY 63020-6 Contact Us For Availability
20
MAY 53709-22 MAY 53709-22 Contact Us For Availability
20
MAY 66875-1 MAY 66875-1 Contact Us For Availability
20
MAY 9986-87 MAY 9986-87 Contact Us For Availability
20
MAY 53060-4 MAY 53060-4 Contact Us For Availability
20
MAY 29282-2 MAY 29282-2 Contact Us For Availability
20
MAY 405007-1 MAY 405007-1 Contact Us For Availability
20
MAY 66556-2 MAY 66556-2 Contact Us For Availability
20
MAY 65319-1 MAY 65319-1 Contact Us For Availability
21
MAY 54531-7 MAY 54531-7 Contact Us For Availability
21
MAY 56478-27 MAY 56478-27 Contact Us For Availability
21
MAY 62128-1 MAY 62128-1 Contact Us For Availability
21
MAY 29839-4 MAY 29839-4 Contact Us For Availability
21
MAY 45004-20 MAY 45004-20 Contact Us For Availability
21
MAY 58706-1 MAY 58706-1 Contact Us For Availability
22
MAY 52854-3 MAY 52854-3 Contact Us For Availability
22
MAY 66036-2 MAY 66036-2 Contact Us For Availability
22
MAY 28013-2 MAY 28013-2 Contact Us For Availability
22
MAY 53523-2 MAY 53523-2 Contact Us For Availability
22
MAY 65318-1 MAY 65318-1 Contact Us For Availability
23
MAY 53727-1 MAY 53727-1 Contact Us For Availability
23
MAY 65031-1 MAY 65031-1 Contact Us For Availability
23
MAY 400037-28 MAY 400037-28 Contact Us For Availability
23
MAY 58381-4 MAY 58381-4 Contact Us For Availability
23
MAY 26911-25 MAY 26911-25 Contact Us For Availability
23
MAY 65317-1 MAY 65317-1 Contact Us For Availability
24
MAY 65651-7 MAY 65651-7 Contact Us For Availability
24
MAY 52185-2 MAY 52185-2 Contact Us For Availability
24
MAY 55990-1 MAY 55990-1 Contact Us For Availability
24
MAY 65618-3 MAY 65618-3 Contact Us For Availability
24
MAY 405009-103 MAY 405009-103 Contact Us For Availability
24
MAY 53748-1 MAY 53748-1 Contact Us For Availability
25
MAY 65651-8 MAY 65651-8 Contact Us For Availability
25
MAY 403062-801 MAY 403062-801 Contact Us For Availability
25
MAY 68405-9 MAY 68405-9 Contact Us For Availability
25
MAY 60630-12 MAY 60630-12 Contact Us For Availability
25
MAY 53516-5 MAY 53516-5 Contact Us For Availability
25
MAY 66447-1 MAY 66447-1 Contact Us For Availability
26
MAY 68405-12 MAY 68405-12 Contact Us For Availability
26
MAY 66649-2 MAY 66649-2 Contact Us For Availability
26
MAY 53672-1 MAY 53672-1 Contact Us For Availability
26
MAY 66339-1 MAY 66339-1 Contact Us For Availability
26
MAY 405022-103 MAY 405022-103 Contact Us For Availability
26
MAY 66205-1 MAY 66205-1 Contact Us For Availability
27
MAY 54233-1 MAY 54233-1 Contact Us For Availability
27
MAY 65561-116 MAY 65561-116 Contact Us For Availability
27
MAY 65276-15 MAY 65276-15 Contact Us For Availability
27
MAY 26088-23 MAY 26088-23 Contact Us For Availability
27
MAY RA95090-2 MAY RA95090-2 Contact Us For Availability
27
MAY 68131-15 MAY 68131-15 Contact Us For Availability
28
MAY 65652-1 MAY 65652-1 Contact Us For Availability
28
MAY 60630-4 MAY 60630-4 Contact Us For Availability
28
MAY 66333-1 MAY 66333-1 Contact Us For Availability
28
MAY 13900 MAY 13900 Contact Us For Availability
28
MAY 63017-1 MAY 63017-1 Contact Us For Availability
29
MAY 65629-1 MAY 65629-1 Contact Us For Availability
29
MAY 65418-1 MAY 65418-1 Contact Us For Availability
29
MAY 60626-1 MAY 60626-1 Contact Us For Availability
29
MAY 65687-2 MAY 65687-2 Contact Us For Availability
29
MAY 52085-13 MAY 52085-13 Contact Us For Availability
29
MAY 63052-1 MAY 63052-1 Contact Us For Availability
30
MAY 68132-13 MAY 68132-13 Contact Us For Availability
30
MAY 54233-2 MAY 54233-2 Contact Us For Availability
30
MAY 65964-1 MAY 65964-1 Contact Us For Availability
30
MAY 68157-2 MAY 68157-2 Contact Us For Availability
30
MAY RA43643-10 MAY RA43643-10 Contact Us For Availability
30
MAY 63084-1 MAY 63084-1 Contact Us For Availability
31
MAY 60313-1 MAY 60313-1 Contact Us For Availability
31
MAY 66146-1 MAY 66146-1 Contact Us For Availability
31
MAY 66037-1 MAY 66037-1 Contact Us For Availability
31
MAY 65650-2 MAY 65650-2 Contact Us For Availability
31
MAY 65782-6 MAY 65782-6 Contact Us For Availability
31
MAY 65033-2 MAY 65033-2 Contact Us For Availability
31
MAY 63071-1 MAY 63071-1 Contact Us For Availability
32
MAY 66637-36 MAY 66637-36 Contact Us For Availability
32
MAY 66637-40 MAY 66637-40 Contact Us For Availability
32
MAY 55878-1 MAY 55878-1 Contact Us For Availability
32
MAY 66435-1 MAY 66435-1 Contact Us For Availability
33
MAY 68124-67 MAY 68124-67 Contact Us For Availability
33
MAY 66637-34 MAY 66637-34 Contact Us For Availability
33
MAY 52077-14 MAY 52077-14 Contact Us For Availability
33
MAY 66448-1 MAY 66448-1 Contact Us For Availability
34
MAY 53821-1 MAY 53821-1 Contact Us For Availability
34
MAY Y06100007 MAY Y06100007 Contact Us For Availability
34
MAY 65063-1 MAY 65063-1 Contact Us For Availability
34
MAY 66098-1 MAY 66098-1 Contact Us For Availability
35
MAY 59090-1 MAY 59090-1 Contact Us For Availability
35
MAY 68124-65 MAY 68124-65 Contact Us For Availability
35
MAY 65064-1 MAY 65064-1 Contact Us For Availability
35
MAY 400015-12 MAY 400015-12 Contact Us For Availability
35
MAY 56142-1 MAY 56142-1 Contact Us For Availability
35
MAY 65265-1 MAY 65265-1 Contact Us For Availability
36
MAY 65648-2 MAY 65648-2 Contact Us For Availability
36
MAY 52764-15 MAY 52764-15 Contact Us For Availability
36
MAY 406026-103 MAY 406026-103 Contact Us For Availability
37
MAY 52197-1 MAY 52197-1 Contact Us For Availability
37
MAY 65649-2 MAY 65649-2 Contact Us For Availability
37
MAY 29915-13 MAY 29915-13 Contact Us For Availability
37
MAY 63000-5 MAY 63000-5 Contact Us For Availability
38
MAY 66648-2 MAY 66648-2 Contact Us For Availability
38
MAY 65608-2 MAY 65608-2 Contact Us For Availability
38
MAY 52067-1 MAY 52067-1 Contact Us For Availability
38
MAY 64937-1 MAY 64937-1 Contact Us For Availability
39
MAY 53726-2 MAY 53726-2 Contact Us For Availability
39
MAY 52561-1 MAY 52561-1 Contact Us For Availability
39
MAY 63007-3 MAY 63007-3 Contact Us For Availability
40
MAY 65737-2 MAY 65737-2 Contact Us For Availability
40
MAY 59940-3 MAY 59940-3 Contact Us For Availability
40
MAY 66381-1 MAY 66381-1 Contact Us For Availability
40
MAY 66939-1 MAY 66939-1 Contact Us For Availability
40
MAY 68027-1 MAY 68027-1 Contact Us For Availability
40
MAY 55602-21 MAY 55602-21 Contact Us For Availability
41
MAY 56686-4 MAY 56686-4 Contact Us For Availability
41
MAY 65736-1 MAY 65736-1 Contact Us For Availability
41
MAY 63008-3 MAY 63008-3 Contact Us For Availability
42
MAY 53726-1 MAY 53726-1 Contact Us For Availability
42
MAY 63066-1 MAY 63066-1 Contact Us For Availability
43
MAY 56519-4 MAY 56519-4 Contact Us For Availability
43
MAY 63035-2 MAY 63035-2 Contact Us For Availability
44
MAY 65689-1 MAY 65689-1 Contact Us For Availability
44
MAY 402015-103 MAY 402015-103 Contact Us For Availability
44
MAY 63306-1 MAY 63306-1 Contact Us For Availability
45
MAY 65753-19 MAY 65753-19 Contact Us For Availability
45
MAY 65212-1 MAY 65212-1 Contact Us For Availability
46
MAY 06100008 MAY 06100008 Contact Us For Availability
46
MAY RA43825-1 MAY RA43825-1 Contact Us For Availability
47
MAY 58057-1 MAY 58057-1 Contact Us For Availability
47
MAY 63428-1 MAY 63428-1 Contact Us For Availability
48
MAY 6012-8 MAY 6012-8 Contact Us For Availability
48
MAY 63053-1 MAY 63053-1 Contact Us For Availability
49
MAY 29834-2 MAY 29834-2 Contact Us For Availability
49
MAY 63014-1 MAY 63014-1 Contact Us For Availability
50
MAY 64965-1 MAY 64965-1 Contact Us For Availability
50
MAY 63089-2 MAY 63089-2 Contact Us For Availability
50
MAY 66007-1 MAY 66007-1 Contact Us For Availability
51
MAY 62794-1 MAY 62794-1 Contact Us For Availability
51
MAY 65275-17 MAY 65275-17 Contact Us For Availability
51
MAY 63372-3 MAY 63372-3 Contact Us For Availability
51
MAY 65290-1 MAY 65290-1 Contact Us For Availability
51
MAY 65291-1 MAY 65291-1 Contact Us For Availability
51
MAY 68033-1 MAY 68033-1 Contact Us For Availability
52
MAY 62795-1 MAY 62795-1 Contact Us For Availability
52
MAY 63039-1 MAY 63039-1 Contact Us For Availability
53
MAY 56487-1 MAY 56487-1 Contact Us For Availability
53
MAY 65176-1 MAY 65176-1 Contact Us For Availability
54
MAY 59101-1 MAY 59101-1 Contact Us For Availability
54
MAY 63179-1 MAY 63179-1 Contact Us For Availability
55
MAY 62580-1 MAY 62580-1 Contact Us For Availability
55
MAY 23197-7 MAY 23197-7 Contact Us For Availability
55
MAY 27116-4 MAY 27116-4 Contact Us For Availability
55
MAY 59808-1 MAY 59808-1 Contact Us For Availability
55
MAY 63013-2 MAY 63013-2 Contact Us For Availability
56
MAY 62581-1 MAY 62581-1 Contact Us For Availability
56
MAY 65333-1 MAY 65333-1 Contact Us For Availability
57
MAY 68805-1 MAY 68805-1 Contact Us For Availability
57
MAY 63040-1 MAY 63040-1 Contact Us For Availability
58
MAY 55440-2 MAY 55440-2 Contact Us For Availability
58
MAY 68405-10 MAY 68405-10 Contact Us For Availability
59
MAY Y06100009 MAY Y06100009 Contact Us For Availability
59
MAY 65002-15 MAY 65002-15 Contact Us For Availability
60
MAY 65583-80 MAY 65583-80 Contact Us For Availability
60
MAY 9602-9 MAY 9602-9 Contact Us For Availability
61
MAY Y06100010 MAY Y06100010 Contact Us For Availability
62
MAY 19530-2 MAY 19530-2 Contact Us For Availability
62
MAY 63038-2 MAY 63038-2 Contact Us For Availability
63
MAY 55512-1 MAY 55512-1 Contact Us For Availability
63
MAY 63036-1 MAY 63036-1 Contact Us For Availability
64
MAY 55513-1 MAY 55513-1 Contact Us For Availability
64
MAY 63025-1 MAY 63025-1 Contact Us For Availability
65
MAY 60333-1 MAY 60333-1 Contact Us For Availability
65
MAY 60333-2 MAY 60333-2 Contact Us For Availability
66
MAY 65177-1 MAY 65177-1 Contact Us For Availability
67
MAY 65185-1 MAY 65185-1 Contact Us For Availability
68
MAY 405072-1 MAY 405072-1 Contact Us For Availability
68
MAY 65132-1 MAY 65132-1 Contact Us For Availability
69
MAY 65143-1 MAY 65143-1 Contact Us For Availability
70
MAY 65285-1 MAY 65285-1 Contact Us For Availability
71
MAY 405022-1 MAY 405022-1 Contact Us For Availability
71
MAY 406043-1 MAY 406043-1 Contact Us For Availability
72
MAY 65286-2 MAY 65286-2 Contact Us For Availability
73
MAY 430002-1 MAY 430002-1 Contact Us For Availability
× ![]()
