Model Whirlpool JRSD225L REFRIGERATOR – Common Parts & Diagrams

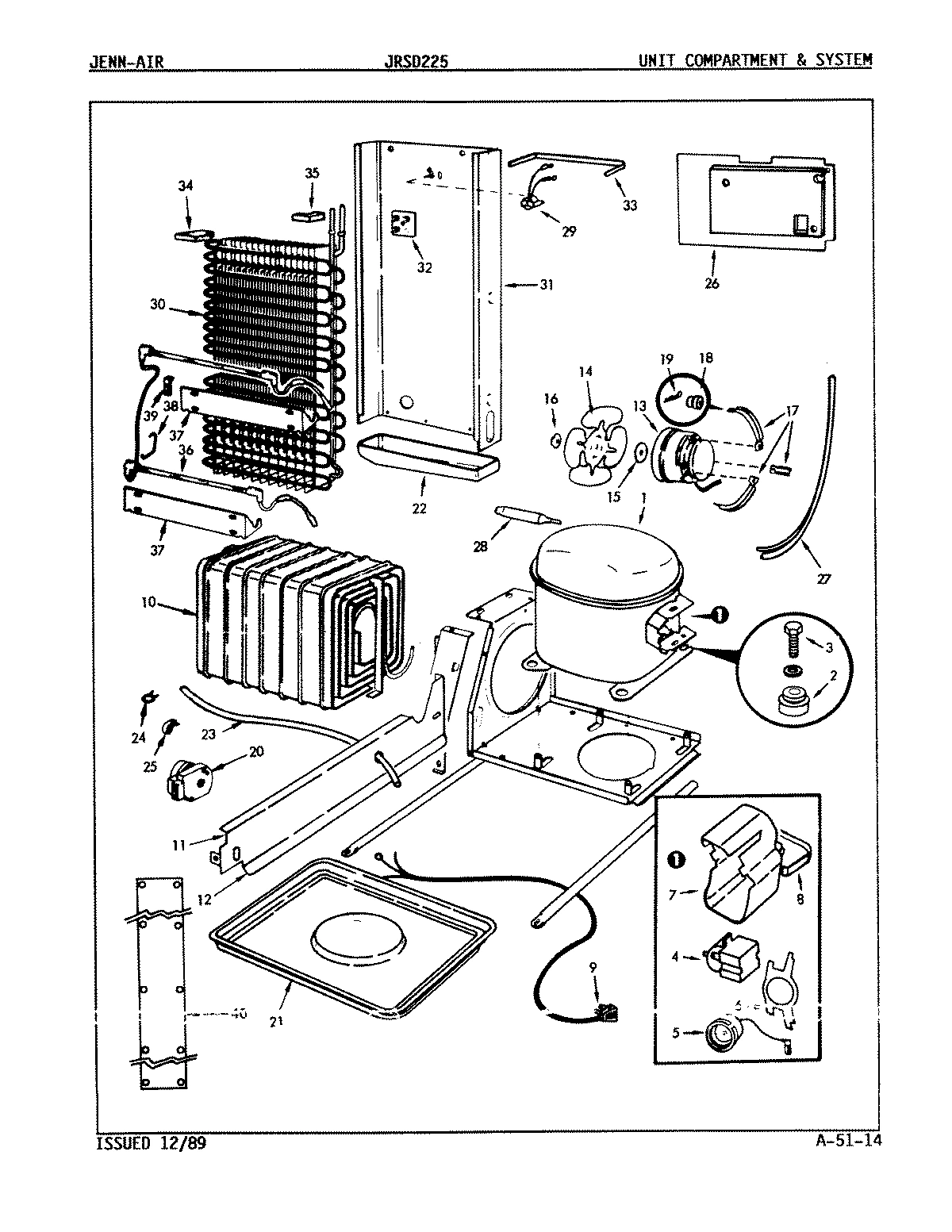

05 - UNIT COMPARTMENT & SYSTEM

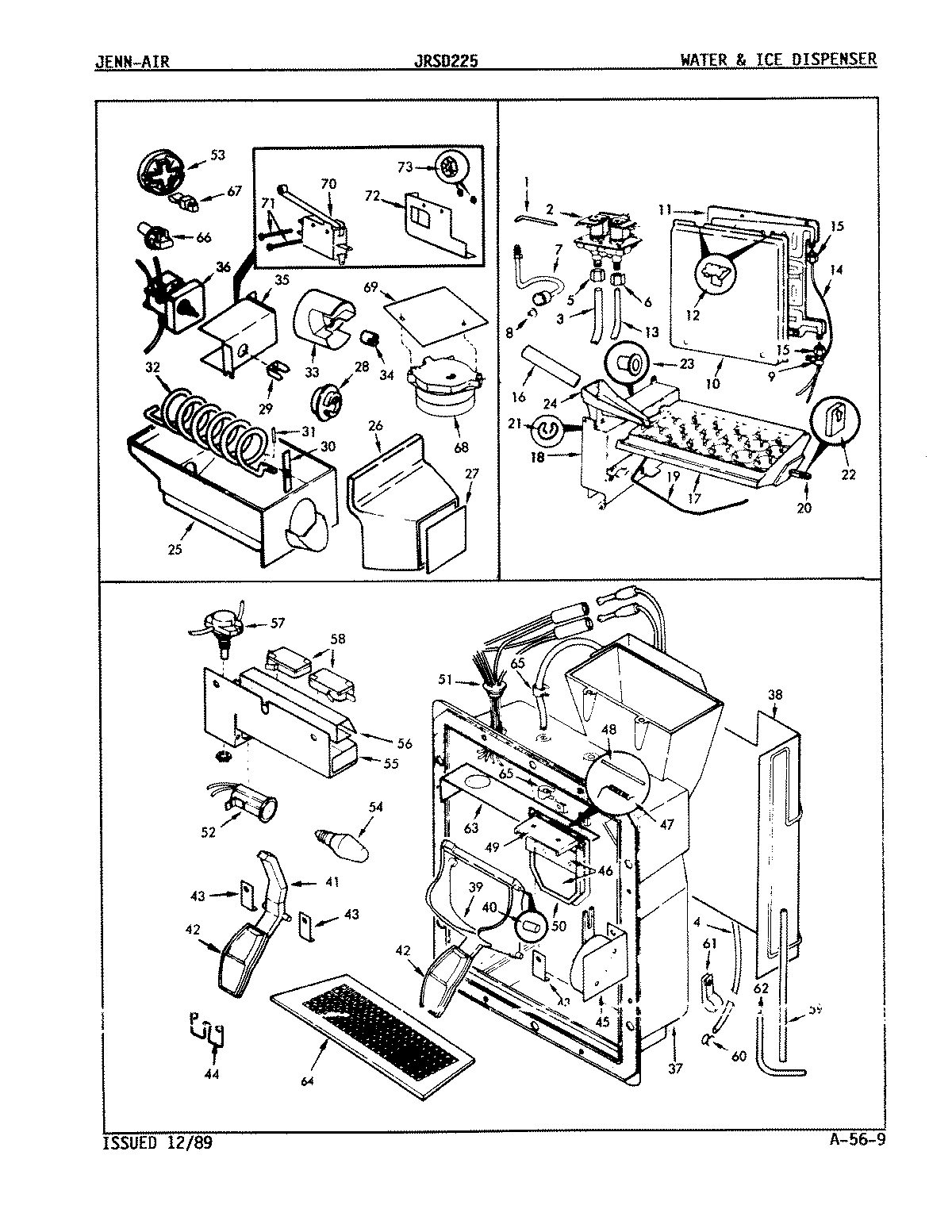

06 - WATER & ICE DISPENSER

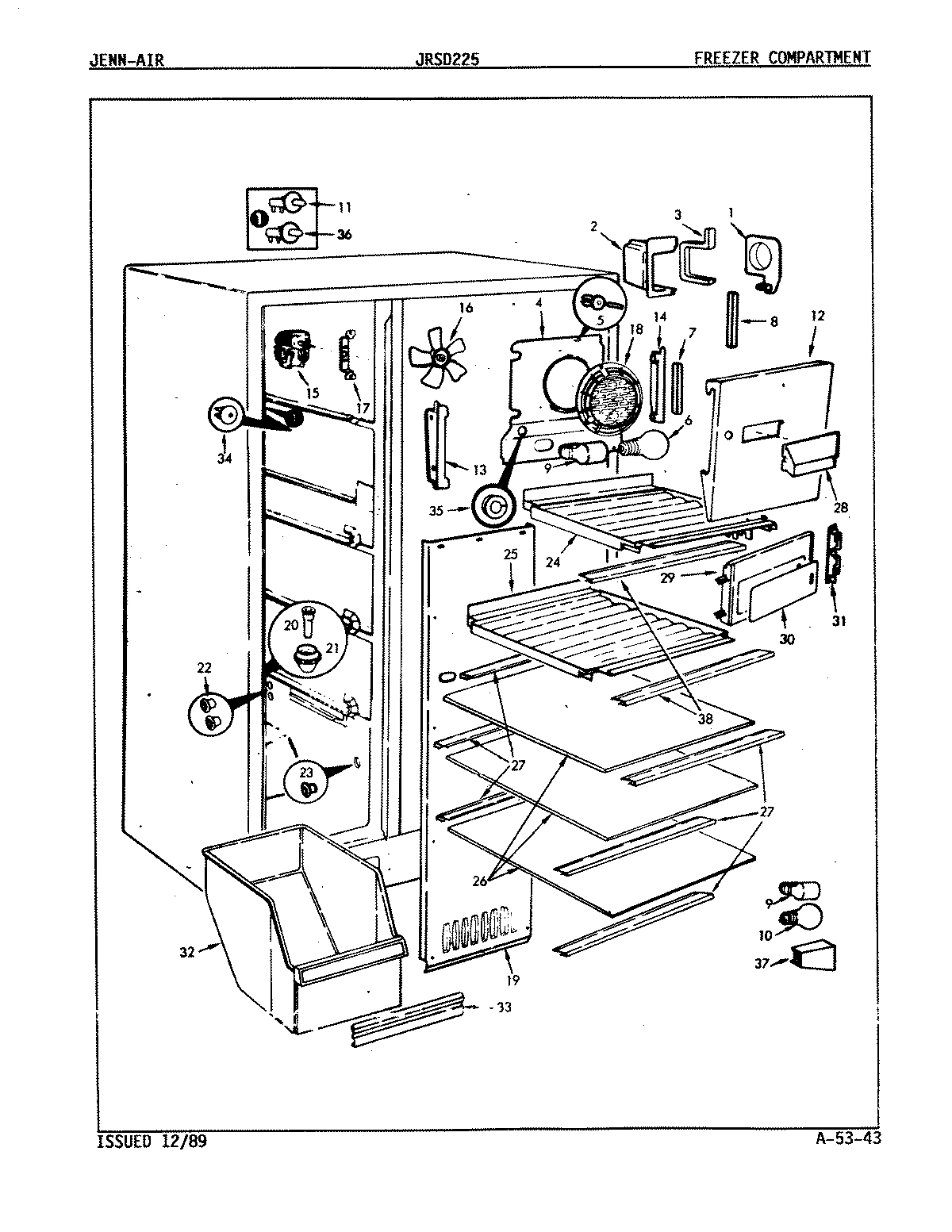

01 - FREEZER COMPARTMENT

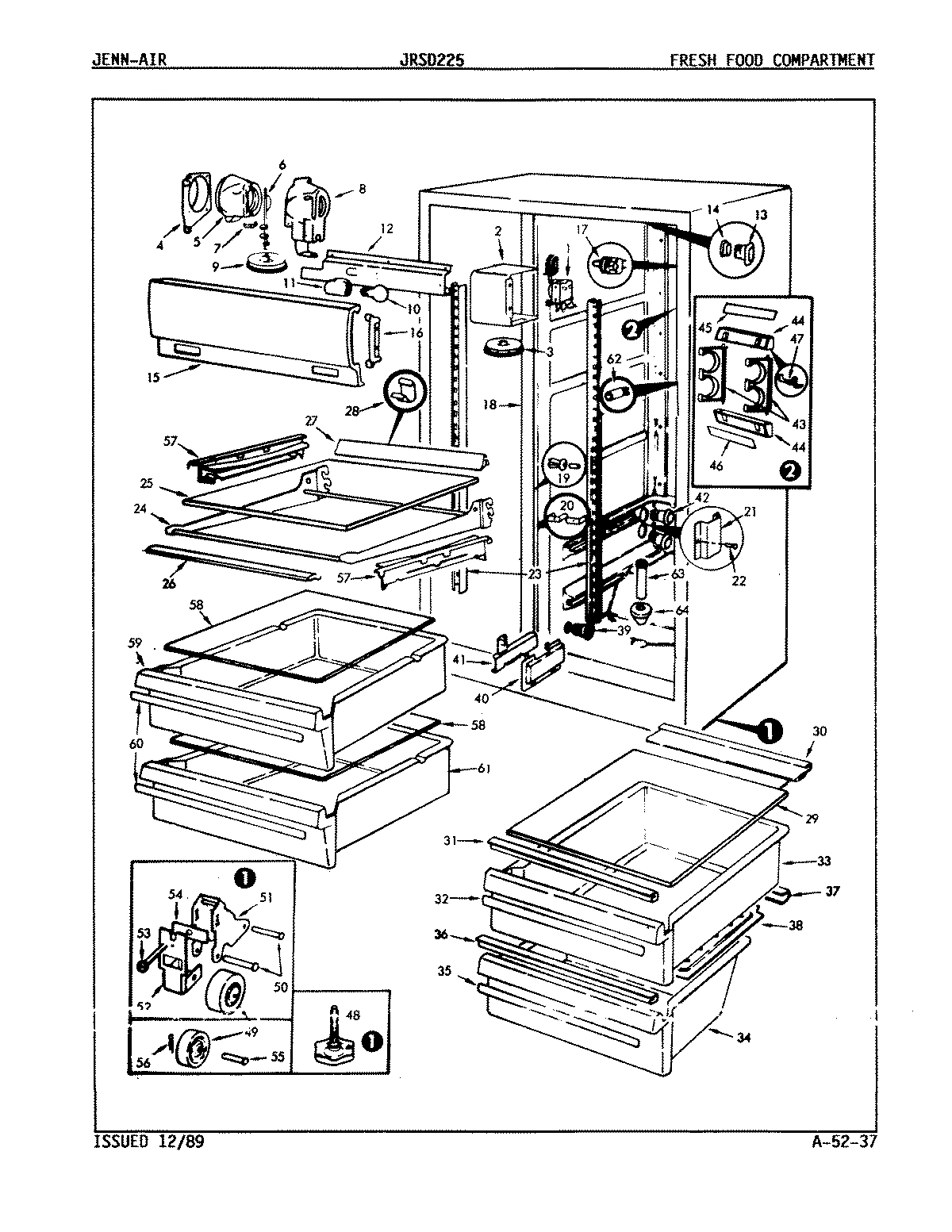

03 - FRESH FOOD COMPARTMENT

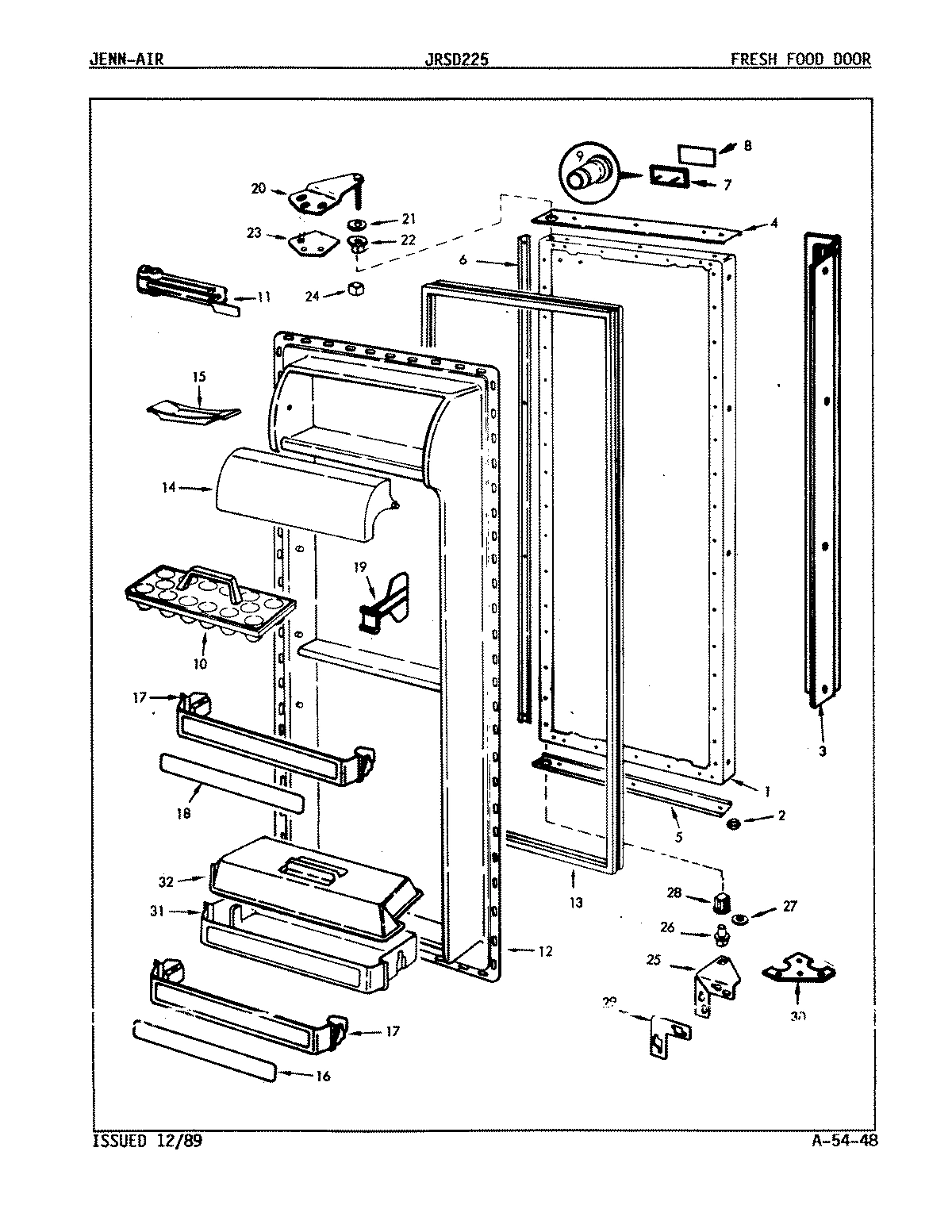

04 - FRESH FOOD DOOR

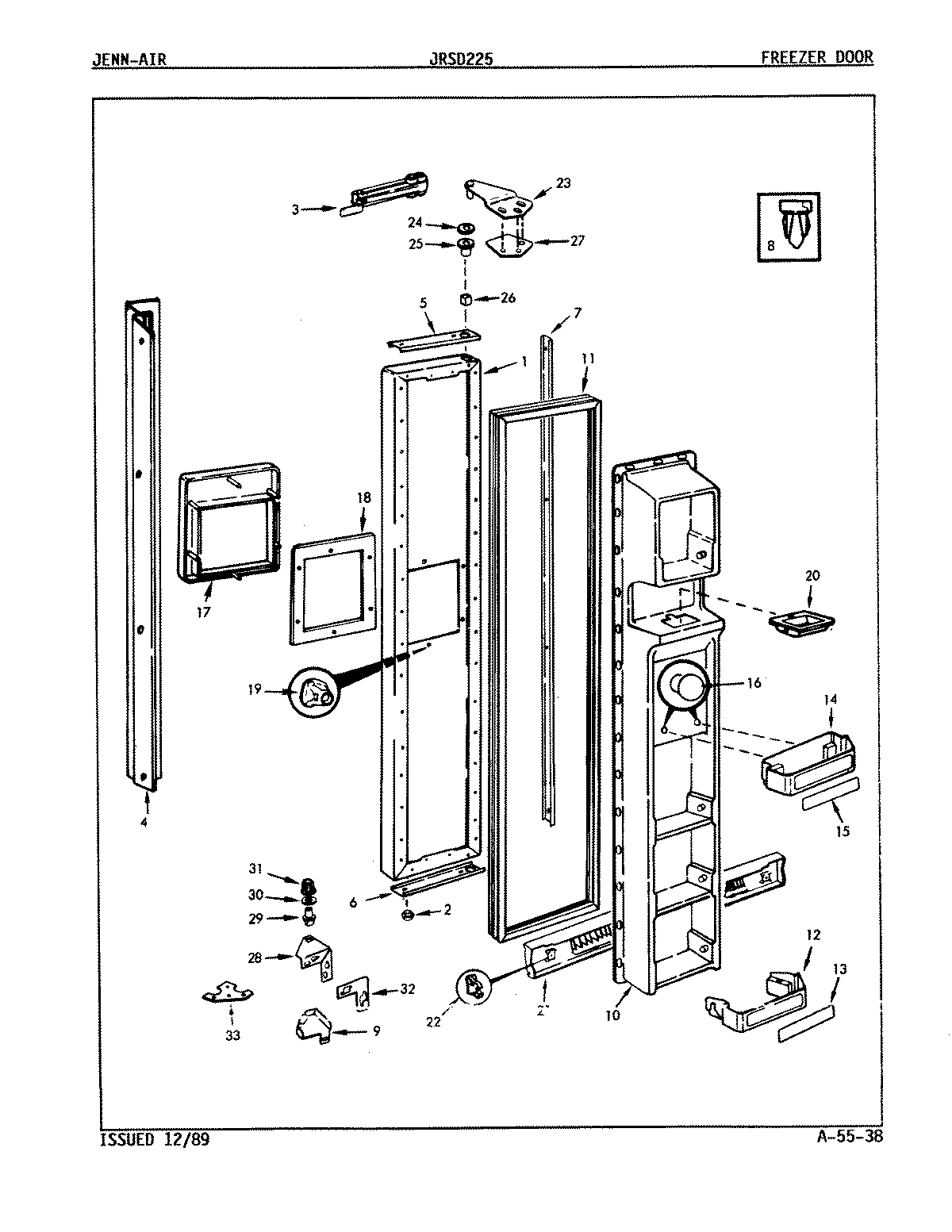

02 - FREEZER DOOR
Common parts from model Whirlpool JRSD225L REFRIGERATOR
1
COMPRESSOR WPL RA1018 Contact Us For Availability
1
TUBE, FEEDER WPL 561251 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
INSULATOR,TEMPERATURE CONTROL WPL 528981 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 666891AM Contact Us For Availability
1
OUTER PANEL WPL 666862AM Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
VALVE, WATER WPL 565953 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
SCREW WPL 4000531 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
INSULATION KIT WPL RA950601 Contact Us For Availability
2
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
SCREW WPL 4000171 Contact Us For Availability
3
TUBING, VALVE TO ICE MAKER WPL 556036 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
HANDLE, F.F. DOOR WPL 682062 Contact Us For Availability
3
INSULATION, CLOSER WPL 526131 Contact Us For Availability
3
BRACKET, CLOSER WPL 526141 Contact Us For Availability
3
CLOSER, DOOR WPL 544851 Contact Us For Availability
4
SCREW WPL 4000621 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
4
TUBING, FOUNTAIN WPL 556027 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL WPL 6269035 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
SCREW WPL 652754 Contact Us For Availability
4
TRIM, PERIMETER TRIM (TOP) WPL 682031 Contact Us For Availability
4
ACHOR, SCREW WPL 667991 Contact Us For Availability
4
HANDLE, FRZ. DOOR WPL 682061 Contact Us For Availability
5
OVERLOAD WPL 6329419 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
TRIM, PERIMETER TRIM (BOTTOM) WPL 682041 Contact Us For Availability
5
TRIM, PERIMETER TOP FZ WPL 682011 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
BULB, LIGHT WPL 319561 Contact Us For Availability
6
DAMPER WPL 525871 Contact Us For Availability
6
TRIM, PERIMETER TRIM (SIDE) WPL 682052 Contact Us For Availability
6
PERIMETER TRIM, BOTM. WPL 684841 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
INLET TUBING ASSY. WPL 537602 Contact Us For Availability
7
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
SCREW WPL 6527515 Contact Us For Availability
7
BEZEL WPL 680601 Contact Us For Availability
7
TRIM, PERIMETER (SIDE) WPL 682051 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
NUT, INLET TUBING WPL 246851 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
8
SEAL,UPPER COIL COVER WPL 528244 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
8
CLIP WPL 667231 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
KNOB, FREEZER CONTROL WPL 298938 Contact Us For Availability
9
SCREW WPL 4000011 Contact Us For Availability
9
RETAINER, NAMEPLATE BEZEL WPL 683811 Contact Us For Availability
9
WIRE COVER WPL 651311 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
FLANGE HEATER WPL RA436841 Contact Us For Availability
10
COVER, WATER TANK WPL 598431 Contact Us For Availability
10
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
10
TRAY, EGG WPL 6006613 Contact Us For Availability
10
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
10
LINER, DOOR WPL 659507 Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
11
TANK, WATER WPL 629201 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
11
GASKET WPL 669295 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
12
CLIP, WATER TANK MOUNTING WPL 620821 Contact Us For Availability
12
SHIELD, LIGHT WPL 656541 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
12
LINER, F.F. DOOR WPL 656416 Contact Us For Availability
12
SHELF FRONT WPL 657019 Contact Us For Availability
13
CORD WPL 296752 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 675603 Contact Us For Availability
13
TUBE WPL 556028 Contact Us For Availability
13
SUPPORT WPL 536872 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
GASKET WPL 537122 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
TUBE WPL 556024 Contact Us For Availability
14
SUPPORT WPL 544242 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
DOOR, DAIRY WPL 66184361 Contact Us For Availability
14
SHELF, FRZ. DOOR WPL 657099 Contact Us For Availability
15
WASHER, MOUNTING FAN BLADE WPL 99132 Contact Us For Availability
15
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
15
MOTOR WPL 564884 Contact Us For Availability
15
SHIELD, LIGHT WPL 06100006 Contact Us For Availability
15
TRAY, BUTTER WPL 299362 Contact Us For Availability
15
INSERT, PICK OFF FRONT WPL 6812144 Contact Us For Availability
16
TUBE, FILL WPL 584614 Contact Us For Availability
16
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
SCREW WPL 4000141 Contact Us For Availability
16
WASHER WPL 4200281 Contact Us For Availability
16
STUD, PICK-OFF SHELF WPL 656602 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
TRAY, ICE WPL 596881 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
17
SPACER WPL 655121 Contact Us For Availability
17
SHELF FRONT WPL 657816 Contact Us For Availability
17
ESCUTCHEON WPL 6048259 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
SCREW WPL 4000211 Contact Us For Availability
18
PLATE WPL 620591 Contact Us For Availability
18
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
18
FAN GRID WPL 626891 Contact Us For Availability
18
MULLION WPL 590261AM Contact Us For Availability
18
INSERT, SHELF DOOR WPL 6812143 Contact Us For Availability
18
SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
ARM, SENSOR WPL 523072 Contact Us For Availability
19
COVER, COIL WPL 652249 Contact Us For Availability
19
STUD, DIVIDER CHANNEL MOUNTING WPL 599203 Contact Us For Availability
19
STUD, (ALM) WPL 599209 Contact Us For Availability
19
SHELF, PICK-OFF WPL 666455 Contact Us For Availability
19
RETAINER, ESCUTCHEON WPL 652112 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 665562 Contact Us For Availability
20
SHAFT, DRIVE WPL 653191 Contact Us For Availability
20
DRAIN TUBE WPL 265279 Contact Us For Availability
20
CLIP WPL 530604 Contact Us For Availability
20
SCREW WPL 402177 Contact Us For Availability
20
COLLAR, ICE CHUTE WPL 630206 Contact Us For Availability
21
PAN, DRAIN WPL 298394 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
RING, RETAINER WPL 587061 Contact Us For Availability
21
TUBE, DRAIN WPL 545317 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
WASHER WPL 521851 Contact Us For Availability
21
KICKPLATE WPL 5647826 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
22
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
SPACER WPL 653171 Contact Us For Availability
23
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
23
HINGE, UPPER WPL 5370922 Contact Us For Availability
23
COVER, UPPER HINGE (CHROME) WPL 668751 Contact Us For Availability
23
SCREW WPL 998687 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
SCREW WPL 405009103 Contact Us For Availability
24
SPOUT, FILL WPL 537481 Contact Us For Availability
24
SHELF, FRZ. No.1 WPL 656519 Contact Us For Availability
24
FRAME, SHELF WPL 656183 Contact Us For Availability
24
WASHER WPL 521852 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
BIN, ICE WPL 664471 Contact Us For Availability
25
SHELF, FRZ. WPL 656512 Contact Us For Availability
25
GLASS WPL 684059 Contact Us For Availability
25
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
25
HINGE, LOWER WPL 6063012 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
SCREW WPL 405022103 Contact Us For Availability
26
ICE DISP FRONT WPL 662051 Contact Us For Availability
26
SHELF, GLASS WPL 6840513 Contact Us For Availability
26
TRIM, SHELVES (FRONT) WPL 666492 Contact Us For Availability
26
SEAL SLEEVE WPL 559901 Contact Us For Availability
26
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950901 Contact Us For Availability
27
INSERT, BIN FRONT WPL 6813115 Contact Us For Availability
27
TRIM, SHELF WPL 65561117 Contact Us For Availability
27
TRIM, SHELVES (REAR) WPL 6527615 Contact Us For Availability
27
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
27
WASHER WPL 542331 Contact Us For Availability
28
RING, DRIVE WPL 630171 Contact Us For Availability
28
IM DUCT WPL 656531 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
28
SCREW WPL 403062801 Contact Us For Availability
28
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
28
HINGE WPL 606304 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
29
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
29
IM DOOR WPL 656291 Contact Us For Availability
29
SHELF, CRISPER WPL 656872 Contact Us For Availability
29
PIN WPL 654181 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
HUB, REINFORCING WPL 630841 Contact Us For Availability
30
INSERT WPL 6813213 Contact Us For Availability
30
SEAL, CRISPER PAN (REAR) WPL 681572 Contact Us For Availability
30
WASHER WPL 542332 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
31
PIN, AUGER WPL 630711 Contact Us For Availability
31
SCREW WPL 4000161 Contact Us For Availability
31
CUP, SHELF WPL 603131 Contact Us For Availability
31
LATCH WPL 661461 Contact Us For Availability
31
SEAL, CRISPER PAN (FRONT) WPL 656502 Contact Us For Availability
31
SHELF, PICK-OFF WPL 657826 Contact Us For Availability
31
HINGE BUSHING WPL 660371 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
AUGER WPL 664351 Contact Us For Availability
32
FREEZER DRAWER WPL 06100011 Contact Us For Availability
32
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
32
COVER, PICK-OFF WPL 6663740 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
33
IMPELLER, AUGER WPL 664481 Contact Us For Availability
33
INSERT, PAN WPL 06100012 Contact Us For Availability
33
PAN, CRISPER WPL 6663734 Contact Us For Availability
33
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
NUT, AUGER WPL 660981 Contact Us For Availability
34
NUT WPL 538211 Contact Us For Availability
34
PAN, MEAT WPL Y06100007 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
35
BOX,AUGER MOTOR WPL 652651 Contact Us For Availability
35
BUSHING WPL 590901 Contact Us For Availability
35
HANDLE, CRISPER PAN WPL 6812465 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
SCREW WPL 406026103 Contact Us For Availability
36
MOTOR, AUGER WPL 651861 Contact Us For Availability
36
SWITCH WPL 564321 Contact Us For Availability
36
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
SCREW WPL 4050021 Contact Us For Availability
37
DISPENSER, WATER WPL 630005 Contact Us For Availability
37
INSULATION KIT WPL RA950591 Contact Us For Availability
37
GUARD WPL 521971 Contact Us For Availability
37
LEAD WPL 5465331 Contact Us For Availability
37
WIRE HARNESS WPL 651362 Contact Us For Availability
37
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
HEATER, FOUNTAIN WPL 649371 Contact Us For Availability
38
TRIM,FRZR SHELVES(FRONT&BACK) WPL 666481 Contact Us For Availability
38
COVER, MEAT PAN WPL 656082 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
ARM,ICE WPL 630073 Contact Us For Availability
39
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
40
WIRE HARNESS, COMPRESSOR WPL 599403 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
40
WIRE HARNESS WPL 669391 Contact Us For Availability
40
WIRE HARNESS, MAIN WPL 680271 Contact Us For Availability
40
PAINT KIT WPL RA438721 Contact Us For Availability
40
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
40
CONTROL HOUSING WPL 657372 Contact Us For Availability
41
ARM, WATER WPL 630083 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
42
PAD, ARM WPL 630661 Contact Us For Availability
42
AIR TUNNEL WPL 537261 Contact Us For Availability
42
SPACER WPL 684421 Contact Us For Availability
43
CLIP WPL 630352 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
44
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
44
SPRING WPL 633061 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
45
MOTOR, INERTIA WPL 652121 Contact Us For Availability
45
INSERT, WINE RACK (PLAIN) WPL 6575319 Contact Us For Availability
46
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
46
INSERT, WINE RACK (WINE RACK) WPL 06100008 Contact Us For Availability
47
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
48
PIN, ICE DOOR WPL 630531 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
50
INSULATION WPL 630892 Contact Us For Availability
50
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
50
PIN, WHEEL WPL 649651 Contact Us For Availability
51
WIRE HARNESS WPL 633723 Contact Us For Availability
51
WIRE HARNESS WPL 652901 Contact Us For Availability
51
WIRE HARNESS WPL 652911 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
52
SOCKET, LIGHT WPL 630391 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
53
BUSHING, PLUNGER GUIDE WPL 651761 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
54
BULB, LIGHT WPL 631791 Contact Us For Availability
54
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
54
SCREW WPL 6527517 Contact Us For Availability
55
CLAMP WPL 231977 Contact Us For Availability
55
SCREW WPL 4000221 Contact Us For Availability
55
GROMMET, WATER ENTRY WPL 598081 Contact Us For Availability
55
BRACKET, SWITCH WPL 630132 Contact Us For Availability
55
PIVOT PI WPL 625801 Contact Us For Availability
56
INSULATOR, SWIT WPL 653331 Contact Us For Availability
56
WPL 574181 WPL 574181 Contact Us For Availability
56
WPL 564381 WPL 564381 Contact Us For Availability
56
WPL 625811 WPL 625811 Contact Us For Availability
56
WPL 661571 WPL 661571 Contact Us For Availability
57
WPL 630401 WPL 630401 Contact Us For Availability
57
WPL 688051 WPL 688051 Contact Us For Availability
58
WPL 554402 WPL 554402 Contact Us For Availability
58
WPL 6840510 WPL 6840510 Contact Us For Availability
59
WPL 6500215 WPL 6500215 Contact Us For Availability
59
WPL Y06100009 WPL Y06100009 Contact Us For Availability
60
WPL 96029 WPL 96029 Contact Us For Availability
60
WPL 6558380 WPL 6558380 Contact Us For Availability
61
WPL 535168 WPL 535168 Contact Us For Availability
61
WPL Y06100010 WPL Y06100010 Contact Us For Availability
62
WPL 630382 WPL 630382 Contact Us For Availability
62
WPL 195302 WPL 195302 Contact Us For Availability
63
WPL 630361 WPL 630361 Contact Us For Availability
63
WPL 555121 WPL 555121 Contact Us For Availability
64
WPL 630251 WPL 630251 Contact Us For Availability
64
WPL 555131 WPL 555131 Contact Us For Availability
65
WPL 603331 WPL 603331 Contact Us For Availability
65
WPL 603332 WPL 603332 Contact Us For Availability
66
WPL 651771 WPL 651771 Contact Us For Availability
67
WPL 651851 WPL 651851 Contact Us For Availability
68
WPL 4050721 WPL 4050721 Contact Us For Availability
68
WPL 651321 WPL 651321 Contact Us For Availability
69
WPL 651431 WPL 651431 Contact Us For Availability
70
WPL 652851 WPL 652851 Contact Us For Availability
71
WPL 4050221 WPL 4050221 Contact Us For Availability
71
WPL 4060431 WPL 4060431 Contact Us For Availability
72
WPL 652862 WPL 652862 Contact Us For Availability
73
WPL 4300021 WPL 4300021 Contact Us For Availability
× ![]()
Login and Registration Form
