Model Whirlpool JRSD224L REFRIGERATOR – Common Parts & Diagrams
01 - FRESH FOOD COMPARTMENT
02 - FRESH FOOD DOOR

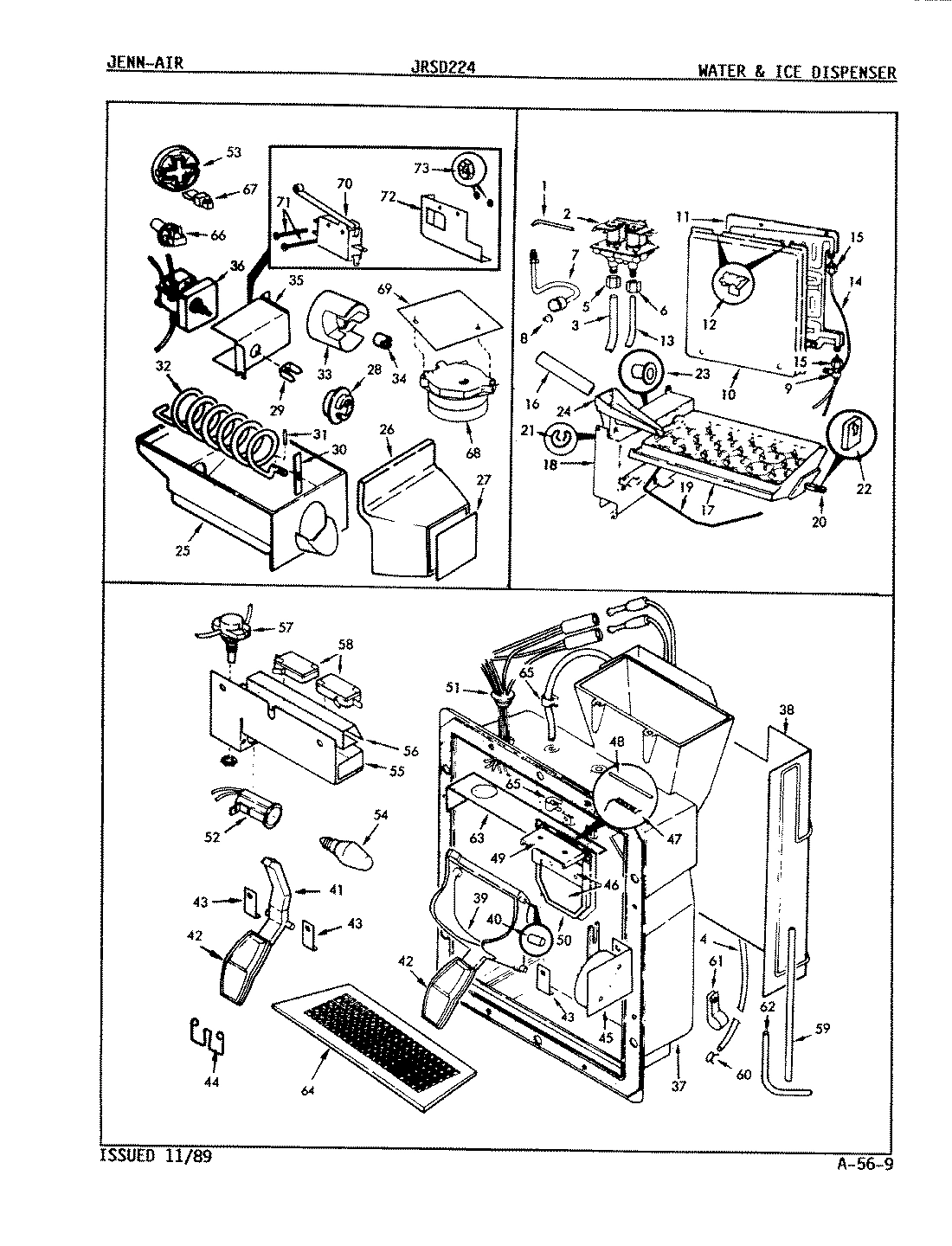

03 - WATER & ICE DISPENSER
Common parts from model Whirlpool JRSD224L REFRIGERATOR
1
INSULATOR,TEMPERATURE CONTROL WPL 528981 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
1
SCREW WPL 4000171 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 666891AM Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 666891WW Contact Us For Availability
1
INSULATION KIT WPL RA950601 Contact Us For Availability
1
TUBE, FEEDER WPL 561251 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
2
VALVE, WATER WPL 565953 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
SCREW WPL 652754 Contact Us For Availability
3
DOOR TRIM WPL 667202 Contact Us For Availability
3
CLIP WPL 667231 Contact Us For Availability
3
ACHOR, SCREW WPL 667991 Contact Us For Availability
3
TUBING, VALVE TO ICE MAKER WPL 556036 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
PERIMETER TRIM WPL 667151 Contact Us For Availability
4
TUBING, FOUNTAIN WPL 556027 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
PERIMETER TRIM WPL 667171 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
6
SCREW WPL 40002612 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
BEZEL, NAMEPLATE WPL 666411 Contact Us For Availability
7
INLET TUBING ASSY. WPL 537602 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
INSERT WPL 666461 Contact Us For Availability
8
NUT, INLET TUBING WPL 246851 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
9
KNOB, FREEZER CONTROL WPL 298938 Contact Us For Availability
9
SCREW WPL 4000011 Contact Us For Availability
9
RETAINER, NAMEPLATE BEZEL WPL 683811 Contact Us For Availability
10
TRAY, EGG WPL 600669 Contact Us For Availability
10
COVER, WATER TANK WPL 598431 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
11
INSULATION, CLOSER WPL 526131 Contact Us For Availability
11
BRACKET, CLOSER WPL 526141 Contact Us For Availability
11
CLOSER, DOOR WPL 544851 Contact Us For Availability
11
TANK, WATER WPL 629201 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
12
LINER, F.F. DOOR WPL 656416 Contact Us For Availability
12
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
12
CLIP, WATER TANK MOUNTING WPL 620821 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
GASKET WPL 537122 Contact Us For Availability
13
TUBE WPL 556028 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
DOOR, DAIRY WPL 66184234 Contact Us For Availability
14
TUBE WPL 556024 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557815 Contact Us For Availability
15
TRAY, BUTTER WPL 299362 Contact Us For Availability
15
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
INSERT WPL 6812123 Contact Us For Availability
16
TUBE, FILL WPL 584614 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
SPACER WPL 655121 Contact Us For Availability
17
SHELF FRONT WPL 657816 Contact Us For Availability
17
TRAY, ICE WPL 596881 Contact Us For Availability
18
MULLION WPL 590261AM Contact Us For Availability
18
CHANNEL,MULLION DIVID.(WHITE) WPL 590261WW Contact Us For Availability
18
INSERT WPL 6812126 Contact Us For Availability
18
SCREW WPL 4000211 Contact Us For Availability
18
PLATE WPL 620591 Contact Us For Availability
18
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
19
STUD, DIVIDER CHANNEL MOUNTING WPL 599203 Contact Us For Availability
19
STUD, (ALM) WPL 599209 Contact Us For Availability
19
ORGANIZER WPL 666452 Contact Us For Availability
19
ARM, SENSOR WPL 523072 Contact Us For Availability
20
CLIP WPL 530604 Contact Us For Availability
20
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
20
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
20
SCREW WPL 998687 Contact Us For Availability
20
SHAFT, DRIVE WPL 653191 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
WASHER WPL 521851 Contact Us For Availability
21
RING, RETAINER WPL 587061 Contact Us For Availability
22
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
22
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
23
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
23
SPACER WPL 653171 Contact Us For Availability
24
FRAME, SHELF WPL 656183 Contact Us For Availability
24
SEAL SLEEVE WPL 559901 Contact Us For Availability
24
SCREW WPL 405009103 Contact Us For Availability
24
SPOUT, FILL WPL 537481 Contact Us For Availability
25
GLASS SHELF WPL 6559832 Contact Us For Availability
25
HINGE, LOWER WPL 6063012 Contact Us For Availability
25
BIN, ICE WPL 664471 Contact Us For Availability
26
TRIM, SHELVES (FRONT) WPL 666492 Contact Us For Availability
26
SCREW WPL 405022103 Contact Us For Availability
26
ICE DISP FRONT WPL 662051 Contact Us For Availability
27
TRIM, SHELVES (REAR) WPL 6527615 Contact Us For Availability
27
WASHER WPL 542331 Contact Us For Availability
27
INSERT WPL 6570712 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
28
RING, DRIVE WPL 630171 Contact Us For Availability
29
GLASS SHELF WPL 6559834 Contact Us For Availability
29
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
29
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
30
CRISPER SEAL WPL 660922 Contact Us For Availability
30
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
30
HUB, REINFORCING WPL 630841 Contact Us For Availability
31
SEAL, CRISPER PAN (FRONT) WPL 656502 Contact Us For Availability
31
SHELF, PICK-OFF WPL 657826 Contact Us For Availability
31
PIN, AUGER WPL 630711 Contact Us For Availability
32
COVER WPL 65637204 Contact Us For Availability
32
AUGER WPL 664351 Contact Us For Availability
33
PAN, CRISPER WPL 6663717 Contact Us For Availability
33
IMPELLER, AUGER WPL 664481 Contact Us For Availability
34
PAN, MEAT WPL 6663721 Contact Us For Availability
34
NUT, AUGER WPL 660981 Contact Us For Availability
35
SCREW WPL 40001512 Contact Us For Availability
35
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
35
BOX,AUGER MOTOR WPL 652651 Contact Us For Availability
36
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
36
SCREW WPL 406026103 Contact Us For Availability
36
MOTOR, AUGER WPL 651861 Contact Us For Availability
37
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
37
DISPENSER, WATER WPL 630005 Contact Us For Availability
37
INSULATION KIT WPL RA950591 Contact Us For Availability
38
COVER, MEAT PAN WPL 656082 Contact Us For Availability
38
HEATER, FOUNTAIN WPL 649371 Contact Us For Availability
39
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
39
ARM,ICE WPL 630073 Contact Us For Availability
40
CONTROL HOUSING WPL 657372 Contact Us For Availability
40
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
41
ARM, WATER WPL 630083 Contact Us For Availability
42
PAD, ARM WPL 630661 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
43
CLIP WPL 630352 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
44
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
44
SPRING WPL 633061 Contact Us For Availability
45
INSERT, WINE RACK (PLAIN) WPL 6575319 Contact Us For Availability
45
MOTOR, INERTIA WPL 652121 Contact Us For Availability
46
INSERT WPL 6575321 Contact Us For Availability
46
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
47
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
48
PIN, ICE DOOR WPL 630531 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
49
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
50
PIN, WHEEL WPL 649651 Contact Us For Availability
50
INSULATION WPL 630892 Contact Us For Availability
50
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
51
WIRE HARNESS WPL 633723 Contact Us For Availability
51
WIRE HARNESS WPL 652901 Contact Us For Availability
51
WIRE HARNESS WPL 652911 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
52
SOCKET, LIGHT WPL 630391 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
53
BUSHING, PLUNGER GUIDE WPL 651761 Contact Us For Availability
54
BULB, LIGHT WPL 631791 Contact Us For Availability
55
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
55
CLAMP WPL 231977 Contact Us For Availability
55
SCREW WPL 4000221 Contact Us For Availability
55
GROMMET, WATER ENTRY WPL 598081 Contact Us For Availability
55
BRACKET, SWITCH WPL 630132 Contact Us For Availability
56
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
56
CLIP,FOOD LINER MOU WPL 574181 Contact Us For Availability
56
WPL 625811 WPL 625811 Contact Us For Availability
56
WPL 661571 WPL 661571 Contact Us For Availability
56
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
57
SWITCH, LIGHT WPL 630401 Contact Us For Availability
58
WPL 6559835 WPL 6559835 Contact Us For Availability
58
WPL 554402 WPL 554402 Contact Us For Availability
59
WPL 6663722 WPL 6663722 Contact Us For Availability
59
WPL 6500215 WPL 6500215 Contact Us For Availability
60
WPL 6558380 WPL 6558380 Contact Us For Availability
60
WPL 96029 WPL 96029 Contact Us For Availability
61
WPL 6663723 WPL 6663723 Contact Us For Availability
61
WPL 535168 WPL 535168 Contact Us For Availability
62
WPL 195302 WPL 195302 Contact Us For Availability
62
WPL 630382 WPL 630382 Contact Us For Availability
63
WPL 555121 WPL 555121 Contact Us For Availability
63
WPL 630361 WPL 630361 Contact Us For Availability
64
WPL 555131 WPL 555131 Contact Us For Availability
64
WPL 630251 WPL 630251 Contact Us For Availability
65
WPL 603331 WPL 603331 Contact Us For Availability
65
WPL 603332 WPL 603332 Contact Us For Availability
66
WPL 651771 WPL 651771 Contact Us For Availability
67
WPL 651851 WPL 651851 Contact Us For Availability
68
WPL 4050721 WPL 4050721 Contact Us For Availability
68
WPL 651321 WPL 651321 Contact Us For Availability
69
WPL 651431 WPL 651431 Contact Us For Availability
70
WPL 652851 WPL 652851 Contact Us For Availability
71
WPL 4050221 WPL 4050221 Contact Us For Availability
71
WPL 4060431 WPL 4060431 Contact Us For Availability
72
WPL 652862 WPL 652862 Contact Us For Availability
73
WPL 4300021 WPL 4300021 Contact Us For Availability
× ![]()
Login and Registration Form
