Model Whirlpool JRS228B REFRIGERATOR – Common Parts & Diagrams

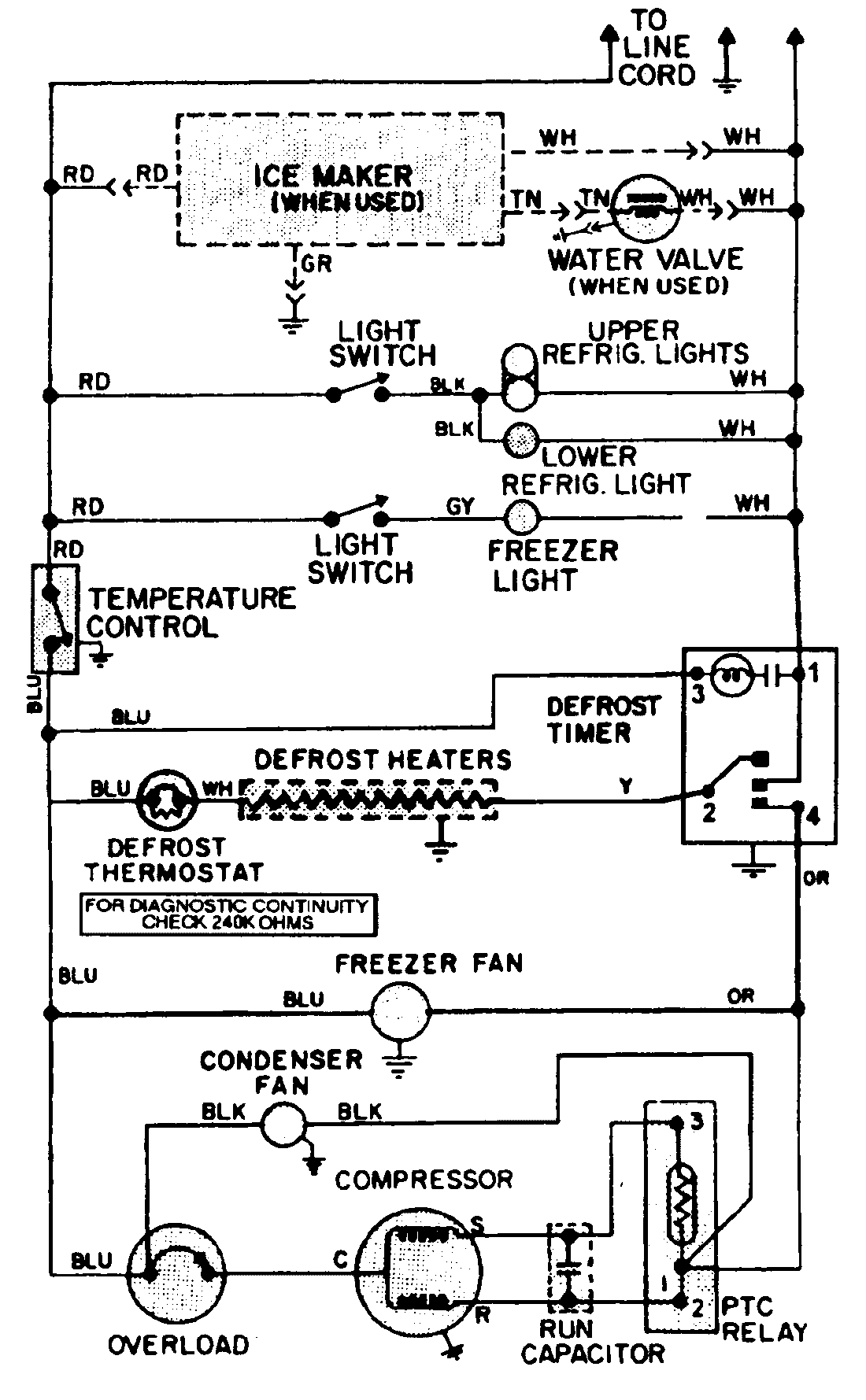

08 - WIRING INFORMATION

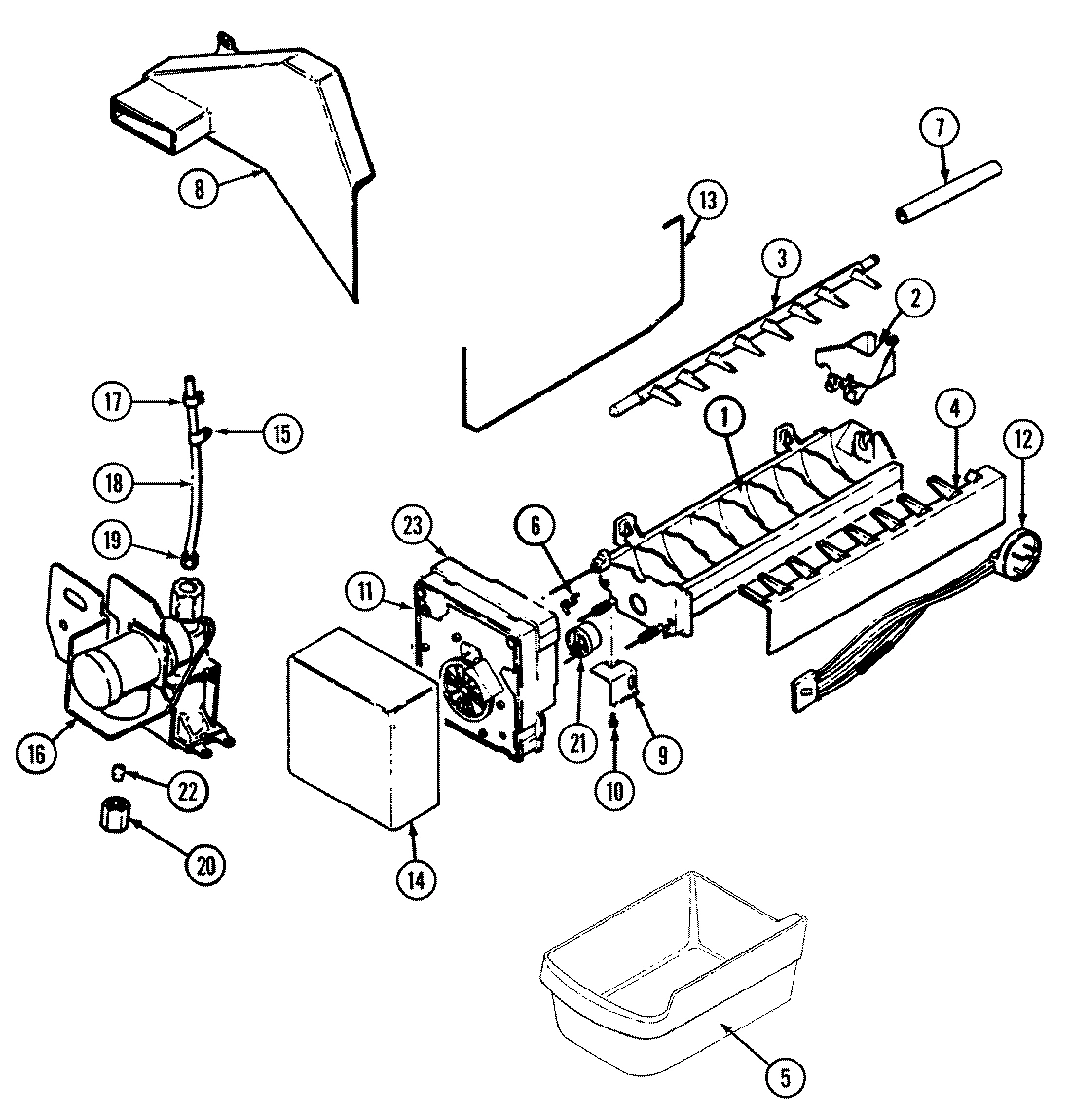

05 - OPTIONAL ICE MAKER KIT (ICE)

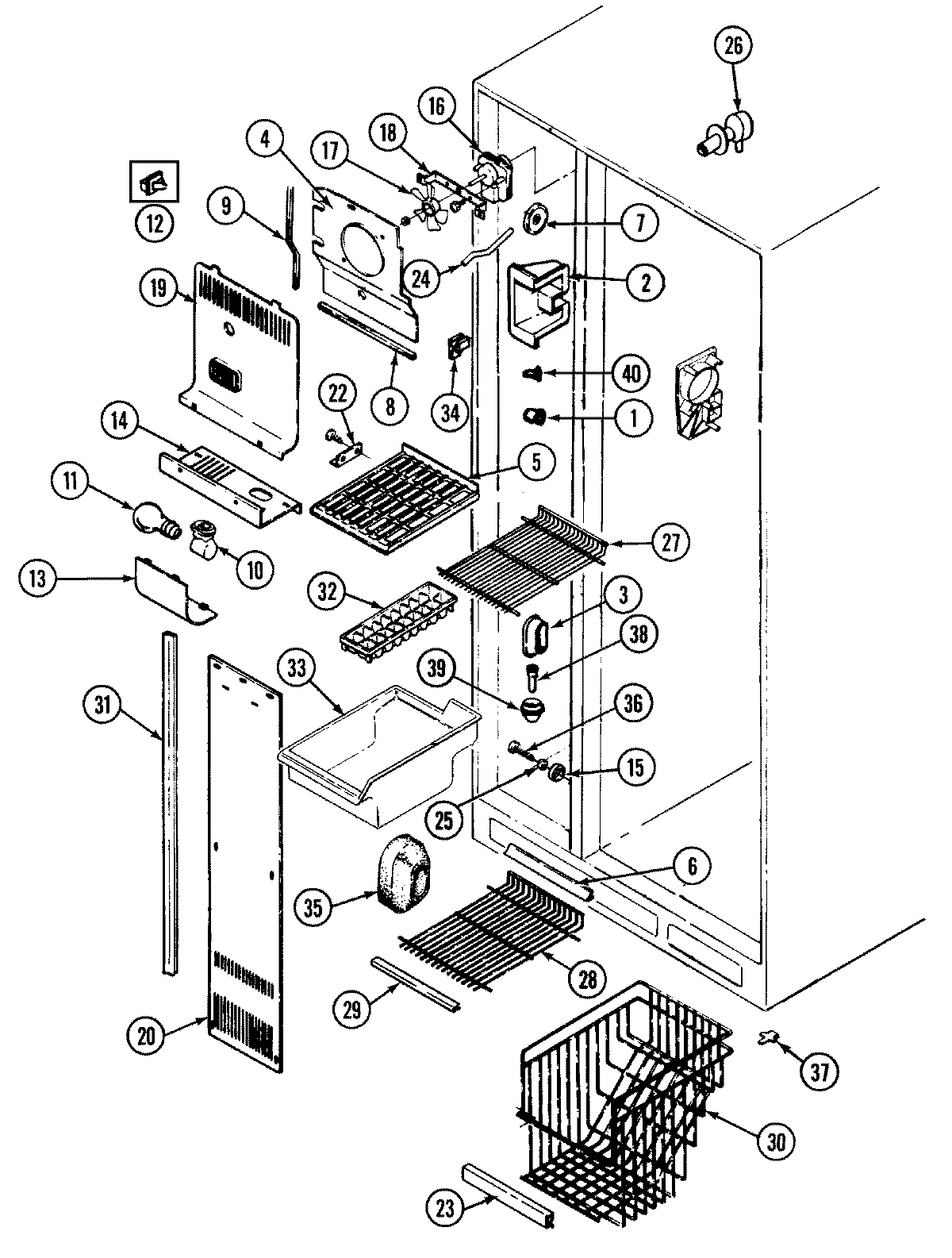

01 - FREEZER COMPARTMENT

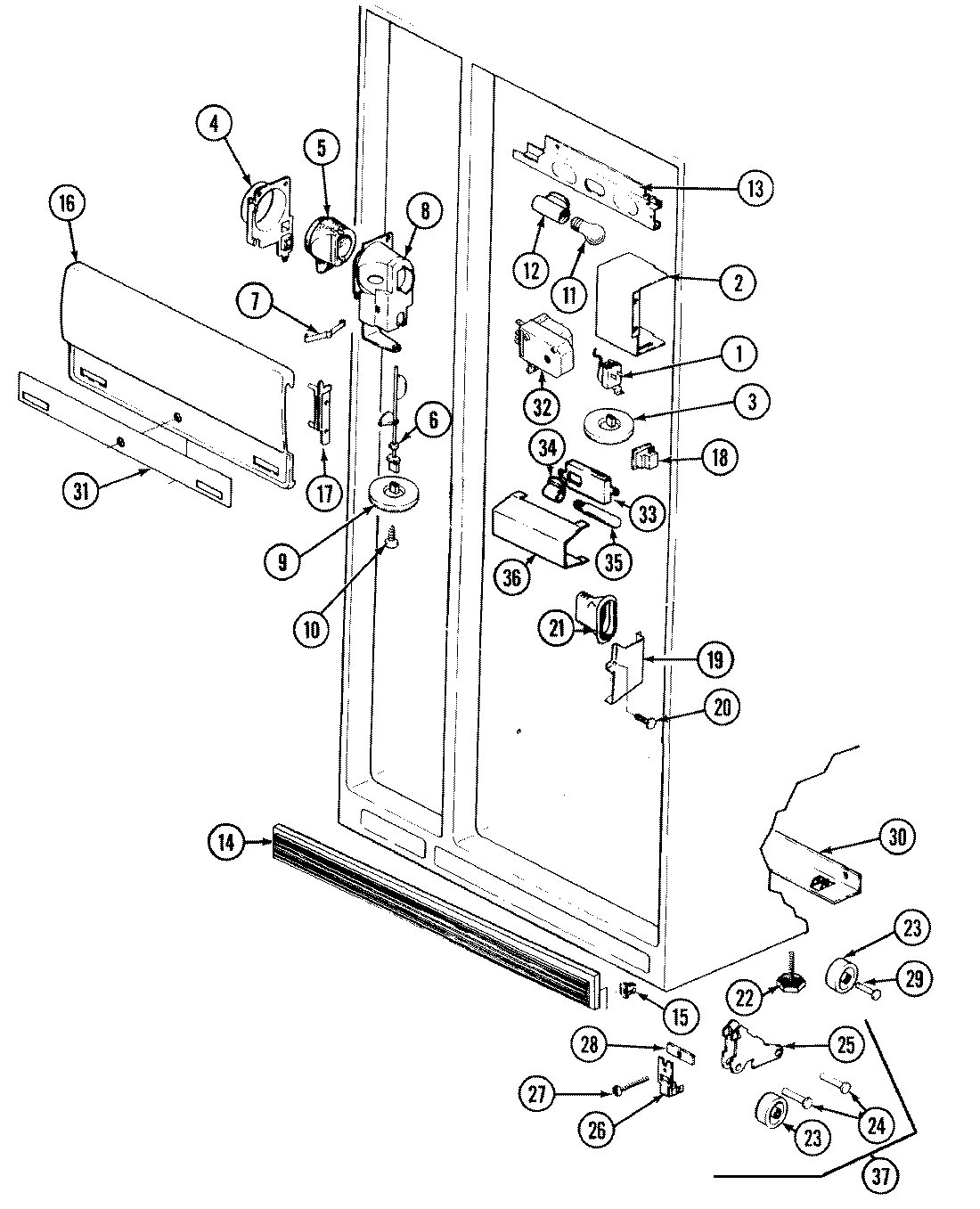

03 - FRESH FOOD COMPARTMENT

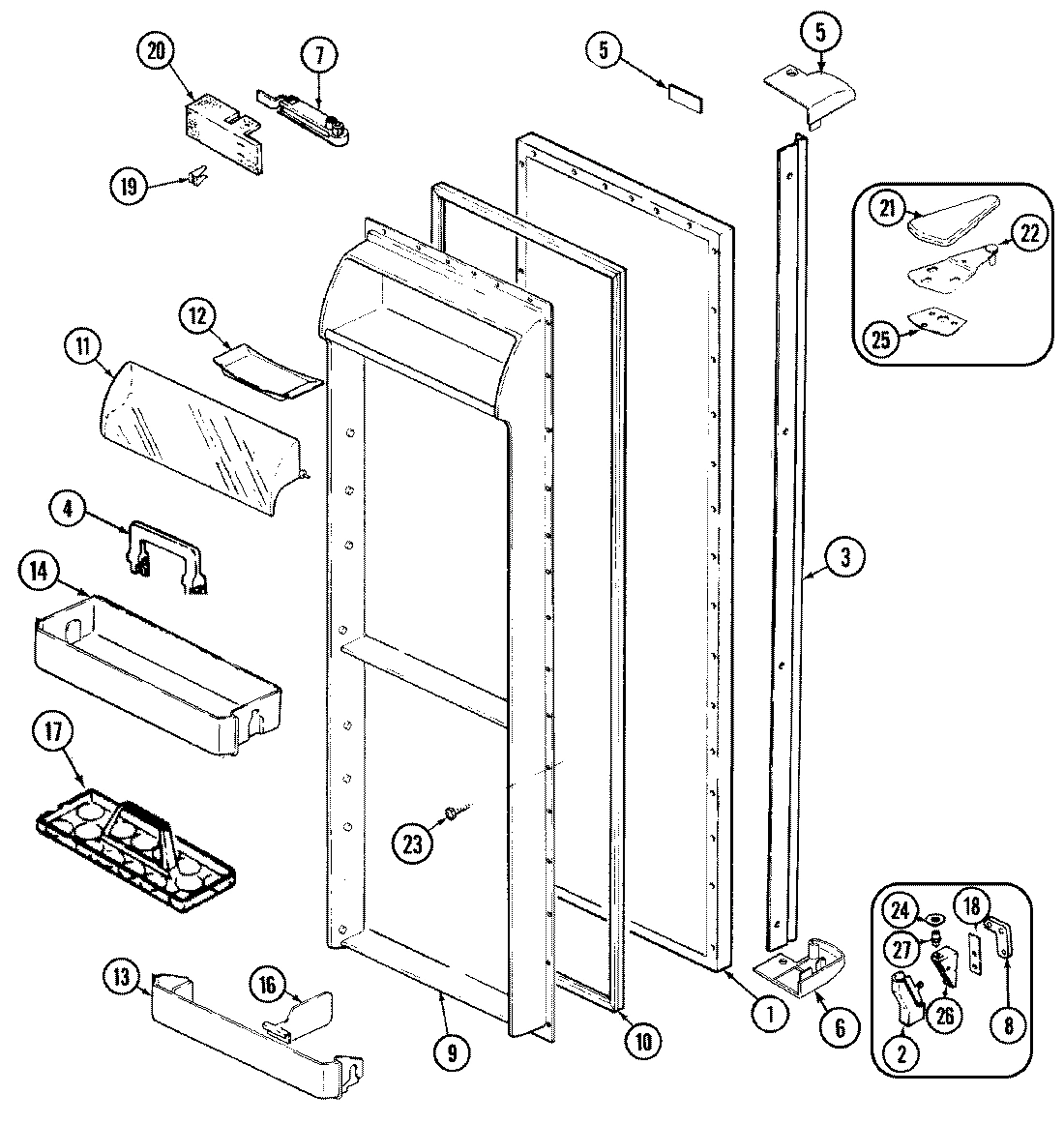

04 - FRESH FOOD DOOR

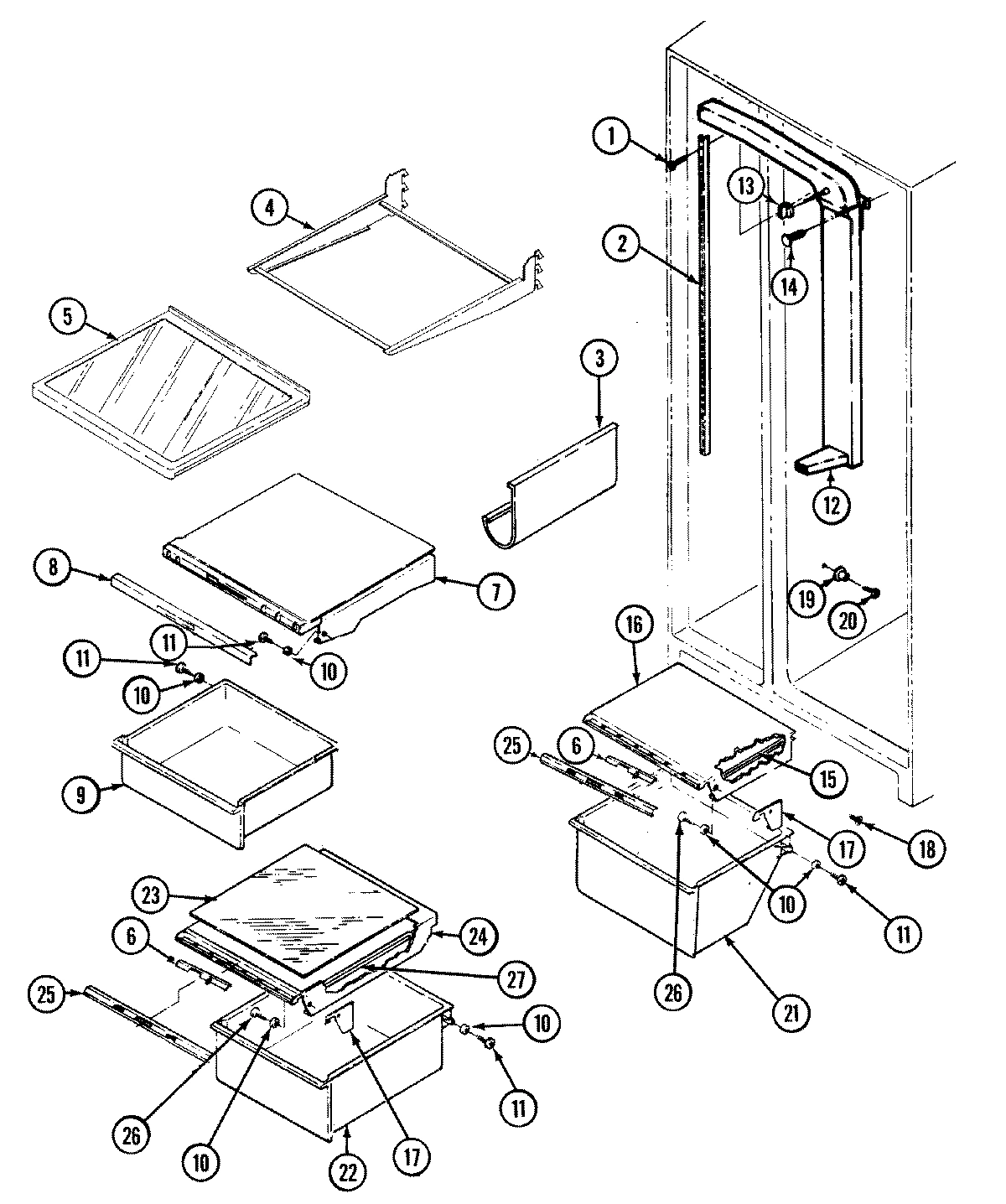

06 - SHELVES & ACCESSORIES

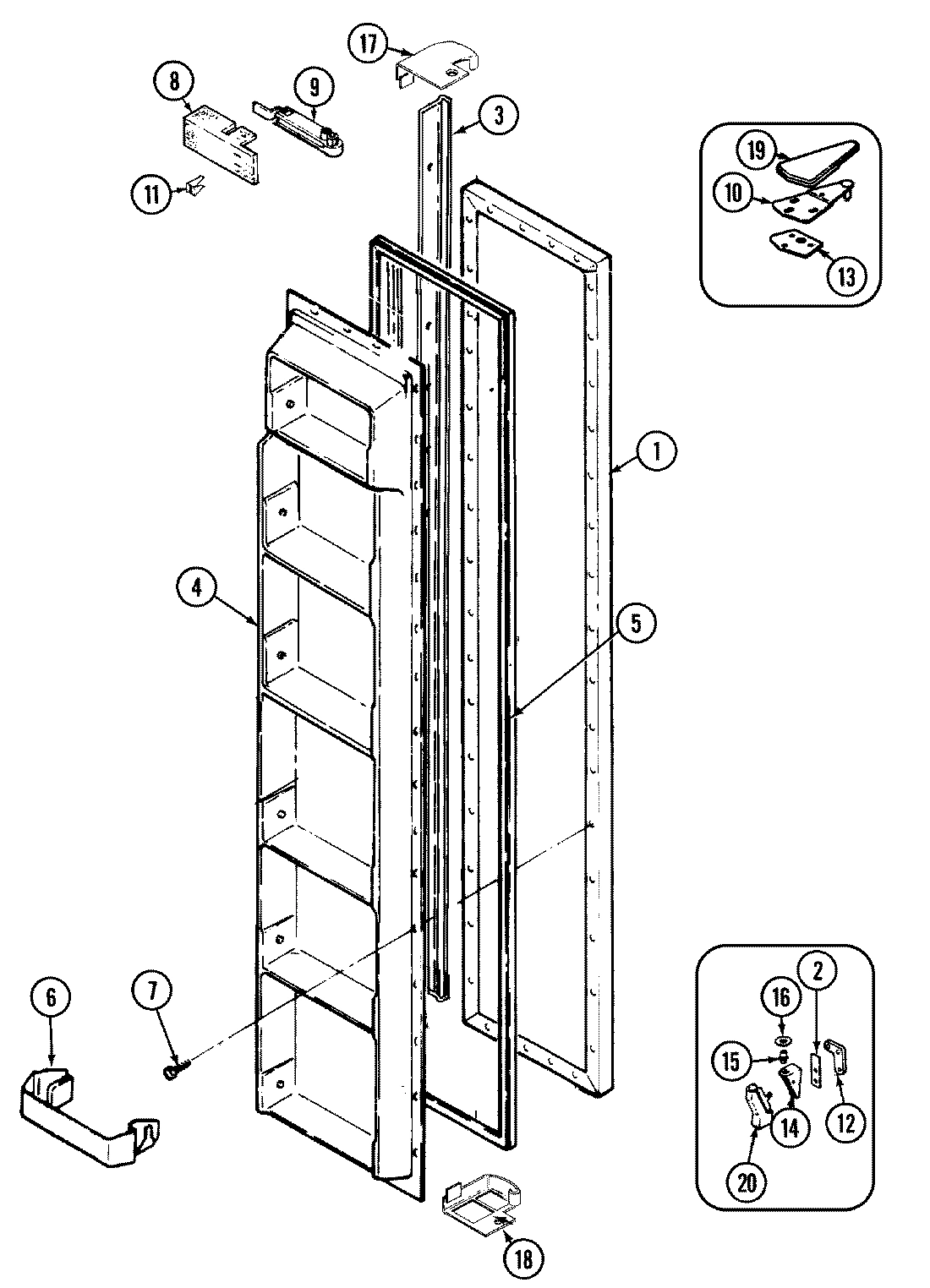

02 - FREEZER DOOR

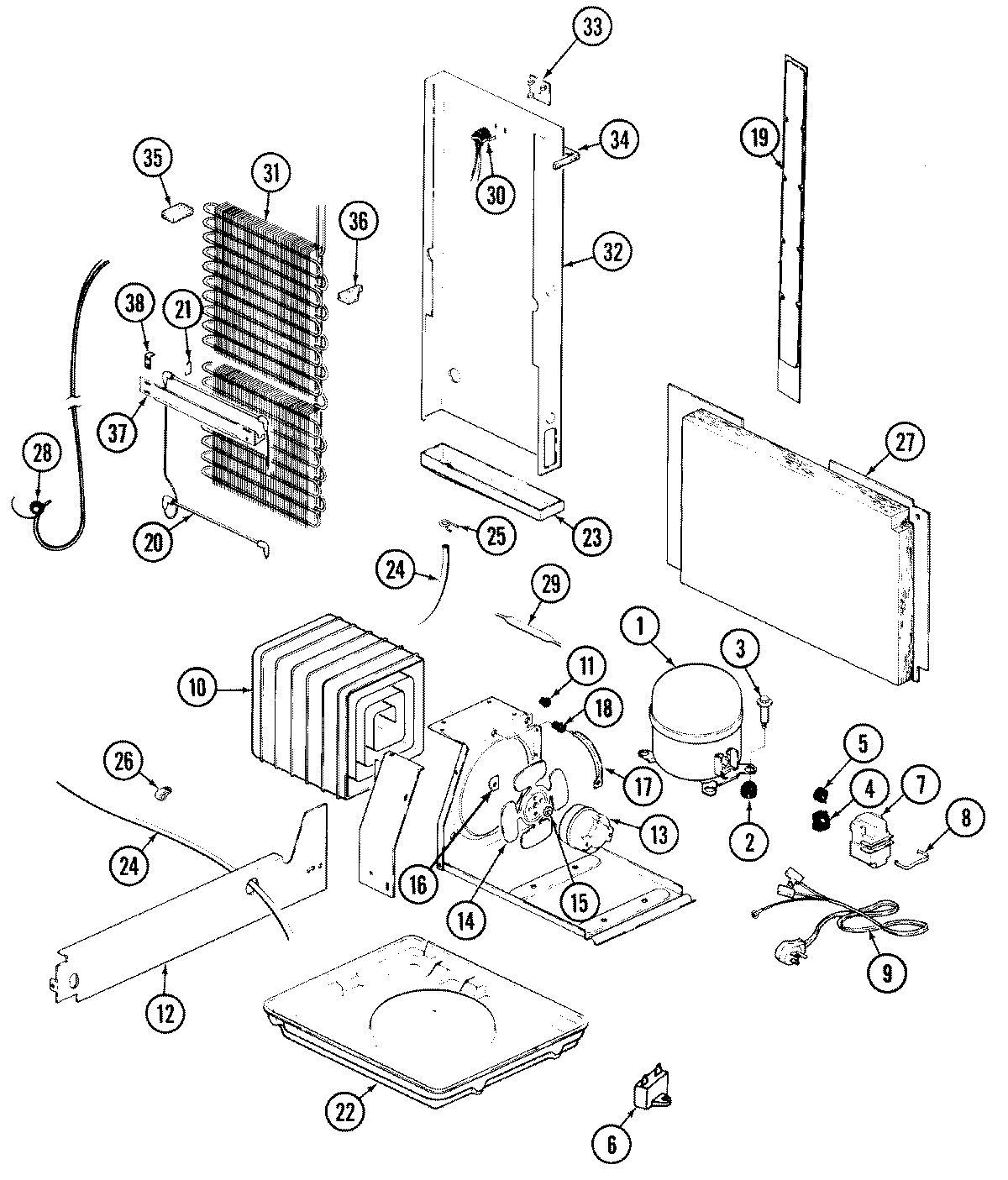

07 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool JRS228B REFRIGERATOR
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
CUP, SHELF WPL 674661 Contact Us For Availability
1
SCREW WPL 4010241 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
1
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
1
PANEL, F.F. DOOR (BLK) WPL 72448705BK Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
PANEL, FRZ. DOOR (BLK) WPL 72446706BK Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000058 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
2
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
2
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
KNOB, TEMPERATURE CONTROL WPL 671453 Contact Us For Availability
3
SCREW, HANDLE WPL 6527537 Contact Us For Availability
3
HANDLE (BLK) WPL 703051 Contact Us For Availability
3
HOLDER, WINE BOTTLE WPL 673087 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
4
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
4
RETAINER, BOTTLE WPL 697951 Contact Us For Availability
4
FRAME, SHELF WPL 703102 Contact Us For Availability
4
FRAME, MEAT SHELF WPL 703104 Contact Us For Availability
4
LINER WPL 692471 Contact Us For Availability
4
RELAY, START WPL 665885 Contact Us For Availability
5
PAN, ICE WPL 683461 Contact Us For Availability
5
SHELF WPL 671146 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
SHELF, SLIDE WPL 703074 Contact Us For Availability
5
GASKET------NA WPL 700249 Contact Us For Availability
5
OVERLOAD WPL 691058 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
TRIM, SHELF WPL 701362 Contact Us For Availability
6
BAFFLE WPL 686101 Contact Us For Availability
6
SLIDE, CONTROL WPL 674912 Contact Us For Availability
6
FRONT, PICK-OFF SHELF WPL 698702 Contact Us For Availability
6
CAPACITOR, RUN WPL 658896 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
CAP, CONNECTOR WPL 681871 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
SCREW WPL 652755 Contact Us For Availability
7
SUPPORT, MEAT PAN WPL 6764913 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
DUCT, AIR WPL 701981 Contact Us For Availability
8
DUCT, AIR WPL 701982 Contact Us For Availability
8
DUCT, AIR WPL 701983 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
8
SCREW WPL 4000531 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
INSULATION, CLOSER WPL 526131 Contact Us For Availability
8
ELEMENT WPL 700491 Contact Us For Availability
8
TRIM, MEAT PAN SUPPORT WPL 702811 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
9
KNOB, FREEZER CONTROL WPL 671454 Contact Us For Availability
9
SCREW WPL 4140041 Contact Us For Availability
9
CLOSER, DOOR WPL 692581 Contact Us For Availability
9
LINER, F.F. DOOR----NA WPL 692431 Contact Us For Availability
9
PAN, MEAT WPL 699286 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
GASKET WPL 7002412 Contact Us For Availability
10
HINGE, UPPER WPL 5370922 Contact Us For Availability
10
SCREW WPL 6527552 Contact Us For Availability
10
ROLLER WPL 674232 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
11
SCREW WPL 4000211 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
DOOR, DAIRY WPL 699183 Contact Us For Availability
11
BRACKET, CLOSER WPL 692611 Contact Us For Availability
11
SCREW WPL 652756 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
SOCKET, LIGHT WPL 298131 Contact Us For Availability
12
SCREW WPL 6527559 Contact Us For Availability
12
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
12
TRAY, BUTTER WPL 299362 Contact Us For Availability
12
TUNNEL, AIR WPL 686902 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 703621 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
HOUSING, LIGHT SOCKET & WIRES WPL 677512 Contact Us For Availability
13
FRONT, PICK-OFF WPL 698713 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
13
KNOB, AIR TUNNEL WPL 687552 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684456 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
SUPPORT, LIGHT SHIELD WPL 673443 Contact Us For Availability
14
KICKPLATE (BLK) WPL 689812 Contact Us For Availability
14
SHELF, PICK-OFF WPL 698723 Contact Us For Availability
14
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
14
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
ROLLER WHEEL WPL 671232 Contact Us For Availability
15
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
15
INSERT, NAMEPLATE WPL 680614 Contact Us For Availability
15
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
15
SEAL WPL 697791 Contact Us For Availability
15
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
16
SCREW WPL 4010171 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
16
WIRE HARNESS FREEZER WPL 700391 Contact Us For Availability
16
SHIELD, LIGHT WPL 671135 Contact Us For Availability
16
ORGANIZER WPL 697592 Contact Us For Availability
16
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
16
SHELF, CRISPER (LOWER) WPL 678926 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
WASHER, SPRING WPL 420092900 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
17
SCREW WPL 6527585 Contact Us For Availability
17
END CAP, HANDLE WPL 703061 Contact Us For Availability
17
TRAY, EGG WPL 600661 Contact Us For Availability
17
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
17
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
SWITCH, LIGHT WPL 669871 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
END CAP, HANDLE WPL 703062 Contact Us For Availability
18
SCREW WPL 6527528 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
SHIELD, FAN WPL 672251 Contact Us For Availability
19
COVER, AIR RETURN WPL 699821 Contact Us For Availability
19
COVER, UPPER HINGE (BLK) WPL 701216 Contact Us For Availability
19
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
19
COVER WPL 663811 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 702642 Contact Us For Availability
20
SCREW WPL 40001536 Contact Us For Availability
20
COVER, COIL LOWER WPL 673352 Contact Us For Availability
20
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
20
HEATER, DEFROST WPL 698481 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
PAN, CRISPER (LOWER) WPL 699282 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
22
SLEEVE, BRASS WPL 694311 Contact Us For Availability
22
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
PAN, CRISPER (UPPER) WPL 699287 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
23
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
23
SCREW WPL 951061 Contact Us For Availability
23
TRIM, SHELF WPL 7013517 Contact Us For Availability
23
WHEEL WPL 698121 Contact Us For Availability
23
GLASS, CRISPER SHELF WPL 674898 Contact Us For Availability
23
TROUGH, DRAIN WPL 535231 Contact Us For Availability
24
PLUG, TUBE WPL 675933 Contact Us For Availability
24
TUBE, FILL WPL 676761 Contact Us For Availability
24
PIN, WHEEL WPL 649651 Contact Us For Availability
24
SHELF, CRISPER (UPPER) WPL 678914 Contact Us For Availability
24
HOSE, DRAIN WPL 2691118 Contact Us For Availability
25
SPACE ROLLER WPL 671241 Contact Us For Availability
25
BRACKET, WHEEL WPL 627941 Contact Us For Availability
25
SCREW WPL 652751 Contact Us For Availability
25
TRIM, CRISPER SHELF WPL 703372 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
26
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
26
SCREW WPL 6527534 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
27
SCREW WPL 998645 Contact Us For Availability
27
SHELF, FRZ. WPL 671789 Contact Us For Availability
27
SCREW, WHEEL ADJUSTMENT WPL 564875 Contact Us For Availability
27
SEAL, CRISPER WPL 697792 Contact Us For Availability
27
COVER WPL 663393 Contact Us For Availability
28
SHELF, FRZ. (No.2,3,4,5) WPL 671787 Contact Us For Availability
28
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
28
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
28
HEAT EXCHANGER WPL 6501316 Contact Us For Availability
28
WIRE TIE WPL 662231 Contact Us For Availability
29
TRIM, SHELF WPL 7013518 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
30
BASKET, FRZ. WPL 693531 Contact Us For Availability
30
RAIL, HORIZONTAL SUPPORT WPL 61001031 Contact Us For Availability
30
SCREW WPL 6527542 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
31
CLIP WPL 693141 Contact Us For Availability
31
INSERT, LIGHT SHIELD WPL 674767 Contact Us For Availability
31
EVAPORATOR WPL 5255121 Contact Us For Availability
32
TRAY, ICE WPL 592812 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
TIMER, DEFROST WPL 682333 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
33
PAN, ICE WPL 671403 Contact Us For Availability
33
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
34
SCREW WPL 4000161 Contact Us For Availability
34
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
34
SUPPORT ICE SHELF WPL 671431 Contact Us For Availability
34
SEAL WPL 6632517 Contact Us For Availability
35
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
35
BULB, LIGHT WPL 201746 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
SCREW WPL 6527519 Contact Us For Availability
36
SHIELD, LIGHT WPL 672421 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
SCREW WPL 4000171 Contact Us For Availability
37
SCREW WPL 4060081 Contact Us For Availability
37
CLIP, STOP WPL 674882 Contact Us For Availability
37
WHEEL ASSY. WPL 628307 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
TUBE, DRAIN WPL 2652711 Contact Us For Availability
38
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
GROMMET WPL 525261 Contact Us For Availability
39
MANUAL, USE & CARE WPL 1093621 Contact Us For Availability
40
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
40
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
× ![]()
Login and Registration Form
