Model Whirlpool JRC5HN REFRIGERATOR – Common Parts & Diagrams

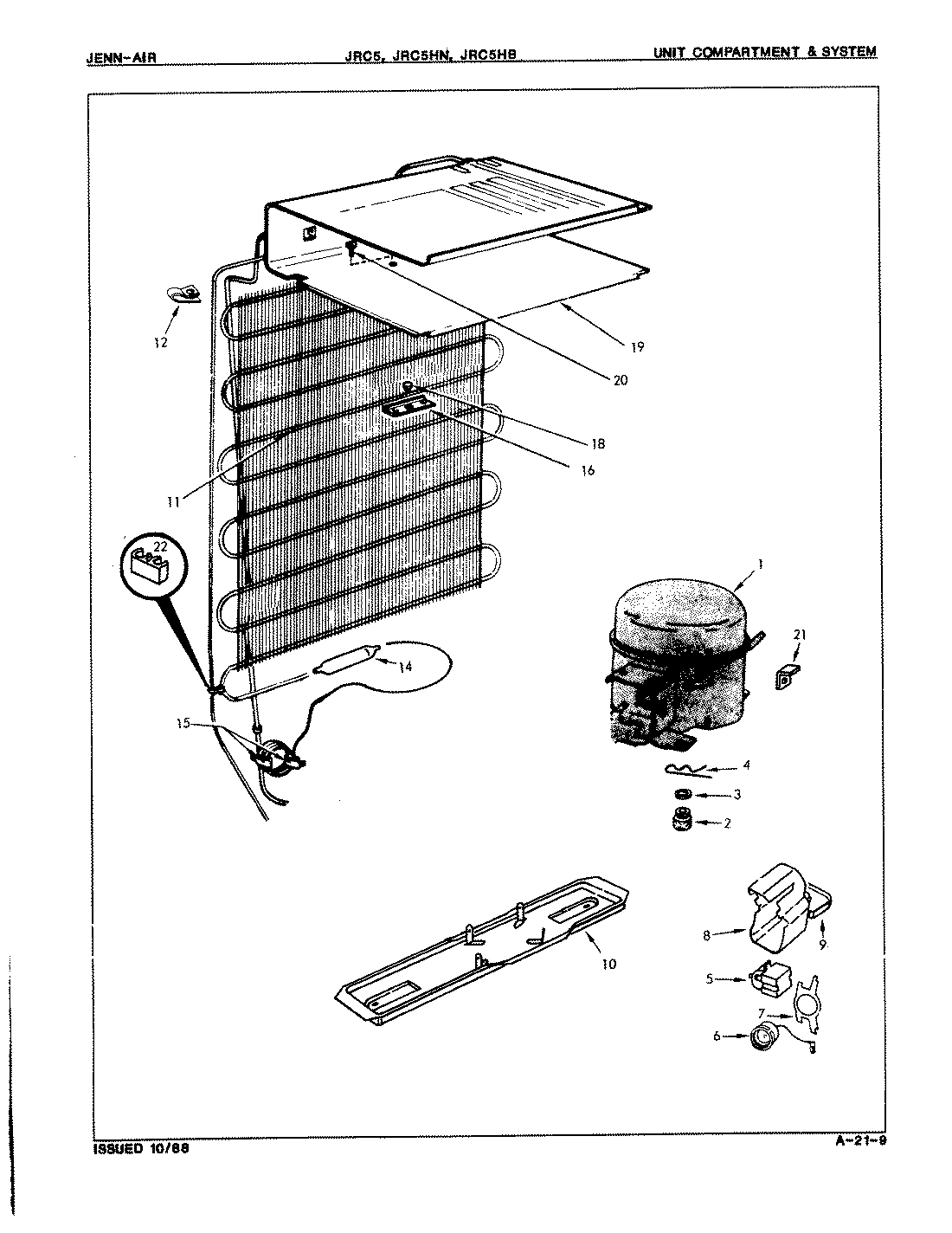

02 - UNIT COMPARTMENT & SYSTEM
01 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool JRC5HN REFRIGERATOR
1
COMPRESSOR WPL RA1014 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 669731 Contact Us For Availability
2
GROMMET, COMPRESS.MTG.(NECCHI) WPL 124400314 Contact Us For Availability
2
THERMOSTAT KNOB WPL 667601 Contact Us For Availability
3
WASHER,COMPRESSOR MTG. WPL 121900930 Contact Us For Availability
3
CONTROL HOUSING WPL 667611 Contact Us For Availability
4
CLIP, COMPRESSOR MTG. WPL 123800132 Contact Us For Availability
4
LEG, LEVELING WPL 60128 Contact Us For Availability
5
RELAY, START WPL 655292 Contact Us For Availability
5
BULB, LIGHT WPL 319560 Contact Us For Availability
6
OVERLOAD WPL 5306785 Contact Us For Availability
6
SOCKET, LIGHT WPL 605772 Contact Us For Availability
7
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
7
SWITCH, LIGHT WPL 557321 Contact Us For Availability
8
COVER, TERMINAL WPL 651891 Contact Us For Availability
8
SHELF WPL 660862 Contact Us For Availability
9
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
9
SHELF TRIM WPL 658444 Contact Us For Availability
10
CABINET BASE WPL 121400999 Contact Us For Availability
10
EVAP DOOR WPL 669231 Contact Us For Availability
10
SHIM WPL 669611 Contact Us For Availability
10
SPRING WPL 680011 Contact Us For Availability
11
CONDENSER WPL RW20451 Contact Us For Availability
11
PLUG WPL 125900754 Contact Us For Availability
12
CLAMP, CONDENSER MTG. WPL 2319711 Contact Us For Availability
12
SCREW WPL 4000151 Contact Us For Availability
12
GUIDE WPL 669121 Contact Us For Availability
13
SCREW WPL 4000221 Contact Us For Availability
13
EVAPORATOR DOOR SPRNG RETAINER WPL 233570 Contact Us For Availability
13
SPRING WPL 940110126 Contact Us For Availability
14
SPACER WPL 122904732 Contact Us For Availability
14
SCREW WPL 991350529 Contact Us For Availability
15
STRAP, CAPILLARY TUBE WPL 121900714 Contact Us For Availability
15
UPR CORNR COVER WPL 680523 Contact Us For Availability
16
HOLDER CLAMP CAPILLARY TUBE WPL 121900070 Contact Us For Availability
16
ICE CUBE TRAY WPL 601121 Contact Us For Availability
17
CAP PAD WPL 122900057 Contact Us For Availability
17
DRIP TRAY WPL 668401 Contact Us For Availability
18
RIVET CLAMP WPL 122904812 Contact Us For Availability
18
CRISPER COVER WPL 124900477 Contact Us For Availability
19
EVAPORATOR PLATE ASSEMBLY WPL RW2039 Contact Us For Availability
19
SHELF TRIM WPL 658453 Contact Us For Availability
20
PAN, CRISPER WPL 662562 Contact Us For Availability
21
GROUND PLATE WPL 121900942 Contact Us For Availability
21
GROUND WIRE WPL 129609607 Contact Us For Availability
21
SCREW WPL 40001512 Contact Us For Availability
21
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
21
CLAMP WPL 538101 Contact Us For Availability
21
WIRE HARNESS WPL 669591 Contact Us For Availability
21
WASHER, GROUNDING PLATE WPL 930021415 Contact Us For Availability
21
UPPER HINGE WPL 667661 Contact Us For Availability
22
SPACER, CONDENSER WPL 668831 Contact Us For Availability
22
MANUAL, USE & CARE WPL 1043901 Contact Us For Availability
22
WIRING DIAGRAM WPL 128903537 Contact Us For Availability
23
COVER WPL 680511 Contact Us For Availability
24
DIVIDER PLUG WPL 122904699 Contact Us For Availability
25
PLUG BUTTON WPL 668166 Contact Us For Availability
× ![]()
