Model Maytag JQTC507W0 COMPACTOR – Common Parts & Diagrams
01 - MOTOR AND DRIVE PARTS

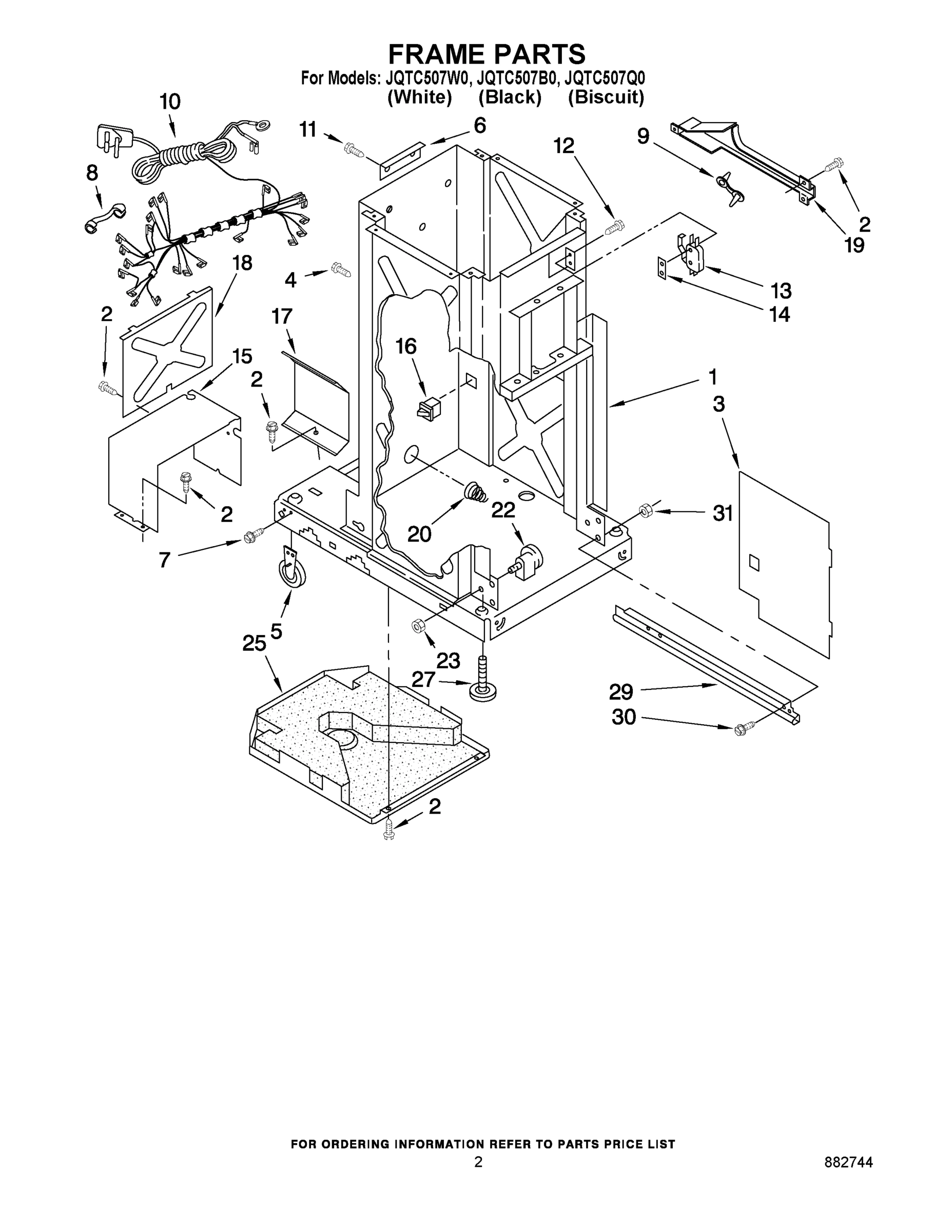

02 - FRAME PARTS
03 - POWERSCREW AND RAM PARTS
04 - CONTAINER PARTS
05 - PANEL AND CONTROL PARTS
06 - ACCESSORY PARTS
Common parts from model Maytag JQTC507W0 COMPACTOR
1
MAY 777971 MAY 777971 Contact Us For Availability
1
MAY 9870500 MAY 9870500 Contact Us For Availability
1
Screw, 8-18 x 1/2 (2) MAY 3400888 Contact Us For Availability
1
MAY 9871309 MAY 9871309 Contact Us For Availability
1
MAY 9871311 MAY 9871311 Contact Us For Availability
1
MAY 9871072 MAY 9871072 Contact Us For Availability
1
MAY 9871073 MAY 9871073 Contact Us For Availability
1
MAY 9871575 MAY 9871575 Contact Us For Availability
1
MAY 9871310 MAY 9871310 Contact Us For Availability
1
Panel, Container Front (Stainless Steel) MAY 9871312 Contact Us For Availability
2
MAY 9870343 MAY 9870343 Contact Us For Availability
2
SCREW, POWER (AVAILABLE ONLY AS COMPLETE ASSE MAY N/P Contact Us For Availability
2
MAY 9871235 MAY 9871235 Contact Us For Availability
2
Handle, Container (Black) MAY 9871267 Contact Us For Availability
2
MAY 9871573 MAY 9871573 Contact Us For Availability
2
Top, Cabinet MAY 9871825 Contact Us For Availability
2
MAY 4318921 MAY 4318921 Contact Us For Availability
2
MAY 4318922 MAY 4318922 Contact Us For Availability
2
Bag, Trash (15`` Plastic) (12 Boxes of 15 Pac MAY 94318921 Contact Us For Availability
3
MAY 9870444 MAY 9870444 Contact Us For Availability
3
MAY 779121 MAY 779121 Contact Us For Availability
3
Panel, Container (Biscuit) MAY 9871574 Contact Us For Availability
3
MAY 9870157 MAY 9870157 Contact Us For Availability
3
MAY 9870158 MAY 9870158 Contact Us For Availability
3
MAY 777635 MAY 777635 Contact Us For Availability
4
Plate, Motor MAY 776327 Contact Us For Availability
4
MAY 777070 MAY 777070 Contact Us For Availability
4
Screw, 8 x 1/2 (2) MAY 489478 Contact Us For Availability
4
MAY 775482 MAY 775482 Contact Us For Availability
5
MAY 776338 MAY 776338 Contact Us For Availability
5
MAY 9870585 MAY 9870585 Contact Us For Availability
5
MAY 776941 MAY 776941 Contact Us For Availability
5
MAY 9870996 MAY 9870996 Contact Us For Availability
5
Bracket, Mounting (2) (Alternate) MAY 780239 Contact Us For Availability
5
MAY 13030 MAY 13030 Contact Us For Availability
6
MAY 4149667 MAY 4149667 Contact Us For Availability
6
MAY 775668 MAY 775668 Contact Us For Availability
6
MAY 775481 MAY 775481 Contact Us For Availability
6
MAY 777108 MAY 777108 Contact Us For Availability
7
Pin, Drive Gear MAY 454512 Contact Us For Availability
7
Screw, 10-24 x 3/8 (2) MAY 780034 Contact Us For Availability
7
MAY 777385 MAY 777385 Contact Us For Availability
7
Console (Black) MAY 9871839B Contact Us For Availability
7
MAY 9871839T MAY 9871839T Contact Us For Availability
7
Console (White) MAY 9871839W Contact Us For Availability
7
Grease, 4 Oz. (Use on Power Screw & Ram Press MAY 675351 Contact Us For Availability
8
MAY 776035 MAY 776035 Contact Us For Availability
8
Bushing, Power Cord MAY 776119 Contact Us For Availability
8
MAY 4154842 MAY 4154842 Contact Us For Availability
8
Screw, 6-20 x 3/8 MAY 246131 Contact Us For Availability
8
WIRE, 25’ ROLL (BLUE 16 GA.) MAY 10875 Contact Us For Availability
8
WIRE, 25’ ROLL (BLACK 14 GA.) MAY 242820 Contact Us For Availability
8
WIRE, 25’ ROLL (RED 14 GA.) MAY 242825 Contact Us For Availability
8
WIRE, 25’ ROLL (WHITE 14 GA.) MAY 242826 Contact Us For Availability
8
WIRE, 25’ ROLL (RED 12 GA.) MAY 299885 Contact Us For Availability
8
WIRE, 25’ ROLL (BLACK 12 GA.) MAY 47261 Contact Us For Availability
8
WIRE, 25’ ROLL (WHITE 12 GA.) MAY 47263 Contact Us For Availability
9
MAY 297462 MAY 297462 Contact Us For Availability
9
MAY 777035 MAY 777035 Contact Us For Availability
9
MAY 777332 MAY 777332 Contact Us For Availability
9
MAY 776395 MAY 776395 Contact Us For Availability
9
MAY 279368 MAY 279368 Contact Us For Availability
10
Screw, 1/4-20 x 3/4 (4) MAY 9871067 Contact Us For Availability
10
MAY 777124 MAY 777124 Contact Us For Availability
10
CORD, POWER MAY 9871538 Contact Us For Availability
10
MAY 9870066 MAY 9870066 Contact Us For Availability
10
MAY 608824 MAY 608824 Contact Us For Availability
10
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
10
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
10
MAY 72107 MAY 72107 Contact Us For Availability
10
MAY 72110 MAY 72110 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Toast) MAY 72112 Contact Us For Availability
10
MAY 72113 MAY 72113 Contact Us For Availability
11
MAY 776036 MAY 776036 Contact Us For Availability
11
MAY 9871251 MAY 9871251 Contact Us For Availability
11
Knob, Rotary Switch (White) MAY 9870486 Contact Us For Availability
11
Knob, Rotary Switch (Black) MAY 9870487 Contact Us For Availability
11
MAY 9871659 MAY 9871659 Contact Us For Availability
11
Paint, Spray 13 Oz. (Harvest Gold) MAY 261890 Contact Us For Availability
11
MAY 285006 MAY 285006 Contact Us For Availability
11
Paint, Spray 13 Oz. (Toast) MAY 285365 Contact Us For Availability
11
Paint, Spray 13 Oz. (Platinum) MAY 285366 Contact Us For Availability
11
Paint, Spray 13 Oz. (White) MAY 350930 Contact Us For Availability
11
Paint, Spray 13 Oz. (Almond) MAY 350956 Contact Us For Availability
12
MAY 780477 MAY 780477 Contact Us For Availability
12
Screw, 6-20 x 1`` MAY 777849 Contact Us For Availability
12
MAY 9870163 MAY 9870163 Contact Us For Availability
12
MAY 4147703 MAY 4147703 Contact Us For Availability
12
Nut, Switch MAY 777383 Contact Us For Availability
13
MAY 777811 MAY 777811 Contact Us For Availability
13
MAY 90296 MAY 90296 Contact Us For Availability
13
Actuator, Safety Switch MAY 9871125 Contact Us For Availability
13
Switch, Drawer Tilt (Black) MAY 9871829 Contact Us For Availability
14
Nut, Plate MAY 777850 Contact Us For Availability
14
MAY 9870187 MAY 9870187 Contact Us For Availability
15
MAY 780434 MAY 780434 Contact Us For Availability
15
Pedal, Foot (Black) MAY 4149672 Contact Us For Availability
15
MAY 9871031 MAY 9871031 Contact Us For Availability
15
MAY 9871577 MAY 9871577 Contact Us For Availability
15
Compartment, Deodorant (White) MAY 777471 Contact Us For Availability
15
Compartment, Deodorant (Black) MAY 9871066 Contact Us For Availability
15
MAY 9871858 MAY 9871858 Contact Us For Availability
16
MAY 4149377 MAY 4149377 Contact Us For Availability
16
MAY 9870037 MAY 9870037 Contact Us For Availability
16
Container, Bearing Roller MAY 9871602 Contact Us For Availability
17
MAY 9870867 MAY 9870867 Contact Us For Availability
17
Locknut, 3/8-24 MAY 776356 Contact Us For Availability
17
MAY 9870498 MAY 9870498 Contact Us For Availability
17
MAY 9871844 MAY 9871844 Contact Us For Availability
17
MAY 9871845 MAY 9871845 Contact Us For Availability
17
MAY 9871850 MAY 9871850 Contact Us For Availability
18
MAY 608009 MAY 608009 Contact Us For Availability
18
Screw 8-32 x 5/16 MAY 489399 Contact Us For Availability
18
BUMPER, DOOR (2) MAY 775785 Contact Us For Availability
19
MAY 4149659 MAY 4149659 Contact Us For Availability
19
MAY 9870775 MAY 9870775 Contact Us For Availability
20
MAY 777180 MAY 777180 Contact Us For Availability
20
Slide, Ram (4) MAY 9870169 Contact Us For Availability
20
Pin, Latch MAY 776654 Contact Us For Availability
21
MAY 775736 MAY 775736 Contact Us For Availability
22
MAY 4153788 MAY 4153788 Contact Us For Availability
22
RING, ‘‘E’’ MAY 775735 Contact Us For Availability
24
Screw, Shoulder 8-16 x 7/16 (2) MAY 780263 Contact Us For Availability
25
PAN-BOTTOM MAY 780437 Contact Us For Availability
26
MAY 775665 MAY 775665 Contact Us For Availability
27
Foot, Leveler (2) MAY 775526 Contact Us For Availability
27
Guard, Toe Plate (Black) MAY 777328 Contact Us For Availability
27
Guard, Toe Plate (White) MAY 9871030 Contact Us For Availability
27
Guard, Toe Plate (Biscuit) MAY 9871578 Contact Us For Availability
28
Screw, 8-18 x 3/8 MAY 3196175 Contact Us For Availability
29
Slide, Frame (L.H.) MAY 9870975 Contact Us For Availability
29
Slide, Frame (R.H.) MAY 9870976 Contact Us For Availability
30
Screw, 6-32 x 3/8 MAY 777458 Contact Us For Availability
31
NUT, 6-32 MAY 4390387 Contact Us For Availability
NI
MAY 9870118 MAY 9870118 Contact Us For Availability
NI
MAY LIT9871269 MAY LIT9871269 Contact Us For Availability
NI
SHEET, TECH AND WIRING DIAGRAM MAY LIT9871765 Contact Us For Availability
NI
MAY LIT9871852 MAY LIT9871852 Contact Us For Availability
× ![]()
