Model Alliance JP175PHN2 Washer – Common Parts & Diagrams
Decals - Models through 8/31/09 (Drawing 1 of 2)

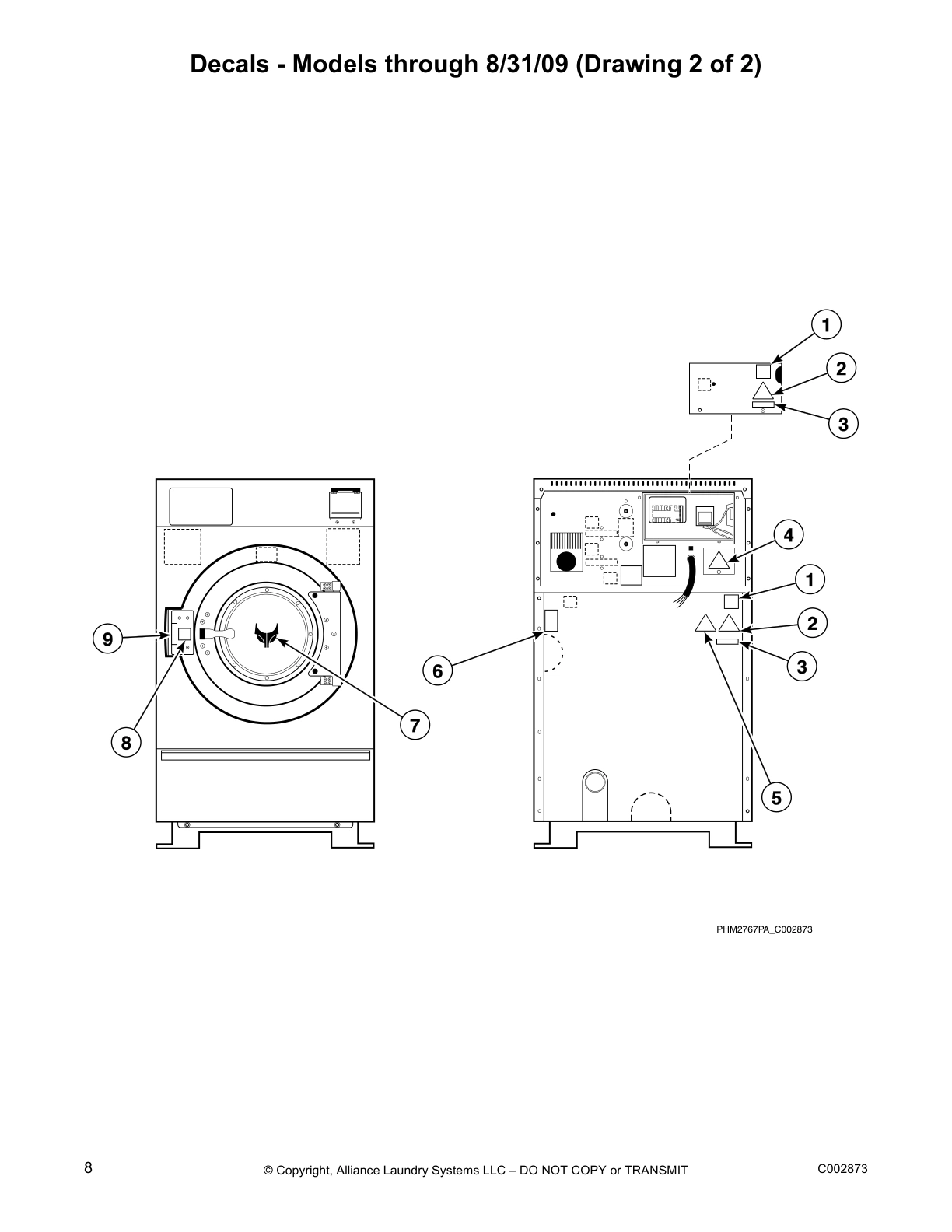

Decals - Models through 8/31/09 (Drawing 2 of 2)
Decals - Models starting 9/1/09
Bearing Housing Assembly
Cabinet Assembly
Cylinder Assembly
Single Cup Side Dispenser
5 Cup Side Dispenser
Door Assembly
Door Lock Assembly
Door Lock Assembly with Magnetic Sensor
Hot and Auxiliary with Valve Plumbing Assembly
Cold 1 Cup Water Plumbing Assembly
Cold 5 Cup Water Plumbing Assembly
Auxiliary Fill without Valve Plumbing Assembly
Steam Heat Assembly
Shell Assembly
Control Box
Drive Box Assembly
Main Assembly (Drawing 1 of 2)
Main Assembly (Drawing 2 of 2)
Common parts from model Alliance JP175PHN2 Washer
Drain Weldment SPQ C002023 Contact Us For Availability
Adapter SPQ C001020 Contact Us For Availability
Bearing Housing Puller Kit SPQ C000628P Contact Us For Availability
Hose SPQ 1390P Contact Us For Availability
Adapter SPQ C000680 Contact Us For Availability
Nut SPQ C000568 Contact Us For Availability
Hose SPQ C001148 Contact Us For Availability
SPQ 803017 SPQ 803017 Contact Us For Availability
SPQ C000574 SPQ C000574 Contact Us For Availability
Nut SPQ C000612 Contact Us For Availability
Nut SPQ C000578 Contact Us For Availability
Bolt SPQ C000572 Contact Us For Availability
Screw SPQ C000613 Contact Us For Availability
SPQ C000273 SPQ C000273 Contact Us For Availability
Chemical Supply Harness SPQ F140602 Contact Us For Availability
Nut SPQ C002570 Contact Us For Availability
SPQ C003355 SPQ C003355 Contact Us For Availability
Hose SPQ 225/10004/00 Contact Us For Availability
SPQ C000556 SPQ C000556 Contact Us For Availability
1
Door Release Decal SPQ C000694 Contact Us For Availability
1
Bearing Housing Assembly SPQ C001946 Contact Us For Availability
1
Emergency Stop Button Kit
Includes F200233401 SPQ F200233700P Contact Us For Availability
1
Washer SPQ C001239 Contact Us For Availability
1
Single Side Dispenser Assembly SPQ C001582 Contact Us For Availability
1
Door Lock Cover SPQ C000688 Contact Us For Availability
1
Hot Plumbing Assembly SPQ C002539 Contact Us For Availability
1
Single Cup Cold Plumbing Assembly SPQ C002537 Contact Us For Availability
1
5 Cup Cold Plumbing Assembly SPQ C002538 Contact Us For Availability
1
Auxiliary Plumbing Assembly SPQ C002397 Contact Us For Availability
1
Shell Band Weldment SPQ C002730 Contact Us For Availability
1
Front Electrical Enclosure Assembly SPQ C000432 Contact Us For Availability
1
Mounting Bracket SPQ C000373 Contact Us For Availability
1
Vacuum Breaker Cover SPQ C001772 Contact Us For Availability
1
Vacuum Breaker Hose SPQ C000599 Contact Us For Availability
2
Keymode Switch Assembly SPQ C003024P Contact Us For Availability
2
Cylinder Bolt Shroud SPQ C001238 Contact Us For Availability
2
Side Dispenser Door SPQ C000642 Contact Us For Availability
2
Hose Barb SPQ C000899 Contact Us For Availability
2
Diaphragm and Guide Kit SPQ C000436P Contact Us For Availability
2
Street Elbow SPQ F421707 Contact Us For Availability
2
Shell Front Gasket SPQ C001876P Contact Us For Availability
2
Front Electrical Enclosure Cover SPQ C000348 Contact Us For Availability
2
Circuit Breaker SPQ F350217 Contact Us For Availability
2
Vacuum Breaker Assembly SPQ C000830 Contact Us For Availability
2
Air Trap Tube Elbow SPQ C000662 Contact Us For Availability
3
Spin Warning Decal SPQ F200085100 Contact Us For Availability
3
Front Panel Assembly SPQ C002974 Contact Us For Availability
3
Screw SPQ C001294 Contact Us For Availability
3
Dispenser Door Handle SPQ C001788 Contact Us For Availability
3
Door Glass SPQ C000749 Contact Us For Availability
3
Water Valve Rebuild Kit SPQ C001676P Contact Us For Availability
3
Adapter SPQ G582P3 Contact Us For Availability
3
Coupling SPQ C001143 Contact Us For Availability
3
Steam Injector Tube Assembly SPQ F603132 Contact Us For Availability
3
Shell Front Assembly SPQ C002978 Contact Us For Availability
3
Control Panel Decal SPQ C001069 Contact Us For Availability
3
Power Block Terminal SPQ C000370 Contact Us For Availability
3
Belt SPQ C000654 Contact Us For Availability
4
Proximity Mounting Bracket SPQ C000673P Contact Us For Availability
4
Hinge SPQ C001787 Contact Us For Availability
4
Door SPQ C000710 Contact Us For Availability
4
Bolt SPQ C000430 Contact Us For Availability
4
Street Elbow SPQ C000424 Contact Us For Availability
4
Reducing Coupling SPQ C000978 Contact Us For Availability
4
Shell Assembly SPQ C002943 Contact Us For Availability
4
Motor Bracket SPQ C002217 Contact Us For Availability
5
Hot Water and Chemical Caution Decal SPQ F200085300 Contact Us For Availability
5
Reducing Connector SPQ C000969 Contact Us For Availability
5
Supply Dispenser Nozzle SPQ C000073 Contact Us For Availability
5
Single Side Dispenser Door SPQ C000855 Contact Us For Availability
5
Door Magnet Mounting Brack SPQ C002994 Contact Us For Availability
5
Tee SPQ F420502 Contact Us For Availability
5
Shell Gasket Shield SPQ C001700 Contact Us For Availability
5
Standoff SPQ C000376 Contact Us For Availability
5
Exhaust Bracket SPQ C002526 Contact Us For Availability
5
Supply Dispenser Hose SPQ C000379 Contact Us For Availability
6
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
6
Reed Switch Assembly SPQ C003000 Contact Us For Availability
6
Nipple SPQ F420403 Contact Us For Availability
6
Steam Hose Insulation SPQ C001003 Contact Us For Availability
6
Screw SPQ C001887 Contact Us For Availability
6
Mounting Bracket SPQ C000375 Contact Us For Availability
6
Inverter SPQ C002507 Contact Us For Availability
6
Fan SPQ C000211 Contact Us For Availability
6
Belt Tension Spring SPQ C002219 Contact Us For Availability
7
Mount on Concrete Warning Label SPQ F8246401 Contact Us For Availability
7
Front Top Panel Assembly SPQ C002986 Contact Us For Availability
7
Supply Cup SPQ C000646 Contact Us For Availability
7
Door Glass Gasket SPQ C000750 Contact Us For Availability
7
Door Lock Plate SPQ C000684 Contact Us For Availability
7
Steam Hose Adapter SPQ C001587 Contact Us For Availability
7
Ribbon Cable SPQ C000705P Contact Us For Availability
7
Drive Box Assembly SPQ C002524 Contact Us For Availability
7
Fan Filter Guard Assembly SPQ C000210 Contact Us For Availability
7
Motor Bushing SPQ C001791 Contact Us For Availability
8
Blind Rivet SPQ F8245101 Contact Us For Availability
8
Steam Cord Assembly SPQ C002748P Contact Us For Availability
8
Main Board Controller Kit SPQ C000281P Contact Us For Availability
8
Ground Terminal Lug SPQ C000290 Contact Us For Availability
9
Hinge Block SPQ C000175 Contact Us For Availability
9
Hose SPQ F420105 Contact Us For Availability
9
Steam Valve Mounting Bracket SPQ C000981 Contact Us For Availability
9
Water Level Transducer SPQ C002104P Contact Us For Availability
9
Terminal Bracket SPQ C001803 Contact Us For Availability
9
Drain Assembly SPQ C000972 Contact Us For Availability
9
Screw SPQ C002223 Contact Us For Availability
10
External Supply Connection Decal SPQ F8150201 Contact Us For Availability
10
Door Hinge Bushing SPQ C000176 Contact Us For Availability
10
Door Lock Switch Slide SPQ C000271 Contact Us For Availability
10
Water Valve SPQ C000339P Contact Us For Availability
10
Circuit Breaker Kit SPQ C0977P3 Contact Us For Availability
10
Water Inlet Hose SPQ C000808 Contact Us For Availability
11
Door Lock Slide Spring SPQ C000276 Contact Us For Availability
11
Steam Valve SPQ F8322904P Contact Us For Availability
11
Tilt Switch Assembly SPQ C002642P Contact Us For Availability
11
Drain Tee Bracket Weldment SPQ C002070 Contact Us For Availability
12
Door Hinge SPQ C000752 Contact Us For Availability
12
Door Lock Catch SPQ C000185 Contact Us For Availability
12
Nipple SPQ F421323 Contact Us For Availability
12
Chemical Supply Controller SPQ C000371P Contact Us For Availability
12
Lower Shell Support Bracket SPQ C000663 Contact Us For Availability
13
Side Panel and Stiffener Assembly SPQ C002718 Contact Us For Availability
13
Door Glass Retainer SPQ C000751MD Contact Us For Availability
13
Door Latch SPQ C001244 Contact Us For Availability
13
Front Electrical Enclosure SPQ C000213 Contact Us For Availability
13
Drain Hose SPQ F200165100 Contact Us For Availability
14
Lower Front Panel
Models starting 7/1/09 SPQ C003081 Contact Us For Availability
14
Door Lock Spring Cover SPQ C000687 Contact Us For Availability
14
Overflow Hose SPQ C000807 Contact Us For Availability
15
Door Lock Solenoid Bracket SPQ C003022 Contact Us For Availability
16
Lower Front Panel
Models through 6/30/09 SPQ C000819 Contact Us For Availability
16
Door Lock Spring SPQ B12351001 Contact Us For Availability
16
Bushing SPQ C000411 Contact Us For Availability
17
Rub Rail
Vinyl SPQ C001014 Contact Us For Availability
17
Pop Rivet SPQ F431215 Contact Us For Availability
18
Door Lock Kit SPQ C002996M Contact Us For Availability
18
Proximity Switch Assembly SPQ C000841 Contact Us For Availability
19
Trim Gasket SPQ C000629 Contact Us For Availability
19
Pop Rivet SPQ F431223 Contact Us For Availability
19
Air Trap Tube SPQ C002637P Contact Us For Availability
20
Magnet SPQ F8390801 Contact Us For Availability
20
Top Panel Access Cover SPQ C002017 Contact Us For Availability
NI
Screw SPQ C001649 Contact Us For Availability
NI
Screw
2 required for rear electrical cover to SPQ F430929 Contact Us For Availability
NI
Screw SPQ C001642 Contact Us For Availability
NI
Washer SPQ 1390-1 Contact Us For Availability
NI
SPQ C000571 SPQ C000571 Contact Us For Availability
NI
SPQ C000552 SPQ C000552 Contact Us For Availability
NI
Screw SPQ F430910 Contact Us For Availability
NI
Thermostat Seal SPQ C000567 Contact Us For Availability
NI
Grease Connector Box SPQ C000539 Contact Us For Availability
NI
Screw SPQ F430925 Contact Us For Availability
NI
Screw SPQ F430920 Contact Us For Availability
NI
Nut SPQ C001032 Contact Us For Availability
NI
Nut SPQ C000560 Contact Us For Availability
NI
SPQ C000177 SPQ C000177 Contact Us For Availability
NI
Door Bumper SPQ C001546 Contact Us For Availability
NI
Nut SPQ C001236 Contact Us For Availability
NI
Stud SPQ C000601 Contact Us For Availability
NI
SPQ C000559 SPQ C000559 Contact Us For Availability
NI
SPQ F8549401 SPQ F8549401 Contact Us For Availability
NI
Nut SPQ C000576 Contact Us For Availability
NI
Door Lock Harness SPQ C000867P Contact Us For Availability
NI
Screw SPQ C000614 Contact Us For Availability
NI
SPQ C001011 SPQ C001011 Contact Us For Availability
NI
Screw SPQ C000894 Contact Us For Availability
NI
Fitting SPQ C000583 Contact Us For Availability
NI
Washer SPQ F601216 Contact Us For Availability
NI
SPQ C000611 SPQ C000611 Contact Us For Availability
NI
Washer SPQ F431133 Contact Us For Availability
NI
Control Module Harness SPQ C000865 Contact Us For Availability
NI
Screw SPQ C001132 Contact Us For Availability
NI
Screw SPQ F430938 Contact Us For Availability
NI
Drive Box Harness SPQ C002781 Contact Us For Availability
NI
Resistor Kit SPQ C000575 Contact Us For Availability
NI
Hose Clamp SPQ F200222 Contact Us For Availability
NI
Vacuum Breaker Plug SPQ C000679 Contact Us For Availability
NI
Hose Clamp SPQ F430144 Contact Us For Availability
NI
Washer SPQ F200213 Contact Us For Availability
NI
SPQ 801792P SPQ 801792P Contact Us For Availability
× ![]()
