Model GE JNM3151DF1BB Microwave Or Advantium – Common Parts & Diagrams

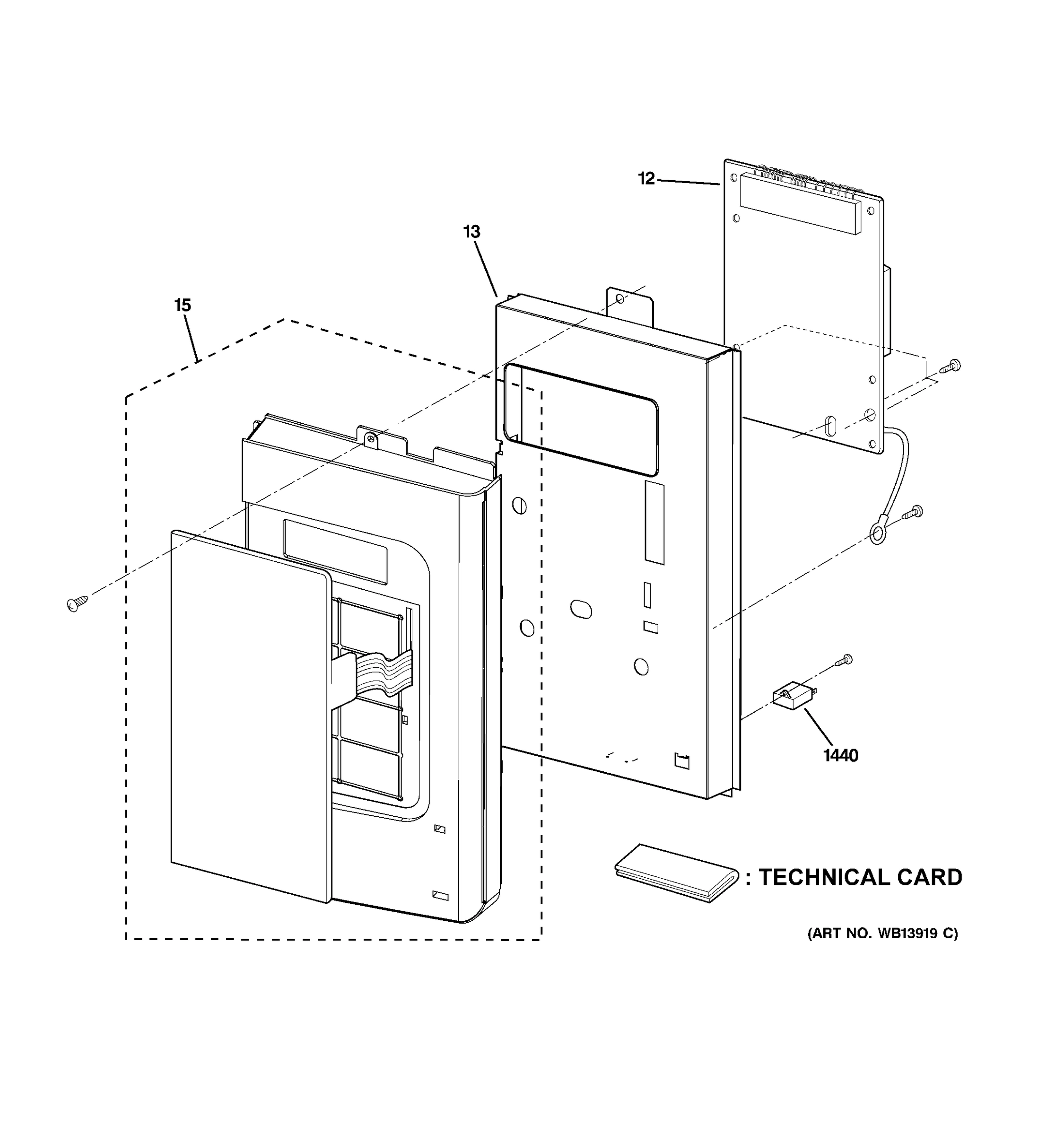

12
SMART BOARD
SMART BOARD GEN WB27X10931 Contact Us For Availability
View on Model
15
CONTROL PANEL ASM, BB
CONTROL PANEL ASM, BB GEN WB56X20986 Contact Us For Availability
View on Model
17
COVER,LAMP
COVER,LAMP GEN WB06X10556 Contact Us For Availability
View on Model
18
LAMP HOLDER
LAMP HOLDER GEN WB08X10065 Contact Us For Availability
View on Model
22
GLASS
GLASS GEN WB36X10293 Contact Us For Availability
View on Model
27
THERMOSTAT
THERMOSTAT GEN WB27X11098 Contact Us For Availability
View on Model
28
BOARD LATCH
BOARD LATCH GEN WB06X10679 Contact Us For Availability
View on Model
31
LEVER
LEVER GEN WB06X10684 Contact Us For Availability
View on Model
33
HARNESS WIRE
HARNESS WIRE GEN WB18X20985 Contact Us For Availability
View on Model
36
FAN
FAN GEN WB06X10706 Contact Us For Availability
View on Model
37
COVER STIRRER FAN
COVER STIRRER FAN GEN WB06X10712 Contact Us For Availability
View on Model
43
MOTOR(CIRC),SYNCHRONOUS
MOTOR(CIRC),SYNCHRONOUS GEN WB26X10240 Contact Us For Availability
View on Model
47
FUSE
FUSE GEN WB27X11099 Contact Us For Availability
View on Model
53
DAMPER
DAMPER GEN WB06X10686 Contact Us For Availability
View on Model
54
MOUNT
MOUNT GEN WB06X10562 Contact Us For Availability
View on Model
59
MOTOR VENTILATION
MOTOR VENTILATION GEN WB26X10202 Contact Us For Availability
View on Model
70
GRILLE VENT
GRILLE VENT GEN WB07X11009 Contact Us For Availability
View on Model
75
TRANSFORMER.H.V
TRANSFORMER.H.V GEN WB20X10046 Contact Us For Availability
View on Model
84
ROTATING RING ASM
ROTATING RING ASM GEN WB06X10705 Contact Us For Availability
View on Model
86
HARDWARE INSTALLATION
HARDWARE INSTALLATION GEN WB01X10132 Contact Us For Availability
View on Model
92
HOLDER COOK AUXILIARY
HOLDER COOK AUXILIARY GEN WB02X11262 Contact Us For Availability
View on Model
101
SHAFT TURNTABLE
SHAFT TURNTABLE GEN WB06X10704 Contact Us For Availability
View on Model
110
THERMOSTAT
THERMOSTAT GEN WB27X11100 Contact Us For Availability
View on Model
111
BRACKET,MISC
BRACKET,MISC GEN WB06X10570 Contact Us For Availability
View on Model
115
THERMOSTAT
THERMOSTAT GEN WB27X11097 Contact Us For Availability
View on Model
1112
BRACKET,MISC
BRACKET,MISC GEN WB06X10568 Contact Us For Availability
View on Model
1428
MAGNETRON
MAGNETRON GEN WB27X10927 Contact Us For Availability
View on Model
1438
CAPACITOR H.V
CAPACITOR H.V GEN WB27X11096 Contact Us For Availability
View on Model
1440
CAPACITOR
CAPACITOR GEN WB27X10808 Contact Us For Availability
View on Model
1445
SWITCH MONITOR INTERLOCK
SWITCH MONITOR INTERLOCK GEN WB24X10181 Contact Us For Availability
View on Model
1446
SW PRIM INTERLOCK & DOOR
SW PRIM INTERLOCK & DOOR GEN WB24X10180 Contact Us For Availability
View on Model
1475
CANOPY RESIN
CANOPY RESIN GEN WB06X10601 Contact Us For Availability
View on Model

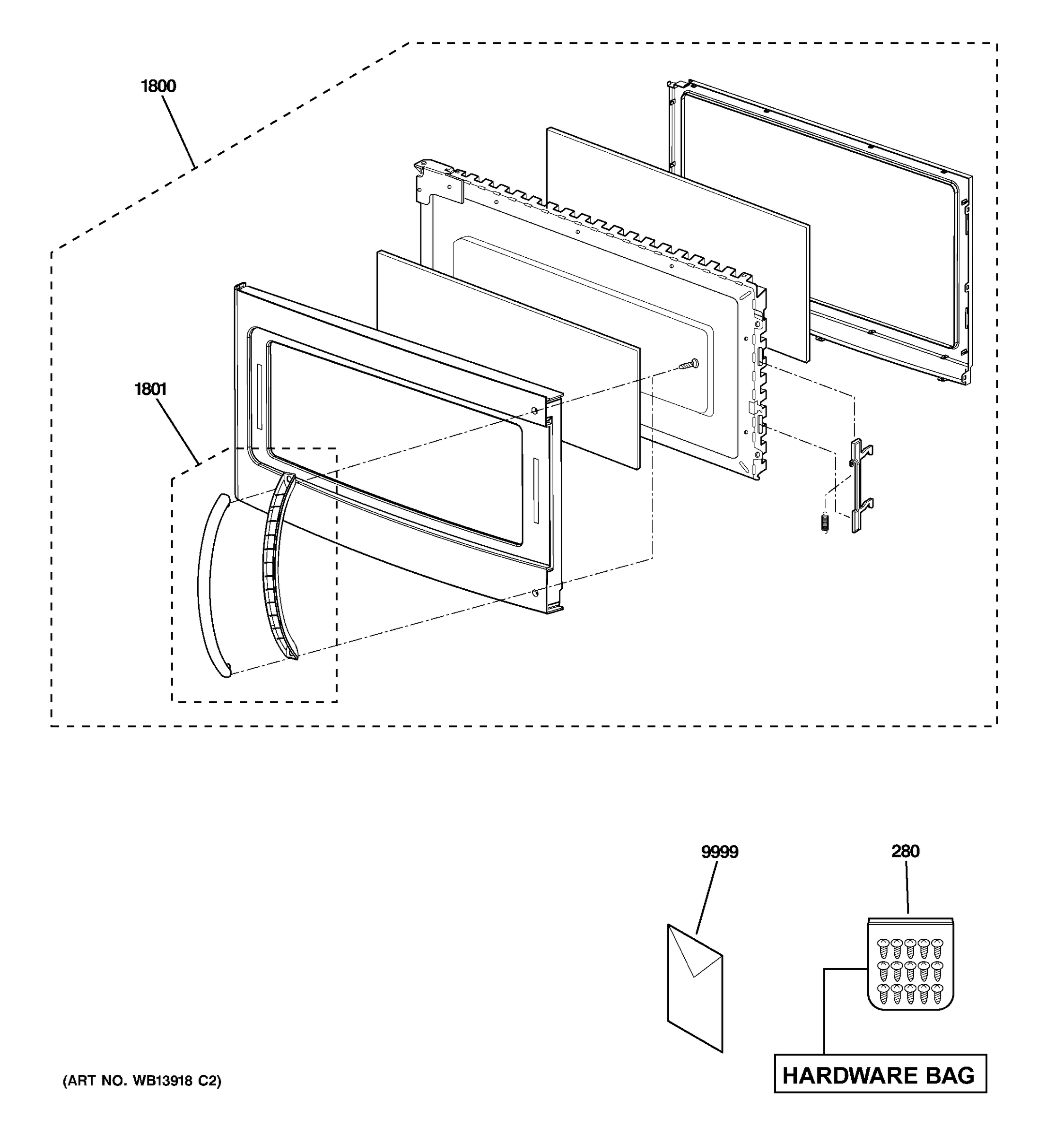

1800
DOOR ASM, BB
DOOR ASM, BB GEN WB56X20987 Contact Us For Availability
View on Model
1801
HANDLE ASM, BB
HANDLE ASM, BB GEN WB15X20988 Contact Us For Availability
View on Model
2944
NUT ASSY
NUT ASSY GEN WB01X10124 Contact Us For Availability
View on Model
7003
NOISE FILTER
NOISE FILTER GEN WB27X11134 Contact Us For Availability
View on Model
9999
FILTER CHARCOAL-OPTIONAL
FILTER CHARCOAL-OPTIONAL GEN WB02X11495 Contact Us For Availability
View on Model
