Model Maytag JMW9530DAW30 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - OVEN PARTS
02 - OVEN DOOR PARTS

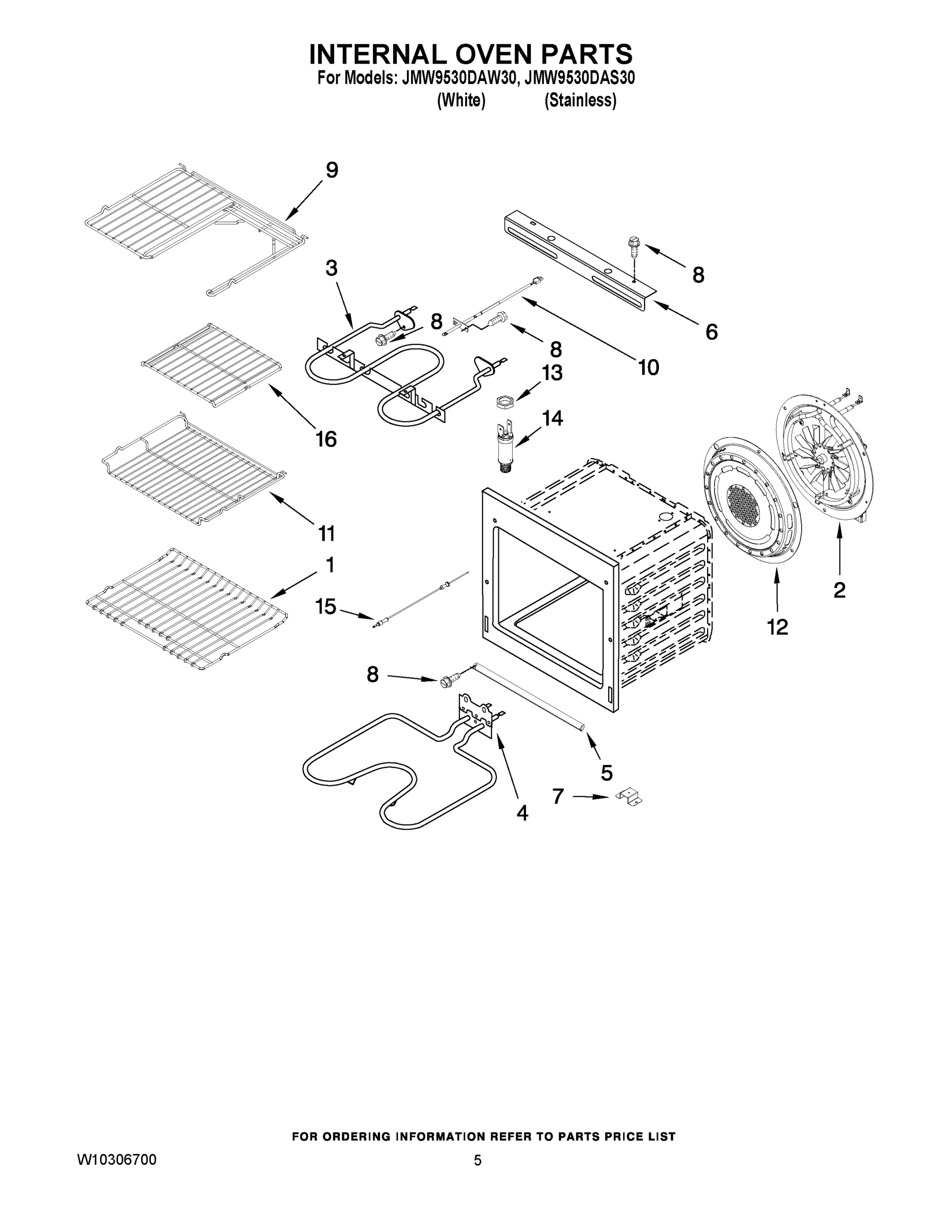

03 - INTERNAL OVEN PARTS

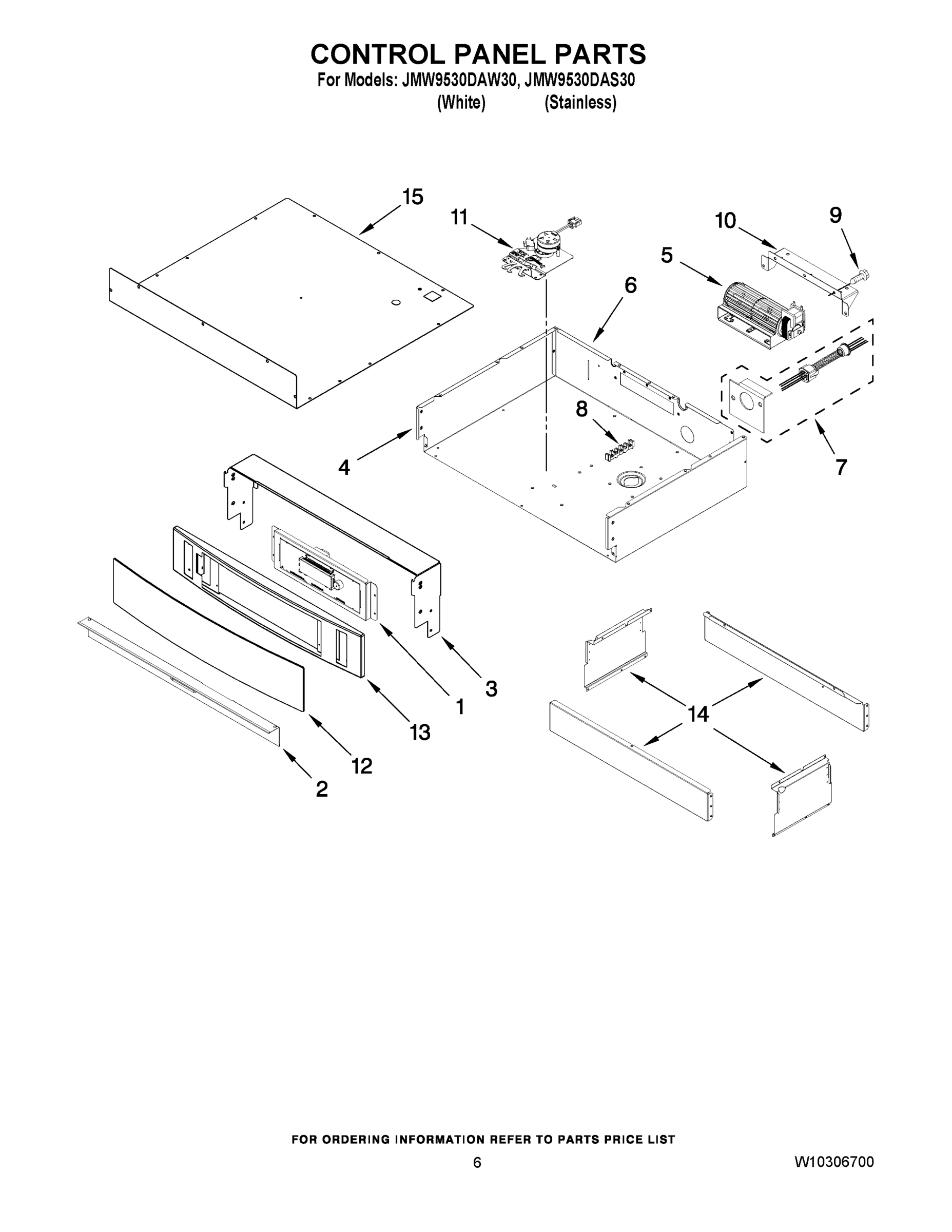

04 - CONTROL PANEL PARTS

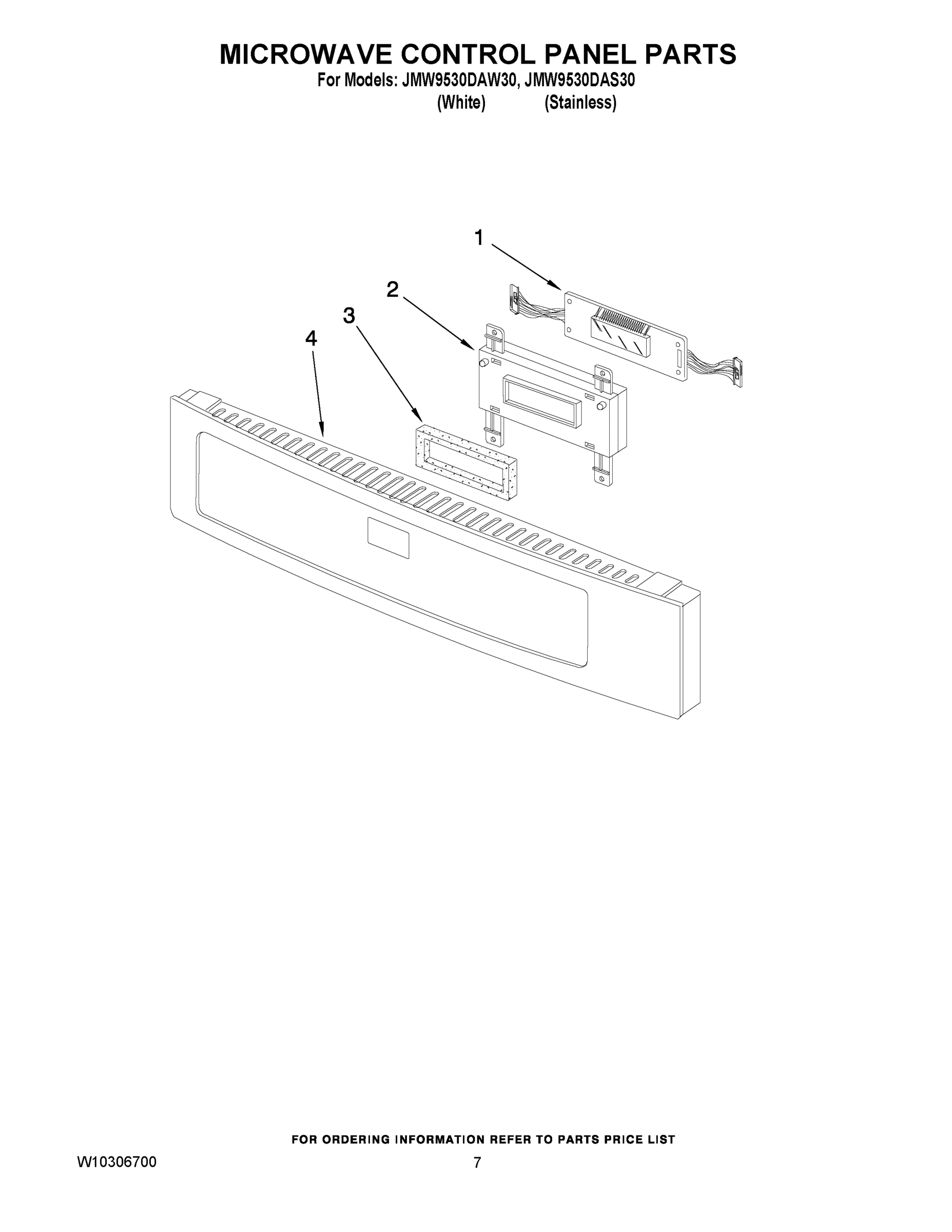

05 - MICROWAVE CONTROL PANEL PARTS
06 - MICROWAVE OVEN PARTS

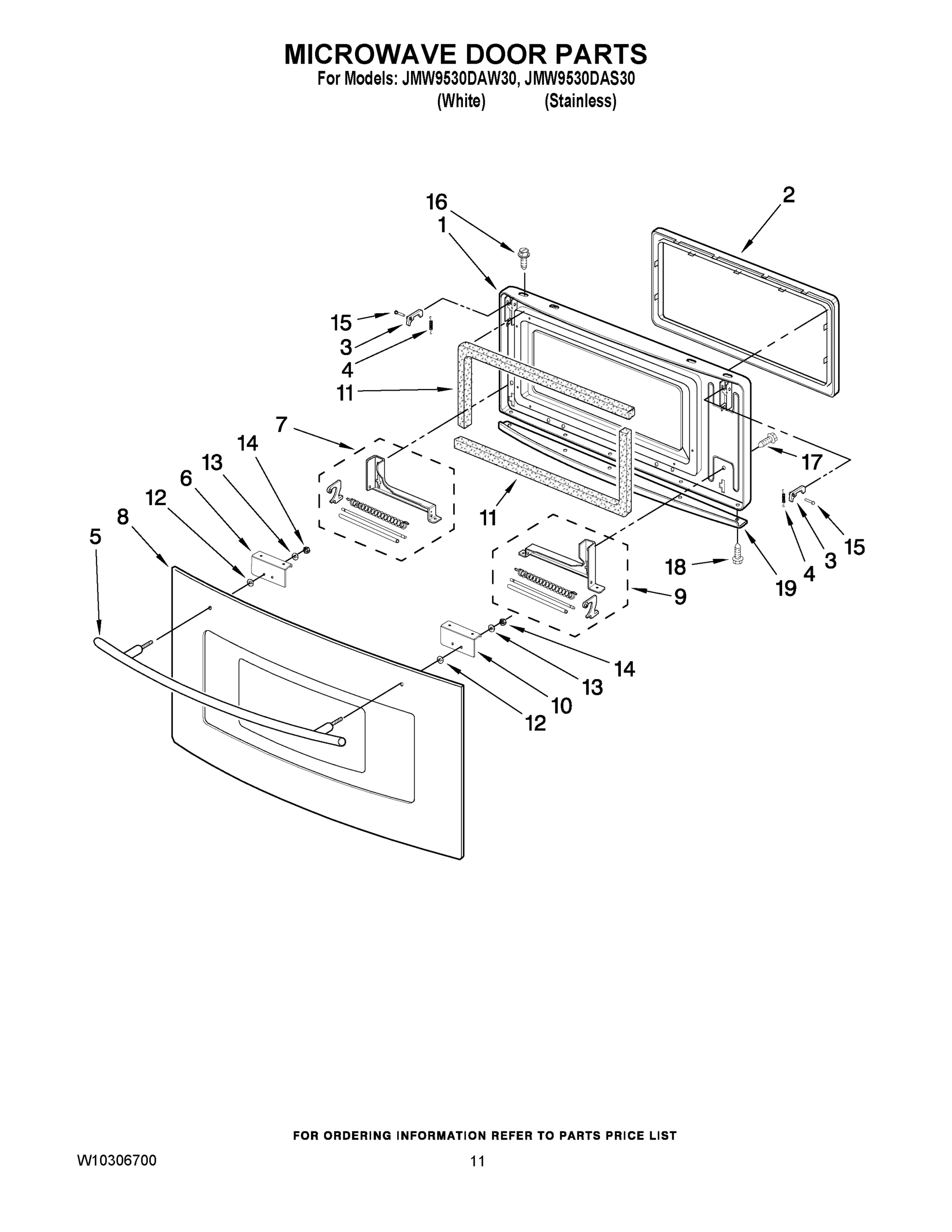

07 - MICROWAVE DOOR PARTS

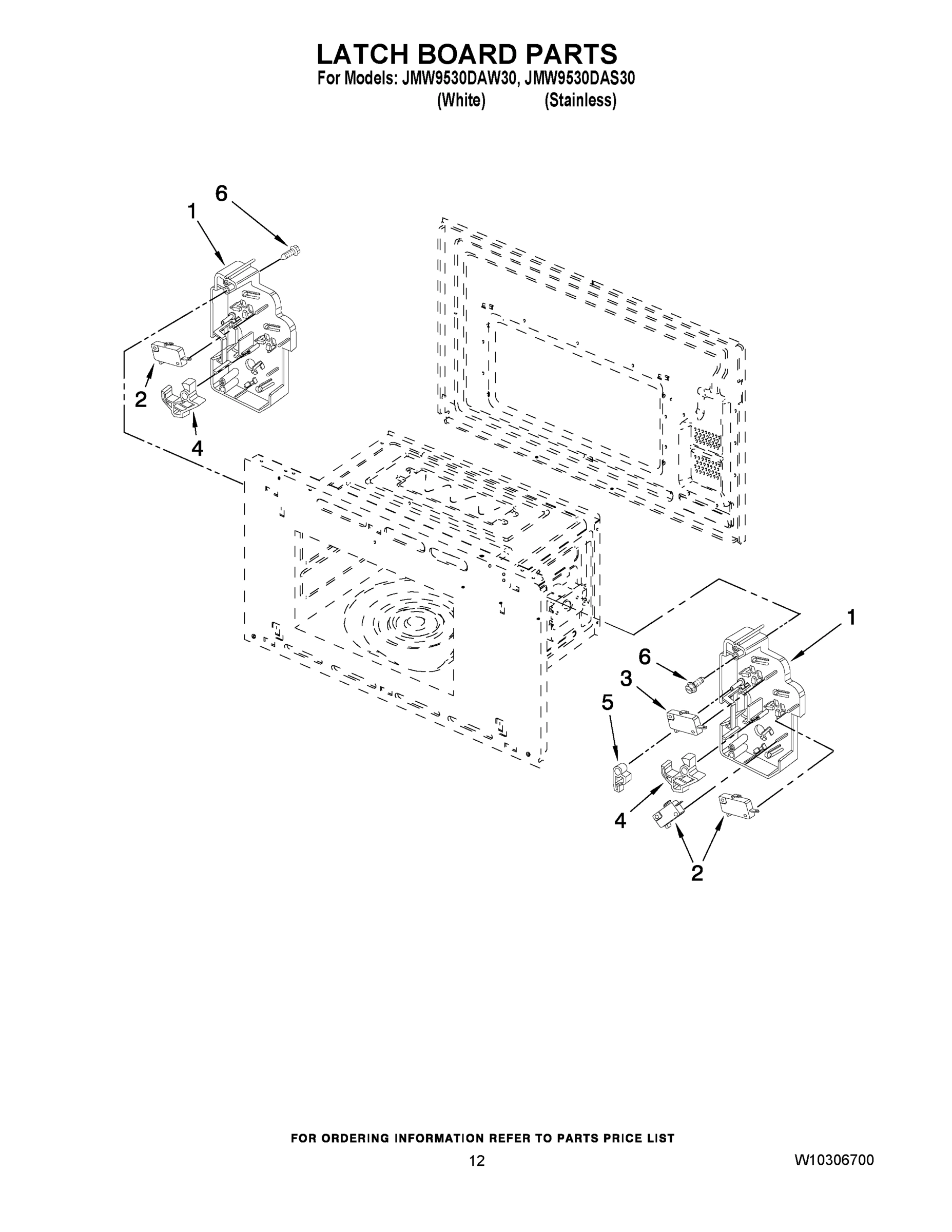

08 - LATCH BOARD PARTS

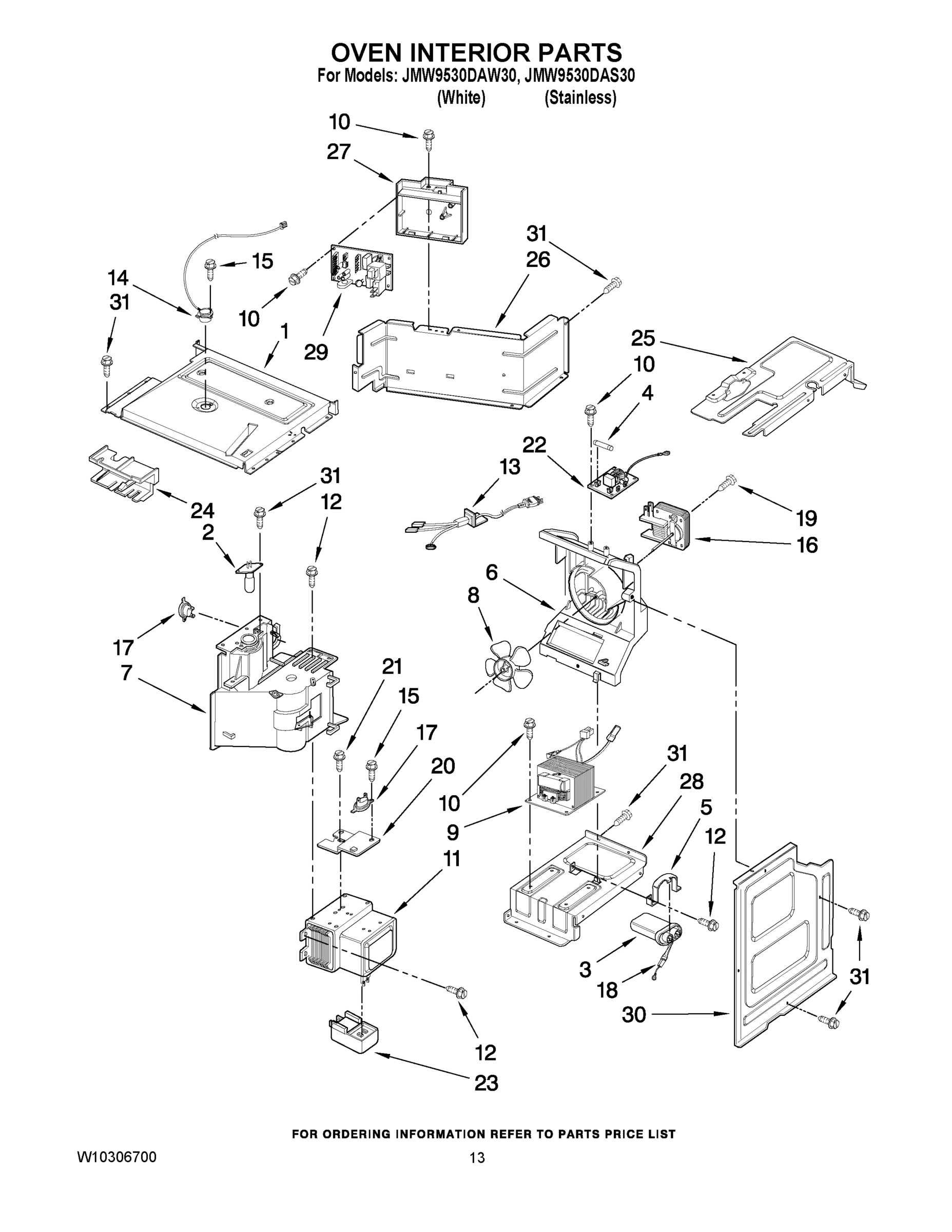

09 - OVEN INTERIOR PARTS

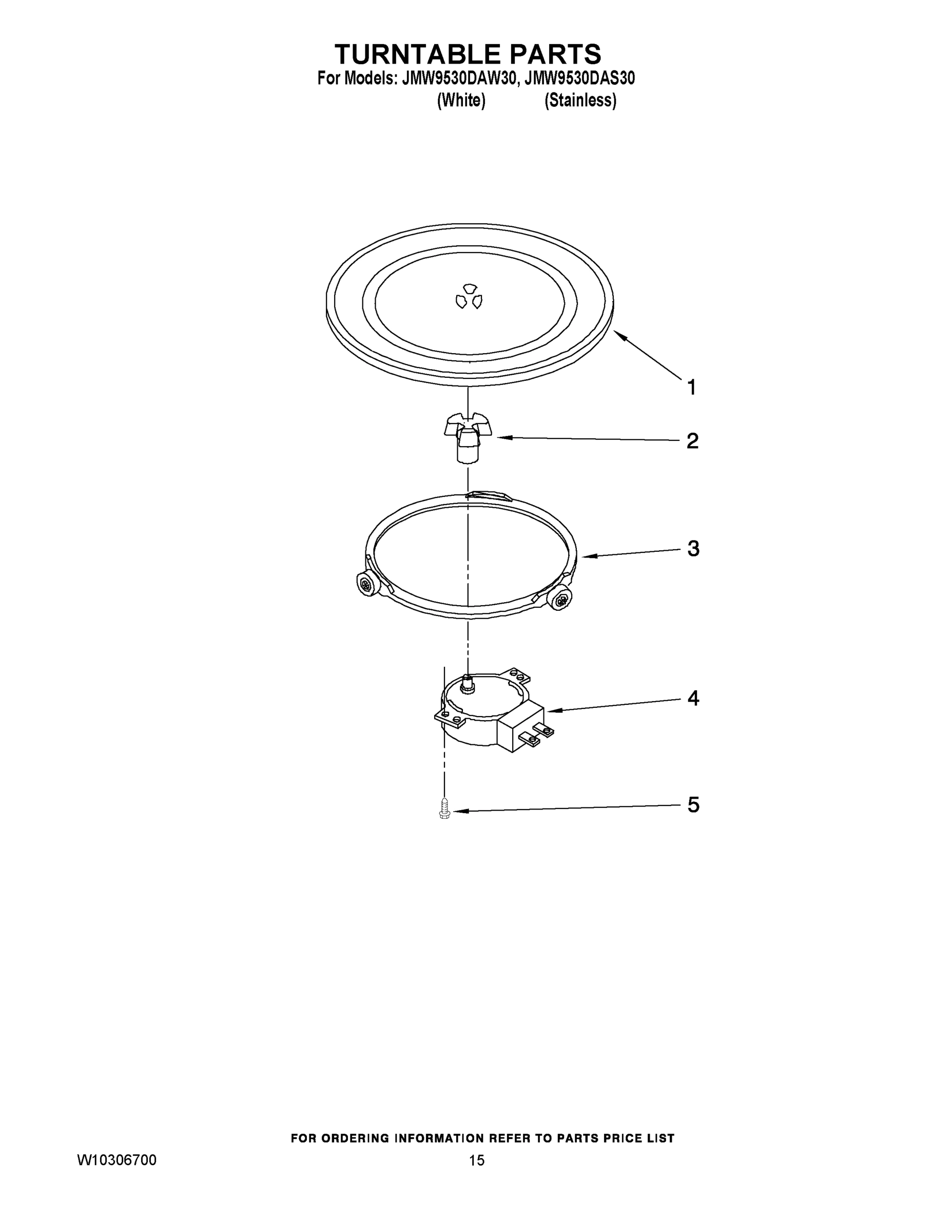

10 - TURNTABLE PARTS
11 - OPTIONAL PARTS
Common parts from model Maytag JMW9530DAW30 ELECTRIC WALL OVEN
1
Frame, Door MAY 53001287 Contact Us For Availability
1
MICROCOMPUTER MAY 53001240 Contact Us For Availability
1
MAY 2402W314-19 MAY 2402W314-19 Contact Us For Availability
1
MAY W10273863 MAY W10273863 Contact Us For Availability
1
MAY 8507P346-60 MAY 8507P346-60 Contact Us For Availability
1
MAY R9800398 MAY R9800398 Contact Us For Availability
1
Board, Latch MAY 53001246 Contact Us For Availability
1
MAY R0130675 MAY R0130675 Contact Us For Availability
1
MAY 53001023 MAY 53001023 Contact Us For Availability
2
MAY R0130605 MAY R0130605 Contact Us For Availability
2
MAY 7106P117-60 MAY 7106P117-60 Contact Us For Availability
2
ASSY., CONVECT FAN MAY W10206587 Contact Us For Availability
2
MAY 3608F107-70 MAY 3608F107-70 Contact Us For Availability
2
Bracket, Control MAY 53001241 Contact Us For Availability
2
Trim, Side (LH) MAY 53001262 Contact Us For Availability
2
Trim, Side (RH) MAY 53001263 Contact Us For Availability
2
MAY 53001219 MAY 53001219 Contact Us For Availability
2
Switch, Micro MAY 53001036 Contact Us For Availability
3
TRIM, BTM DR VENT MAY 3608F102-70 Contact Us For Availability
3
MAY W10184147 MAY W10184147 Contact Us For Availability
3
SUPPORT, TOP CNTRL MAY 3807F717-51 Contact Us For Availability
3
MAY 53001245 MAY 53001245 Contact Us For Availability
3
MAY 53001298 MAY 53001298 Contact Us For Availability
3
MAY 53001220 MAY 53001220 Contact Us For Availability
3
MAY R0654095 MAY R0654095 Contact Us For Availability
3
MAY 53001110 MAY 53001110 Contact Us For Availability
3
Ring, Rotating MAY R0130677 Contact Us For Availability
4
MAY 53001221 MAY 53001221 Contact Us For Availability
4
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
4
MAY 7406P322-60 MAY 7406P322-60 Contact Us For Availability
4
PANEL, CNTRL SIDE (LEFT) MAY 2624F076-51 Contact Us For Availability
4
PANEL, CNTRL SIDE (RIGHT) MAY 2624F077-51 Contact Us For Availability
4
PANEL, CONTROL (STAINLESS) MAY 53001243 Contact Us For Availability
4
PANEL, CONTROL (WHITE) MAY 53001292 Contact Us For Availability
4
Side, Chassis (Right Side) MAY 53001268 Contact Us For Availability
4
Side, Chassis (Left Side) MAY 53001269 Contact Us For Availability
4
MAY 53001247 MAY 53001247 Contact Us For Availability
4
MAY 53001025 MAY 53001025 Contact Us For Availability
5
Trim, Bottom MAY 53001264 Contact Us For Availability
5
BRACKET, INNER GLASS MAY 3801F886-51 Contact Us For Availability
5
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
5
FAN, TANGENTIAL MAY 7427P062-60 Contact Us For Availability
5
Handle, Door MAY 53001222 Contact Us For Availability
5
MAY 53001249 MAY 53001249 Contact Us For Availability
5
MAY 53001248 MAY 53001248 Contact Us For Availability
5
Screw MAY R0654180 Contact Us For Availability
6
SUPPORT, AIR CHANNEL MAY 3807F706-51 Contact Us For Availability
6
MAY 3603F073-70 MAY 3603F073-70 Contact Us For Availability
6
SUPPORT, BROIL ELEMENT MAY 3807F754-45 Contact Us For Availability
6
PANEL, CONTROL BOX REAR MAY 2624F100-51 Contact Us For Availability
6
Screw MAY R9800360 Contact Us For Availability
6
Screw MAY R0654178 Contact Us For Availability
6
Bracket, LH MAY 53001224 Contact Us For Availability
6
MAY 53001250 MAY 53001250 Contact Us For Availability
7
HINGE, LH MAY 53001226 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
RETAINER, DR GLASS MAY 3804F144-45 Contact Us For Availability
7
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
7
ASSEMBLY, CABLE MAY 5700P829-60 Contact Us For Availability
7
MAY 53001267 MAY 53001267 Contact Us For Availability
7
MAY 53001251 MAY 53001251 Contact Us For Availability
8
ASSY., LIGHT SW MAY 7450P109-60 Contact Us For Availability
8
ASSY., DOOR GLASS (WHITE) MAY 7922P021-60 Contact Us For Availability
8
MAY W10202023 MAY W10202023 Contact Us For Availability
8
Bracket, Back (LH) MAY 53001270 Contact Us For Availability
8
Bracket, Back (RH) MAY 53001271 Contact Us For Availability
8
GLASS, DOOR (WHITE) MAY 53001229 Contact Us For Availability
8
GLASS, DOOR (STAINLESS) MAY 53001239 Contact Us For Availability
8
Blade, Fan MAY 53001252 Contact Us For Availability
9
PLUG, BUTTON MAY 7718P033-60 Contact Us For Availability
9
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
9
MAY W10162386 MAY W10162386 Contact Us For Availability
9
RACK, HALF MAY W10273862 Contact Us For Availability
9
HINGE, RH MAY 53001236 Contact Us For Availability
9
Transformer, H.V. MAY 53001253 Contact Us For Availability
10
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
10
MAY 7902P656-60 MAY 7902P656-60 Contact Us For Availability
10
MAY 7430P043-60 MAY 7430P043-60 Contact Us For Availability
10
BRKT., COOLING FAN MAY 3801F829-51 Contact Us For Availability
10
Base, Plate MAY 53001278 Contact Us For Availability
10
Screw MAY R0654183 Contact Us For Availability
10
Bracket, RH MAY 53001238 Contact Us For Availability
11
BOX, VENT MAY 4006W217-45 Contact Us For Availability
11
MAY 7701P473-60 MAY 7701P473-60 Contact Us For Availability
11
MAY 7801P162-60 MAY 7801P162-60 Contact Us For Availability
11
ASSY., LATCH DOOR MAY W10186996 Contact Us For Availability
11
MAY 53001273 MAY 53001273 Contact Us For Availability
11
Cushion, Door MAY 53001280 Contact Us For Availability
11
MAY R9900082 MAY R9900082 Contact Us For Availability
12
SCREEN, SMOKE ELM. MAY 8034P008-60 Contact Us For Availability
12
MAY 3804F303-51 MAY 3804F303-51 Contact Us For Availability
12
MAY 3605F336-19 MAY 3605F336-19 Contact Us For Availability
12
GLASS, CONTROL PNL (WHITE) MAY 7912P351-60 Contact Us For Availability
12
MAY 7912P356-60 MAY 7912P356-60 Contact Us For Availability
12
MAY W10182900 MAY W10182900 Contact Us For Availability
12
MAY 53001286 MAY 53001286 Contact Us For Availability
12
Screw MAY R0131029 Contact Us For Availability
13
SWITCH, HI LIMIT MAY 7403P899-60 Contact Us For Availability
13
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
13
NUT MAY 7103P177-60 Contact Us For Availability
13
FRAME, CNTRL ASSY. MAY 3807W664-70 Contact Us For Availability
13
Bracket, Cntrl MAY 53001289 Contact Us For Availability
13
Washer, Sprg Lck MAY 53001282 Contact Us For Availability
13
MAY 53001254 MAY 53001254 Contact Us For Availability
14
ASSEMBLY, LIGHT MAY 7407P179-60 Contact Us For Availability
14
Glass, Inner MAY 7902P436-60 Contact Us For Availability
14
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
14
MAY 3804F234-51 MAY 3804F234-51 Contact Us For Availability
14
MAY 3804F249-51 MAY 3804F249-51 Contact Us For Availability
14
MAY 3804F251-51 MAY 3804F251-51 Contact Us For Availability
14
MAY 3804F252-51 MAY 3804F252-51 Contact Us For Availability
14
MAY 53001283 MAY 53001283 Contact Us For Availability
14
MAY 53001255 MAY 53001255 Contact Us For Availability
15
MAY 8026P065-60 MAY 8026P065-60 Contact Us For Availability
15
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
15
PNL, CNTRL BOX TOP MAY 2624F098-44 Contact Us For Availability
15
MAY 53001281 MAY 53001281 Contact Us For Availability
15
Screw MAY R0131307 Contact Us For Availability
16
CHANNEL, BOTTOM MAY 3818F108-51 Contact Us For Availability
16
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
16
RACK, OVEN HALF MAY W10275560 Contact Us For Availability
16
MAY R0130667 MAY R0130667 Contact Us For Availability
16
MAY 53001284 MAY 53001284 Contact Us For Availability
16
Motor, Fan MAY 53001256 Contact Us For Availability
17
MAY 2618F215-51 MAY 2618F215-51 Contact Us For Availability
17
MAY 7109P082-60 MAY 7109P082-60 Contact Us For Availability
17
MAY R0654182 MAY R0654182 Contact Us For Availability
17
MAY 53001285 MAY 53001285 Contact Us For Availability
17
Thermostat MAY R0131025 Contact Us For Availability
18
MAY 2624F094-51 MAY 2624F094-51 Contact Us For Availability
18
MAY 7002P397-60 MAY 7002P397-60 Contact Us For Availability
18
Screw, Tap MAY R9800309 Contact Us For Availability
19
PNL, TOP RETAINER MAY 2618F226-51 Contact Us For Availability
19
Trim, Door Btm MAY 53001234 Contact Us For Availability
19
Screw MAY R9800411 Contact Us For Availability
20
Bracket, Therm. MAY 53001258 Contact Us For Availability
21
RECEIVER, HINGE MAY 7106P127-60 Contact Us For Availability
21
MAY R9900293 MAY R9900293 Contact Us For Availability
22
MAY 7744P460-60 MAY 7744P460-60 Contact Us For Availability
22
MAY 7744P461-60 MAY 7744P461-60 Contact Us For Availability
22
MAY 53001259 MAY 53001259 Contact Us For Availability
23
TRIM, BOTTOM VENT MAY 3608F099-70 Contact Us For Availability
23
FILTER, CHOKE MAY R9800442 Contact Us For Availability
24
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
24
MAY 53001260 MAY 53001260 Contact Us For Availability
25
BULB, OVEN MAY 899138-001 Contact Us For Availability
25
MAY 53001272 MAY 53001272 Contact Us For Availability
26
MAY 7408P055-60 MAY 7408P055-60 Contact Us For Availability
26
MAY 53001274 MAY 53001274 Contact Us For Availability
27
MAY 7429P006-60 MAY 7429P006-60 Contact Us For Availability
27
Base, PCB MAY 53001275 Contact Us For Availability
28
Bottom MAY 53001277 Contact Us For Availability
29
Board, Power MAY 53001291 Contact Us For Availability
30
Plate, Shield MAY 53001276 Contact Us For Availability
NI
MAY 7002P352-60 MAY 7002P352-60 Contact Us For Availability
NI
MAY 7002P423-60 MAY 7002P423-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
ADHESIVE (SEALER, SILASTIC (3 OZ.) MAY 482338 Contact Us For Availability
NI
HARNESS, WIRE (CONTROL TOP) MAY 5171P072-60 Contact Us For Availability
NI
MAY 5171P153-60 MAY 5171P153-60 Contact Us For Availability
NI
MAY 5171P208-60 MAY 5171P208-60 Contact Us For Availability
NI
MAY 5171P676-60 MAY 5171P676-60 Contact Us For Availability
NI
Harness, Main MAY 53001257 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) MAY 591014 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (BLACK) MAY 830864 Contact Us For Availability
× ![]()
