Model Maytag JMW9330DAS16 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

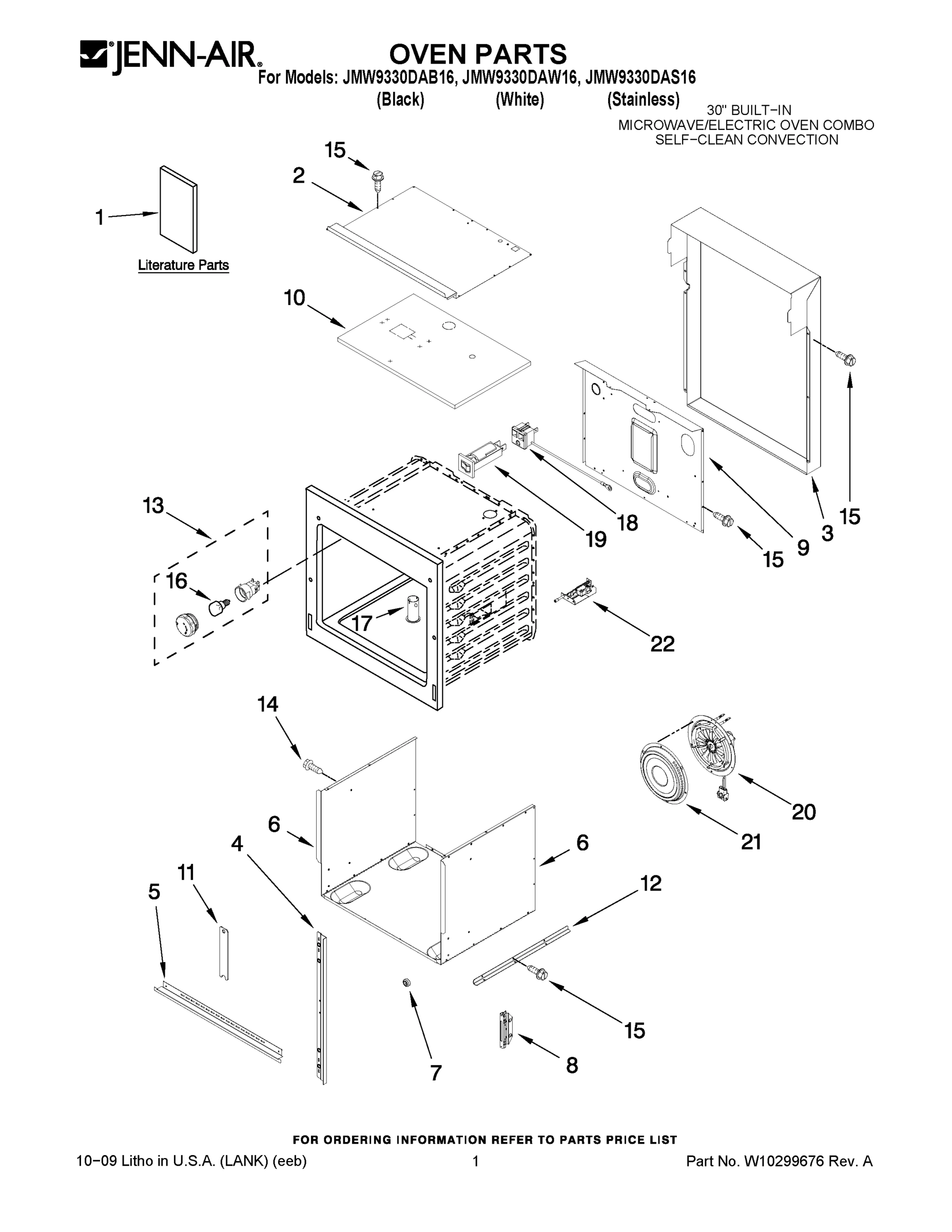

01 - OVEN PARTS

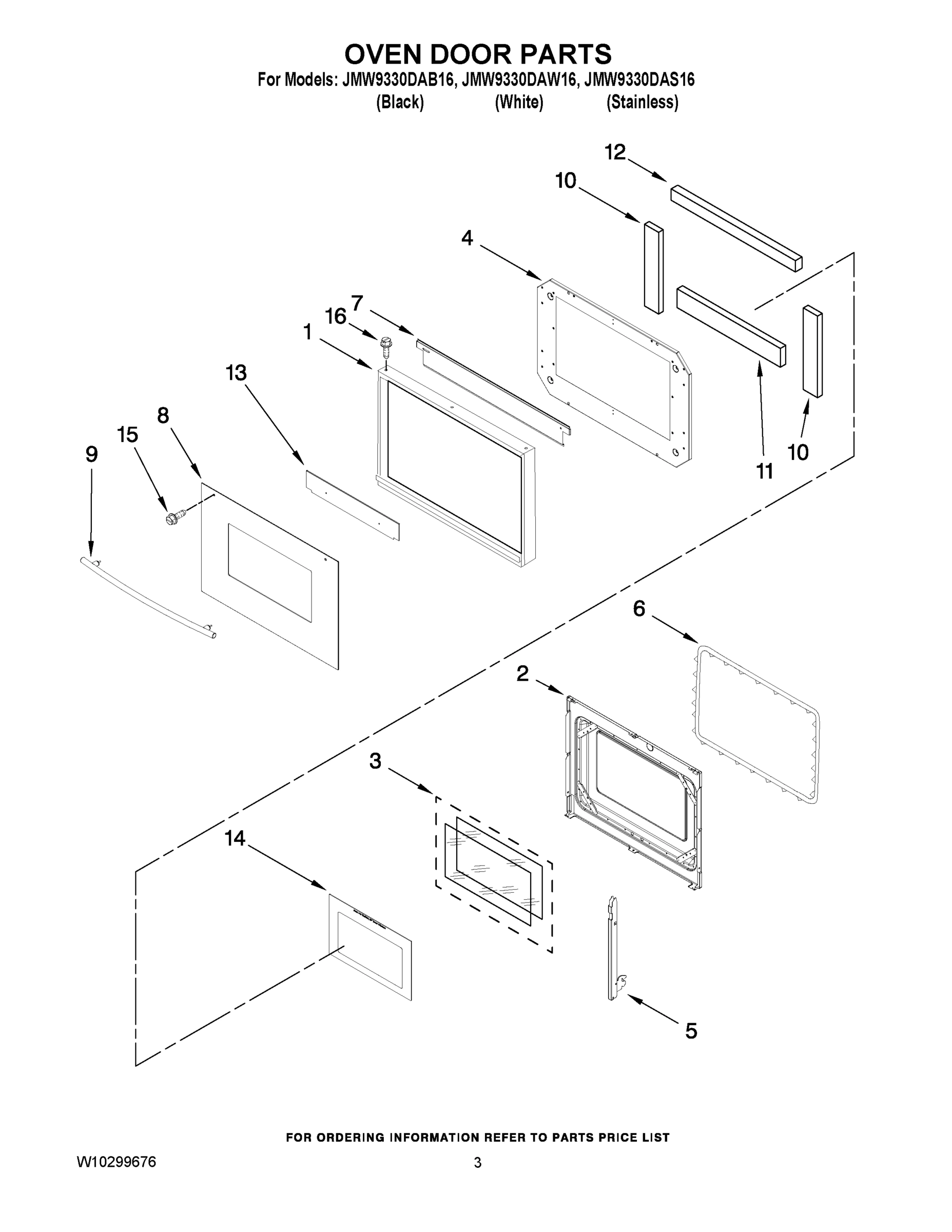

02 - OVEN DOOR PARTS

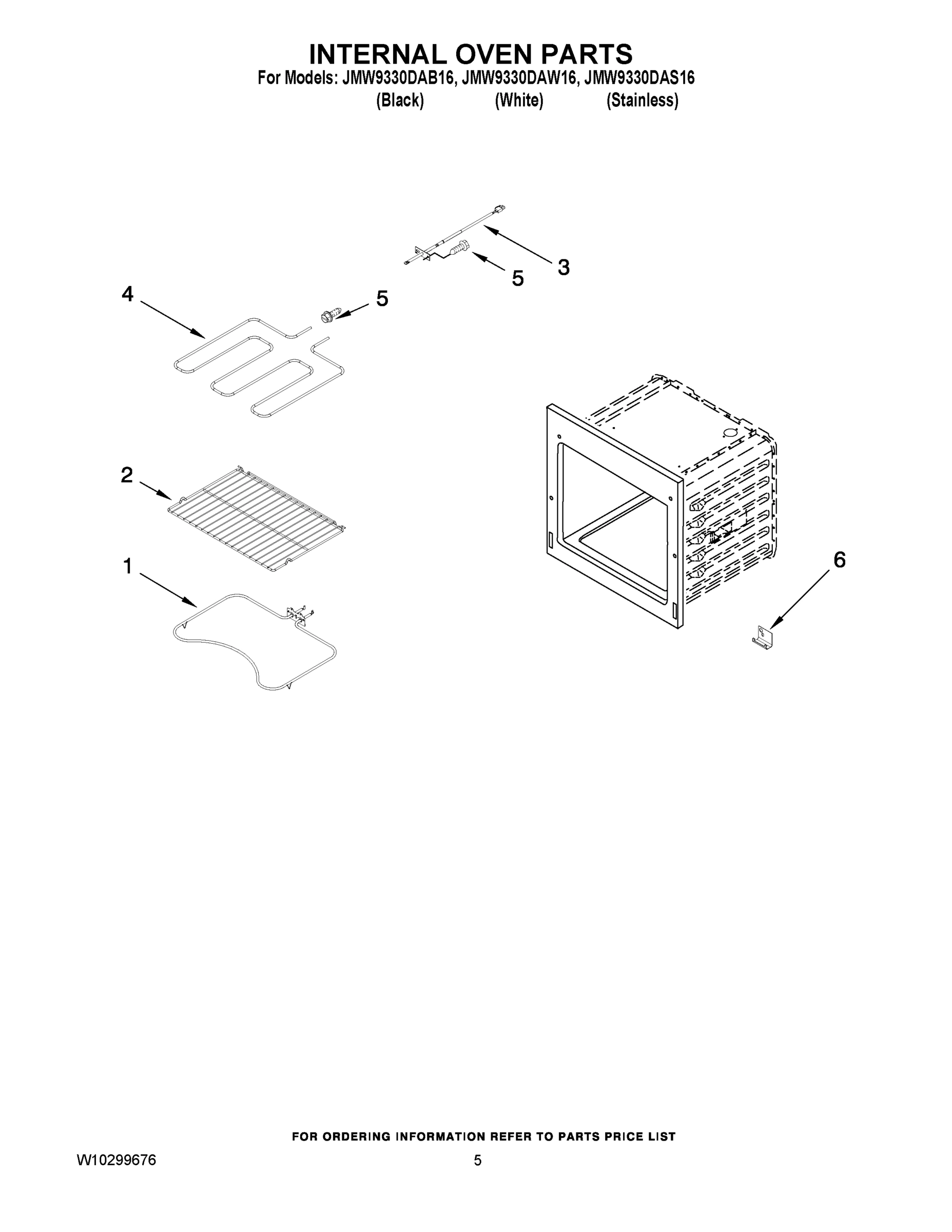

03 - INTERNAL OVEN PARTS

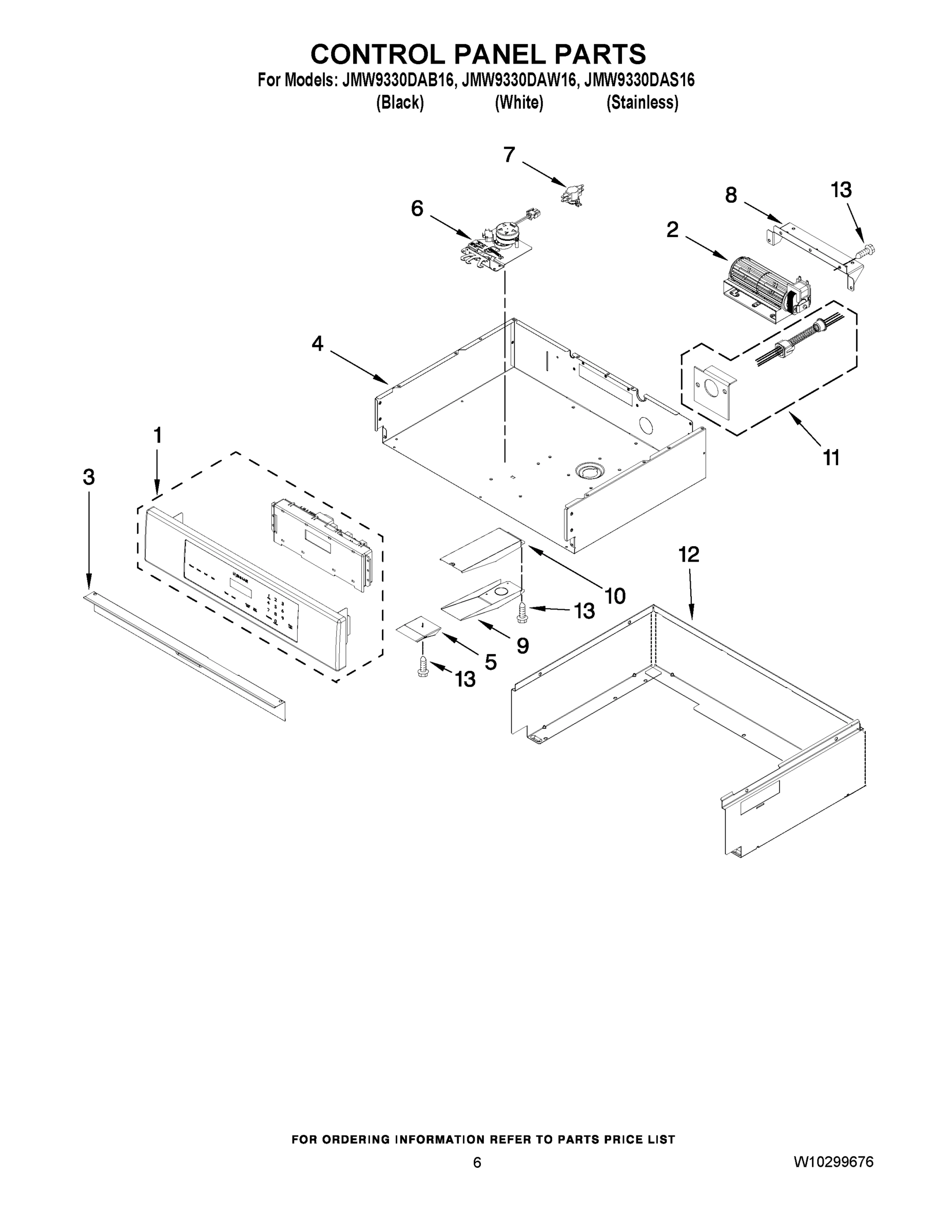

04 - CONTROL PANEL PARTS

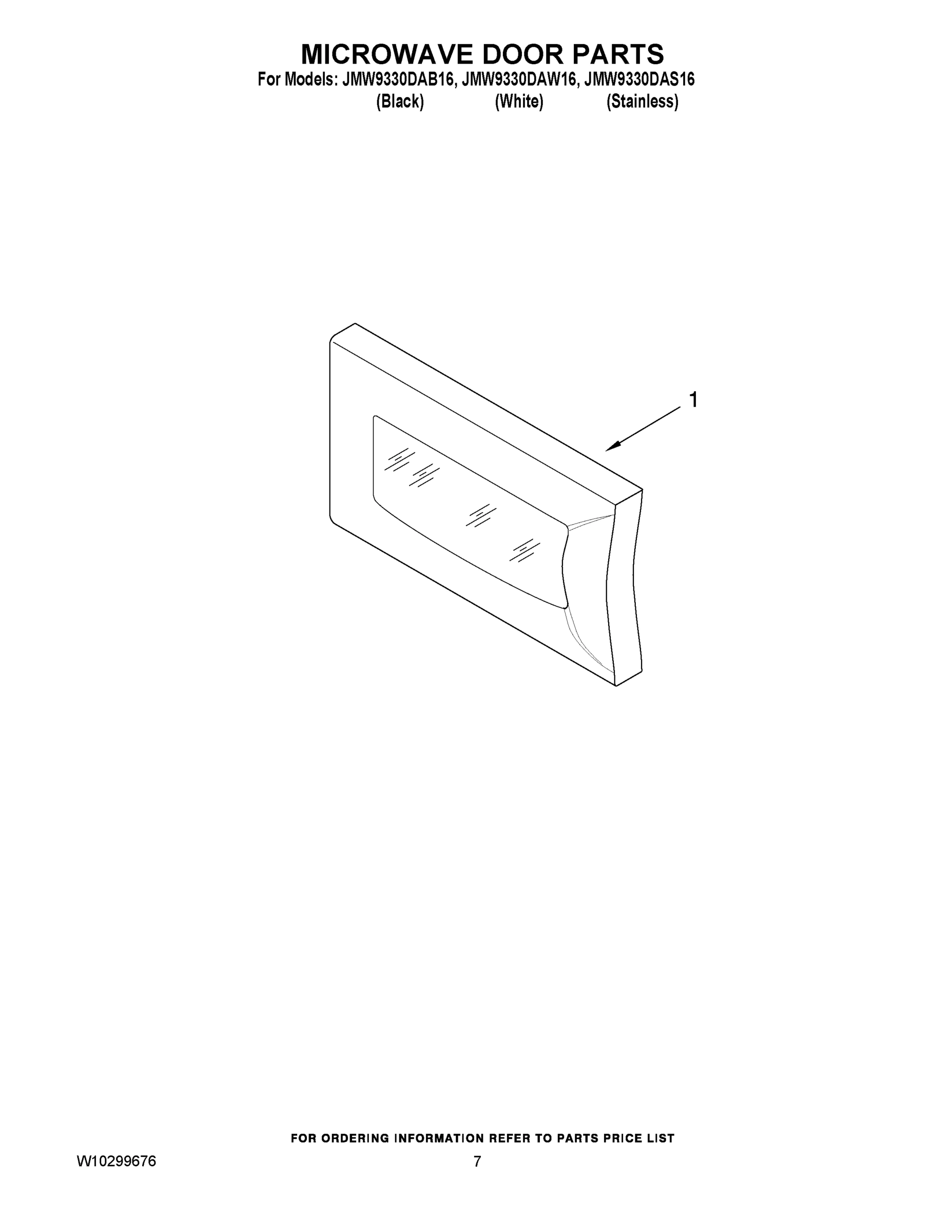

05 - MICROWAVE DOOR PARTS

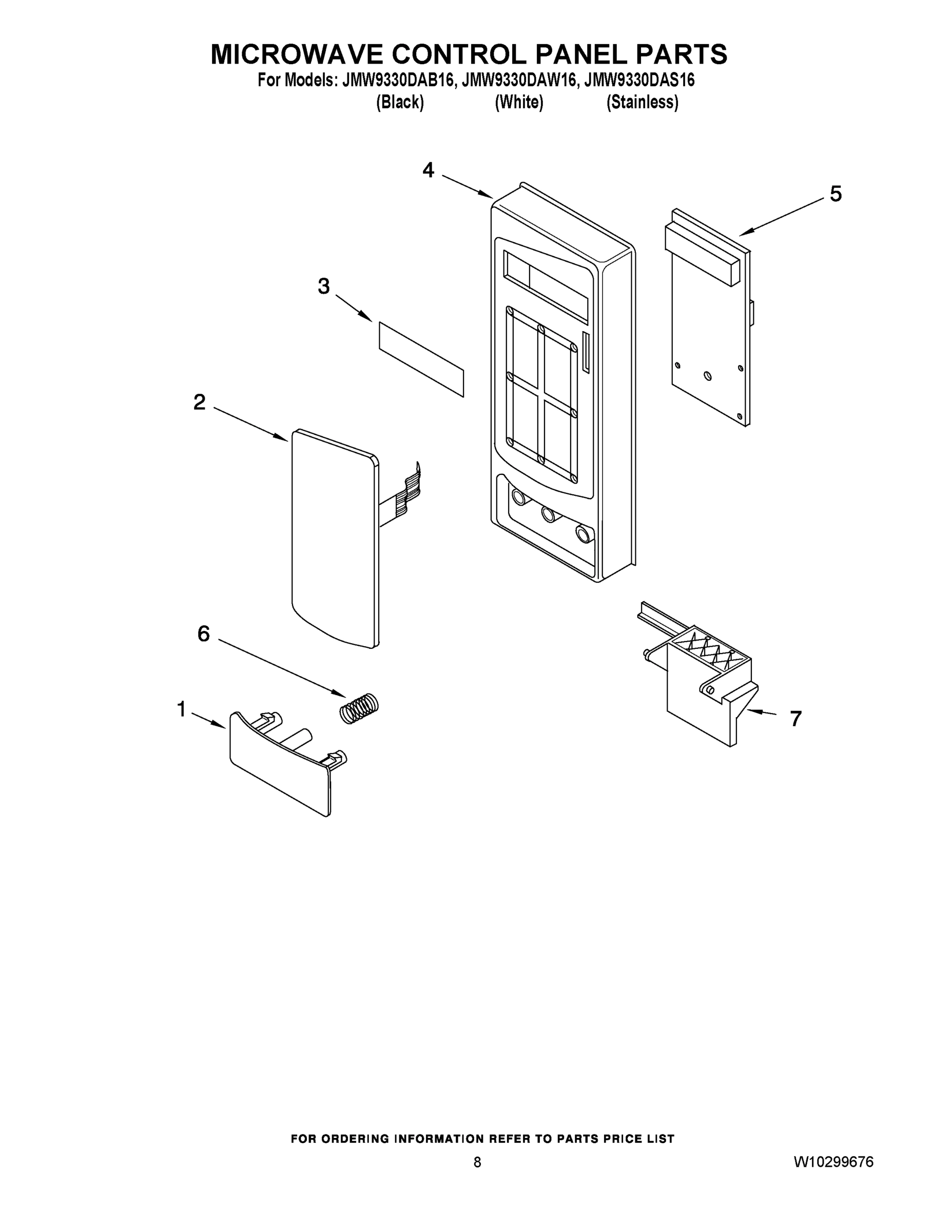

06 - MICROWAVE CONTROL PANEL PARTS

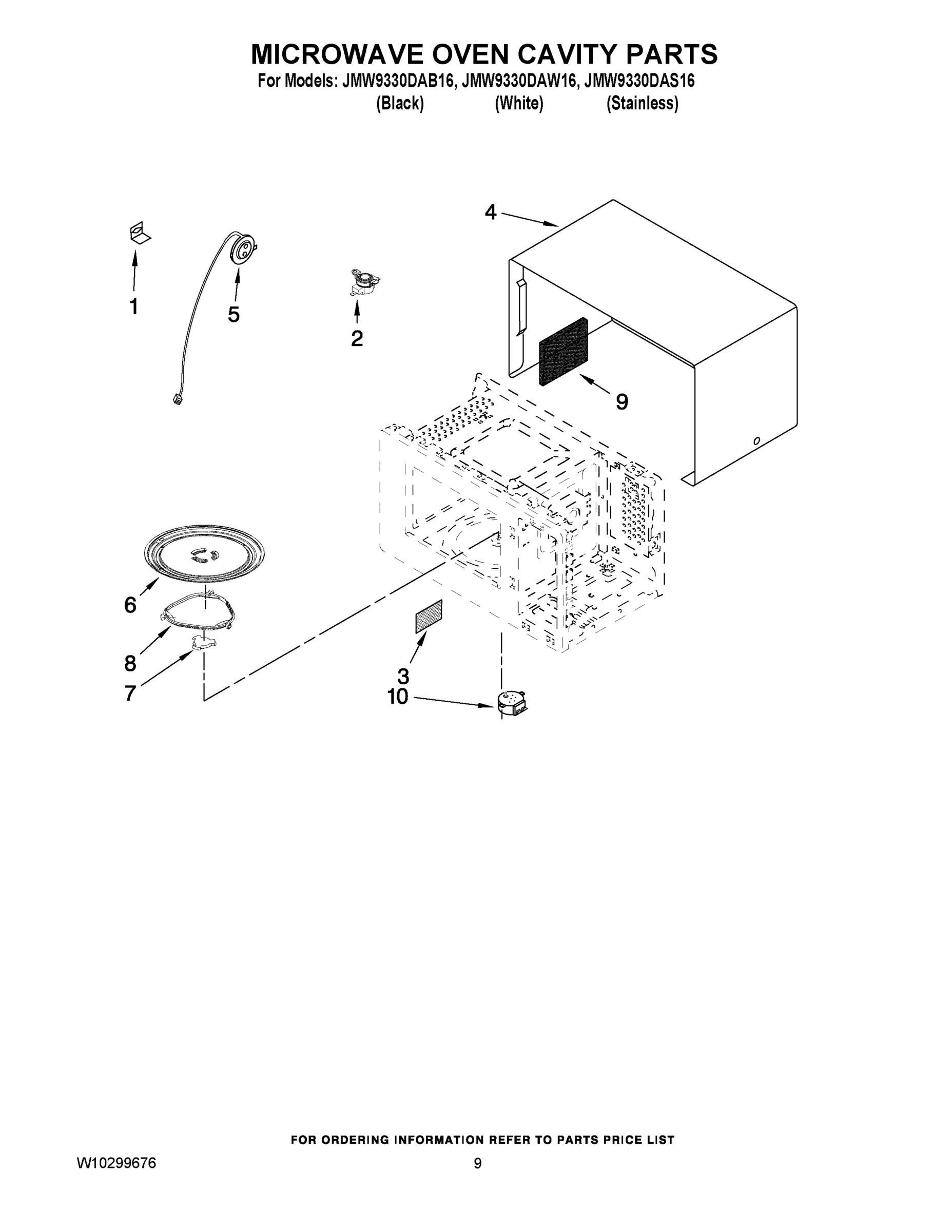

07 - MICROWAVE OVEN CAVITY PARTS

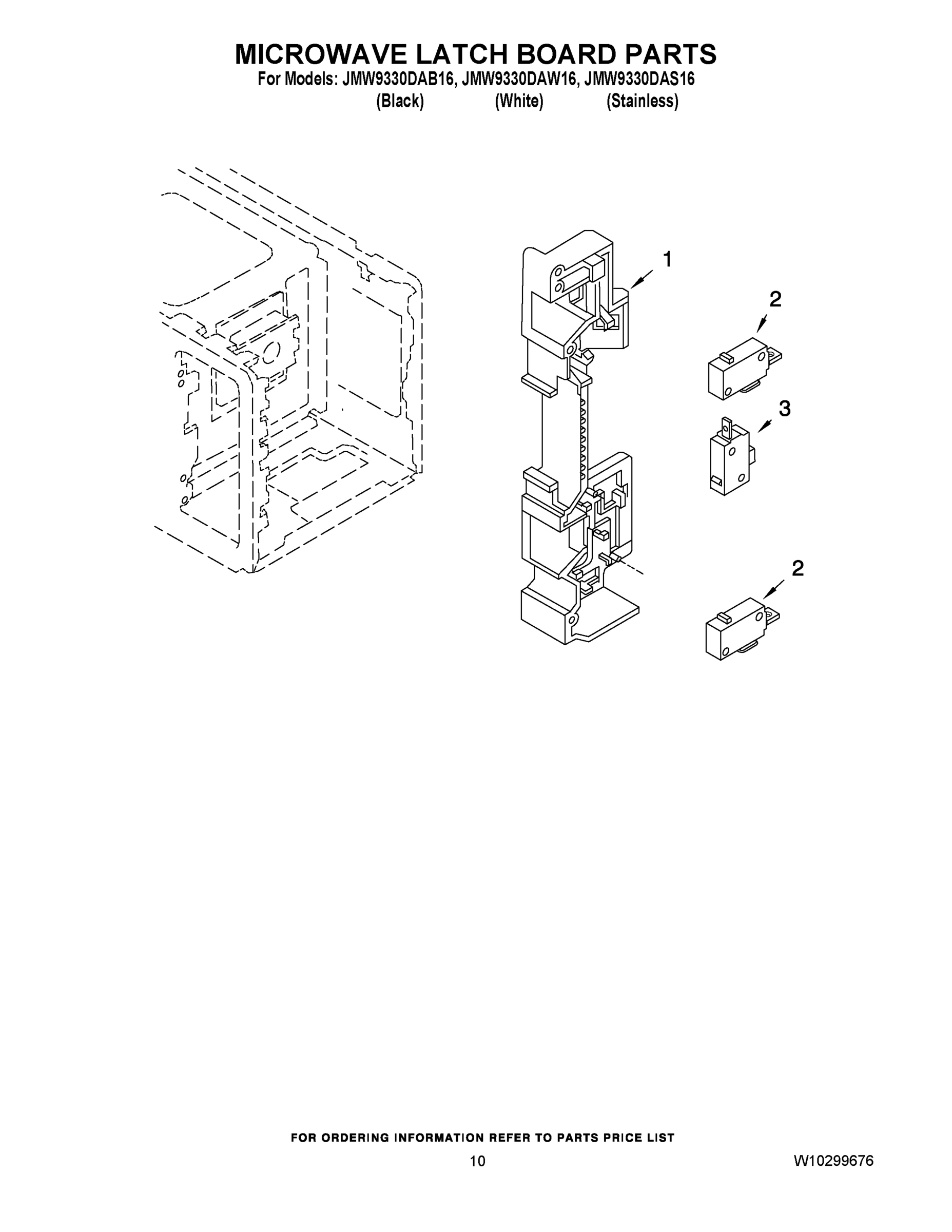

08 - MICROWAVE LATCH BOARD PARTS

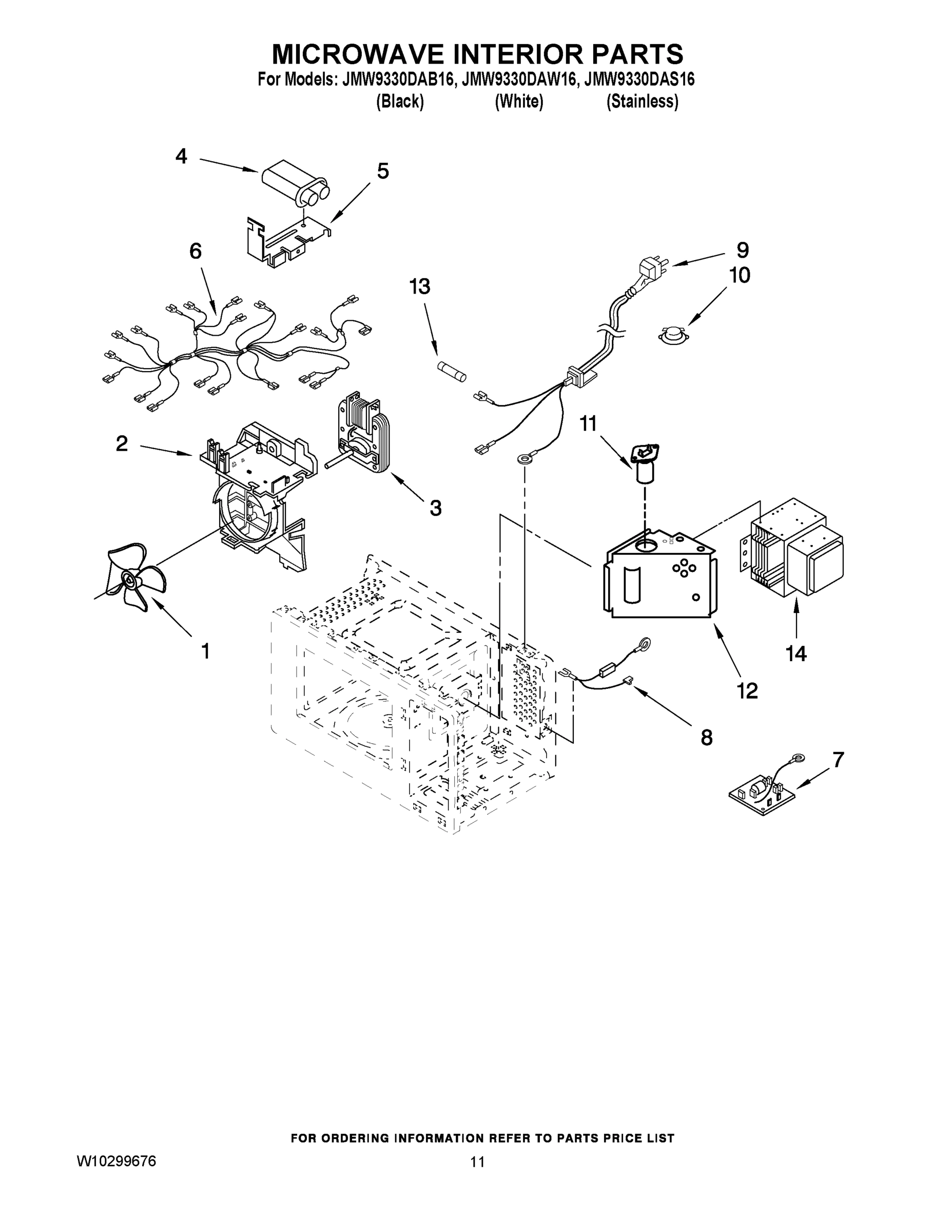

09 - MICROWAVE INTERIOR PARTS

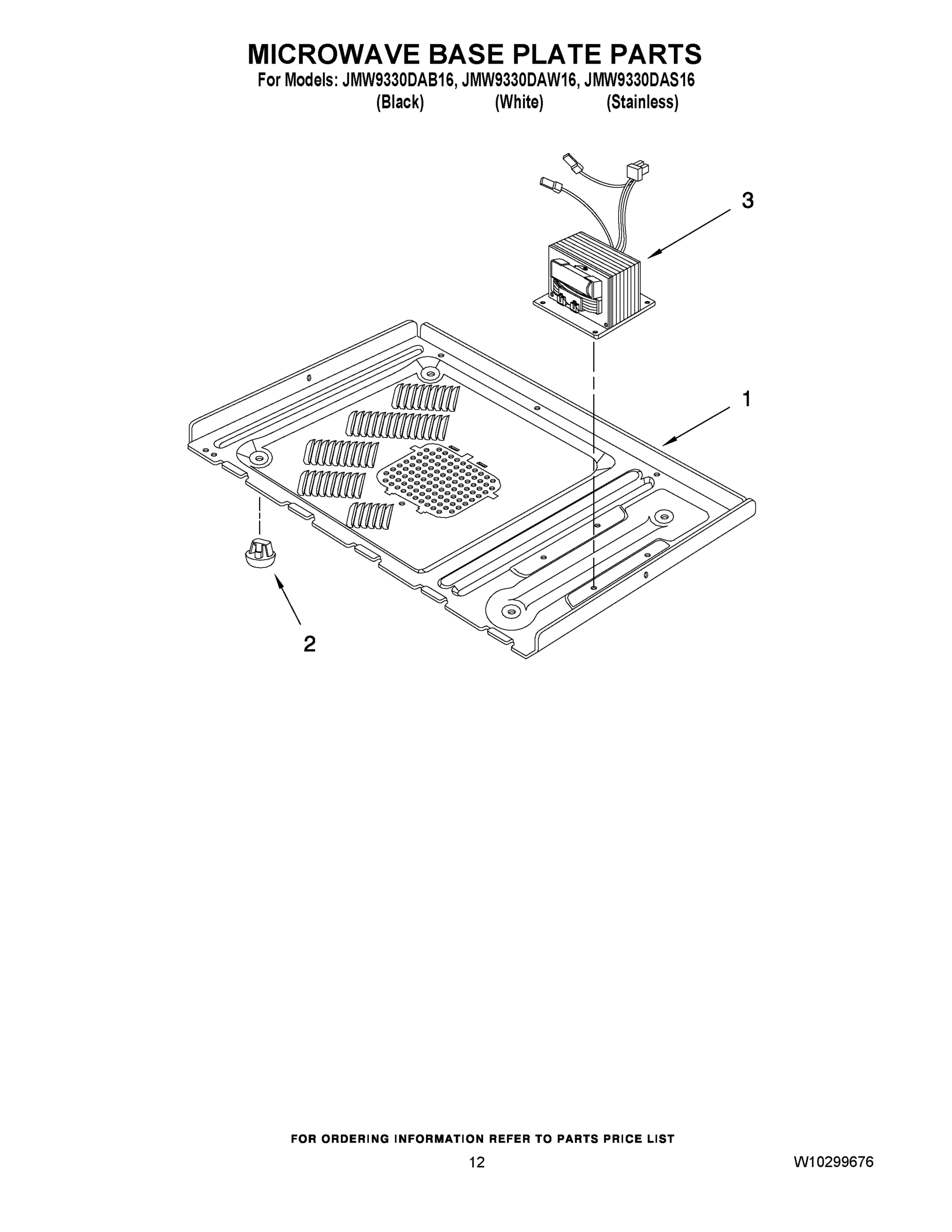

10 - MICROWAVE BASE PLATE PARTS
11 - OPTIONAL PARTS
Common parts from model Maytag JMW9330DAS16 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
MAY DE72-00138A MAY DE72-00138A Contact Us For Availability
1
ASSEMBLY, DOOR (STAINLESS) MAY DE94-01342H Contact Us For Availability
1
MAY 7706P564-60 MAY 7706P564-60 Contact Us For Availability
1
MAY 7406P271-60 MAY 7406P271-60 Contact Us For Availability
1
MAY 5765M487-60 MAY 5765M487-60 Contact Us For Availability
1
MAY 5765M488-60 MAY 5765M488-60 Contact Us For Availability
1
MAY 5765M489-60 MAY 5765M489-60 Contact Us For Availability
1
ASSEMBLY, DOOR (BLACK) MAY DE94-01342G Contact Us For Availability
1
BUTTON (WHITE) MAY DE64-01502A Contact Us For Availability
1
BUTTON (BLACK/STAINLESS) MAY DE64-01502B Contact Us For Availability
1
BRACKET-SENSOR MAY DE61-00097A Contact Us For Availability
1
BLADE, FAN MAY DE31-90051A Contact Us For Availability
1
BASE-PLATE MAY DE80-10032K Contact Us For Availability
2
MAY 2402W265-19 MAY 2402W265-19 Contact Us For Availability
2
MAY W10282527 MAY W10282527 Contact Us For Availability
2
MAY 7427P079-60 MAY 7427P079-60 Contact Us For Availability
2
SW., MEMBRANE MAY W10261280 Contact Us For Availability
2
GUIDE, SUCTION MAY DE71-00165A Contact Us For Availability
2
MAY DE61-40066A MAY DE61-40066A Contact Us For Availability
3
MAY 3405-001033 MAY 3405-001033 Contact Us For Availability
3
MOTOR-FAN MAY DE31-10155T Contact Us For Availability
3
MAY 5700M868-60 MAY 5700M868-60 Contact Us For Availability
3
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
3
MAY 3608F105-70 MAY 3608F105-70 Contact Us For Availability
3
WINDOW-DISPLAY MAY DE67-40179A Contact Us For Availability
4
MAY 3804F218-51 MAY 3804F218-51 Contact Us For Availability
4
MAY 7406P273-60 MAY 7406P273-60 Contact Us For Availability
4
MAY 4026F092-51 MAY 4026F092-51 Contact Us For Availability
4
PANEL, CONTROL (WHITE) MAY W10261267 Contact Us For Availability
4
PANEL, CONTROL (BLACK) MAY W10261272 Contact Us For Availability
4
PANEL, CONTROL (STAINLESS) MAY W10261273 Contact Us For Availability
4
MAY DE64-01341B MAY DE64-01341B Contact Us For Availability
5
MAY DE32-60011A MAY DE32-60011A Contact Us For Availability
5
MAY 7106P115-60 MAY 7106P115-60 Contact Us For Availability
5
MAY 8312P232-60 MAY 8312P232-60 Contact Us For Availability
5
MAY W10261245 MAY W10261245 Contact Us For Availability
5
MAY DE61-50170A MAY DE61-50170A Contact Us For Availability
6
MAY 7212P061-60 MAY 7212P061-60 Contact Us For Availability
6
MAY 7112P126-60 MAY 7112P126-60 Contact Us For Availability
6
SWITCH, DOOR LOCK MAY W10186996 Contact Us For Availability
6
SPRING MAY DE61-70026A Contact Us For Availability
6
MAY DE74-20002C MAY DE74-20002C Contact Us For Availability
6
ASSEMBLY, LEADWIRE MAY W10261281 Contact Us For Availability
7
LEVER-DOOR MAY DE66-90113A Contact Us For Availability
7
MAY DE67-00214A MAY DE67-00214A Contact Us For Availability
7
MAY W10205611 MAY W10205611 Contact Us For Availability
7
THERMOSTAT, HI-LIMIT MAY 7403P856-60 Contact Us For Availability
7
MAY DE96-00399B MAY DE96-00399B Contact Us For Availability
8
GLASS, DOOR MAY 7902P698-60 Contact Us For Availability
8
MAY 3801F936-51 MAY 3801F936-51 Contact Us For Availability
8
MAY DE97-00401B MAY DE97-00401B Contact Us For Availability
9
MAY 7701P515-60 MAY 7701P515-60 Contact Us For Availability
9
MAY 4011F438-45 MAY 4011F438-45 Contact Us For Availability
9
MAY DE39-00040G MAY DE39-00040G Contact Us For Availability
10
MOTOR-DRIVE MAY DE31-10154A Contact Us For Availability
10
INSULATION, MAY 7002P358-60 Contact Us For Availability
10
MAY 7002P380-60 MAY 7002P380-60 Contact Us For Availability
10
MAY 4006F169-45 MAY 4006F169-45 Contact Us For Availability
11
MAY 3605F236-50 MAY 3605F236-50 Contact Us For Availability
11
MAY 7002P383-60 MAY 7002P383-60 Contact Us For Availability
11
ASSY., WIRE CABLE MAY 5171P083-60 Contact Us For Availability
11
MAY DE07-00005A MAY DE07-00005A Contact Us For Availability
12
MAY 3802F116-51 MAY 3802F116-51 Contact Us For Availability
12
MAY 7002P384-60 MAY 7002P384-60 Contact Us For Availability
12
MAY 3807F745-51 MAY 3807F745-51 Contact Us For Availability
12
MAY DE71-00012A MAY DE71-00012A Contact Us For Availability
13
ASSY., LIGHT MAY 7407P181-60 Contact Us For Availability
13
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
13
MAY 3604F370-45 MAY 3604F370-45 Contact Us For Availability
14
MAY 7101P635-60 MAY 7101P635-60 Contact Us For Availability
14
MAY 7902P713-60 MAY 7902P713-60 Contact Us For Availability
16
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
17
MAY 7505P322-60 MAY 7505P322-60 Contact Us For Availability
18
MAY 7408P055-60 MAY 7408P055-60 Contact Us For Availability
19
MAY 7429P006-60 MAY 7429P006-60 Contact Us For Availability
20
FAN, CONVECTION MAY W10210594 Contact Us For Availability
21
COVER, CONV. FAN MAY 3605F323-19 Contact Us For Availability
22
ASSY., LIGHT SW MAY 7450P109-60 Contact Us For Availability
NI
MAY 7002P251-60 MAY 7002P251-60 Contact Us For Availability
NI
MAY 7002P368-60 MAY 7002P368-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
× ![]()
