Model Maytag JMW8527DAB27 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - OVEN PARTS
02 - OVEN DOOR PARTS

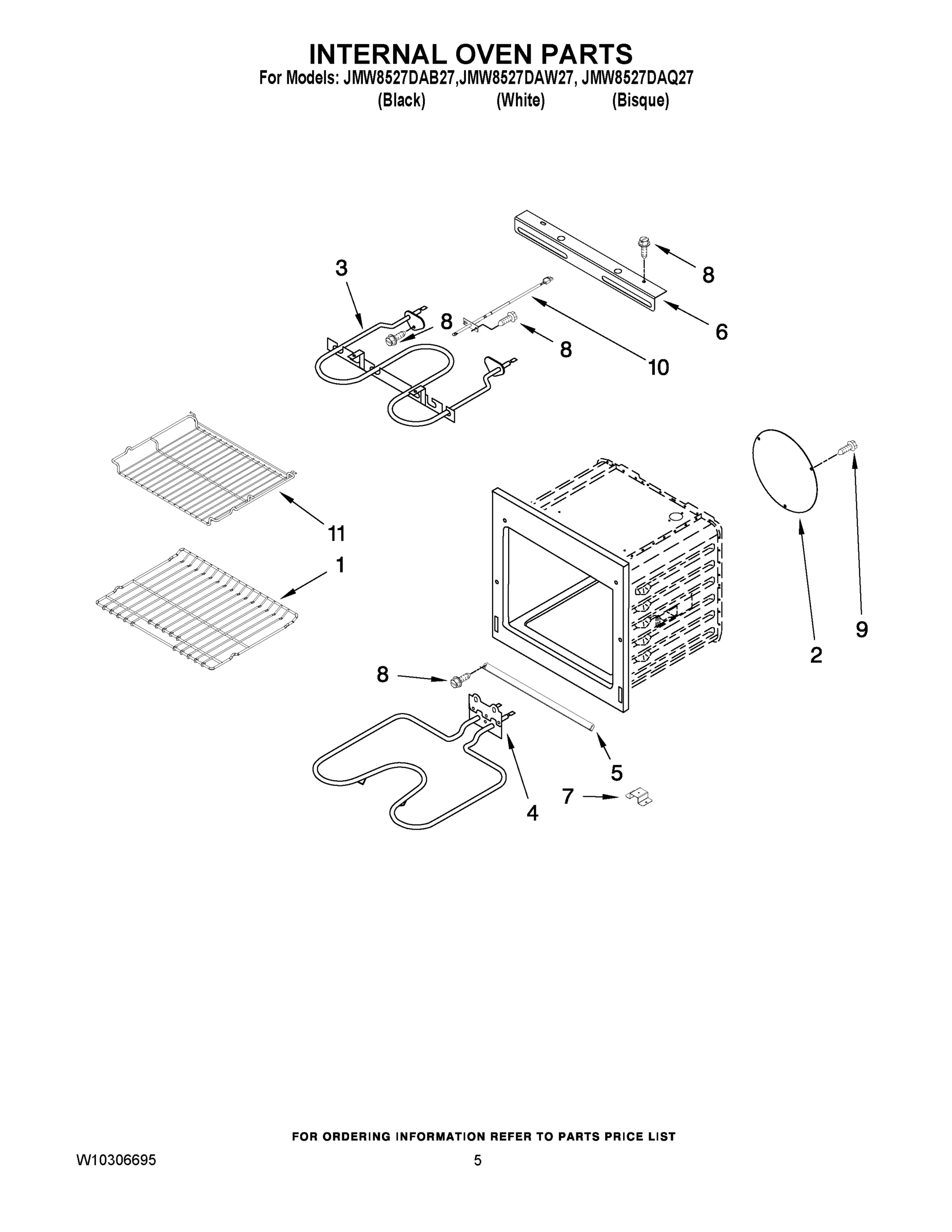

03 - INTERNAL OVEN PARTS

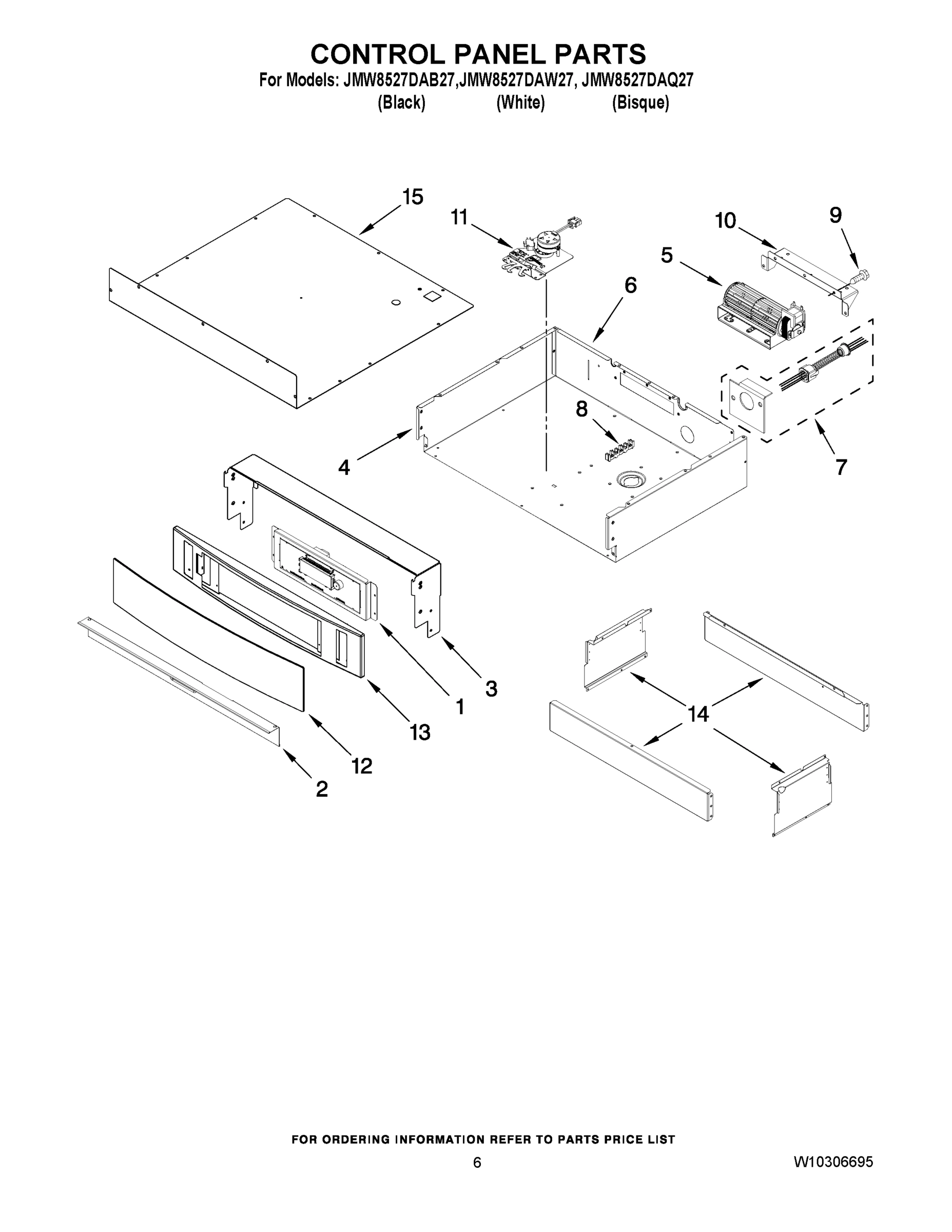

04 - CONTROL PANEL PARTS

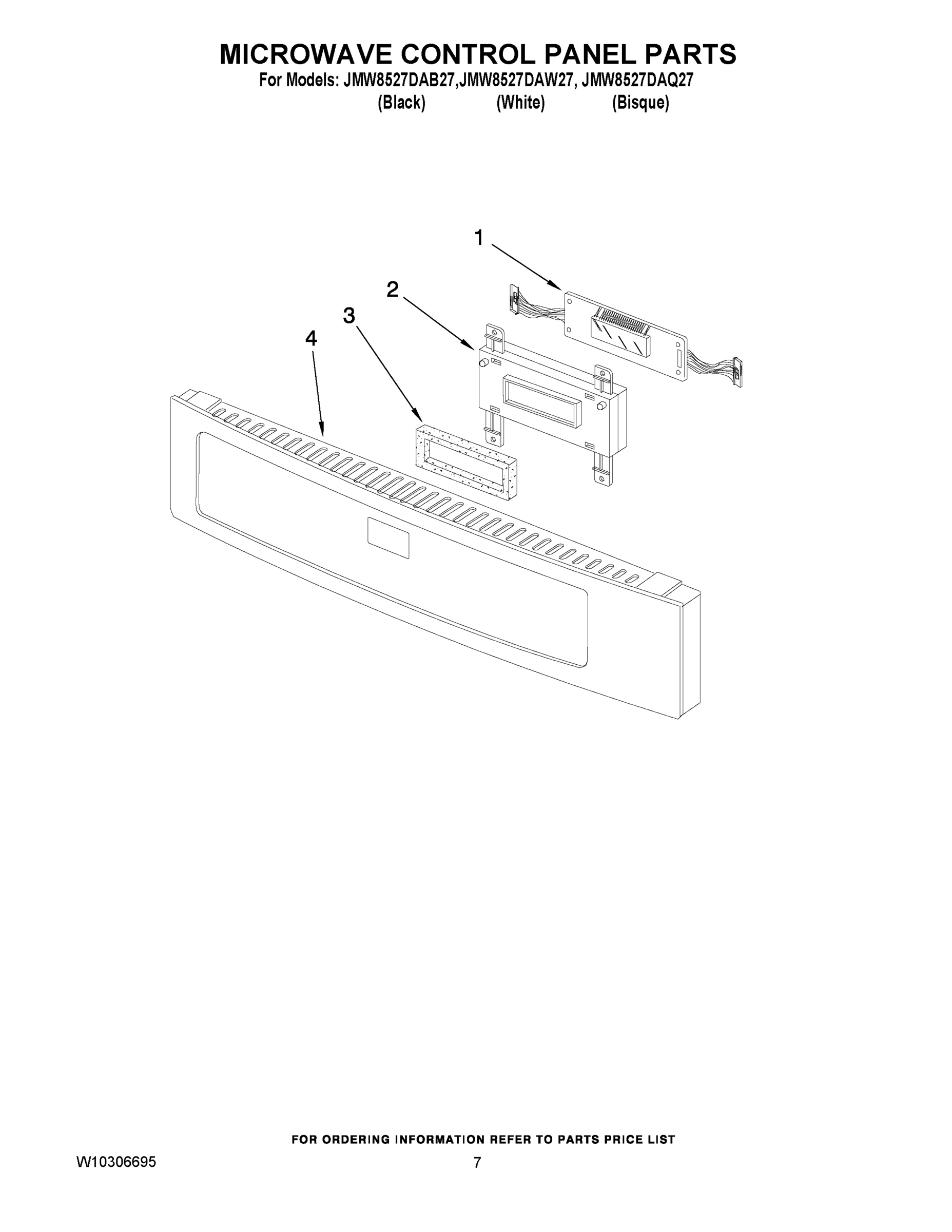

05 - MICROWAVE CONTROL PANEL PARTS

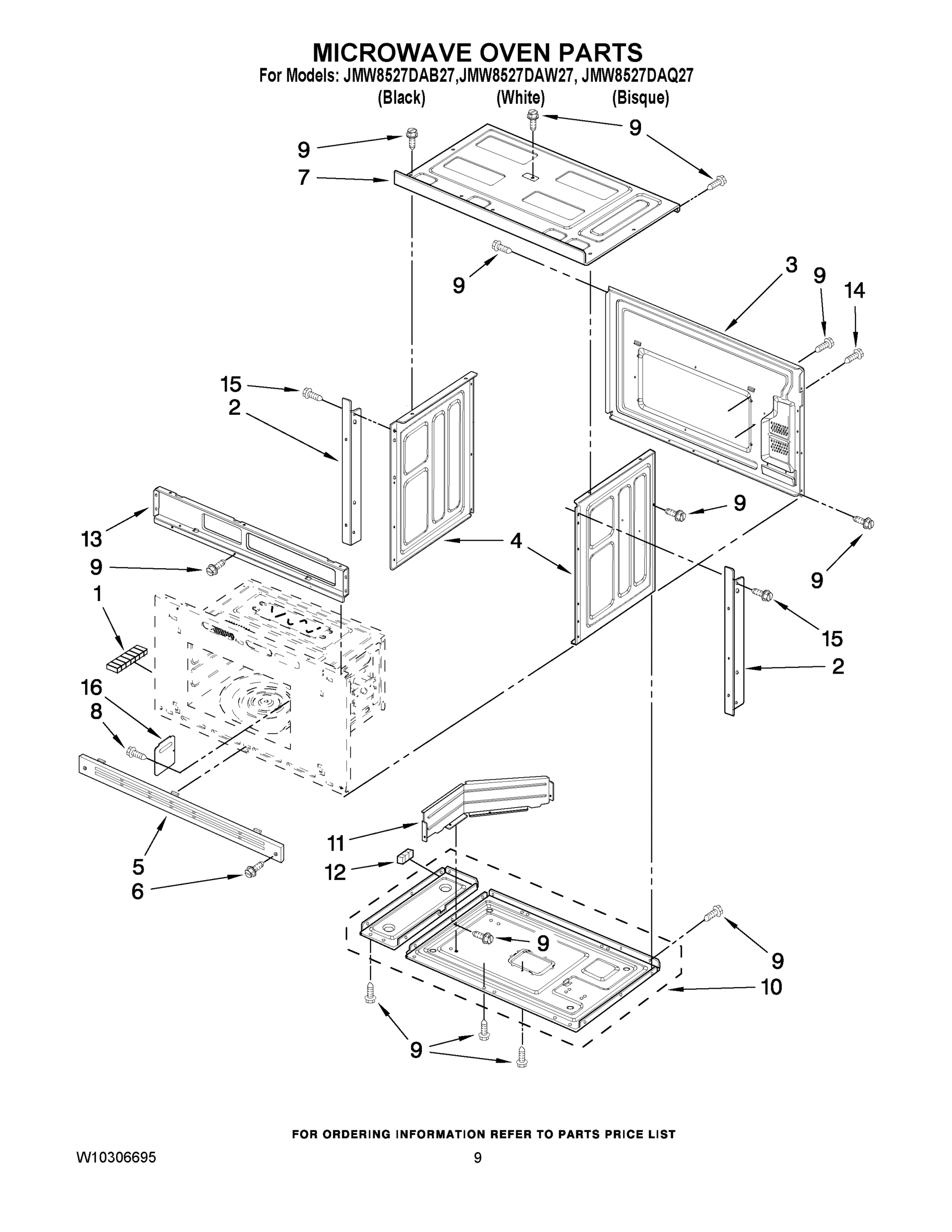

06 - MICROWAVE OVEN PARTS

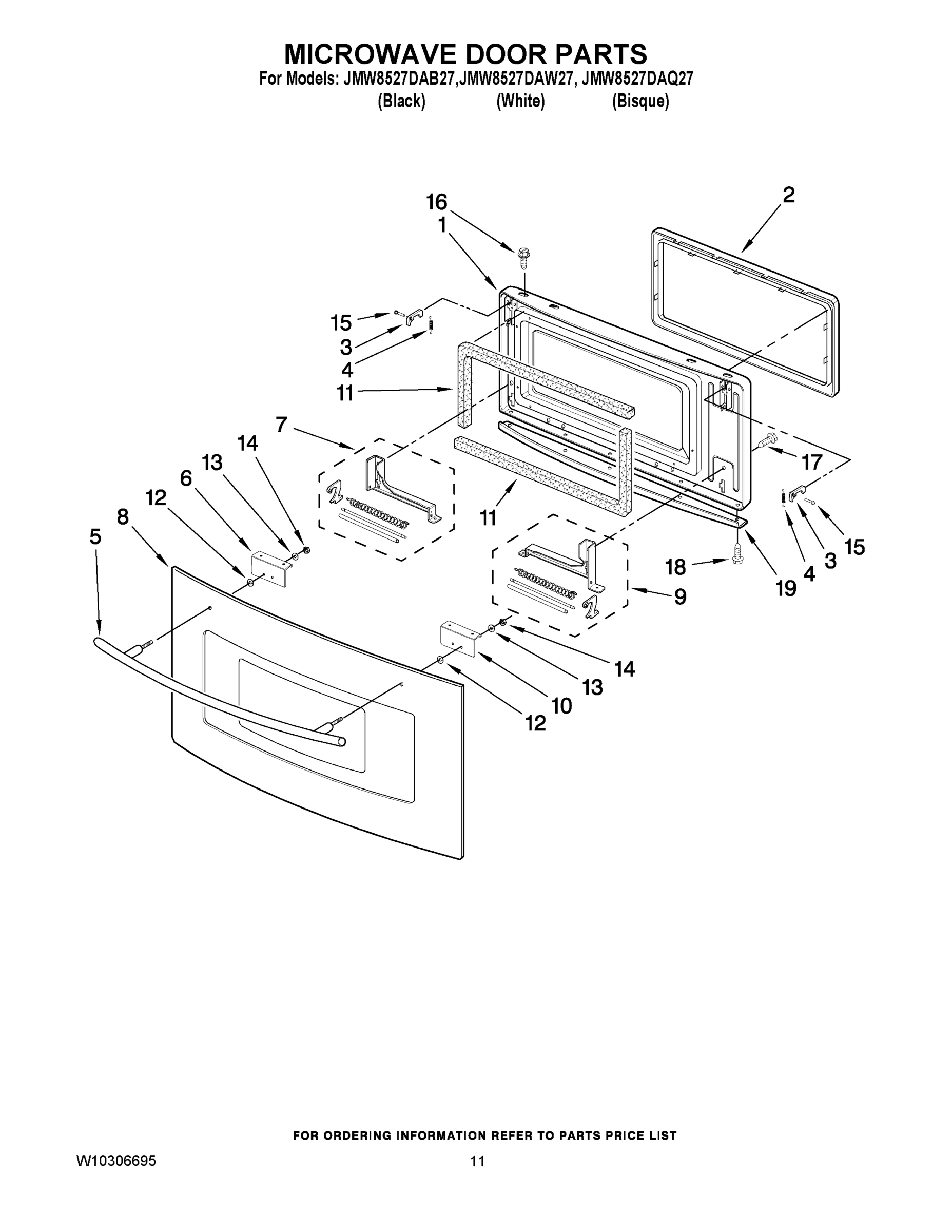

07 - MICROWAVE DOOR PARTS

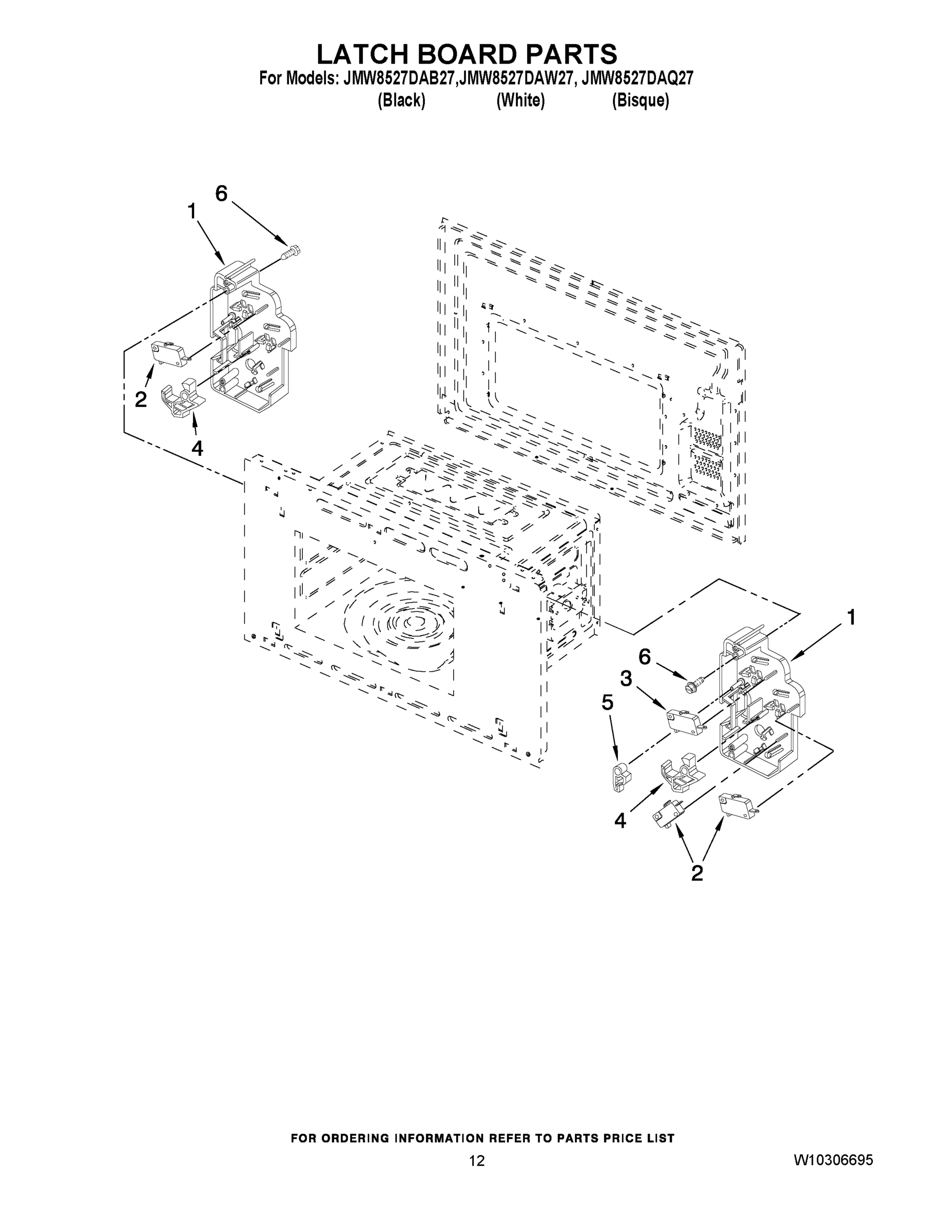

08 - LATCH BOARD PARTS

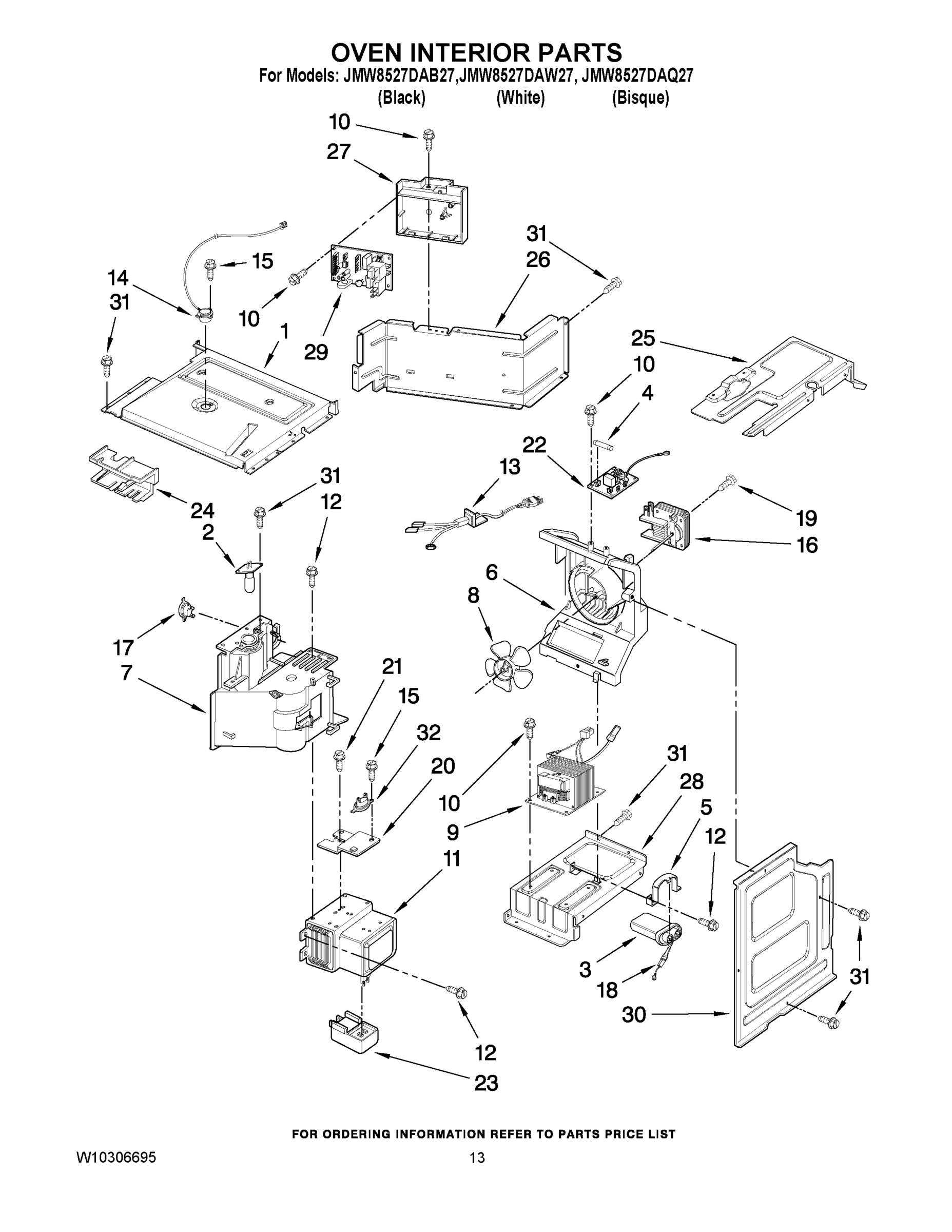

09 - OVEN INTERIOR PARTS

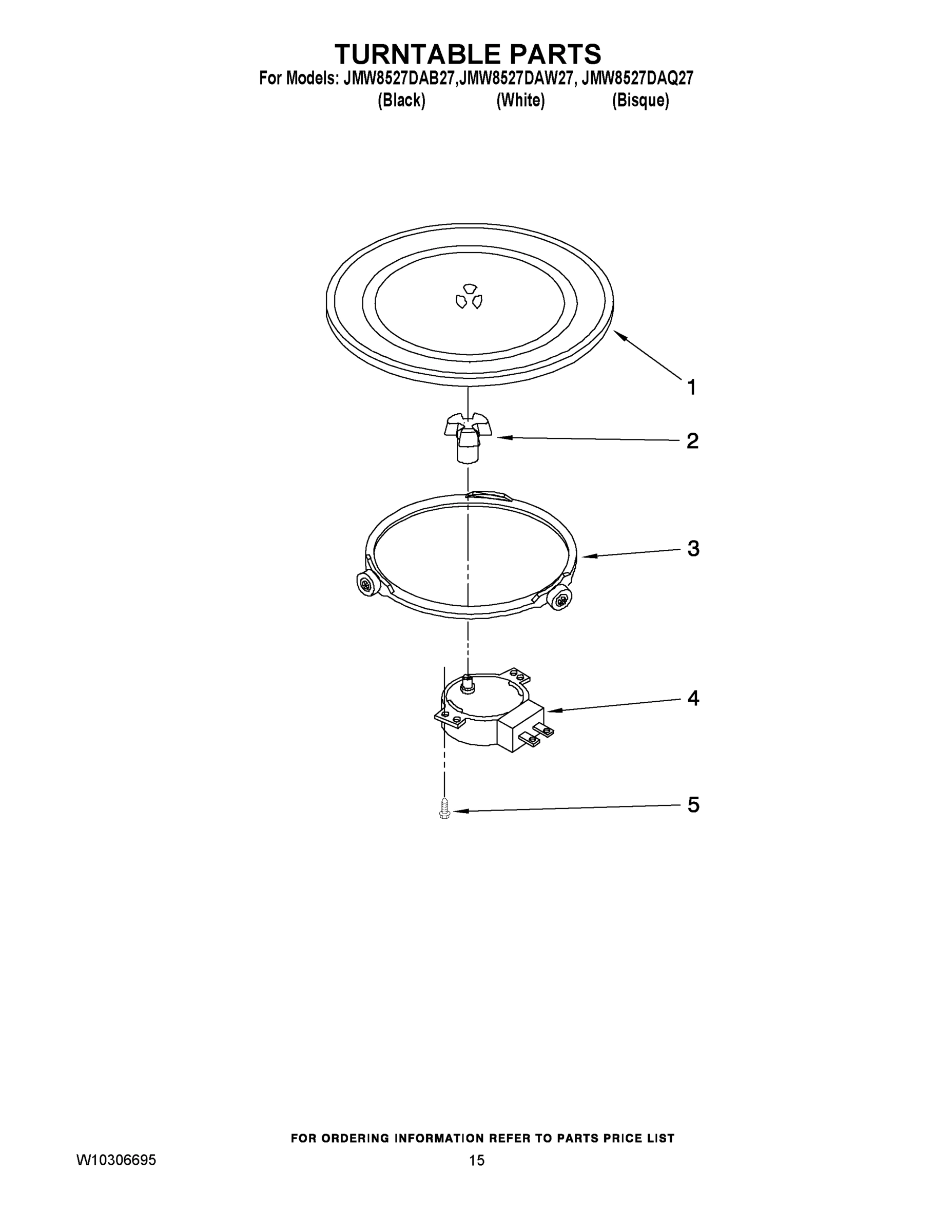

10 - TURNTABLE PARTS
11 - OPTIONAL PARTS
Common parts from model Maytag JMW8527DAB27 ELECTRIC WALL OVEN
1
MICROCOMPUTER MAY 53001240 Contact Us For Availability
1
MAY 2402W311-19 MAY 2402W311-19 Contact Us For Availability
1
MAY 7801P129-60 MAY 7801P129-60 Contact Us For Availability
1
MAY 8507P345-60 MAY 8507P345-60 Contact Us For Availability
1
MAY R9800398 MAY R9800398 Contact Us For Availability
1
FRAME, DOOR MAY 53001288 Contact Us For Availability
1
Board, Latch MAY 53001246 Contact Us For Availability
1
MAY R0130675 MAY R0130675 Contact Us For Availability
1
MAY 53001023 MAY 53001023 Contact Us For Availability
2
MAY R0130605 MAY R0130605 Contact Us For Availability
2
MAY 7106P118-60 MAY 7106P118-60 Contact Us For Availability
2
MAY 3605F211-19 MAY 3605F211-19 Contact Us For Availability
2
MAY 3608F106-70 MAY 3608F106-70 Contact Us For Availability
2
Bracket, Control MAY 53001241 Contact Us For Availability
2
Trim, Side (LH) MAY 53001262 Contact Us For Availability
2
Trim, Side (RH) MAY 53001263 Contact Us For Availability
2
MAY 53001219 MAY 53001219 Contact Us For Availability
2
Switch, Micro MAY 53001036 Contact Us For Availability
3
TRIM, BTM DR VENT MAY 3608F102-70 Contact Us For Availability
3
MAY W10184147 MAY W10184147 Contact Us For Availability
3
SUPPORT, TOP CNTRL MAY 3807F717-51 Contact Us For Availability
3
MAY 53001245 MAY 53001245 Contact Us For Availability
3
MAY 53001298 MAY 53001298 Contact Us For Availability
3
MAY 53001220 MAY 53001220 Contact Us For Availability
3
MAY R0813140 MAY R0813140 Contact Us For Availability
3
MAY 53001110 MAY 53001110 Contact Us For Availability
3
Ring, Rotating MAY R0130677 Contact Us For Availability
4
MAY 53001221 MAY 53001221 Contact Us For Availability
4
INSULATION, DOOR MAY 7002P392-60 Contact Us For Availability
4
MAY 7406P322-60 MAY 7406P322-60 Contact Us For Availability
4
PANEL, CNTRL SIDE (LEFT) MAY 2624F076-51 Contact Us For Availability
4
PANEL, CNTRL SIDE (RIGHT) MAY 2624F077-51 Contact Us For Availability
4
PANEL, CONTROL (BISQUE) MAY 53001293 Contact Us For Availability
4
PANEL, CONTROL (BLACK) MAY 53001294 Contact Us For Availability
4
PANEL, CONTROL (WHITE) MAY 53001295 Contact Us For Availability
4
Side, Chassis (Right Side) MAY 53001268 Contact Us For Availability
4
Side, Chassis (Left Side) MAY 53001269 Contact Us For Availability
4
MAY 53001247 MAY 53001247 Contact Us For Availability
4
MAY 53001025 MAY 53001025 Contact Us For Availability
5
Trim, Bottom MAY 53001264 Contact Us For Availability
5
MAY 8038P035-60 MAY 8038P035-60 Contact Us For Availability
5
MAY 7002P201-60 MAY 7002P201-60 Contact Us For Availability
5
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
5
FAN, TANGENTIAL MAY 7427P062-60 Contact Us For Availability
5
HANDLE, DOOR MAY 53001223 Contact Us For Availability
5
MAY 53001249 MAY 53001249 Contact Us For Availability
5
MAY 53001248 MAY 53001248 Contact Us For Availability
5
Screw MAY R0654180 Contact Us For Availability
6
SUPPORT, AIR CHANNEL MAY 3807F706-51 Contact Us For Availability
6
MAY 5700M867-60 MAY 5700M867-60 Contact Us For Availability
6
SUPPORT, BROIL ELEMENT MAY 3807F754-45 Contact Us For Availability
6
PANEL, CONTROL BOX REAR MAY 2624F100-51 Contact Us For Availability
6
Screw MAY R9800360 Contact Us For Availability
6
Screw MAY R0654178 Contact Us For Availability
6
Bracket, LH MAY 53001224 Contact Us For Availability
6
MAY 53001250 MAY 53001250 Contact Us For Availability
7
HINGE, LH MAY 53001226 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
RETAINER, DR GLASS MAY 3804F144-45 Contact Us For Availability
7
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
7
ASSEMBLY, CABLE MAY 5700P829-60 Contact Us For Availability
7
MAY 53001267 MAY 53001267 Contact Us For Availability
7
MAY 53001251 MAY 53001251 Contact Us For Availability
8
ASSY., LIGHT SW MAY 7450P109-60 Contact Us For Availability
8
MAY 7922P017-60 MAY 7922P017-60 Contact Us For Availability
8
MAY 7922P018-60 MAY 7922P018-60 Contact Us For Availability
8
MAY 7922P019-60 MAY 7922P019-60 Contact Us For Availability
8
MAY R0654182 MAY R0654182 Contact Us For Availability
8
GLASS, DOOR (BLACK) MAY 53001231 Contact Us For Availability
8
GLASS, DOOR (WHITE) MAY 53001232 Contact Us For Availability
8
GLASS, DOOR (BISQUE) MAY 53001233 Contact Us For Availability
8
Blade, Fan MAY 53001252 Contact Us For Availability
9
MAY 7718P021-60 MAY 7718P021-60 Contact Us For Availability
9
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
9
MAY 7212P060-60 MAY 7212P060-60 Contact Us For Availability
9
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
9
HINGE, RH MAY 53001236 Contact Us For Availability
9
Transformer, H.V. MAY 53001253 Contact Us For Availability
10
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
10
MAY 7902P707-60 MAY 7902P707-60 Contact Us For Availability
10
MAY 7430P043-60 MAY 7430P043-60 Contact Us For Availability
10
BRKT., COOLING FAN MAY 3801F829-51 Contact Us For Availability
10
BASE, PLATE MAY 53001279 Contact Us For Availability
10
Screw MAY R0654183 Contact Us For Availability
10
Bracket, RH MAY 53001238 Contact Us For Availability
11
MAY 4006W218-45 MAY 4006W218-45 Contact Us For Availability
11
MAY 7701P472-60 MAY 7701P472-60 Contact Us For Availability
11
MAY W10275562 MAY W10275562 Contact Us For Availability
11
ASSY., LATCH DOOR MAY W10186996 Contact Us For Availability
11
MAY 53001273 MAY 53001273 Contact Us For Availability
11
Cushion, Door MAY 53001280 Contact Us For Availability
11
MAY R9900082 MAY R9900082 Contact Us For Availability
12
SCREEN, SMOKE ELM. MAY 8034P008-60 Contact Us For Availability
12
MAY 3804F200-51 MAY 3804F200-51 Contact Us For Availability
12
MAY 7912P335-60 MAY 7912P335-60 Contact Us For Availability
12
MAY 7912P345-60 MAY 7912P345-60 Contact Us For Availability
12
MAY 7912P347-60 MAY 7912P347-60 Contact Us For Availability
12
MAY W10182900 MAY W10182900 Contact Us For Availability
12
MAY 53001286 MAY 53001286 Contact Us For Availability
12
Screw MAY R0131029 Contact Us For Availability
13
SWITCH, HI LIMIT MAY 7403P899-60 Contact Us For Availability
13
MAY 7002P195-60 MAY 7002P195-60 Contact Us For Availability
13
MAY 3807W663-70 MAY 3807W663-70 Contact Us For Availability
13
BRACKET, CNTRL MAY 53001290 Contact Us For Availability
13
Washer, Sprg Lck MAY 53001282 Contact Us For Availability
13
MAY 53001254 MAY 53001254 Contact Us For Availability
14
ASSEMBLY, LIGHT MAY 7407P179-60 Contact Us For Availability
14
MAY 7002P249-60 MAY 7002P249-60 Contact Us For Availability
14
MAY 3804F235-51 MAY 3804F235-51 Contact Us For Availability
14
MAY 3804F250-51 MAY 3804F250-51 Contact Us For Availability
14
MAY 3804F251-51 MAY 3804F251-51 Contact Us For Availability
14
MAY 3804F252-51 MAY 3804F252-51 Contact Us For Availability
14
MAY 53001283 MAY 53001283 Contact Us For Availability
14
MAY 53001255 MAY 53001255 Contact Us For Availability
15
MAY 8026P066-60 MAY 8026P066-60 Contact Us For Availability
15
PNL, CNTRL BOX TOP MAY 2624F098-44 Contact Us For Availability
15
MAY 53001281 MAY 53001281 Contact Us For Availability
15
Screw MAY R0131307 Contact Us For Availability
16
CHANNEL, BOTTOM MAY 3818F108-51 Contact Us For Availability
16
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
16
MAY R0130667 MAY R0130667 Contact Us For Availability
16
MAY 53001284 MAY 53001284 Contact Us For Availability
16
Motor, Fan MAY 53001256 Contact Us For Availability
17
MAY 2618F215-51 MAY 2618F215-51 Contact Us For Availability
17
MAY 7109P082-60 MAY 7109P082-60 Contact Us For Availability
17
MAY 53001285 MAY 53001285 Contact Us For Availability
17
Thermostat MAY R0131025 Contact Us For Availability
18
MAY 2624F096-51 MAY 2624F096-51 Contact Us For Availability
18
Screw, Tap MAY R9800309 Contact Us For Availability
19
PNL, TOP RETAINER MAY 2618F223-51 Contact Us For Availability
19
Trim, Door Btm MAY 53001234 Contact Us For Availability
19
Screw MAY R9800411 Contact Us For Availability
20
Bracket, Therm. MAY 53001258 Contact Us For Availability
21
RECEIVER, HINGE MAY 7106P127-60 Contact Us For Availability
21
MAY R9900293 MAY R9900293 Contact Us For Availability
22
MAY 7744P460-60 MAY 7744P460-60 Contact Us For Availability
22
MAY 7744P461-60 MAY 7744P461-60 Contact Us For Availability
22
MAY 53001259 MAY 53001259 Contact Us For Availability
23
MAY 3608F098-70 MAY 3608F098-70 Contact Us For Availability
23
FILTER, CHOKE MAY R9800442 Contact Us For Availability
24
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
24
MAY 53001260 MAY 53001260 Contact Us For Availability
25
BULB, OVEN MAY 899138-001 Contact Us For Availability
25
MAY 53001272 MAY 53001272 Contact Us For Availability
26
MAY 7408P055-60 MAY 7408P055-60 Contact Us For Availability
26
MAY 53001274 MAY 53001274 Contact Us For Availability
27
MAY 7429P006-60 MAY 7429P006-60 Contact Us For Availability
27
Base, PCB MAY 53001275 Contact Us For Availability
28
Bottom MAY 53001277 Contact Us For Availability
29
Board, Power MAY 53001291 Contact Us For Availability
30
Plate, Shield MAY 53001276 Contact Us For Availability
32
THERMOSTAT MAY R9900321 Contact Us For Availability
NI
MAY 7002P407-60 MAY 7002P407-60 Contact Us For Availability
NI
MAY 7002P422-60 MAY 7002P422-60 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
ADHESIVE (SEALER, SILASTIC (3 OZ.) MAY 482338 Contact Us For Availability
NI
HARNESS, WIRE (CONTROL TOP) MAY 5171P072-60 Contact Us For Availability
NI
MAY 5171P154-60 MAY 5171P154-60 Contact Us For Availability
NI
MAY 5171P675-60 MAY 5171P675-60 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) MAY 591014 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
× ![]()
