Model Maytag JMW8330DAB15 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

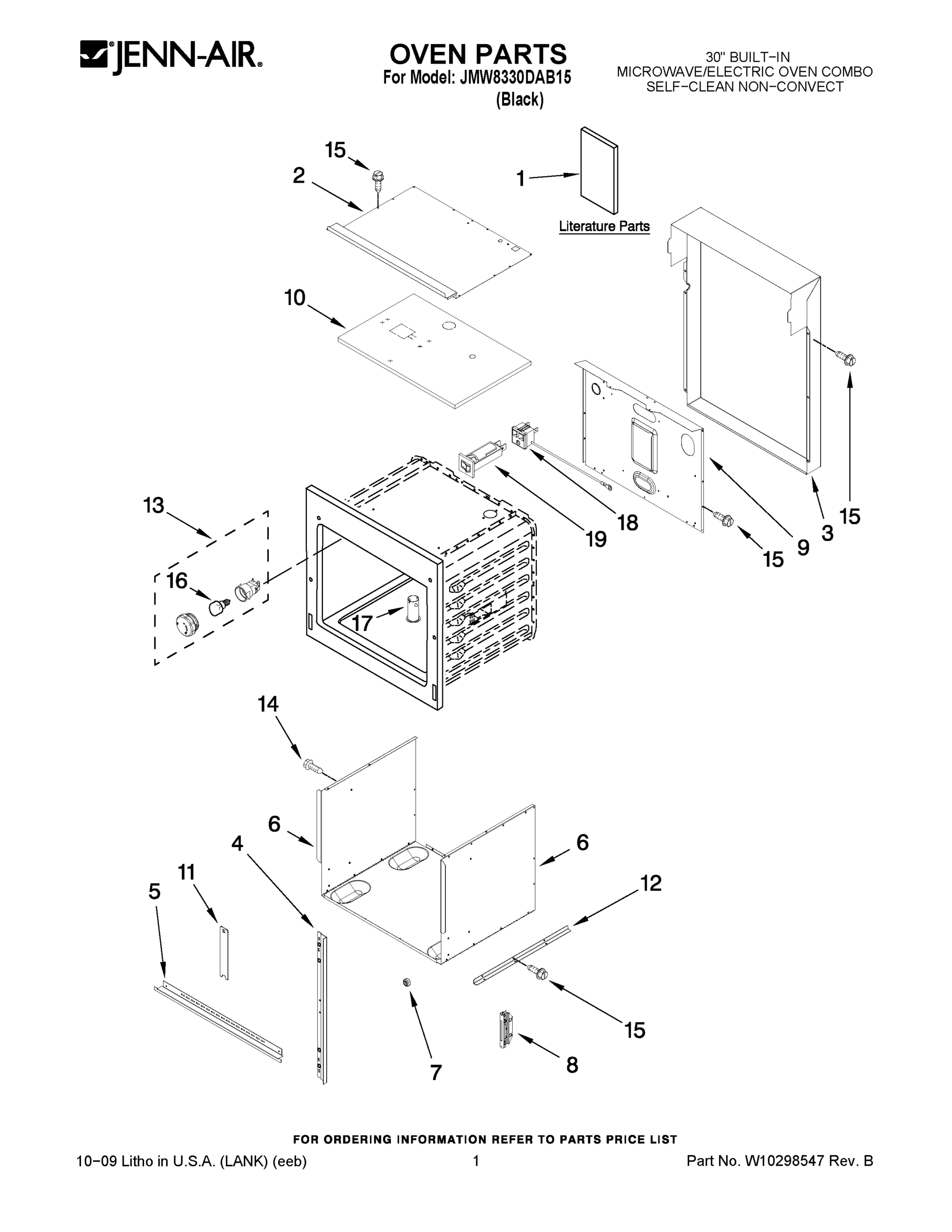

01 - OVEN PARTS

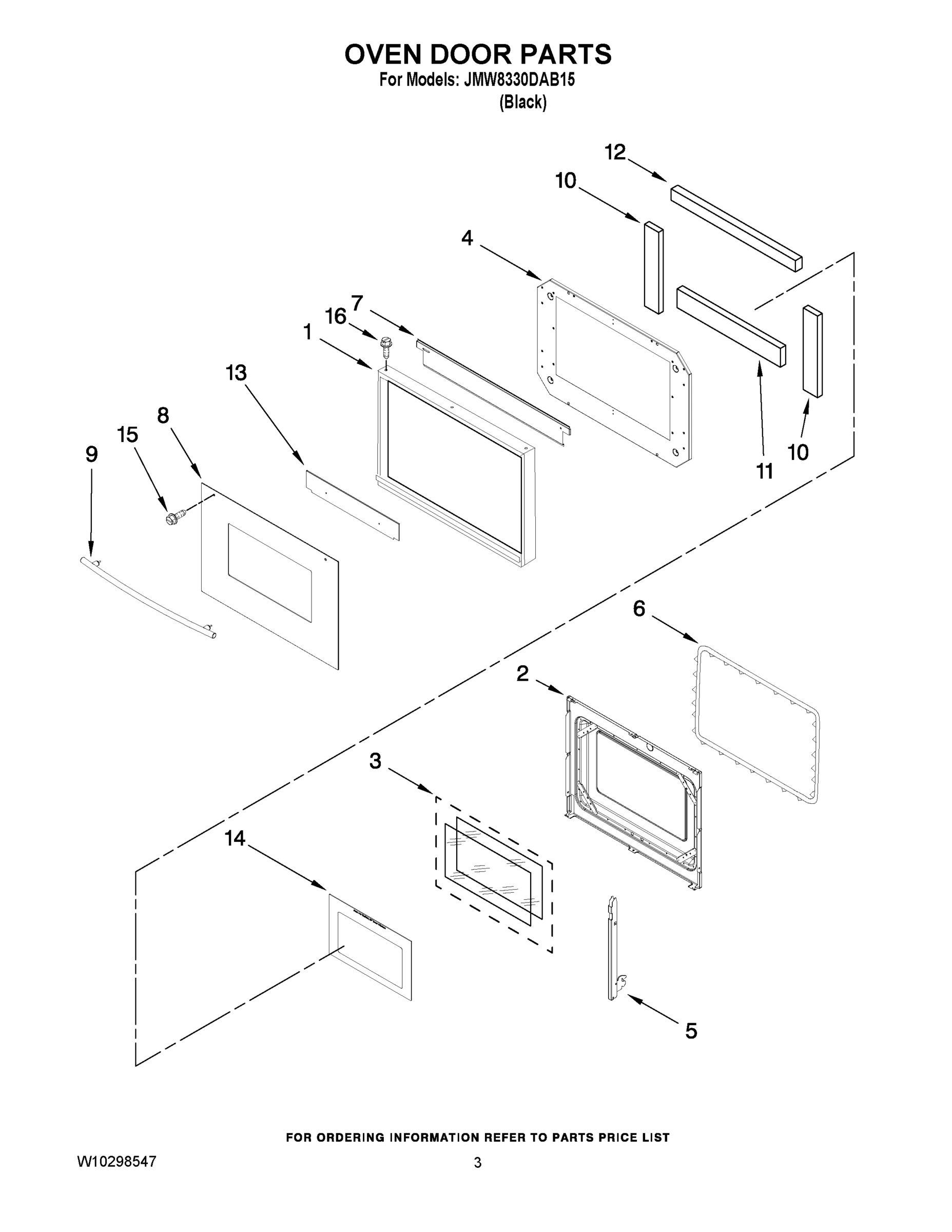

02 - OVEN DOOR PARTS

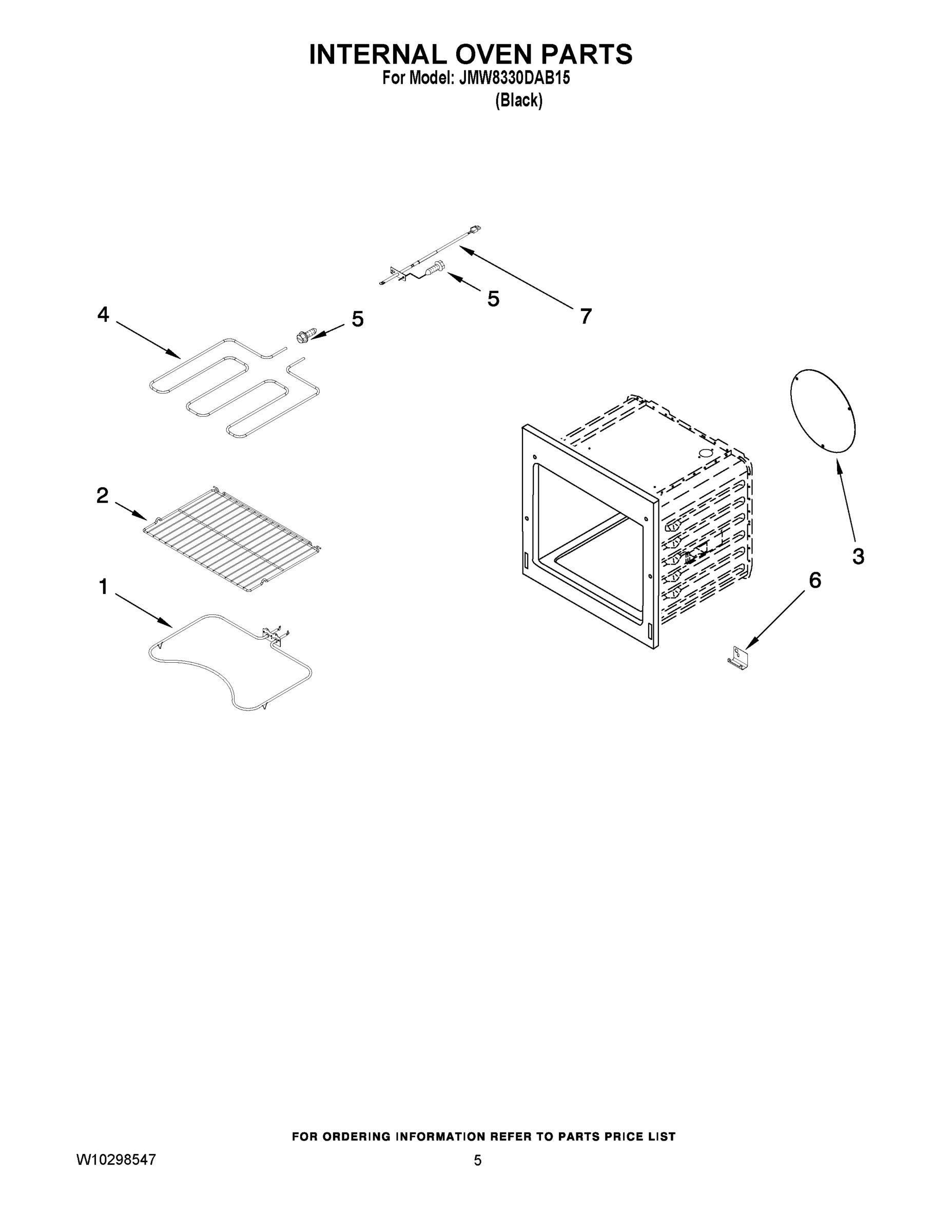

03 - INTERNAL OVEN PARTS

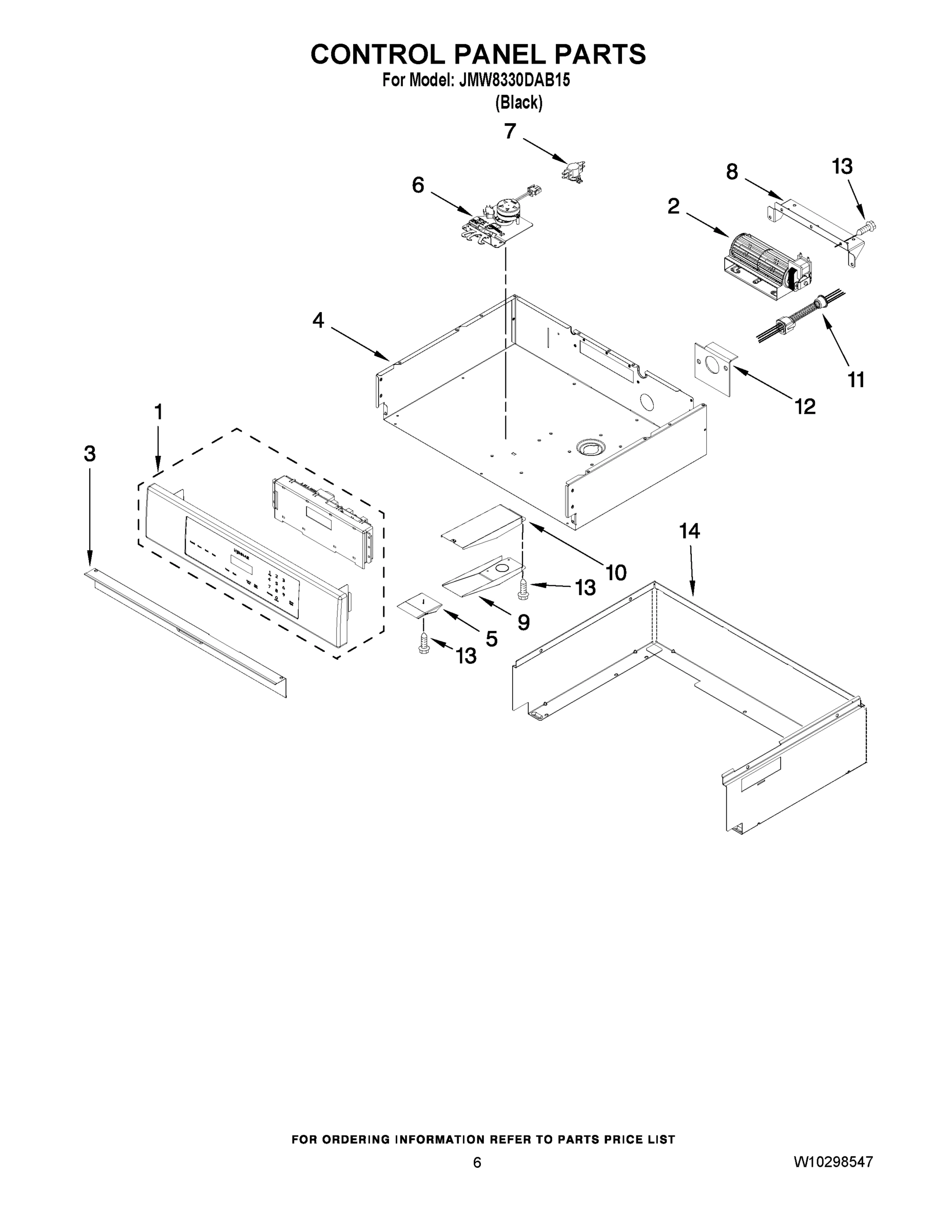

04 - CONTROL PANEL PARTS

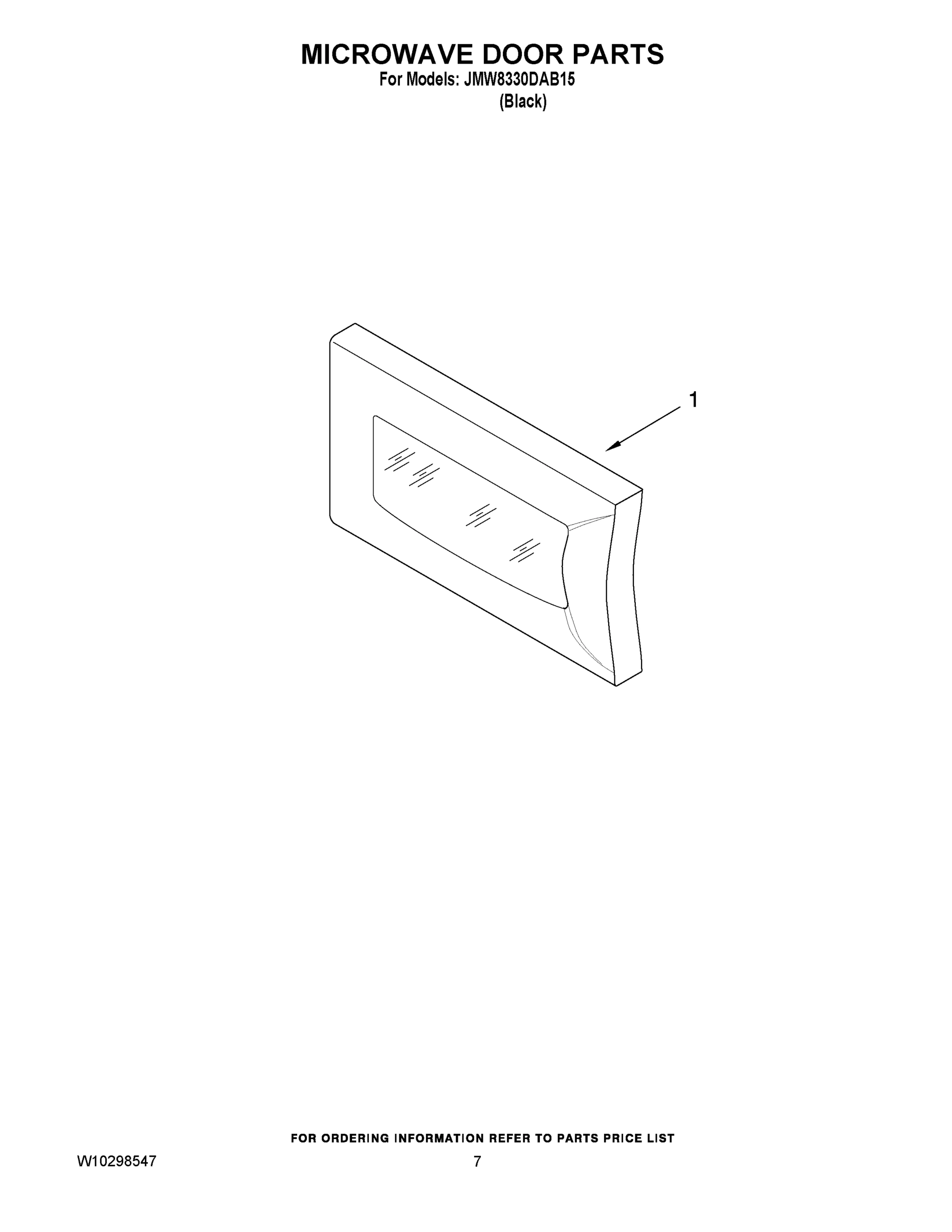

05 - MICROWAVE DOOR PARTS

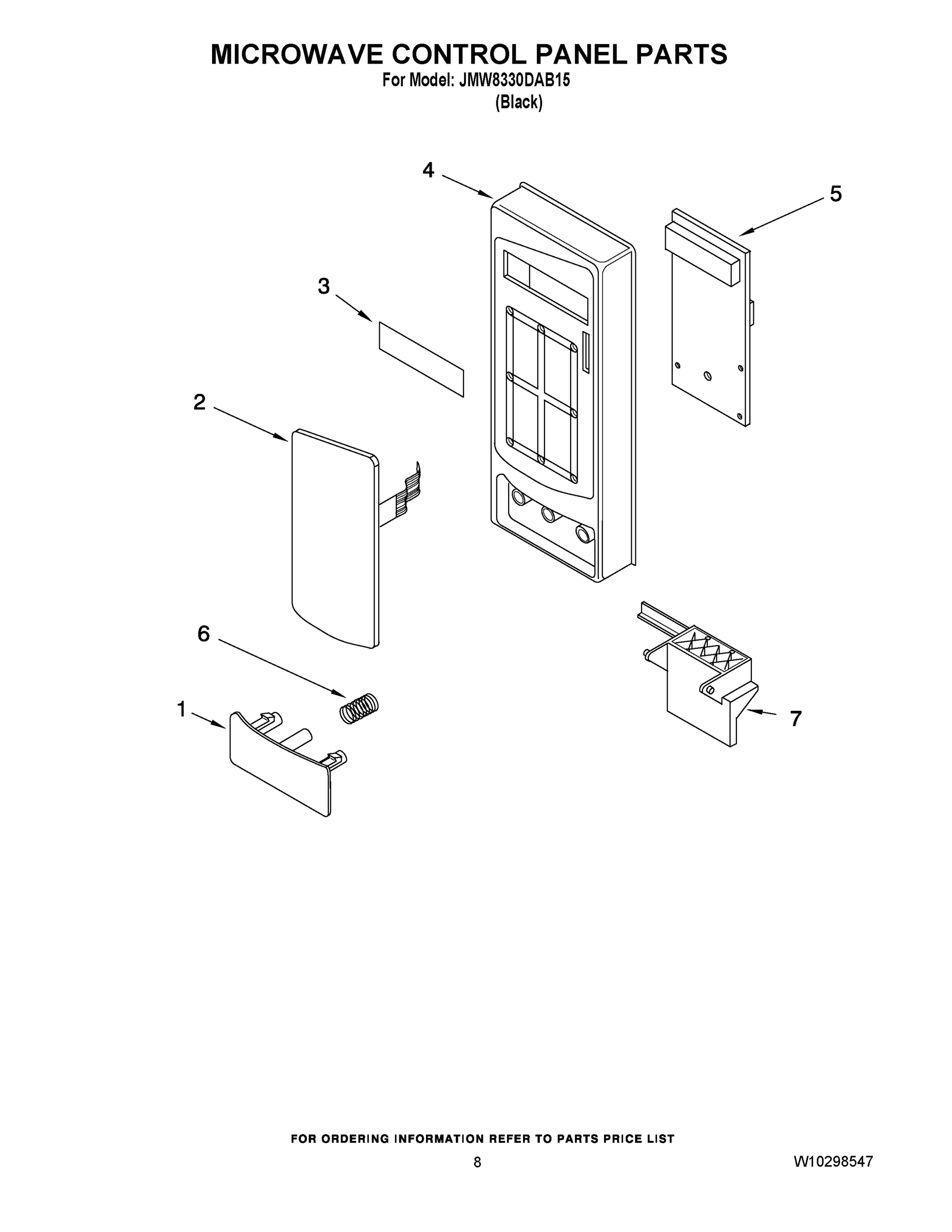

06 - MICROWAVE CONTROL PANEL PARTS

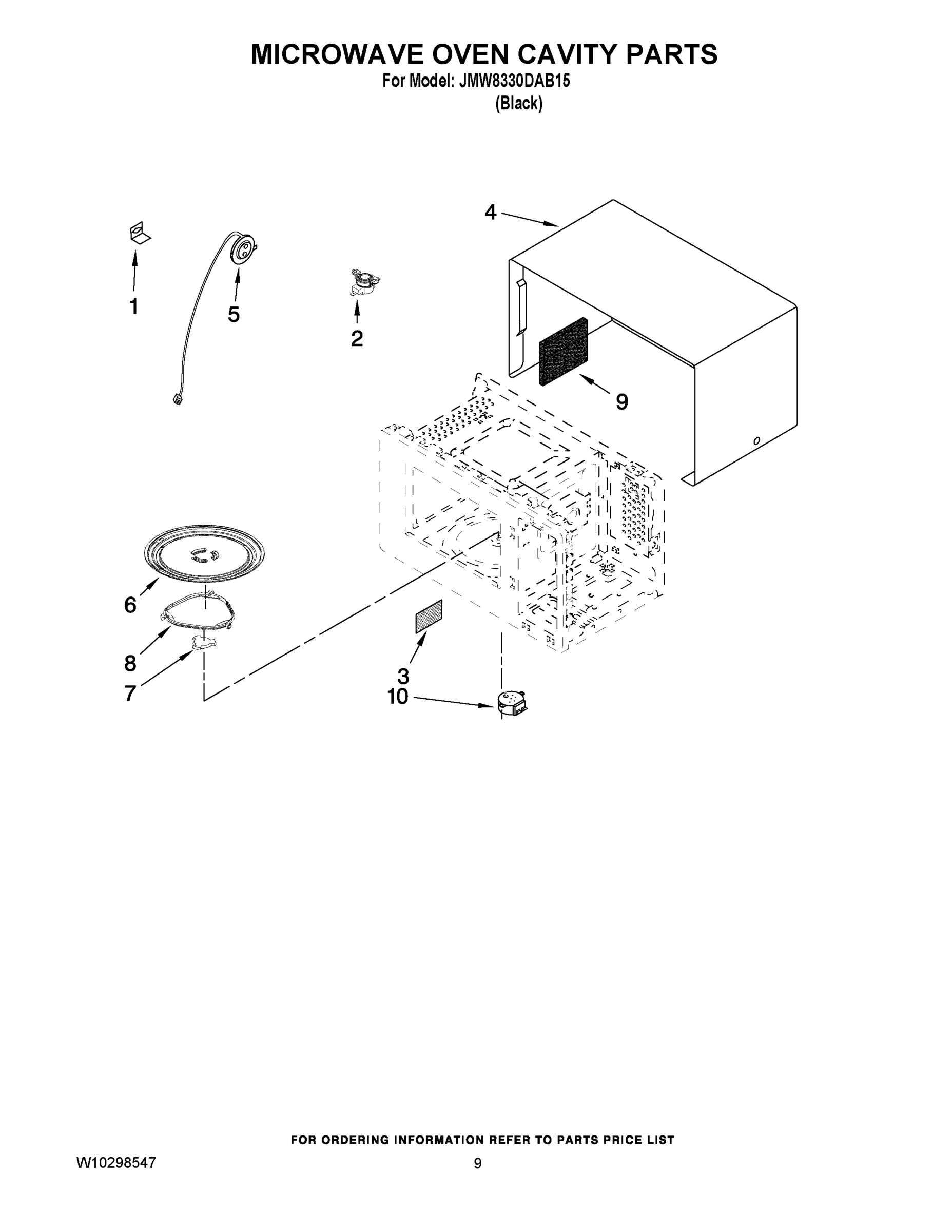

07 - MICROWAVE OVEN CAVITY PARTS

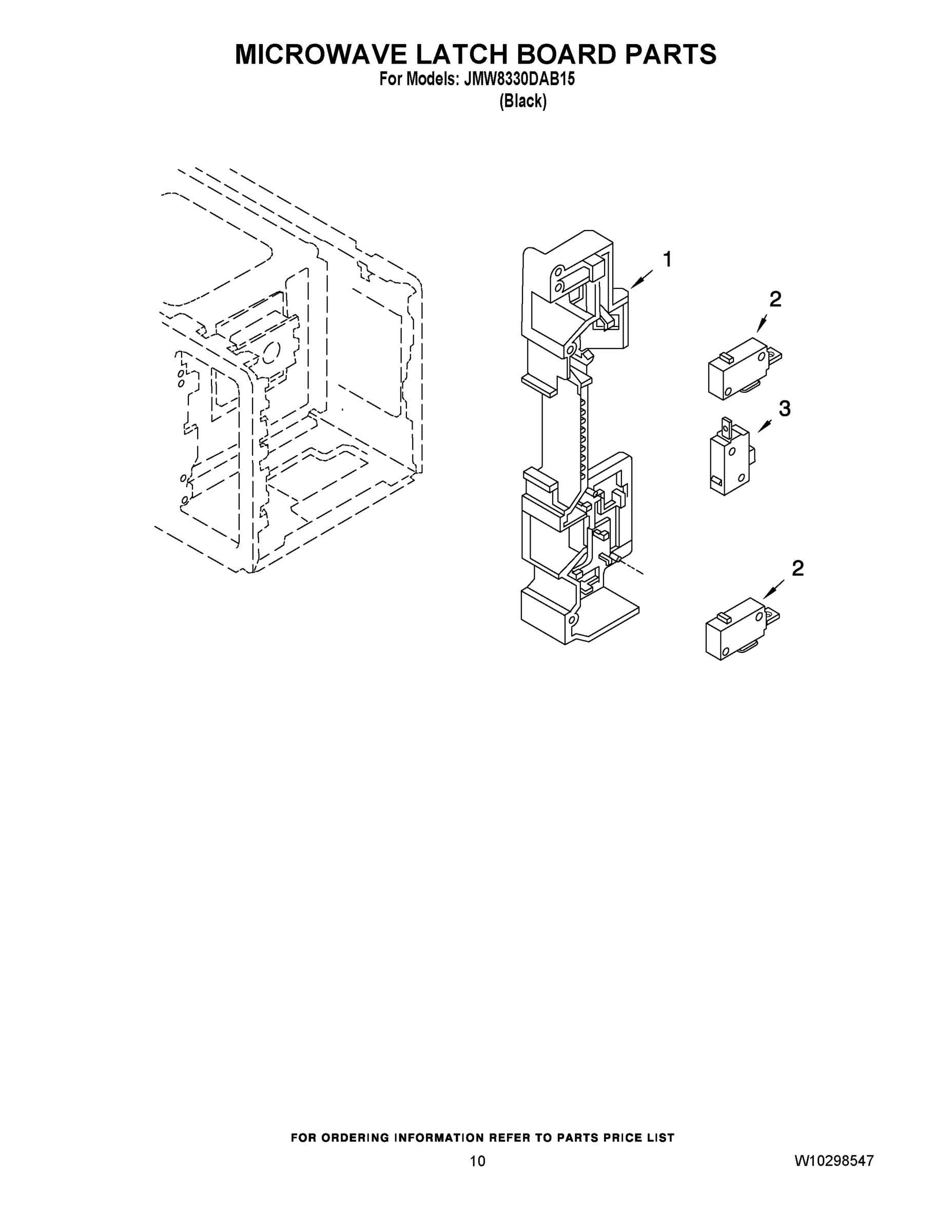

08 - MICROWAVE LATCH BOARD PARTS

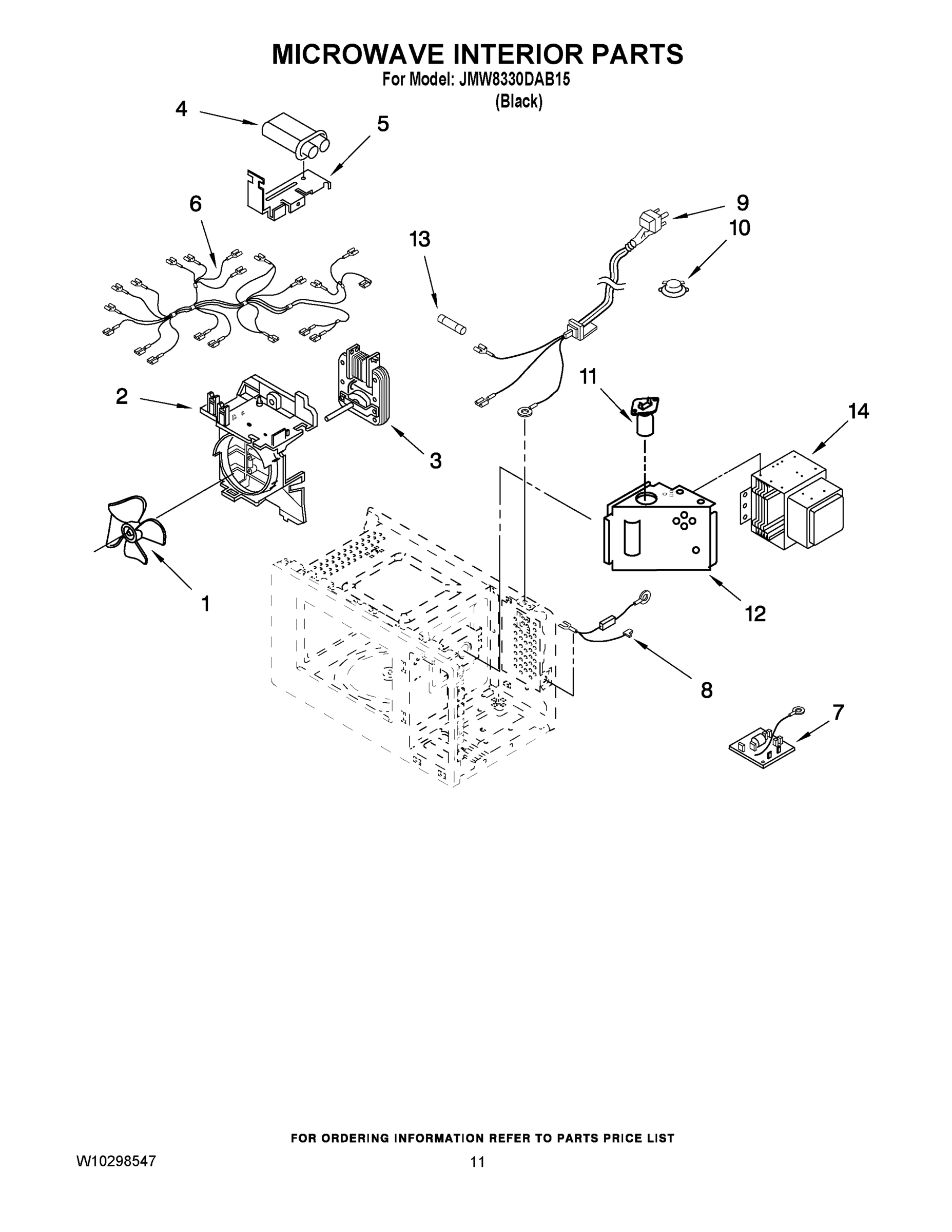

09 - MICROWAVE INTERIOR PARTS

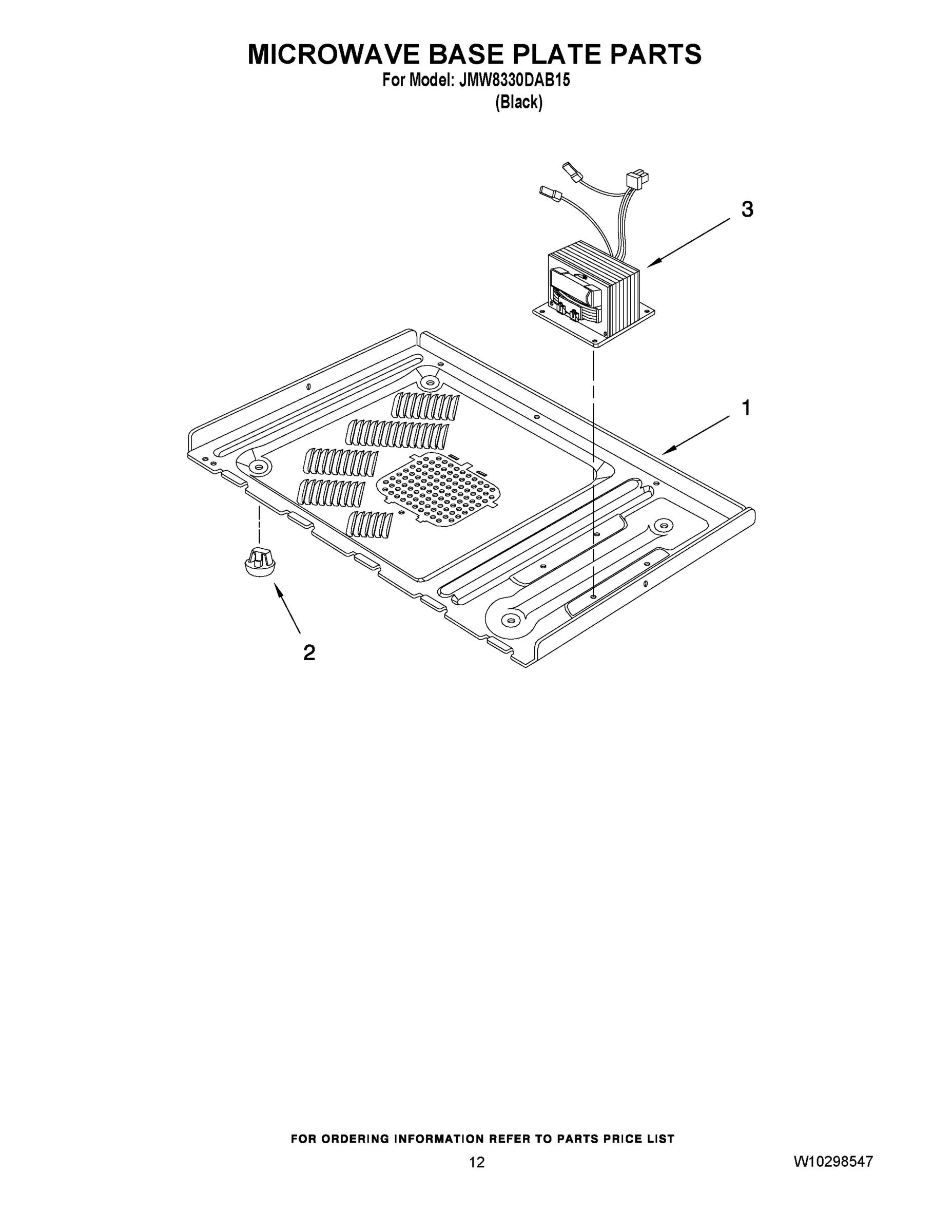

10 - MICROWAVE BASE PLATE PARTS
11 - OPTIONAL PARTS
Common parts from model Maytag JMW8330DAB15 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
MAY DE72-00138A MAY DE72-00138A Contact Us For Availability
1
MAY 7706P564-60 MAY 7706P564-60 Contact Us For Availability
1
MAY 7406P271-60 MAY 7406P271-60 Contact Us For Availability
1
ASSEMBLY, CONTROL PANEL MAY 5765M451-60 Contact Us For Availability
1
ASSEMBLY, DOOR MAY DE94-01342G Contact Us For Availability
1
BUTTON MAY DE64-01502B Contact Us For Availability
1
BRACKET-SENSOR MAY DE61-00097A Contact Us For Availability
1
BLADE, FAN MAY DE31-90051A Contact Us For Availability
1
BASE-PLATE MAY DE80-10032K Contact Us For Availability
2
MAY 2402W265-19 MAY 2402W265-19 Contact Us For Availability
2
MAY W10282527 MAY W10282527 Contact Us For Availability
2
MAY 7427P079-60 MAY 7427P079-60 Contact Us For Availability
2
SW., MEMBRANE MAY W10261280 Contact Us For Availability
2
GUIDE, SUCTION MAY DE71-00165A Contact Us For Availability
2
MAY DE61-40066A MAY DE61-40066A Contact Us For Availability
3
MAY 3405-001033 MAY 3405-001033 Contact Us For Availability
3
MOTOR-FAN MAY DE31-10155T Contact Us For Availability
3
MAY 5700M868-60 MAY 5700M868-60 Contact Us For Availability
3
MAY 3605F211-19 MAY 3605F211-19 Contact Us For Availability
3
MAY 3608F105-70 MAY 3608F105-70 Contact Us For Availability
3
WINDOW-DISPLAY MAY DE67-40179A Contact Us For Availability
4
MAY 3804F218-51 MAY 3804F218-51 Contact Us For Availability
4
MAY 7406P273-60 MAY 7406P273-60 Contact Us For Availability
4
MAY 4026F092-51 MAY 4026F092-51 Contact Us For Availability
4
PANEL, CONTROL MAY W10261272 Contact Us For Availability
5
MAY DE32-60011A MAY DE32-60011A Contact Us For Availability
5
MAY 7106P115-60 MAY 7106P115-60 Contact Us For Availability
5
MAY 8312P232-60 MAY 8312P232-60 Contact Us For Availability
5
MAY W10261245 MAY W10261245 Contact Us For Availability
5
MAY DE61-50170A MAY DE61-50170A Contact Us For Availability
6
MAY 7212P061-60 MAY 7212P061-60 Contact Us For Availability
6
MAY 7112P126-60 MAY 7112P126-60 Contact Us For Availability
6
SWITCH, DOOR LOCK MAY W10186996 Contact Us For Availability
6
SPRING MAY DE61-70026A Contact Us For Availability
6
MAY DE74-20002C MAY DE74-20002C Contact Us For Availability
6
ASSEMBLY, LEADWIRE MAY W10261281 Contact Us For Availability
7
LEVER-DOOR MAY DE66-90113A Contact Us For Availability
7
MAY DE67-00214A MAY DE67-00214A Contact Us For Availability
7
MAY W10205611 MAY W10205611 Contact Us For Availability
7
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
7
THERMOSTAT, HI-LIMIT MAY 7403P856-60 Contact Us For Availability
7
MAY DE96-00399B MAY DE96-00399B Contact Us For Availability
8
GLASS, DOOR MAY 7902P698-60 Contact Us For Availability
8
MAY 3801F936-51 MAY 3801F936-51 Contact Us For Availability
8
MAY DE97-00401B MAY DE97-00401B Contact Us For Availability
9
MAY 2624F056-51 MAY 2624F056-51 Contact Us For Availability
9
MAY 7701P515-60 MAY 7701P515-60 Contact Us For Availability
9
MAY 4011F438-45 MAY 4011F438-45 Contact Us For Availability
9
MAY DE39-00040G MAY DE39-00040G Contact Us For Availability
10
MOTOR-DRIVE MAY DE31-10154A Contact Us For Availability
10
MAY 7002P358-60 MAY 7002P358-60 Contact Us For Availability
10
MAY 7002P380-60 MAY 7002P380-60 Contact Us For Availability
10
MAY 4006F169-45 MAY 4006F169-45 Contact Us For Availability
11
MAY 3605F236-50 MAY 3605F236-50 Contact Us For Availability
11
MAY 7002P383-60 MAY 7002P383-60 Contact Us For Availability
11
MAY 5700P829-60 MAY 5700P829-60 Contact Us For Availability
11
MAY DE07-00005A MAY DE07-00005A Contact Us For Availability
12
MAY 3802F116-51 MAY 3802F116-51 Contact Us For Availability
12
MAY 7002P384-60 MAY 7002P384-60 Contact Us For Availability
12
MAY 8020P048-60 MAY 8020P048-60 Contact Us For Availability
12
MAY DE71-00012A MAY DE71-00012A Contact Us For Availability
13
ASSY., LIGHT MAY 7407P181-60 Contact Us For Availability
13
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
13
MAY 3604F370-45 MAY 3604F370-45 Contact Us For Availability
14
MAY 7101P635-60 MAY 7101P635-60 Contact Us For Availability
14
MAY 7902P713-60 MAY 7902P713-60 Contact Us For Availability
14
MAY 3807F745-51 MAY 3807F745-51 Contact Us For Availability
16
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
17
MAY 7505P322-60 MAY 7505P322-60 Contact Us For Availability
18
MAY 7408P055-60 MAY 7408P055-60 Contact Us For Availability
19
MAY 7429P006-60 MAY 7429P006-60 Contact Us For Availability
NI
MAY 7002P251-60 MAY 7002P251-60 Contact Us For Availability
NI
MAY 7002P368-60 MAY 7002P368-60 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 482338 MAY 482338 Contact Us For Availability
NI
MAY 5171P078-60 MAY 5171P078-60 Contact Us For Availability
NI
MAY 5171P083-60 MAY 5171P083-60 Contact Us For Availability
NI
MAY 5171P264-60 MAY 5171P264-60 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) MAY 591014 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
× ![]()
