Model Maytag JMW3430WR01 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

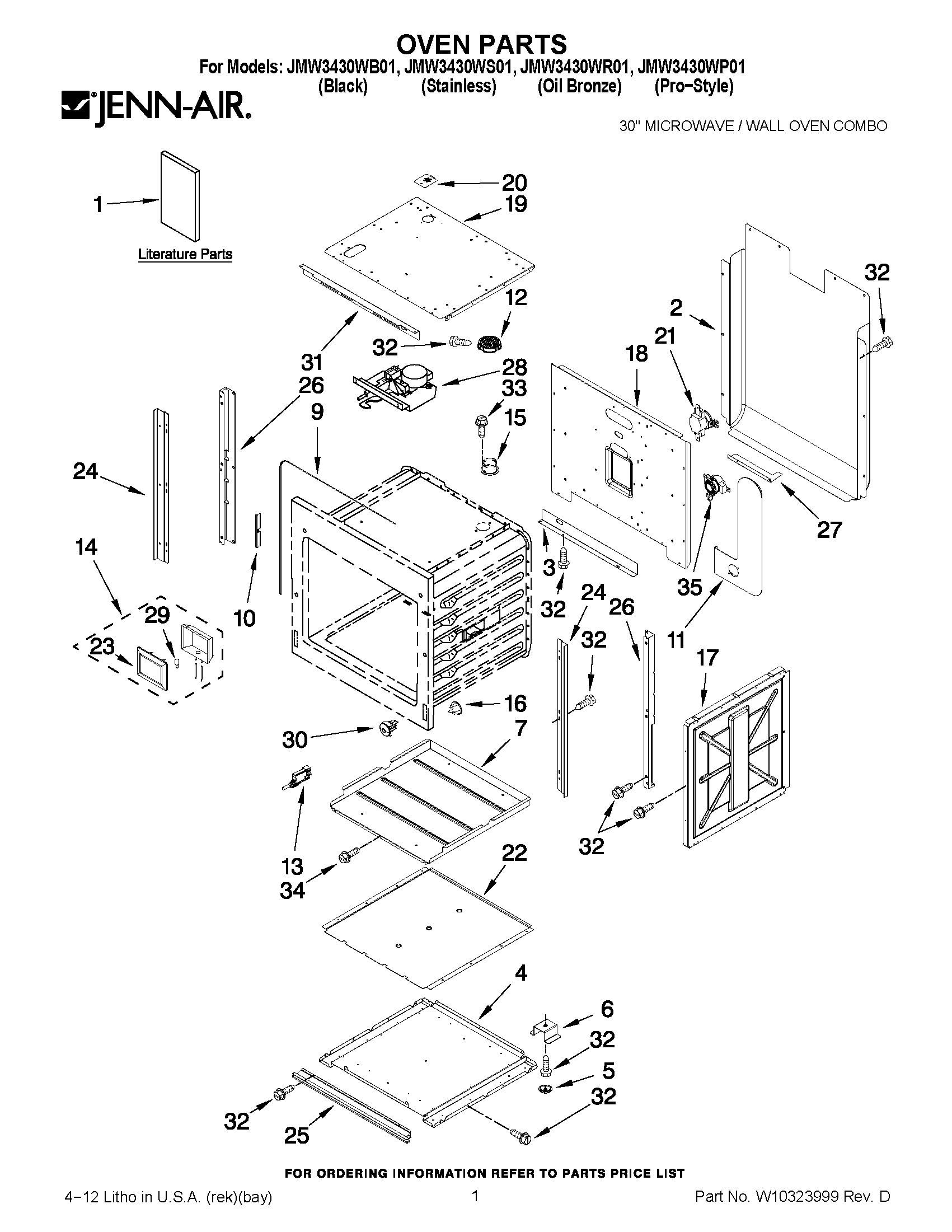

01 - OVEN PARTS

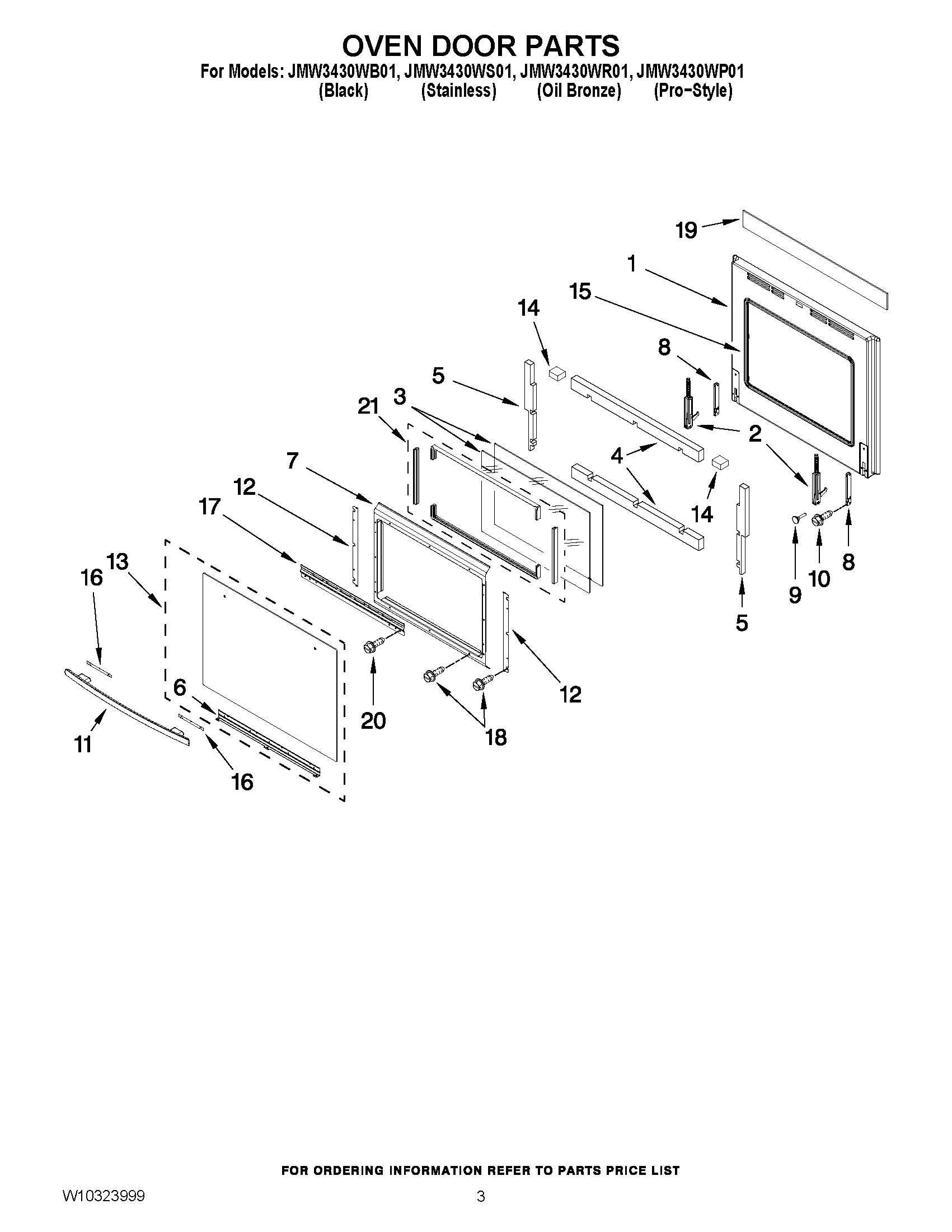

02 - OVEN DOOR PARTS
03 - INTERNAL OVEN PARTS
04 - CONTROL PANEL PARTS
05 - CABINET AND STIRRER PARTS
06 - MICROWAVE COMPARTMENT PARTS
07 - MICROWAVE DOOR PARTS
08 - TOP SUPPORT AND TURNTABLE PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JMW3430WR01 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS (BI-LINGUAL) MAY W10075750 Contact Us For Availability
1
MAY W10213732 MAY W10213732 Contact Us For Availability
1
MAY W10213741 MAY W10213741 Contact Us For Availability
1
MAY W10221384 MAY W10221384 Contact Us For Availability
1
MAY W10221393 MAY W10221393 Contact Us For Availability
1
MAY W10233422 MAY W10233422 Contact Us For Availability
1
MAY W10187019 MAY W10187019 Contact Us For Availability
1
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
1
MAY W10319321 MAY W10319321 Contact Us For Availability
1
MAY W10319322 MAY W10319322 Contact Us For Availability
1
MAY W10319323 MAY W10319323 Contact Us For Availability
1
MAY W10350762 MAY W10350762 Contact Us For Availability
1
MAY W10176189 MAY W10176189 Contact Us For Availability
1
MAY W10176190 MAY W10176190 Contact Us For Availability
1
BUTTON, PLUG MAY 8304588BL Contact Us For Availability
1
SUPPORT, GRILL MAY W10288008 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
2
HINGE, DOOR (BLACK/OIL BRONZE) MAY W10176157 Contact Us For Availability
2
HINGE, DOOR (SS, PRO-STYLE) MAY W10277751 Contact Us For Availability
2
MAY W10176138 MAY W10176138 Contact Us For Availability
2
MAY W10316580 MAY W10316580 Contact Us For Availability
2
MAY W10130901 MAY W10130901 Contact Us For Availability
2
MAY W10493731 MAY W10493731 Contact Us For Availability
2
MAY W10493732 MAY W10493732 Contact Us For Availability
3
BAFFLE, REAR LOWER MAY 3601F343-51 Contact Us For Availability
3
GLASS, INNER MAY W10176100 Contact Us For Availability
3
MAY W10277572 MAY W10277572 Contact Us For Availability
3
MAY W10176094 MAY W10176094 Contact Us For Availability
3
MAY W10120471 MAY W10120471 Contact Us For Availability
3
MAY W10176195 MAY W10176195 Contact Us For Availability
3
FOAM PAD MAY W10312432 Contact Us For Availability
3
VENT, TOP MAY W10486211 Contact Us For Availability
4
MAY W10280327 MAY W10280327 Contact Us For Availability
4
MAY W10273676 MAY W10273676 Contact Us For Availability
4
MAY W10267047 MAY W10267047 Contact Us For Availability
4
MAY W10186988 MAY W10186988 Contact Us For Availability
4
MAY W10273667 MAY W10273667 Contact Us For Availability
4
MAY W10120223 MAY W10120223 Contact Us For Availability
4
MAY W10186985 MAY W10186985 Contact Us For Availability
5
FOOT, PLASTIC MAY 8038P035-60 Contact Us For Availability
5
MAY W10273591 MAY W10273591 Contact Us For Availability
5
MAY W10314708 MAY W10314708 Contact Us For Availability
5
MAY W10186997 MAY W10186997 Contact Us For Availability
5
MAY W10186986 MAY W10186986 Contact Us For Availability
5
BRACKET, HANDLE MAY W10176199 Contact Us For Availability
5
PRO-STYLE MICROWAVE MAY W10281176 Contact Us For Availability
5
BRACKET, MIDDLE MAY W10176179 Contact Us For Availability
6
MAY W10213759 MAY W10213759 Contact Us For Availability
6
BRACKET, DOOR CLIP MAY W10176175 Contact Us For Availability
6
MAY W10314698 MAY W10314698 Contact Us For Availability
6
MAY W10311703 MAY W10311703 Contact Us For Availability
6
MAY W10287966 MAY W10287966 Contact Us For Availability
6
MAY W10176196 MAY W10176196 Contact Us For Availability
6
FOAM, BRACKET MAY W10314607 Contact Us For Availability
6
MAY W10176063 MAY W10176063 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
MAY W10186984 MAY W10186984 Contact Us For Availability
7
MAY W10176103 MAY W10176103 Contact Us For Availability
7
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
7
MAY W10175829 MAY W10175829 Contact Us For Availability
7
CONTROL, ELECTRIC WIDE CONVERTER MAY W10120228 Contact Us For Availability
7
MAY W10176200 MAY W10176200 Contact Us For Availability
7
MAY W10269421 MAY W10269421 Contact Us For Availability
7
MAY W10269422 MAY W10269422 Contact Us For Availability
7
MAY W10269423 MAY W10269423 Contact Us For Availability
8
MAY W10175993 MAY W10175993 Contact Us For Availability
8
MAY W10186755 MAY W10186755 Contact Us For Availability
8
MAY W10186756 MAY W10186756 Contact Us For Availability
8
HANDLE, DOOR (OIL BRONZE) MAY W10186757 Contact Us For Availability
8
HANDLE, DOOR (PRO-STYLE) MAY W10187014 Contact Us For Availability
8
KIT, UNITY CONVECT MAY W10213812 Contact Us For Availability
8
MAY W10176064 MAY W10176064 Contact Us For Availability
8
MAY W10176065 MAY W10176065 Contact Us For Availability
9
MAY W10213818 MAY W10213818 Contact Us For Availability
9
COVER, TOP MAY W10175998 Contact Us For Availability
9
MAY W10176233 MAY W10176233 Contact Us For Availability
9
BAFFLE, UNITY CONVECTION MAY W10176060 Contact Us For Availability
9
MANAGER, APPLIANCE MAY W10292566 Contact Us For Availability
9
MAY W10131249 MAY W10131249 Contact Us For Availability
9
BADGE (PRO-STYLE) MAY W10159578 Contact Us For Availability
9
BADGE (BLACK) MAY W10190724 Contact Us For Availability
9
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
9
BADGE (OIL BRONZE) MAY W10214169 Contact Us For Availability
10
MAY W10176218 MAY W10176218 Contact Us For Availability
10
MAY W10254050 MAY W10254050 Contact Us For Availability
10
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
10
MAY W10186983 MAY W10186983 Contact Us For Availability
10
ACTUATOR MAY 4375427 Contact Us For Availability
10
FOAM PAD-SIDE MAY W10209070 Contact Us For Availability
10
MAY W10176066 MAY W10176066 Contact Us For Availability
11
MAY 4006W217-45 MAY 4006W217-45 Contact Us For Availability
11
SUPPORT, BROIL ELEMENT MAY 3807F754-45 Contact Us For Availability
11
BRACKET, WIRE SUPPORT MAY W10291274 Contact Us For Availability
11
MAY 4375321 MAY 4375321 Contact Us For Availability
11
DOOR, INNER MAY W10288012 Contact Us For Availability
11
TURNTABLE MAY 8205676 Contact Us For Availability
12
SCREEN, SMOKE ELM. MAY 8034P008-60 Contact Us For Availability
12
MAY W10186882 MAY W10186882 Contact Us For Availability
12
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
12
CONTROL, POWER MICROWAVE, UI MAY W10286791 Contact Us For Availability
12
BLOCK, FUSE MAY 4375231 Contact Us For Availability
12
MAY 8205678 MAY 8205678 Contact Us For Availability
13
MAY W10286173 MAY W10286173 Contact Us For Availability
13
GLASS, OUTER DOOR ASSY. (STAINLESS) MAY W10176184 Contact Us For Availability
13
GLASS, OUTER DOOR ASSY. (OIL BRONZE) MAY W10176224 Contact Us For Availability
13
GLASS, OUTER DOOR ASSY. (PRO-STYLE) MAY W10187006 Contact Us For Availability
13
GLASS, OUTER DOOR ASSY. (BLACK) MAY W10277593 Contact Us For Availability
13
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
13
BRACKET, SUPPORT MAY W10130897 Contact Us For Availability
13
DRIVE, TT MAY 8205677 Contact Us For Availability
14
MAY W10175989 MAY W10175989 Contact Us For Availability
14
MAY W10296505 MAY W10296505 Contact Us For Availability
14
MAY W10287986 MAY W10287986 Contact Us For Availability
14
COVER, PLATES MAY W10120230 Contact Us For Availability
15
MAY 8026P065-60 MAY 8026P065-60 Contact Us For Availability
15
MAY W10213803 MAY W10213803 Contact Us For Availability
15
MAY W10120113 MAY W10120113 Contact Us For Availability
15
MAY W10330573 MAY W10330573 Contact Us For Availability
16
MAY 7718P033-60 MAY 7718P033-60 Contact Us For Availability
16
MAY W10213722 MAY W10213722 Contact Us For Availability
16
STEAMER MAY W10120484 Contact Us For Availability
17
MAY W10175995 MAY W10175995 Contact Us For Availability
17
MAY W10176126 MAY W10176126 Contact Us For Availability
17
SPRING, LAMP MAY 4375319 Contact Us For Availability
17
RACK, CONVECTION MAY 4452220 Contact Us For Availability
18
MAY W10175996 MAY W10175996 Contact Us For Availability
18
MAY W10287974 MAY W10287974 Contact Us For Availability
18
MAY W10120486 MAY W10120486 Contact Us For Availability
19
INSULATION, FOIL MAY W10277580 Contact Us For Availability
19
MAY W10287972 MAY W10287972 Contact Us For Availability
19
RACK MAY W10120483 Contact Us For Availability
20
MAY W10213792 MAY W10213792 Contact Us For Availability
20
MAY W10287985 MAY W10287985 Contact Us For Availability
20
MAY W10120481 MAY W10120481 Contact Us For Availability
21
SWITCH, HI LIMIT MAY 7403P899-60 Contact Us For Availability
21
MAY W10305979 MAY W10305979 Contact Us For Availability
21
MAY W10330566 MAY W10330566 Contact Us For Availability
21
HEATER, GRILL MAY W10120226 Contact Us For Availability
22
MAY W10280325 MAY W10280325 Contact Us For Availability
22
ASM-INTERLOCK (INCLUDES HARNESS) MAY W10358241 Contact Us For Availability
23
MAY W10187003 MAY W10187003 Contact Us For Availability
23
MAY 4375320 MAY 4375320 Contact Us For Availability
24
MAY W10277588 MAY W10277588 Contact Us For Availability
24
MAY 4375318 MAY 4375318 Contact Us For Availability
25
TRIM, BOTTOM VENT (SS, PRO-STYLE) MAY W10176036 Contact Us For Availability
25
TRIM, BOTTOM VENT (BLACK/OIL BRONZE) MAY W10238700 Contact Us For Availability
25
CLIP, SPRING MAY W10120231 Contact Us For Availability
26
MAY W10277423 MAY W10277423 Contact Us For Availability
26
MAY W10277424 MAY W10277424 Contact Us For Availability
26
TRANFORMER, LIGHT MAY 8205692 Contact Us For Availability
28
LATCH, DOOR MAY W10213755 Contact Us For Availability
28
ASEMBLY, ARM MAY W10128850 Contact Us For Availability
29
BULB, OVEN MAY W10169757 Contact Us For Availability
30
MAY W10213745 MAY W10213745 Contact Us For Availability
31
MAY W10176018 MAY W10176018 Contact Us For Availability
31
MAY W10330570 MAY W10330570 Contact Us For Availability
33
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
33
MAY W10120478 MAY W10120478 Contact Us For Availability
34
MAY W10236129 MAY W10236129 Contact Us For Availability
35
SWITCH, OVEN LIMIT MAY W10277592 Contact Us For Availability
37
MAY W10330572 MAY W10330572 Contact Us For Availability
38
MAY W10120229 MAY W10120229 Contact Us For Availability
39
MAY W10130890 MAY W10130890 Contact Us For Availability
42
PLUNGER MAY W10120235 Contact Us For Availability
43
INTERLOCK MAY 8205683 Contact Us For Availability
45
SPRING MAY 8205704 Contact Us For Availability
46
NOT SERVICED MAY N/P Contact Us For Availability
47
MAY 8205686 MAY 8205686 Contact Us For Availability
48
ARM MAY W10120236 Contact Us For Availability
49
MAY W10475857 MAY W10475857 Contact Us For Availability
50
FAN, CONVECTION MAY 4375418 Contact Us For Availability
51
HEATER, CONVECTION MAY W10120224 Contact Us For Availability
52
MOTOR, CONVECTION MAY W10330571 Contact Us For Availability
53
MAY W10287987 MAY W10287987 Contact Us For Availability
NI
MAY W10175994 MAY W10175994 Contact Us For Availability
NI
MAY W10186989 MAY W10186989 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4454949 MAY 4454949 Contact Us For Availability
NI
ADHESIVE (SEALER, SILASTIC (3 OZ.) MAY 482338 Contact Us For Availability
NI
HARNESS, MEAT PROBE JACK MAY 5171P208-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
MAY W10017410 MAY W10017410 Contact Us For Availability
NI
MAY W10174375 MAY W10174375 Contact Us For Availability
NI
MAY W10174376 MAY W10174376 Contact Us For Availability
NI
MAY W10176182 MAY W10176182 Contact Us For Availability
NI
HARNESS, LATCH W/MEAT PROBE MAY W10209123 Contact Us For Availability
NI
JUMPER, THERMAL MAY W10277599 Contact Us For Availability
NI
HARNESS, COMM CMB POWER MAY W10277613 Contact Us For Availability
NI
MAY W10282791 MAY W10282791 Contact Us For Availability
× ![]()
