Model Whirlpool JMW3430WP01 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts &amp; Diagrams

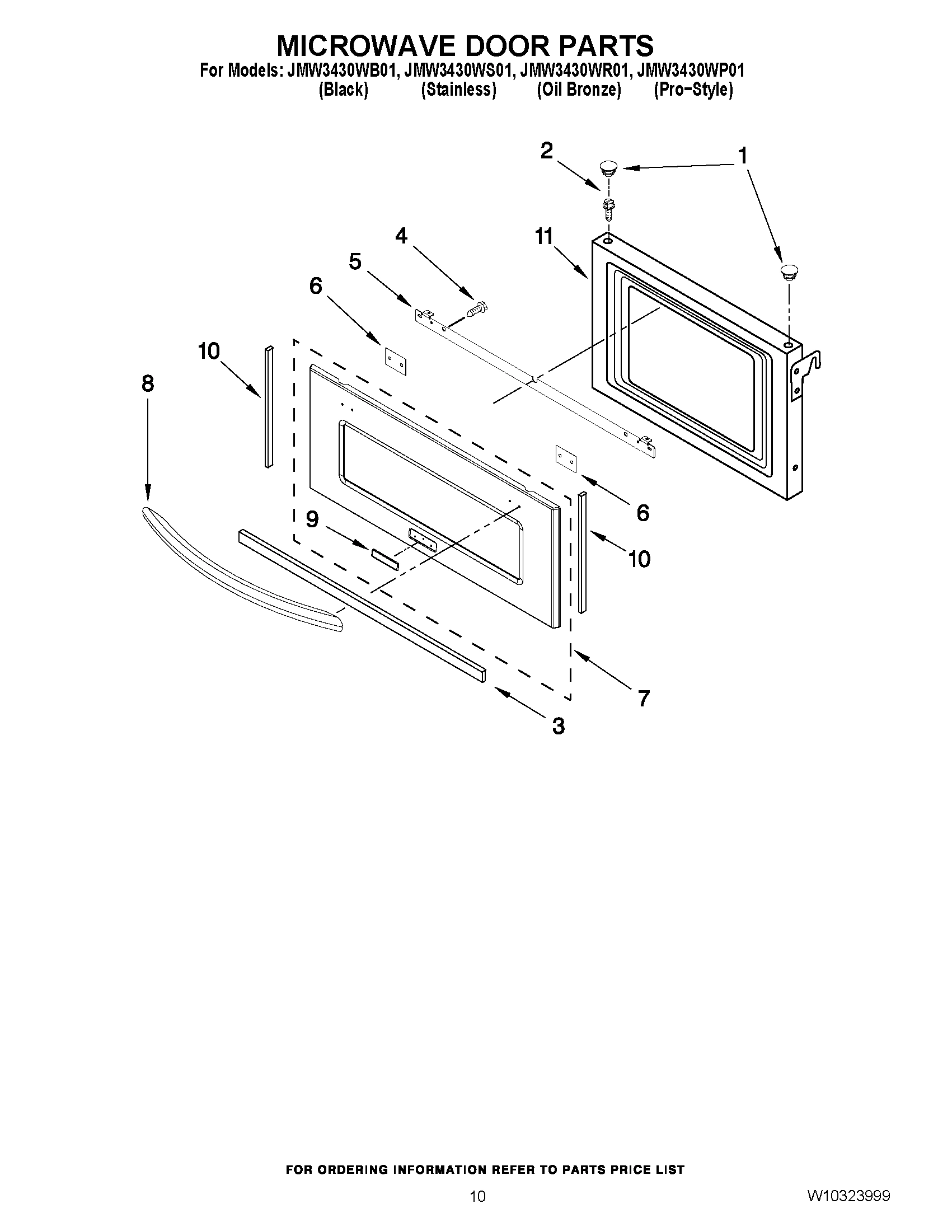

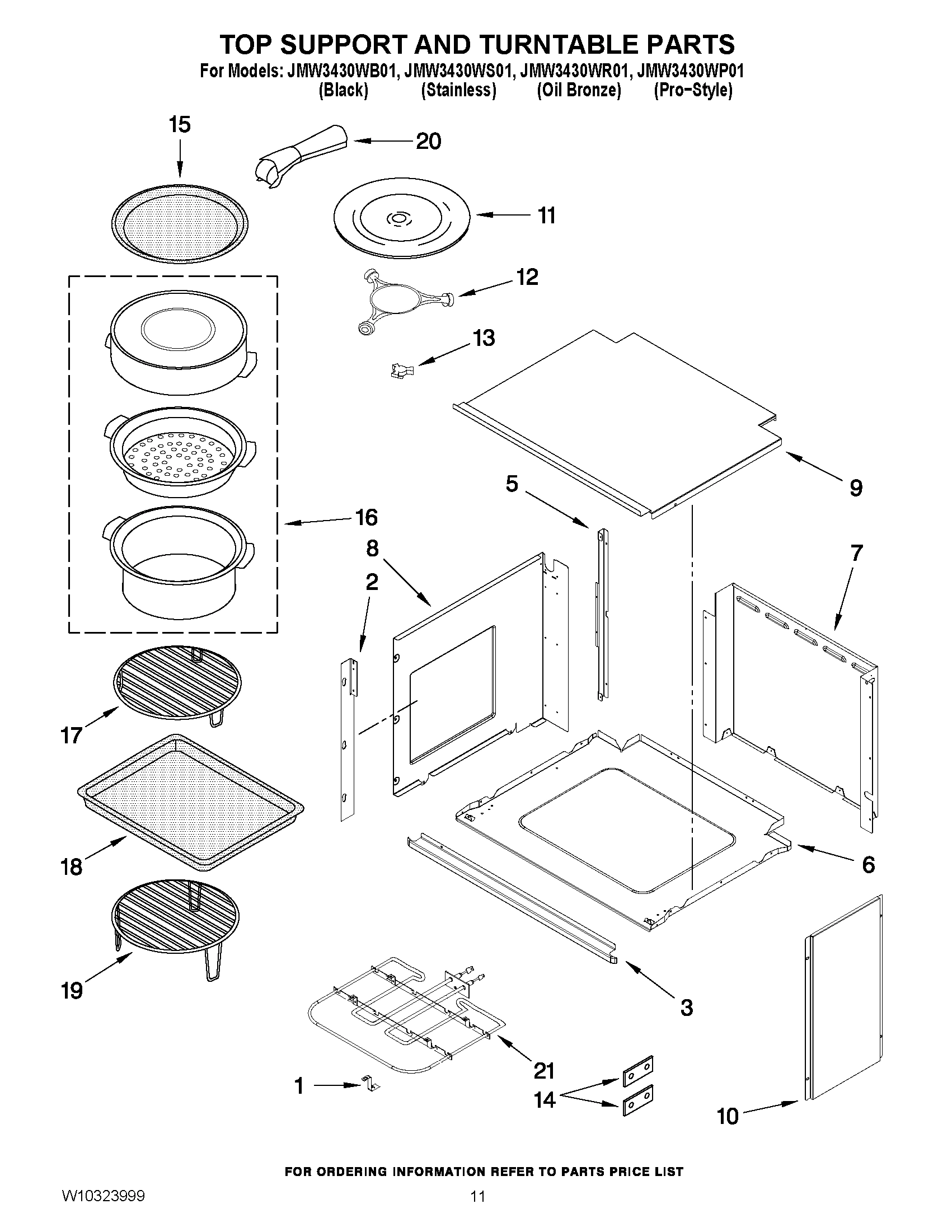

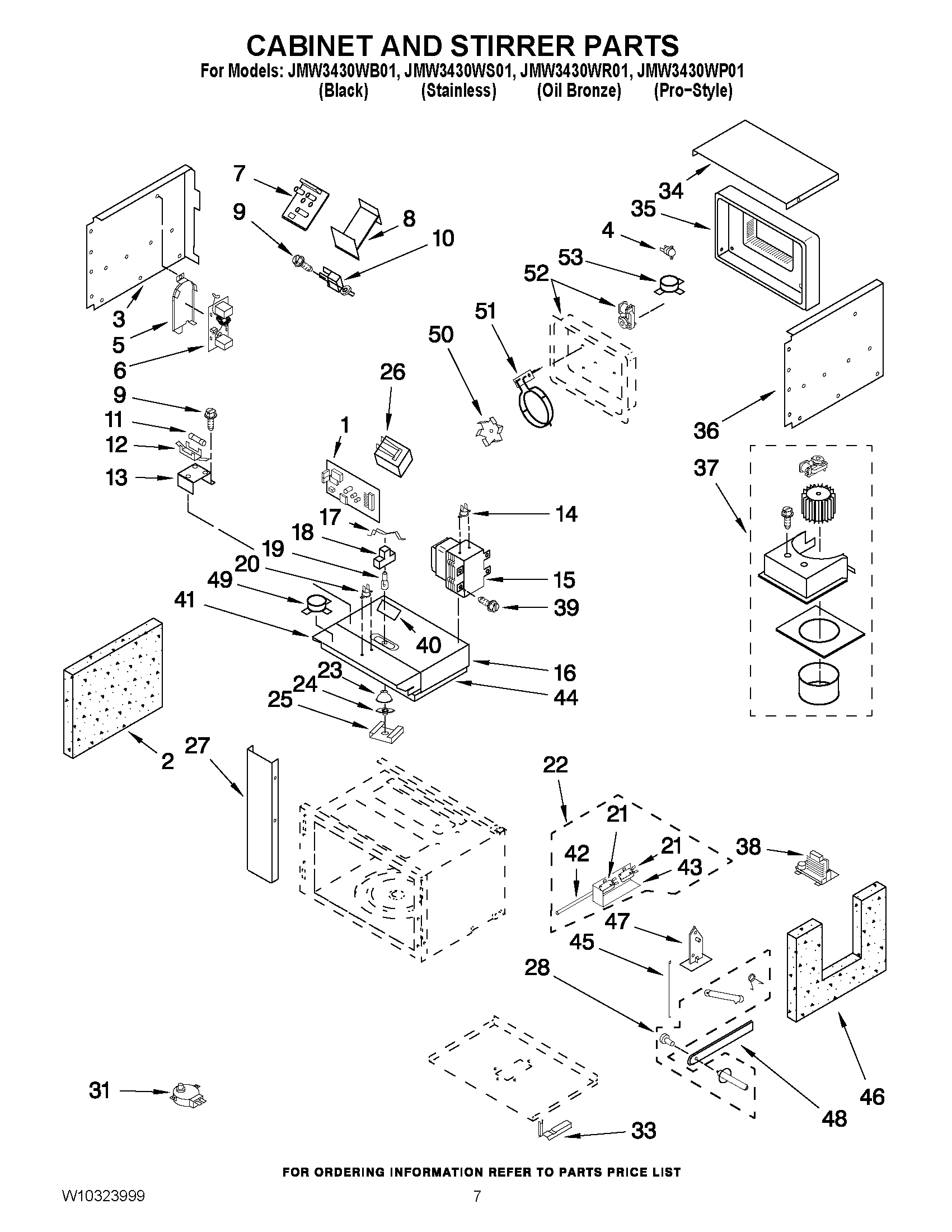

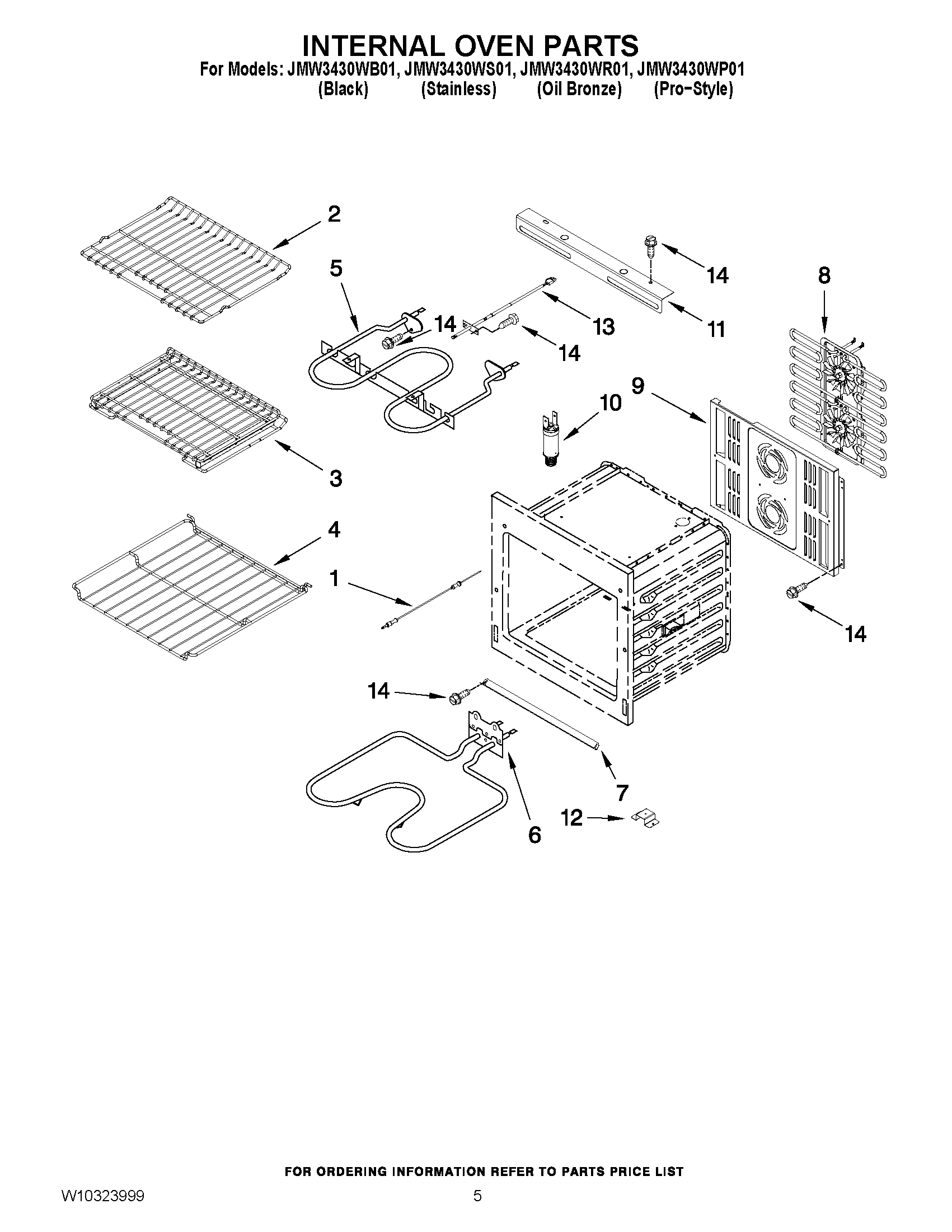

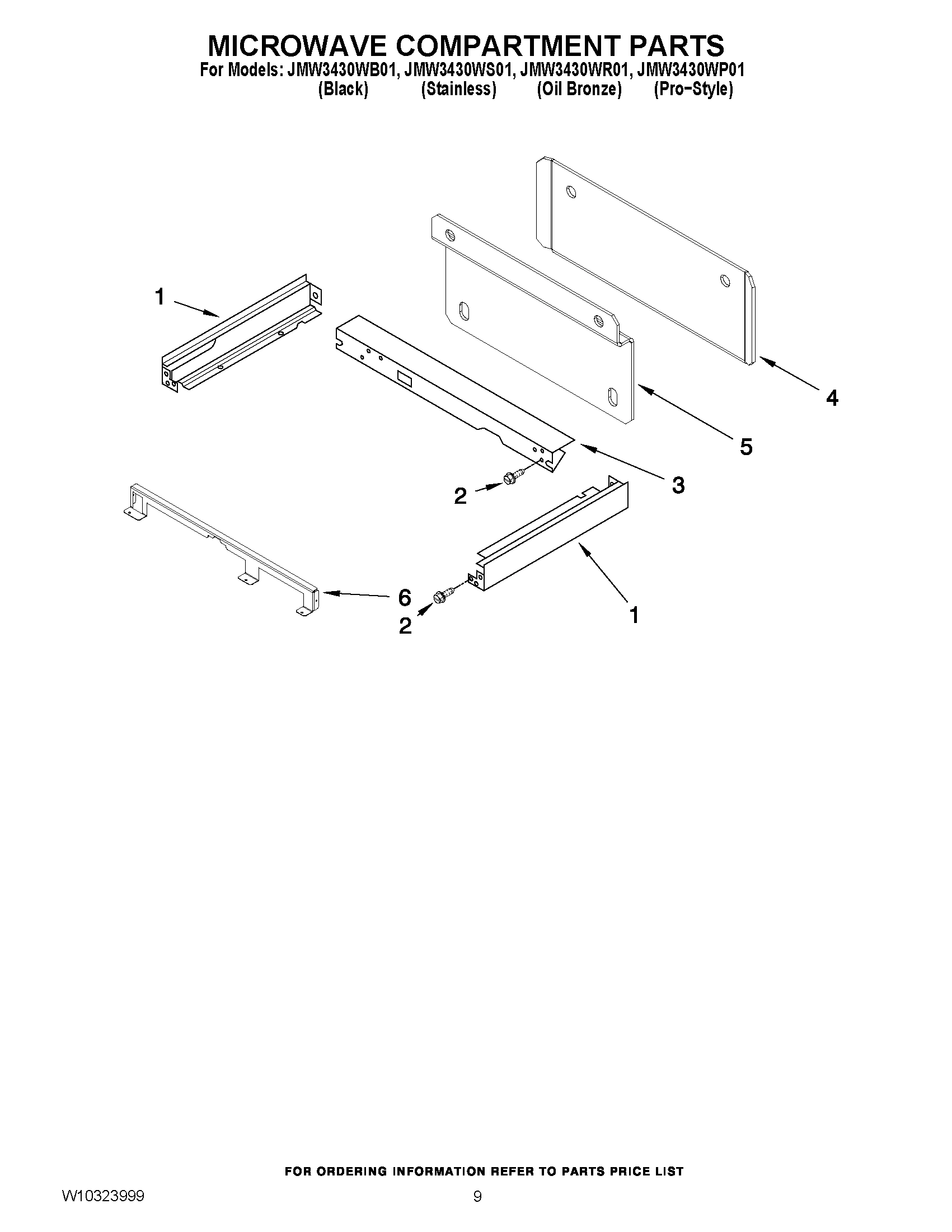

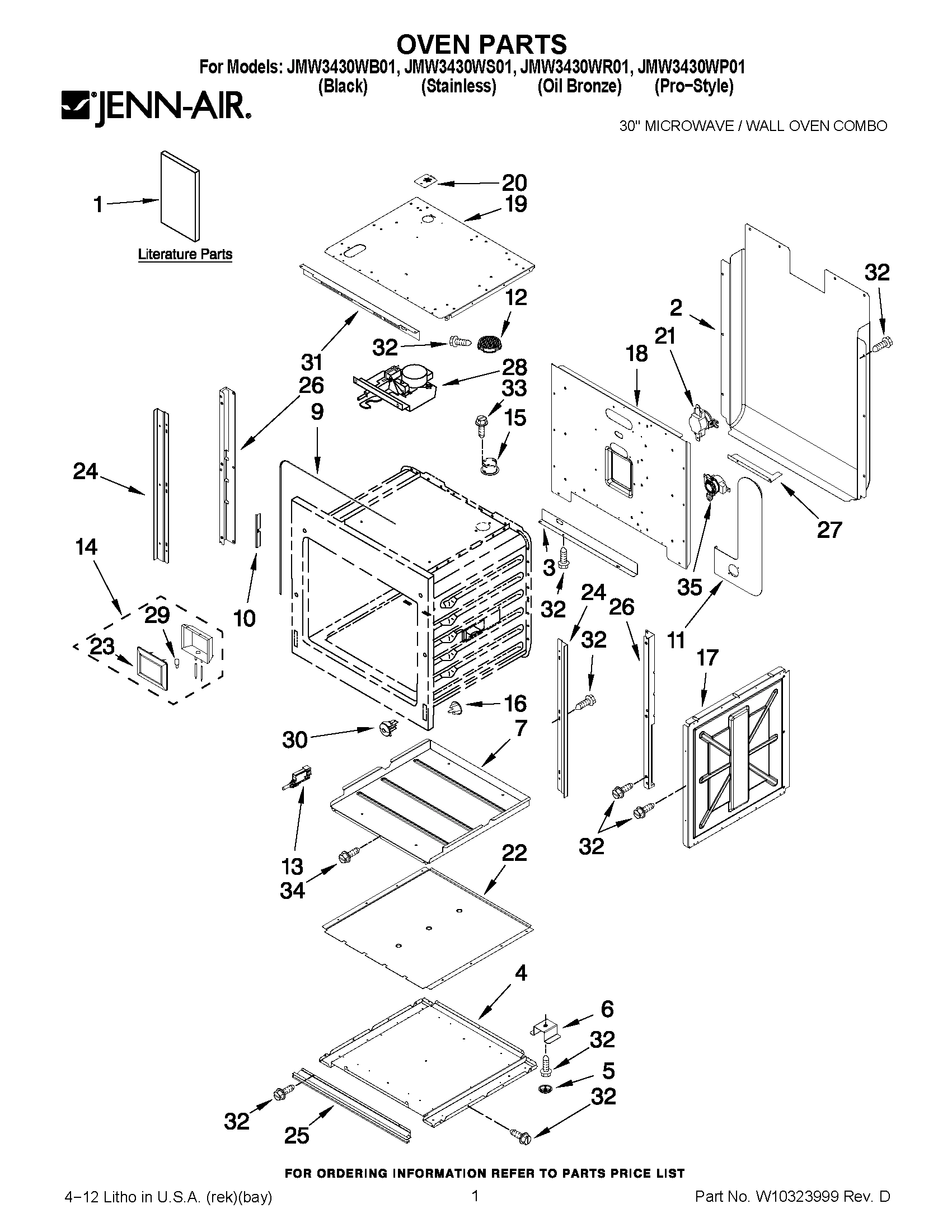

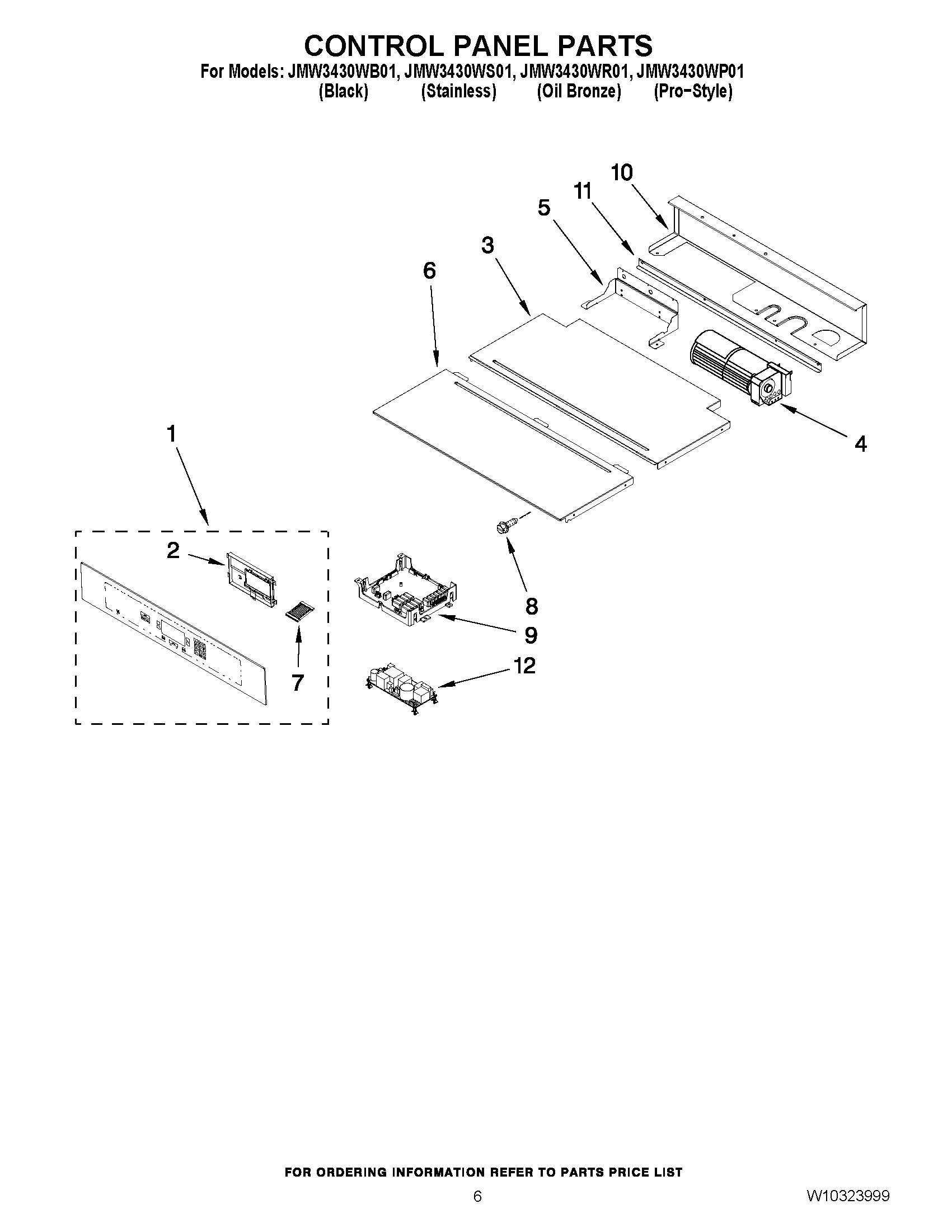

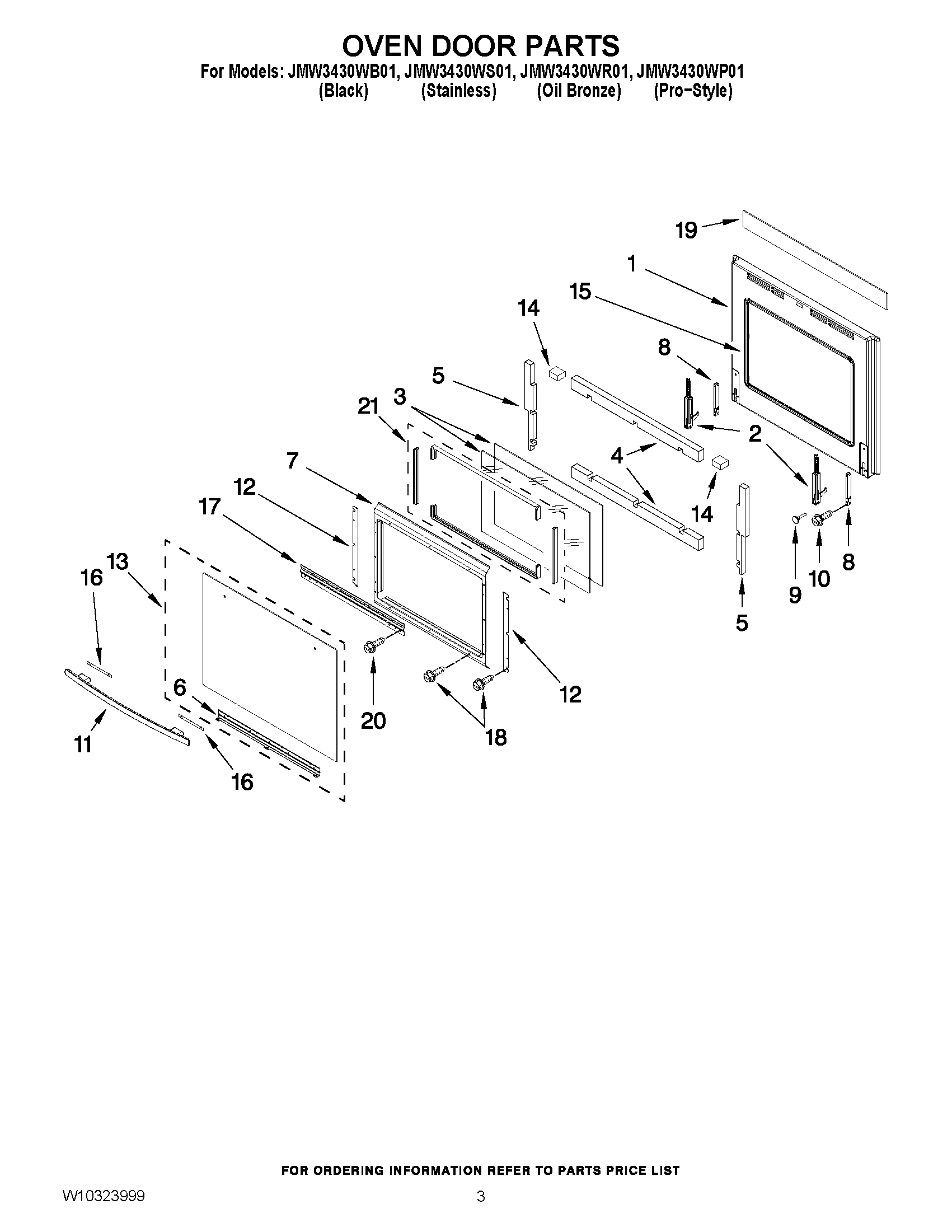

1

W11724411 Whirlpool Support In Stock WPL W11724411 $20.74

1

BUTTON-PLG Backorder WPL W11756840 $8.02

1

WPW10187019 Whirlpool Door Liner Backorder WPL WPW10187019 $192.04

1

APPLIANCE MANAGER MICROWAVE WPL W10350762 Contact Us For Availability

1

PROBE, MEAT WPL 7430P03860 Contact Us For Availability

1

ASSEMBLY, CONTROL PANEL (BLACK) WPL W10319321 Contact Us For Availability

1

ASSEMBLY, CONTROL PANEL (OIL BRONZE) WPL W10319323 Contact Us For Availability

1

SUPPORT RAILS (LEFT) WPL W10176189 Contact Us For Availability

2

HINGE, DOOR (BLACK/OIL BRONZE) WPL W10176157 Contact Us For Availability

2

RACK, BAKING WPL W10176138 Contact Us For Availability

2

HINGE, DOOR (SS, PRO-STYLE) WPL W10277751 Contact Us For Availability

2

SCREW WPL 7101P42660 Contact Us For Availability

2

ELECTRONIC CONTROL WPL W10316580 Contact Us For Availability

3

W10176094 Whirlpool Control Box Backorder WPL W10176094 $62.23

3

GLASS, INNER WPL W10176100 Contact Us For Availability

3

FOAM PAD WPL W10312432 Contact Us For Availability

3

RACK, ROLL-OUT WPL W10277572 Contact Us For Availability

3

VENT, TOP WPL W10486211 Contact Us For Availability

3

SUPPORT, REAR WPL W10176195 Contact Us For Availability

4

W10186985 Whirlpool Mounting Bracket Backorder WPL W10186985 $30.29

4

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $18.54

4

W11688417 Whirlpool Insulation Backorder WPL W11688417 $9.44

4

WPW10273667 Whirlpool Range Wall Oven Blower In Stock WPL WPW10273667 $151.26

4

RACK, OFFSET WPL W10186988 Contact Us For Availability

5

W10176199 Whirlpool Microwave Mount Bracket Backorder WPL W10176199 $14.59

5

W10186997 Whirlpool Mounting Bracket Backorder WPL W10186997 $33.80

5

WPW10184147 Whirlpool Broil Element Backorder WPL WPW10184147 $95.94

5

INSULATION, DOOR (VERTICAL) WPL W10273591 Contact Us For Availability

5

STOP, MICROWAVE WPL W10186986 Contact Us For Availability

6

W10176196 Whirlpool Support Backorder WPL W10176196 $36.92

6

W10314607 Whirlpool Door Pad Backorder WPL W10314607 $14.97

6

W10853613 Whirlpool Microwave Filter Backorder WPL W10853613 $148.87

6

WP7406P322-60 Whirlpool Bake Element Backorder WPL WP7406P322-60 $101.20

6

BRACKET, DOOR CLIP WPL W10176175 Contact Us For Availability

6

PANEL, FRONT WPL W10311703 Contact Us For Availability

7

CONTROL, ELECTRIC WIDE CONVERTER WPL W10120228 Contact Us For Availability

7

RETAINER, ELEMENT BAKE WPL 3807F67845 Contact Us For Availability

7

CABLE WPL W10175829 Contact Us For Availability

8

HANDLE, DOOR (STAINLESS) WPL W10186756 Contact Us For Availability

8

KIT, UNITY CONVECT WPL W10213812 Contact Us For Availability

8

HINGE, RECEIVER WPL W10175993 Contact Us For Availability

9

W10176060 Whirlpool Baffle Conversion Backorder WPL W10176060 $142.67

9

WPW10159578 Whirlpool Refrigerator Nameplate Backorder WPL WPW10159578 $45.33

9

WPW10214168 Whirlpool Refrigerator Nameplate Backorder WPL WPW10214168 $43.11

9

MANAGER, APPLIANCE WPL W10292566 Contact Us For Availability

9

GASKET WPL W10213818 Contact Us For Availability

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $32.21

W10176218 Whirlpool Retainer Backorder WPL W10176218 $5.93

W10209070 Whirlpool Door Pad Backorder WPL W10209070 $68.66

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.60

RECEPTACLE, MEAT PROBE WPL 7408P08860 Contact Us For Availability

BRACKET, 2ND BLOWER WPL W10186983 Contact Us For Availability

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $57.04

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.75

DOOR, INNER WPL W10288012 Contact Us For Availability

SUPPORT, BROIL ELEMENT WPL 3807F75445 Contact Us For Availability

BRACKET, WIRE SUPPORT WPL W10291274 Contact Us For Availability

12

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $32.78

12

WPW10286791-includeCORE Whirlpool WPW10286791 Backorder WPL WPW10286791-includeCORE $224.21

12

BRACKET, SUPPORT (HIDDEN BAKE) WPL 3801F82351 Contact Us For Availability

13

GLASS, OUTER DOOR ASSY. (PRO-STYLE) WPL W10187006 Contact Us For Availability

13

SWITCH, MICRO WPL W10286173 Contact Us For Availability

13

PROBE, SENSOR WPL 7430P04360 Contact Us For Availability

14

W10175989 Whirlpool Oven Light In Stock WPL W10175989 $57.21

14

W10915651 Whirlpool Waveguide Cover In Stock WPL W10915651 $28.16

14

W11233913 Whirlpool Microwave Sensor In Stock WPL W11233913 $64.45

15

W11346197 Whirlpool Magnetron In Stock WPL W11346197 $152.16

15

W11512490 Whirlpool Cookware Backorder WPL W11512490 $47.50

15

GLASS, CAVITY WPL W10213803 Contact Us For Availability

17

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $70.11

17

W10176126 Whirlpool Mounting Bracket Backorder WPL W10176126 $63.06

19

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $13.53

19

W11175831 Whirlpool Microwave Rack Backorder WPL W11175831 $17.59

20

W10267047 Whirlpool Screw Backorder WPL W10267047 $9.96

20

W10287985 Whirlpool Microwave Thermostat Fix Backorder WPL W10287985 $44.40

21

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $31.29

22

W11033422 Whirlpool Microwave Interlock In Stock WPL W11033422 $118.33

23

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $37.91

24

W10277588 Whirlpool Side Trim Backorder WPL W10277588 $67.06

24

W11193483 Whirlpool Microwave Lamp Lens Backorder WPL W11193483 $42.09

25

W10238700 Whirlpool Trim Vent Backorder WPL W10238700 $79.13

25

W11440819 Whirlpool Clip Backorder WPL W11440819 $11.17

25

WPW10176036 Whirlpool Vent Trim Backorder WPL WPW10176036 $97.55

26

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $143.56

28

WPW10128850 Whirlpool Microwave Arm Backorder WPL WPW10128850 $49.36

28

WPW10213755 Whirlpool Door Latch Backorder WPL WPW10213755 $197.60

29

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $25.07

30

W10213745 Whirlpool Switch Housing Backorder WPL W10213745 $6.99

35

W10277592 Whirlpool Thermostat Assembly Backorder WPL W10277592 $45.73

37

W11344874 Whirlpool Microwave Fan Motor In Stock WPL W11344874 $85.71

42

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $4.47

43

WP8205683 Whirlpool Microwave Interlock In Stock WPL WP8205683 $39.94

45

W11700292 Whirlpool Spring Backorder WPL W11700292 $30.93

47

W11684510 Whirlpool Support Backorder WPL W11684510 $5.59

48

W11214480 Whirlpool Microwave Arm Backorder WPL W11214480 $40.76

49

W11699906 Whirlpool Sensor Backorder WPL W11699906 $57.49

50

W11512064 Whirlpool Microwave Fan In Stock WPL W11512064 $70.35

52

W11534564 Whirlpool Microwave Convection Moto Backorder WPL W11534564 $41.76

53

W11208292 Whirlpool Microwave Sensor Backorder WPL W11208292 $68.32

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $33.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

W10174375 Whirlpool Wire Harness Backorder WPL W10174375 $48.77

W10174376 Whirlpool Wire Harness Backorder WPL W10174376 $275.54

W10209123 Whirlpool Wire Harness Backorder WPL W10209123 $69.35

W10277613 Whirlpool Harness Wire Backorder WPL W10277613 $30.29

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $27.40

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $7.05

INSULATION, WRAP WPL W10186989 Contact Us For Availability
