Model Maytag JMW2427WW02 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

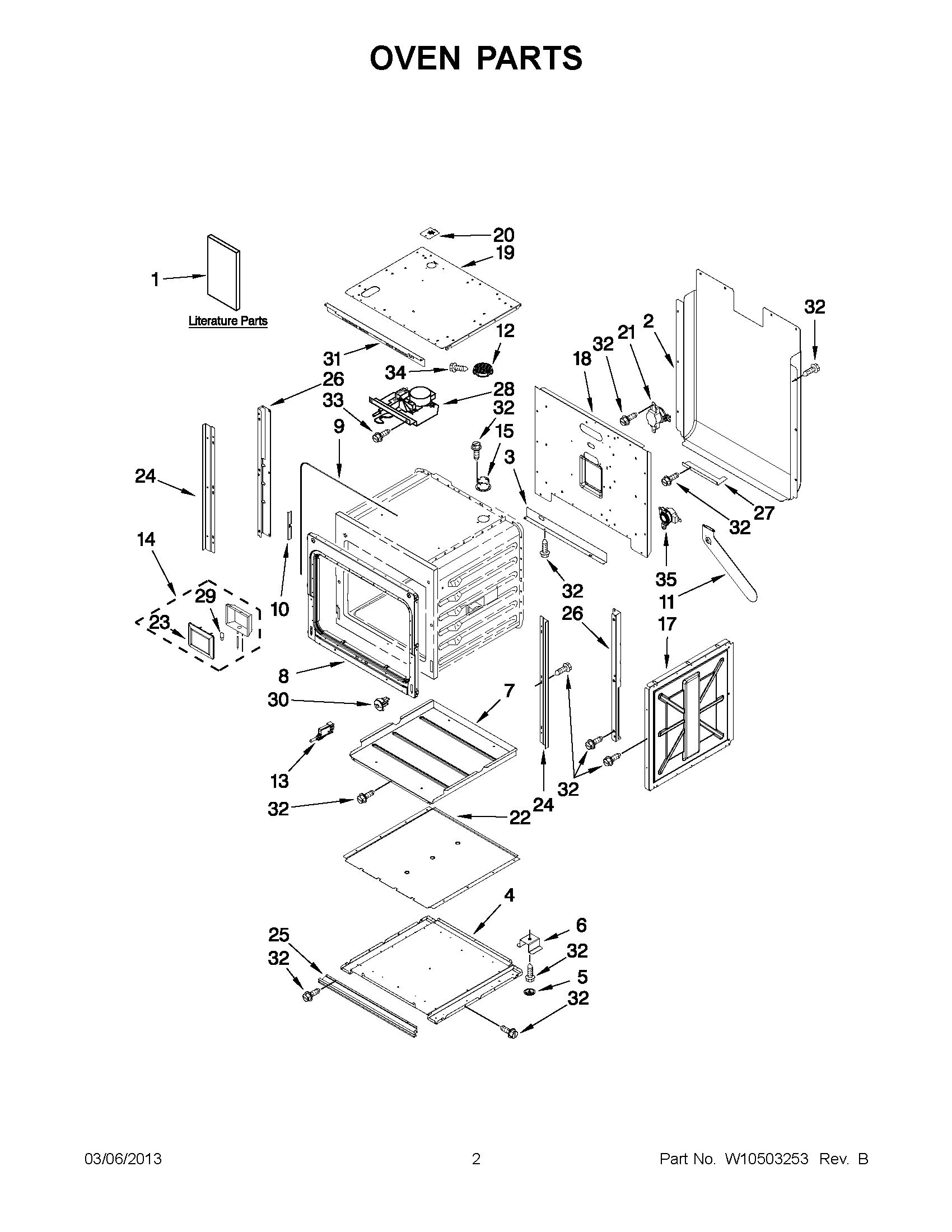

01 - OVEN PARTS

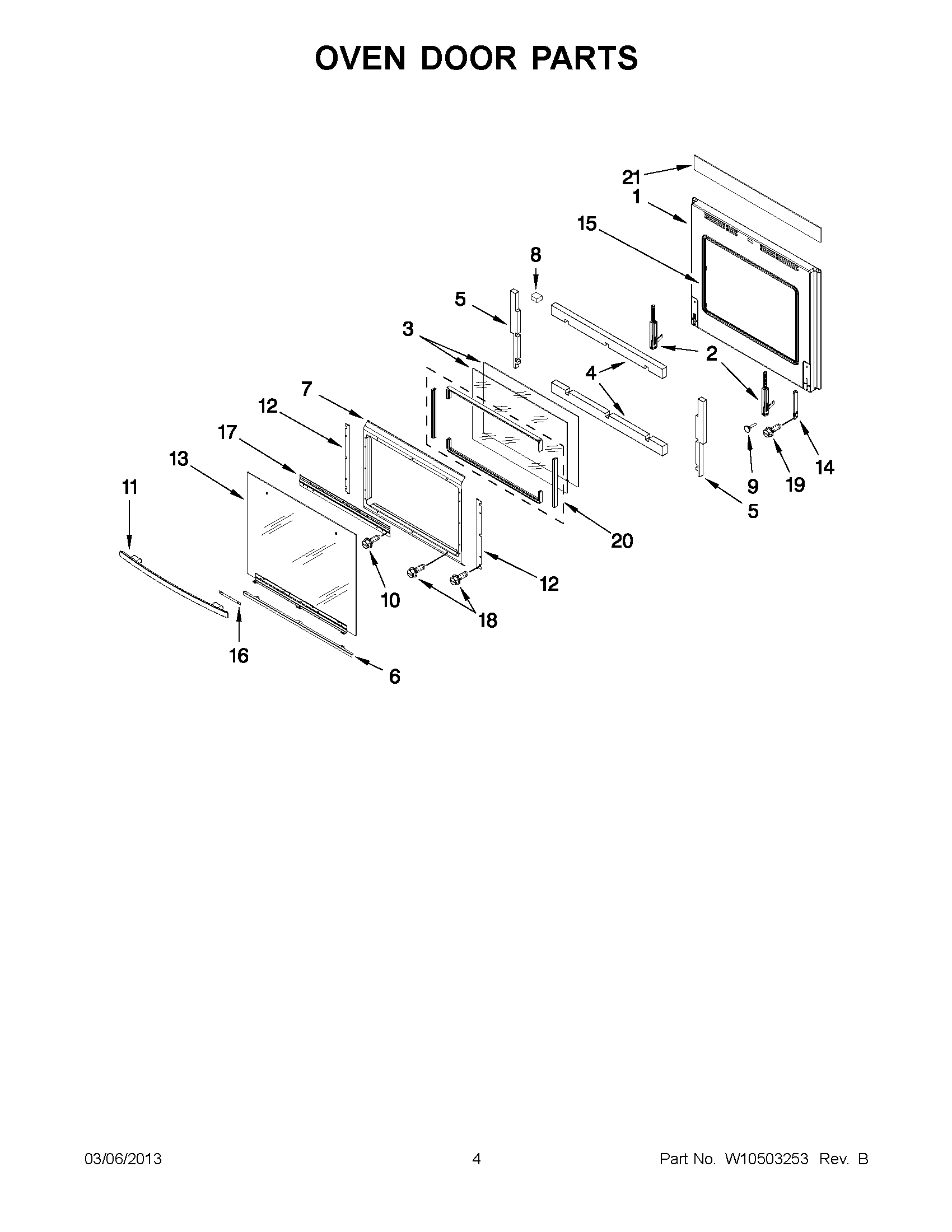

02 - OVEN DOOR PARTS

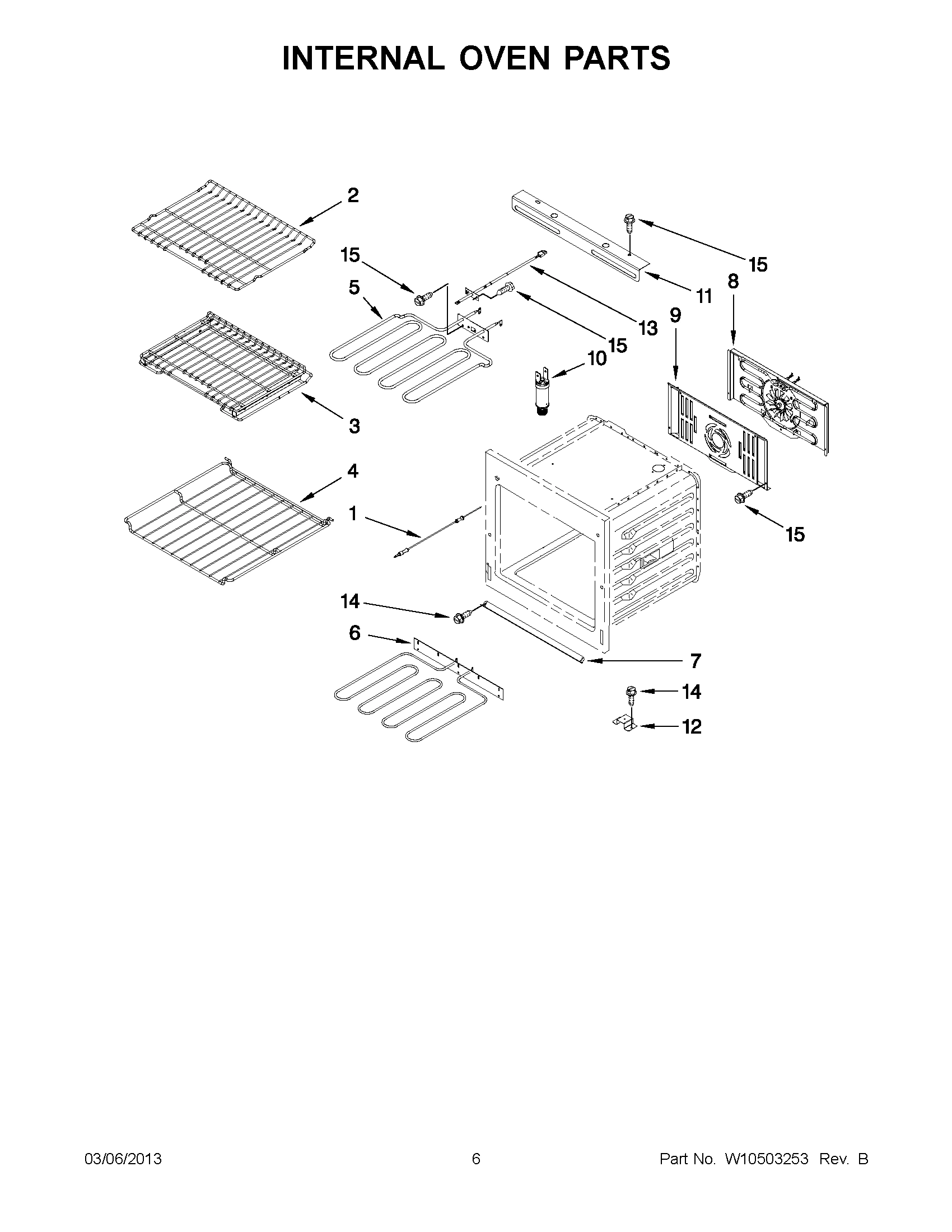

03 - INTERNAL OVEN PARTS

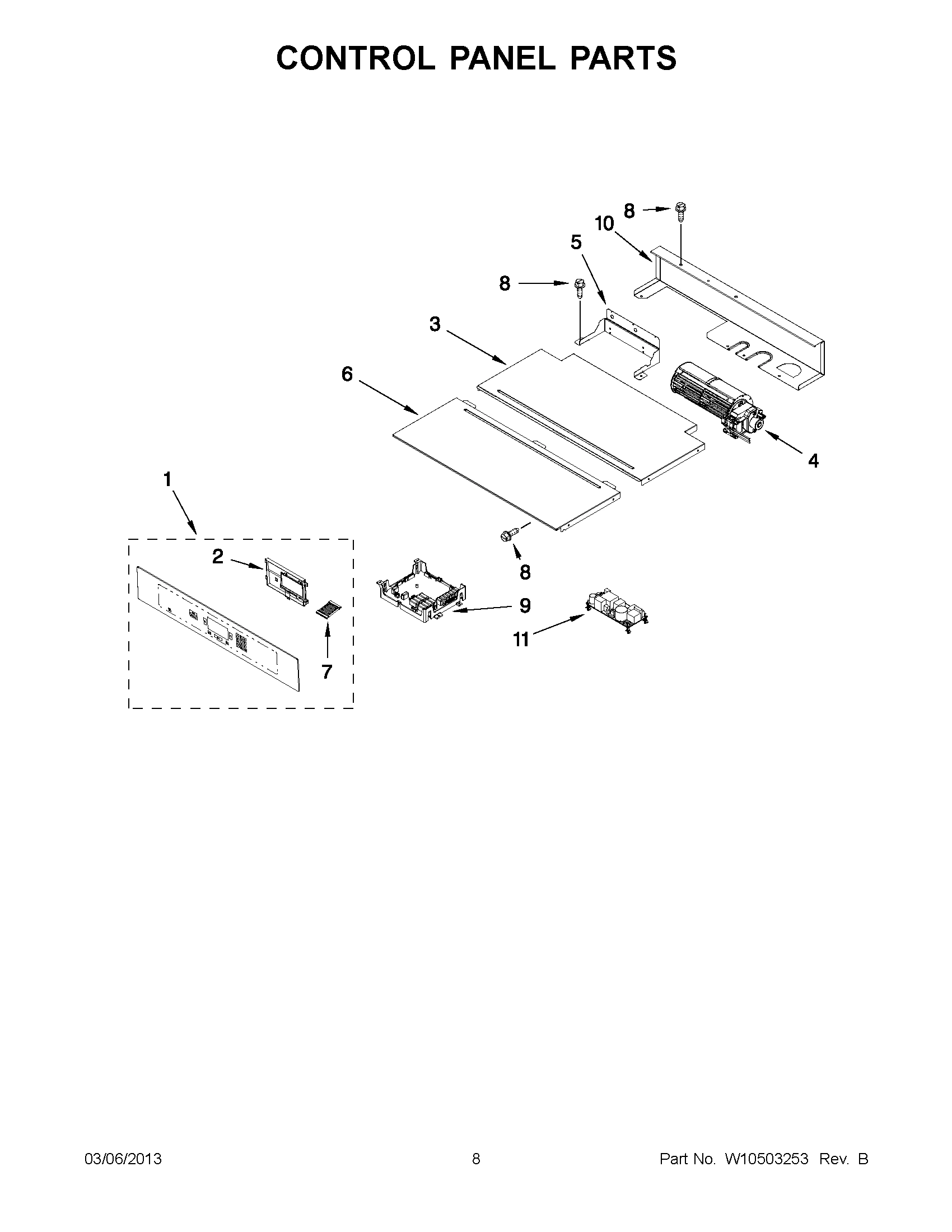

04 - CONTROL PANEL PARTS

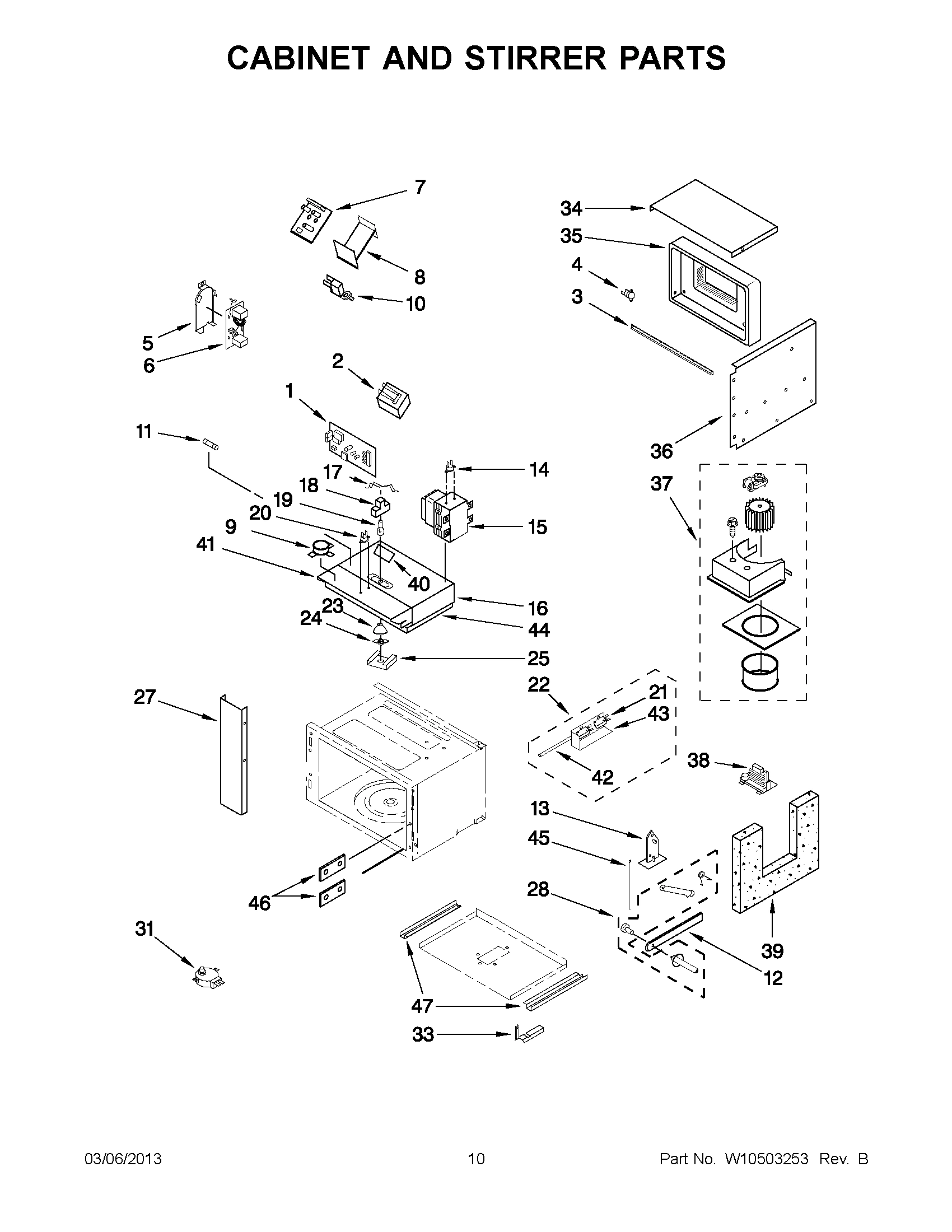

05 - CABINET AND STIRRER PARTS

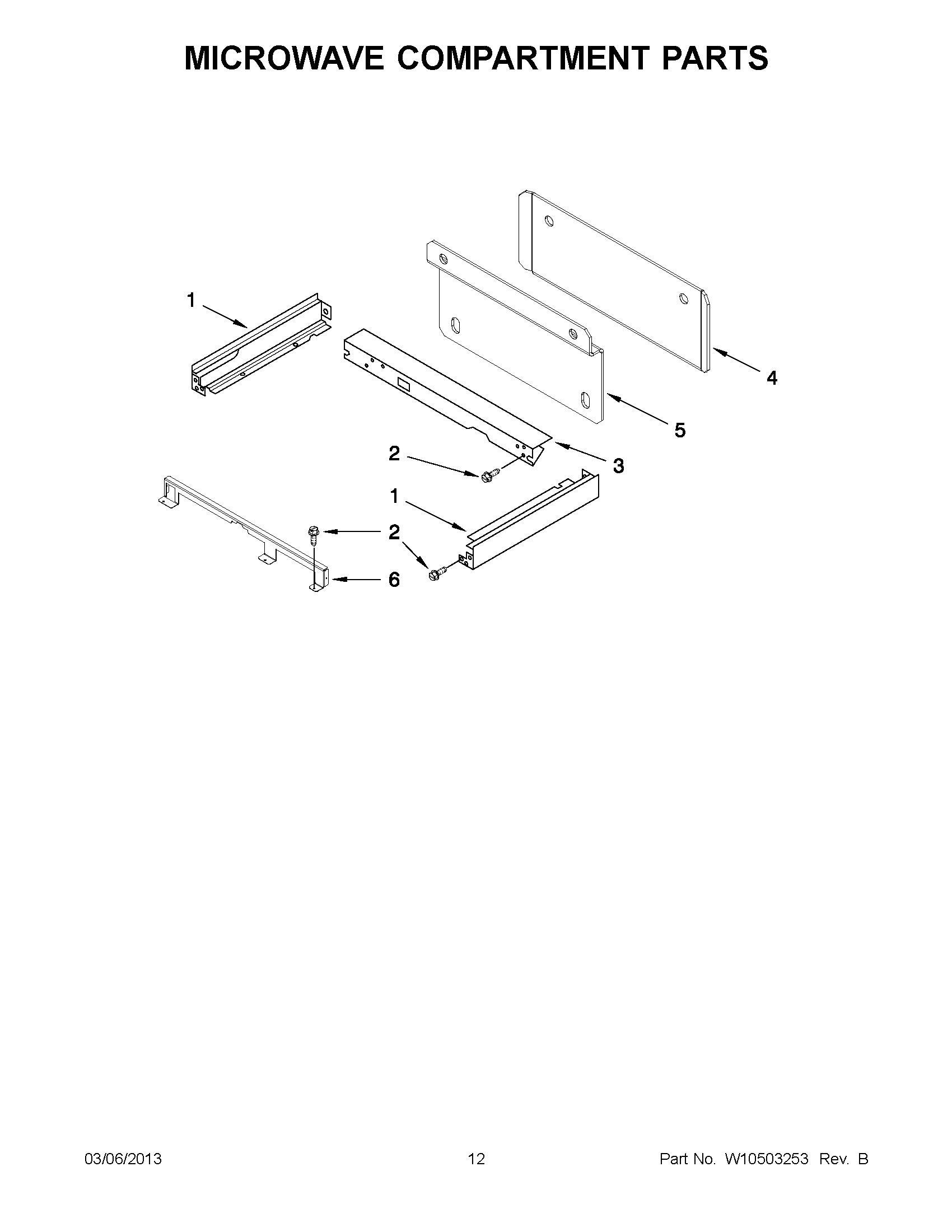

06 - MICROWAVE COMPARTMENT PARTS

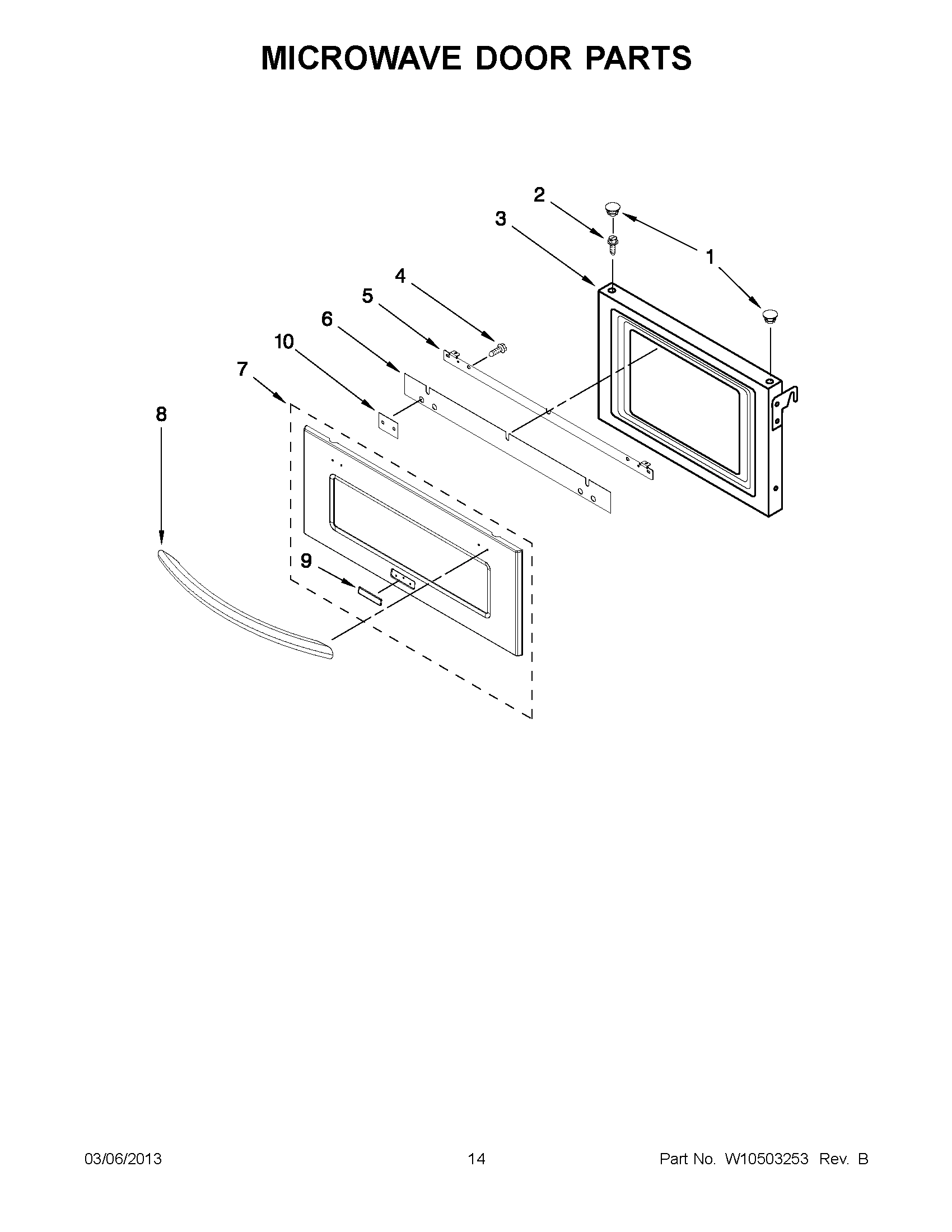

07 - MICROWAVE DOOR PARTS

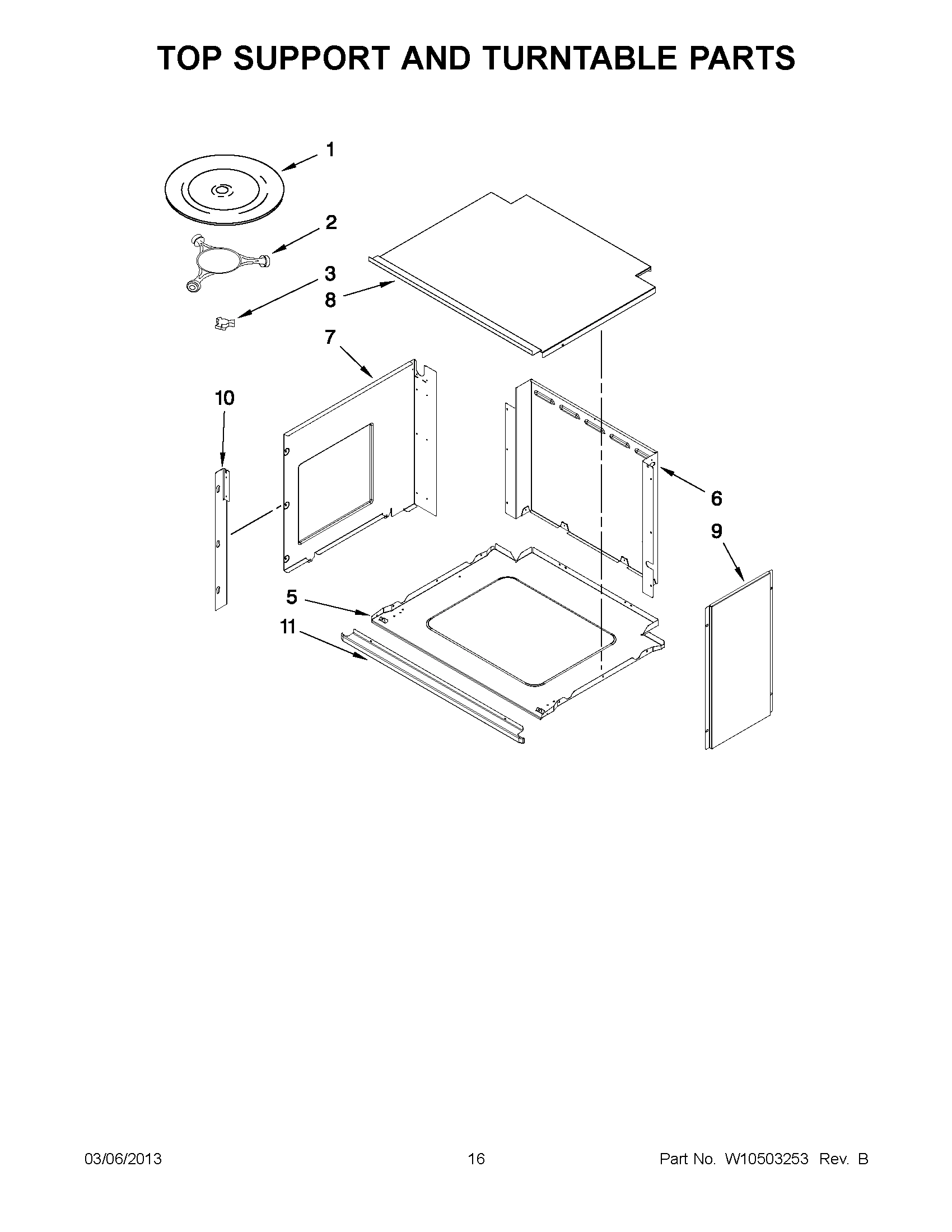

08 - TOP SUPPORT AND TURNTABLE PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JMW2427WW02 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS (BI-LINGUAL) MAY W10075750 Contact Us For Availability
1
MAY W10213735 MAY W10213735 Contact Us For Availability
1
MAY W10213736 MAY W10213736 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10221384 Contact Us For Availability
1
USE AND CARE GUIDE (MICROWAVE) MAY W10221391 Contact Us For Availability
1
MAY W10450584 MAY W10450584 Contact Us For Availability
1
MAY W10187020 MAY W10187020 Contact Us For Availability
1
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
1
MAY W10344089 MAY W10344089 Contact Us For Availability
1
MAY W10344090 MAY W10344090 Contact Us For Availability
1
MAY W10344115 MAY W10344115 Contact Us For Availability
1
MAY W10350762 MAY W10350762 Contact Us For Availability
1
SUPPORT RAILS (LEFT HAND) MAY W10209044 Contact Us For Availability
1
SUPPORT RAILS (RIGHT HAND) MAY W10209045 Contact Us For Availability
1
MAY 8304588BL MAY 8304588BL Contact Us For Availability
1
TRAY-COOK MAY 8205676 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
2
HINGE, DOOR (BLACK AND WHITE MODEL) MAY W10186751 Contact Us For Availability
2
HINGE, DOOR (STAINLESS MODEL) MAY W10277752 Contact Us For Availability
2
MAY W10176139 MAY W10176139 Contact Us For Availability
2
ASSEMBLY, USER INTERFACE MAY W10344083 Contact Us For Availability
2
TRANSFORMER MAY 8205692 Contact Us For Availability
2
RING, TURNTABLE MAY 8205678 Contact Us For Availability
3
MAY 3601F343-51 MAY 3601F343-51 Contact Us For Availability
3
GLASS, INNER MAY W10176101 Contact Us For Availability
3
MAY W10445854 MAY W10445854 Contact Us For Availability
3
MAY W10176095 MAY W10176095 Contact Us For Availability
3
MAY W10291274 MAY W10291274 Contact Us For Availability
3
MAY W10176195 MAY W10176195 Contact Us For Availability
3
DOOR, MICROWAVE INNER MAY W10288011 Contact Us For Availability
3
MAY 8205677 MAY 8205677 Contact Us For Availability
4
MAY W10280326 MAY W10280326 Contact Us For Availability
4
MAY W10273677 MAY W10273677 Contact Us For Availability
4
MAY W10267047 MAY W10267047 Contact Us For Availability
4
MAY W10186987 MAY W10186987 Contact Us For Availability
4
MAY W10273667 MAY W10273667 Contact Us For Availability
4
MAY W10120223 MAY W10120223 Contact Us For Availability
4
MAY W10186985 MAY W10186985 Contact Us For Availability
5
FOOT, PLASTIC MAY 8038P035-60 Contact Us For Availability
5
MAY W10273591 MAY W10273591 Contact Us For Availability
5
MAY W10314708 MAY W10314708 Contact Us For Availability
5
MAY W10186997 MAY W10186997 Contact Us For Availability
5
MAY W10186986 MAY W10186986 Contact Us For Availability
5
MAY W10176199 MAY W10176199 Contact Us For Availability
5
MAY W10281179 MAY W10281179 Contact Us For Availability
5
MAY W10176063 MAY W10176063 Contact Us For Availability
6
MAY W10213759 MAY W10213759 Contact Us For Availability
6
MAY W10186984 MAY W10186984 Contact Us For Availability
6
BRACKET, DOOR CLIP MAY W10176176 Contact Us For Availability
6
MAY W10314698 MAY W10314698 Contact Us For Availability
6
MAY W10311707 MAY W10311707 Contact Us For Availability
6
MAY W10287966 MAY W10287966 Contact Us For Availability
6
MAY W10176196 MAY W10176196 Contact Us For Availability
6
MAY W10209071 MAY W10209071 Contact Us For Availability
6
MAY W10312432 MAY W10312432 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
RETAINER, DOOR GLASS MAY W10176105 Contact Us For Availability
7
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
7
CABLE, USER INTERFACE MAY W10175829 Contact Us For Availability
7
CONTROL, ELECTRIC CONVERTER MAY W10120228 Contact Us For Availability
7
MAY W10176229 MAY W10176229 Contact Us For Availability
7
MAY W10176230 MAY W10176230 Contact Us For Availability
7
MAY W10269424 MAY W10269424 Contact Us For Availability
7
MAY W10176064 MAY W10176064 Contact Us For Availability
7
MAY W10176065 MAY W10176065 Contact Us For Availability
8
MAY W10186993 MAY W10186993 Contact Us For Availability
8
PANEL, TOP RETAINER MAY W10175999 Contact Us For Availability
8
MAY W10296505 MAY W10296505 Contact Us For Availability
8
MAY W10186758 MAY W10186758 Contact Us For Availability
8
MAY W10186759 MAY W10186759 Contact Us For Availability
8
MAY W10186760 MAY W10186760 Contact Us For Availability
8
KIT, UNITY CONVECTION MAY W10213813 Contact Us For Availability
9
MAY W10213819 MAY W10213819 Contact Us For Availability
9
MAY W10176233 MAY W10176233 Contact Us For Availability
9
MAY W10186795 MAY W10186795 Contact Us For Availability
9
MANAGER, APPLIANCE MAY W10292566 Contact Us For Availability
9
MAY W10475857 MAY W10475857 Contact Us For Availability
9
BADGE (WHITE) MAY W10190723 Contact Us For Availability
9
BADGE (BLACK) MAY W10190724 Contact Us For Availability
9
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
9
MAY W10176066 MAY W10176066 Contact Us For Availability
10
MAY W10176218 MAY W10176218 Contact Us For Availability
10
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
10
MAY W10186983 MAY W10186983 Contact Us For Availability
10
MAY 4375427 MAY 4375427 Contact Us For Availability
10
MAY W10314607 MAY W10314607 Contact Us For Availability
10
TRIM, SIDE MICROWAVE (LEFT HAND) MAY W10486167 Contact Us For Availability
10
TRIM, SIDE MICROWAVE (RIGHT HAND) MAY W10486170 Contact Us For Availability
11
ASSEMBLY, BOX VENT MAY 4006W218-45 Contact Us For Availability
11
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
11
SUPPLY, POWER MAY W10286791 Contact Us For Availability
11
MAY 4375321 MAY 4375321 Contact Us For Availability
11
MAY W10486183 MAY W10486183 Contact Us For Availability
12
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
12
MAY W10186882 MAY W10186882 Contact Us For Availability
12
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
12
ARM, SLIDING MAY W10120236 Contact Us For Availability
13
MAY W10286173 MAY W10286173 Contact Us For Availability
13
GLASS, OUTER DOOR ASSEMBLY (STAINLESS) MAY W10176228 Contact Us For Availability
13
GLASS, OUTER DOOR ASSEMBLY (BLACK) MAY W10277595 Contact Us For Availability
13
GLASS, OUTER DOOR ASSEMBLY (WHITE) MAY W10277596 Contact Us For Availability
13
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
13
MAY 8205686 MAY 8205686 Contact Us For Availability
14
MAY W10175989 MAY W10175989 Contact Us For Availability
14
MAY W10175993 MAY W10175993 Contact Us For Availability
14
MAY W10287986 MAY W10287986 Contact Us For Availability
15
MAY 8026P066-60 MAY 8026P066-60 Contact Us For Availability
15
MAY W10236129 MAY W10236129 Contact Us For Availability
15
MAY W10213804 MAY W10213804 Contact Us For Availability
15
MAY W10120113 MAY W10120113 Contact Us For Availability
16
PAD, HANDLE (SPACER STAINLESS MODEL ONLY) MAY W10176201 Contact Us For Availability
16
PAD, HANDLE (SPACER BLACK AND WHITE MODEL) MAY W10213722 Contact Us For Availability
17
MAY W10175995 MAY W10175995 Contact Us For Availability
17
MAY W10176126 MAY W10176126 Contact Us For Availability
17
MAY W10475855 MAY W10475855 Contact Us For Availability
18
MAY W10213725 MAY W10213725 Contact Us For Availability
18
HOUSING, LAMP MAY 8205658 Contact Us For Availability
19
MAY W10254050 MAY W10254050 Contact Us For Availability
19
LAMP, HALOGEN MAY W10287972 Contact Us For Availability
20
MAY W10213792 MAY W10213792 Contact Us For Availability
20
MAY W10305979 MAY W10305979 Contact Us For Availability
20
MAY W10287987 MAY W10287987 Contact Us For Availability
21
SWITCH, HIGH LIMIT MAY 7403P899-60 Contact Us For Availability
21
MAY W10277580 MAY W10277580 Contact Us For Availability
21
MAY W10330566 MAY W10330566 Contact Us For Availability
22
CHANNEL, BOTTOM AIR MAY W10280323 Contact Us For Availability
22
ASSEMBLY, INTERLOCK MAY W10358246 Contact Us For Availability
23
MAY W10187003 MAY W10187003 Contact Us For Availability
23
MAY 4375320 MAY 4375320 Contact Us For Availability
24
MAY W10277588 MAY W10277588 Contact Us For Availability
24
MAY 4375318 MAY 4375318 Contact Us For Availability
25
MAY W10176037 MAY W10176037 Contact Us For Availability
25
MAY W10238701 MAY W10238701 Contact Us For Availability
25
CLIP, SPRING MAY W10120231 Contact Us For Availability
26
BRACKET, REINFORCEMENT LEFT HAND MAY W10277423 Contact Us For Availability
26
BRACKET, REINFORCEMENT RIGHT HAND MAY W10277424 Contact Us For Availability
28
LATCH, DOOR LOCK MAY W10213755 Contact Us For Availability
28
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
29
MAY W10169757 MAY W10169757 Contact Us For Availability
30
FRAME, MICRO SWITCH MAY W10213745 Contact Us For Availability
31
TRIM, CONTROL PANEL MAY W10176019 Contact Us For Availability
31
MAY W10287967 MAY W10287967 Contact Us For Availability
33
MAY W10236043 MAY W10236043 Contact Us For Availability
33
MAY W10120478 MAY W10120478 Contact Us For Availability
35
MAY W10277609 MAY W10277609 Contact Us For Availability
37
ASSEMBLY, BLOWER MAY W10330572 Contact Us For Availability
38
MAY W10120229 MAY W10120229 Contact Us For Availability
42
MAY W10120235 MAY W10120235 Contact Us For Availability
43
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
44
NOT SERVICED MAY N/P Contact Us For Availability
45
MAY 8205704 MAY 8205704 Contact Us For Availability
46
COVER, PLATES MAY W10120230 Contact Us For Availability
47
MAY 8205707 MAY 8205707 Contact Us For Availability
NI
MAY W10186990 MAY W10186990 Contact Us For Availability
NI
MAY W10213747 MAY W10213747 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
WIRING HARNESS PARTS, HOLDER, FUSE MAY 4454949 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MEAT PROBE JAC MAY 5171P208-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, WASHER (RUBBER) MAY 7109P085-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
WIRING HARNESS PARTS, FUSE, TIME DELAY MAY W10017410 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SIGNAL EXTENDE MAY W10174375 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY W10174756 Contact Us For Availability
NI
WIRING HARNESS PARTS, CONDUIT, COMBO MAY W10176182 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, LATCH W/ MEAT MAY W10209123 Contact Us For Availability
NI
MAY W10277590 MAY W10277590 Contact Us For Availability
NI
MAY W10277613 MAY W10277613 Contact Us For Availability
NI
WIRING HARNESS PARTS, MICROSWITCH ( SDT-S-124 MAY W10288001 Contact Us For Availability
NI
WIRING HARNESS PARTS, MICROSWITCH ( G5G-1A-PS MAY W10288002 Contact Us For Availability
× ![]()
