Model Maytag JMW2327WS02 WALL OVEN, ELECTRIC, MICROWAVE COMBO – Common Parts & Diagrams
01 - COVER SHEET
02 - OVEN PARTS

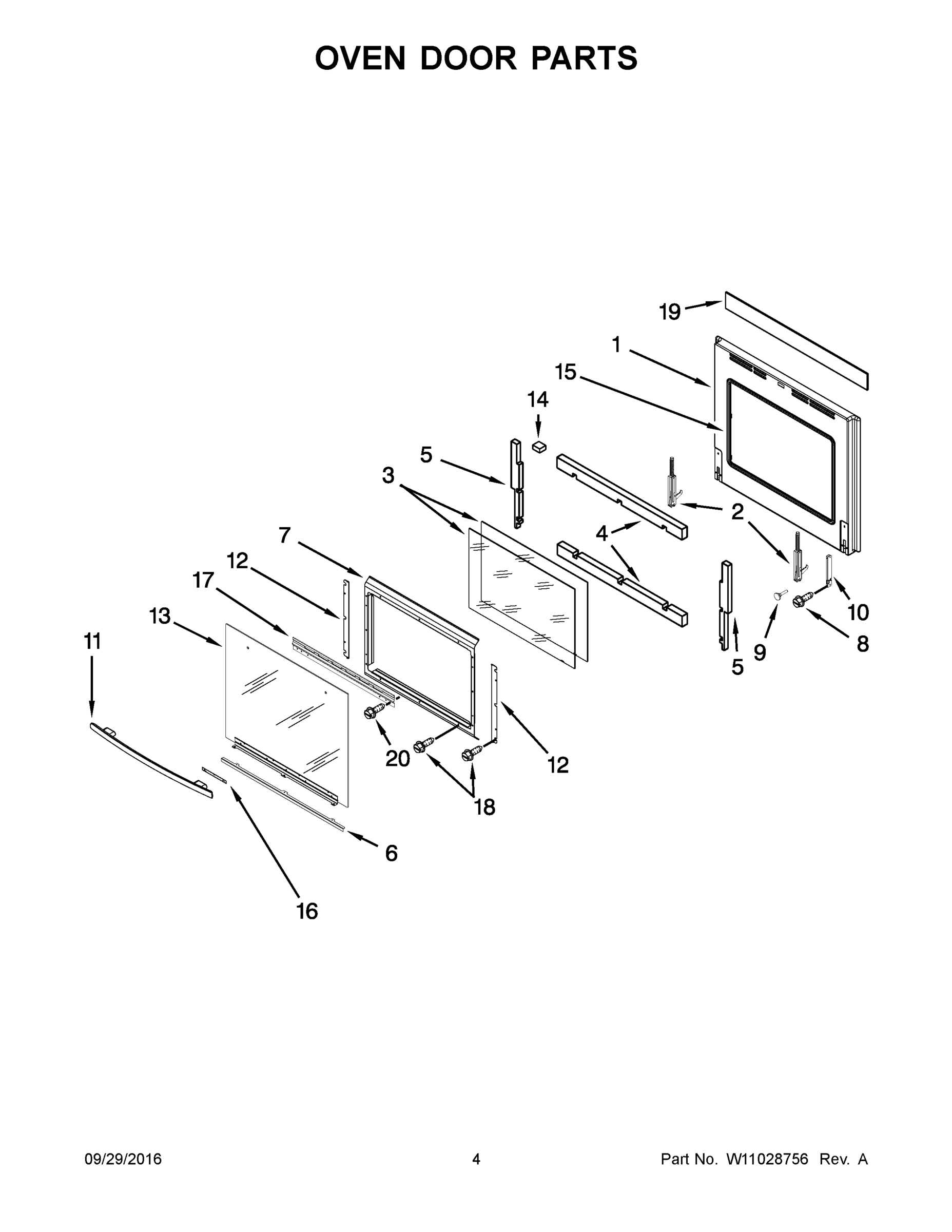

03 - OVEN DOOR PARTS

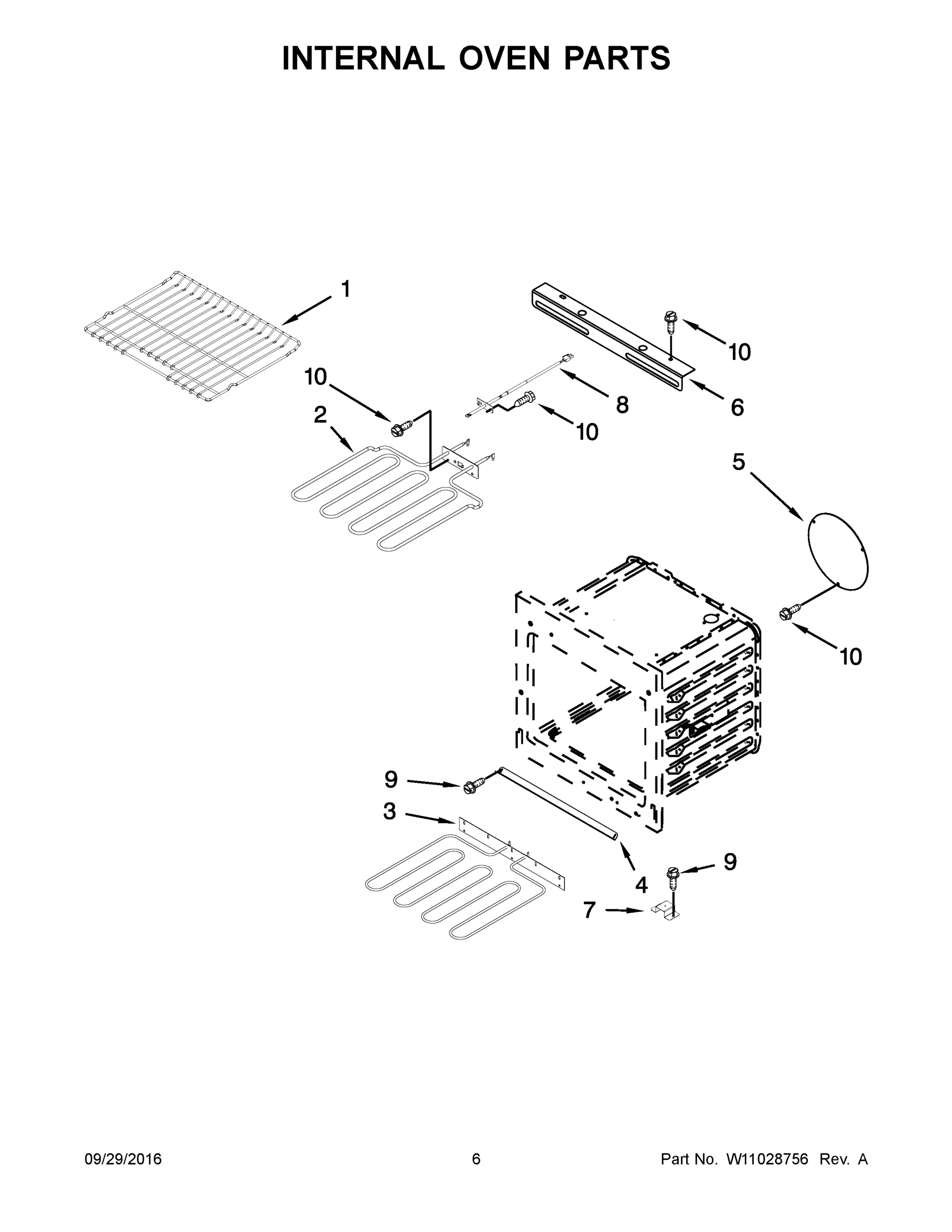

04 - INTERNAL OVEN PARTS

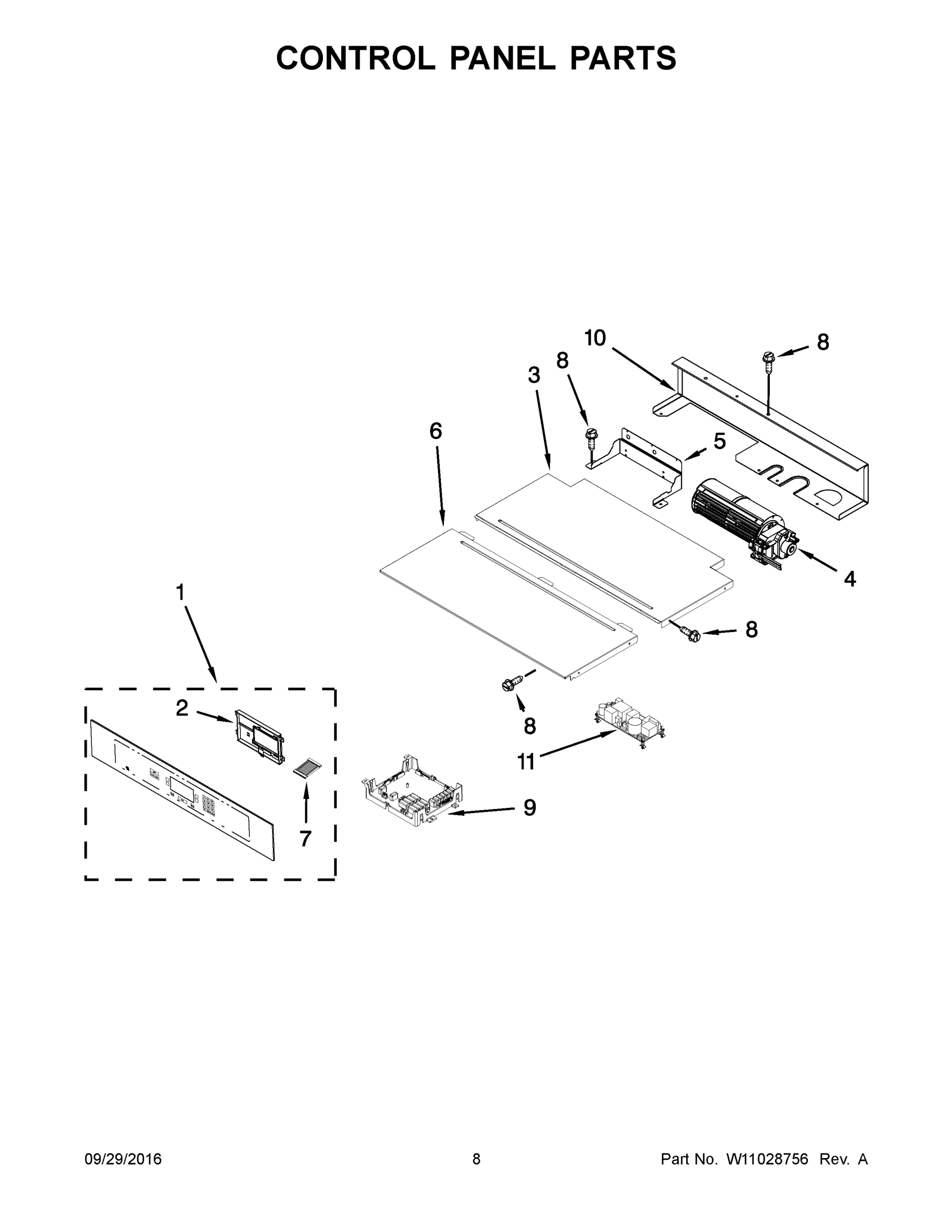

05 - CONTROL PANEL PARTS

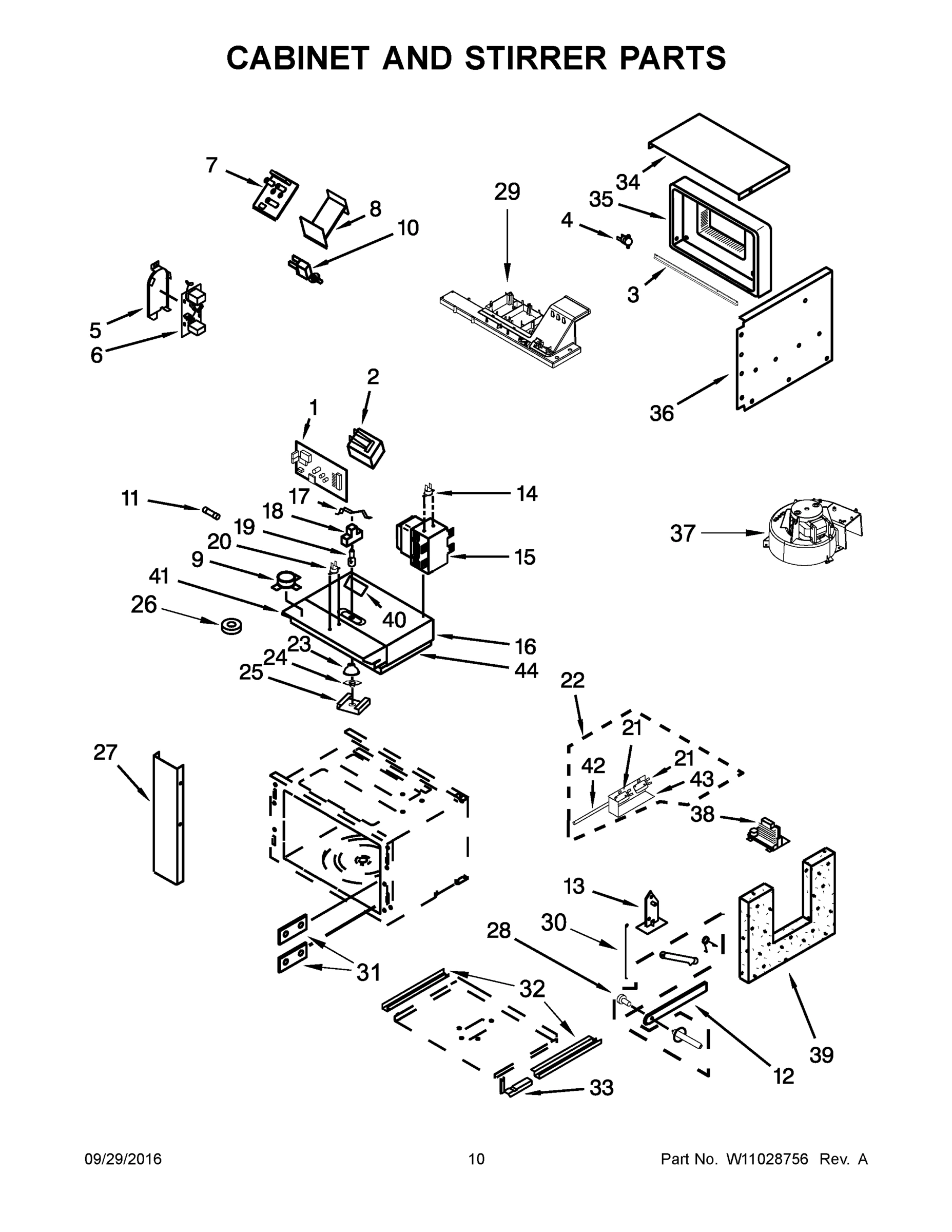

06 - CABINET AND STIRRER PARTS

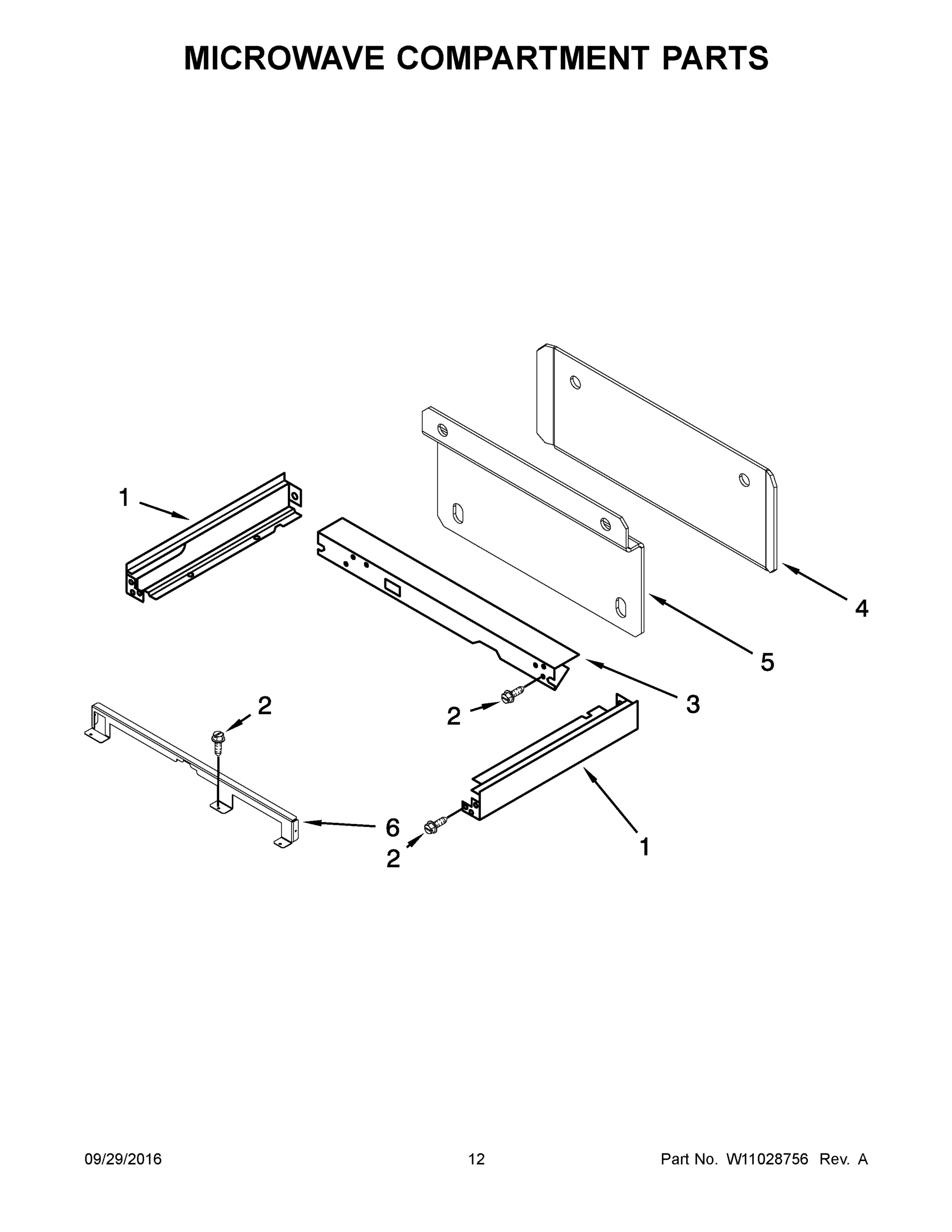

07 - MICROWAVE COMPARTMENT PARTS

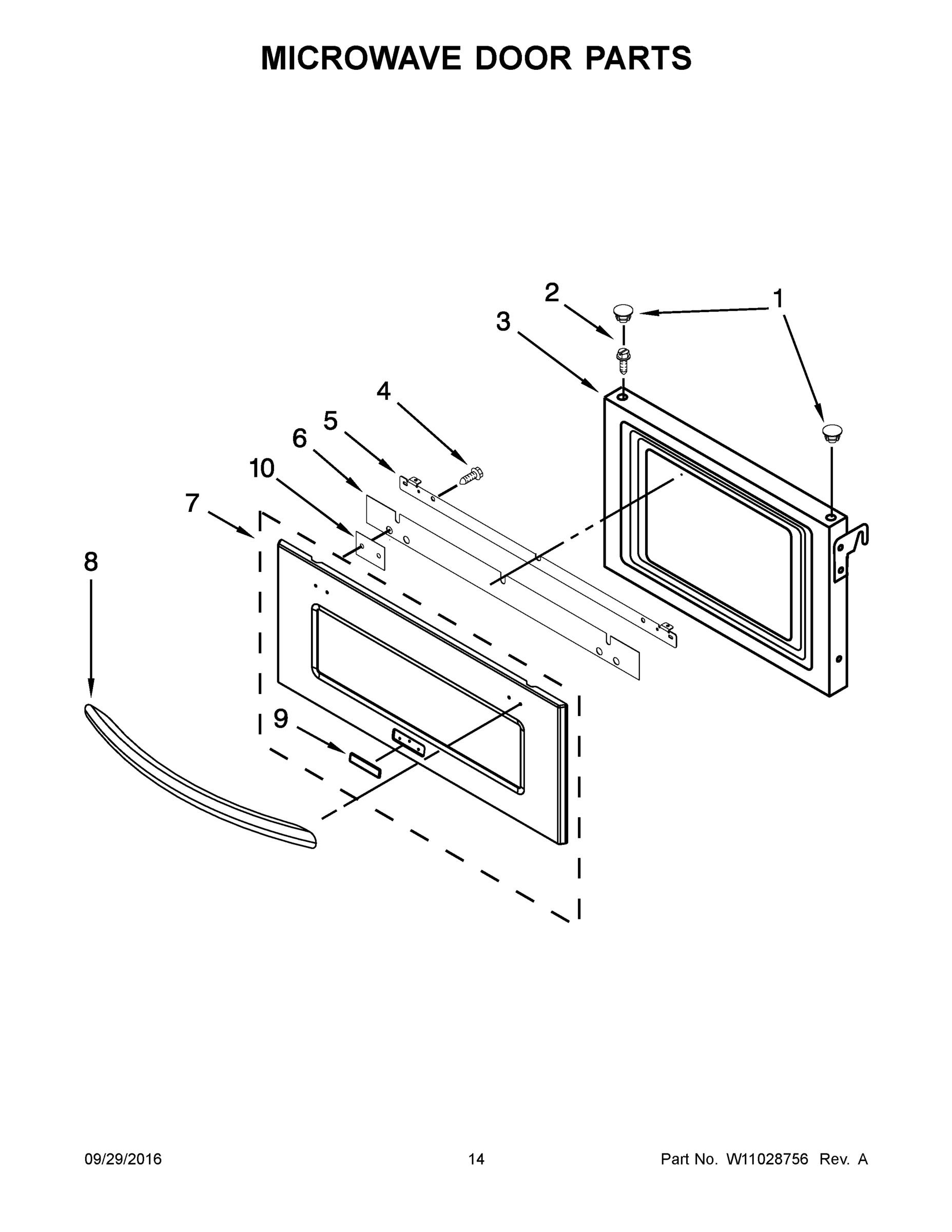

08 - MICROWAVE DOOR PARTS

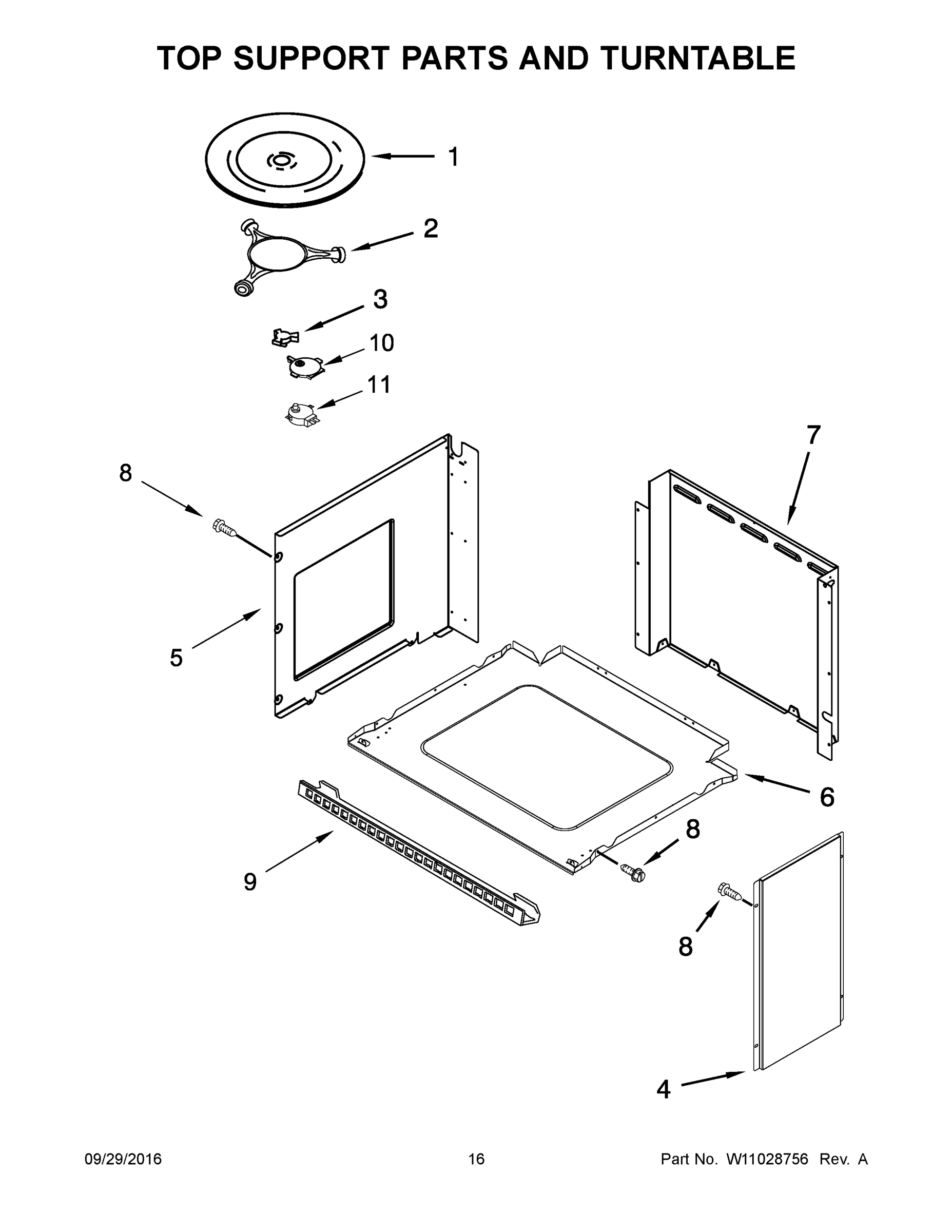

09 - TOP SUPPORT PARTS AND TURNTABLE
10 - OPTIONAL PARTS
Common parts from model Maytag JMW2327WS02 WALL OVEN, ELECTRIC, MICROWAVE COMBO
1
INSTRUCTIONS, INSTALLATION (ENGLISH/FRENCH) MAY W10221384 Contact Us For Availability
1
MAY W10187020 MAY W10187020 Contact Us For Availability
1
MAY W10176139 MAY W10176139 Contact Us For Availability
1
MAY W10344115 MAY W10344115 Contact Us For Availability
1
MAY W10626304 MAY W10626304 Contact Us For Availability
1
SUPPORT RAILS (RIGHT HAND) MAY W10209045 Contact Us For Availability
1
MAY 8304588BL MAY 8304588BL Contact Us For Availability
1
MAY 461967720541 MAY 461967720541 Contact Us For Availability
1A
GUIDE, USE AND CARE (COMBO) MAY W10221392 Contact Us For Availability
1A
SUPPORT RAILS (LEFT HAND) MAY W10209044 Contact Us For Availability
1B
GUIDE, USE AND CARE (MICROWAVE) MAY W10221391 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
SHEET, TECH (ENGLISH) MAY W10213735 Contact Us For Availability
1F
SHEET, TECH (FRENCH) MAY W10213736 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
MAY W10277752 MAY W10277752 Contact Us For Availability
2
MAY W10184147 MAY W10184147 Contact Us For Availability
2
ASSEMBLY, USER INTERFACE MAY W10344083 Contact Us For Availability
2
MAY 461967848621 MAY 461967848621 Contact Us For Availability
2
MAY W10367316 MAY W10367316 Contact Us For Availability
3
MAY 3601F343-51 MAY 3601F343-51 Contact Us For Availability
3
GLASS, INNER MAY W10176101 Contact Us For Availability
3
MAY 7406P322-60 MAY 7406P322-60 Contact Us For Availability
3
MAY W10176095 MAY W10176095 Contact Us For Availability
3
MAY W10291274 MAY W10291274 Contact Us For Availability
3
MAY W10176195 MAY W10176195 Contact Us For Availability
3
MAY W10737654 MAY W10737654 Contact Us For Availability
3
MAY W10545578 MAY W10545578 Contact Us For Availability
4
MAY W10280326 MAY W10280326 Contact Us For Availability
4
MAY W10273677 MAY W10273677 Contact Us For Availability
4
MAY W10267047 MAY W10267047 Contact Us For Availability
4
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
4
MAY W10273667 MAY W10273667 Contact Us For Availability
4
MAY W10120223 MAY W10120223 Contact Us For Availability
4
MAY W10186985 MAY W10186985 Contact Us For Availability
4
MAY W10176066 MAY W10176066 Contact Us For Availability
5
FOOT, PLASTIC MAY 8038P035-60 Contact Us For Availability
5
MAY W10273591 MAY W10273591 Contact Us For Availability
5
PLATE, NON-CONVECTION MAY W10209035 Contact Us For Availability
5
MAY W10186997 MAY W10186997 Contact Us For Availability
5
MAY W10186986 MAY W10186986 Contact Us For Availability
5
MAY W10176199 MAY W10176199 Contact Us For Availability
5
MAY W10176065 MAY W10176065 Contact Us For Availability
5A
MAY W10176064 MAY W10176064 Contact Us For Availability
6
MAY W10213759 MAY W10213759 Contact Us For Availability
6
BRACKET, DOOR CLIP MAY W10176176 Contact Us For Availability
6
PAD, HANDLE (BLACK) MAY W10213722 Contact Us For Availability
6
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
6
MAY W10311707 MAY W10311707 Contact Us For Availability
6
MAY W10692851 MAY W10692851 Contact Us For Availability
6
MAY W10176196 MAY W10176196 Contact Us For Availability
6
MAY W10176063 MAY W10176063 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
MAY W10186984 MAY W10186984 Contact Us For Availability
7
RETAINER, DOOR GLASS MAY W10176105 Contact Us For Availability
7
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
7
CABLE, USER INTERFACE MAY W10175829 Contact Us For Availability
7
MAY W10578541 MAY W10578541 Contact Us For Availability
7
MAY W10269424 MAY W10269424 Contact Us For Availability
8
MAY W10186993 MAY W10186993 Contact Us For Availability
8
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
8
MAY W10254050 MAY W10254050 Contact Us For Availability
8
MAY W10186760 MAY W10186760 Contact Us For Availability
8
MAY W10622170 MAY W10622170 Contact Us For Availability
9
MAY W10213819 MAY W10213819 Contact Us For Availability
9
MAY W10176233 MAY W10176233 Contact Us For Availability
9
APPLIANCE MANAGER, OVEN MAY W10292566 Contact Us For Availability
9
MAY W10460457 MAY W10460457 Contact Us For Availability
9
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
9
MAY 461968973251 MAY 461968973251 Contact Us For Availability
10
MAY W10176218 MAY W10176218 Contact Us For Availability
10
MAY W10236129 MAY W10236129 Contact Us For Availability
10
MAY W10175993 MAY W10175993 Contact Us For Availability
10
MAY W10186983 MAY W10186983 Contact Us For Availability
10
MAY 4375427 MAY 4375427 Contact Us For Availability
10
MAY W10314607 MAY W10314607 Contact Us For Availability
10
MAY 461967753742 MAY 461967753742 Contact Us For Availability
11
ASSEMBLY, BOX VENT MAY 4006W218-45 Contact Us For Availability
11
SUPPLY, POWER MAY W10286791 Contact Us For Availability
11
MAY 241908600053 MAY 241908600053 Contact Us For Availability
11
MAY 461967848971 MAY 461967848971 Contact Us For Availability
12
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
12
MAY W10186882 MAY W10186882 Contact Us For Availability
12
MAY 461967750483 MAY 461967750483 Contact Us For Availability
13
MAY W10286173 MAY W10286173 Contact Us For Availability
13
GLASS, OUTER DOOR ASSY. (STAINLESS) MAY W10176228 Contact Us For Availability
13
MAY 461967750494 MAY 461967750494 Contact Us For Availability
14
MAY W10175989 MAY W10175989 Contact Us For Availability
14
MAY W10296505 MAY W10296505 Contact Us For Availability
14
MAY 461967846741 MAY 461967846741 Contact Us For Availability
15
MAY 8026P066-60 MAY 8026P066-60 Contact Us For Availability
15
MAY W10213804 MAY W10213804 Contact Us For Availability
15
MAY 461967847321 MAY 461967847321 Contact Us For Availability
16
MAY 7718P021-60 MAY 7718P021-60 Contact Us For Availability
17
MAY W10175995 MAY W10175995 Contact Us For Availability
17
BRACKET, HANDLE (STAINLESS) MAY W10176126 Contact Us For Availability
17
MAY W10465869 MAY W10465869 Contact Us For Availability
18
MAY W10213725 MAY W10213725 Contact Us For Availability
18
MAY W10490593 MAY W10490593 Contact Us For Availability
19
PANEL, TOP RETAINER MAY W10175999 Contact Us For Availability
19
MAY W10277580 MAY W10277580 Contact Us For Availability
19
MAY W10795595 MAY W10795595 Contact Us For Availability
20
MAY W10213792 MAY W10213792 Contact Us For Availability
20
MAY W10287985 MAY W10287985 Contact Us For Availability
21
SWITCH, HIGH LIMIT MAY 7403P899-60 Contact Us For Availability
21
MAY W10330566 MAY W10330566 Contact Us For Availability
22
CHANNEL, BOTTOM AIR MAY W10280323 Contact Us For Availability
22
ASSEMBLY, INTERLOCK MAY W10358246 Contact Us For Availability
23
LENS, LIGHT MAY W10187003 Contact Us For Availability
23
MAY 423107022541 MAY 423107022541 Contact Us For Availability
24
MAY W10277588 MAY W10277588 Contact Us For Availability
24
MAY 423107720491 MAY 423107720491 Contact Us For Availability
25
MAY W10176037 MAY W10176037 Contact Us For Availability
25
MAY 461967010591 MAY 461967010591 Contact Us For Availability
26
BRACKET, REINFORCEMENT (LEFT HAND) MAY W10277423 Contact Us For Availability
26
MAY W10769147 MAY W10769147 Contact Us For Availability
26A
BRACKET, REINFORCEMENT (RIGHT HAND) MAY W10277424 Contact Us For Availability
27
TRIM, SIDE (LEFT) MAY 461967013732 Contact Us For Availability
27A
TRIM, SIDE (RIGHT) MAY 461967013722 Contact Us For Availability
28
LATCH, DOOR LOCK MAY W10213755 Contact Us For Availability
28
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
29
MAY W10169757 MAY W10169757 Contact Us For Availability
29
MAY 461967753451 MAY 461967753451 Contact Us For Availability
30
FRAME, MICRO SWITCH MAY W10213745 Contact Us For Availability
30
MAY 461967570351 MAY 461967570351 Contact Us For Availability
31
TRIM, CONTROL PANEL MAY W10176019 Contact Us For Availability
31
MAY 461967451001 MAY 461967451001 Contact Us For Availability
32
MAY 461967008461 MAY 461967008461 Contact Us For Availability
33
WASHER (RUBBER) MAY 7109P085-60 Contact Us For Availability
33
MAY 461968979601 MAY 461968979601 Contact Us For Availability
35
MAY W10236043 MAY W10236043 Contact Us For Availability
37
MAY 461968969271 MAY 461968969271 Contact Us For Availability
38
MAY W10468206 MAY W10468206 Contact Us For Availability
42
MAY W10120235 MAY W10120235 Contact Us For Availability
43
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
44
PANEL, TOP (NOT SERVICED) MAY N/P Contact Us For Availability
NI
MAY 4454949 MAY 4454949 Contact Us For Availability
NI
HARNESS, TURNTABLE AND FAN MAY 461967903621 Contact Us For Availability
NI
HARNESS, MAIN MWO MAY 461968971522 Contact Us For Availability
NI
MAY W10017410 MAY W10017410 Contact Us For Availability
NI
MAY W10174375 MAY W10174375 Contact Us For Availability
NI
MAY W10176182 MAY W10176182 Contact Us For Availability
NI
MAY W10176212 MAY W10176212 Contact Us For Availability
NI
HARNESS, LATCH (NO MEAT PROBE) MAY W10176216 Contact Us For Availability
NI
MAY W10186990 MAY W10186990 Contact Us For Availability
NI
MAY W10213747 MAY W10213747 Contact Us For Availability
NI
HARNESS, COMM MWO MAY W10277591 Contact Us For Availability
NI
HARNESS, COMM CMB POWER MAY W10277613 Contact Us For Availability
NI
MICROSWITCH (SDT-S-124LMR OEG) MAY W10288001 Contact Us For Availability
NI
MICROSWITCH (G5G-1A-PS 24V) MAY W10288002 Contact Us For Availability
NI
MAY W10513963 MAY W10513963 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 830864 Contact Us For Availability
× ![]()
