Model Maytag JMW2327WS00 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

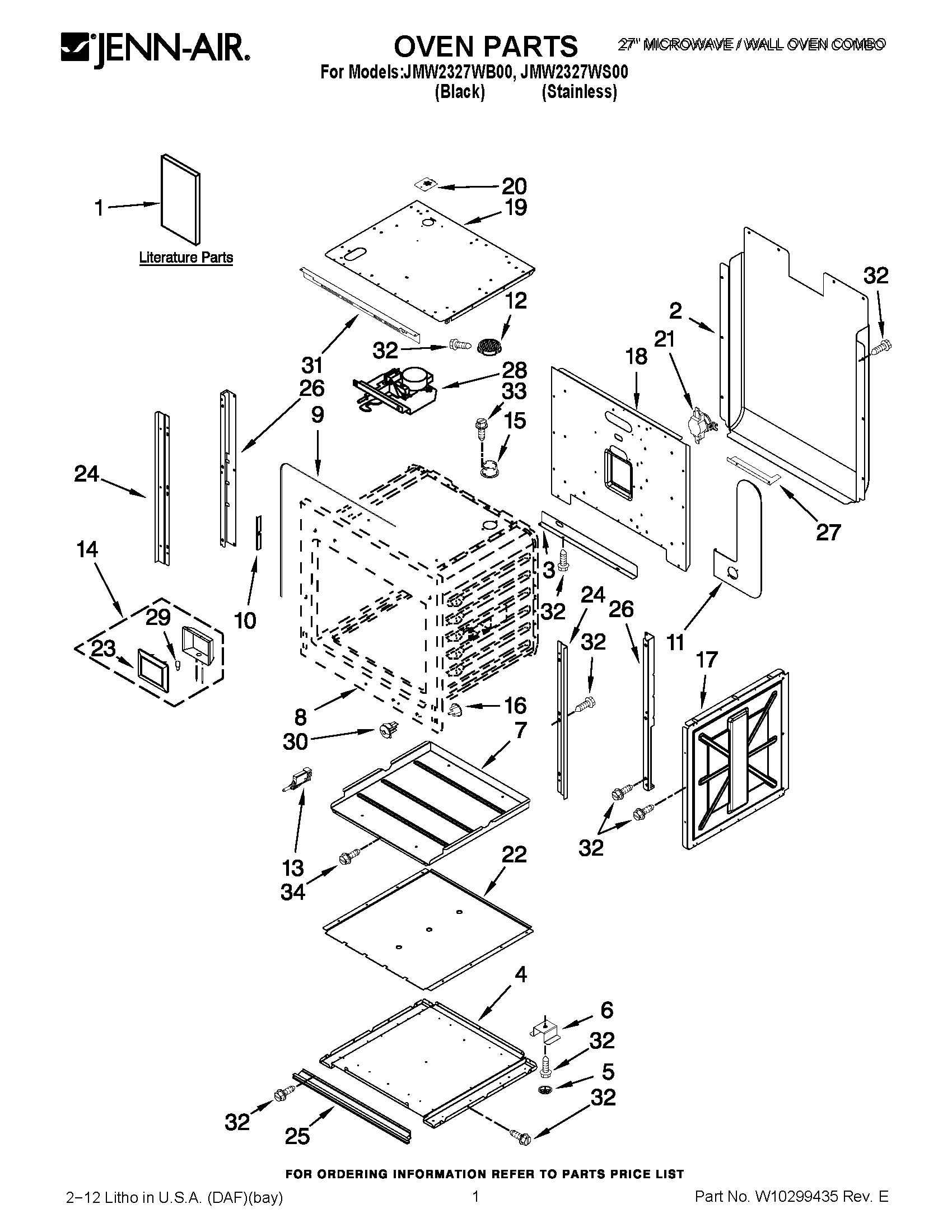

01 - OVEN PARTS

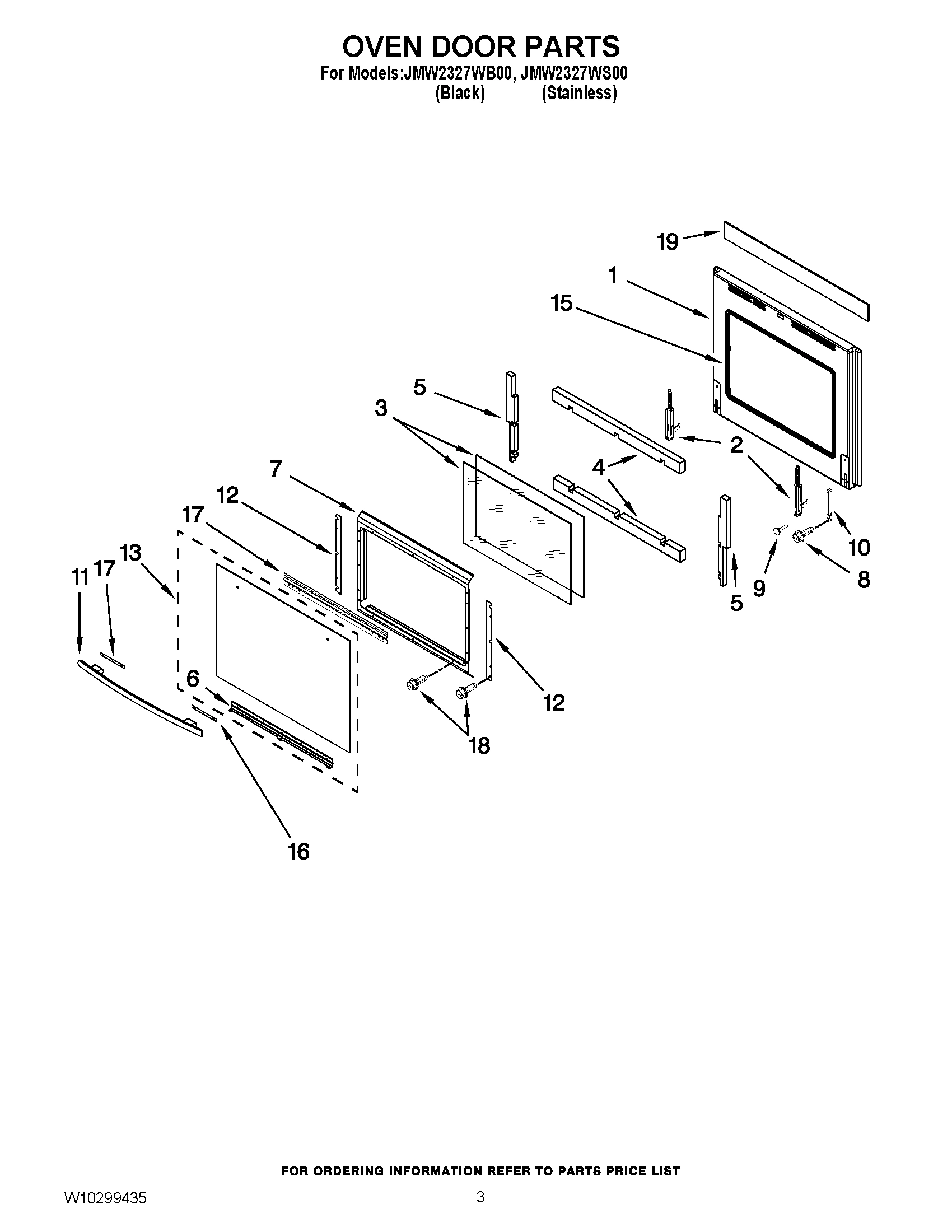

02 - OVEN DOOR PARTS
03 - INTERNAL OVEN PARTS
04 - CONTROL PANEL PARTS
05 - CABINET AND STIRRER PARTS
06 - MICROWAVE COMPARTMENT PARTS
07 - MICROWAVE DOOR PARTS
08 - TOP SUPPORT AND TURNTABLE PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JMW2327WS00 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS (BI-LINGUAL) MAY W10075750 Contact Us For Availability
1
MAY W10213735 MAY W10213735 Contact Us For Availability
1
MAY W10213736 MAY W10213736 Contact Us For Availability
1
MAY W10221384 MAY W10221384 Contact Us For Availability
1
OWNERS MANUAL (MICROWAVE) MAY W10221391 Contact Us For Availability
1
MAY W10221392 MAY W10221392 Contact Us For Availability
1
MAY W10187020 MAY W10187020 Contact Us For Availability
1
MAY W10176139 MAY W10176139 Contact Us For Availability
1
MAY W10205343 MAY W10205343 Contact Us For Availability
1
MAY W10212843 MAY W10212843 Contact Us For Availability
1
MAY W10287989 MAY W10287989 Contact Us For Availability
1
MAY W10209044 MAY W10209044 Contact Us For Availability
1
MAY W10209045 MAY W10209045 Contact Us For Availability
1
BUTTON, PLUG MAY 8304588BL Contact Us For Availability
1
TURNTABLE MAY 8205676 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
2
MAY W10186751 MAY W10186751 Contact Us For Availability
2
MAY W10277752 MAY W10277752 Contact Us For Availability
2
MAY W10184147 MAY W10184147 Contact Us For Availability
2
MAY W10289537 MAY W10289537 Contact Us For Availability
2
MAY W10130901 MAY W10130901 Contact Us For Availability
2
MAY 8205678 MAY 8205678 Contact Us For Availability
3
BAFFLE, REAR LOWER MAY 3601F343-51 Contact Us For Availability
3
GLASS, INNER MAY W10176101 Contact Us For Availability
3
MAY 7406P322-60 MAY 7406P322-60 Contact Us For Availability
3
MAY W10176095 MAY W10176095 Contact Us For Availability
3
MAY W10120471 MAY W10120471 Contact Us For Availability
3
MAY W10176195 MAY W10176195 Contact Us For Availability
3
MAY W10288011 MAY W10288011 Contact Us For Availability
3
DRIVE, TT MAY 8205677 Contact Us For Availability
4
MAY W10280326 MAY W10280326 Contact Us For Availability
4
MAY W10273677 MAY W10273677 Contact Us For Availability
4
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
4
MAY W10273667 MAY W10273667 Contact Us For Availability
4
MAY W10120223 MAY W10120223 Contact Us For Availability
4
MAY W10186985 MAY W10186985 Contact Us For Availability
4
MAY W10267047 MAY W10267047 Contact Us For Availability
4
MAY W10176066 MAY W10176066 Contact Us For Availability
5
FOOT, PLASTIC MAY 8038P035-60 Contact Us For Availability
5
MAY W10273591 MAY W10273591 Contact Us For Availability
5
MAY W10209035 MAY W10209035 Contact Us For Availability
5
MAY W10186997 MAY W10186997 Contact Us For Availability
5
MAY W10186986 MAY W10186986 Contact Us For Availability
5
MAY W10176199 MAY W10176199 Contact Us For Availability
5
MAY W10281179 MAY W10281179 Contact Us For Availability
5
MAY W10176064 MAY W10176064 Contact Us For Availability
5
MAY W10176065 MAY W10176065 Contact Us For Availability
6
MAY W10213759 MAY W10213759 Contact Us For Availability
6
BRACKET, DOOR CLIP MAY W10176176 Contact Us For Availability
6
FOAM, BRACKET MAY W10213722 Contact Us For Availability
6
SUPPORT, BROIL ELEMENT MAY 3807F754-45 Contact Us For Availability
6
MAY W10176093 MAY W10176093 Contact Us For Availability
6
MAY W10287966 MAY W10287966 Contact Us For Availability
6
MAY W10176196 MAY W10176196 Contact Us For Availability
6
MAY W10176063 MAY W10176063 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
MAY W10186984 MAY W10186984 Contact Us For Availability
7
MAY W10176105 MAY W10176105 Contact Us For Availability
7
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
7
MAY W10175829 MAY W10175829 Contact Us For Availability
7
CONTROL, ELECTRIC CONVERTER MAY W10120228 Contact Us For Availability
7
MAY W10176229 MAY W10176229 Contact Us For Availability
7
MAY W10269424 MAY W10269424 Contact Us For Availability
8
MAY W10186993 MAY W10186993 Contact Us For Availability
8
MAY W10254050 MAY W10254050 Contact Us For Availability
8
MAY W10186759 MAY W10186759 Contact Us For Availability
8
MAY W10186760 MAY W10186760 Contact Us For Availability
8
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
9
MAY W10213819 MAY W10213819 Contact Us For Availability
9
MAY W10176233 MAY W10176233 Contact Us For Availability
9
MANAGER, APPLIANCE MAY W10292566 Contact Us For Availability
9
MAY W10131249 MAY W10131249 Contact Us For Availability
9
BADGE (BLACK) MAY W10190724 Contact Us For Availability
9
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
10
MAY W10176218 MAY W10176218 Contact Us For Availability
10
MAY W10236129 MAY W10236129 Contact Us For Availability
10
MAY W10175993 MAY W10175993 Contact Us For Availability
10
MAY W10186983 MAY W10186983 Contact Us For Availability
10
ACTUATOR MAY 4375427 Contact Us For Availability
11
ASSY., BOX VENT MAY 4006W218-45 Contact Us For Availability
11
CONTROL, POWER MICROWAVE, UI MAY W10286791 Contact Us For Availability
11
MAY 4375321 MAY 4375321 Contact Us For Availability
12
SCREEN, SMOKE ELM. MAY 8034P008-60 Contact Us For Availability
12
MAY W10186882 MAY W10186882 Contact Us For Availability
12
BLOCK, FUSE MAY 4375231 Contact Us For Availability
13
MAY W10286173 MAY W10286173 Contact Us For Availability
13
GLASS, OUTER DOOR ASSY.(STAINLESS) MAY W10176228 Contact Us For Availability
13
GLASS, OUTER DOOR ASSY. (BLACK) MAY W10277595 Contact Us For Availability
13
BRACKET, SUPPORT MAY W10130897 Contact Us For Availability
14
MAY W10175989 MAY W10175989 Contact Us For Availability
14
MAY W10287986 MAY W10287986 Contact Us For Availability
15
MAY 8026P066-60 MAY 8026P066-60 Contact Us For Availability
15
MAY W10213804 MAY W10213804 Contact Us For Availability
15
MAY W10120113 MAY W10120113 Contact Us For Availability
16
BUTTON, PLUG (THERMOSTAT) MAY 7718P021-60 Contact Us For Availability
17
MAY W10175995 MAY W10175995 Contact Us For Availability
17
MAY W10176126 MAY W10176126 Contact Us For Availability
17
SPRING, LAMP MAY 4375319 Contact Us For Availability
18
MAY W10213725 MAY W10213725 Contact Us For Availability
18
MAY W10287974 MAY W10287974 Contact Us For Availability
19
MAY W10175999 MAY W10175999 Contact Us For Availability
19
INSULATION, FOIL MAY W10277580 Contact Us For Availability
19
MAY W10287972 MAY W10287972 Contact Us For Availability
20
MAY W10213792 MAY W10213792 Contact Us For Availability
20
MAY W10287985 MAY W10287985 Contact Us For Availability
21
SWITCH, HI LIMIT MAY 7403P899-60 Contact Us For Availability
21
MAY 4375346 MAY 4375346 Contact Us For Availability
22
CHANNEL, BTM AIR MAY W10280323 Contact Us For Availability
22
MAY W10358246 MAY W10358246 Contact Us For Availability
23
MAY W10187003 MAY W10187003 Contact Us For Availability
23
MAY 4375320 MAY 4375320 Contact Us For Availability
24
MAY W10277588 MAY W10277588 Contact Us For Availability
24
MAY 4375318 MAY 4375318 Contact Us For Availability
25
MAY W10176037 MAY W10176037 Contact Us For Availability
25
MAY W10238701 MAY W10238701 Contact Us For Availability
25
CLIP, SPRING MAY W10120231 Contact Us For Availability
26
MAY W10277423 MAY W10277423 Contact Us For Availability
26
MAY W10277424 MAY W10277424 Contact Us For Availability
26
TRANSFORMER, LIGHT MAY 8205692 Contact Us For Availability
28
LATCH, DOOR MAY W10213755 Contact Us For Availability
28
ASEMBLY, ARM MAY W10128850 Contact Us For Availability
29
BULB, OVEN MAY W10169757 Contact Us For Availability
30
MAY W10213745 MAY W10213745 Contact Us For Availability
31
MAY W10176019 MAY W10176019 Contact Us For Availability
31
MAY W10287967 MAY W10287967 Contact Us For Availability
33
MAY W10236043 MAY W10236043 Contact Us For Availability
33
MAY W10120478 MAY W10120478 Contact Us For Availability
37
MAY W10330572 MAY W10330572 Contact Us For Availability
38
MAY W10120229 MAY W10120229 Contact Us For Availability
39
MAY W10130890 MAY W10130890 Contact Us For Availability
42
MAY W10120235 MAY W10120235 Contact Us For Availability
43
INTERLOCK MAY 8205683 Contact Us For Availability
45
SPRING MAY 8205704 Contact Us For Availability
46
NOT SERVICED MAY N/P Contact Us For Availability
47
MAY 8205686 MAY 8205686 Contact Us For Availability
48
ARM MAY W10120236 Contact Us For Availability
49
MAY W10287988 MAY W10287988 Contact Us For Availability
NI
MAY W10186990 MAY W10186990 Contact Us For Availability
NI
MAY W10213747 MAY W10213747 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4454949 MAY 4454949 Contact Us For Availability
NI
ADHESIVE (SEALER, SILASTIC (3 OZ.) MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
MAY W10017410 MAY W10017410 Contact Us For Availability
NI
MAY W10174375 MAY W10174375 Contact Us For Availability
NI
MAY W10174758 MAY W10174758 Contact Us For Availability
NI
MAY W10176182 MAY W10176182 Contact Us For Availability
NI
MAY W10176212 MAY W10176212 Contact Us For Availability
NI
HARNESS, LATCH MAY W10176216 Contact Us For Availability
× ![]()
