Model Maytag JMV8208WS1 MICROWAVE HOOD, 2.0 CUBIC FOOT – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

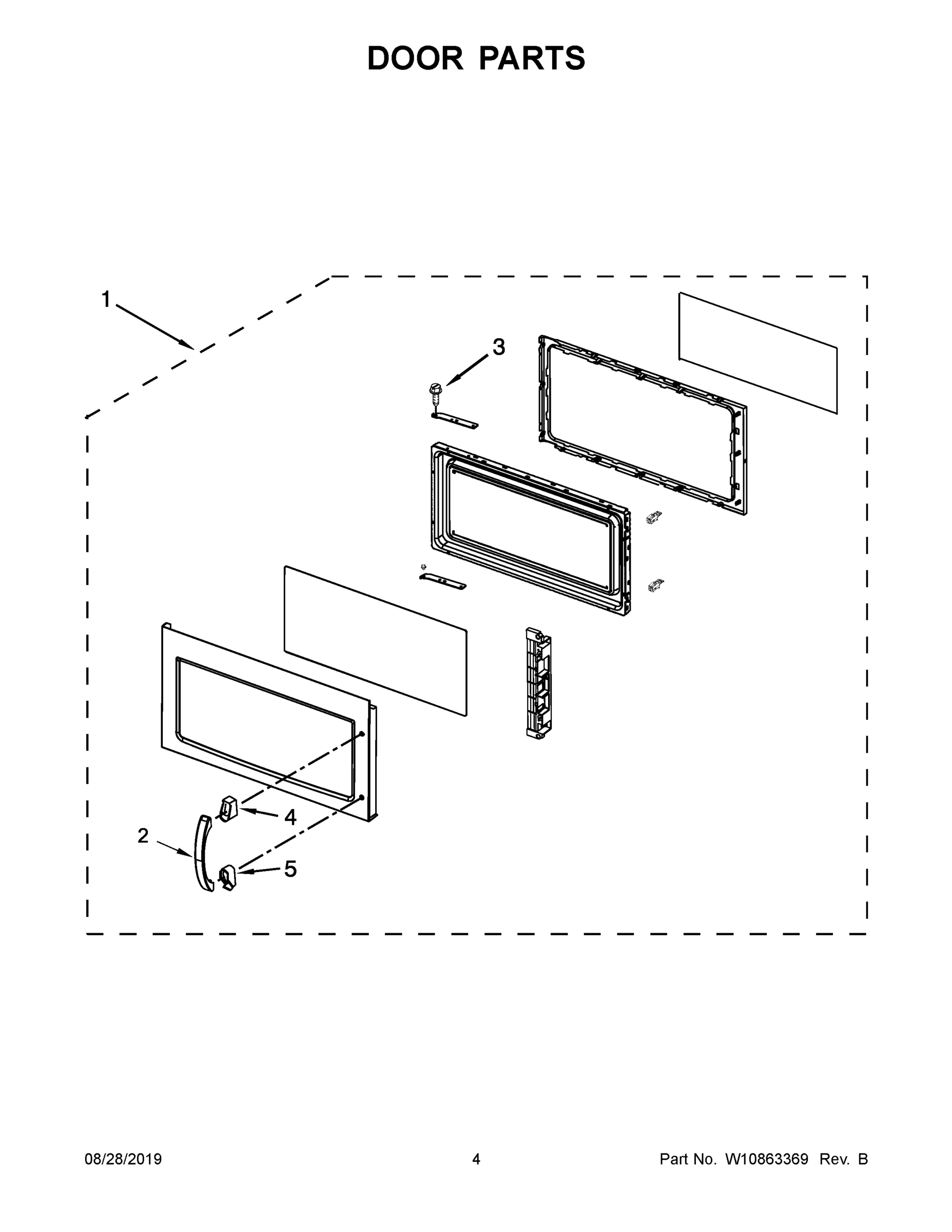

03 - DOOR PARTS

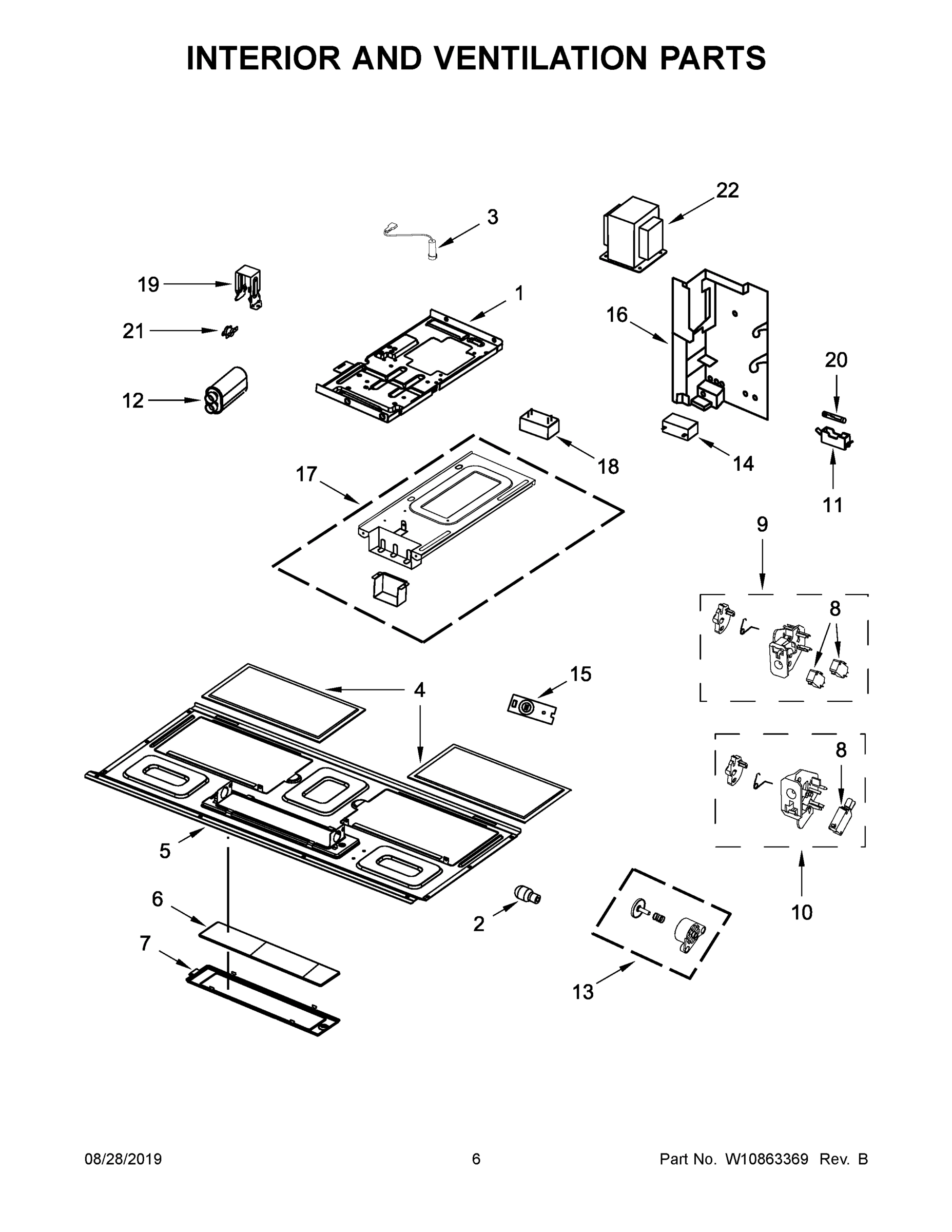

04 - INTERIOR AND VENTILATION PARTS

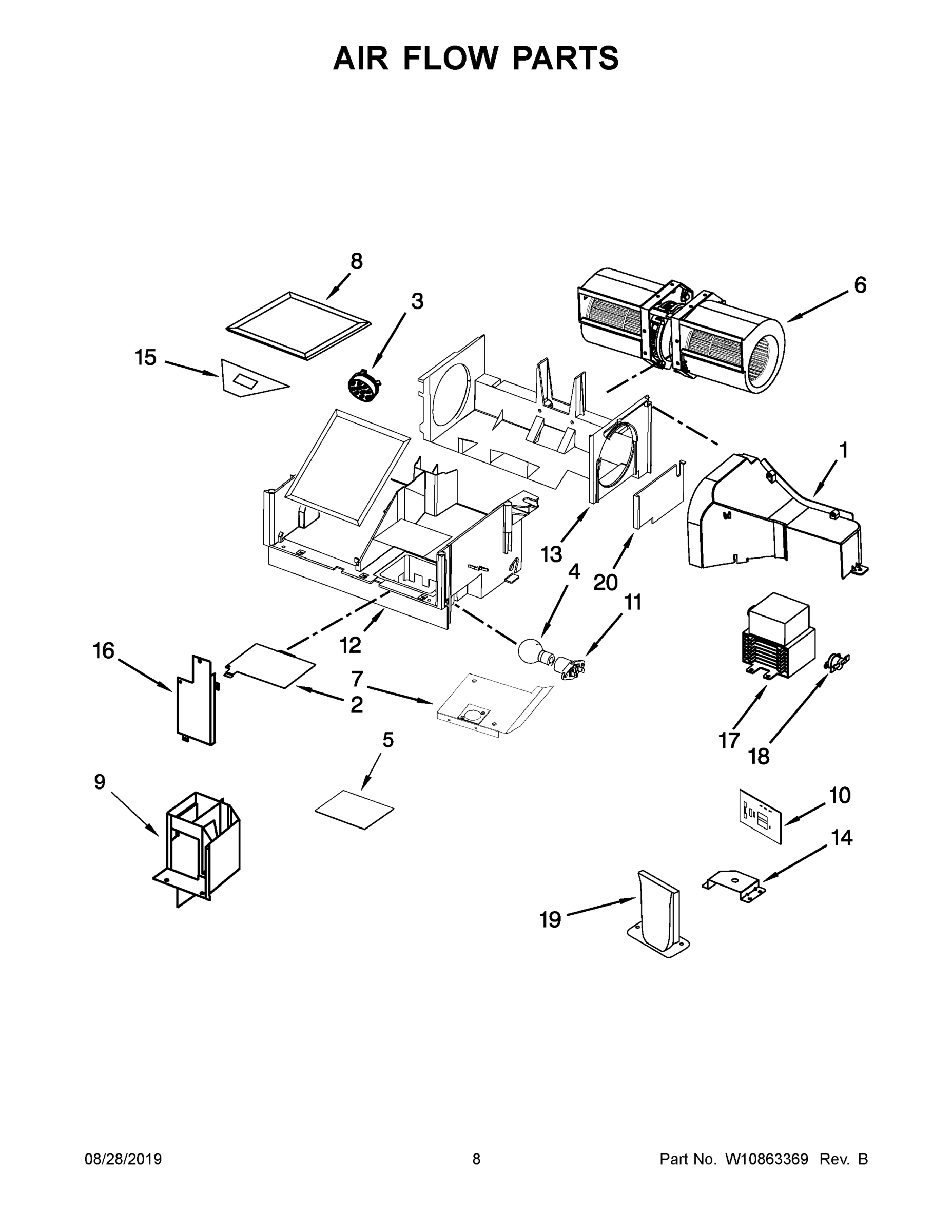

05 - AIR FLOW PARTS

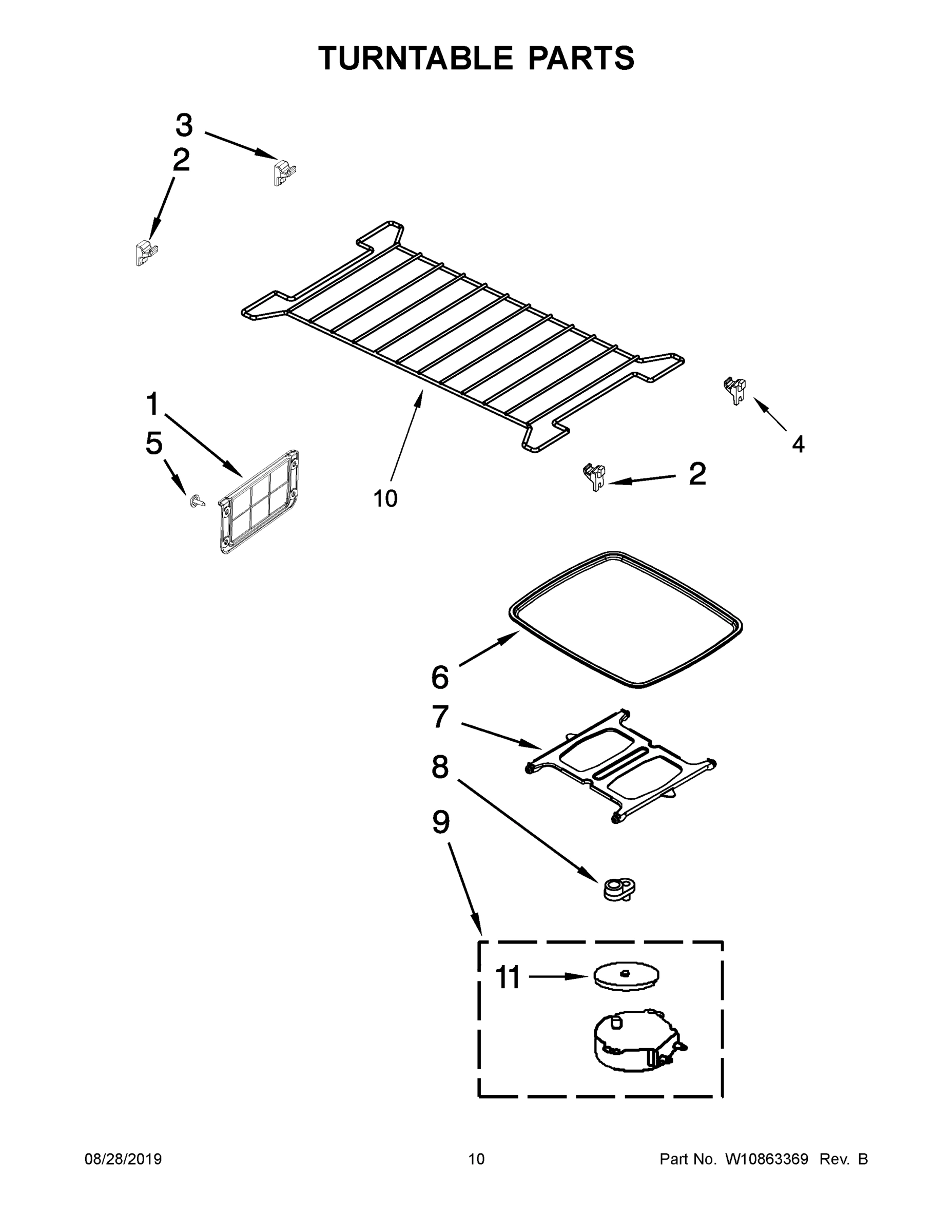

06 - TURNTABLE PARTS

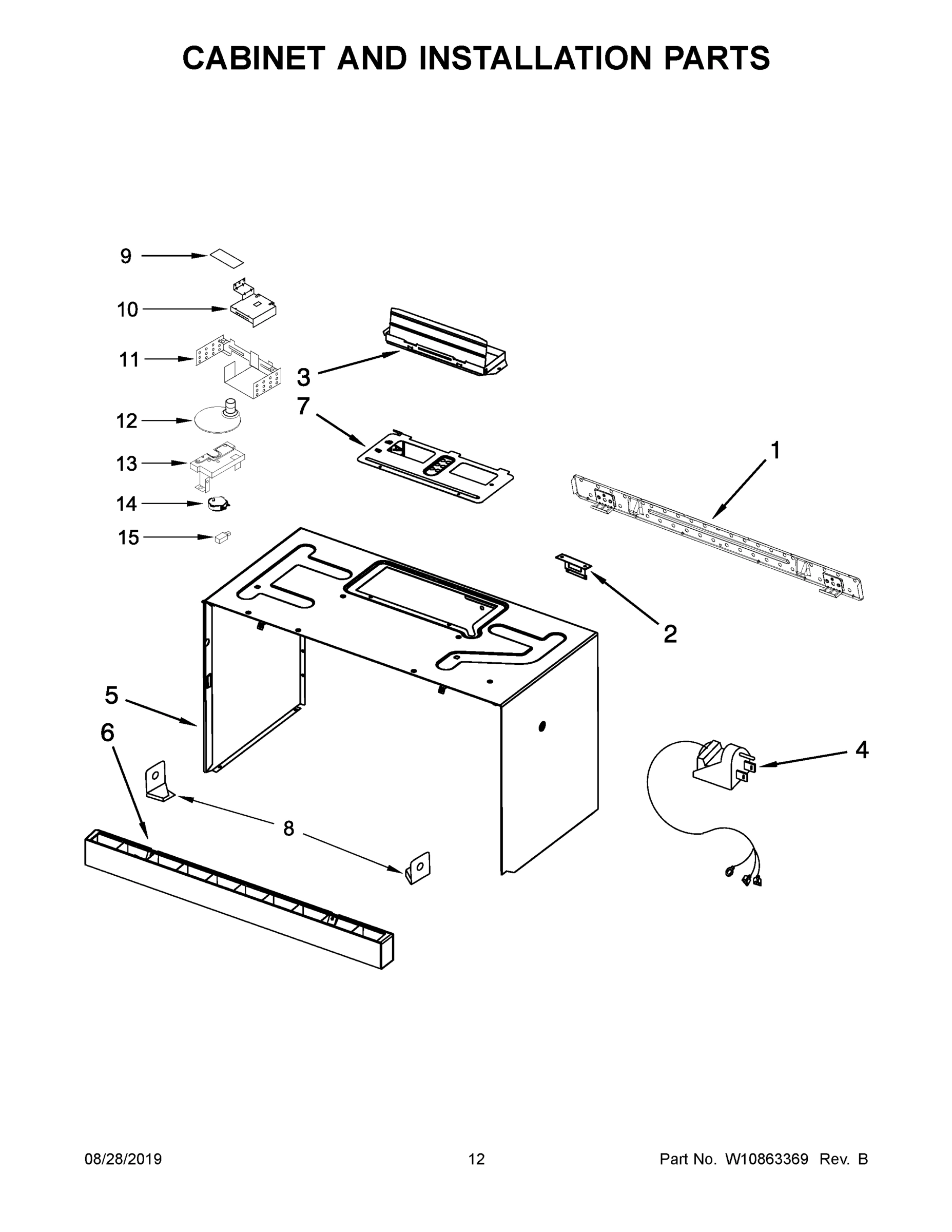

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag JMV8208WS1 MICROWAVE HOOD, 2.0 CUBIC FOOT
1
USE AND CARE GUIDE MAY W10318717 Contact Us For Availability
1
COMPLETE DOOR (WHITE) MAY W10372911 Contact Us For Availability
1
CHASSIS MAY W10286815 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10286814 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W10313272 Contact Us For Availability
1
PLATE, MOUNTING MAY W10440498 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS MAY W10609724 Contact Us For Availability
1A
COMPLETE DOOR (BLACK) MAY W10372910 Contact Us For Availability
1B
QUICK REFERENCE MAY W10318721 Contact Us For Availability
1B
COMPLETE DOOR (STAINLESS) MAY W10372913 Contact Us For Availability
1C
TECH SHEET MAY W10608092 Contact Us For Availability
1C
COMPLETE DOOR (PRO-STYLE) MAY W10372912 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (WHITE) MAY W10372907 Contact Us For Availability
2
HANDLE (WHITE) MAY W10310704 Contact Us For Availability
2
LAMP, HALOGEN MAY W10709921 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
HOOK, MICROWAVE RACK (LEFT FRONT & RIGHT FRON MAY W10245207 Contact Us For Availability
2
SUPPORT, WIRE CLIP MAY 8206385 Contact Us For Availability
2A
ASSEMBLY, CONTROL PANEL (BLACK) MAY W10372906 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10310705 Contact Us For Availability
2B
ASSEMBLY, CONTROL PANEL (STAINLESS) MAY W10372908 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY W10310701 Contact Us For Availability
2C
HANDLE (PRO-STYLE) MAY W10310702 Contact Us For Availability
3
BRACKET, CONTROL MAY W10245199 Contact Us For Availability
3
SCREW MAY W10138802 Contact Us For Availability
3
DIODE, HIGH VOLTAGE MAY W10492278 Contact Us For Availability
3
SENSOR, HUMIDITY MAY W10245178 Contact Us For Availability
3
HOOK, MICROWAVE RACK (LEFT REAR) MAY W10245208 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
MICROCOMPUTER MAY W10569241 Contact Us For Availability
4
BRACKET, HANDLE (UPPER) (WHITE) MAY W10420761 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
4
HOOK, MICROWAVE RACK (RIGHT REAR) MAY W10245209 Contact Us For Availability
4
CORD, POWER MAY W10654511 Contact Us For Availability
4A
BRACKET, HANDLE (UPPER) (BLACK) MAY W10420755 Contact Us For Availability
5
BRACKET, HANDLE (LOWER) (WHITE) MAY W10420762 Contact Us For Availability
5
PLATE, BOTTOM MAY W10245196 Contact Us For Availability
5
CAVITY LAMP FOIL MAY W10245212 Contact Us For Availability
5
RIVETS MAY W10138801 Contact Us For Availability
5
CASE, OUTER (WHITE) MAY W10838183 Contact Us For Availability
5A
BRACKET, HANDLE (LOWER) (BLACK) MAY W10420756 Contact Us For Availability
5A
CASE, OUTER (BLACK) MAY W10837530 Contact Us For Availability
5B
BRACKET, HANDLE (LOWER) (PRO-STYLE) MAY W10420764 Contact Us For Availability
6
GLASS, LAMP MAY W10210875 Contact Us For Availability
6
MOTOR, HOOD FAN MAY W10440507 Contact Us For Availability
6
TURNTABLE MAY W10289909 Contact Us For Availability
6
GRILLE, VENT (WHITE) MAY W10310714 Contact Us For Availability
6A
GRILLE, VENT (BLACK) MAY W10310713 Contact Us For Availability
6B
GRILLE, VENT (STAINLESS) MAY W10310711 Contact Us For Availability
7
HOLDER, GLASS MAY W10210873 Contact Us For Availability
7
SUPPORT, SENSOR MAY W10245179 Contact Us For Availability
7
RING, TURNTABLE MAY W10289910 Contact Us For Availability
7
COVER, HOOD FAN MOTOR MAY W10210832 Contact Us For Availability
8
SWITCHES, INTERLOCK (NOT SERVICED, ORDER INTE MAY N/P Contact Us For Availability
8
FILTER, CHARCOAL MAY 8206230 Contact Us For Availability
8
DRIVER, TURNTABLE MAY W10290311 Contact Us For Availability
8
HOLDER, VENT (WHITE) MAY W10520331 Contact Us For Availability
8A
HOLDER, VENT (BLACK) MAY W10520333 Contact Us For Availability
9
ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES) MAY W11169315 Contact Us For Availability
9
SEALING PLATE MAY W10372909 Contact Us For Availability
9
MOTOR, TURNTABLE MAY W10466421 Contact Us For Availability
9
PCBA, VENT MAY W10499304 Contact Us For Availability
10
ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES) MAY W11169313 Contact Us For Availability
10
FILTER, NOISE MAY W10623627 Contact Us For Availability
10
RACK, MICROWAVE MAY W10637159 Contact Us For Availability
10
HOLDER, PCBA MAY W10310722 Contact Us For Availability
11
HOLDER, FUSE MAY W10245194 Contact Us For Availability
11
SOCKET, CAVITY LAMP MAY W10210878 Contact Us For Availability
11
SEAL, WATERPROOF MAY W10502938 Contact Us For Availability
11
BRACKET, MOTOR MAY W10508582 Contact Us For Availability
12
CAPACITOR, HIGH VOLTAGE MAY W10343300 Contact Us For Availability
12
BASE PLATE, AIR GUIDE MAY W10640882 Contact Us For Availability
12
CAM, ROTATION MAY W10546149 Contact Us For Availability
13
ASSEMBLY, PISTON MAY W10197758 Contact Us For Availability
13
HOLDER, HOOD FAN MOTOR MAY W10640885 Contact Us For Availability
13
PLATE, WATER SPILLAGE MAY W10546152 Contact Us For Availability
14
CAPACITOR, HOOD MOTOR MAY W10605897 Contact Us For Availability
14
BRACKET, NOISE FILTER MAY W10313274 Contact Us For Availability
14
MOTOR, VENT MAY W10310726 Contact Us For Availability
15
THERMISTOR MAY W10163422 Contact Us For Availability
15
SOCKET, MOTOR WIRE MAY W10139750 Contact Us For Availability
15
SWITCH, MICRO MAY W10310727 Contact Us For Availability
16
AIR GUIDE, LOWER MAY W10640884 Contact Us For Availability
16
COVER, AIR GUIDE SENSOR MAY W10245214 Contact Us For Availability
17
CHASSIS ASSEMBLY MAY W10310720 Contact Us For Availability
17
MAGNETRON MAY W10222507 Contact Us For Availability
18
RESISTOR, CEMENT MAY W10245190 Contact Us For Availability
18
THERMOSTAT, MAGNETRON MAY W10598693 Contact Us For Availability
19
BRACKET, CAPACITOR MAY W10532063 Contact Us For Availability
19
PLATE, WATERPROOF MAY W10164716 Contact Us For Availability
20
FUSE MAY W10138793 Contact Us For Availability
20
COVER, RIGHT DUCT MAY W10245182 Contact Us For Availability
21
THERMOSTAT, CAVITY 125/-35 CELCIUS MAY W10476901 Contact Us For Availability
22
TRANSFORMER, HIGH VOLTAGE MAY W10733411 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY 8205948 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190018 Contact Us For Availability
NI
MAY W10530095 MAY W10530095 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAGNETRON AND T MAY W10553851 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, HEADLAMP AND TU MAY W10557525 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, VENT PCBA MAY W10557527 Contact Us For Availability
× ![]()
