Model Whirlpool JMV8000BDQ MICROWAVE – Common Parts & Diagrams
01 - BASE & CAVITY

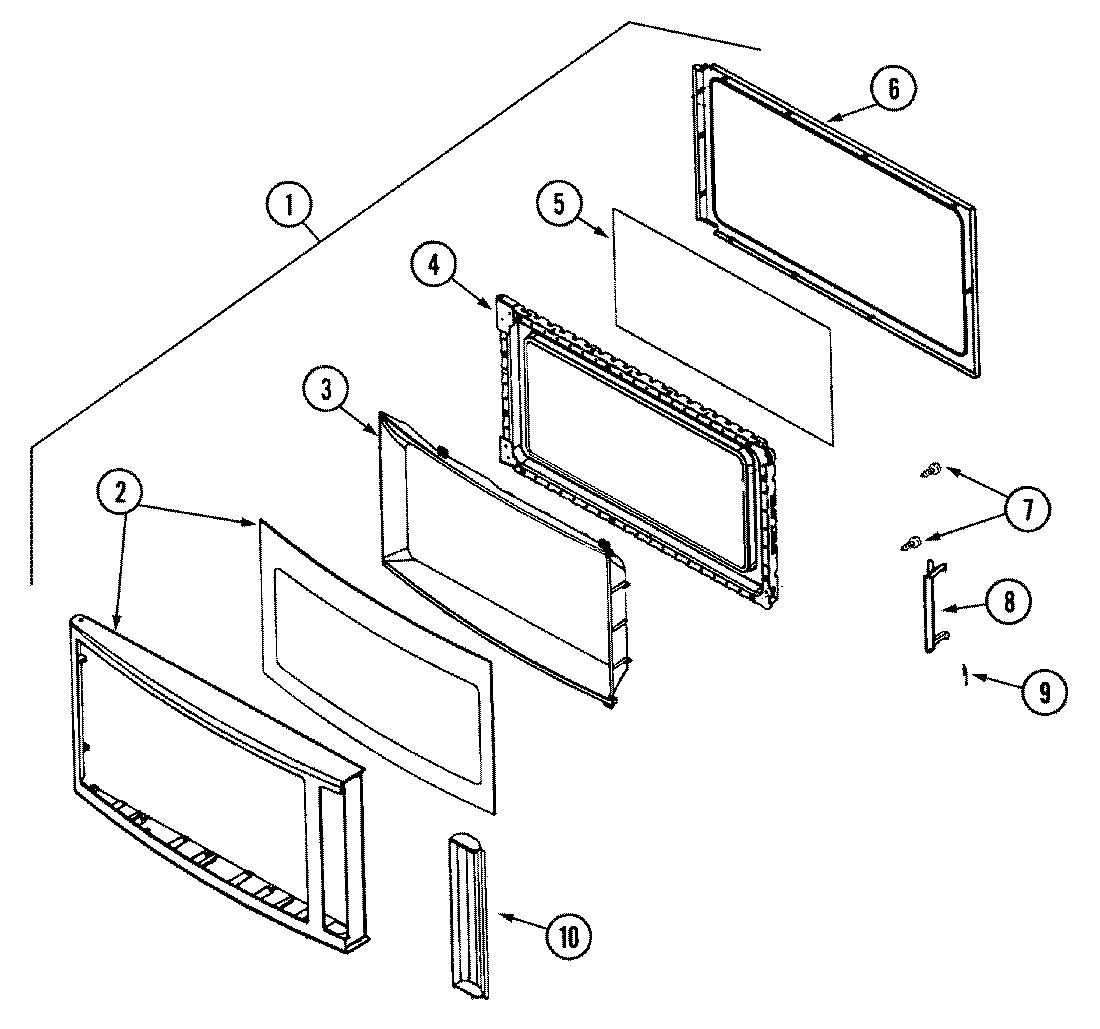

04 - DOOR

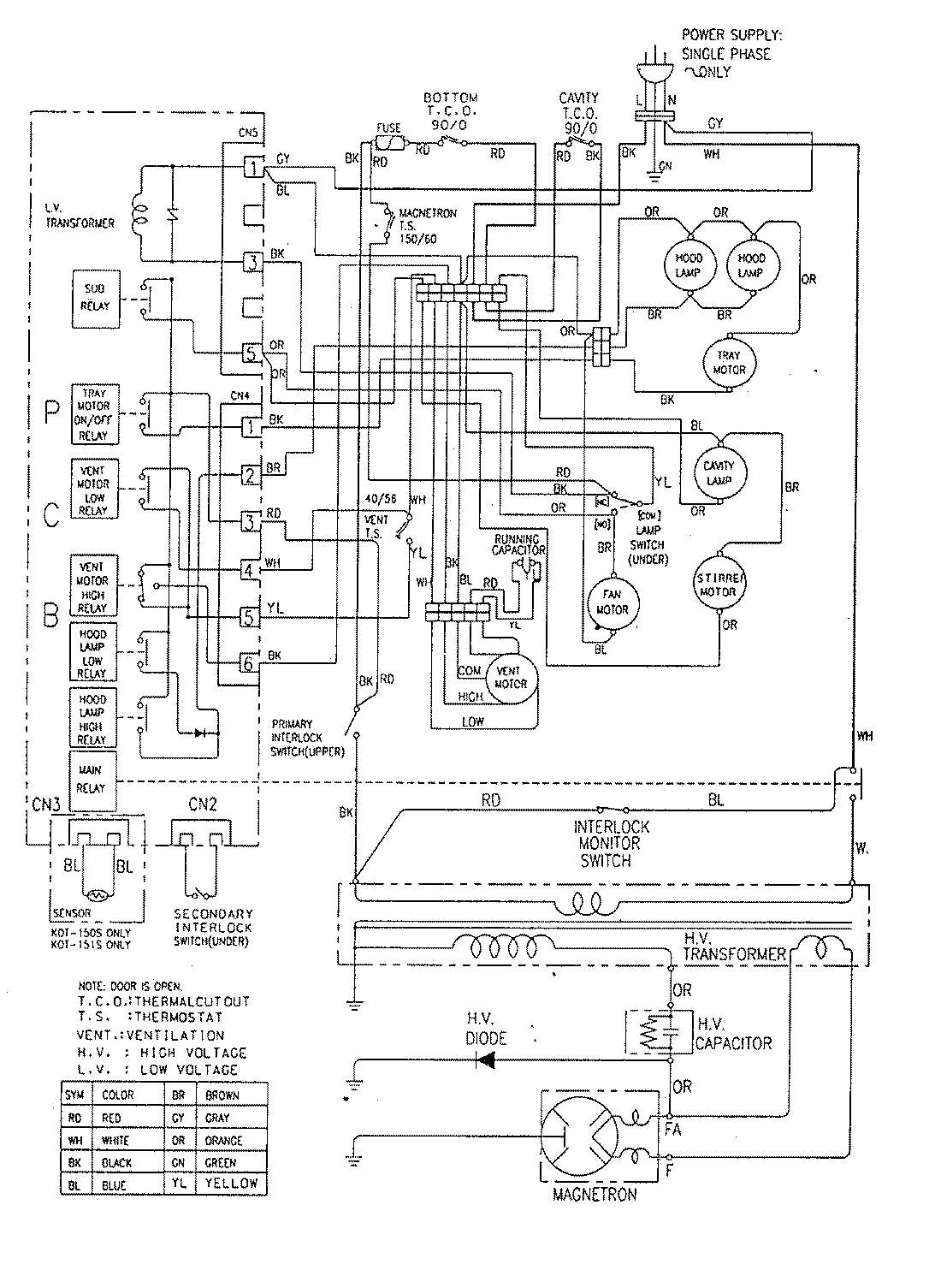

06 - WIRING INFORMATION

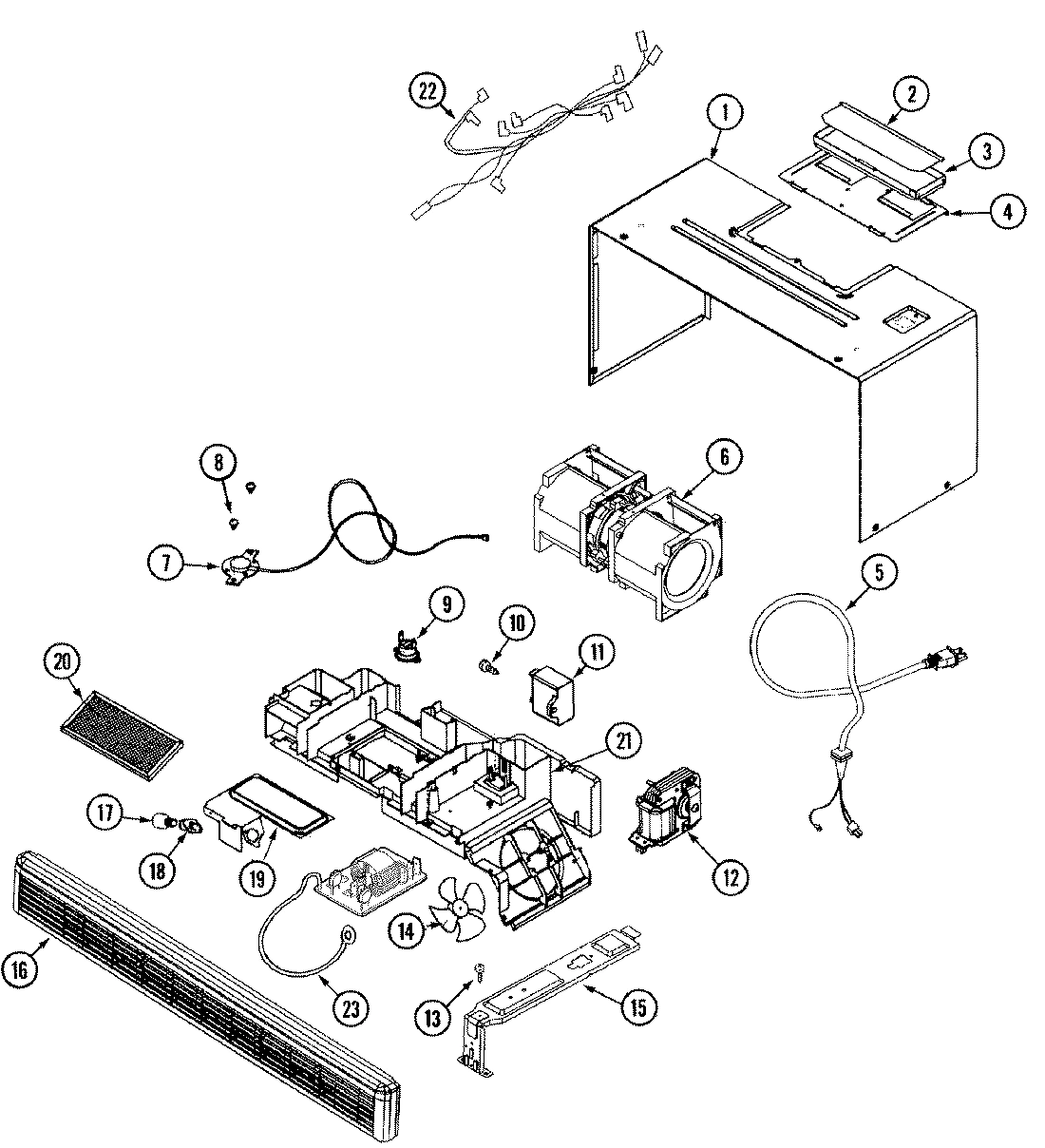

02 - CABINET & VENTILATION

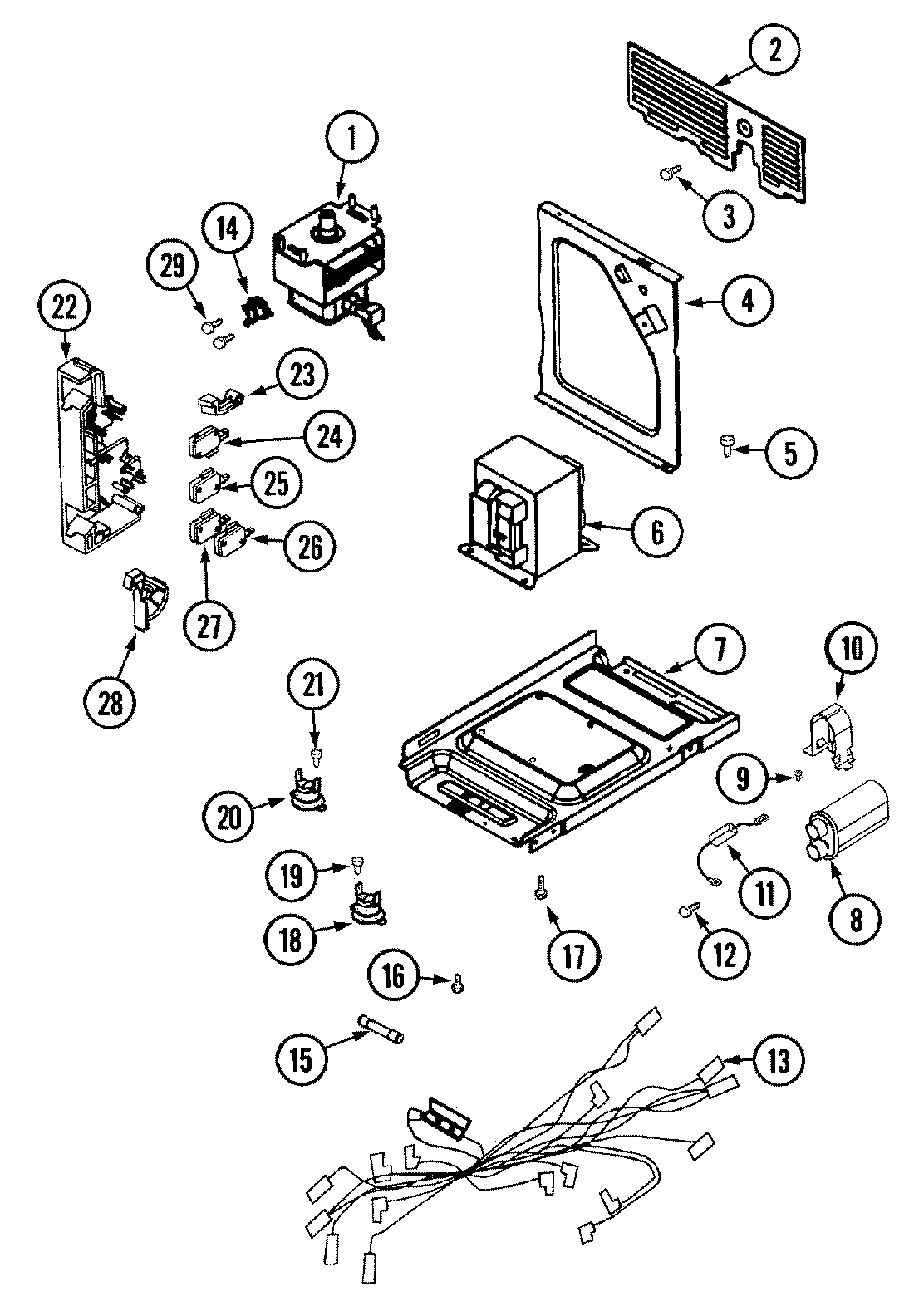

05 - INTERNAL CONTROLS

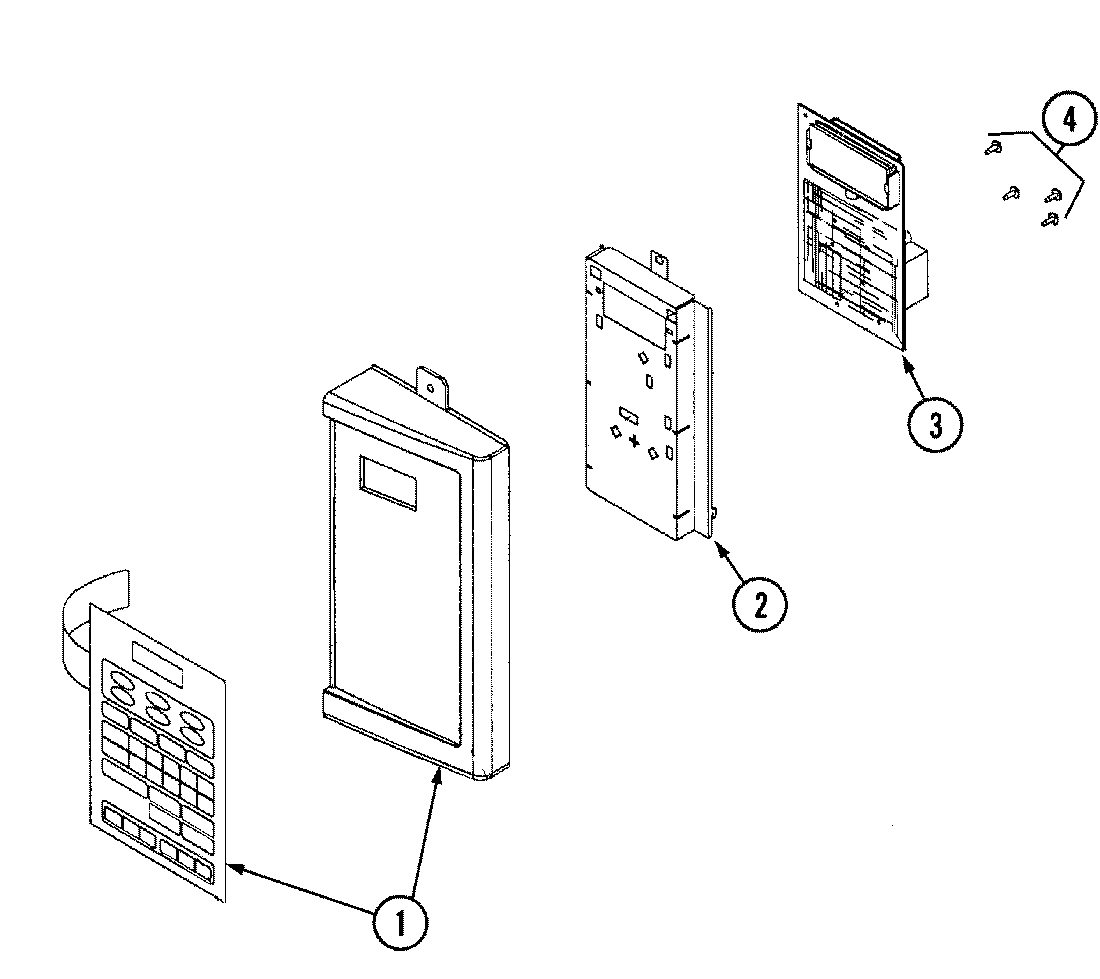

03 - CONTROL PANEL
Common parts from model Whirlpool JMV8000BDQ MICROWAVE
1
DOOR ASSEMBLY (BISQUE) WPL 56001280 Contact Us For Availability
1
SCREW, TAPPING WPL 56001310 Contact Us For Availability
1
CABINET (BSQ) WPL 56001367 Contact Us For Availability
1
MAGNETRON WPL 56001348 Contact Us For Availability
1
PANEL, CONTROL/MEMBRANE (BSQ) WPL 56001313 Contact Us For Availability
2
NOT REQUIRED PART OR SEE NOTE PARTS NOT SOLD WPL W10124350 Contact Us For Availability
2
COVER, DAMPER WPL 56001092 Contact Us For Availability
2
PROTECTOR, WIRE WPL 56001359 Contact Us For Availability
2
PLATE, BACK WPL 56001332 Contact Us For Availability
3
SUPPORT, GLASS WPL 56001298 Contact Us For Availability
3
GUIDE, DAMPER WPL 56001093 Contact Us For Availability
3
BOARD, CONTROL WPL 56001286 Contact Us For Availability
4
SCREW WPL 56001210 Contact Us For Availability
4
LINING, DOOR (BLK) WPL 56001299 Contact Us For Availability
4
COVER, MOTOR WPL 56001094 Contact Us For Availability
4
GUIDE, AIR OUTLET WPL 56001358 Contact Us For Availability
5
FOAM WPL 56001349 Contact Us For Availability
5
SCREEN, DOOR (INNER) WPL 56001300 Contact Us For Availability
5
CLAMP, POWER CORD WPL 56001212 Contact Us For Availability
5
CORD, POWER WPL 56001390 Contact Us For Availability
5
MANUAL, USE/CARE (TRILINGUAL) WPL 74005445 Contact Us For Availability
6
COVER, BULB WPL 56001072 Contact Us For Availability
6
GASKET, DOOR WPL 56001289 Contact Us For Availability
6
MOTOR, VENTILATION WPL 56001095 Contact Us For Availability
6
TRANS, HV WPL 56001356 Contact Us For Availability
7
SENSOR, HUMIDITY WPL 56001336 Contact Us For Availability
7
BASE `R` WPL 56001355 Contact Us For Availability
8
HARNESS, LAMP WPL 56001309 Contact Us For Availability
8
HOOK, LATCH WPL 56001065 Contact Us For Availability
8
CAPACITOR, HV WPL 56001357 Contact Us For Availability
9
BUTTON, LOCKING WPL 56001177 Contact Us For Availability
9
SPRING, HOOK WPL 56001066 Contact Us For Availability
10
COVER, STIRRER WPL 56001342 Contact Us For Availability
10
HANDLE, DOOR (BISQUE) WPL 56001284 Contact Us For Availability
10
HOLDER, CAPACITOR WPL 56001106 Contact Us For Availability
11
COUPLER, STIRRER WPL 56001343 Contact Us For Availability
11
CAPACITOR (RUNNING) WPL 56001109 Contact Us For Availability
12
STIRRER, BLADE WPL 56001344 Contact Us For Availability
12
SCREW WPL 56001214 Contact Us For Availability
12
MOTOR, SHADED POLE WPL 56001338 Contact Us For Availability
12
SCREW WPL 56001217 Contact Us For Availability
13
MOTOR, STIRRER WPL 56001337 Contact Us For Availability
13
HARNESS, MAIN WPL 56001389 Contact Us For Availability
14
FAN, BLADE WPL 56001026 Contact Us For Availability
14
THERMOSTAT WPL 56001339 Contact Us For Availability
15
SUPPORTER, RANGE WPL 56001340 Contact Us For Availability
16
MOTOR, TURNTABLE WPL 56001361 Contact Us For Availability
16
GRILLE, AIR (BSQ) WPL 56001364 Contact Us For Availability
17
COUPLER, MOTOR WPL 56001041 Contact Us For Availability
17
SCREW WPL 56001222 Contact Us For Availability
18
GUIDE (W/ROLLER) WPL 56001369 Contact Us For Availability
18
RECEPTACLE, BULB WPL 56001070 Contact Us For Availability
18
THERMOSTAT WPL 56001354 Contact Us For Availability
19
COVER, MOTOR SYNCRO WPL 56001372 Contact Us For Availability
20
RACK WPL 56001362 Contact Us For Availability
20
THERMOSTAT WPL 56001085 Contact Us For Availability
21
SCREW WPL 56001150 Contact Us For Availability
21
GUIDE, AIR `T` WPL 56001345 Contact Us For Availability
22
NUT, HINGE WPL 56001051 Contact Us For Availability
22
HARNESS, THERMOSTAT WPL 56001346 Contact Us For Availability
22
BRACKET, SWITCH WPL 56001097 Contact Us For Availability
23
SUPPORTS, RACK WPL 56001096 Contact Us For Availability
23
FILTER, NOISE WPL 56001391 Contact Us For Availability
23
LEVER, SWITCH WPL 56001098 Contact Us For Availability
25
SWITCH, MICRO-MONITOR WPL 56001100 Contact Us For Availability
26
SWITCH, SECONDARY WPL 56001037 Contact Us For Availability
27
PLATE, WALL MTG WPL 56001184 Contact Us For Availability
28
LABEL, COOKING WPL 56001394 Contact Us For Availability
28
LEVER, LOCK WPL 56001101 Contact Us For Availability
29
KIT, MOUNTING HARDWARE WPL 56001183 Contact Us For Availability
29
SCREW, TAPPING WPL 56001303 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002670 Contact Us For Availability
× ![]()
