Model Maytag JMDFS30HL01 MICROWAVE DRAWER, 1.2 CUBIC FOOT – Common Parts & Diagrams

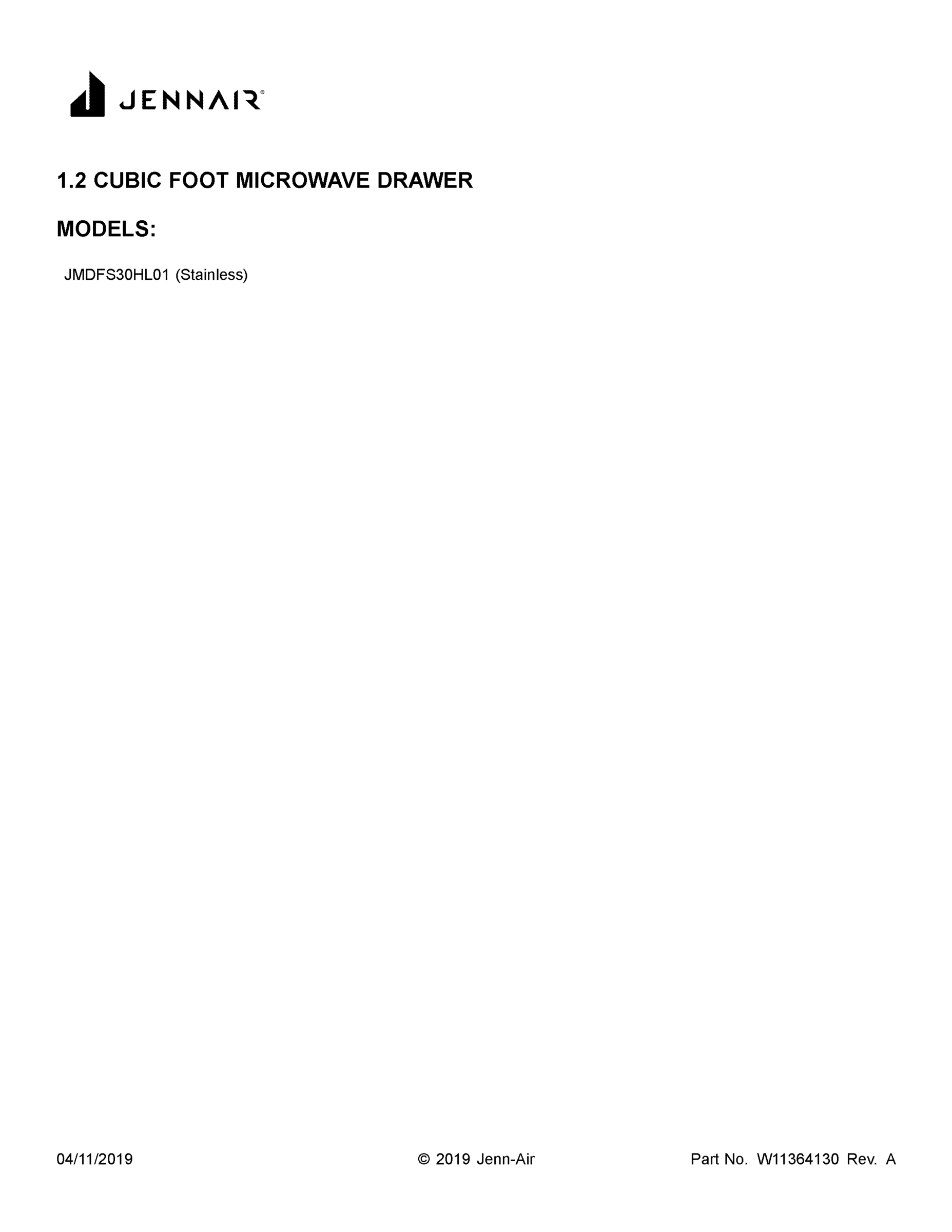

01 - COVER SHEET

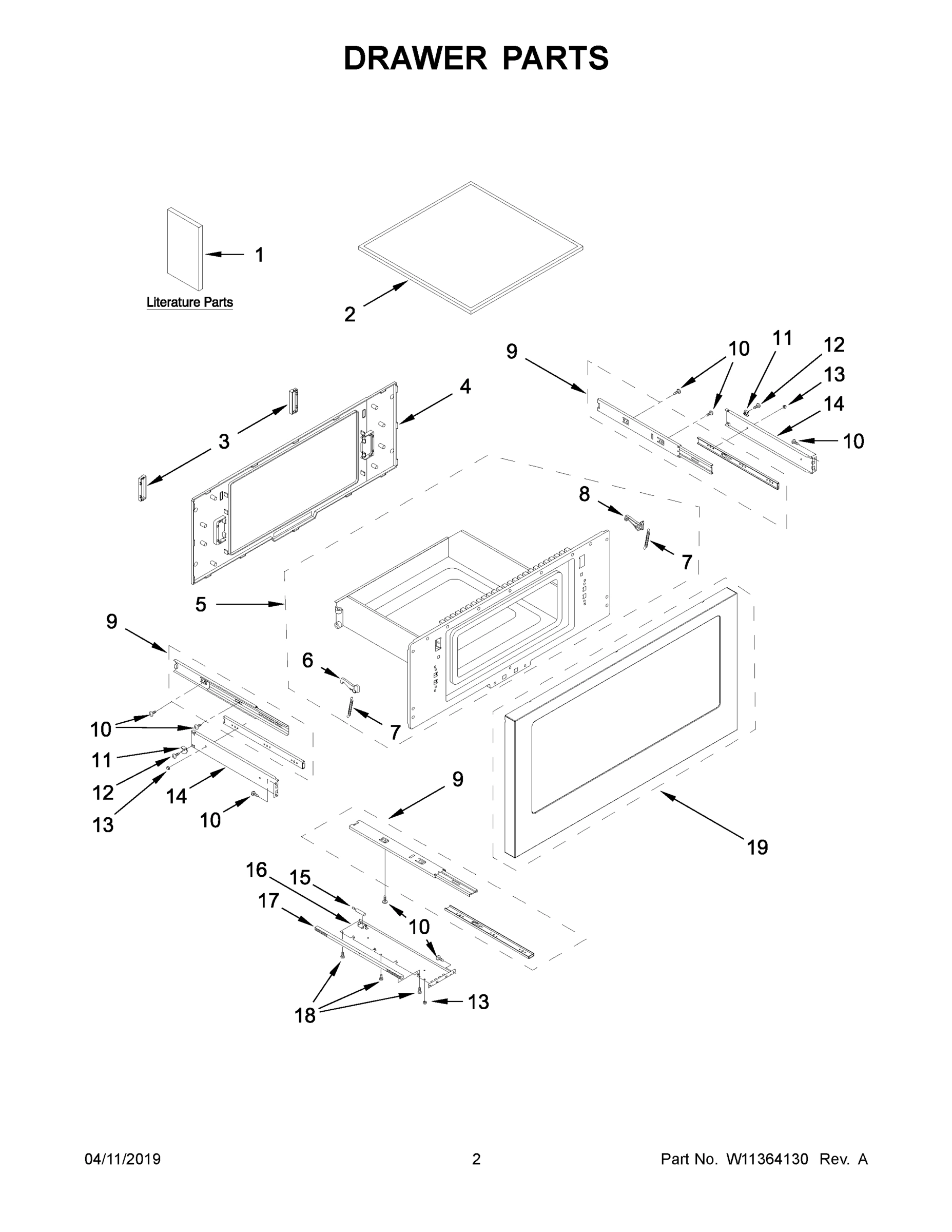

02 - DRAWER PARTS
03 - CONTROL PANEL PARTS
04 - OVEN CAVITY PARTS
05 - SWITCH PARTS
06 - INTERIOR PARTS
07 - BASE PLATE PARTS
Common parts from model Maytag JMDFS30HL01 MICROWAVE DRAWER, 1.2 CUBIC FOOT
1
INSTALLATION INSTRUCTIONS MAY W11101480 Contact Us For Availability
1
BUSHING, POWER CORD MAY W11199864 Contact Us For Availability
1
MICROSWITCH MAY W11199805 Contact Us For Availability
1
MAY W11362533 MAY W11362533 Contact Us For Availability
1
SUPPLY. POWER MAY W11199538 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W11101478 Contact Us For Availability
2
TRAY, OVEN MAY W11201328 Contact Us For Availability
2
HARNESS, TOUCH CONTROL MAY W11199895 Contact Us For Availability
2
SCREW MAY 8185369 Contact Us For Availability
2
SCREW MAY 4174784 Contact Us For Availability
2
FILTER, NOISE MAY W11199545 Contact Us For Availability
3
COVER, SUPPORT MAY W11201390 Contact Us For Availability
3
BRACKET, PANEL MAY W11199889 Contact Us For Availability
3
BRACKET, POWER CORD MAY W11199863 Contact Us For Availability
3
LATCH, DOOR (LEFT) MAY W11201860 Contact Us For Availability
3
FUSE (20A) MAY W11315605 Contact Us For Availability
3
HOLDER, CONTROL MAY W11201745 Contact Us For Availability
4
COVER, CHOKE MAY W11315620 Contact Us For Availability
4
SCREW MAY W10278891 Contact Us For Availability
4
LATCH, DOOR (RIGHT) MAY W11201858 Contact Us For Availability
4
CUSHION, FAN MOTOR SUPPORT MAY W11201861 Contact Us For Availability
4
MAY W11362530 MAY W11362530 Contact Us For Availability
5
ASSEMBLY, DRAWER MAY W11315618 Contact Us For Availability
5
CUSHION, CONTROL MAY W11199894 Contact Us For Availability
5
COVER, REAR MAY W11201389 Contact Us For Availability
5
SWITCH, MONITOR (WITH FUSE) MAY W11305909 Contact Us For Availability
5
DUCT, MAGNETRON MAY W10278107 Contact Us For Availability
5
BRACKET, CAPACITOR MAY W11201396 Contact Us For Availability
6
HOOK, LATCH (LEFT) MAY W11201873 Contact Us For Availability
6
MAY W11330996 MAY W11330996 Contact Us For Availability
6
CASE, OUTER MAY W11199812 Contact Us For Availability
6
CUSHION, INLET MAY W11201793 Contact Us For Availability
6
CUSHION, TRANSFORMER MAY W11201794 Contact Us For Availability
7
SPRING, LATCH MAY W11201874 Contact Us For Availability
7
WIRE, GROUND MAY W11199896 Contact Us For Availability
7
PANEL, PARTITION MAY W11201800 Contact Us For Availability
7
MAGNETRON MAY W11209949 Contact Us For Availability
7
TRANSFORMER, HIGH VOLTAGE MAY W11199548 Contact Us For Availability
8
HOOK, LATCH (RIGHT) MAY W11201872 Contact Us For Availability
8
PANEL, CONTROL MAY W11199888 Contact Us For Availability
8
DUCT, SENSOR MAY W11201852 Contact Us For Availability
8
COVER, WAVEGUIDE MAY W11202128 Contact Us For Availability
9
SLIDE, DRAWER MAY W11201775 Contact Us For Availability
9
SCREW MAY W10278632 Contact Us For Availability
9
RELAY, POWER MAY W11199539 Contact Us For Availability
9
ASSEMBLY, SENSOR MAY W10278023 Contact Us For Availability
10
CUSHION, DUCT MAY W11201803 Contact Us For Availability
10
PLATE, BASE MAY W11201391 Contact Us For Availability
11
SCREW MAY 8205835 Contact Us For Availability
11
STOPPER, DOOR MAY W11199897 Contact Us For Availability
11
HOLDER, RELAY MAY W11201748 Contact Us For Availability
12
BRACKET, LEFT MAY W11315610 Contact Us For Availability
12
DUCT, EXHAUST MAY W11201854 Contact Us For Availability
13
NUT MAY W10278889 Contact Us For Availability
13
CUT-OUT, THERMAL MAY W11199547 Contact Us For Availability
13
CUSHION, EXHAUST DUCT MAY W11201796 Contact Us For Availability
14
SUPPORT, SIDE MAY W11315617 Contact Us For Availability
14
MAY W11362534 MAY W11362534 Contact Us For Availability
14
CUSHION, AIR FLOW MAY W11201802 Contact Us For Availability
15
PISTON, DOOR STOP MAY W11201804 Contact Us For Availability
15
DEFLECTOR MAY W11199859 Contact Us For Availability
15
ASSEMBLY, DRAWER GEAR MAY W11199810 Contact Us For Availability
16
SUPPORT, BOTTOM MAY W11201393 Contact Us For Availability
16
BRACKET, RIGHT MAY W11315614 Contact Us For Availability
17
GEAR, DRAWER MAY W11201777 Contact Us For Availability
17
BRACKET, CONTROL PANEL MAY W11201787 Contact Us For Availability
18
SCREW MAY W10278647 Contact Us For Availability
18
COVER, LAMP MAY W11201790 Contact Us For Availability
19
PANEL, DOOR MAY W11201869 Contact Us For Availability
19
ASSEMBLY, LAMP MAY W10278184 Contact Us For Availability
20
MAY W11362539 MAY W11362539 Contact Us For Availability
21
COVER, STIRRER MAY W11201789 Contact Us For Availability
22
MAY W11362541 MAY W11362541 Contact Us For Availability
23
PANEL, BOTTOM PARTITION MAY W11201857 Contact Us For Availability
24
GLASS, LAMP MAY W11201855 Contact Us For Availability
25
COVER, FACEPLATE MAY W11209962 Contact Us For Availability
26
SCREW, MOUNTING (WOOD) MAY W11251704 Contact Us For Availability
27
SCREW, DEFLECTOR MAY W11251705 Contact Us For Availability
28
COVER, LATCH MAY W11199861 Contact Us For Availability
29
MAY W11362542 MAY W11362542 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CORD, POWER MAY W11199540 Contact Us For Availability
NI
MAY W11362536 MAY W11362536 Contact Us For Availability
× ![]()
