Model Maytag JMC9158BAS13 MICROWAVE – Common Parts & Diagrams
01 - MICROWAVE DOOR PARTS
02 - MICROWAVE CONTROL PANEL PARTS

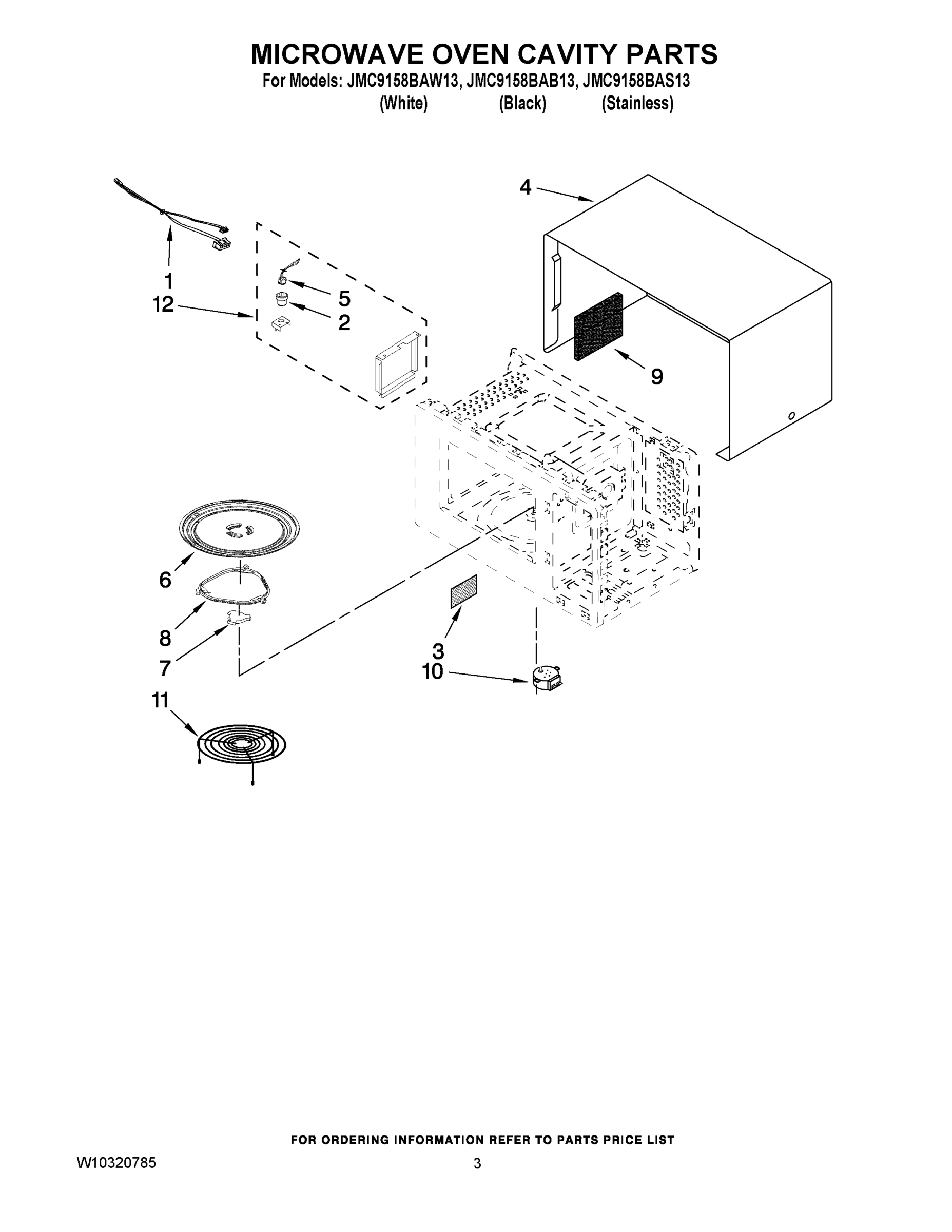

03 - MICROWAVE OVEN CAVITY PARTS

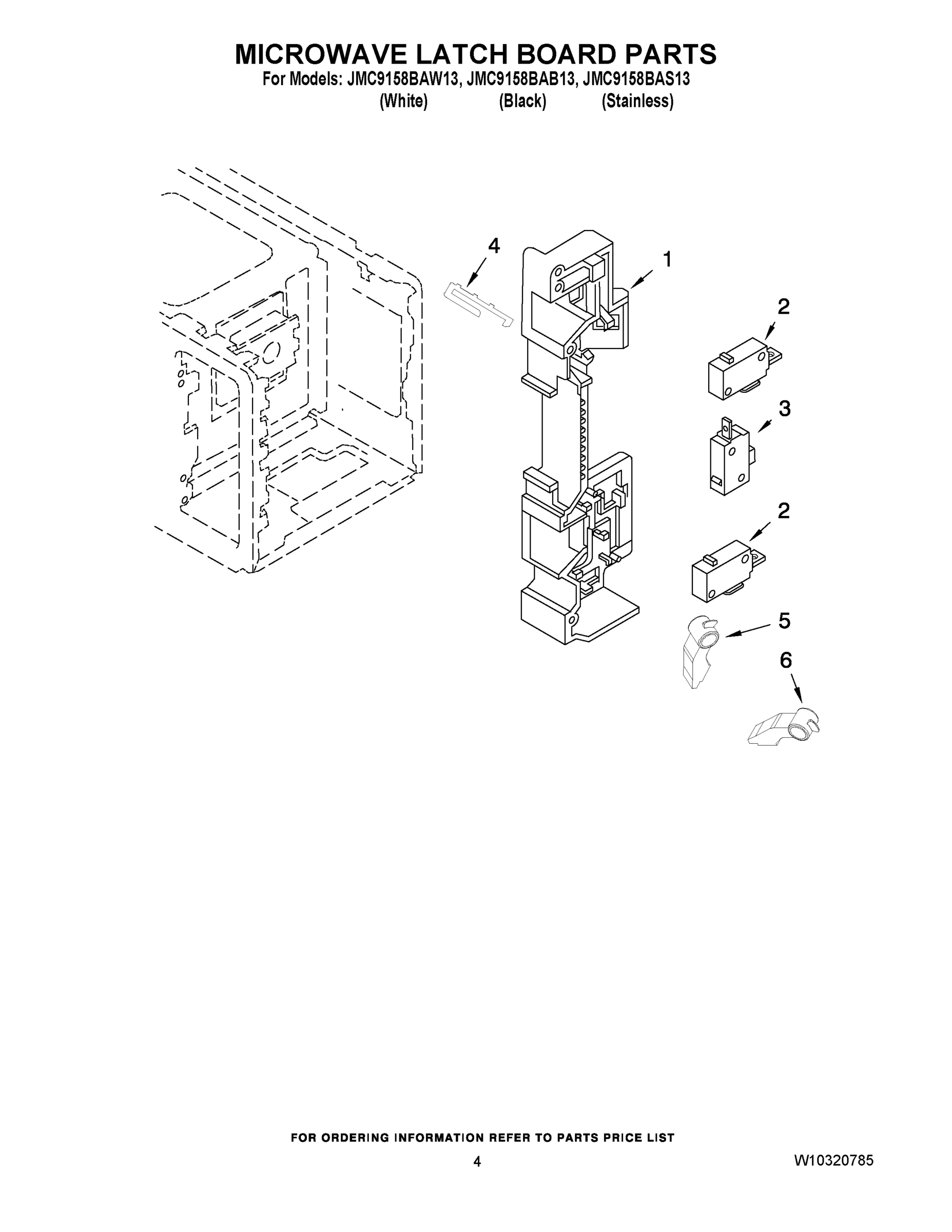

04 - MICROWAVE LATCH BOARD PARTS

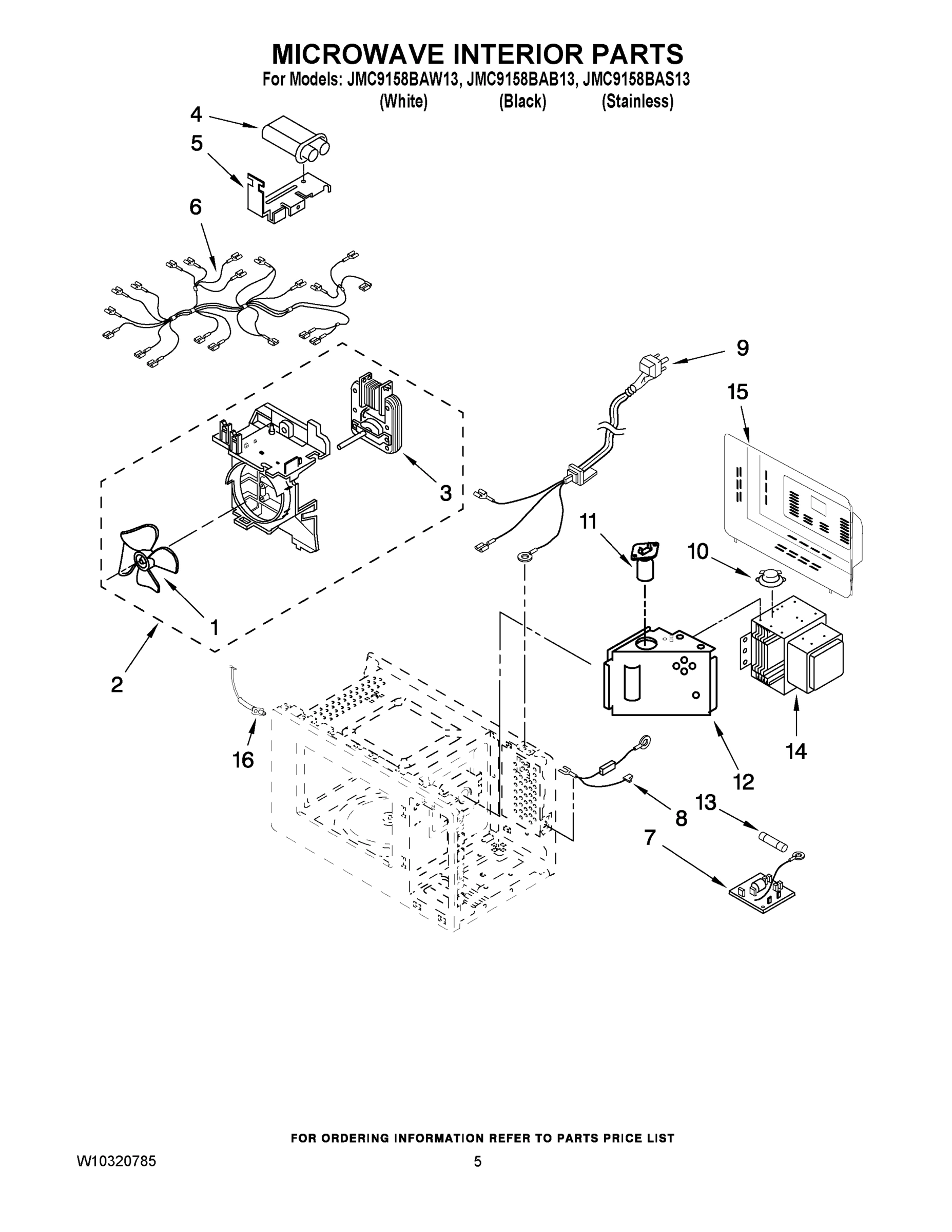

05 - MICROWAVE INTERIOR PARTS

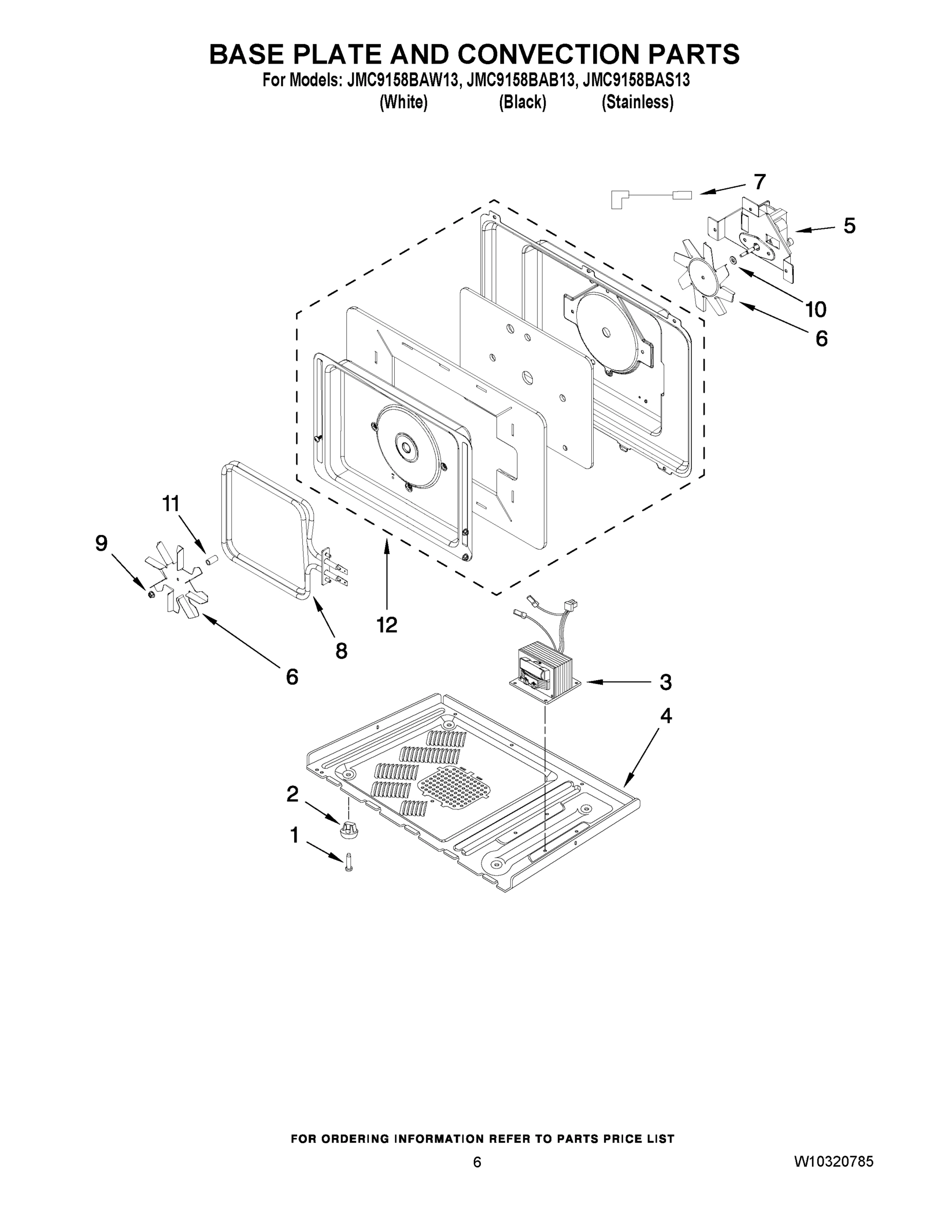

06 - BASE PLATE AND CONVECTION PARTS
Common parts from model Maytag JMC9158BAS13 MICROWAVE
1
BODY, LATCH MAY DE72-00137F Contact Us For Availability
2
SENSOR, GAS MAY DE32-60011A Contact Us For Availability
2
GUIDE, SUCTION MAY W10284507 Contact Us For Availability
3
MOTOR-FAN MAY DE31-10155T Contact Us For Availability
3
PANEL, CONTROL (BLACK) MAY DE64-01499A Contact Us For Availability
3
PANEL, CONTROL (WHITE) MAY DE64-01499B Contact Us For Availability
3
PANEL, CONTROL (STAINLESS) MAY DE64-01501A Contact Us For Availability
3
MAY 3405-001032 MAY 3405-001032 Contact Us For Availability
3
TRANSFORMER MAY DE26-00123A Contact Us For Availability
4
PCB MAY RAS-1580-00 Contact Us For Availability
4
MAY W10284503 MAY W10284503 Contact Us For Availability
4
STOPPER, LATCH MAY DE66-00117D Contact Us For Availability
4
ASSY, BASE PLATE MAY DE80-10032P Contact Us For Availability
5
HARNESS, SENSOR MAY DE96-00315B Contact Us For Availability
5
LEVER, SWITCH MAY DE66-00093A Contact Us For Availability
5
MAY DE61-50170A MAY DE61-50170A Contact Us For Availability
6
TRAY, GLASS MAY DE74-00023A Contact Us For Availability
6
LEVER, SWITCH MAY DE66-00094A Contact Us For Availability
6
ASSEMBLY, LEADWIRE MAY DE96-00500A Contact Us For Availability
6
MAY DE31-90019B MAY DE31-90019B Contact Us For Availability
7
SHAFT, TURNTABLE MAY DE67-00206A Contact Us For Availability
7
MAY DE96-00399B MAY DE96-00399B Contact Us For Availability
7
MAY DE39-30153B MAY DE39-30153B Contact Us For Availability
8
H.V. DIODE CABLE MAY DE91-70063A Contact Us For Availability
8
MAY DE47-70077C MAY DE47-70077C Contact Us For Availability
9
POWER CORD MAY DE39-10102F Contact Us For Availability
9
FLANGE, NUT MAY DE60-30016B Contact Us For Availability
10
WASHER, MOTOR MAY DE60-40014B Contact Us For Availability
11
MAY 4713-001012 MAY 4713-001012 Contact Us For Availability
11
RACK, WIRE MAY DE97-00136H Contact Us For Availability
11
MAY DE72-30016B MAY DE72-30016B Contact Us For Availability
12
MAY W10284510 MAY W10284510 Contact Us For Availability
12
DUCT, AIR MAY DE63-00348A Contact Us For Availability
12
MAY W10284499 MAY W10284499 Contact Us For Availability
15
MAY DE63-00346A MAY DE63-00346A Contact Us For Availability
× ![]()
