Model LG JMC8130DDS MWO-L(Full Built In & Combo) 30 inch Stainless – Common Parts & Diagrams

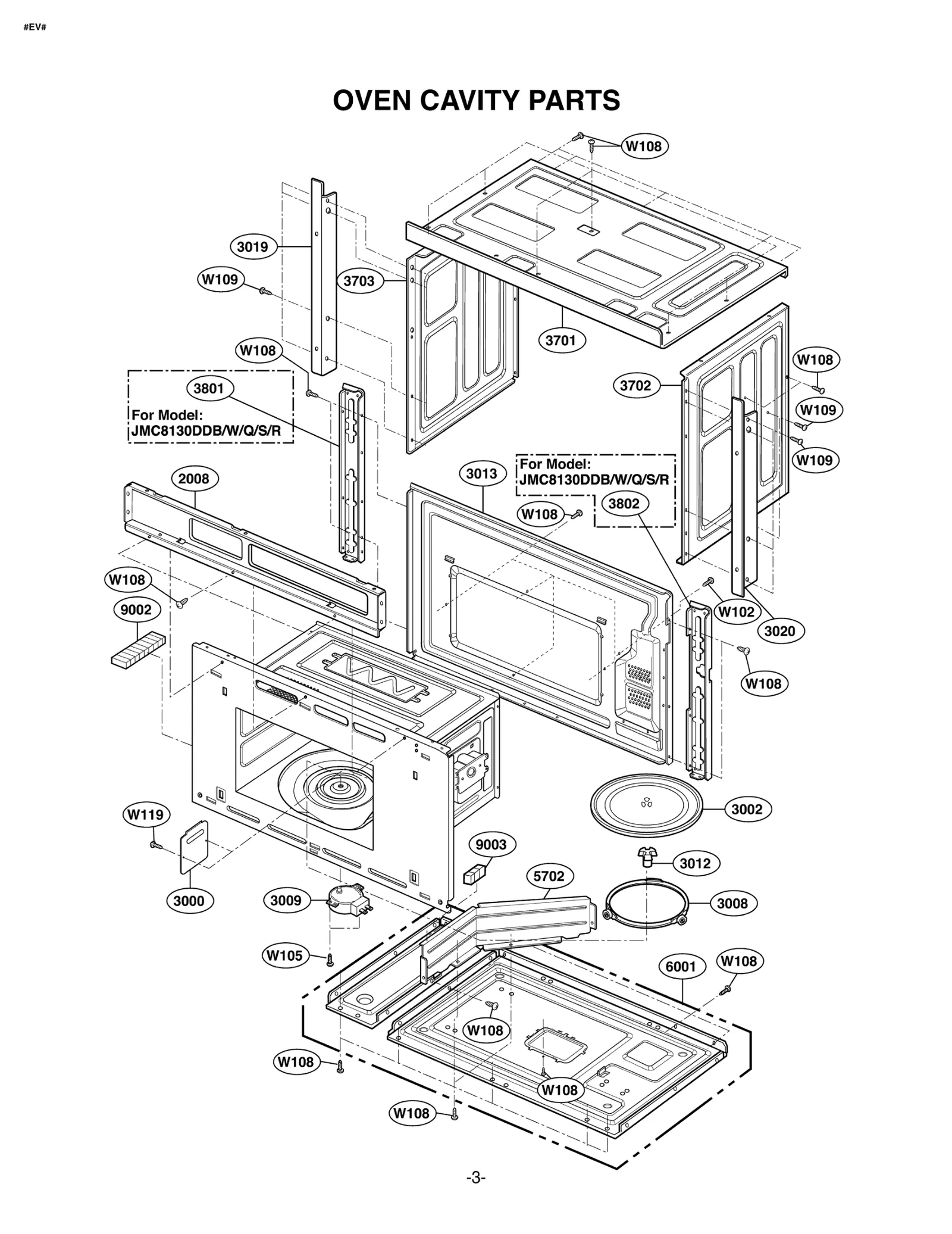

Diagram 0
Diagram 1
Diagram 2

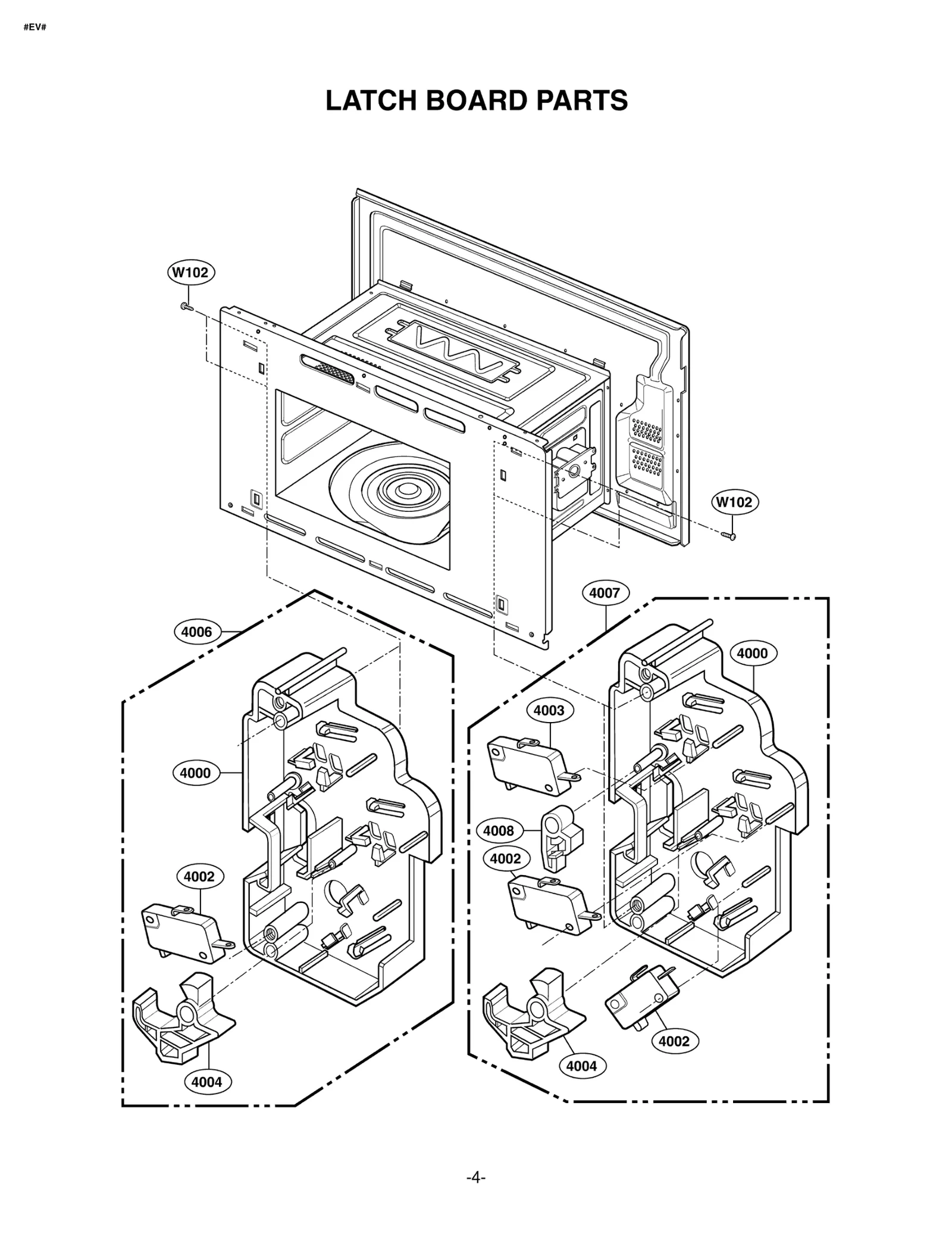

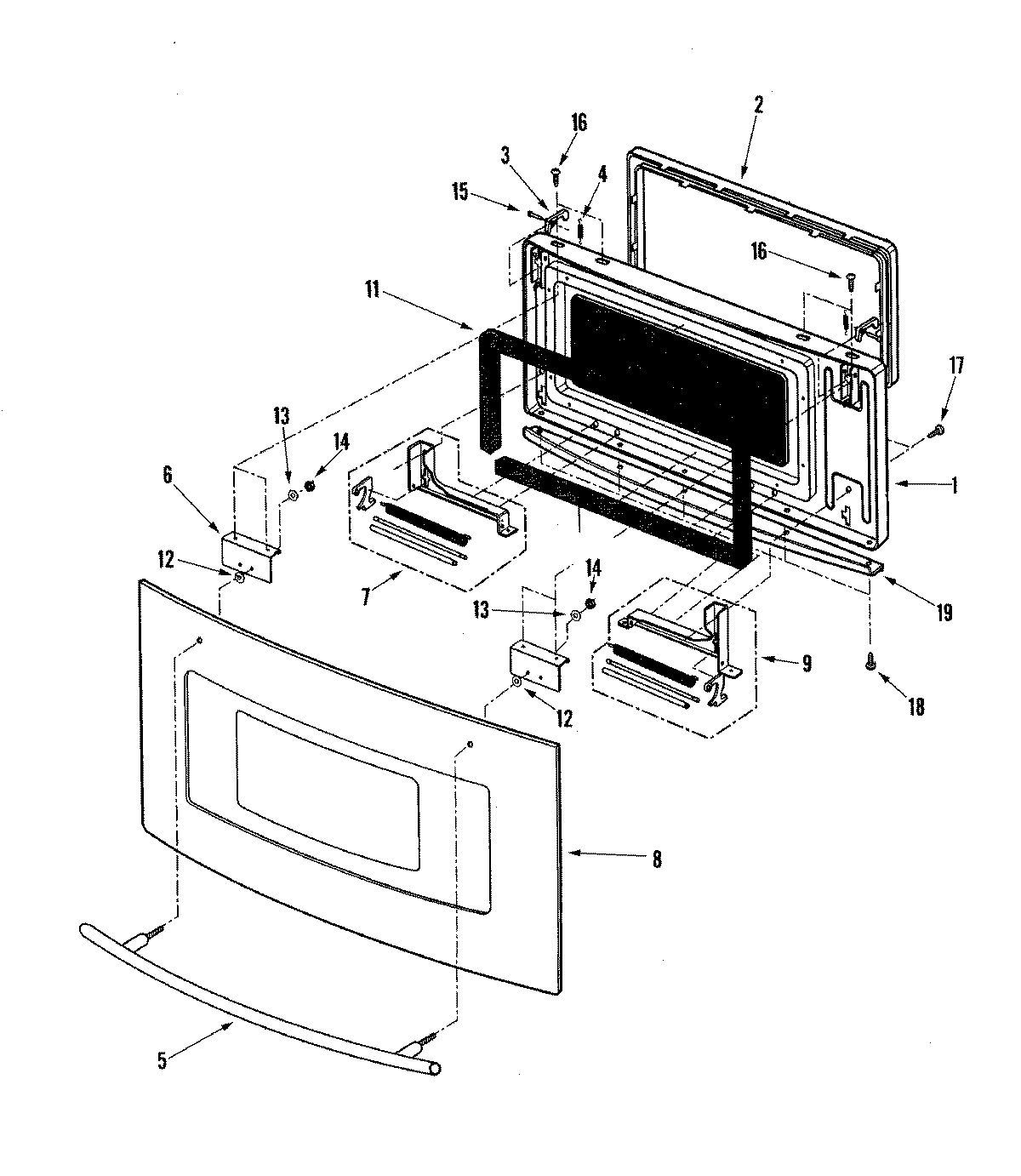

Diagram 3

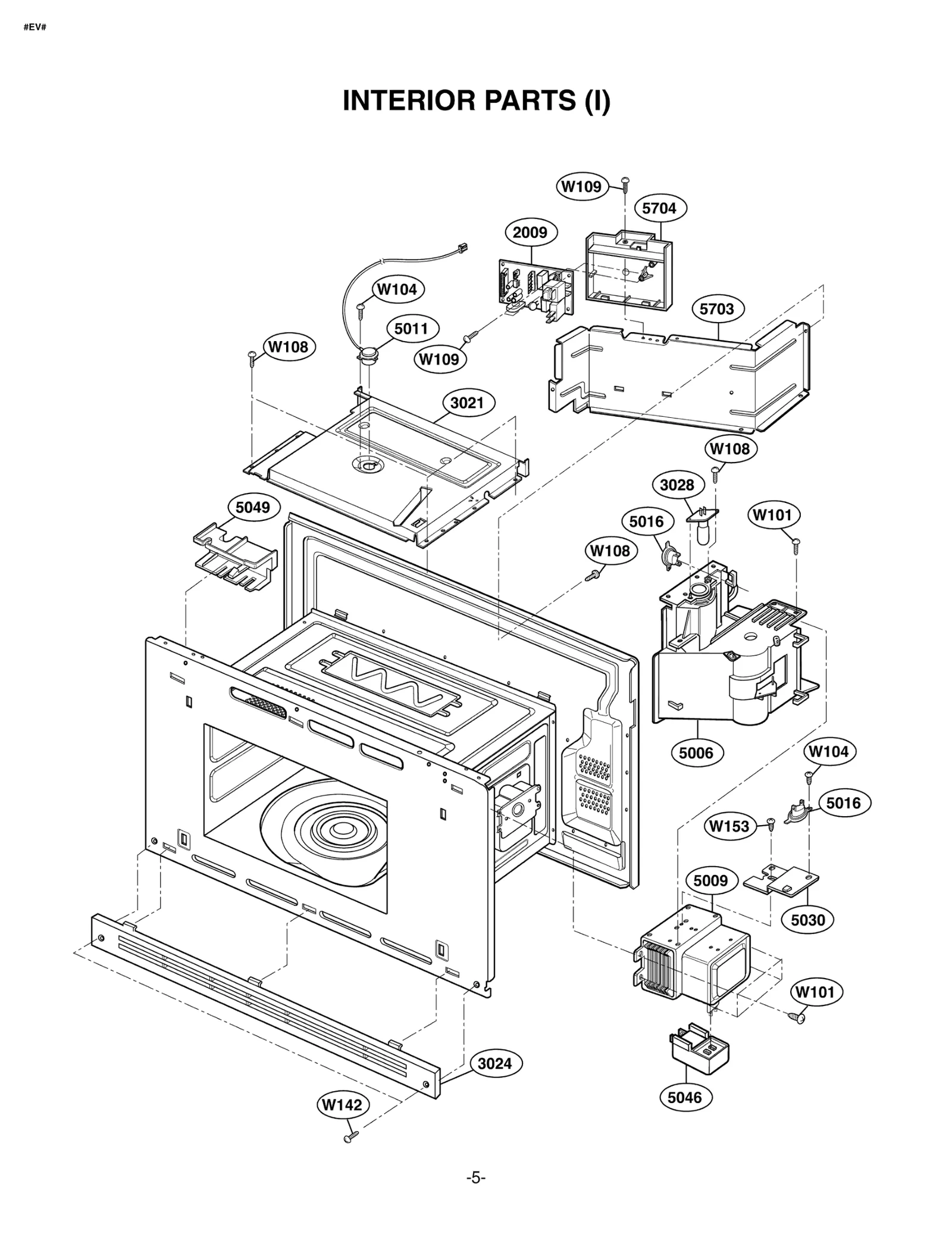

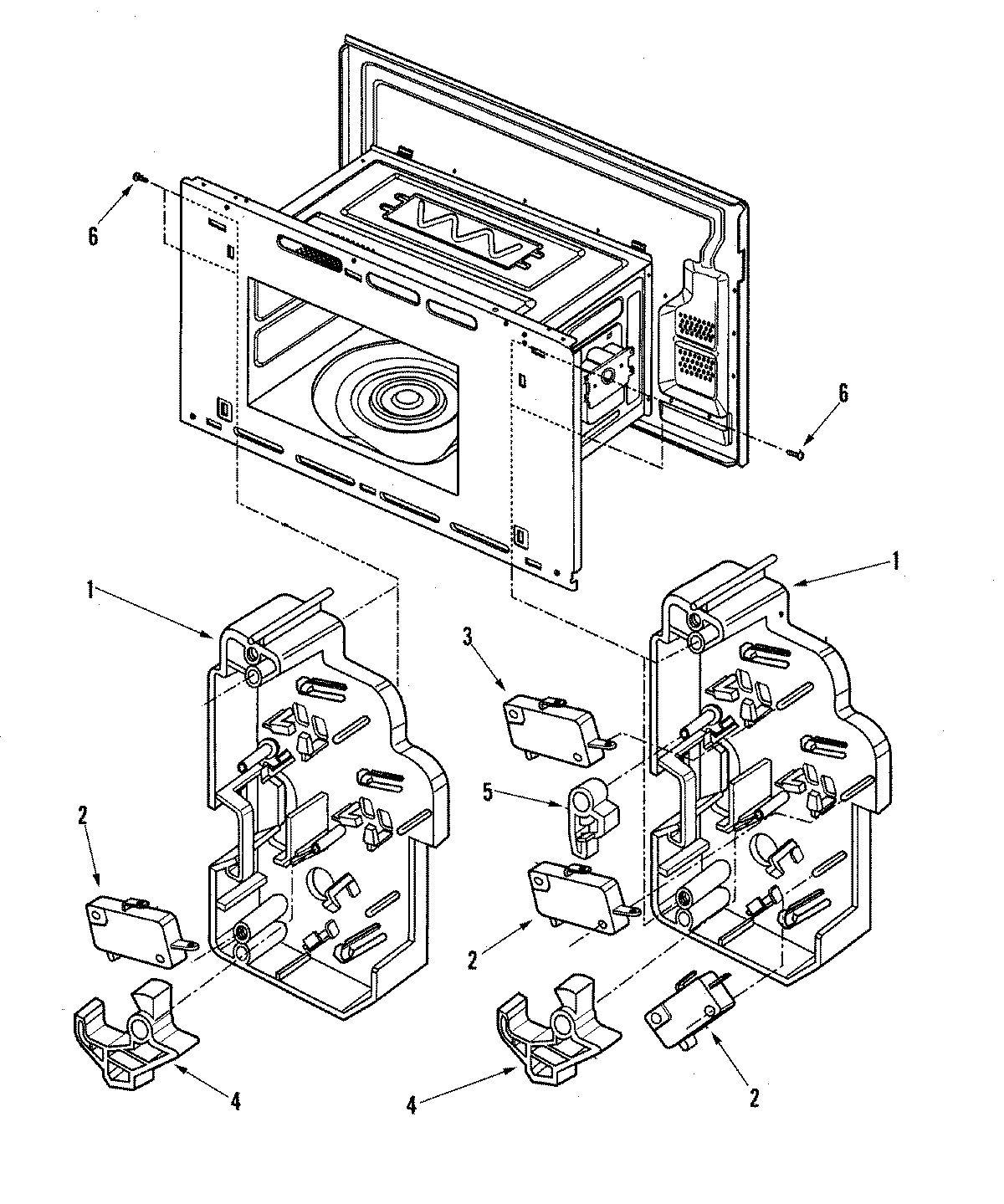

Diagram 4

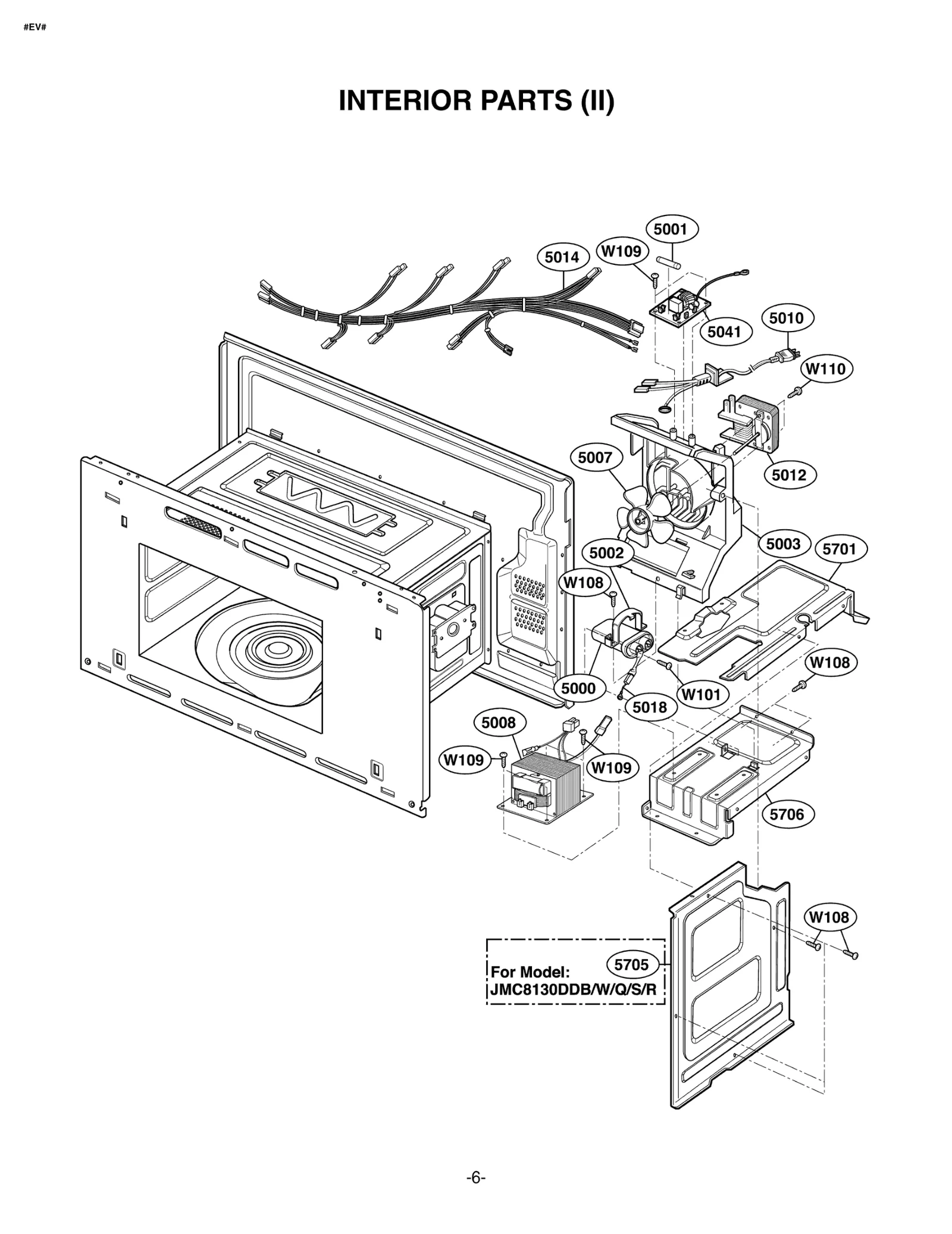

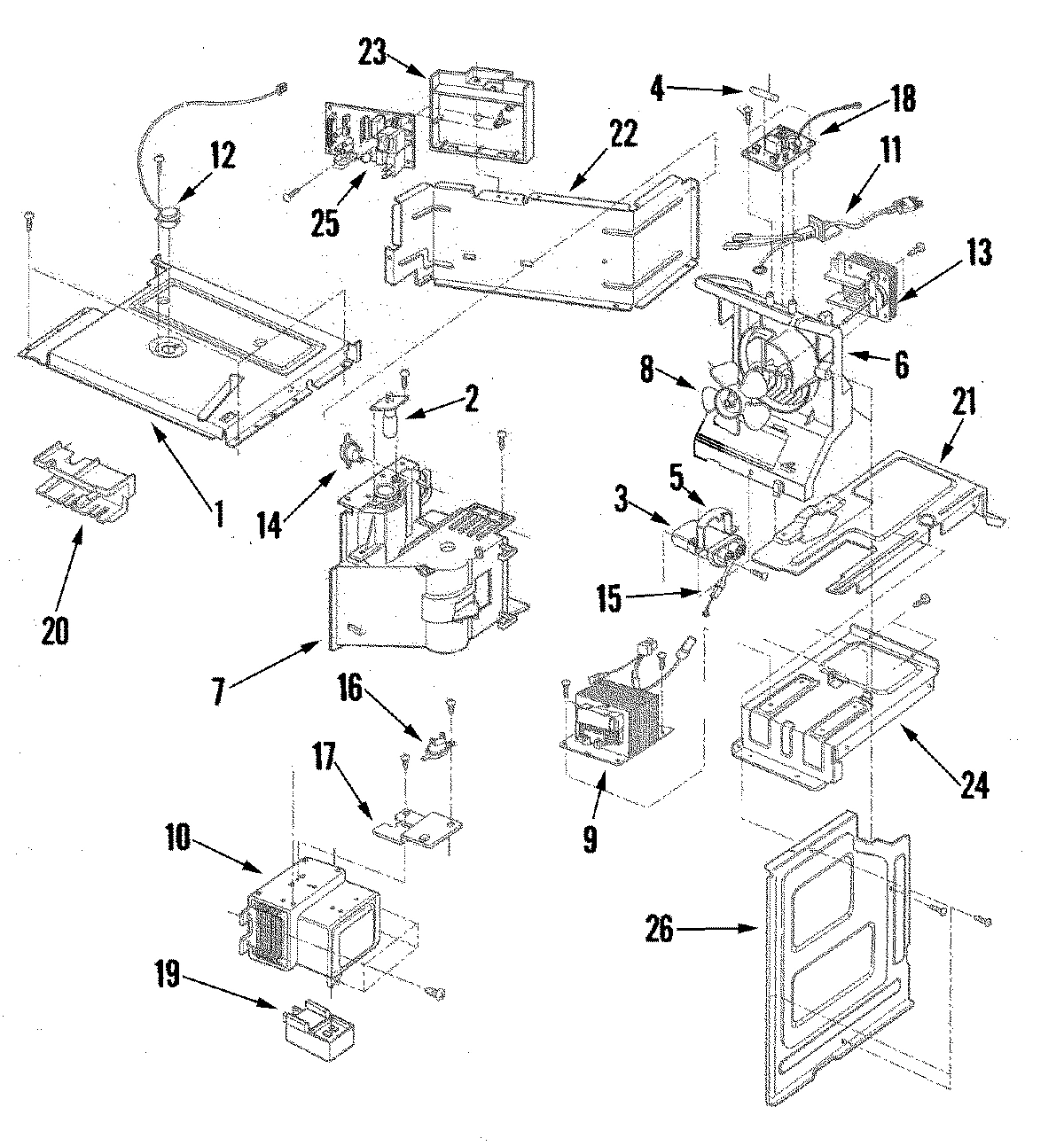

Diagram 5
Diagram 6
Common parts from model LG JMC8130DDS MWO-L(Full Built In & Combo) 30 inch Stainless
2006
PCB Assembly,Sub LGE 6871W1S160B Contact Us For Availability
2008
BRACKET,CONTROL PANEL LGE 4810W0A002A Contact Us For Availability
2010
HOLDER,DISPLAY LGE 4930W1A035A Contact Us For Availability
2381
Parts Assembly LGE 383EW0A030F Contact Us For Availability
3002
GLASS TRAY LGE 1B71961A Contact Us For Availability
3013
Cover,Rear LGE 3550W0A080B Contact Us For Availability
3016
BRACKET,MISC LGE 4810W1A115A Contact Us For Availability
3019
TRIM LGE 4918W1A013C Contact Us For Availability
3020
TRIM LGE 4918W1A013D Contact Us For Availability
3021
AIR TUNNEL LGE 5264W1A015E Contact Us For Availability
3024
GRILLE,VENT LGE 3530W0A036A Contact Us For Availability
3028
LAMP,DRAWING LGE 6912W3B002H Contact Us For Availability
3701
ENCLOSURE LGE 3180W0A004B Contact Us For Availability
3702
ENCLOSURE LGE 3180W0A006A Contact Us For Availability
3703
ENCLOSURE LGE 3180W0A005A Contact Us For Availability
3801
COVER,BACK LGE 3550W1A167B Contact Us For Availability
3802
COVER,BACK LGE 3550W1A167A Contact Us For Availability
4000
BOARD,LATCH LGE 3500W1A031A Contact Us For Availability
4002
MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability
4003
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
4004
LEVER LGE 4510W1A010A Contact Us For Availability
4006
Holder Assembly,Locker LGE 3501W1A031B Contact Us For Availability
4007
Holder Assembly,Locker LGE 3501W1A031A Contact Us For Availability
4008
LEVER LGE 4510W1A011A Contact Us For Availability
5002
BRACKET,[CAPACITOR] LGE 4810W3C007A Contact Us For Availability
5003
GUIDE,SUCTION LGE 4974W1A017A Contact Us For Availability
5006
DUCT LGE 3550W1A093B Contact Us For Availability
5007
FAN LGE 5900W1A007A Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D050Y Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D050P Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A018L Contact Us For Availability
5010
POWER CORD ASSY LGE 6411W1A010L Contact Us For Availability
5011
SENSOR ASSY LGE 6501W1A004B Contact Us For Availability
5012
Confirmed NLA with no LTB option 5/9/14 NB LGE 6549W1F009A Contact Us For Availability
5014
HARNESS LGE 6877W1A439A Contact Us For Availability
5016
THERMOSTAT 160 V PW MA-1554M LGE 6930WRT003A Contact Us For Availability
5016
THERMOSTAT,BIMETAL LGE 6930W1A002C Contact Us For Availability
5018
DIODE ASSY DIODE+CAB LGE 6021W3B001K Contact Us For Availability
5046
FILTER ASSEMBLY(CIRC) LGE 6201W2A019G Contact Us For Availability
5046
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
5049
GUIDE,AIR LGE 4974W1A018A Contact Us For Availability
5701
BARRIER LGE 4790W1A007A Contact Us For Availability
5702
BARRIER LGE 4790W1A008A Contact Us For Availability
5703
BARRIER LGE 4790W1A009A Contact Us For Availability
5704
BASE,PCB LGE 3040W1A027A Contact Us For Availability
5705
PLATE,SHIELD LGE 3300W1A038A Contact Us For Availability
5706
BOTTOM LGE 3080W1A001A Contact Us For Availability
6001
BASE PLATE ASSEMBLY LGE 3303W0A024A Contact Us For Availability
9001
SHEET CHECK RM LGE 3B72245G Contact Us For Availability
9002
CUSHION LGE 3B72246K Contact Us For Availability
9003
CUSHION DIGITRON 7MM MS-71MD J LGE 4850W4C001C Contact Us For Availability
MAY1
Box LGE 3890W3Y579A Contact Us For Availability
MFL1
MANUAL,OWNERS LGE 3828W5A2905 Contact Us For Availability
MFL3
Manual,Installation LGE 3828W5U0230 Contact Us For Availability
× ![]()
