Model Maytag JMC8130DDR10 MICROWAVE – Common Parts & Diagrams
01 - CONTROL PANEL PARTS
02 - OVEN PARTS

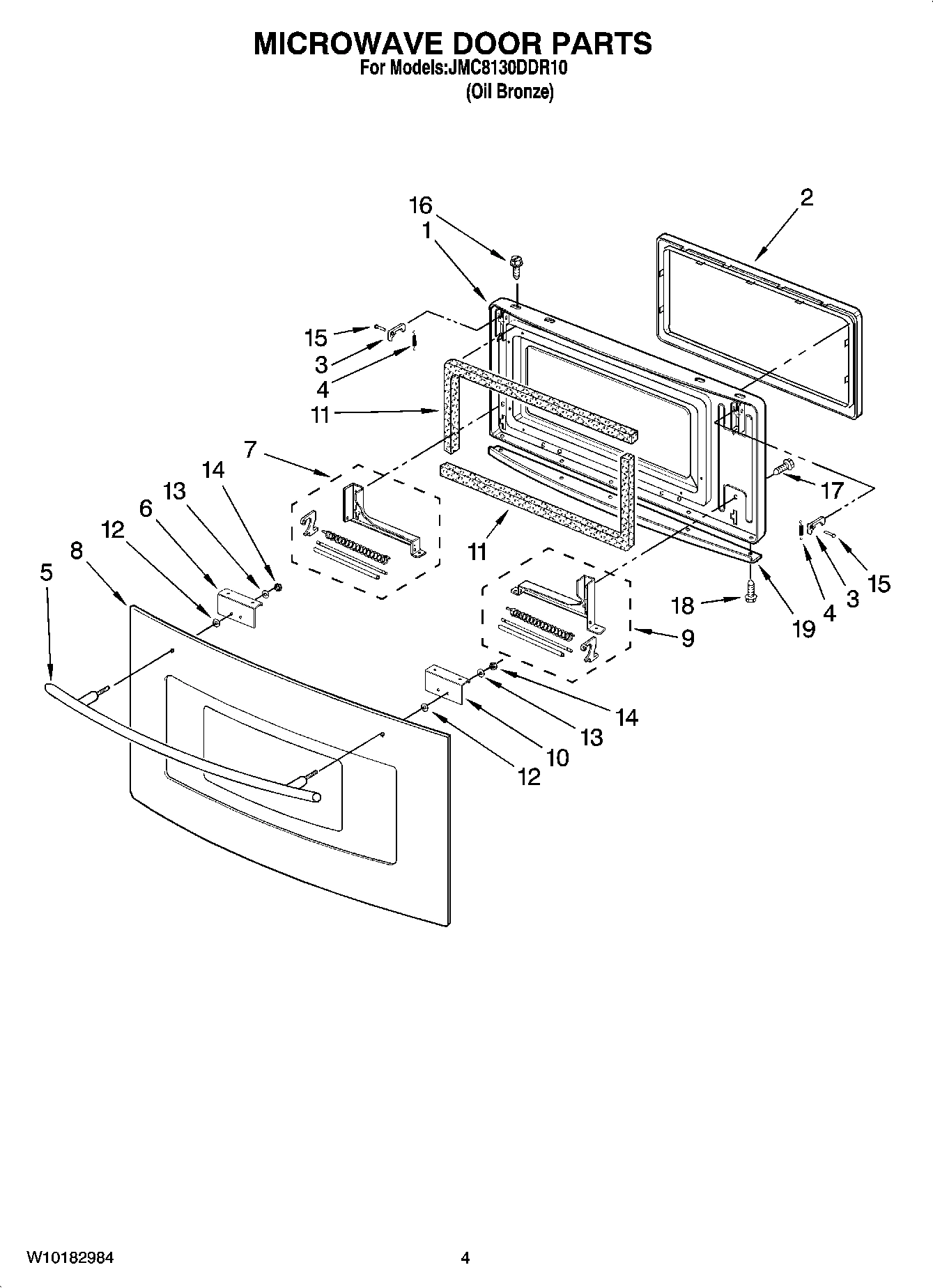

03 - MICROWAVE DOOR PARTS

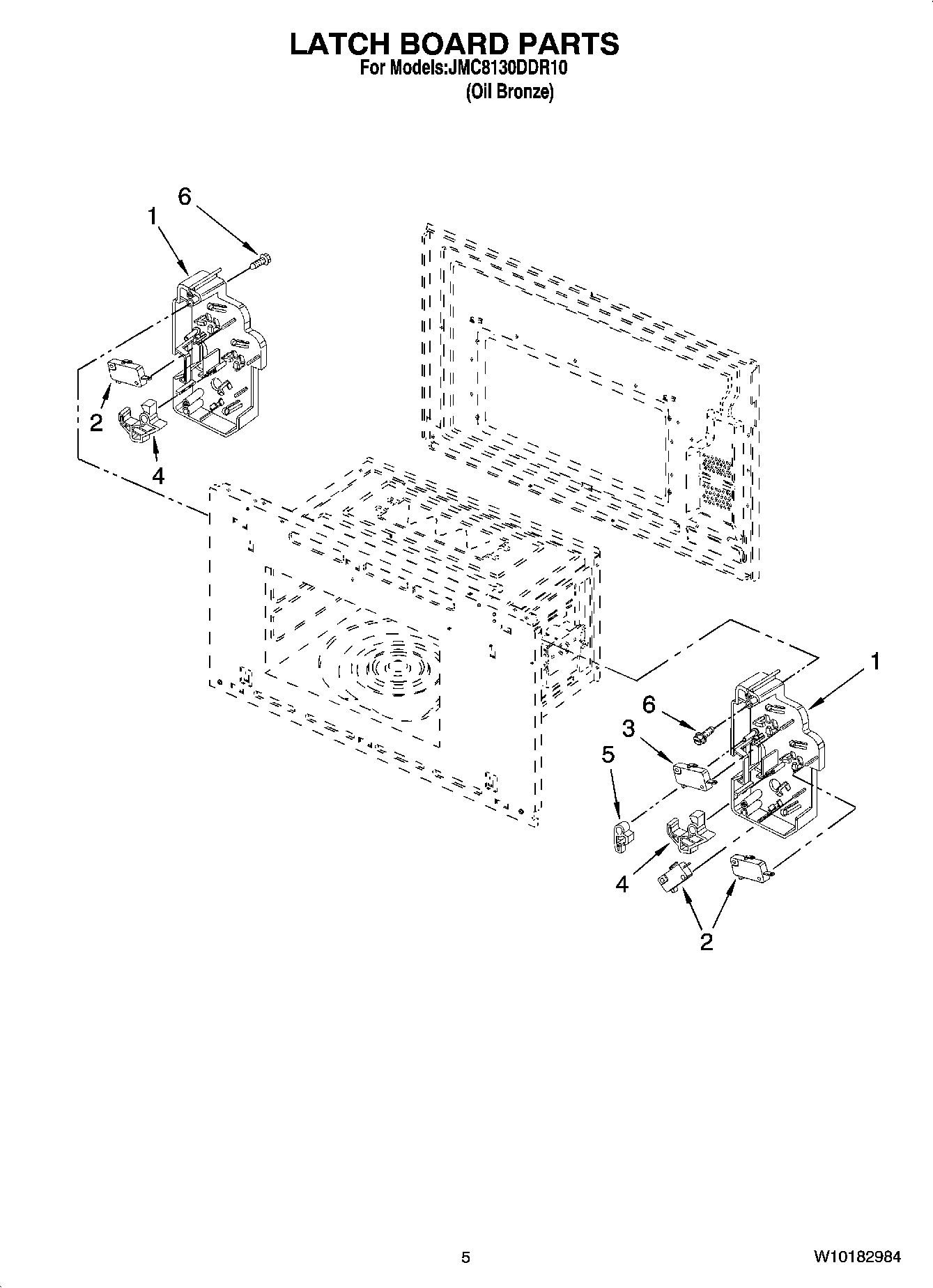

04 - LATCH BOARD PARTS

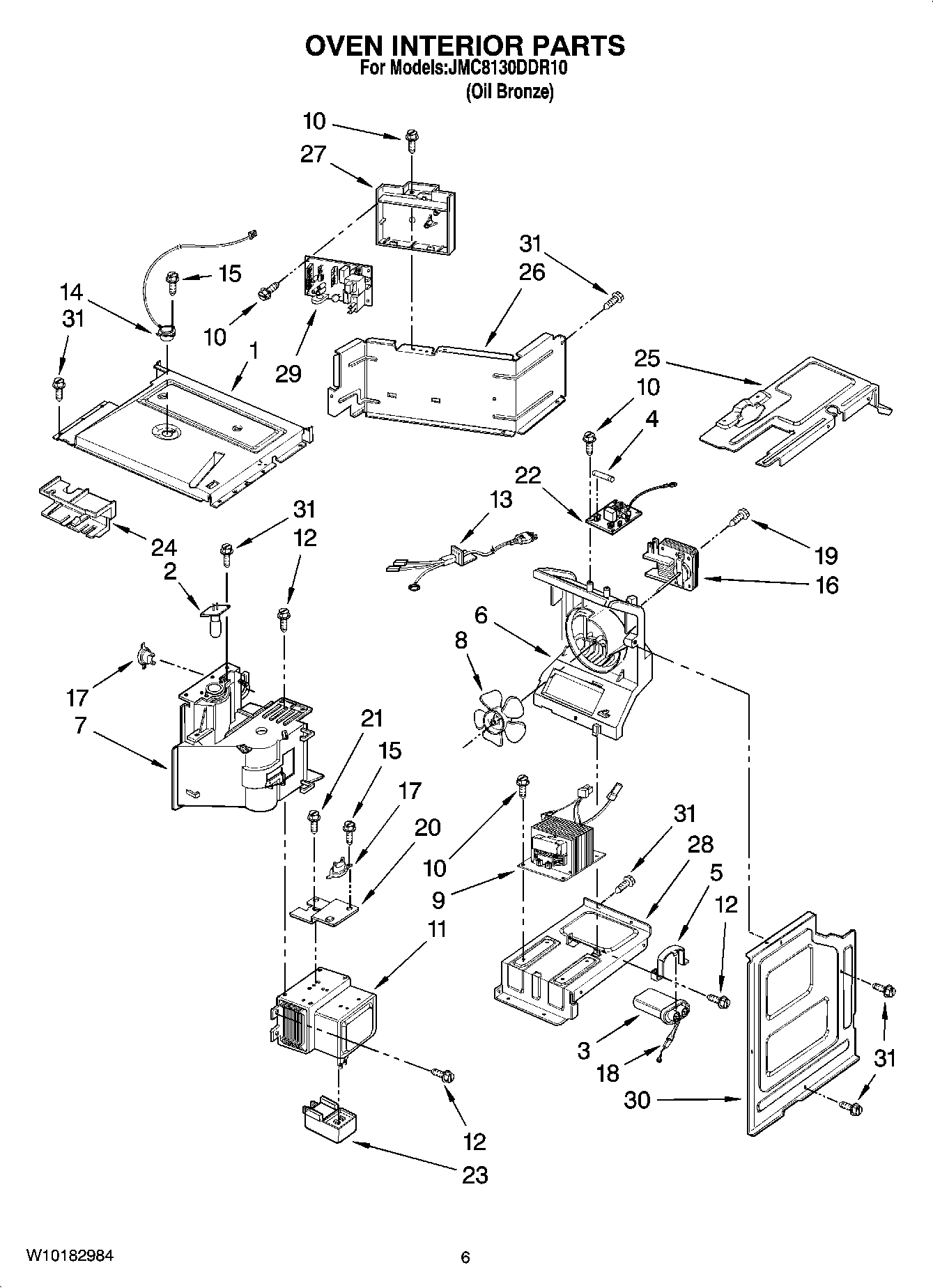

05 - OVEN INTERIOR PARTS

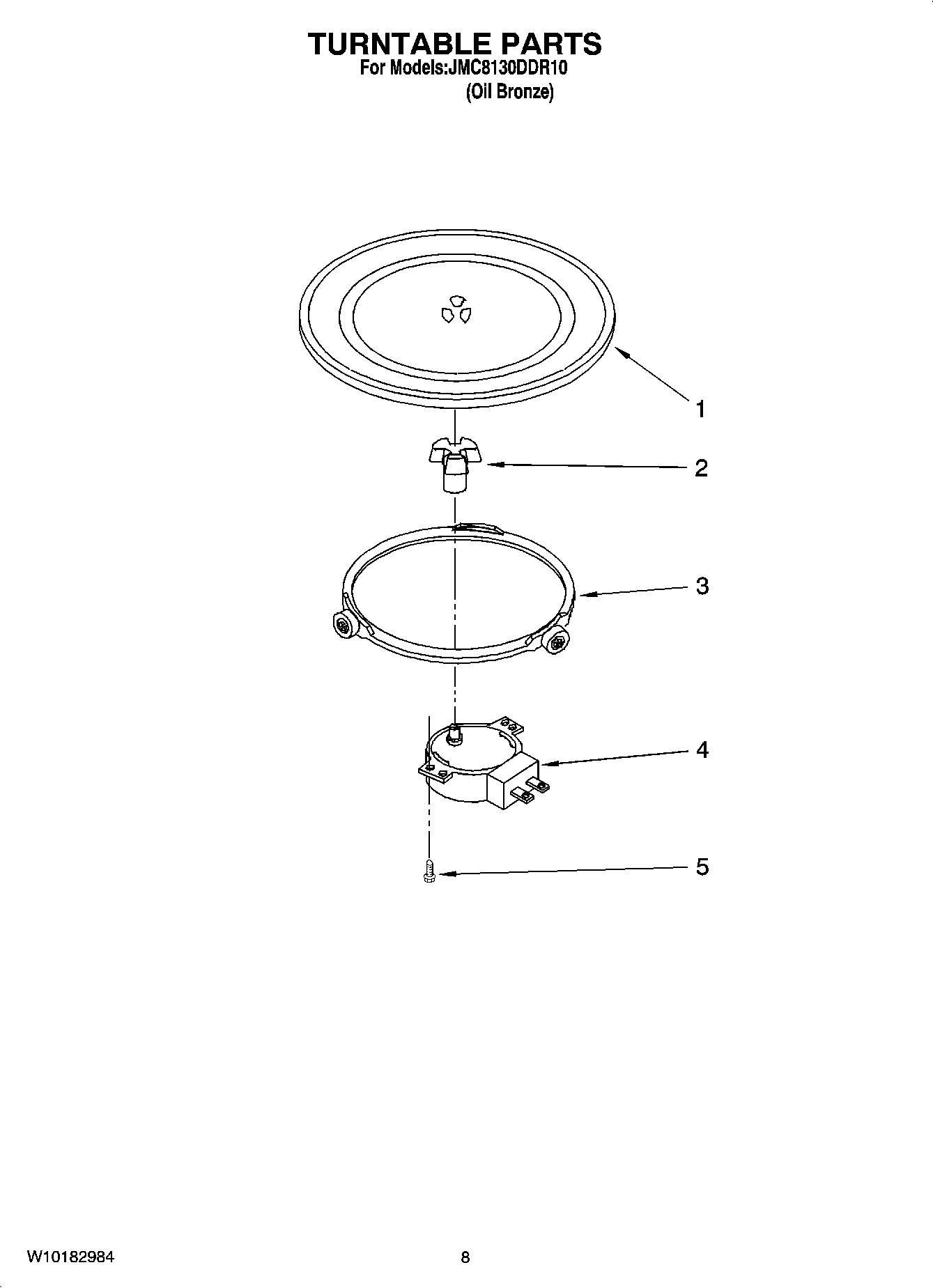

06 - TURNTABLE PARTS, OPTIONAL PARTS
Common parts from model Maytag JMC8130DDR10 MICROWAVE
1
Frame, Door MAY 53001287 Contact Us For Availability
1
MAY R9800398 MAY R9800398 Contact Us For Availability
1
Board, Latch MAY 53001246 Contact Us For Availability
1
Tunnel, Air MAY W10153234 Contact Us For Availability
1
Tray, Glass MAY 8184853 Contact Us For Availability
2
MAY R0130605 MAY R0130605 Contact Us For Availability
2
Trim, Side (LH) MAY 53001262 Contact Us For Availability
2
Trim, Side (RH) MAY 53001263 Contact Us For Availability
2
MAY 53001219 MAY 53001219 Contact Us For Availability
2
Switch, Micro MAY 53001036 Contact Us For Availability
3
MAY 53001261 MAY 53001261 Contact Us For Availability
3
MAY 53001220 MAY 53001220 Contact Us For Availability
3
MAY R0654095 MAY R0654095 Contact Us For Availability
3
Ring, Rotating MAY R0130677 Contact Us For Availability
4
MAY 53001221 MAY 53001221 Contact Us For Availability
4
Side, Chassis (Right Side) MAY 53001268 Contact Us For Availability
4
Side, Chassis (Left Side) MAY 53001269 Contact Us For Availability
4
MAY 53001247 MAY 53001247 Contact Us For Availability
4
MAY 53001025 MAY 53001025 Contact Us For Availability
5
Trim, Bottom MAY 53001264 Contact Us For Availability
5
MAY W10179020 MAY W10179020 Contact Us For Availability
5
Handle, Door MAY 53001222 Contact Us For Availability
5
MAY 53001249 MAY 53001249 Contact Us For Availability
5
MAY 53001248 MAY 53001248 Contact Us For Availability
5
Screw MAY R0654180 Contact Us For Availability
6
Screw MAY R9800360 Contact Us For Availability
6
Screw MAY R0654178 Contact Us For Availability
6
Bracket, LH MAY 53001224 Contact Us For Availability
6
MAY 53001250 MAY 53001250 Contact Us For Availability
7
MAY 53001267 MAY 53001267 Contact Us For Availability
7
MAY 53001225 MAY 53001225 Contact Us For Availability
7
MAY 53001251 MAY 53001251 Contact Us For Availability
8
Bracket, Back (LH) MAY 53001270 Contact Us For Availability
8
Bracket, Back (RH) MAY 53001271 Contact Us For Availability
8
MAY W10179009 MAY W10179009 Contact Us For Availability
8
Blade, Fan MAY 53001252 Contact Us For Availability
9
MAY 53001235 MAY 53001235 Contact Us For Availability
9
Transformer, H.V. MAY 53001253 Contact Us For Availability
10
Base, Plate MAY 53001278 Contact Us For Availability
10
Screw MAY R0654183 Contact Us For Availability
10
Bracket, RH MAY 53001238 Contact Us For Availability
11
MAY 53001273 MAY 53001273 Contact Us For Availability
11
Cushion, Door MAY 53001280 Contact Us For Availability
12
MAY W10182900 MAY W10182900 Contact Us For Availability
12
MAY 53001286 MAY 53001286 Contact Us For Availability
12
Screw MAY R0131029 Contact Us For Availability
13
Bracket, Cntrl MAY 53001289 Contact Us For Availability
13
Washer, Sprg Lck MAY 53001282 Contact Us For Availability
13
MAY 53001254 MAY 53001254 Contact Us For Availability
14
MAY 53001283 MAY 53001283 Contact Us For Availability
14
MAY 53001255 MAY 53001255 Contact Us For Availability
15
MAY 53001281 MAY 53001281 Contact Us For Availability
15
Screw MAY R0131307 Contact Us For Availability
16
MAY R0130667 MAY R0130667 Contact Us For Availability
16
MAY 53001284 MAY 53001284 Contact Us For Availability
16
Motor, Fan MAY 53001256 Contact Us For Availability
17
MAY R0654182 MAY R0654182 Contact Us For Availability
17
MAY 53001285 MAY 53001285 Contact Us For Availability
17
Thermostat MAY R0131025 Contact Us For Availability
18
Screw, Tap MAY R9800309 Contact Us For Availability
18
Cable, Diode MAY B8383102 Contact Us For Availability
19
Trim, Door Btm MAY 53001234 Contact Us For Availability
19
Screw MAY R9800411 Contact Us For Availability
20
Bracket, Therm. MAY 53001258 Contact Us For Availability
21
MAY R9900293 MAY R9900293 Contact Us For Availability
22
MAY 53001259 MAY 53001259 Contact Us For Availability
23
MAY 53001565 MAY 53001565 Contact Us For Availability
24
MAY 53001260 MAY 53001260 Contact Us For Availability
25
MAY 53001272 MAY 53001272 Contact Us For Availability
26
MAY 53001274 MAY 53001274 Contact Us For Availability
27
Base, PCB MAY 53001275 Contact Us For Availability
28
Bottom MAY 53001277 Contact Us For Availability
29
Board, Power MAY 53001291 Contact Us For Availability
30
Plate, Shield MAY 53001276 Contact Us For Availability
NI
Harness, Main MAY 53001257 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Oil Bronze) MAY W10134193 Contact Us For Availability
× ![]()
