Model Whirlpool JMC8127DDQ MICROWAVE – Common Parts & Diagrams

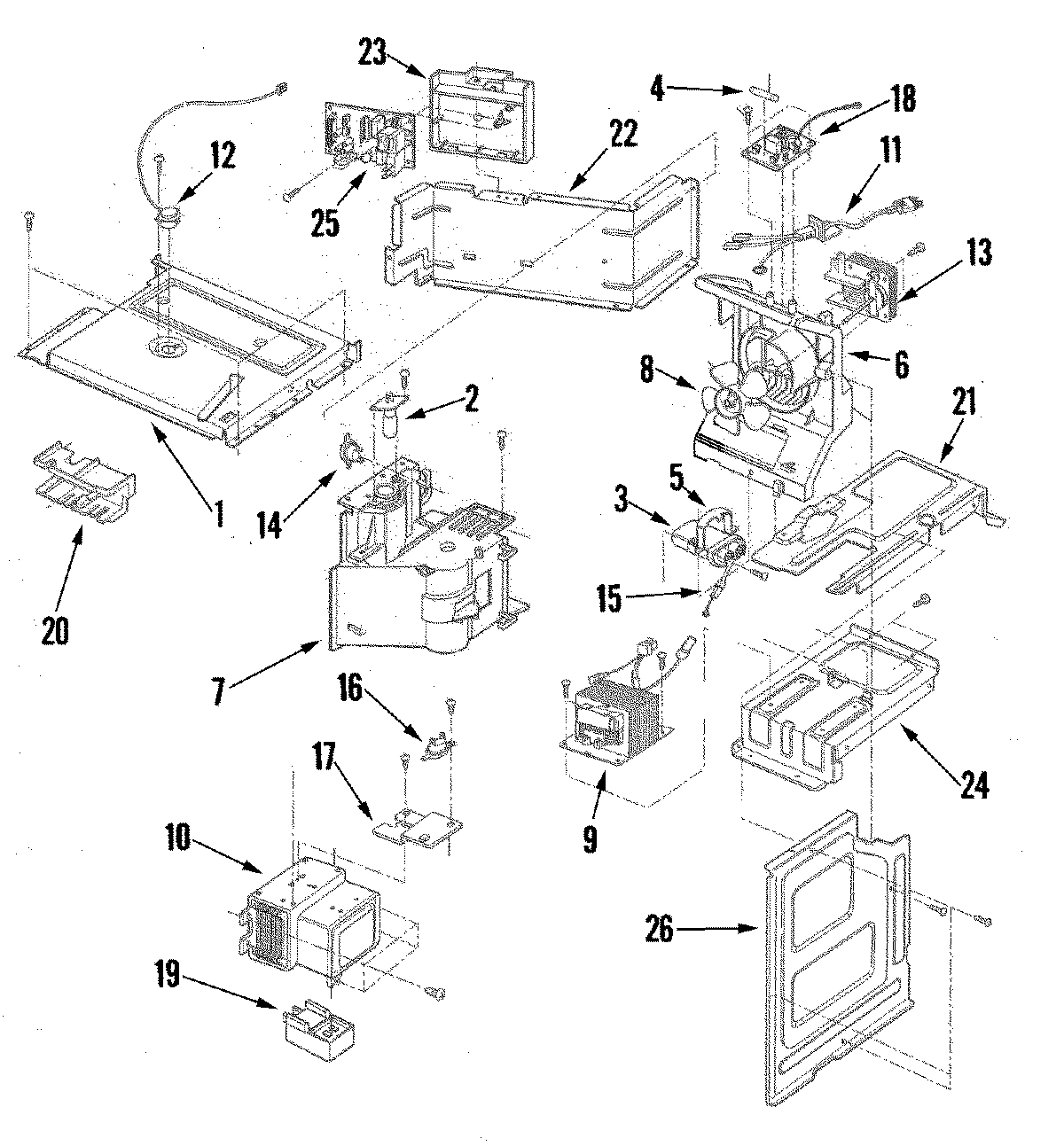

05 - INTERNAL CONTROLS
06 - SUPPLEMENTAL INFORMATION

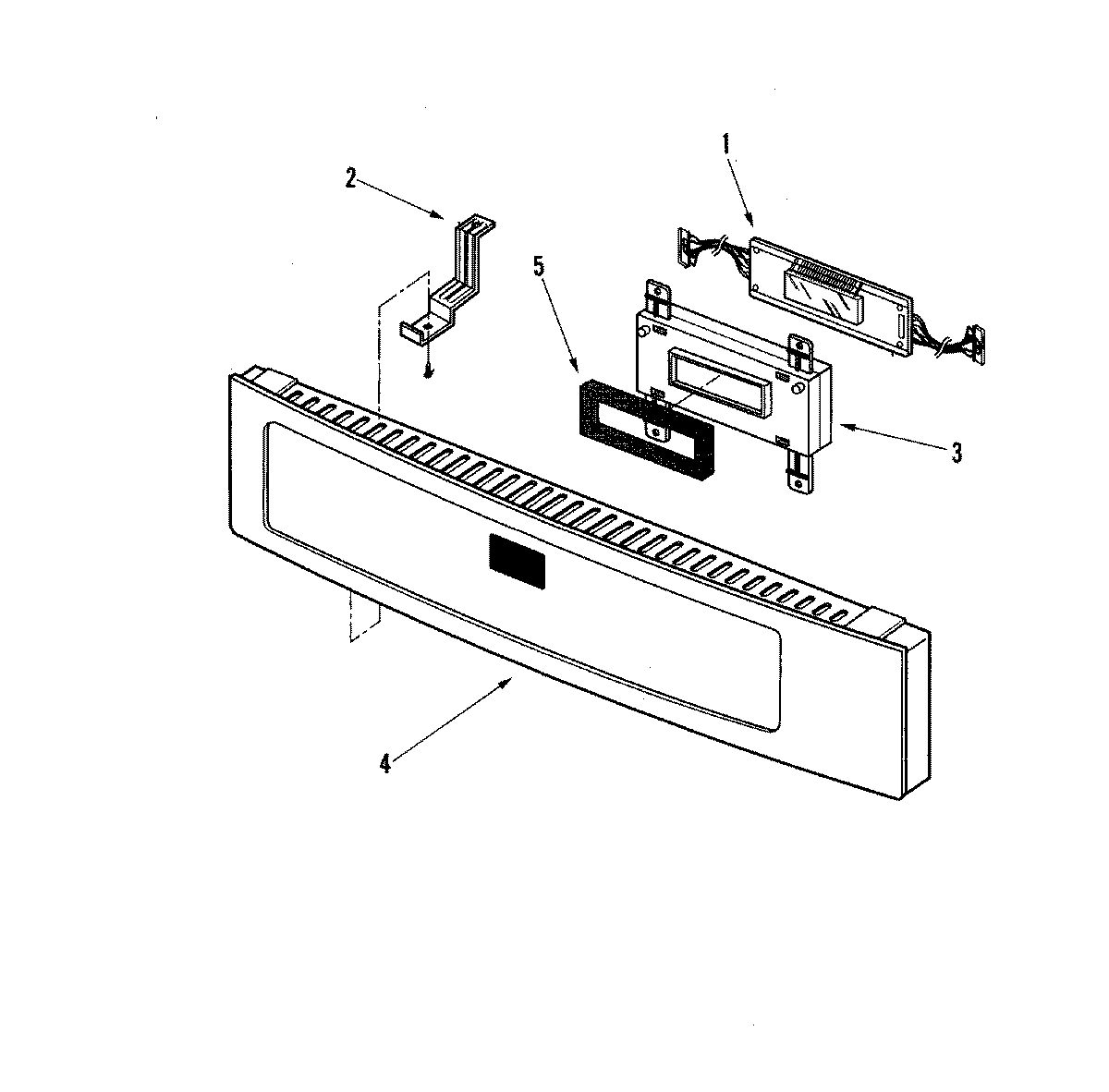

02 - CONTROL PANEL

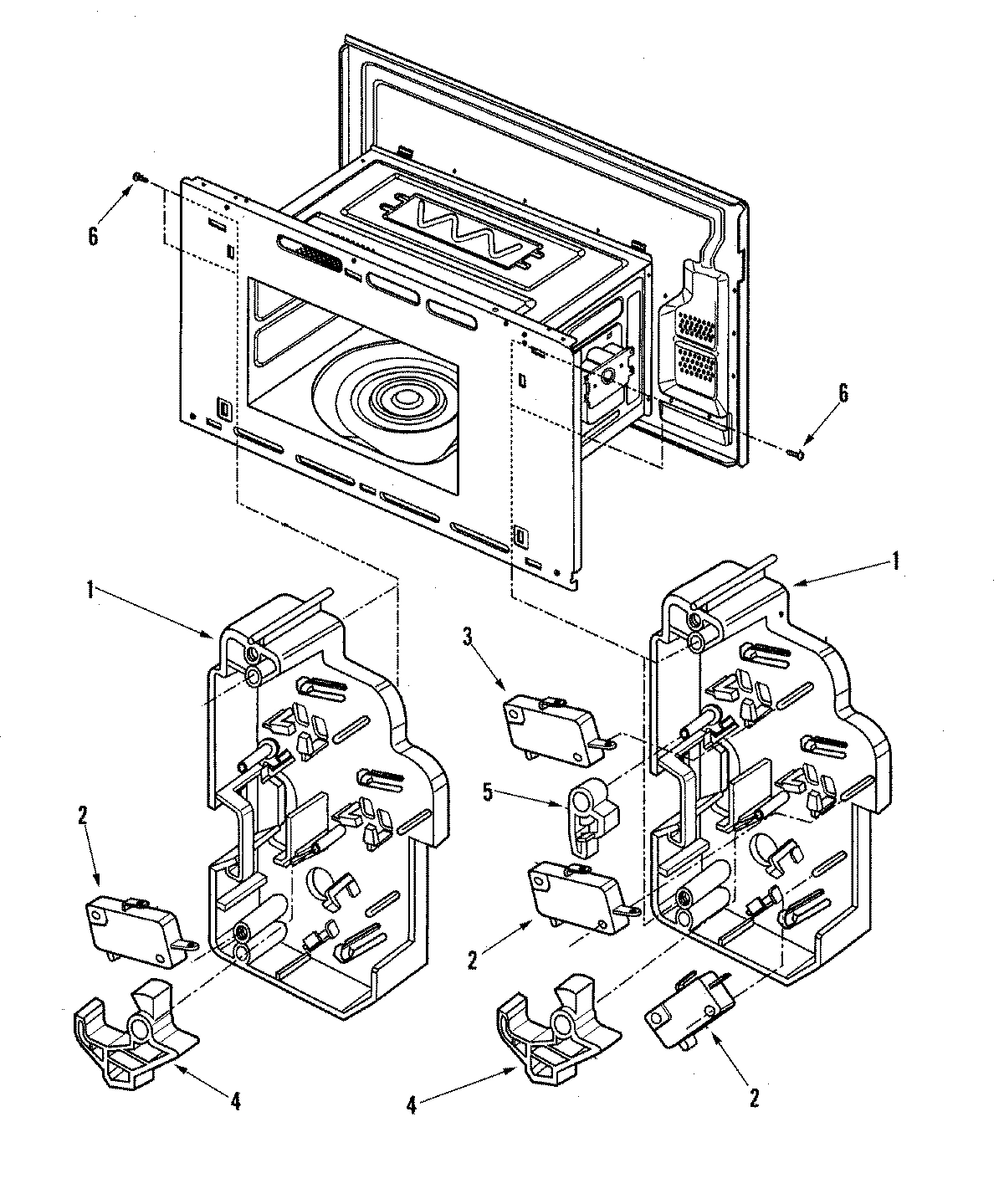

04 - INTERLOCK SWITCHES

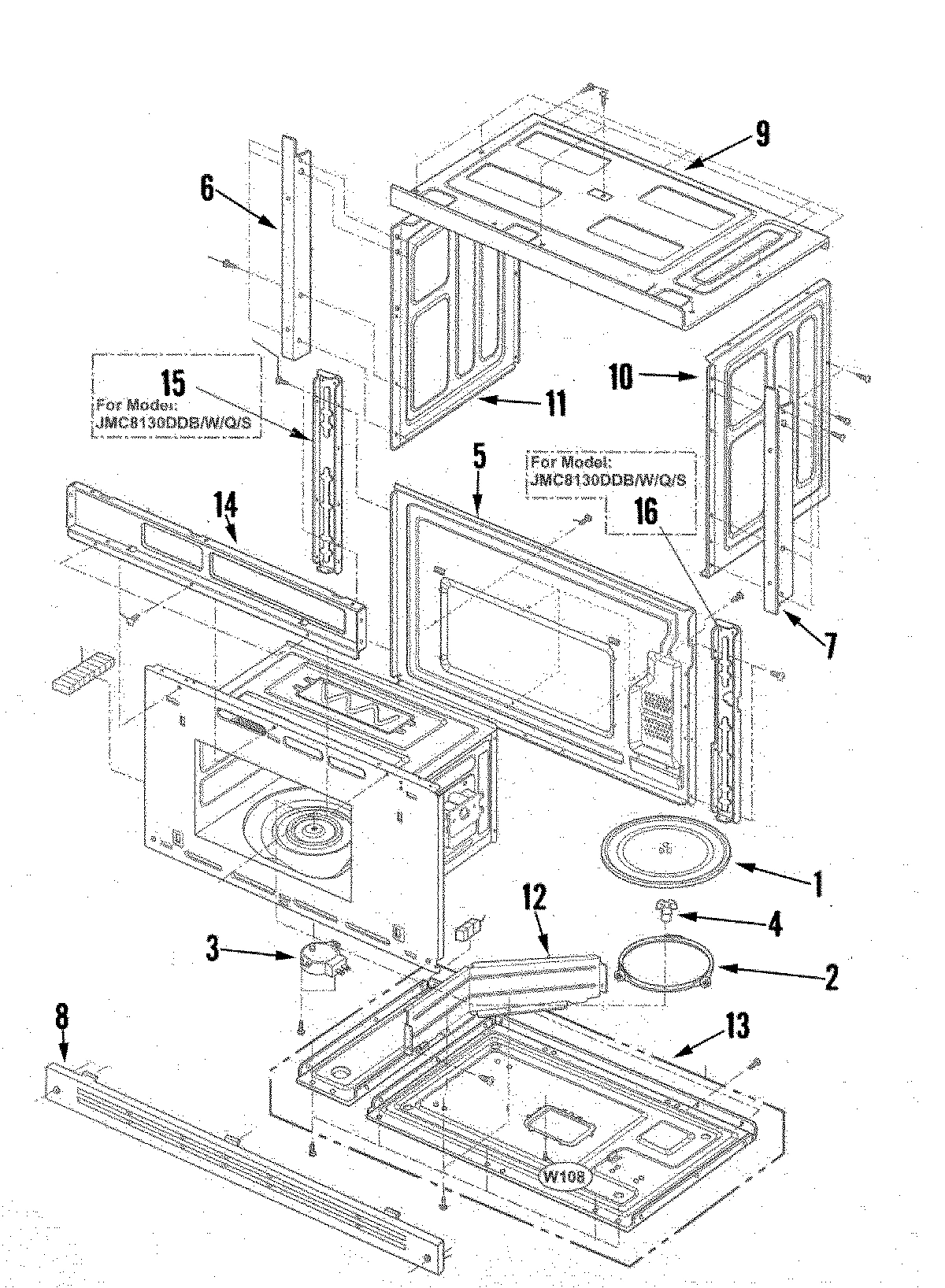

01 - BODY BASE & CAVITY

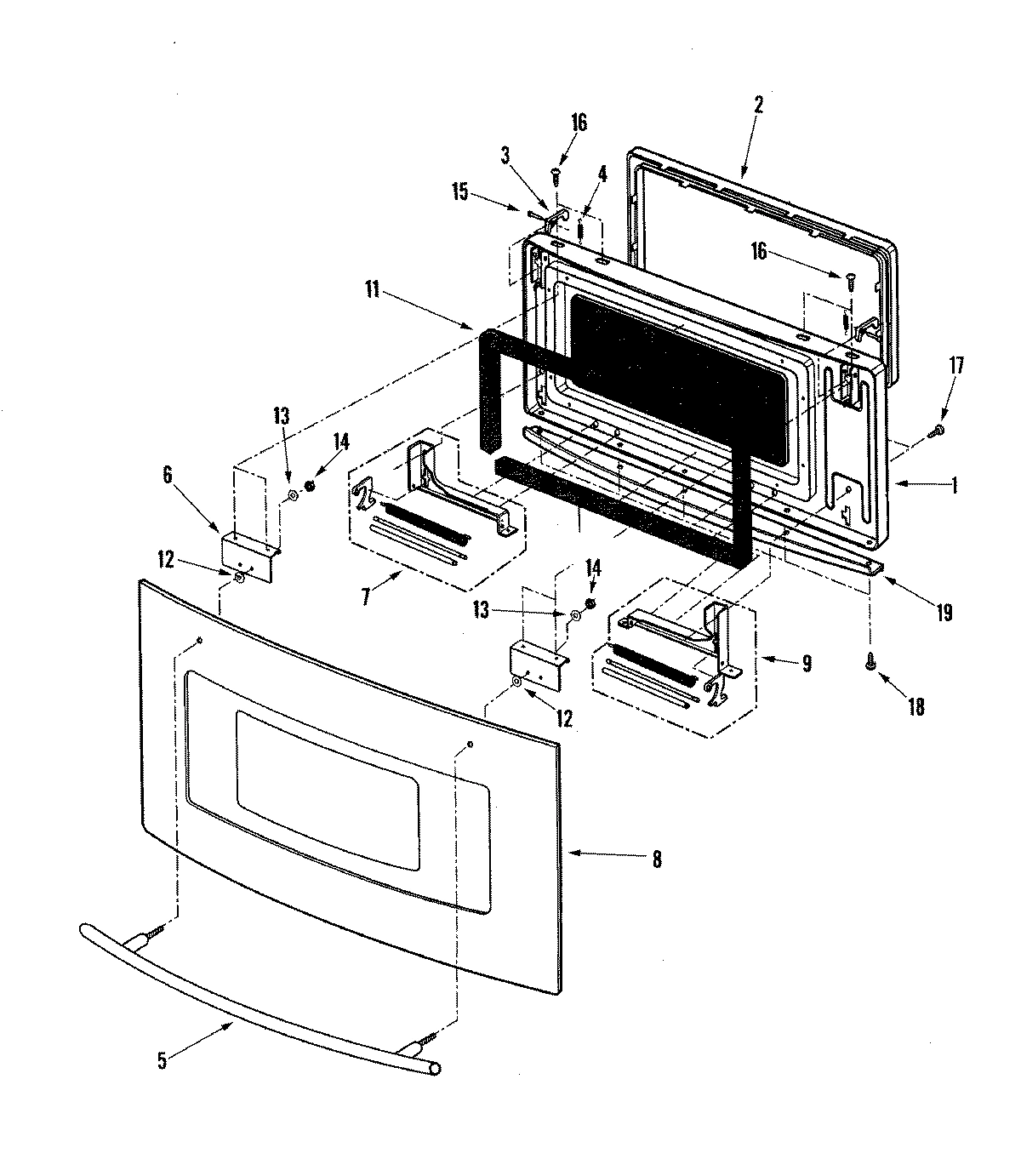

03 - DOOR ASSEMBLY
Common parts from model Whirlpool JMC8127DDQ MICROWAVE
1
(PCB) AFTER SERIAL NUMBER 10 37998 JR WPL W10165850 Contact Us For Availability
1
MANUAL, USE & CARE WPL 53001218 Contact Us For Availability
1
(PCB) BEFORE SERIAL NUMBER 10 37998 JR WPL 53001240 Contact Us For Availability
1
SUPPORT, LATCH/SWITCHES WPL 53001246 Contact Us For Availability
1
DOOR FRAME ASSSMBLY WPL 53001288 Contact Us For Availability
2
HARNESS, WIRE WPL 53001257 Contact Us For Availability
2
RING, ROTATING ASSY WPL R0130677 Contact Us For Availability
2
COVER, CHOKE WPL 53001219 Contact Us For Availability
3
HOLDER, DISPLAY (PCB) WPL 53001241 Contact Us For Availability
3
MOTOR, TURNTABLE WPL 53001025 Contact Us For Availability
3
LATCH WPL 53001220 Contact Us For Availability
4
PANEL, CONTROL (BSQ) BEFORE S/N 10 37998 JR WPL 53001296 Contact Us For Availability
4
PANEL, CONTROL (BSQ) AFTER S/N 10 37998 JR WPL W10215518 Contact Us For Availability
4
LEVER WPL 53001247 Contact Us For Availability
4
SHAFT, TURN TABLE WPL R0130605 Contact Us For Availability
4
SPRING WPL 53001221 Contact Us For Availability
5
BRACKET, CAPACITOR WPL 53001248 Contact Us For Availability
5
CUSHION WPL 53001245 Contact Us For Availability
5
LEVER WPL 53001249 Contact Us For Availability
5
COVER, BACK WPL 53001298 Contact Us For Availability
5
HANDLE WPL 53001223 Contact Us For Availability
6
GUIDE, SUCTION WPL 53001250 Contact Us For Availability
6
SCREW, SPECIAL D WPL R0654178 Contact Us For Availability
6
TRIM (LT) WPL 53001262 Contact Us For Availability
6
BRACKET, HANDLE (LT) WPL 53001224 Contact Us For Availability
7
DUCT WPL 53001251 Contact Us For Availability
7
TRIM (RT) WPL 53001263 Contact Us For Availability
7
HINGE ASSEMBLY (LT) WPL 53001226 Contact Us For Availability
8
BLADE, FAN(ROUND SHAFT) WPL 53001252 Contact Us For Availability
8
GRILLE, VENT WPL 53001265 Contact Us For Availability
8
SCREW, TAP TH WPL R9800360 Contact Us For Availability
8
GLASS, DOOR (BSQ) WPL 53001233 Contact Us For Availability
9
TRANSFORMER WPL 53001253 Contact Us For Availability
9
ENCLOSURE, TOP WPL 53001299 Contact Us For Availability
9
HINGE ASSEMBLY (RT) WPL 53001236 Contact Us For Availability
10
ENCLOSURE (RT) WPL 53001268 Contact Us For Availability
10
BRACKET, HANDLE (RT) WPL 53001238 Contact Us For Availability
11
CORD, POWER WPL 53001254 Contact Us For Availability
11
ENCLOSURE (LT) WPL 53001269 Contact Us For Availability
11
CUSHION, DOOR LINING WPL 53001280 Contact Us For Availability
12
SENSOR ASSEMBLY WPL 53001255 Contact Us For Availability
12
BARRIER WPL 53001273 Contact Us For Availability
12
WASHER WPL 53001286 Contact Us For Availability
13
MOTOR, FAN (ROUND SHAFT) WPL 53001256 Contact Us For Availability
13
PLATE, BASE WPL 53001279 Contact Us For Availability
13
WASHER, SPRING LOCK WPL 53001282 Contact Us For Availability
14
THERMOSTAT, BIMETAL WPL R0131025 Contact Us For Availability
14
BRACKET, CONTROL PANEL WPL 53001290 Contact Us For Availability
14
NUT WPL 53001283 Contact Us For Availability
15
PIN, LATCH WPL 53001281 Contact Us For Availability
16
THERMOSTAT, BIMETAL WPL R9900321 Contact Us For Availability
16
SCREW WPL 53001284 Contact Us For Availability
17
BRACKET, THERMOSTAT WPL 53001258 Contact Us For Availability
17
SCREW WPL 53001285 Contact Us For Availability
18
FILTER ASSEMBLY WPL 53001259 Contact Us For Availability
18
SCREW, TAP TH WPL R9800309 Contact Us For Availability
19
ASSY, CHOKE FILTER WPL R9800442 Contact Us For Availability
19
TRIM, BOTTOM WPL 53001234 Contact Us For Availability
20
GUIDE, AIR WPL 53001260 Contact Us For Availability
21
BARRIER WPL 53001272 Contact Us For Availability
22
BARRIER WPL 53001274 Contact Us For Availability
23
BASE, MOUNTING (PCB) WPL 53001275 Contact Us For Availability
24
BOTTOM, INTERNAL CONTROLS WPL 53001277 Contact Us For Availability
25
BOARD, POWER CONTROL WPL 53001291 Contact Us For Availability
26
SHEILD, PLATE WPL 53001276 Contact Us For Availability
× ![]()
