Model Maytag JMC3415ES01 MICROWAVE, COUNTERTOP, 1.5 CUBIC FOOT – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

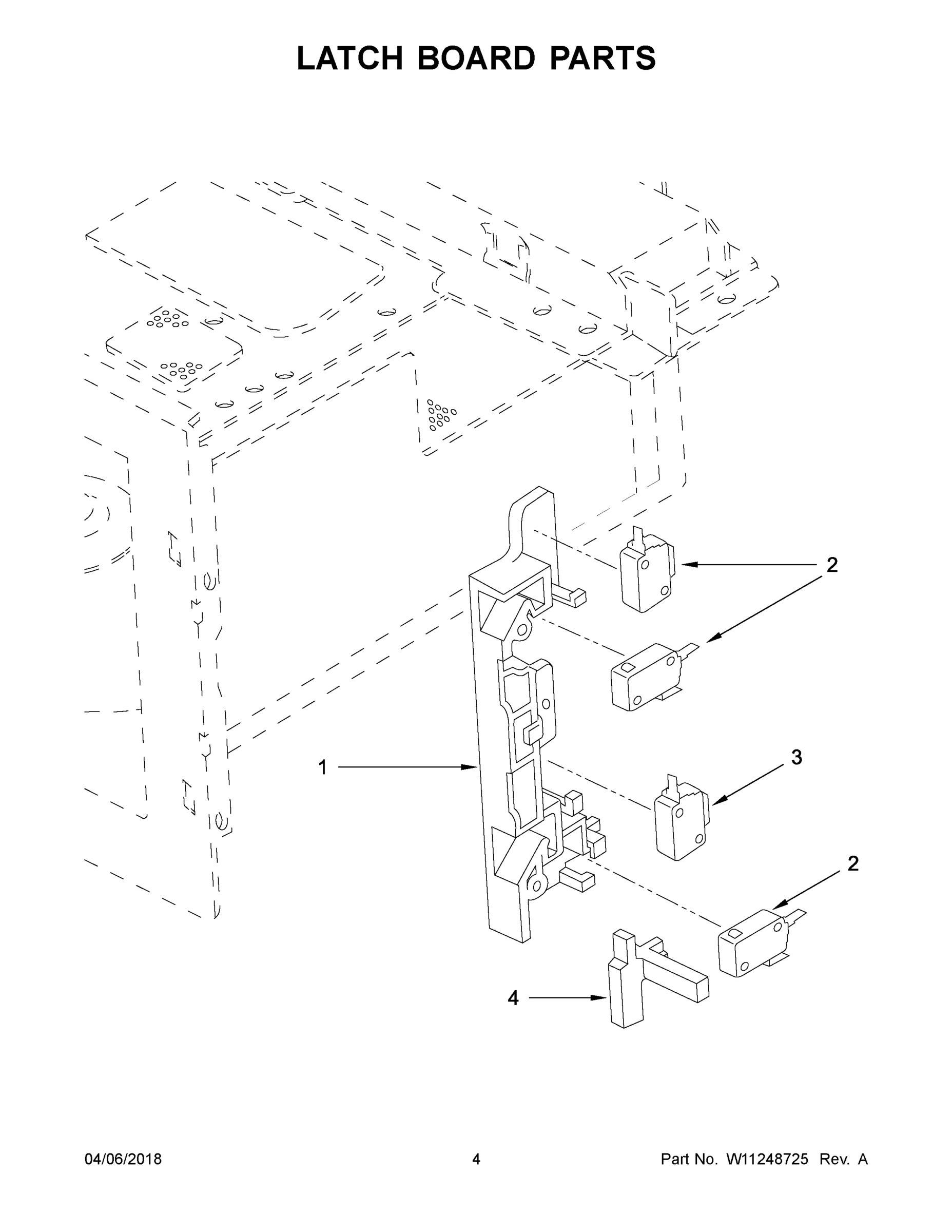

03 - LATCH BOARD PARTS

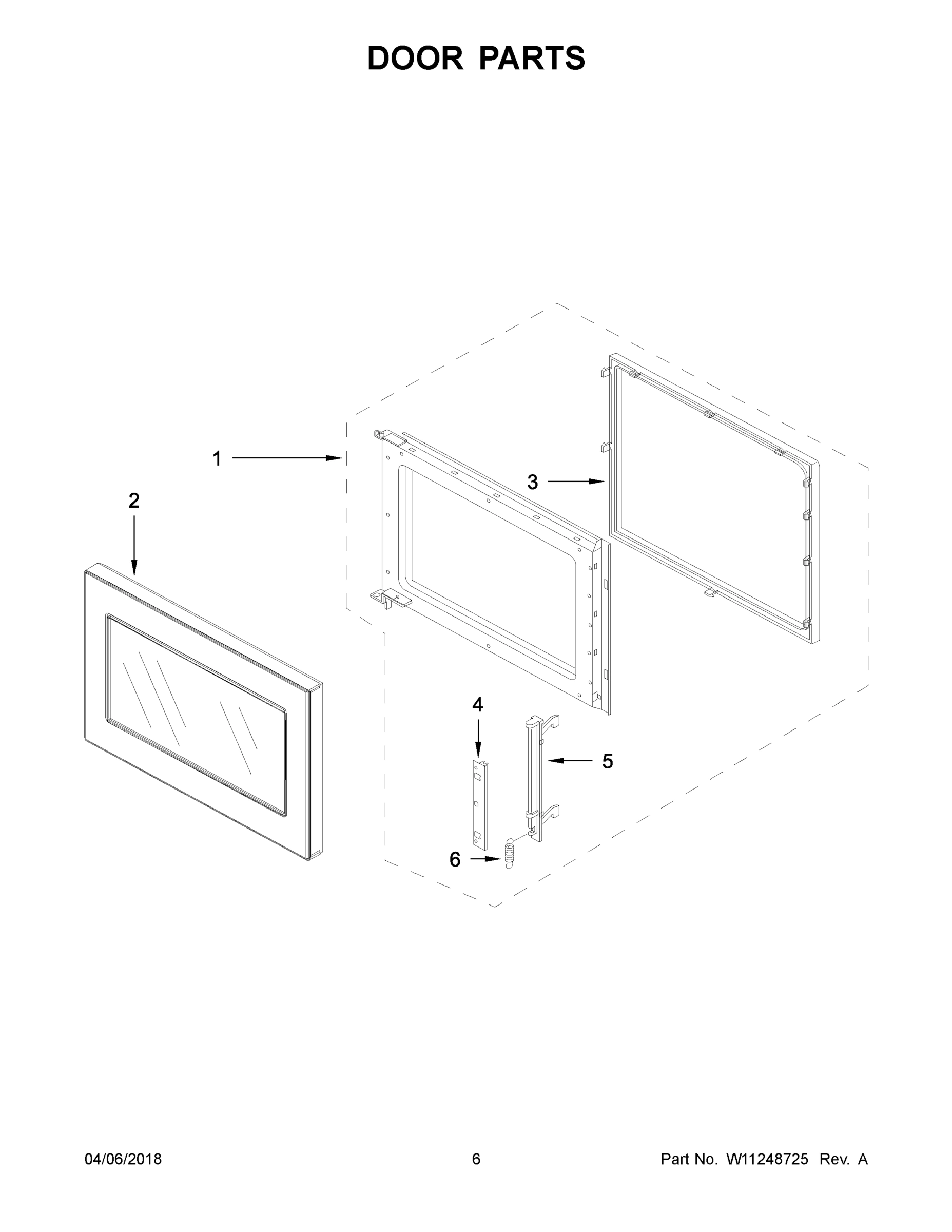

04 - DOOR PARTS

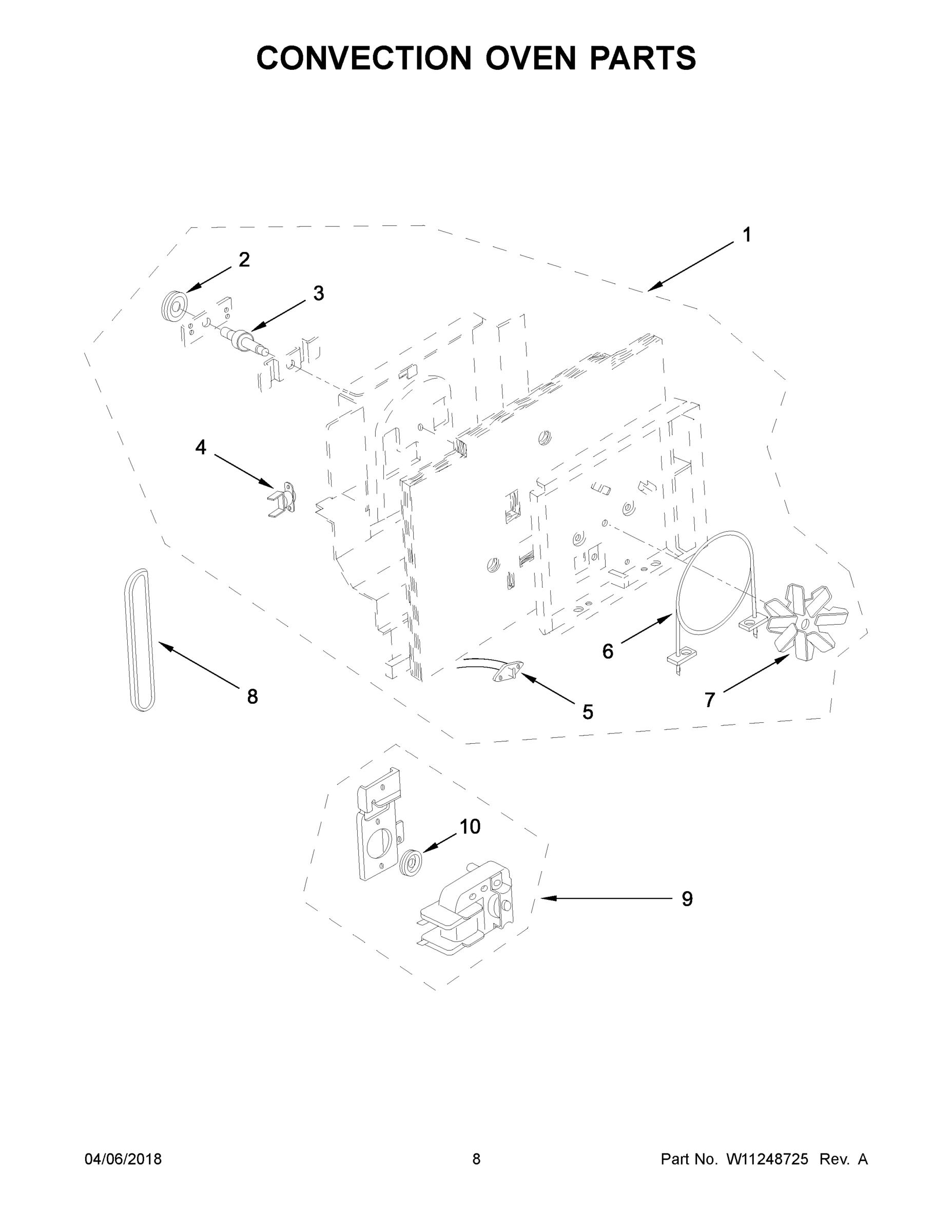

05 - CONVECTION OVEN PARTS

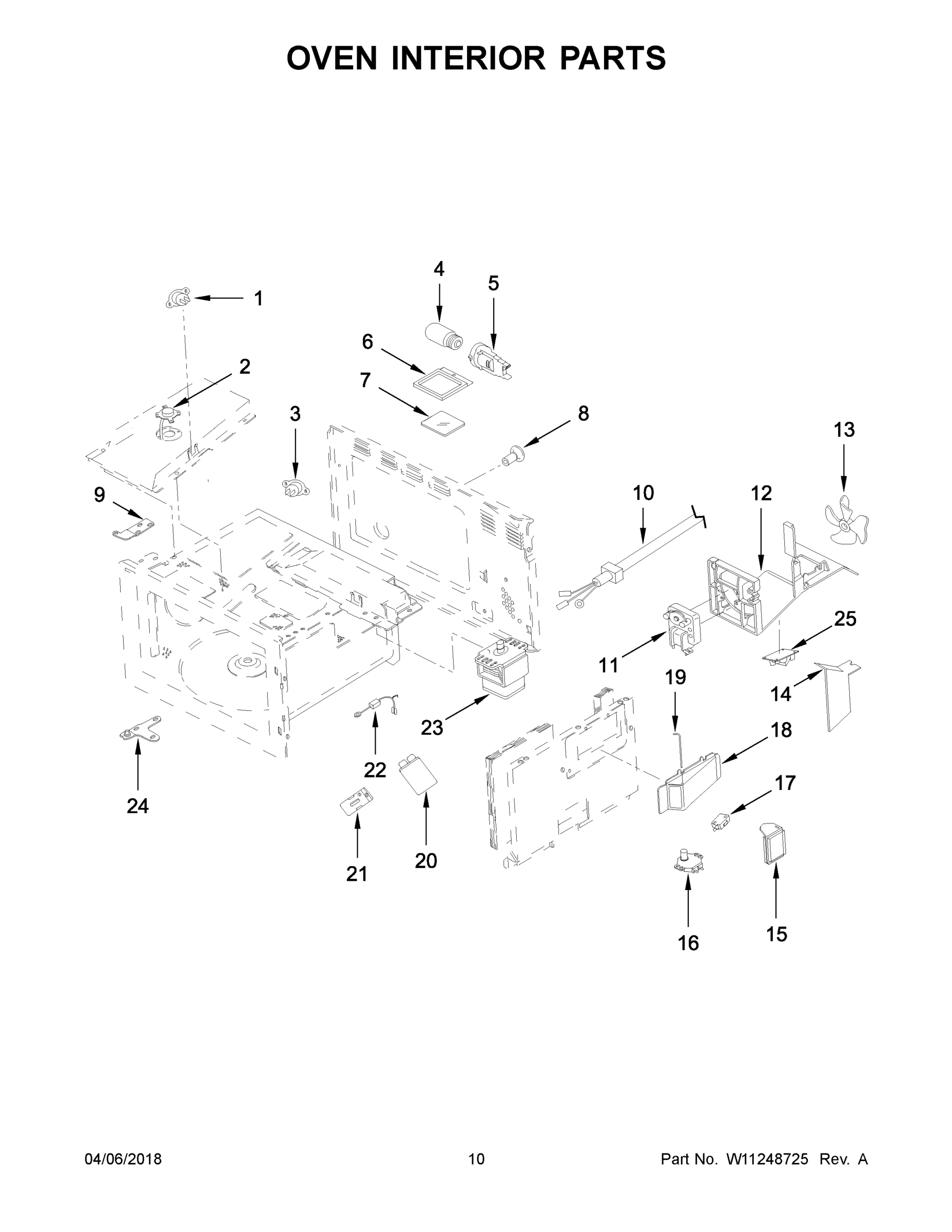

06 - OVEN INTERIOR PARTS

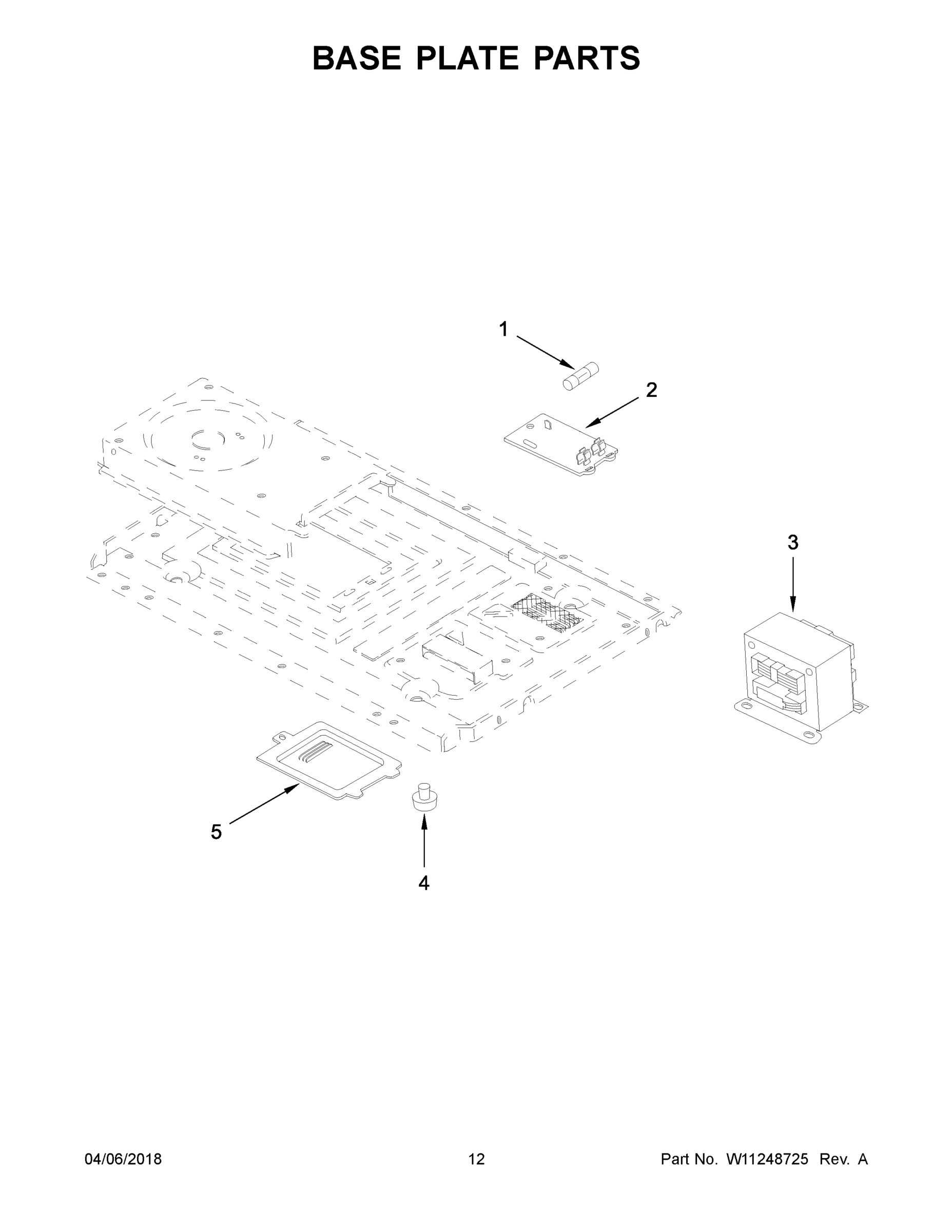

07 - BASE PLATE PARTS

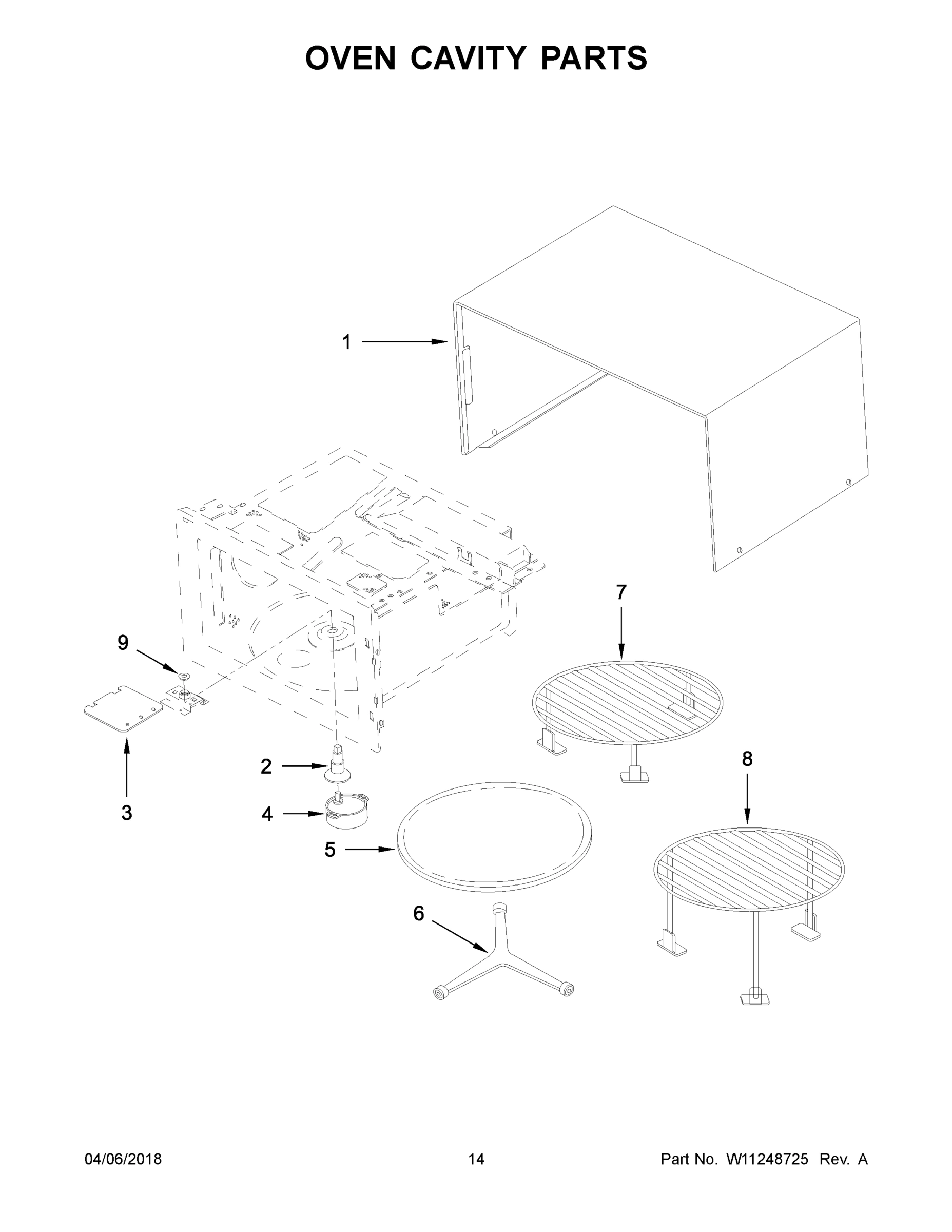

08 - OVEN CAVITY PARTS
Common parts from model Maytag JMC3415ES01 MICROWAVE, COUNTERTOP, 1.5 CUBIC FOOT
1
USE AND CARE GUIDE MAY W10781928 Contact Us For Availability
1
HOOK, LATCH MAY W10872289 Contact Us For Availability
1
ASSEMBLY, MONITOR SWITCH AND FUSE MAY W10872235 Contact Us For Availability
1
DOOR, COMPLETE MAY W10872726 Contact Us For Availability
1
ASSEMBLY, CONVECTION HEATER MAY W10872266 Contact Us For Availability
1
CUTOUT, THERMAL (OVEN AND CONVECTION) MAY W10865462 Contact Us For Availability
1
MAY W11248713 MAY W11248713 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS (TRADITIONAL TRIM K MAY W10781779 Contact Us For Availability
1B
INSTALLATION INSTRUCTIONS (FLUSH TRIM KIT) MAY W10781776 Contact Us For Availability
1C
TECH SHEET MAY W10811359 Contact Us For Availability
2
PANEL, CONTROL MAY W10872294 Contact Us For Availability
2
ASSEMBLY, DOOR FRAME MAY W10872727 Contact Us For Availability
2
PULLEY MAY W10872684 Contact Us For Availability
2
MAY W11248704 MAY W11248704 Contact Us For Availability
2
MAY W11248701 MAY W11248701 Contact Us For Availability
2
MAY W11248712 MAY W11248712 Contact Us For Availability
3
MAY W11248721 MAY W11248721 Contact Us For Availability
3
COVER, CHOKE MAY W10872728 Contact Us For Availability
3
ASSEMBLY, BEARING MAY W10872677 Contact Us For Availability
3
THERMOSTAT, MAGNETRON MAY W10865458 Contact Us For Availability
3
TRANSFORMER, HIGH VOLTAGE MAY W10865471 Contact Us For Availability
3
COVER, WAVEGUIDE MAY W10872709 Contact Us For Availability
4
BRACKET, CONTROL MAY W10872669 Contact Us For Availability
4
SWITCH, LEVER MAY W10872290 Contact Us For Availability
4
BRACKET, LATCH MAY W10872730 Contact Us For Availability
4
LAMP, CAVITY MAY W10865465 Contact Us For Availability
4
FOOT MAY W10872270 Contact Us For Availability
4
MOTOR, TURNTABLE MAY W10865477 Contact Us For Availability
5
LEVER, LATCH MAY W10872671 Contact Us For Availability
5
LATCH MAY W10872731 Contact Us For Availability
5
MAY W11248703 MAY W11248703 Contact Us For Availability
5
HOLDER, LAMP CAVITY MAY W10865467 Contact Us For Availability
5
MAY W11248710 MAY W11248710 Contact Us For Availability
5
MAY W11248711 MAY W11248711 Contact Us For Availability
6
PIN, LATCH MAY W10872672 Contact Us For Availability
6
SPRING MAY W10872732 Contact Us For Availability
6
ELEMENT, CONVECTION MAY W10865469 Contact Us For Availability
6
HOLDER, GLASS MAY W10872694 Contact Us For Availability
6
RING, TURNTABLE MAY W10872673 Contact Us For Availability
7
BUTTON, DOOR MAY W10872296 Contact Us For Availability
7
FAN, CONVECTION MAY W10872682 Contact Us For Availability
7
GLASS, LAMP MAY W10872710 Contact Us For Availability
7
RACK, GRILL MAY W10872733 Contact Us For Availability
8
SPRING MAY W10872301 Contact Us For Availability
8
BELT, FAN MAY W10872724 Contact Us For Availability
8
HOLDER, CORD MAY W10872285 Contact Us For Availability
8
RACK, CONVECTION MAY W10872734 Contact Us For Availability
9
MOTOR, CONVECTION MAY W10865468 Contact Us For Availability
9
HINGE, DOOR (UPPER) MAY W10872723 Contact Us For Availability
9
MAY W11248716 MAY W11248716 Contact Us For Availability
10
PULLEY MAY W10872711 Contact Us For Availability
10
CORD, POWER MAY W10865444 Contact Us For Availability
11
MOTOR, FAN MAY W10872253 Contact Us For Availability
12
DUCT, COOLING MAY W10872719 Contact Us For Availability
13
FAN MAY W10872718 Contact Us For Availability
14
AIR GUIDE, MAGNETRON MAY W10872725 Contact Us For Availability
15
DAMPER MAY W10872700 Contact Us For Availability
16
MOTOR, DAMPER MAY W10872251 Contact Us For Availability
17
MICROSWITCH MAY W10872242 Contact Us For Availability
18
DUCT, AIR MAY W10872702 Contact Us For Availability
19
ROD, RELEASE MAY W10872697 Contact Us For Availability
20
CAPACITOR, HIGH VOLTAGE MAY W10865474 Contact Us For Availability
21
BRACKET, CAPACITOR MAY W10872286 Contact Us For Availability
22
DIODE, HIGH VOLTAGE MAY W10872254 Contact Us For Availability
23
MAGNETRON MAY W10865476 Contact Us For Availability
24
HINGE, DOOR (LOWER) MAY W10872287 Contact Us For Availability
25
MAY W11248706 MAY W11248706 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, HIGH VOLTAGE TR MAY W10872740 Contact Us For Availability
NI
MISCELLANEOUS PARTS, WIRE, GROUND MAY W10872741 Contact Us For Availability
NI
MAY W11248719 MAY W11248719 Contact Us For Availability
NI
MAY W11248720 MAY W11248720 Contact Us For Availability
× ![]()
