Model Maytag JMC2430WS02 MICROWAVE – Common Parts & Diagrams
01 - COVER SHEET
02 - OVEN PARTS

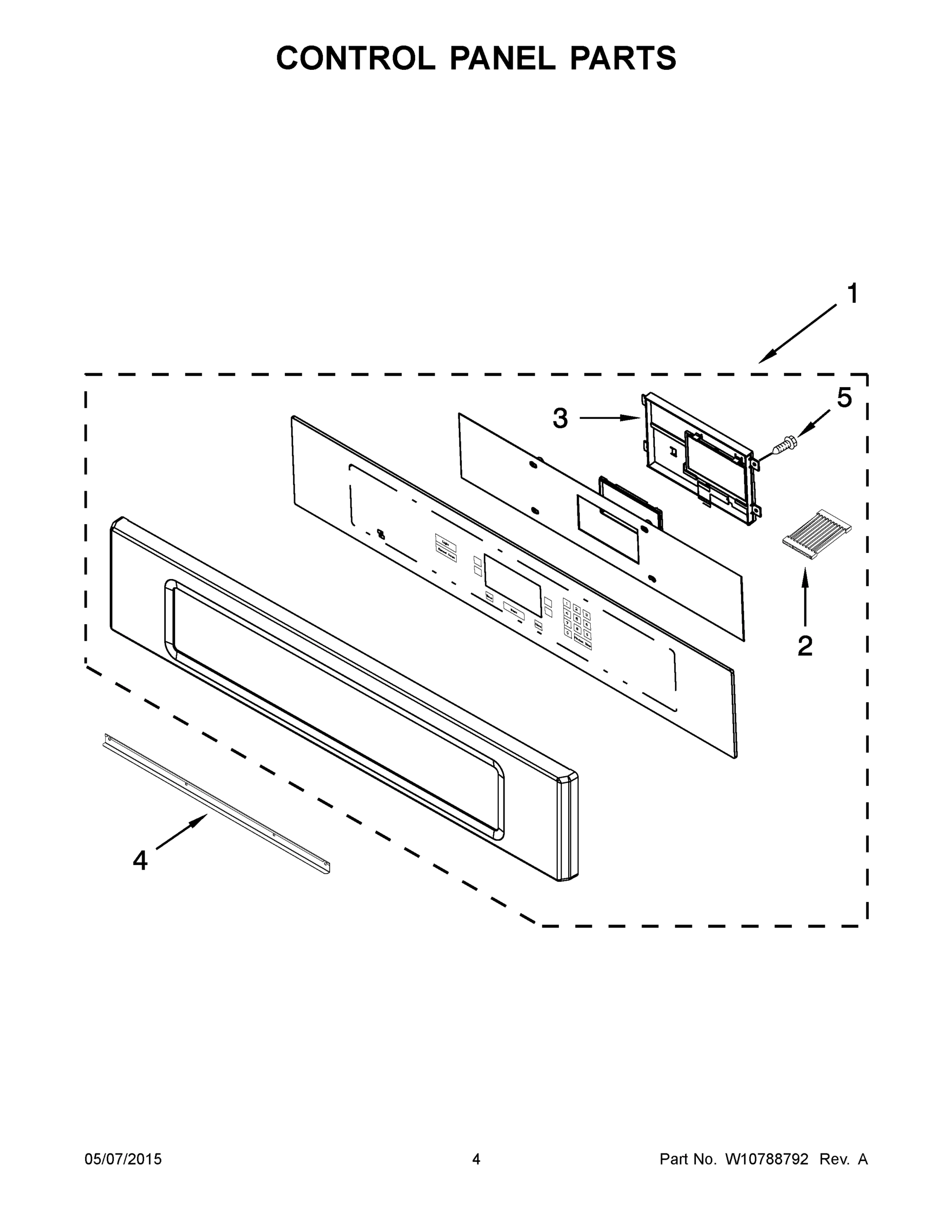

03 - CONTROL PANEL PARTS

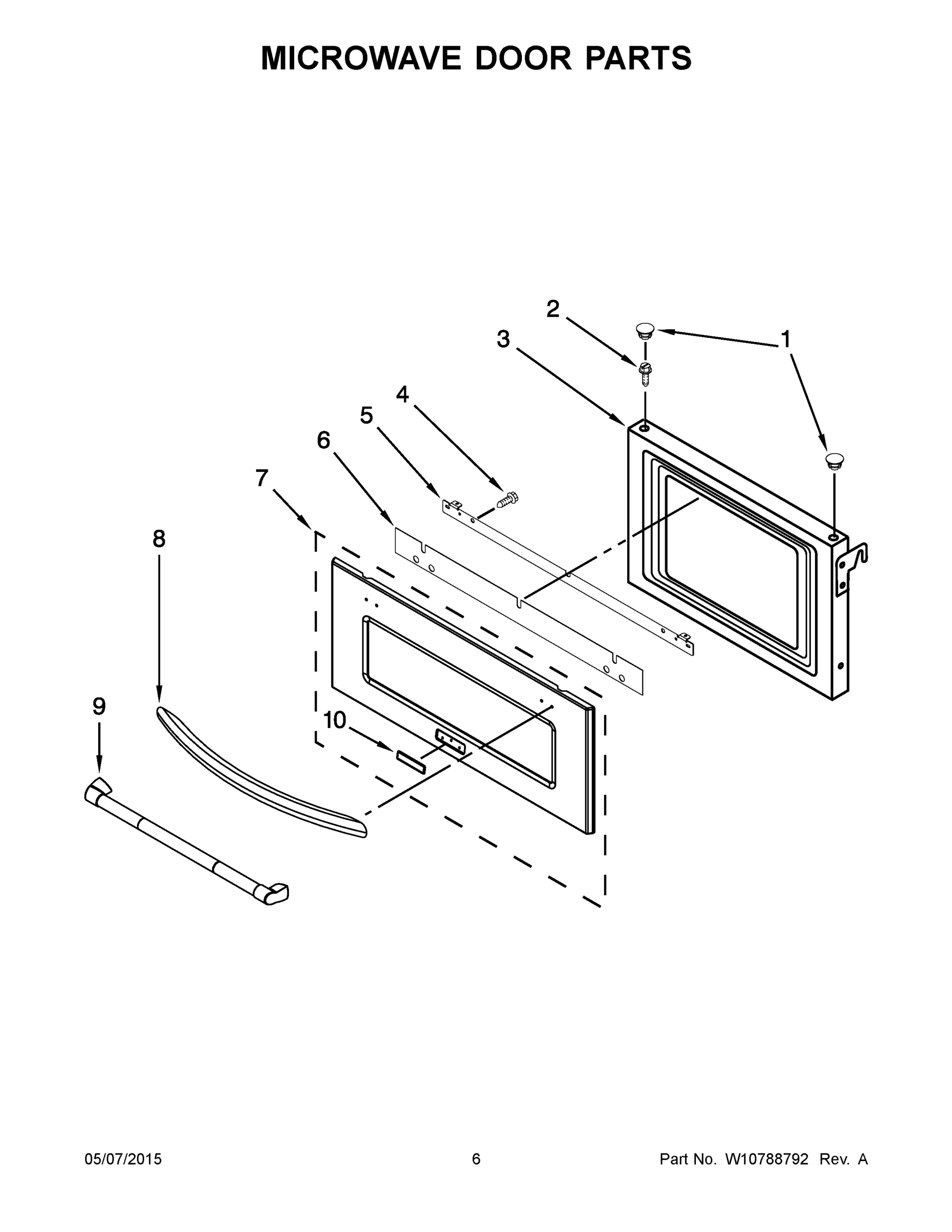

04 - MICROWAVE DOOR PARTS

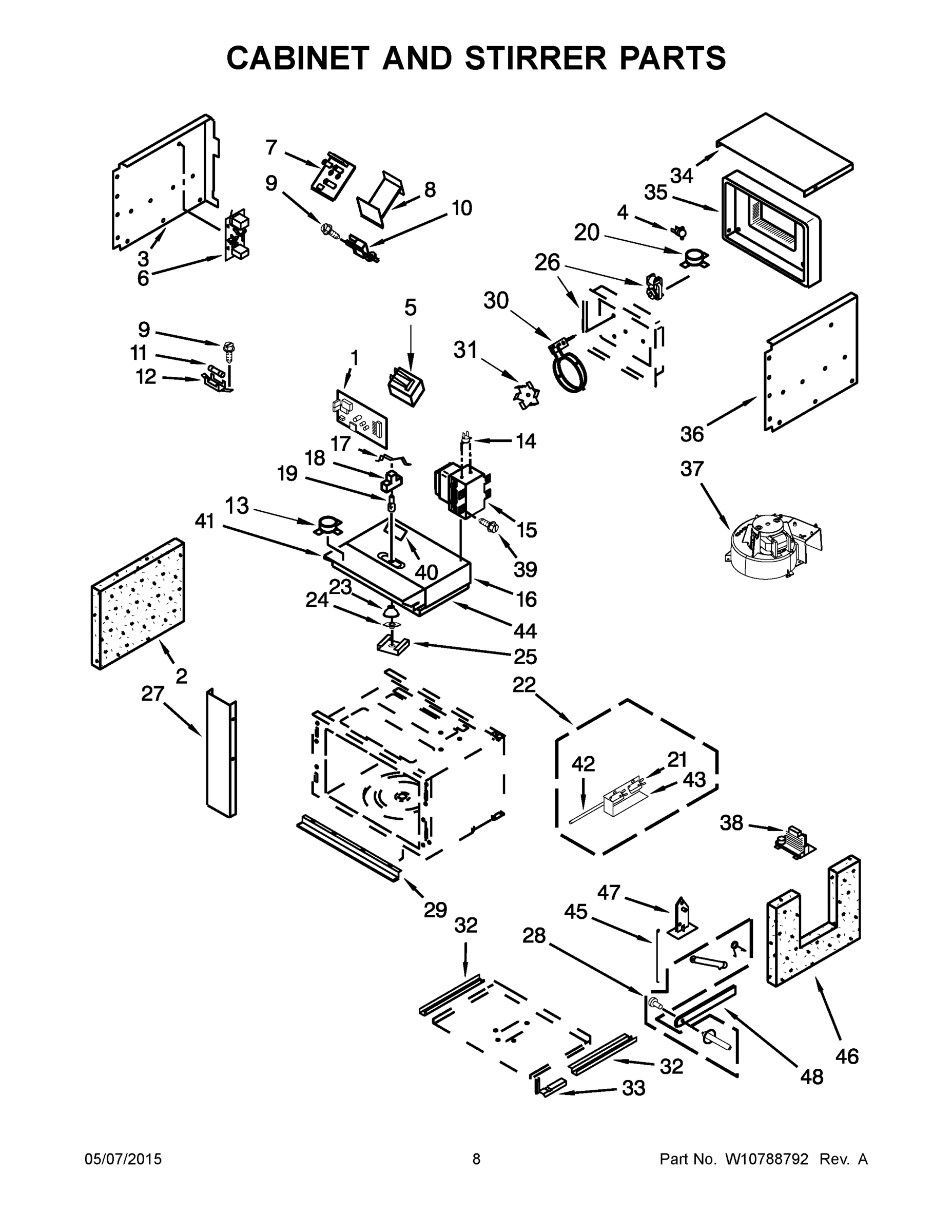

05 - CABINET AND STIRRER PARTS

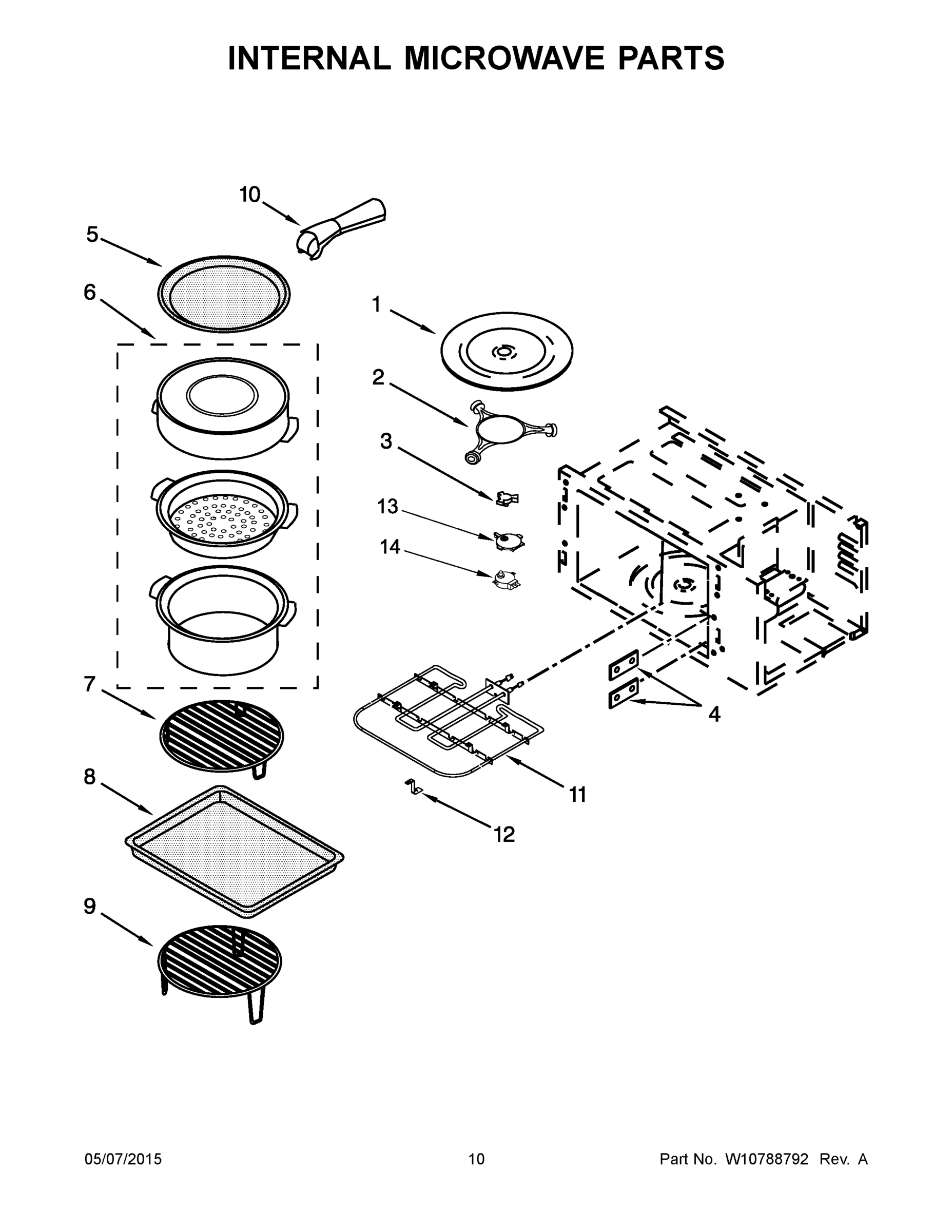

06 - INTERNAL MICROWAVE PARTS
Common parts from model Maytag JMC2430WS02 MICROWAVE
1
INSTALLATION INSTRUCTIONS MAY W10221385 Contact Us For Availability
1
MAY W10344125 MAY W10344125 Contact Us For Availability
1
MAY 8304588BL MAY 8304588BL Contact Us For Availability
1
MAY W10642016 MAY W10642016 Contact Us For Availability
1
MAY 461967721091 MAY 461967721091 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH) MAY W10075750 Contact Us For Availability
1A
MAY W10344117 MAY W10344117 Contact Us For Availability
1B
USE AND CARE GUIDE (MICROWAVE) MAY W10221391 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
MAY W10213735 MAY W10213735 Contact Us For Availability
1F
MAY W10213736 MAY W10213736 Contact Us For Availability
2
BRACKET, LOWER (LEFT) MAY W10239156 Contact Us For Availability
2
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
2
CABLE, USER INTERFACE MAY W10175829 Contact Us For Availability
2
MAY W10367316 MAY W10367316 Contact Us For Availability
2A
BRACKET, LOWER (RIGHT) MAY W10239157 Contact Us For Availability
3
MAY W10283693 MAY W10283693 Contact Us For Availability
3
ASSEMBLY, USER INTERFACE MAY W10344083 Contact Us For Availability
3
MAY W10737655 MAY W10737655 Contact Us For Availability
3
MAY W10545578 MAY W10545578 Contact Us For Availability
4
MAY W10284663 MAY W10284663 Contact Us For Availability
4
MAY W10291274 MAY W10291274 Contact Us For Availability
4
MAY W10267047 MAY W10267047 Contact Us For Availability
4
MAY 423107845441 MAY 423107845441 Contact Us For Availability
4
MAY 461967451001 MAY 461967451001 Contact Us For Availability
5
SUPPLY, POWER MAY W10286791 Contact Us For Availability
5
MAY W10176199 MAY W10176199 Contact Us For Availability
5
MAY 461967848621 MAY 461967848621 Contact Us For Availability
5
MAY 461968977491 MAY 461968977491 Contact Us For Availability
5A
MAY W10281176 MAY W10281176 Contact Us For Availability
6
MAY W10239155 MAY W10239155 Contact Us For Availability
6
MAY W10314607 MAY W10314607 Contact Us For Availability
6
MAY W10692851 MAY W10692851 Contact Us For Availability
6
STEAMER MAY W10120484 Contact Us For Availability
7
GLASS ASSEMBLY (BLACK) MAY W10176200 Contact Us For Availability
7
MAY W10578541 MAY W10578541 Contact Us For Availability
7
MAY W10748279 MAY W10748279 Contact Us For Availability
7A
GLASS ASSEMBLY (STAINLESS) MAY W10269421 Contact Us For Availability
7B
GLASS ASSEMBLY (PRO-STYLE) MAY W10269423 Contact Us For Availability
8
MAY W10186755 MAY W10186755 Contact Us For Availability
8
MAY W10120486 MAY W10120486 Contact Us For Availability
8A
MAY W10186756 MAY W10186756 Contact Us For Availability
9
HANDLE, DOOR (PRO-STYLE) MAY W10187014 Contact Us For Availability
9
MAY W10131249 MAY W10131249 Contact Us For Availability
9
RACK, GRILL MAY W10748280 Contact Us For Availability
10
BADGE (BLACK) MAY W10190724 Contact Us For Availability
10
MAY 461967842541 MAY 461967842541 Contact Us For Availability
10
MAY 461968929542 MAY 461968929542 Contact Us For Availability
10A
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
10B
BADGE (STAINLESS (PRO-STYLE MODELS)) MAY W10159578 Contact Us For Availability
11
MAY 241908600053 MAY 241908600053 Contact Us For Availability
11
MAY W10387651 MAY W10387651 Contact Us For Availability
12
BLOCK, FUSE MAY 4375231 Contact Us For Availability
12
MAY 461967753871 MAY 461967753871 Contact Us For Availability
13
MAY W10460457 MAY W10460457 Contact Us For Availability
13
MAY 461967753742 MAY 461967753742 Contact Us For Availability
14
THERMOSTAT MAY 461967846741 Contact Us For Availability
14
MAY 461967848971 MAY 461967848971 Contact Us For Availability
15
MAY 461967847321 MAY 461967847321 Contact Us For Availability
17
MAY W10465869 MAY W10465869 Contact Us For Availability
18
MAY W10490593 MAY W10490593 Contact Us For Availability
19
MAY 241954900069 MAY 241954900069 Contact Us For Availability
20
MAY 241960100002 MAY 241960100002 Contact Us For Availability
21
MAY W10330566 MAY W10330566 Contact Us For Availability
22
MAY 461968971512 MAY 461968971512 Contact Us For Availability
23
MAY 423107022541 MAY 423107022541 Contact Us For Availability
24
MAY 423107720491 MAY 423107720491 Contact Us For Availability
25
MAY 461967010591 MAY 461967010591 Contact Us For Availability
26
MAY 461969000371 MAY 461969000371 Contact Us For Availability
28
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
29
MAY 461968973241 MAY 461968973241 Contact Us For Availability
30
MAY 461967848711 MAY 461967848711 Contact Us For Availability
31
MAY 461967001792 MAY 461967001792 Contact Us For Availability
32
MAY 461967008461 MAY 461967008461 Contact Us For Availability
33
MAY 461968979601 MAY 461968979601 Contact Us For Availability
37
MAY 461968969271 MAY 461968969271 Contact Us For Availability
38
MAY W10468206 MAY W10468206 Contact Us For Availability
39
MAY W10130890 MAY W10130890 Contact Us For Availability
42
MAY W10120235 MAY W10120235 Contact Us For Availability
43
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
45
MAY 461967570351 MAY 461967570351 Contact Us For Availability
46
INSULATION, SIDE (NOT SERVICED) MAY N/P Contact Us For Availability
47
MAY 461967750494 MAY 461967750494 Contact Us For Availability
48
MAY 461967750483 MAY 461967750483 Contact Us For Availability
NI
MISCELLANEOUS PARTS, SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
MAY 7401P099-60 MAY 7401P099-60 Contact Us For Availability
NI
MISCELLANEOUS PARTS, CONDUIT MAY W10209041 Contact Us For Availability
NI
MAY W10277591 MAY W10277591 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, COMM SMPS MAY W10277650 Contact Us For Availability
NI
MISCELLANEOUS PARTS, MICROSWITCH (SDT-S-124LM MAY W10288001 Contact Us For Availability
NI
MISCELLANEOUS PARTS, MICROSWITCH (G5G-1A-PS 2 MAY W10288002 Contact Us For Availability
NI
MAY 461967903621 MAY 461967903621 Contact Us For Availability
× ![]()
