Model Maytag JMC2430WS01 MICROWAVE – Common Parts & Diagrams
01 - COVER SHEET
02 - OVEN PARTS

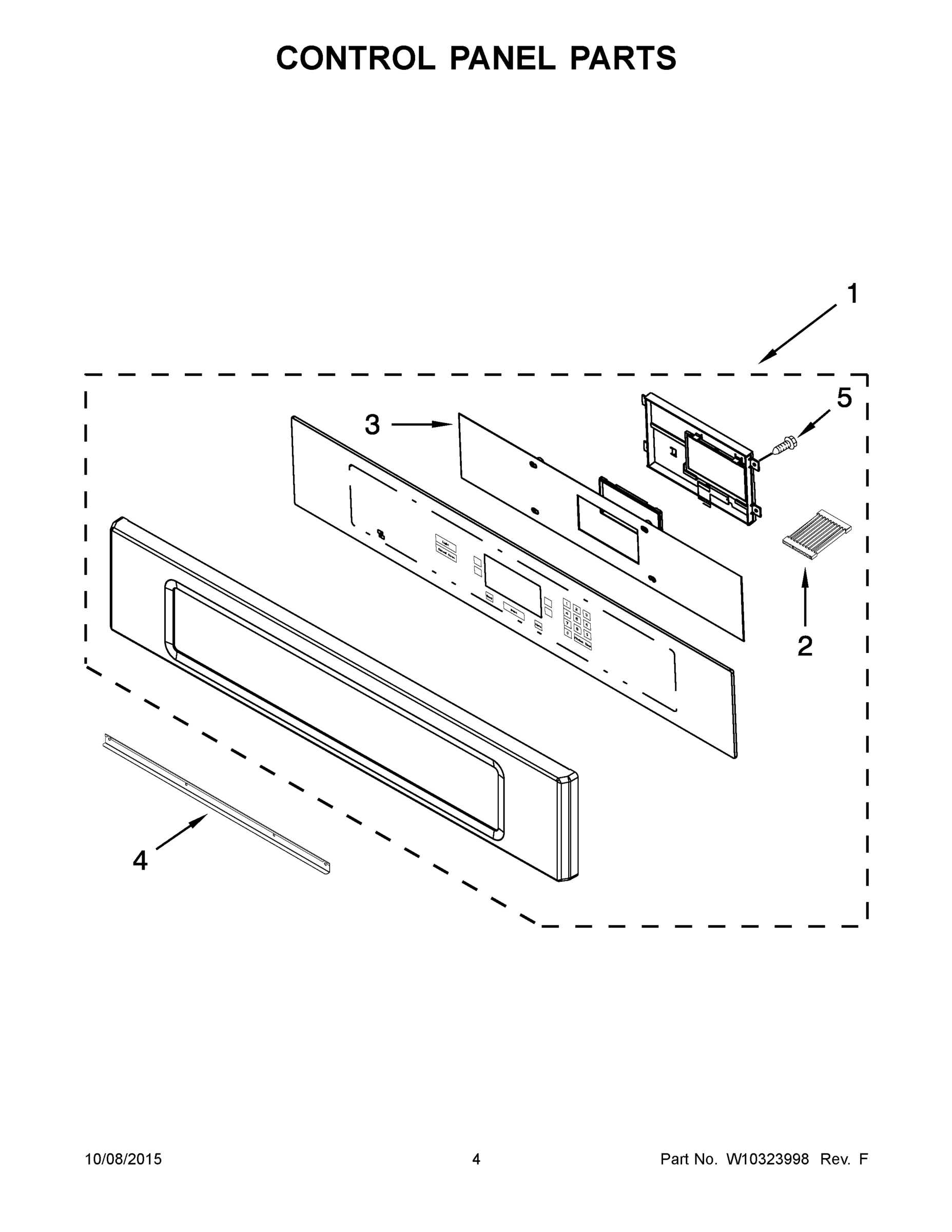

03 - CONTROL PANEL PARTS

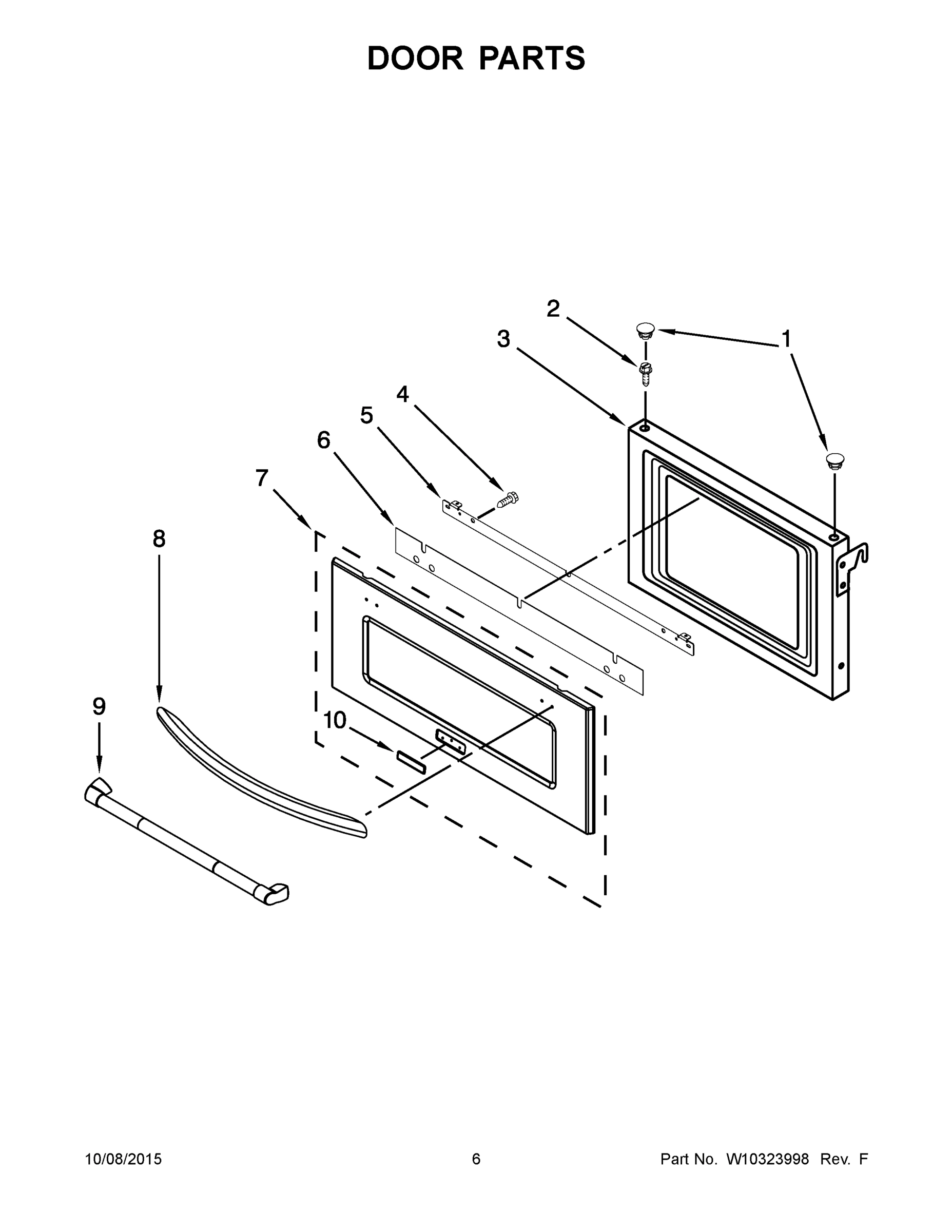

04 - DOOR PARTS

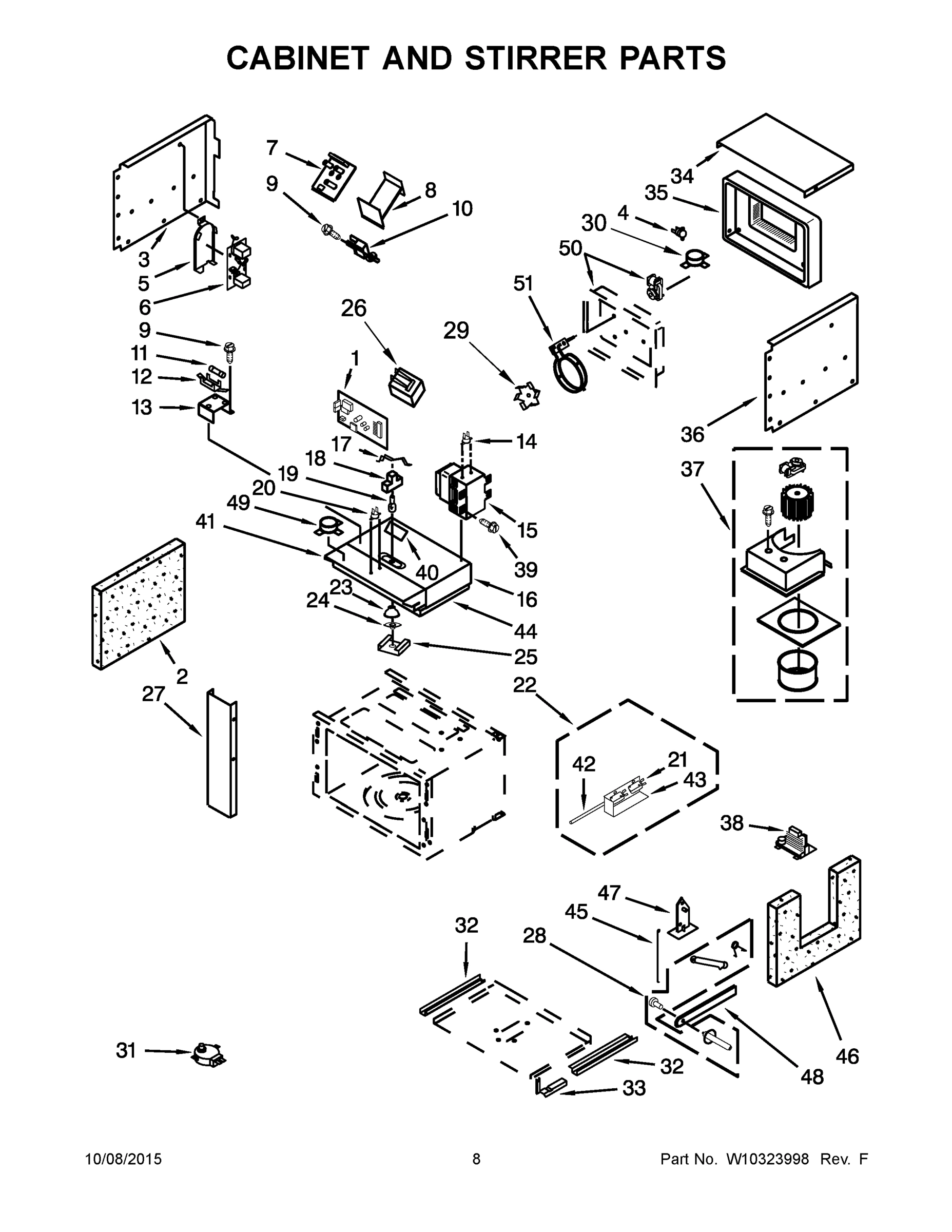

05 - CABINET AND STIRRER PARTS

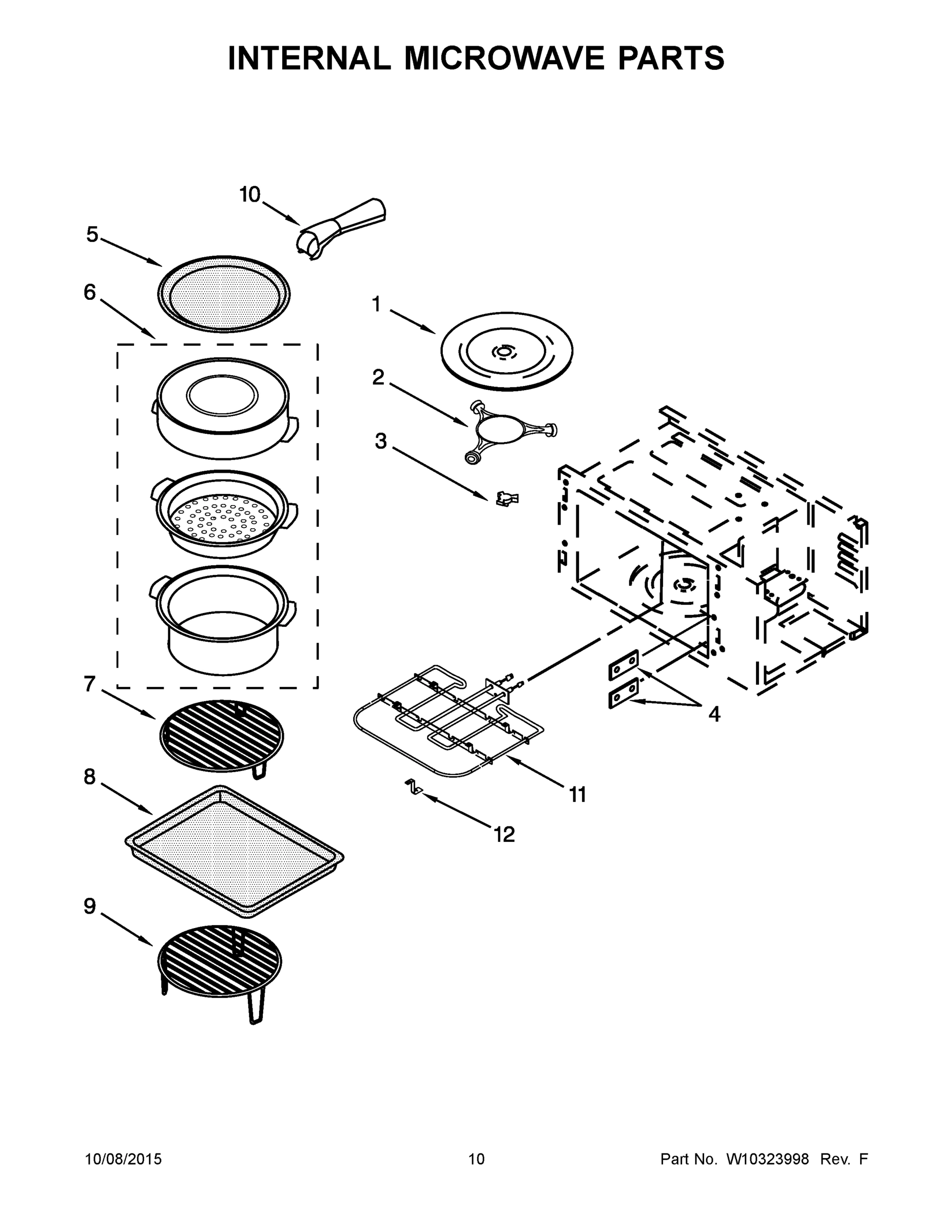

06 - INTERNAL MICROWAVE PARTS
Common parts from model Maytag JMC2430WS01 MICROWAVE
1
INSTALLATION INSTRUCTIONS MAY W10221385 Contact Us For Availability
1
MAY W10319318 MAY W10319318 Contact Us For Availability
1
MAY 8304588BL MAY 8304588BL Contact Us For Availability
1
MAY W10350780 MAY W10350780 Contact Us For Availability
1
TRAY, COOK MAY 8205676 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH) MAY W10075750 Contact Us For Availability
1A
MAY W10319319 MAY W10319319 Contact Us For Availability
1B
USE AND CARE GUIDE (MICROWAVE) MAY W10221391 Contact Us For Availability
1B
MAY W10319320 MAY W10319320 Contact Us For Availability
1C
MAY W10213735 MAY W10213735 Contact Us For Availability
1D
MAY W10213736 MAY W10213736 Contact Us For Availability
1E
MAY 9762761 MAY 9762761 Contact Us For Availability
1F
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
BRACKET, LOWER (LEFT) MAY W10239156 Contact Us For Availability
2
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
2
CABLE, USER INTERFACE MAY W10175829 Contact Us For Availability
2
MAY W10130901 MAY W10130901 Contact Us For Availability
2
RING, TURNTABLE MAY 8205678 Contact Us For Availability
2A
BRACKET, LOWER (RIGHT) MAY W10239157 Contact Us For Availability
3
MAY W10283693 MAY W10283693 Contact Us For Availability
3
MAY W10316575 MAY W10316575 Contact Us For Availability
3
MAY W10288012 MAY W10288012 Contact Us For Availability
3
MAY W10120471 MAY W10120471 Contact Us For Availability
3
DRIVE, TURNTABLE MAY 8205677 Contact Us For Availability
4
MAY W10284663 MAY W10284663 Contact Us For Availability
4
MAY W10291274 MAY W10291274 Contact Us For Availability
4
MAY W10267047 MAY W10267047 Contact Us For Availability
4
MAY W10120223 MAY W10120223 Contact Us For Availability
4
PLATE, COVER MAY W10120230 Contact Us For Availability
5
SUPPLY, POWER MAY W10286791 Contact Us For Availability
5
MAY W10176199 MAY W10176199 Contact Us For Availability
5
MAY W10330573 MAY W10330573 Contact Us For Availability
5A
MAY W10281176 MAY W10281176 Contact Us For Availability
6
MAY W10239155 MAY W10239155 Contact Us For Availability
6
MAY W10314607 MAY W10314607 Contact Us For Availability
6
MAY W10287966 MAY W10287966 Contact Us For Availability
6
STEAMER MAY W10120484 Contact Us For Availability
7
GLASS ASSEMBLY (BLACK) MAY W10176200 Contact Us For Availability
7
CONTROL, ELECTRIC CONVERTER MAY W10120228 Contact Us For Availability
7
RACK, CONVECTION MAY 4452220 Contact Us For Availability
7A
GLASS ASSEMBLY (STAINLESS) MAY W10269421 Contact Us For Availability
7B
GLASS ASSEMBLY (OILED BRONZE) MAY W10269422 Contact Us For Availability
7C
GLASS ASSEMBLY (PRO-STYLE) MAY W10269423 Contact Us For Availability
8
MAY W10186755 MAY W10186755 Contact Us For Availability
8
MAY W10120486 MAY W10120486 Contact Us For Availability
8A
MAY W10186756 MAY W10186756 Contact Us For Availability
8B
MAY W10186757 MAY W10186757 Contact Us For Availability
9
HANDLE, DOOR (PRO-STYLE) MAY W10187014 Contact Us For Availability
9
MAY W10131249 MAY W10131249 Contact Us For Availability
9
RACK MAY W10120483 Contact Us For Availability
10
BADGE (BLACK) MAY W10190724 Contact Us For Availability
10
MAY 4375427 MAY 4375427 Contact Us For Availability
10
MAY W10120481 MAY W10120481 Contact Us For Availability
10A
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
10B
BADGE (OILED BRONZE) MAY W10214169 Contact Us For Availability
10C
BADGE (STAINLESS (PRO-STYLE MODELS)) MAY W10159578 Contact Us For Availability
11
MAY 4375321 MAY 4375321 Contact Us For Availability
11
HEATER, GRILL MAY W10120226 Contact Us For Availability
12
BLOCK, FUSE MAY 4375231 Contact Us For Availability
12
MAY W10288008 MAY W10288008 Contact Us For Availability
13
BRACKET, SUPPORT MAY W10130897 Contact Us For Availability
14
MAY W10287986 MAY W10287986 Contact Us For Availability
15
MAY W10120113 MAY W10120113 Contact Us For Availability
17
SPRING, LAMP MAY 4375319 Contact Us For Availability
18
MAY W10287974 MAY W10287974 Contact Us For Availability
19
LAMP, HALOGEN MAY W10287972 Contact Us For Availability
20
MAY W10287985 MAY W10287985 Contact Us For Availability
21
MAY W10330566 MAY W10330566 Contact Us For Availability
22
ASSEMBLY, INTERLOCK SWITCH MAY W10358241 Contact Us For Availability
23
MAY 4375320 MAY 4375320 Contact Us For Availability
24
MAY 4375318 MAY 4375318 Contact Us For Availability
25
CLIP, SPRING MAY W10120231 Contact Us For Availability
26
TRANSFORMER MAY 8205692 Contact Us For Availability
28
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
29
FAN, CONVECTION MAY 4375418 Contact Us For Availability
30
MAY W10287987 MAY W10287987 Contact Us For Availability
31
MAY W10330570 MAY W10330570 Contact Us For Availability
32
MAY 8205707 MAY 8205707 Contact Us For Availability
33
MAY W10120478 MAY W10120478 Contact Us For Availability
37
ASSEMBLY, BLOWER MAY W10330572 Contact Us For Availability
38
MAY W10120229 MAY W10120229 Contact Us For Availability
39
MAY W10130890 MAY W10130890 Contact Us For Availability
42
MAY W10120235 MAY W10120235 Contact Us For Availability
43
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
45
MAY 8205704 MAY 8205704 Contact Us For Availability
46
INSULATION, SIDE (NOT SERVICED) MAY N/P Contact Us For Availability
47
MAY 8205686 MAY 8205686 Contact Us For Availability
48
ARM, SLIDING MAY W10120236 Contact Us For Availability
49
MAY W10287988 MAY W10287988 Contact Us For Availability
50
MOTOR, CONVECTION MAY W10330571 Contact Us For Availability
51
HEATER, CONVECTION MAY W10120224 Contact Us For Availability
NI
MISCELLANEOUS PARTS, SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
MAY 7401P099-60 MAY 7401P099-60 Contact Us For Availability
NI
MISCELLANEOUS PARTS, CONDUIT MAY W10209041 Contact Us For Availability
NI
MAY W10277591 MAY W10277591 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, COMM SMPS MAY W10277650 Contact Us For Availability
NI
MISCELLANEOUS PARTS, MICROSWITCH (SDT-S-124LM MAY W10288001 Contact Us For Availability
NI
MISCELLANEOUS PARTS, MICROSWITCH (G5G-1A-PS 2 MAY W10288002 Contact Us For Availability
× ![]()
