Model Maytag JMC2430WS00 MICROWAVE – Common Parts & Diagrams

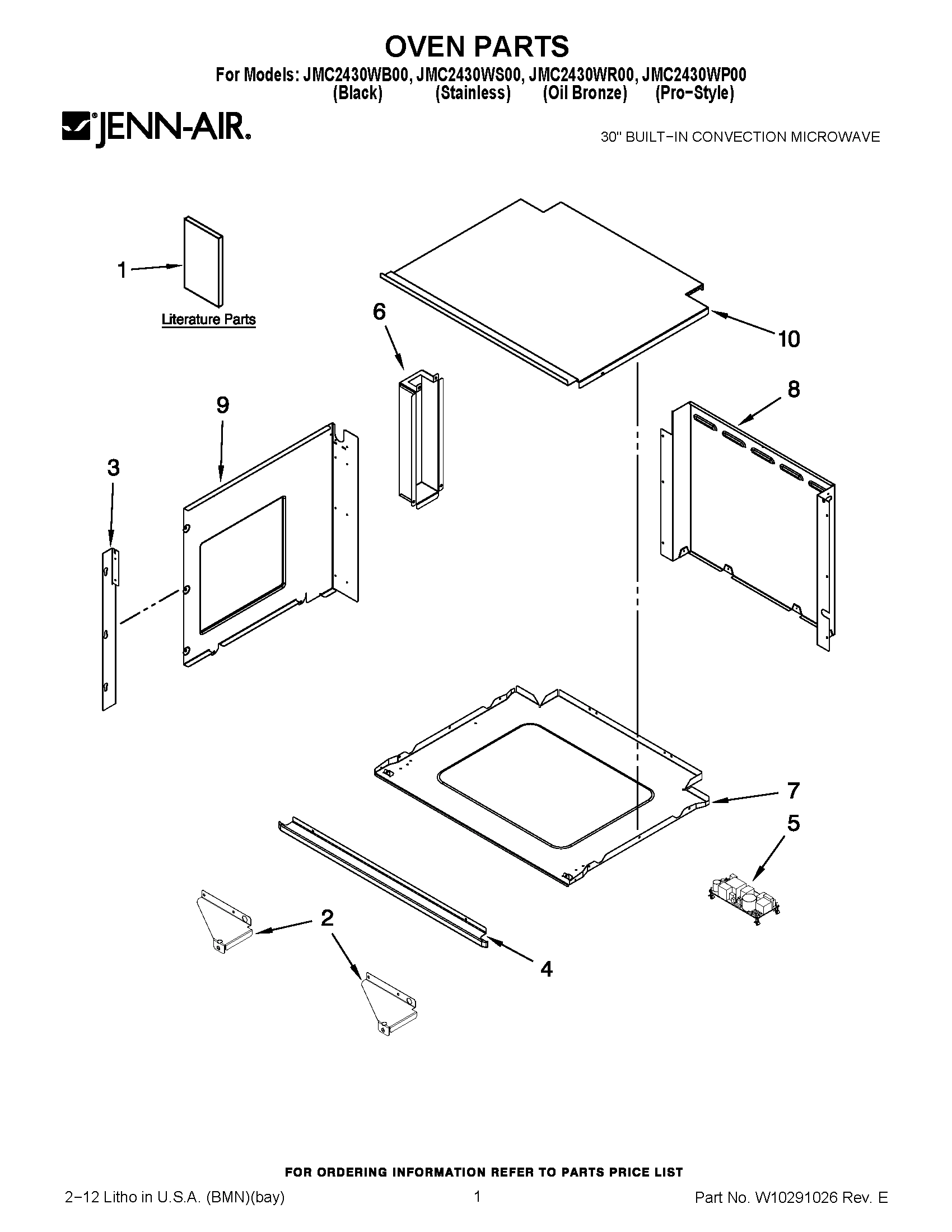

01 - OVEN PARTS
02 - CONTROL PANEL PARTS
03 - MICROWAVE DOOR PARTS
04 - CABINET AND STIRRER PARTS
05 - INTERNAL MICROWAVE PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag JMC2430WS00 MICROWAVE
1
MAY 8304375 MAY 8304375 Contact Us For Availability
1
Safer Cooking Tips (French) MAY 9759133 Contact Us For Availability
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS (BI-LINGUAL) MAY W10075750 Contact Us For Availability
1
MAY W10213735 MAY W10213735 Contact Us For Availability
1
MAY W10213736 MAY W10213736 Contact Us For Availability
1
MAY W10221385 MAY W10221385 Contact Us For Availability
1
MAY W10221391 MAY W10221391 Contact Us For Availability
1
MAY W10240000 MAY W10240000 Contact Us For Availability
1
PANEL, CONTROL (STAINLESS, PRO-STYLE) MAY W10240003 Contact Us For Availability
1
MAY W10240004 MAY W10240004 Contact Us For Availability
1
BUTTON, PLUG MAY 8304588BL Contact Us For Availability
1
MAY W10287989 MAY W10287989 Contact Us For Availability
1
TURNTALBLE MAY 8205676 Contact Us For Availability
2
BRACKET, LOWER (LEFT) MAY W10239156 Contact Us For Availability
2
BRACKET, LOWER (RIGHT) MAY W10239157 Contact Us For Availability
2
CABLE, UI MAY W10175829 Contact Us For Availability
2
MAY W10068250 MAY W10068250 Contact Us For Availability
2
MAY W10130901 MAY W10130901 Contact Us For Availability
2
MAY 8205678 MAY 8205678 Contact Us For Availability
3
MAY W10283693 MAY W10283693 Contact Us For Availability
3
UI, CORE MAY W10186901 Contact Us For Availability
3
MAY W10288012 MAY W10288012 Contact Us For Availability
3
MAY W10120471 MAY W10120471 Contact Us For Availability
3
DRIVE, TT MAY 8205677 Contact Us For Availability
4
MAY W10284663 MAY W10284663 Contact Us For Availability
4
MAY W10267047 MAY W10267047 Contact Us For Availability
4
MAY W10120223 MAY W10120223 Contact Us For Availability
4
COVER, PLATES MAY W10120230 Contact Us For Availability
5
CONTROL, POWER MICROWAVE, UI MAY W10176142 Contact Us For Availability
5
BRACKET, HANDLE MAY W10176199 Contact Us For Availability
5
MAY W10281176 MAY W10281176 Contact Us For Availability
5
PLATE, CRISP MAY W10120480 Contact Us For Availability
6
MAY W10239155 MAY W10239155 Contact Us For Availability
6
FOAM, BRACKET MAY W10213722 Contact Us For Availability
6
FOAM, BRACKET (PRO-STYLE) MAY W10277597 Contact Us For Availability
6
MAY W10287966 MAY W10287966 Contact Us For Availability
6
STEAMER MAY W10120484 Contact Us For Availability
7
MAY W10176200 MAY W10176200 Contact Us For Availability
7
MAY W10269421 MAY W10269421 Contact Us For Availability
7
MAY W10269422 MAY W10269422 Contact Us For Availability
7
MAY W10269423 MAY W10269423 Contact Us For Availability
7
CONTROL, ELECTRIC CONVERTER MAY W10120228 Contact Us For Availability
7
RACK, CONVECTION MAY 4452220 Contact Us For Availability
8
MAY W10186755 MAY W10186755 Contact Us For Availability
8
MAY W10186756 MAY W10186756 Contact Us For Availability
8
HANDLE, DOOR (OIL BRONZE) MAY W10186757 Contact Us For Availability
8
MAY W10120486 MAY W10120486 Contact Us For Availability
9
PRO-STYLE MAY W10187014 Contact Us For Availability
9
MAY W10131249 MAY W10131249 Contact Us For Availability
9
RACK MAY W10120483 Contact Us For Availability
10
BADGE (PRO-STYLE) MAY W10159578 Contact Us For Availability
10
BADGE (BLACK) MAY W10190724 Contact Us For Availability
10
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
10
BADGE (OIL BRONZE) MAY W10214169 Contact Us For Availability
10
ACTUATOR MAY 4375427 Contact Us For Availability
10
MAY W10120481 MAY W10120481 Contact Us For Availability
11
MAY 4375321 MAY 4375321 Contact Us For Availability
11
HEATER, GRILL MAY W10120226 Contact Us For Availability
12
BLOCK, FUSE MAY 4375231 Contact Us For Availability
12
SUPPORT, GRILL MAY W10288008 Contact Us For Availability
13
BRACKET, SUPPORT MAY W10130897 Contact Us For Availability
14
MAY W10287986 MAY W10287986 Contact Us For Availability
15
MAY W10120113 MAY W10120113 Contact Us For Availability
17
SPRING, LAMP MAY 4375319 Contact Us For Availability
18
MAY W10287974 MAY W10287974 Contact Us For Availability
19
MAY W10287972 MAY W10287972 Contact Us For Availability
20
MAY W10287985 MAY W10287985 Contact Us For Availability
21
MAY 4375346 MAY 4375346 Contact Us For Availability
22
ASM-INTERLOCK (INCLUDES HARNESS) MAY W10358241 Contact Us For Availability
23
MAY 4375320 MAY 4375320 Contact Us For Availability
24
MAY 4375318 MAY 4375318 Contact Us For Availability
25
CLIP, SPRING MAY W10120231 Contact Us For Availability
28
ASSEMBLY, ARM MAY W10128850 Contact Us For Availability
32
SUPPORT MAY 8205707 Contact Us For Availability
33
MAY W10120478 MAY W10120478 Contact Us For Availability
37
MAY W10330572 MAY W10330572 Contact Us For Availability
38
MAY W10120229 MAY W10120229 Contact Us For Availability
39
MAY W10130890 MAY W10130890 Contact Us For Availability
42
MAY W10120235 MAY W10120235 Contact Us For Availability
43
INTERLOCK MAY 8205683 Contact Us For Availability
45
SPRING MAY 8205704 Contact Us For Availability
46
NOT SERVICED MAY N/P Contact Us For Availability
47
MAY 8205686 MAY 8205686 Contact Us For Availability
48
ARM MAY W10120236 Contact Us For Availability
49
MAY W10287988 MAY W10287988 Contact Us For Availability
50
MOTOR, CONVECTION MAY W10287967 Contact Us For Availability
51
HEATER, CONVECTION MAY W10120224 Contact Us For Availability
52
MAY W10287987 MAY W10287987 Contact Us For Availability
53
FAN, CONVECTION MAY 4375418 Contact Us For Availability
54
TRANSFORMER, LIGHT MAY 8205692 Contact Us For Availability
NI
MAY 4450800 MAY 4450800 Contact Us For Availability
NI
CONDUIT MAY W10209041 Contact Us For Availability
NI
MAY W10209053 MAY W10209053 Contact Us For Availability
NI
RELAY OEG MAY W10288001 Contact Us For Availability
NI
RELAY OMRON MAY W10288002 Contact Us For Availability
× ![]()
