  • Whirlpool JMC2430LL01

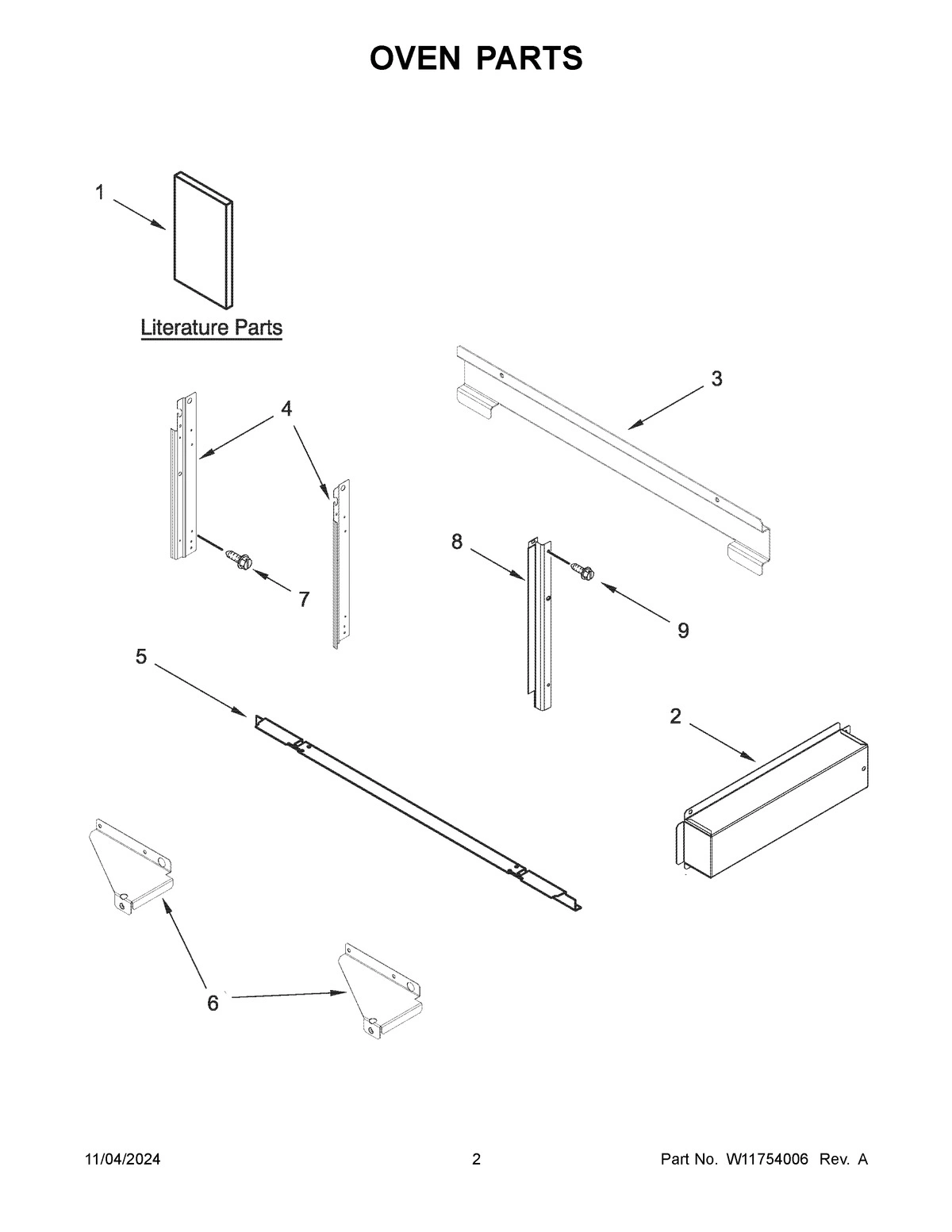

Model Whirlpool JMC2430LL01 MICROWAVE – Common Parts & Diagrams

1
CAP, SCREW
CAP, SCREW WPL 8304588BL Contact Us For Availability
View on Model
2
BOX, CONDUIT
BOX, CONDUIT WPL W10239155 Contact Us For Availability
View on Model
2
RACK, HIGH CONVECTION
RACK, HIGH CONVECTION WPL W10748280 Contact Us For Availability
View on Model
3
HOUSING
HOUSING WPL W10668510 Contact Us For Availability
View on Model
4
FOAM, DOOR HANDLE
FOAM, DOOR HANDLE WPL W10359769 Contact Us For Availability
View on Model
4
HARNESS, KEYPAD (LEFT TO CENTER)
HARNESS, KEYPAD (LEFT TO CENTER) WPL W10566973 Contact Us For Availability
View on Model
6
BRACKET, LOWER (LEFT)
BRACKET, LOWER (LEFT) WPL W10239156 Contact Us For Availability
View on Model
6A
BRACKET, LOWER (RIGHT)
BRACKET, LOWER (RIGHT) WPL W10239157 Contact Us For Availability
View on Model
7
JUMPER HARNESS, POWER SUPPLY
JUMPER HARNESS, POWER SUPPLY WPL W10575307 Contact Us For Availability
View on Model
8
SPACER, HANDLE
SPACER, HANDLE WPL W10650497 Contact Us For Availability
View on Model
8A
TRIM, SIDE (RIGHT)
TRIM, SIDE (RIGHT) WPL 461967017481 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 461967825321 Contact Us For Availability
View on Model
11
THERMOACTUATOR
THERMOACTUATOR WPL 461967842541 Contact Us For Availability
View on Model
16
SPRING, LAMP
SPRING, LAMP WPL W10465869 Contact Us For Availability
View on Model
19
VENT, TOP MICROWAVE
VENT, TOP MICROWAVE WPL W11334716 Contact Us For Availability
View on Model
22
REFLECTOR
REFLECTOR WPL 423107022541 Contact Us For Availability
View on Model
24
CLIP, SPRING
CLIP, SPRING WPL W11440819 Contact Us For Availability
View on Model
28
HINGE, DOOR
HINGE, DOOR WPL W11681074 Contact Us For Availability
View on Model
32
SEALING, LAMP
SEALING, LAMP WPL W10769147 Contact Us For Availability
View on Model
40
DUCT, MAGNETRON
DUCT, MAGNETRON WPL 461967754821 Contact Us For Availability
View on Model
42
HOUSING, LOWER INVERTER
HOUSING, LOWER INVERTER WPL W11591018 Contact Us For Availability
View on Model
43
HOUSING, UPPER INVERTER
HOUSING, UPPER INVERTER WPL W11591019 Contact Us For Availability
View on Model
45
SCREW
SCREW WPL 461967825601 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (WHITE)
PAINT, SPRAY (WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (CITRINE WHITE)
PAINT, SPRAY (CITRINE WHITE) WPL 261900 Contact Us For Availability
