Model Maytag JMC2430DS02 MICROWAVE, BUILT-IN, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - OVEN PARTS

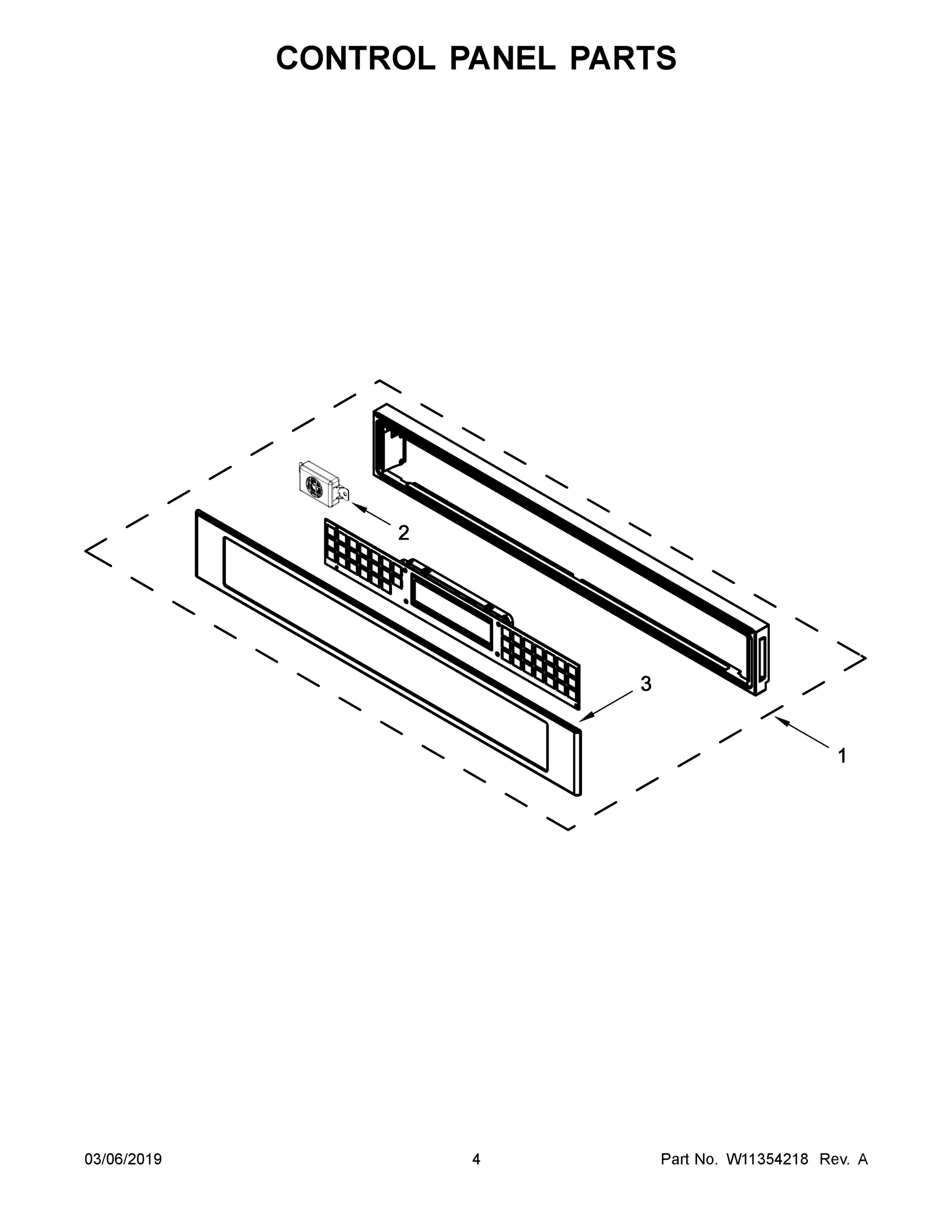

03 - CONTROL PANEL PARTS

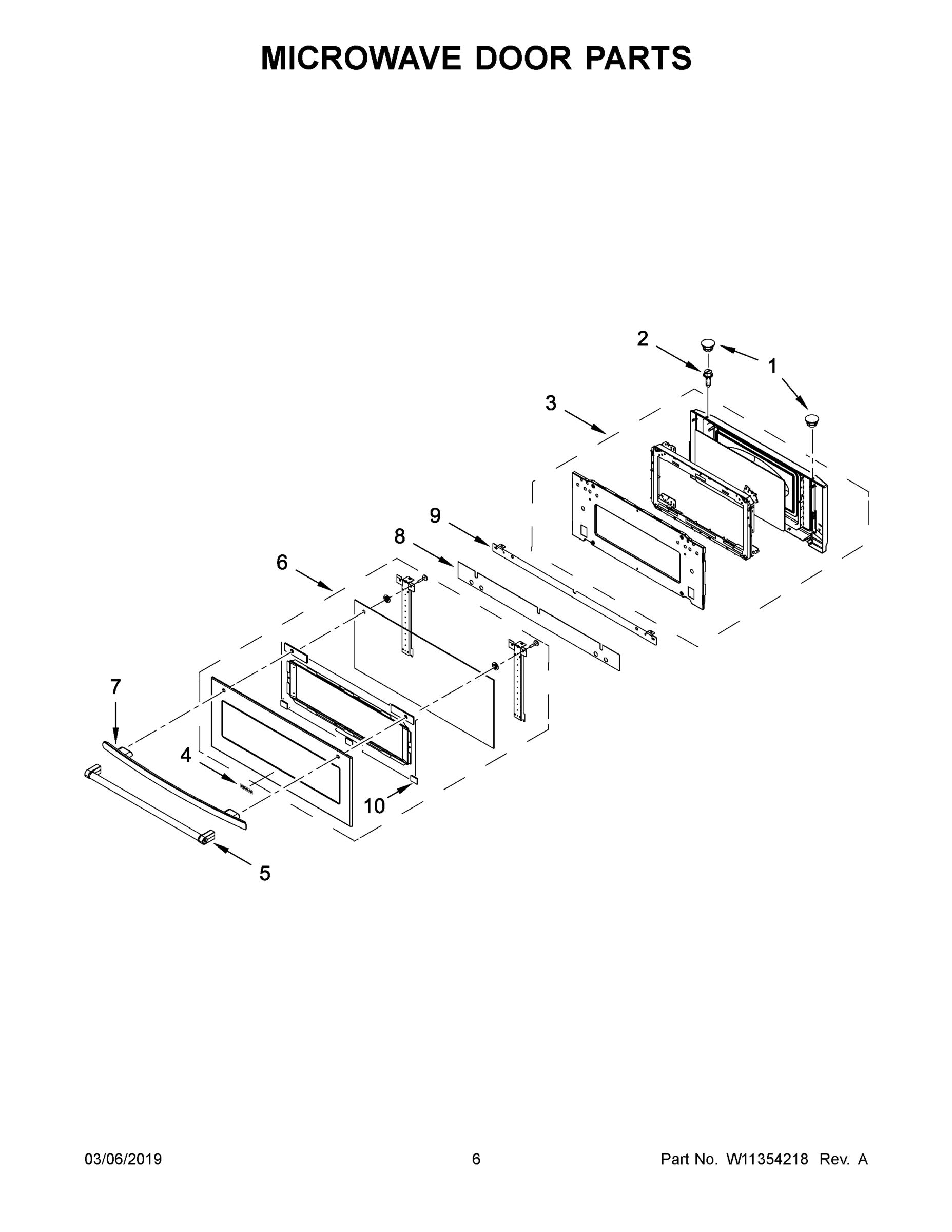

04 - MICROWAVE DOOR PARTS

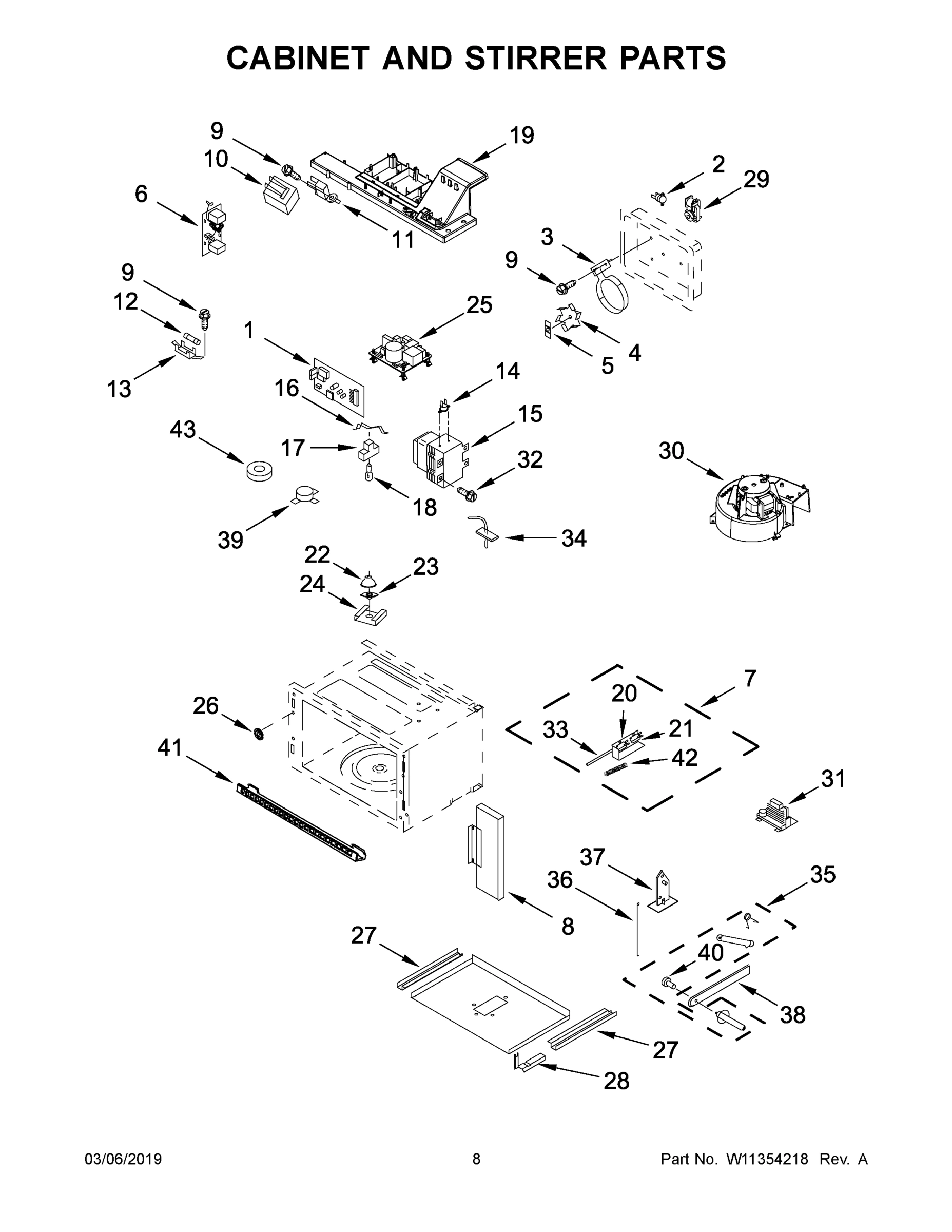

05 - CABINET AND STIRRER PARTS

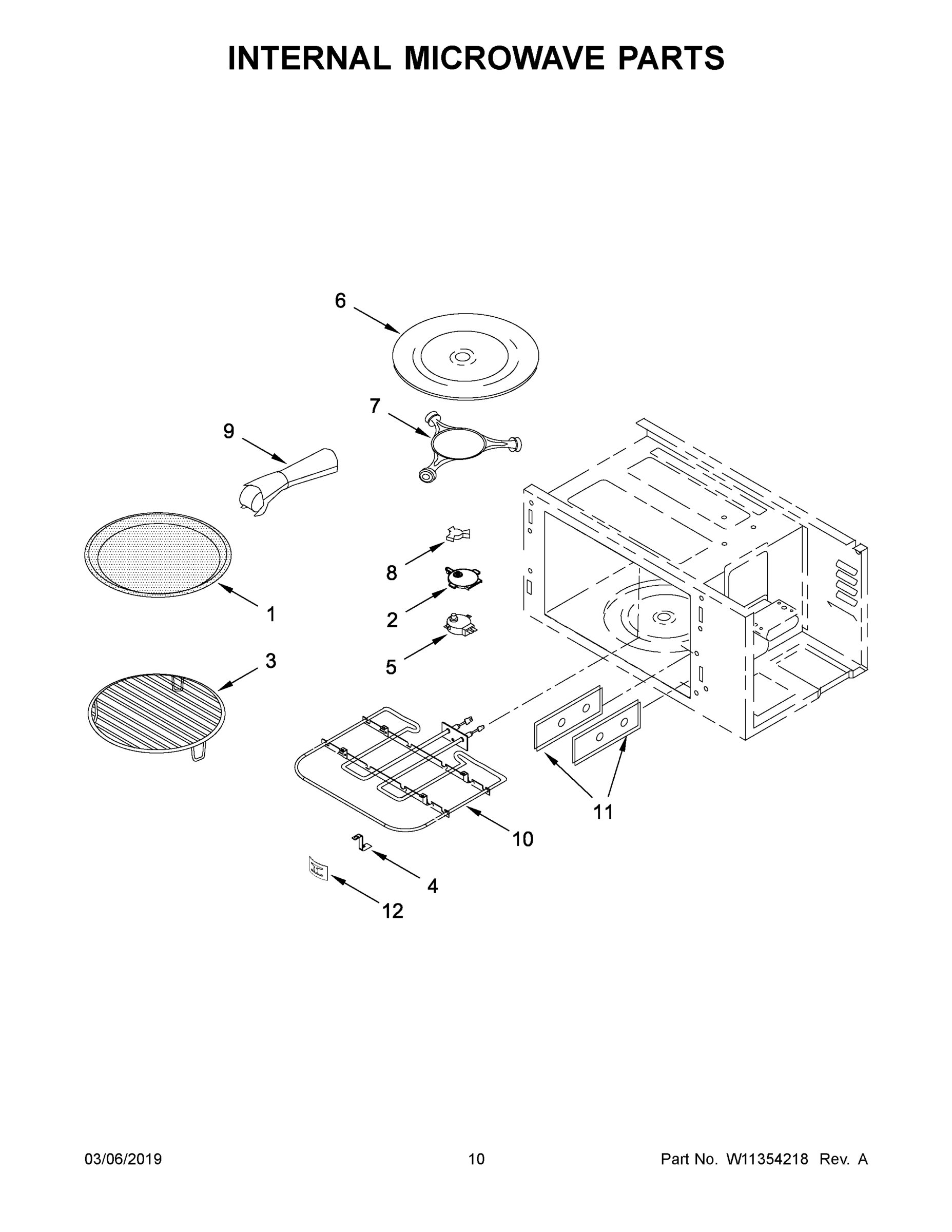

06 - INTERNAL MICROWAVE PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag JMC2430DS02 MICROWAVE, BUILT-IN, 30 INCH
1
INSTRUCTIONS, INSTALLATION (ENGLISH/FRENCH) MAY W10075750 Contact Us For Availability
1
MAY W10855926 MAY W10855926 Contact Us For Availability
1
CAP, SCREW MAY 8304588BL Contact Us For Availability
1
MAY W11289988 MAY W11289988 Contact Us For Availability
1
PLATE, CRISP MAY 461968977491 Contact Us For Availability
1A
GUIDE, USE & CARE (MICROWAVE) MAY W10754339 Contact Us For Availability
1A
MAY W10855930 MAY W10855930 Contact Us For Availability
1B
SHEET, TECH MAY W10767739 Contact Us For Availability
2
BOX, CONDUIT MAY W10239155 Contact Us For Availability
2
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
2
SCREW MAY 7101P338-60 Contact Us For Availability
2
SENSOR, CONVECTION MAY 423107845441 Contact Us For Availability
2
ADAPTER, TURNTABLE MOTOR MAY 461967753742 Contact Us For Availability
3
SUPPORT, MICROWAVE MODULE MAY W10420960 Contact Us For Availability
3
SKIN, CONTROL PANEL (STAINLESS & PRO-STYLE ON MAY W10444132 Contact Us For Availability
3
ASSEMBLY, INNER DOOR MAY W10687342 Contact Us For Availability
3
HEATER, CONVECTION ELEMENT MAY 461967848711 Contact Us For Availability
3
RACK, LOW CONVECTION MAY W10748279 Contact Us For Availability
3A
RACK, HIGH CONVECTION MAY W10748280 Contact Us For Availability
4
RAIL, SIDE (LEFT) MAY W10416256 Contact Us For Availability
4
BADGE (BLACK) MAY W10190724 Contact Us For Availability
4
FAN, CONVECTION MAY 461967001792 Contact Us For Availability
4
SUPPORT, ELEMENT MAY 461967753871 Contact Us For Availability
4A
RAIL, SIDE (RIGHT) MAY W10416255 Contact Us For Availability
4A
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
4B
BADGE (STAINLESS (PRO-STYLE MODELS)) MAY W10159578 Contact Us For Availability
5
TRIM, BOTTOM (BLACK) MAY W10767439 Contact Us For Availability
5
ASSEMBLY, DOOR HANDLE (STAINLESS (PRO-STYLE M MAY W10483386 Contact Us For Availability
5
NUT, SPEED MAY W10120233 Contact Us For Availability
5
MOTOR, TURNTABLE MAY 461967848971 Contact Us For Availability
5A
TRIM, BOTTOM (STAINLESS) MAY W10420958 Contact Us For Availability
6
BRACKET, LOWER (LEFT) MAY W10239156 Contact Us For Availability
6
ASSEMBLY, OUTER DOOR (BLACK) MAY W10527390 Contact Us For Availability
6
FILTER, NOISE MAY W10692851 Contact Us For Availability
6
TURNTABLE MAY 461967721091 Contact Us For Availability
6A
BRACKET, LOWER (RIGHT) MAY W10239157 Contact Us For Availability
6A
ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10457801 Contact Us For Availability
7
SCREW (BLACK) MAY 3400832 Contact Us For Availability
7
ASSEMBLY, DOOR HANDLE (BLACK) MAY W10550998 Contact Us For Availability
7
ASSEMBLY, INTERLOCK SWITCH MAY W10358241 Contact Us For Availability
7
RING, TURNTABLE MAY W10367316 Contact Us For Availability
7A
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10551013 Contact Us For Availability
8
SCREW MAY 7101P426-60 Contact Us For Availability
8
FOAM, DOOR HANDLE MAY W10359769 Contact Us For Availability
8
TRIM, SIDE (LEFT) MAY 461967017491 Contact Us For Availability
8
DRIVE, TURNTABLE MAY W10545578 Contact Us For Availability
8A
TRIM, SIDE (RIGHT) MAY 461967017481 Contact Us For Availability
9
COVER, 30" COMPLIMENT MAY W10444127 Contact Us For Availability
9
BRACKET, BALANCING DOOR (BLACK MODEL ONLY) MAY W10407600 Contact Us For Availability
9
SCREW MAY 461967825321 Contact Us For Availability
9
HANDLE, PAN MAY 461968929542 Contact Us For Availability
10
SPACER, VENT (STAINLESS & PRO-STYLE ONLY) MAY W10517428 Contact Us For Availability
10
TRANSFORMER, LIGHT (20V) MAY 461967848621 Contact Us For Availability
10
ELEMENT, GRILL MAY W10387651 Contact Us For Availability
11
THERMOACTUATOR MAY 461967842541 Contact Us For Availability
11
PLATE, COVER MAY 461967451001 Contact Us For Availability
12
FUSE MAY 241908600053 Contact Us For Availability
12
SUPPORT, SPRING LOCK GRILL MAY 252262898008 Contact Us For Availability
13
BLOCK, FUSE MAY 4375231 Contact Us For Availability
14
THERMOSTAT, MAGNETRON MAY 461967846741 Contact Us For Availability
15
MAY W11226473 MAY W11226473 Contact Us For Availability
16
SPRING, LAMP MAY W10465869 Contact Us For Availability
17
HOLDER, LAMP MAY W10490593 Contact Us For Availability
18
LAMP, HALOGEN MAY W10795595 Contact Us For Availability
19
DUCT, MAGNETRON MAY 461967754821 Contact Us For Availability
20
SWITCH MAY W10330566 Contact Us For Availability
21
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
22
REFLECTOR MAY 423107022541 Contact Us For Availability
23
LENS, LAMP MAY 423107720491 Contact Us For Availability
24
CLIP, SPRING MAY 461967010591 Contact Us For Availability
25
BOARD, POWER SUPPLY MAY W10260060 Contact Us For Availability
26
GROMMET, FRONT FRAME MAY W10283016 Contact Us For Availability
27
SUPPORT, BOTTOM MAY 461967008461 Contact Us For Availability
28
HINGE, DOOR MAY 461968979601 Contact Us For Availability
29
MOTOR, CONVECTION FAN MAY 461967848251 Contact Us For Availability
30
MAY W11131760 MAY W11131760 Contact Us For Availability
31
MAY W11237240 MAY W11237240 Contact Us For Availability
32
SCREW MAY 461967825971 Contact Us For Availability
33
ROD, RELEASE MAY W10120235 Contact Us For Availability
34
SENSOR, TERMPERATURE MAY 241960100002 Contact Us For Availability
35
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
36
SPRING, TORSION MAY 461967570351 Contact Us For Availability
37
SUPPORT MAY 461967750494 Contact Us For Availability
38
ARM, SLIDING MAY 461967750483 Contact Us For Availability
39
SENSOR, HUMIDITY MAY W10460457 Contact Us For Availability
40
BUSHING MAY 461967510191 Contact Us For Availability
41
VENT, TOP MICROWAVE MAY 461968973241 Contact Us For Availability
42
SPRING, RELEASE ROD MAY 423107570871 Contact Us For Availability
43
SEALING, LAMP MAY W10769147 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CONDUIT MAY W10209041 Contact Us For Availability
NI
STRAP, GROUND MAY W10392129 Contact Us For Availability
NI
BAG, HARDWARE MAY W10513362 Contact Us For Availability
NI
HARNESS, COMMUNICATION MAY W10524303 Contact Us For Availability
NI
HARNESS, INTERLOCK MAY W10720308 Contact Us For Availability
NI
HARNESS, FAN & TURNTABLE MAY W10874059 Contact Us For Availability
NI
HARNESS, INVERTER MAY W10874060 Contact Us For Availability
NI
HARNESS, CABLE TREE ASSEMBLY MAY W10889134 Contact Us For Availability
NI
MAY W11198503 MAY W11198503 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CORD BROWN) MAY 261869 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) MAY 261900 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 830864 Contact Us For Availability
× ![]()
