Model Maytag JMC2427IM03 MICROWAVE, BUILT-IN, 27 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - OVEN PARTS

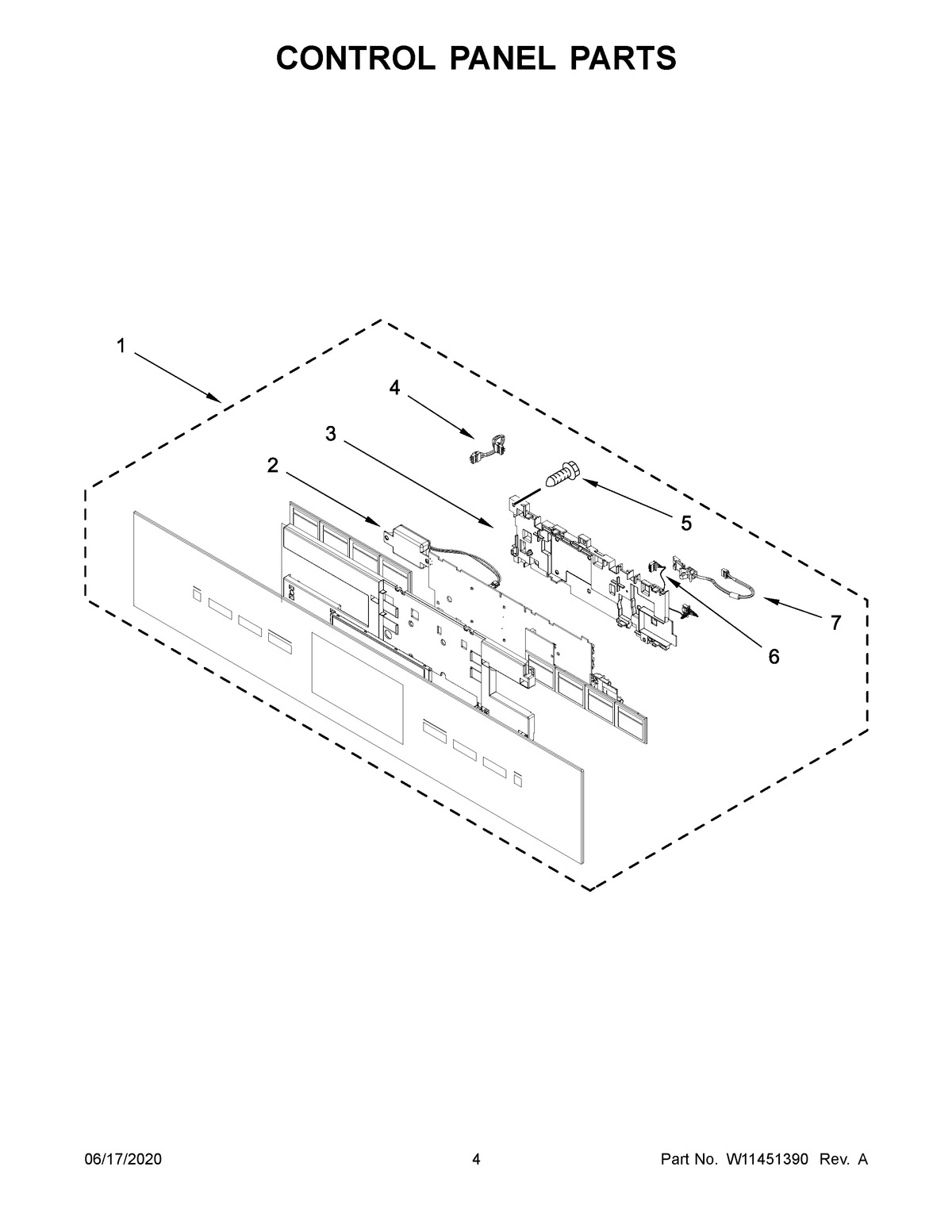

03 - CONTROL PANEL PARTS

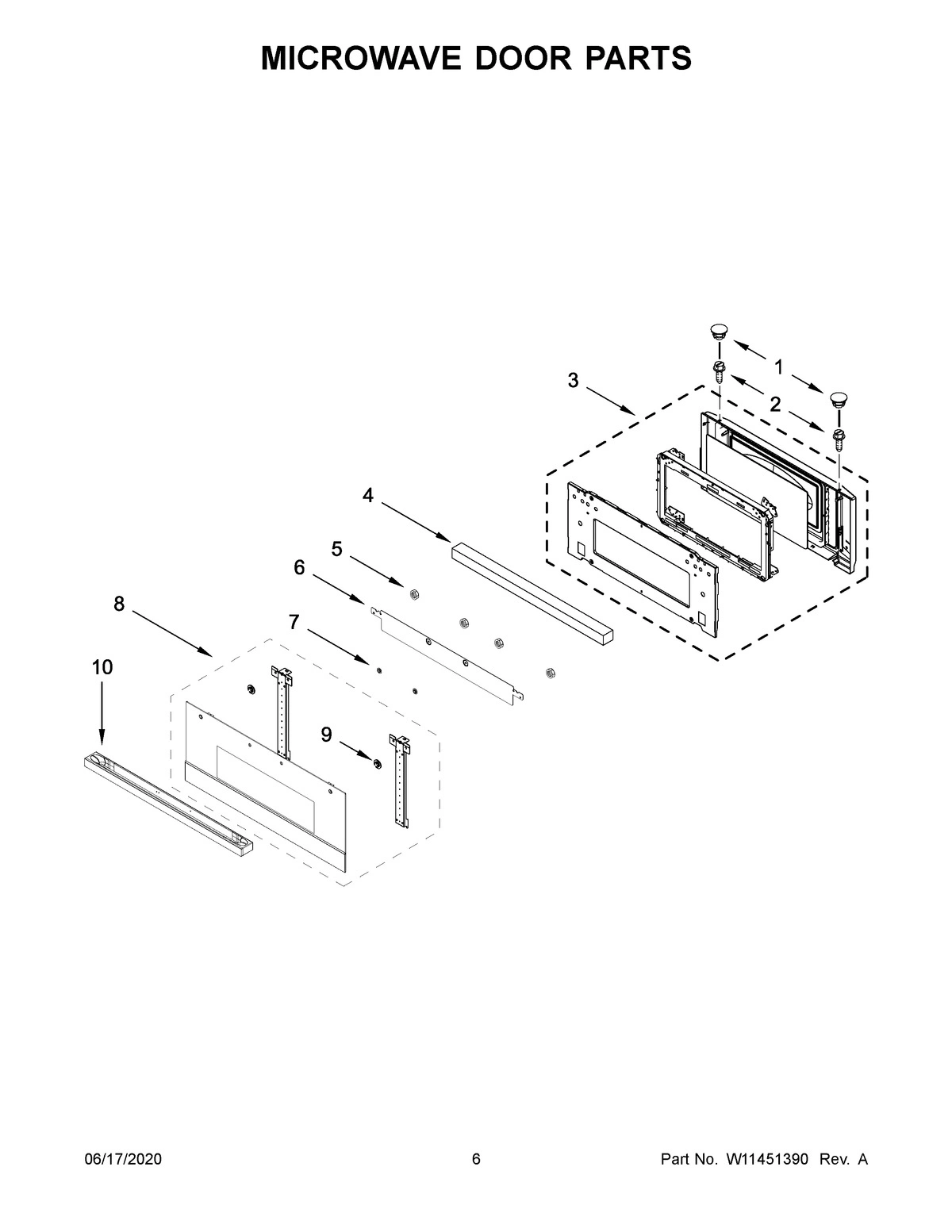

04 - MICROWAVE DOOR PARTS

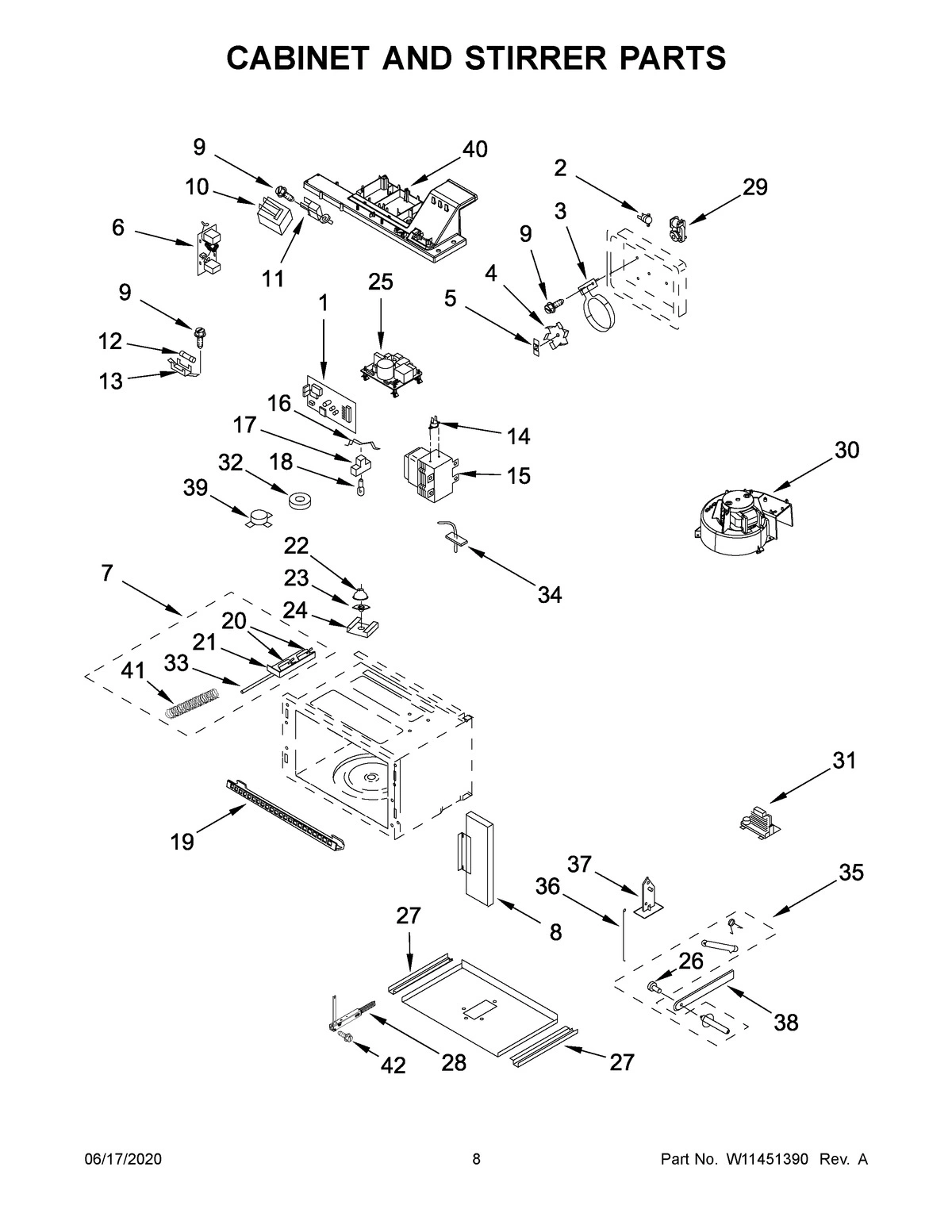

05 - CABINET AND STIRRER PARTS

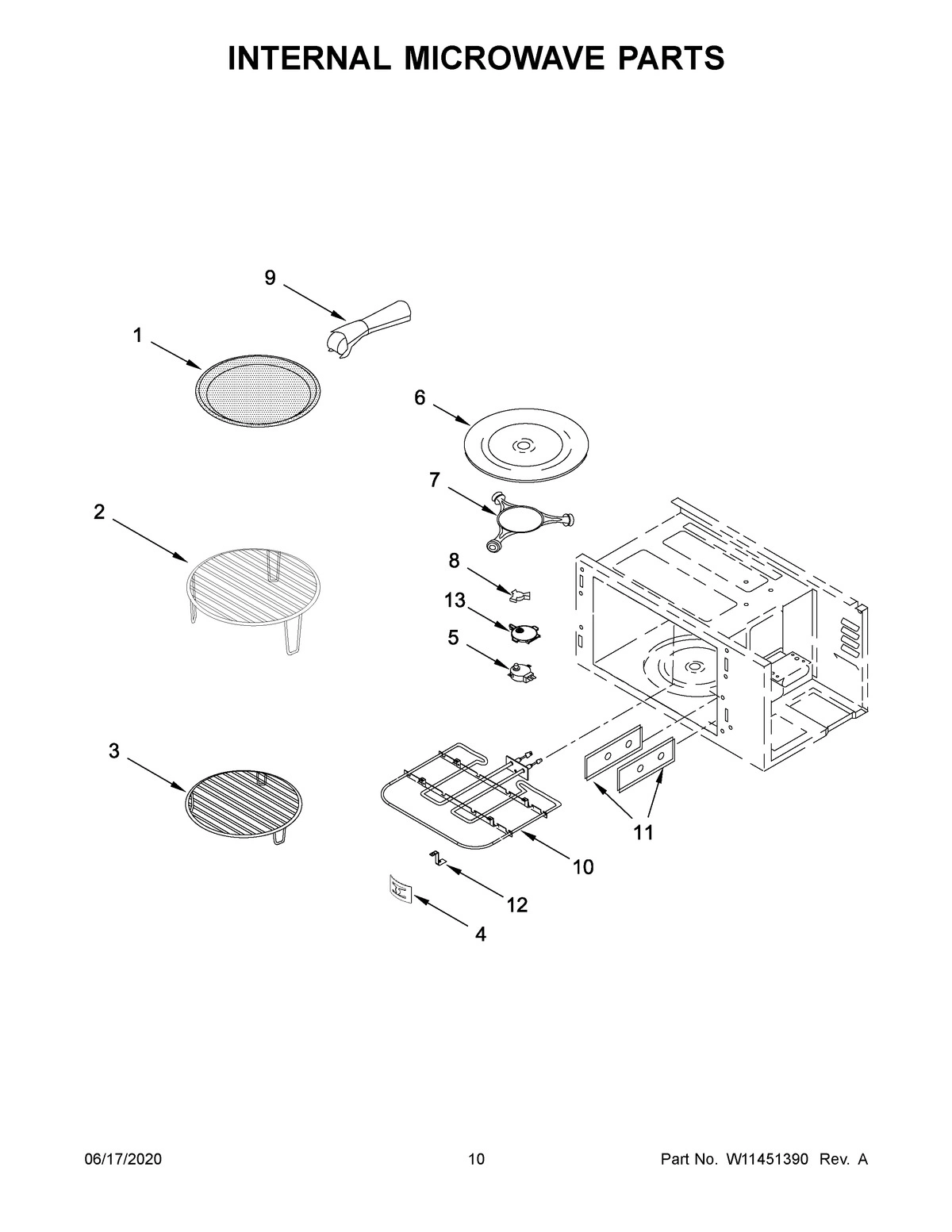

06 - INTERNAL MICROWAVE PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JMC2427IM03 MICROWAVE, BUILT-IN, 27 INCH
1
INSTRUCTIONS, INSTALLATION MAY W11235626 Contact Us For Availability
1
MAY W11429019 MAY W11429019 Contact Us For Availability
1
CAP, SCREW MAY 8304588BL Contact Us For Availability
1
MANAGER, MICROWAVE APPLIANCE MAY W11289988 Contact Us For Availability
1
PLATE, CRISP MAY 461968977491 Contact Us For Availability
1A
GUIDE, USE AND CARE (MICROWAVE OVEN) MAY W11235346 Contact Us For Availability
1B
SHEET, TECH MAY W11284428 Contact Us For Availability
1C
DIAGRAM, WIRING MAY W11235305 Contact Us For Availability
2
BOX, CONDUIT MAY W10239155 Contact Us For Availability
2
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
2
SCREW MAY 7101P338-60 Contact Us For Availability
2
SENSOR, CONVECTION MAY 423107845441 Contact Us For Availability
2
RACK, HIGH CONVECTION MAY W10748280 Contact Us For Availability
3
SUPPORT, MICROWAVE MODULE MAY W10420960 Contact Us For Availability
3
HOUSING MAY W10668510 Contact Us For Availability
3
ASSEMBLY, INNER DOOR MAY W10737653 Contact Us For Availability
3
HEATER, CONVECTION ELEMENT MAY 461967848711 Contact Us For Availability
3
RACK, LOW CONVECTION MAY W10748279 Contact Us For Availability
4
RAIL, SIDE (LEFT) MAY W10416256 Contact Us For Availability
4
HARNESS, KEYPAD (LEFT TO CENTER) MAY W10566973 Contact Us For Availability
4
FOAM, DOOR HANDLE MAY W10359769 Contact Us For Availability
4
FAN, CONVECTION MAY 461967001792 Contact Us For Availability
4
SUPPORT, SPRING LOCK GRILL MAY 252262898008 Contact Us For Availability
4A
RAIL, SIDE (RIGHT) MAY W10416255 Contact Us For Availability
5
MAY W11359266 MAY W11359266 Contact Us For Availability
5
SCREW MAY W10489172 Contact Us For Availability
5
NUT MAY 488130 Contact Us For Availability
5
NUT, SPEED MAY W10120233 Contact Us For Availability
5
MOTOR, TURNTABLE MAY 461967848971 Contact Us For Availability
6
BRACKET, LOWER (LEFT) MAY W10239158 Contact Us For Availability
6
HARNESS, KEYPAD (RIGHT TO CENTER) MAY W10524350 Contact Us For Availability
6
BRACKET, MWO BALANCING MAY W11316564 Contact Us For Availability
6
FILTER, NOISE MAY W10692851 Contact Us For Availability
6
TURNTABLE MAY W11340343 Contact Us For Availability
6A
BRACKET, LOWER (RIGHT) MAY W10239159 Contact Us For Availability
7
SCREW (BLACK) MAY 3400832 Contact Us For Availability
7
JUMPER HARNESS, POWER SUPPLY MAY W10575307 Contact Us For Availability
7
SPACER, HANDLE MAY W11132942 Contact Us For Availability
7
ASSEMBLY, INTERLOCK SWITCH MAY W10358241 Contact Us For Availability
7
RING, TURNTABLE MAY W10367316 Contact Us For Availability
8
SCREW MAY 7101P426-60 Contact Us For Availability
8
ASSEMBLY, OUTER DOOR (BLACK GLASS WITH STAINL MAY W11199655 Contact Us For Availability
8
TRIM, SIDE (LEFT) MAY 461967017511 Contact Us For Availability
8
DRIVE, TURNTABLE MAY W10545578 Contact Us For Availability
8A
TRIM, SIDE (RIGHT) MAY W11044584 Contact Us For Availability
9
WASHER, DOOR MAY W10319024 Contact Us For Availability
9
SCREW MAY 461967825321 Contact Us For Availability
9
HANDLE, PAN MAY 461968929542 Contact Us For Availability
10
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W11250936 Contact Us For Availability
10
TRANSFORMER, LIGHT (20V) MAY 461967848621 Contact Us For Availability
10
ELEMENT, GRILL MAY W10387651 Contact Us For Availability
11
THERMOACTUATOR MAY 461967842541 Contact Us For Availability
11
PLATE, COVER MAY 461967451001 Contact Us For Availability
12
FUSE MAY 241908600053 Contact Us For Availability
12
SUPPORT, ELEMENT MAY 461967753871 Contact Us For Availability
13
BLOCK, FUSE MAY 4375231 Contact Us For Availability
13
ADAPTER, TURNTABLE MOTOR MAY 461967753742 Contact Us For Availability
14
THERMOSTAT, MAGNETRON MAY 461967846741 Contact Us For Availability
15
MAGNETRON MAY W11226473 Contact Us For Availability
16
SPRING, LAMP MAY W10465869 Contact Us For Availability
17
HOLDER, LAMP MAY W10490593 Contact Us For Availability
18
LAMP, HALOGEN MAY W10795595 Contact Us For Availability
19
VENT, TOP MAY 461968973251 Contact Us For Availability
20
SWITCH MAY 461967848881 Contact Us For Availability
21
HOLDER, SWITCH MAY W10876593 Contact Us For Availability
22
REFLECTOR MAY 423107022541 Contact Us For Availability
23
LENS, LAMP MAY 423107720491 Contact Us For Availability
24
CLIP, SPRING MAY 461967010591 Contact Us For Availability
25
BOARD, POWER SUPPLY MAY W10260060 Contact Us For Availability
26
BUSHING MAY 461967510191 Contact Us For Availability
27
SUPPORT, BOTTOM MAY 461967008461 Contact Us For Availability
28
HINGE, DOOR MAY W11256757 Contact Us For Availability
29
MOTOR, CONVECTION FAN MAY 461967848251 Contact Us For Availability
30
ASSEMBLY, COOLING FAN MAY W11131760 Contact Us For Availability
31
INVERTER MAY W11237240 Contact Us For Availability
32
SEALING, LAMP MAY W10769147 Contact Us For Availability
33
ROD, PUSH MAY 461967750464 Contact Us For Availability
34
SENSOR, TERMPERATURE MAY 241960100002 Contact Us For Availability
35
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
36
SPRING, TORSION MAY 461967570351 Contact Us For Availability
37
SUPPORT MAY 461967750494 Contact Us For Availability
38
ARM, SLIDING MAY 461967750483 Contact Us For Availability
39
SENSOR, HUMIDITY MAY W10460457 Contact Us For Availability
40
DUCT, MAGNETRON MAY 461967754821 Contact Us For Availability
41
SPRING, RELEASE ROD MAY 423107570871 Contact Us For Availability
42
SCREW (SHOULDER) MAY 461967825781 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
BAG, HARDWARE MAY W10513362 Contact Us For Availability
NI
STRAP, GROUND MAY W11226264 Contact Us For Availability
NI
HARNESS, FAN AND TURNTABLE MAY W11356954 Contact Us For Availability
NI
HARNESS, INVERTER MAY W11356968 Contact Us For Availability
NI
HARNESS, INTERLOCK MAY W11356969 Contact Us For Availability
NI
HARNESS, CABLE TREE ASSEMBLY MAY W11356977 Contact Us For Availability
NI
HARNESS, COMMUNICATION MAY W11356986 Contact Us For Availability
NI
JUMPER HARNESS, COMMUNICATION MAY W11356987 Contact Us For Availability
NI
CONDUIT MAY W11356992 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CORD BROWN) MAY 261869 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) MAY 261900 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 830864 Contact Us For Availability
× ![]()
